3-22 — AIR CONTROL PARTS (#30033) — 93 parça

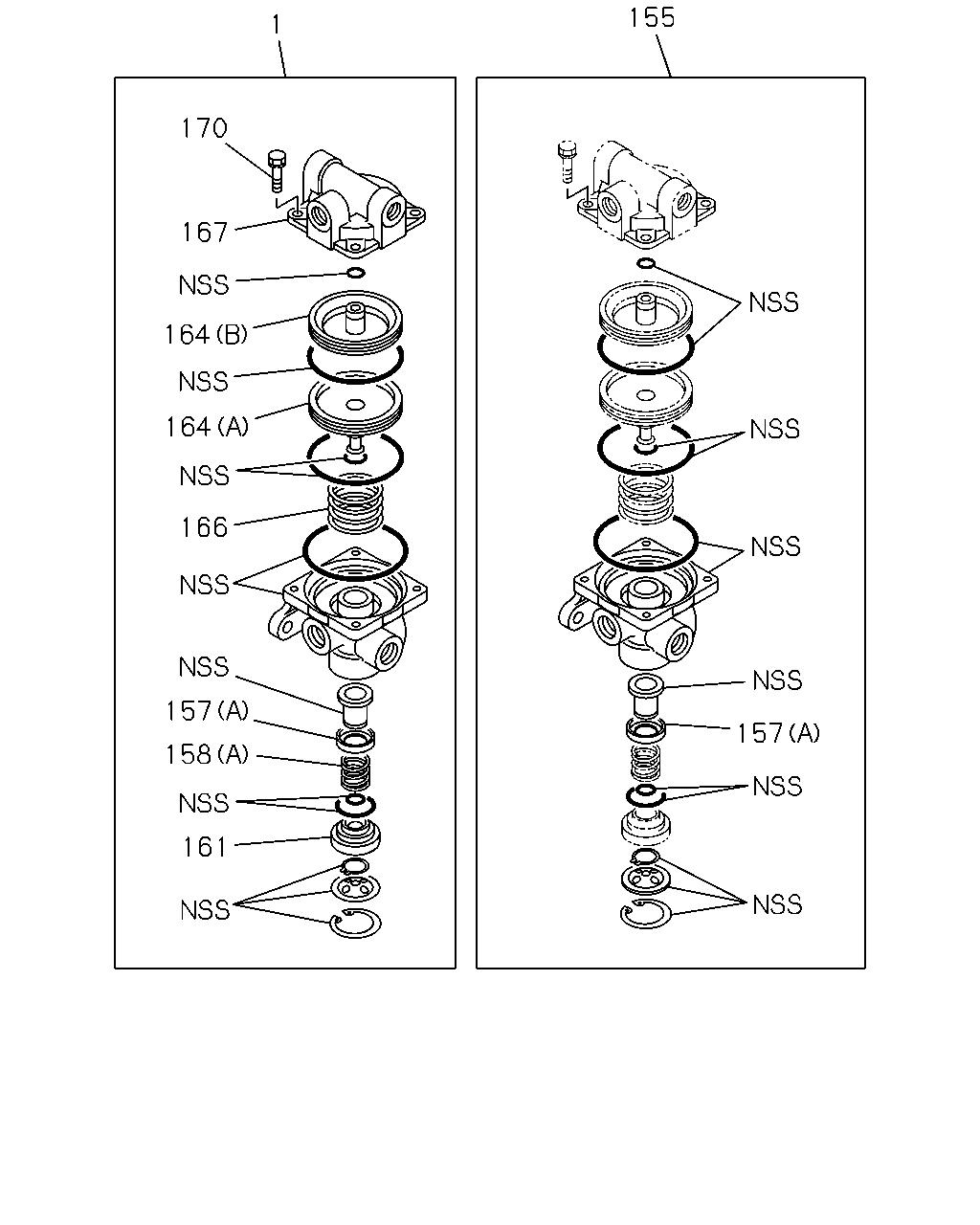

çizim 87484
155 1 170 167 164 164 166 157 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0407-
155 REPAIR KIT; RELAY VALVE 1-85576-035-0 01 1 0407-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0407-
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0407-1008
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0407-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0407-
161 GUIDE; VALVE 1-48129-014-0 01 1 0407-
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0407-
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0407-
166 SPRING; PISTON 1-48219-048-0 01 1 0407-
167 COVER; VALVE 1-48219-050-1 01 1 0407-
170 SCREW; COVER TO BODY 1-48219-041-0 04 1 0407-

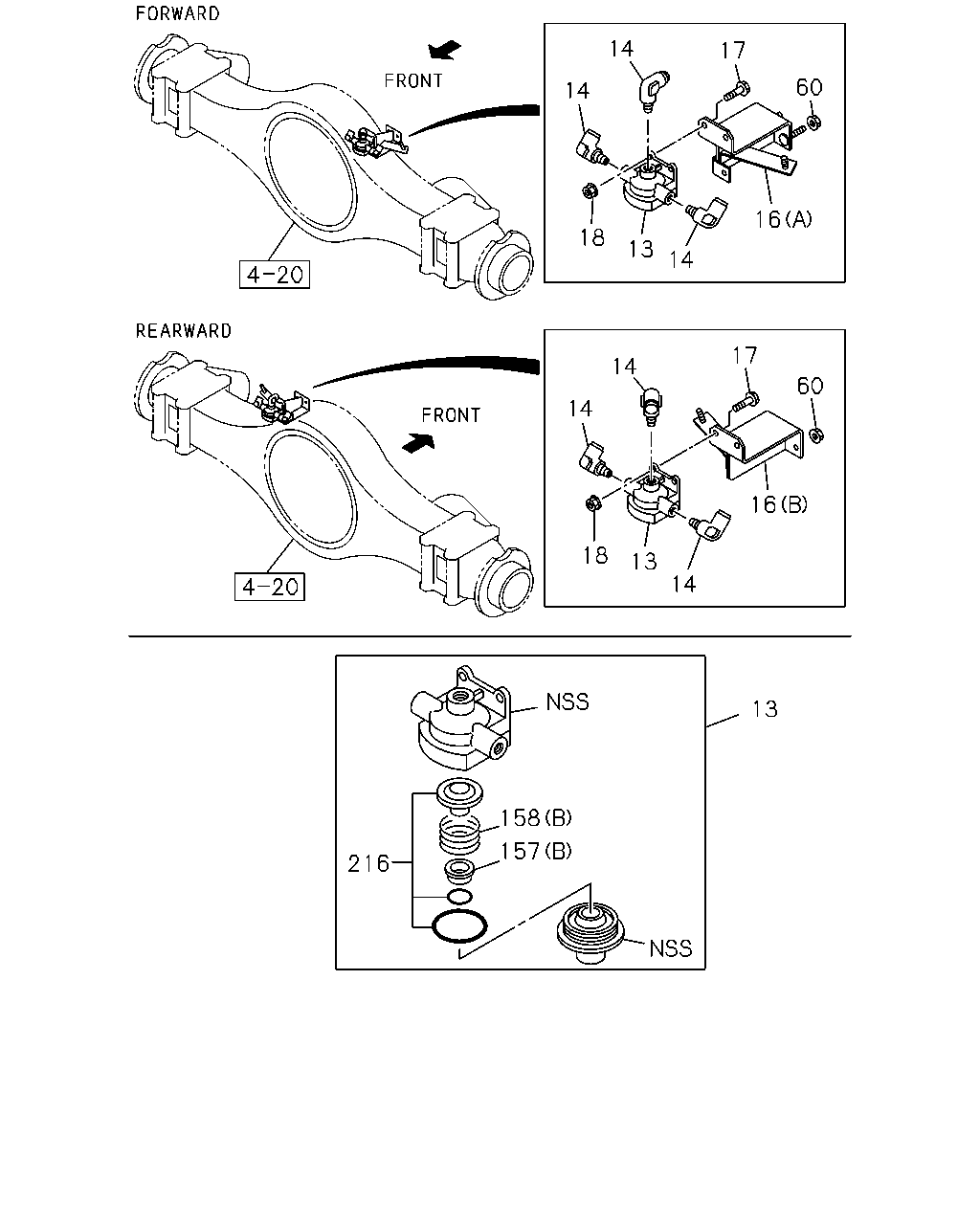

çizim 87973
14 17 60 14 16 18 13 14 17 14 60 14 16 18 13 14 13 158 157 216
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE 1-48410-657-0 02 1 0407-1008
13 VALVE ASM; QUICK RELEASE 8-98170-205-0 02 1 1009-
14 CONNECTOR; RELAY VLV
DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 0407-
16 BRACKET; VLV,PARKING BRK
(A) 		1-47479-939-0 01 1 0407-
16 BRACKET; VLV,PARKING BRK
(B) 		1-47479-940-0 01 1 0407-
17 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0407-0512
17 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
18 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0407-0602
18 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
60 NUT; RELEASE VALVE FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
60 NUT; RELEASE VALVE FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0407-
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0407-1008
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0407-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0407-
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 02 1 0407-1008
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 02 1 1009-

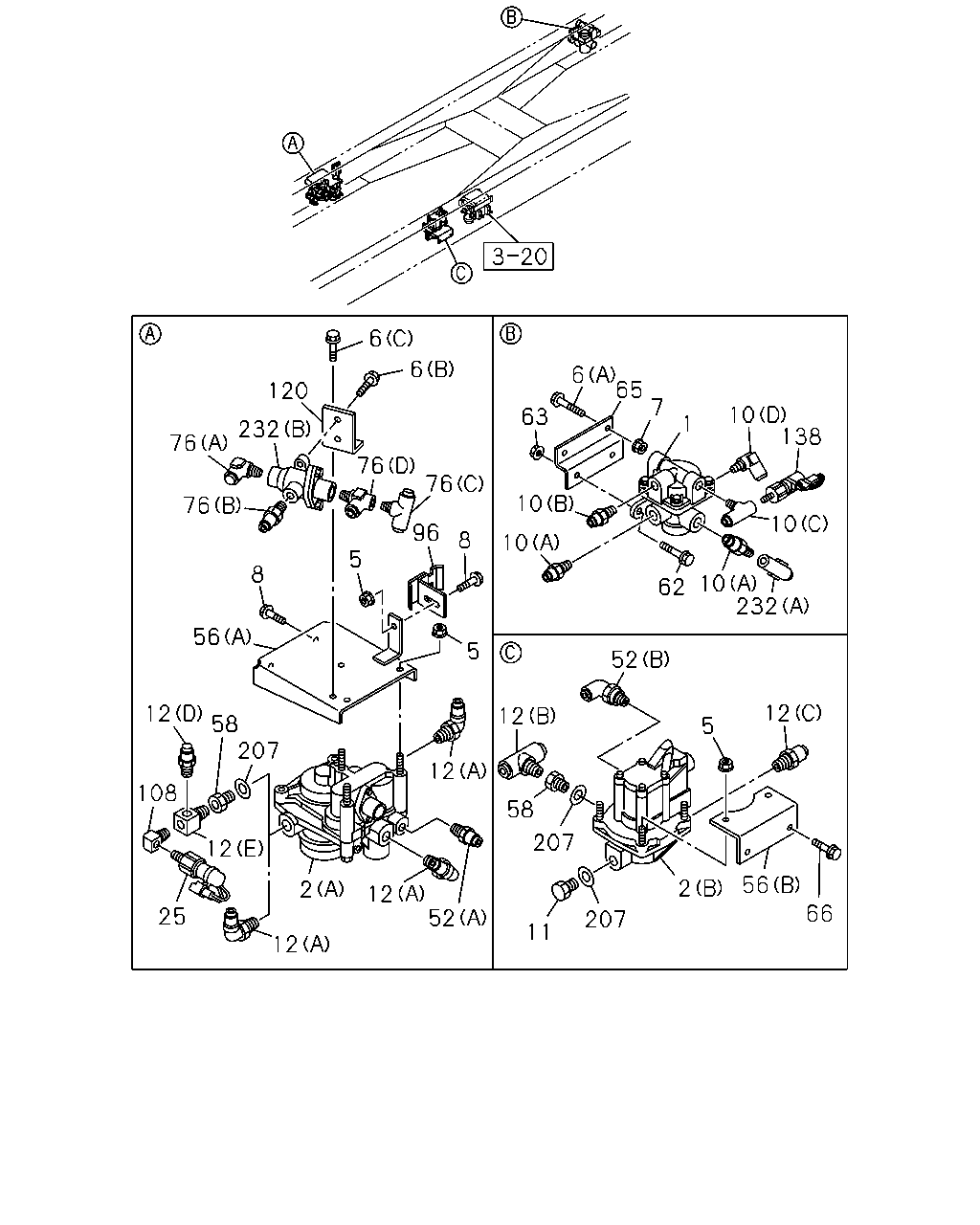

çizim 105277
6 6 6 65 7 120 10 138 63 1 232 76 76 76 10 76 10 96 8 10 5 10 232 8 62 56 5 52 12 12 58 207 12 5 12 108 58 207 12 56 2 2 12 52 66 25 207 11 12
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0407-
2 VALVE; RELAY
(A) 		1-48240-245-1 01 1 0407-
2 VALVE; RELAY
(B) 		1-48240-246-0 01 1 0407-
5 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
5 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
5 NUT
M8 FLANGE 		0-91150-108-0 04 1 0407-0602
5 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
6 BOLT; VLV
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X12 FLANGE 		0-28050-812-0 02 1 0610-
6 BOLT; VLV
(B) M8X14 FLANGE 		0-28080-814-0 02 1 0407-0609
6 BOLT; VLV
SMOOTHER-G(C1W) (B) M8X14 FLANGE 		0-28080-814-0 02 1 0610-
6 BOLT; VLV
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
6 BOLT; VLV
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
6 BOLT; VLV
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
7 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0603-
8 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512
8 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
8 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0407-0512
8 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
10 CONNECTOR
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0407-
10 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0407-
10 CONNECTOR
(C) 		1-09661-537-0 01 1 0407-0704
10 CONNECTOR
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0705-
11 PLUG
M22X12 		1-09604-035-0 01 1 0407-
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0512-
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (E) PT3/8 3WAY 		1-09661-300-0 01 1 0512-
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (A) DIN12 & M22 ELBOW 		1-09661-497-0 02 1 0512-
12 CONNECTOR; RELAY VLV
(B) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0407-
12 CONNECTOR; RELAY VLV
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0407-
12 CONNECTOR; RELAY VLV
(A) DIN12 & M22 ELBOW 		1-09661-497-0 03 1 0407-0511
12 CONNECTOR; RELAY VLV
TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN12 & M22 ELBOW 		1-09661-497-0 03 1 0512-
25 SWITCH; PRESSURE
SMOOTHER-G(C1W) 		8-97383-820-1 01 1 0512-
52 CONNECTOR; RELAY VLV
(A) DIN8 & M16 STRAIGHT 		1-09661-530-0 01 1 0407-
52 CONNECTOR; RELAY VLV
(B) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0407-
56 BRACKET; RELAY VLV
(B) 		1-47479-270-0 01 1 0407-
56 BRACKET; RELAY VLV
(A) 		1-48495-246-0 01 1 0407-
58 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0407-0511
58 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0512-
58 ADAPTER
SMOOTHER-G(C1W) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0512-
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28681-035-0 02 1 0407-0512
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0407-0602
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0603-
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0407-
66 BOLT; BRKT,RELAY VLV RR
M10X30 FLANGE 		0-28681-030-0 02 1 0407-0512
66 BOLT; BRKT,RELAY VLV RR
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
76 CONNECTOR; CONT VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
76 CONNECTOR; CONT VLV
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0407-
76 CONNECTOR; CONT VLV
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0407-
76 CONNECTOR; CONT VLV
(D) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 0407-
96 BRACKET 1-47479-693-0 01 1 0407-
108 CONNECTOR; ELBOW
SMOOTHER-G(C1W) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512-
120 BRACKET; VLV 1-47479-362-0 01 1 0407-
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0407-
207 GASKET; ADAPTER
SMOOTHER-G(C1W) ID=22.5 		9-09571-422-0 01 1 0512-
207 GASKET; ADAPTER
ID=22.5 		9-09571-422-0 02 1 0407-
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 0407-
232 VALVE; CHECK
(B) 		1-48410-531-1 01 1 0407-
