Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#30032) — 244 parça

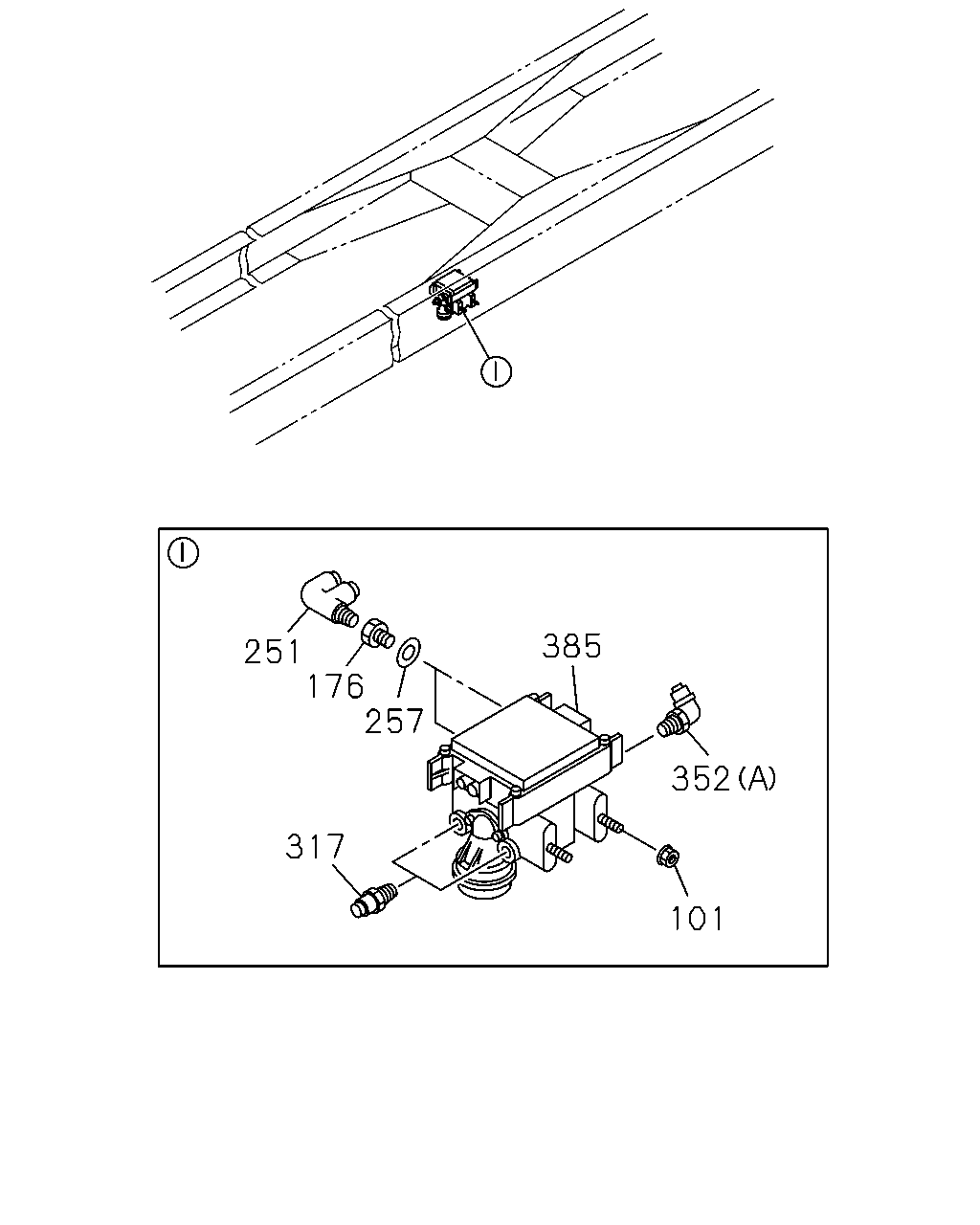

385 251 176 257 352 317 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	NUT; MODULATOR M8 FLANGE	0-91150-108-0	02	1	0407-0602
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0603-
101	NUT; MODULATOR M8 FLANGE	0-91150-108-0	03	1	0407-0602
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	03	1	0603-
101	NUT; MODULATOR M12 FLANGE	0-91150-212-0	02	1	0407-0602
101	NUT; MODULATOR M12 FLANGE	0-91180-212-0	02	1	0603-
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0407-
251	CONNECTOR; DELIVERY DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0407-
257	GASKET; PLUG ID=22.5	9-09571-422-0	02	1	0407-
317	CONNECTOR; MODULATOR DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0407-
352	CONNECTOR; STRAIGHT SMOOTHER-G(C1W) (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0512-
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0407-
385	MODULATOR	1-48240-247-0	01	1	0407-

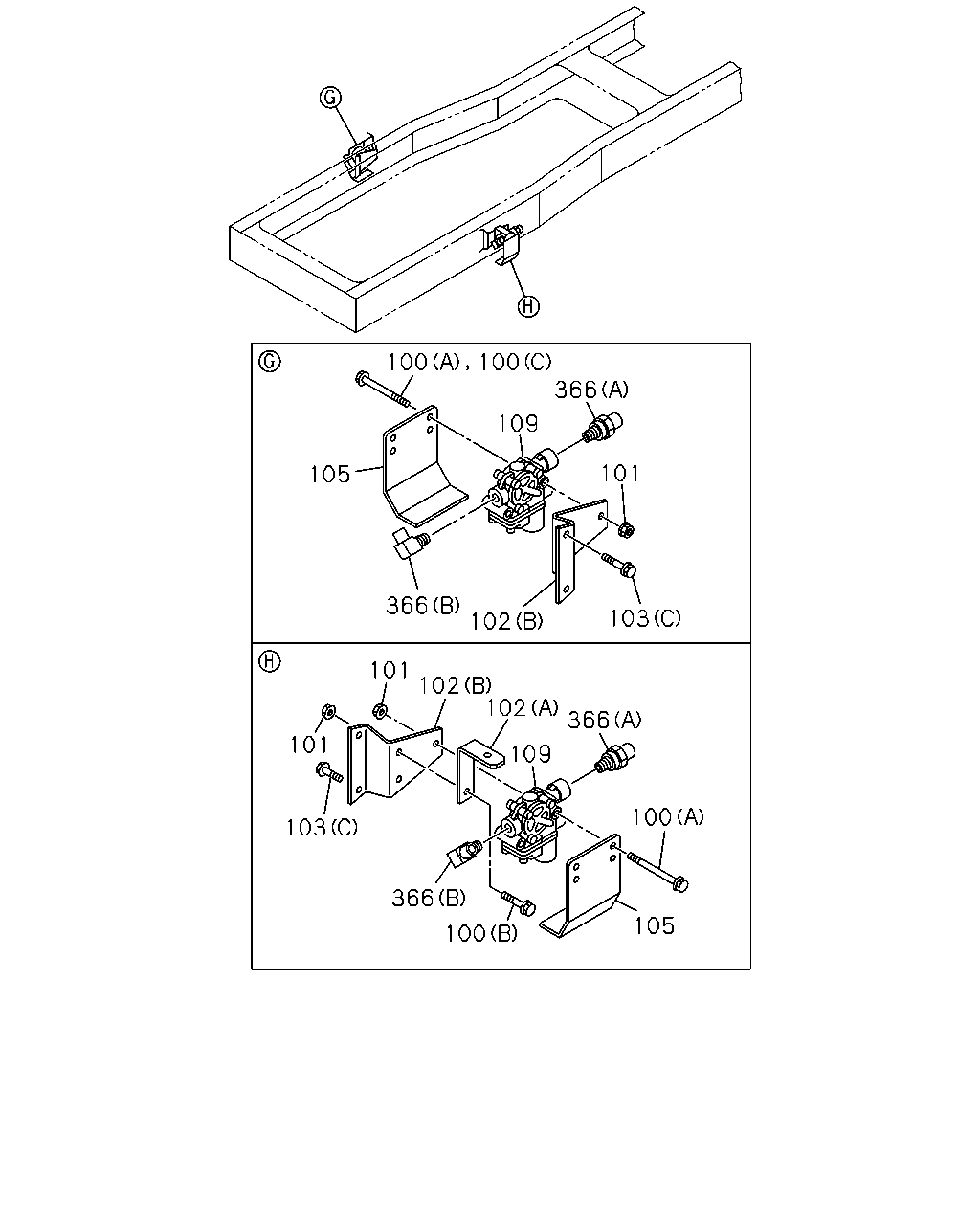

100 100 366 109 101 105 366 103 102 101 102 102 366 101 109 100 103 366 105 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR (B) M8X25 FLANGE	0-28680-825-0	01	1	0407-0512
100	BOLT; MODULATOR (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
100	BOLT; MODULATOR (A) M8X35 FLANGE	0-28680-835-0	02	1	0407-0512
100	BOLT; MODULATOR (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28080-880-0	02	1	0407-0512
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28080-880-0	02	1	0407-0512
100	BOLT; MODULATOR (C) M8X80 FLANGE	0-28050-880-0	02	1	0601-
100	BOLT; MODULATOR (C) M8X80 FLANGE	0-28050-880-0	02	1	0601-
101	NUT; MODULATOR M8 FLANGE	0-91150-108-0	02	1	0407-0602
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0603-
101	NUT; MODULATOR M8 FLANGE	0-91150-108-0	03	1	0407-0602
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	03	1	0603-
101	NUT; MODULATOR M12 FLANGE	0-91150-212-0	02	1	0407-0602
101	NUT; MODULATOR M12 FLANGE	0-91180-212-0	02	1	0603-
102	BRACKET; MODULATOR (B)	1-47479-550-0	02	1	0407-0511
102	BRACKET; MODULATOR (B)	1-47479-550-0	01	1	0512-
102	BRACKET; MODULATOR (B)	1-47479-550-0	01	1	0512-
102	BRACKET; MODULATOR (A)	1-47479-787-0	01	1	0407-
103	BOLT; BRKT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) M14X35	0-20801-435-0	04	1	0512-0512
103	BOLT; BRKT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) M14X35	0-20851-435-0	04	1	0601-
103	BOLT; BRKT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M10X30 FLANGE	0-28681-030-0	04	1	0512-0512
103	BOLT; BRKT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-
103	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0407-0512
103	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	0601-
105	COVER; MODULATOR	1-47479-434-1	01	1	0407-
105	COVER; MODULATOR	1-47479-434-1	01	1	0407-
109	MODULATOR; FRT	1-48240-083-1	02	1	0407-
366	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0407-
366	CONNECTOR; NYLON TUBE (B)	1-09661-575-0	02	1	0407-

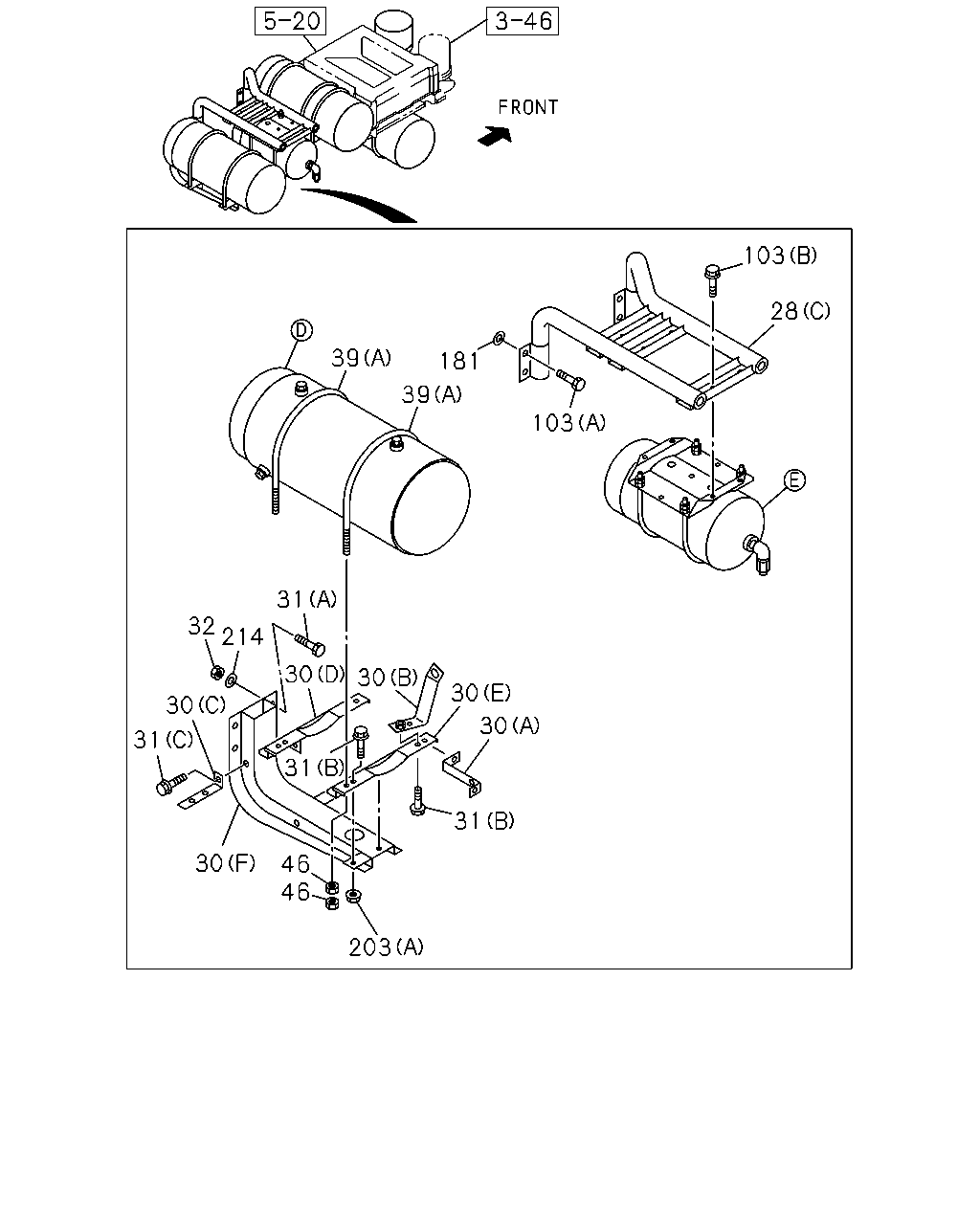

103 28 39 181 39 103 31 32 214 30 30 30 30 30 31 31 31 30 46 46 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BRACKET; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-48317-473-2	01	1	0512-
28	BRACKET; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (C)	1-48317-985-1	01	1	0512-
28	BRACKET; AIR TANK (B)	1-47479-675-1	01	1	0407-
30	BRACKET; AIR TANK,SUB (A)	1-33659-142-0	01	1	0407-
30	BRACKET; AIR TANK,SUB (B)	1-48316-014-1	01	1	0407-
30	BRACKET; AIR TANK,SUB (D)	1-48316-026-0	01	1	0407-
30	BRACKET; AIR TANK,SUB (F)	1-48317-979-6	01	1	0407-
30	BRACKET; AIR TANK,SUB (E)	1-48317-994-2	01	1	0407-
30	BRACKET; AIR TANK,SUB (C)	1-82699-208-1	01	1	0407-0511
31	BOLT; BRKT TO FRAME (A) M14X50	0-20801-450-0	04	1	0407-0512
31	BOLT; BRKT TO FRAME (A) M14X50	0-20851-450-0	04	1	0601-
31	BOLT; BRKT TO FRAME (C) M8X25 FLANGE	0-28680-825-0	01	1	0407-0512
31	BOLT; BRKT TO FRAME (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-
31	BOLT; BRKT TO FRAME (B) M12X25 FLANGE	0-28681-225-0	04	1	0407-0512
31	BOLT; BRKT TO FRAME (B) M12X25 FLANGE	0-28651-225-0	04	1	0601-
32	NUT; BRKT TO FRAME M14	9-99110-514-0	03	1	0512-0512
32	NUT; BRKT TO FRAME M14	0-91110-514-0	03	1	0601-0703
32	NUT; BRKT TO FRAME M14	0-91110-514-0	02	1	0704-
32	NUT; BRKT TO FRAME M14	9-99110-514-0	02	1	0407-0512
32	NUT; BRKT TO FRAME M14	0-91110-514-0	02	1	0601-0703
32	NUT; BRKT TO FRAME M14	0-91110-514-0	03	1	0704-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	02	1	0407-0511
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	06	1	0512-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0407-0511
39	U-BOLT; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) L=210	1-48317-458-1	02	1	0512-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0407-0511
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0512-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	16	1	0407-0511
46	NUT; U-BOLT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8	9-09110-408-0	08	1	0512-0512
46	NUT; U-BOLT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8	0-91110-508-0	08	1	0601-
103	BOLT; BRKT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) M14X35	0-20801-435-0	04	1	0512-0512
103	BOLT; BRKT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) M14X35	0-20851-435-0	04	1	0601-
103	BOLT; BRKT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M10X30 FLANGE	0-28681-030-0	04	1	0512-0512
103	BOLT; BRKT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-
103	BOLT; BRKT (C) M8X35 FLANGE	0-28680-835-0	02	1	0407-0512
103	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	0601-
181	WASHER; LK,AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) ID=14.2	9-09150-514-0	04	1	0512-0603
181	WASHER; LK,AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) ID=14.2	0-91510-514-0	04	1	0604-
203	NUT (A) M12 FLANGE	0-91150-212-0	01	1	0407-0602
203	NUT (A) M12 FLANGE	0-91180-212-0	01	1	0603-
203	NUT (B) M16	9-99110-516-0	01	1	0407-0512
203	NUT (B) M16	0-91110-516-0	01	1	0601-
203	NUT (C) M18	9-99110-518-0	03	1	0407-0512
203	NUT (C) M18	0-91110-518-0	03	1	0601-
214	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-514-0	04	1	0407-0603
214	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-514-0	04	1	0604-

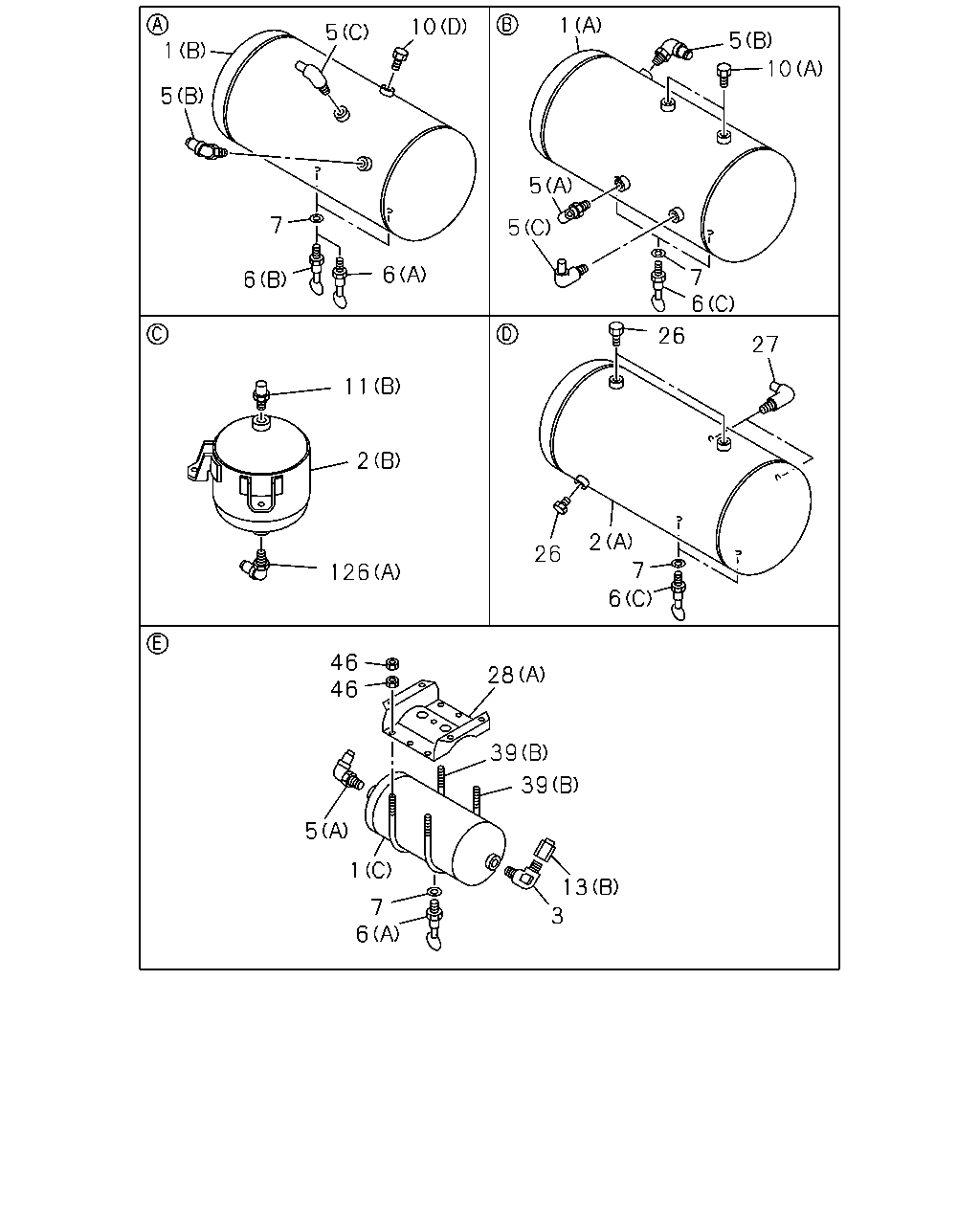

1 10 5 5 1 10 5 5 7 5 6 7 6 6 26 27 11 2 2 26 7 126 6 46 46 28 39 39 5 1 13 7 6 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (C)	1-48371-165-3	01	1	0512-
1	TANK ASM; AIR (A)	1-48371-226-3	01	1	0407-
1	TANK ASM; AIR (B)	1-48371-227-4	01	1	0407-
2	TANK; AIR (B)	1-48371-166-3	01	1	0407-
2	TANK; AIR (A)	1-48371-226-3	01	1	0407-
3	VALVE; CHECK,AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W)	1-48410-605-0	01	1	0512-
5	UNION; AIR TANK (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0407-0511
5	UNION; AIR TANK (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0512-
5	UNION; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0512-
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0407-
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0407-
5	UNION; AIR TANK (C)	1-09661-550-0	01	1	0407-
5	UNION; AIR TANK (C)	1-09661-550-0	01	1	0407-
6	COCK; DRAIN,AIR TANK (B)	1-48312-006-1	01	1	0407-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	0407-0511
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	0512-
6	COCK; DRAIN,AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-48312-015-0	01	1	0512-
6	COCK; DRAIN,AIR TANK (C) W/COVER	1-48312-004-2	02	1	0407-
6	COCK; DRAIN,AIR TANK (C) W/COVER	1-48312-004-2	02	1	0407-
7	GASKET; DRAIN COCK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) ID=14	1-09630-145-0	01	1	0512-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0407-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0407-
10	PLUG; AIR TANK 6WG1 TC-S(97L) (C) PT1/4	9-99204-513-0	05	1	0512-0703
10	PLUG; AIR TANK 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) PT1/4	9-99204-513-0	05	1	0704-
10	PLUG; AIR TANK (D) M22	1-09661-502-0	01	1	0407-
10	PLUG; AIR TANK (A)	1-09661-569-0	02	1	0407-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0407-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	03	1	0407-0511
10	PLUG; AIR TANK 6WF1 TC-C(1B8) (C) PT1/4	9-99204-513-0	03	1	0512-
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	0407-
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	0407-
13	ADAPTER; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	01	1	0512-
13	ADAPTER; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0407-
26	PLUG; SUB AIR TANK M22	1-09661-502-0	03	1	0407-
27	UNION; ELBOW,AIR TANK	1-09661-570-0	02	1	0407-
28	BRACKET; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-48317-473-2	01	1	0512-
28	BRACKET; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (C)	1-48317-985-1	01	1	0512-
28	BRACKET; AIR TANK (B)	1-47479-675-1	01	1	0407-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	02	1	0407-0511
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	06	1	0512-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0407-0511
39	U-BOLT; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) L=210	1-48317-458-1	02	1	0512-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0407-0511
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0512-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	16	1	0407-0511
46	NUT; U-BOLT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8	9-09110-408-0	08	1	0512-0512
46	NUT; U-BOLT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8	0-91110-508-0	08	1	0601-
126	CONNECTOR; ELBOW SMOOTHER-G(C1W) (C) PT3/8 3WAY	1-09661-300-0	01	1	0512-
126	CONNECTOR; ELBOW SMOOTHER-G(C1W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	0512-
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0407-
126	CONNECTOR; ELBOW (B) R1/4 & RC1/4	1-09664-211-0	01	1	0407-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0407-0512
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0601-

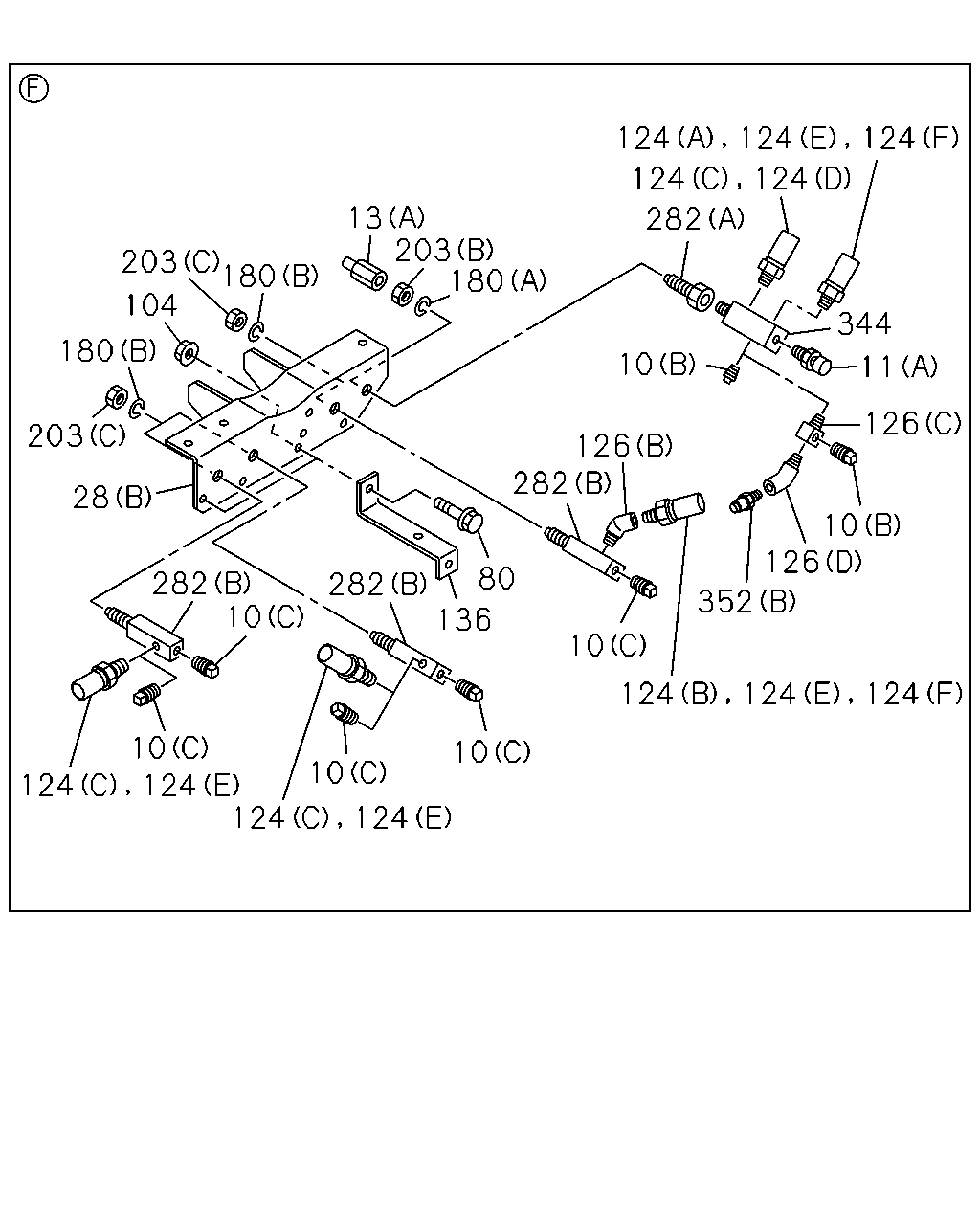

124 124 124 124 124 13 203 180 282 203 180 104 344 180 10 11 126 203 126 282 28 10 126 282 282 10 136 80 352 10 124 124 124 10 124 124 10 10 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	PLUG; AIR TANK 6WG1 TC-S(97L) (C) PT1/4	9-99204-513-0	05	1	0512-0703
10	PLUG; AIR TANK 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) PT1/4	9-99204-513-0	05	1	0704-
10	PLUG; AIR TANK (D) M22	1-09661-502-0	01	1	0407-
10	PLUG; AIR TANK (A)	1-09661-569-0	02	1	0407-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0407-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	03	1	0407-0511
10	PLUG; AIR TANK 6WF1 TC-C(1B8) (C) PT1/4	9-99204-513-0	03	1	0512-
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	0407-
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	0407-
13	ADAPTER; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	01	1	0512-
13	ADAPTER; NYLON TUBE (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0407-
28	BRACKET; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-48317-473-2	01	1	0512-
28	BRACKET; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (C)	1-48317-985-1	01	1	0512-
28	BRACKET; AIR TANK (B)	1-47479-675-1	01	1	0407-
80	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
80	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-0606
80	BOLT; BRKT 6WF1 TC-C(1B8) M8X16 FLANGE	0-28050-816-0	02	1	0607-
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
104	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0606
104	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0606
104	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0607-
104	NUT; BRKT 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0607-
124	SWITCH; AIR PRESSURE (B)	1-48340-065-0	01	1	0407-0511
124	SWITCH; AIR PRESSURE 6WF1 TC-C(1B8) (E)	1-48340-065-0	04	1	0512-
124	SWITCH; AIR PRESSURE (C)	1-48340-066-0	03	1	0407-0511
124	SWITCH; AIR PRESSURE (D)	1-48340-066-0	01	1	0512-
124	SWITCH; AIR PRESSURE (A)	1-48340-067-0	01	1	0407-0511
124	SWITCH; AIR PRESSURE 6WG1 TC-S(97L) (F)	1-48340-065-0	02	1	0512-0703
124	SWITCH; AIR PRESSURE 6WG1 TC-C(72L),6WG1 TC-S(97L) (F)	1-48340-065-0	02	1	0704-
126	CONNECTOR; ELBOW SMOOTHER-G(C1W) (C) PT3/8 3WAY	1-09661-300-0	01	1	0512-
126	CONNECTOR; ELBOW SMOOTHER-G(C1W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	0512-
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	0407-
126	CONNECTOR; ELBOW (B) R1/4 & RC1/4	1-09664-211-0	01	1	0407-
136	BRACKET; CLIP	1-33659-142-0	02	1	0407-0606
136	BRACKET; CLIP 6WF1 TC-C(1B8)	1-33659-142-0	02	1	0607-
180	WASHER; LK (A) ID=16.2	9-09150-516-0	01	1	0407-0603
180	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0604-
180	WASHER; LK (B) ID=18.2	9-09150-518-0	03	1	0407-0603
180	WASHER; LK (B) ID=18.2	0-91510-518-0	03	1	0604-
203	NUT (A) M12 FLANGE	0-91150-212-0	01	1	0407-0602
203	NUT (A) M12 FLANGE	0-91180-212-0	01	1	0603-
203	NUT (B) M16	9-99110-516-0	01	1	0407-0512
203	NUT (B) M16	0-91110-516-0	01	1	0601-
203	NUT (C) M18	9-99110-518-0	03	1	0407-0512
203	NUT (C) M18	0-91110-518-0	03	1	0601-
282	UNION; 2 WAY (A)	1-09650-222-1	01	1	0407-
282	UNION; 2 WAY (B)	1-09661-593-0	03	1	0407-
344	CONNECTOR; 4WAY	1-09660-521-2	01	1	0407-
352	CONNECTOR; STRAIGHT SMOOTHER-G(C1W) (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0512-
352	CONNECTOR; STRAIGHT (A) DIN12 & M22 ELBOW	1-09661-497-0	01	1	0407-

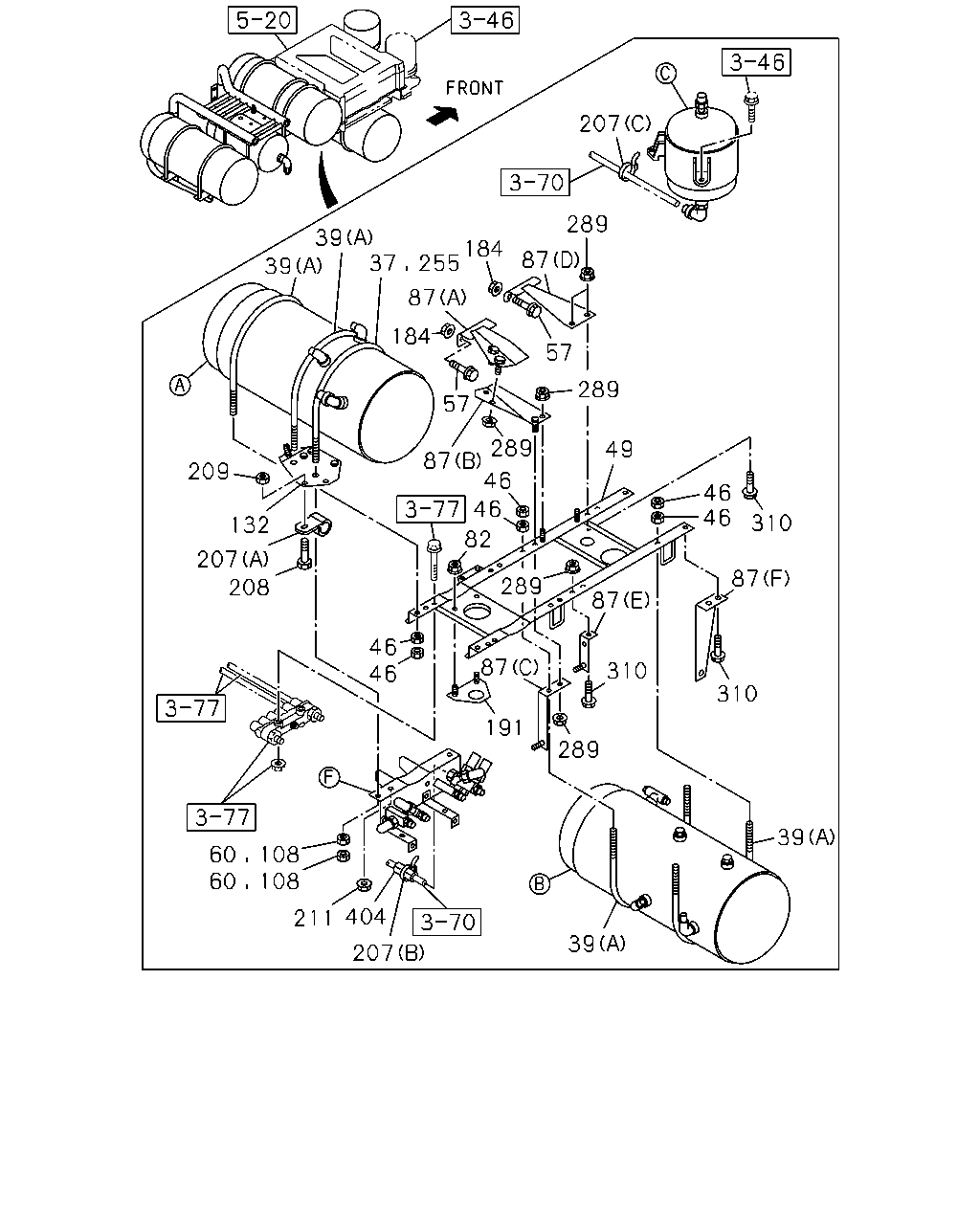

207 289 39 184 87 39 87 184 57 289 57 289 87 46 49 209 46 46 46 310 132 82 289 87 207 208 87 46 46 87 310 310 191 289 39 60 60 108 108 404 211 39 207 37 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK L=303	1-48317-087-2	01	1	0407-0409
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	02	1	0407-0511
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	06	1	0512-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	0407-0511
39	U-BOLT; AIR TANK 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) L=210	1-48317-458-1	02	1	0512-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0407-0511
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0512-0512
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	16	1	0407-0511
46	NUT; U-BOLT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8	9-09110-408-0	08	1	0512-0512
46	NUT; U-BOLT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8	0-91110-508-0	08	1	0601-
49	BRACKET; AIR TANK	1-48316-046-1	01	1	0407-
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28681-025-0	04	1	0407-0512
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	0601-
60	NUT; AIR TANK FIX M8	9-09110-408-0	04	1	0407-0409
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
87	BRACKET; AIR PIPE JOINT (C)	1-47479-470-2	01	1	0407-
87	BRACKET; AIR PIPE JOINT (E)	1-47479-541-1	01	1	0407-
87	BRACKET; AIR PIPE JOINT (F)	1-47479-620-0	01	1	0407-
87	BRACKET; AIR PIPE JOINT (D)	1-47479-690-0	01	1	0407-
87	BRACKET; AIR PIPE JOINT (B)	1-47479-707-0	01	1	0407-
87	BRACKET; AIR PIPE JOINT (A)	1-47479-944-0	01	1	0407-
108	NUT; CONNECTOR M8	9-09110-408-0	04	1	0410-0512
108	NUT; CONNECTOR M8	0-91110-508-0	04	1	0601-
132	BRACKET; STRING GUIDE	1-47479-947-0	01	1	0407-
184	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0407-0602
184	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
191	BRACKET; STOPPER,AIR TANK	1-48316-015-1	01	1	0407-
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	26	1	0407-
207	CLIP; AIR PIPE (C) L=256	1-09707-189-0	02	1	0407-
207	CLIP; AIR PIPE (A) ID=6 L=20	9-09524-535-0	01	1	0407-
207	CLIP; AIR PIPE (A) ID=16 L=20	9-09525-535-0	01	1	0407-0606
207	CLIP; AIR PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0607-
208	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0407-0512
208	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
209	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0602
209	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
211	NUT; STRING GUIDE M8 FLANGE	0-91150-108-0	03	1	0407-0602
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	03	1	0603-
255	BOLT; CONN L=303	1-48317-087-2	01	1	0410-
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	09	1	0407-0602
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	09	1	0603-
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	05	1	0407-0511
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	05	1	0512-0512
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	05	1	0512-0512
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28050-816-0	05	1	0601-0607
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28050-816-0	05	1	0601-0607
310	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28050-816-0	10	1	0608-
404	SLEEVE; RUBBER ID=15 OD=19 L=50	1-09337-014-0	05	1	0407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
