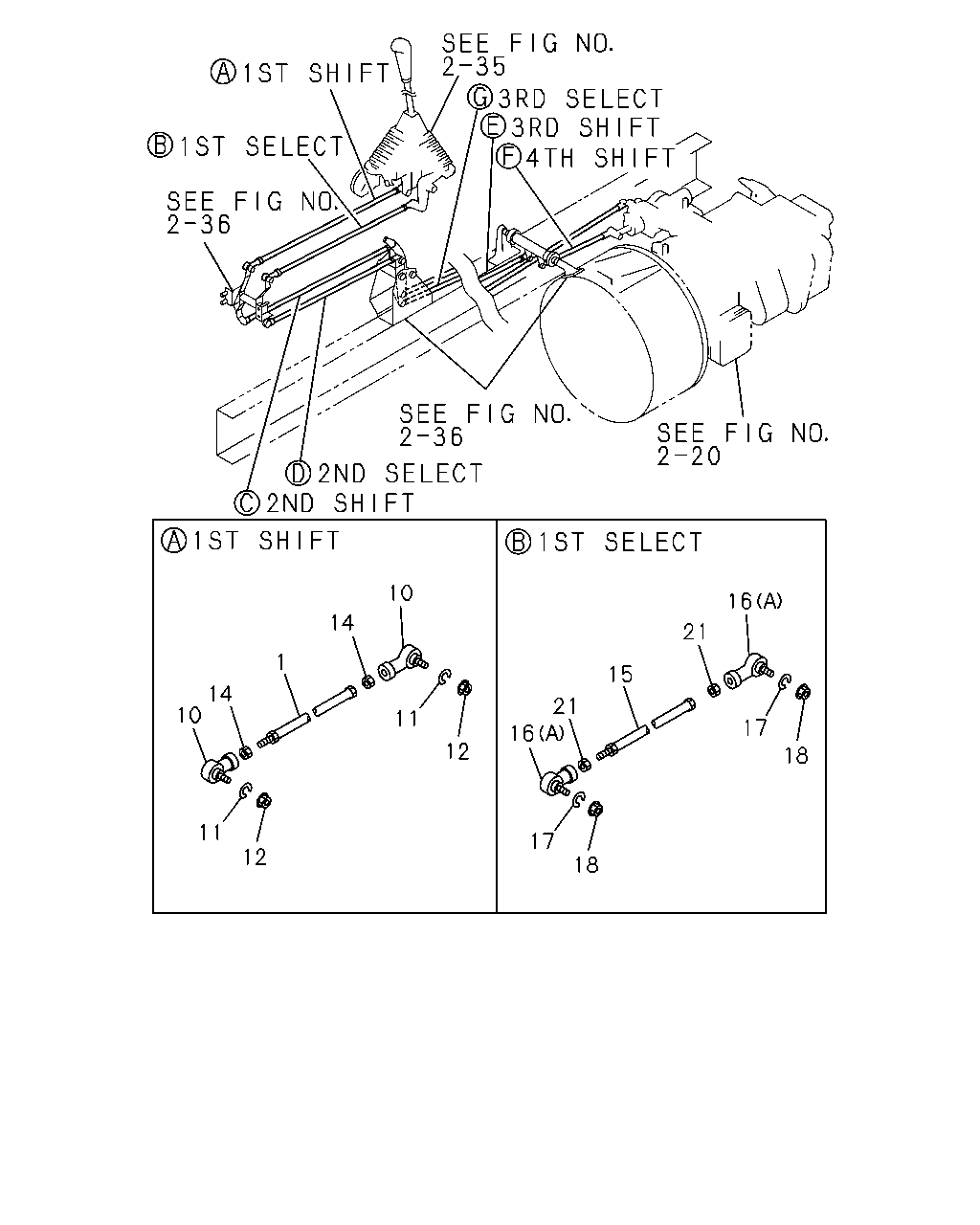

2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#3003) — 46 parça

45 46 47 49 8 49 45 46 47 38 37 36 6 44 44 36 37 38 5 32 31 30 35 35 30 31 32 16 24 23 25 3 25 16 23 24 29 4 27 26 28 28 27 29 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	ROD; LINK,2ND SHIFT L=595	1-33652-568-0	01	1	9002-9306
4	ROD; LINK,2ND SELECT L=585	1-33652-320-0	01	1	9002-9306
5	ROD; LINK,3RD SHIFT L=1300	1-33652-342-0	01	1	9002-9306
6	ROD; LINK,3RD SELECT L=1635	1-33652-425-2	01	1	9002-9306
8	ROD; LINK,4TH SHIFT L=303	1-33652-433-1	01	1	9002-9306
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-9306
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-078-0	02	1	9301-9306
23	WASHER; LK,2ND LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301
24	NUT; 2ND LINK ROD,SHIFT M10	9-09110-410-0	02	1	9002-9301
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-9306
25	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9306
26	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	9002-9306
27	WASHER; LK,2ND LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301
28	NUT; 2ND LINK ROD M8	9-09110-408-0	02	1	9002-9301
28	NUT; 2ND LINK ROD M8	1-09440-049-0	02	1	9302-9306
29	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-9306
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-078-0	02	1	9002-9306
31	WASHER; LK,3RD LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301
32	NUT; 3RD LINK ROD M10	9-09110-410-0	02	1	9002-9301
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9302-9306
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09110-410-0	02	1	9002-9306
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9306
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-038-1	02	1	9002-9306
37	WASHER; LK,3RD LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301
38	NUT; 3RD LINK ROD M8	9-09110-408-0	02	1	9002-9301
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-9306
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-9306
45	JOINT; BALL,RIGHT SCREW,LINK ROD (A)	1-09760-078-0	01	1	9002-9306
45	JOINT; BALL,RIGHT SCREW,LINK ROD (B)	1-33660-157-0	01	1	9002-9306
46	WASHER; LK,4TH LINK ROD ID=10.2	9-09150-510-0	02	1	9002-9301
47	NUT; 4TH LINK ROD M10	9-09110-410-0	02	1	9002-9301
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-050-0	02	1	9302-9306
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9306

18 17 16 21 15 21 16 17 18 12 11 10 14 1 14 10 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=498	1-33652-269-1	01	1	9002-9306
10	JOINT ASM; BALL,SELECT ROD	1-09760-078-0	02	1	9002-9306
11	WASHER; LK,1ST LINK ROD,SHIFT ID=10.2	9-09150-510-0	02	1	9002-9301
12	NUT; 1ST LINK ROD,SHIFT M10	9-09110-510-0	02	1	9002-9301
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-9306
14	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9306
15	ROD; LINK 1ST SHIFT L=513	1-33652-318-1	01	1	9002-9306
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	9002-9306
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-078-0	02	1	9301-9306
17	WASHER; LK,1ST LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9301
18	NUT; 1ST LINK ROD M8	9-09110-508-0	02	1	9002-9301
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-9306
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9002-9306
