2-38A — SHIFT CONTROL (#30021) — 24 parça

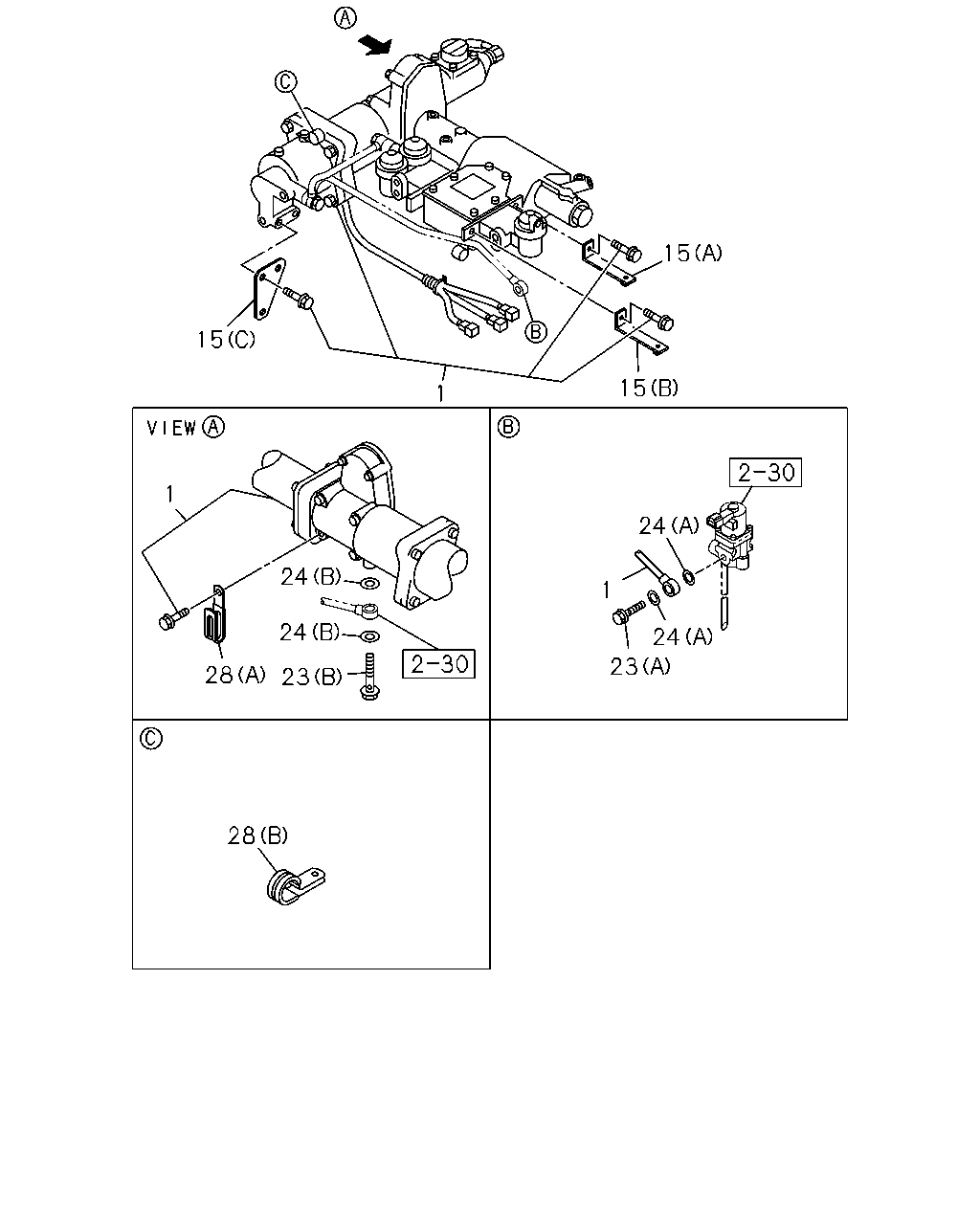

çizim 87454
15 15 15 1 1 24 24 1 24 24 23 28 23 28
BalonParca AdiParca NoAdetTipApplied Date
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W) 		1-33730-241-9 01 1 0512-0612
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W) 		1-33730-297-1 01 1 0701-
15 BRACKET; ACTUATOR
SMOOTHER-G(C1W) (A) 		1-82569-316-0 01 1 0512-
15 BRACKET; ACTUATOR
SMOOTHER-G(C1W) (B) 		1-82569-317-0 01 1 0512-
15 BRACKET; ACTUATOR
SMOOTHER-G(C1W) (C) 		1-82569-320-1 01 1 0512-
23 BOLT; EYE
SMOOTHER-G(C1W) (A) M14X27 FLANGE 		1-09675-086-0 01 1 0512-
23 BOLT; EYE
(B) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0805
23 BOLT; EYE
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
24 GASKET
SMOOTHER-G(C1W) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0512-1312
24 GASKET
SMOOTHER-G(C1W) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
24 GASKET
(B) ID=12.2 		1-09630-084-0 02 1 0407-1312
24 GASKET
(B) ID=12.2 		8-98251-344-0 02 1 1401-
28 CLIP
SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 0512-
28 CLIP
SMOOTHER-G(C1W) (A) L=36 		8-94224-891-1 01 1 0512-

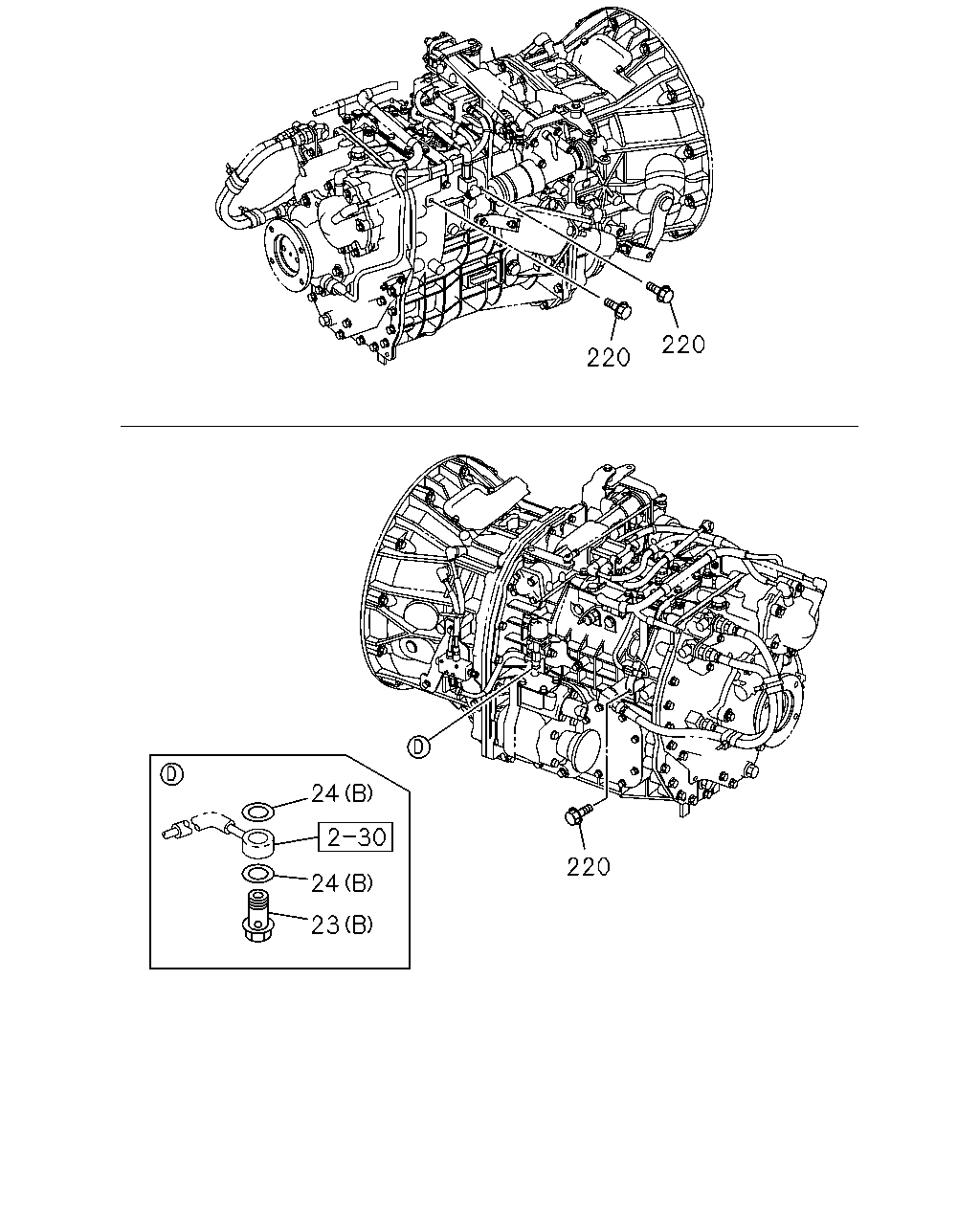

çizim 87593
220 220 24 220 24 23
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; EYE
SMOOTHER-G(C1W) (A) M14X27 FLANGE 		1-09675-086-0 01 1 0512-
23 BOLT; EYE
(B) M12X27 FLANGE 		1-09675-160-0 01 1 0407-0805
23 BOLT; EYE
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
24 GASKET
SMOOTHER-G(C1W) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0512-1312
24 GASKET
SMOOTHER-G(C1W) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
24 GASKET
(B) ID=12.2 		1-09630-084-0 02 1 0407-1312
24 GASKET
(B) ID=12.2 		8-98251-344-0 02 1 1401-
220 BOLT; BRKT
M10X25 FLANGE 		0-28781-025-0 07 1 0407-0511
220 BOLT; BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE 		0-28781-025-0 07 1 0512-0512
220 BOLT; BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE 		0-28751-025-0 07 1 0601-
