Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#30020) — 149 parça

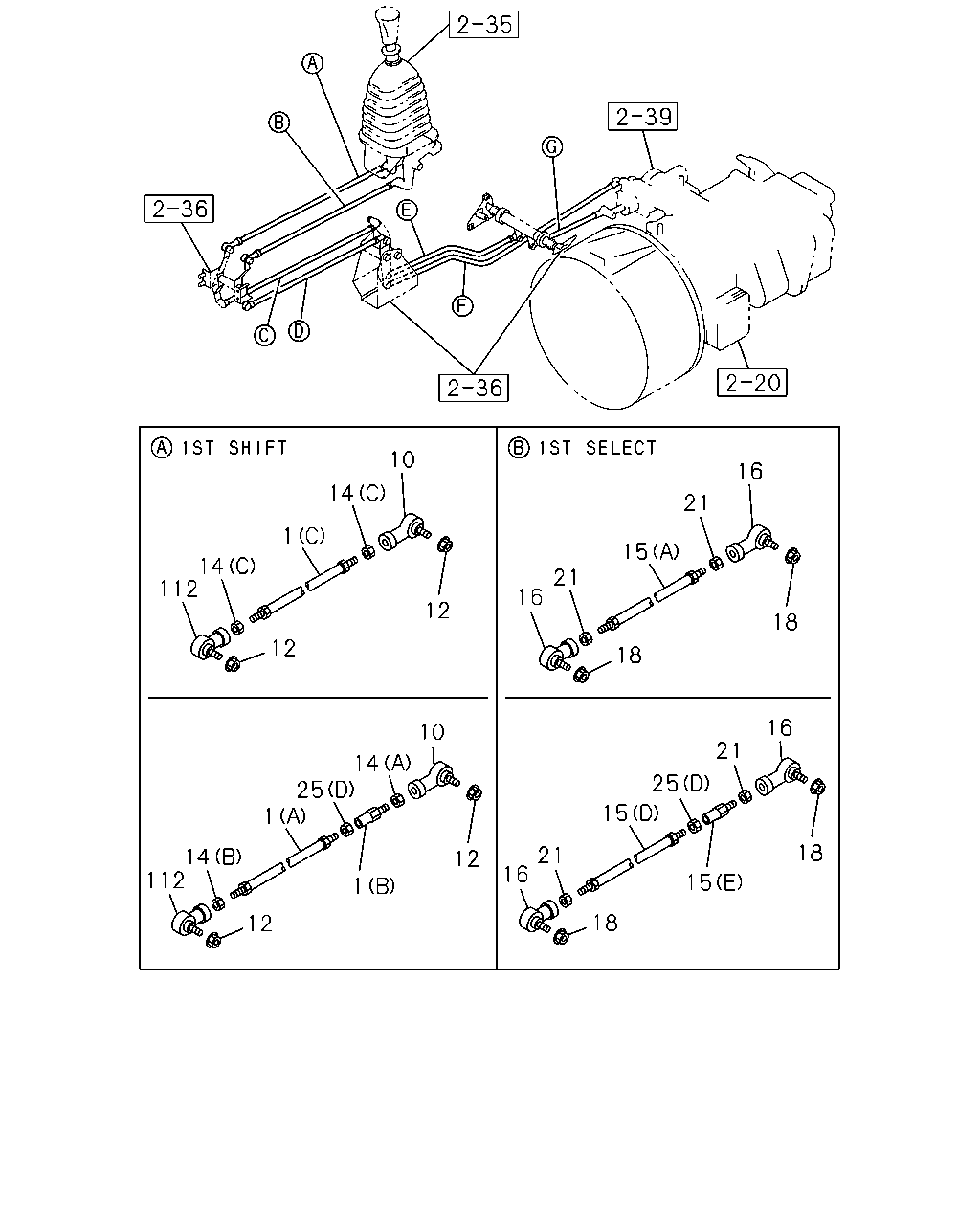

10 16 14 21 1 15 14 112 21 16 12 18 12 18 16 10 21 14 25 25 15 1 18 21 16 14 112 12 15 1 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=430	1-33652-739-0	01	1	0512-0703
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=430	1-33652-739-0	01	1	0704-1011
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=490	0-84001-249-0	01	1	1012-
1	ROD; LINK,1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88	1-33652-740-0	01	1	0512-0703
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88	1-33652-740-0	01	1	0704-1011
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	0407-0511
1	ROD; LINK,1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=480	9-08401-248-0	01	1	0512-
10	JOINT ASM; BALL,SELECT ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	01	1	0512-0703
10	JOINT ASM; BALL,SELECT ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	01	1	0704-1011
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0407-0511
10	JOINT ASM; BALL,SELECT ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	01	1	0512-1011
10	JOINT ASM; BALL,SELECT ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	01	1	1012-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0407-0511
12	NUT; 1ST LINK ROD,SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10	9-09111-410-0	01	1	0512-0512
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10	0-91111-510-0	01	1	0601-0703
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10	0-91111-510-0	01	1	0704-1011
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	9-99111-412-0	01	1	0512-0512
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	0-91111-512-0	01	1	0601-0703
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	0-91111-512-0	01	1	0704-1011
14	NUT; LK,RIGHT SCREW,LINK ROD (C) M12	9-99111-412-0	02	1	0407-0511
14	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M12	9-99111-412-0	02	1	0512-0512
14	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M12	0-91111-512-0	02	1	0601-1011
14	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (C) M12	0-91111-512-0	02	1	1012-
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0512-0703
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0704-1011
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=460	1-33652-373-0	01	1	1012-
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0512-0703
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0704-1011
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0512-0703
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0704-
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0512-0703
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0704-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (A) L=435	1-33652-696-0	01	1	0407-0511
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=435	1-33652-696-0	01	1	0512-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	0407-0511
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=474	1-33652-803-2	01	1	0512-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=446	1-33652-998-0	01	1	0407-0511
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=446	1-33652-998-2	01	1	0512-
16	JOINT ASM; BALL,CONT ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-109-0	02	1	0512-0703
16	JOINT ASM; BALL,CONT ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-109-0	02	1	0704-1011
16	JOINT ASM; BALL,CONT ROD CAB UP +110MM<TGG>	1-09760-108-0	02	1	0407-0511
16	JOINT ASM; BALL,CONT ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-108-0	02	1	0512-1011
16	JOINT ASM; BALL,CONT ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-108-0	02	1	1012-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0407-0511
18	NUT; 1ST LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	1-09440-062-1	02	1	0512-
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	0512-0512
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0601-0703
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0704-1011
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) M8	9-09111-408-0	02	1	1012-
21	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> M8	9-09111-408-0	02	1	0407-0511
21	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) M8	9-09111-408-0	02	1	0512-0512
21	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) M8	0-91111-508-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10	9-09111-510-0	02	1	0512-0512
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M10 LH THREAD	9-09840-167-0	02	1	0512-0703
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M10 LH THREAD	9-09840-167-0	02	1	0704-1011
25	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> (B) M10	9-09111-410-0	02	1	0407-0511
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	9-09111-410-0	02	1	0512-0512
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0601-0703
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0704-
25	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> (A) M12	9-99111-412-0	02	1	0407-0511
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	9-99111-412-0	02	1	0512-0512
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0601-0703
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0704-
112	JOINT; RUBBER 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0512-0703
112	JOINT; RUBBER 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0704-
112	JOINT; RUBBER	1-33670-413-1	01	1	0407-0511
112	JOINT; RUBBER CAB UP +110MM<TGG>	1-33670-413-1	01	1	0407-0511
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0512-
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0512-

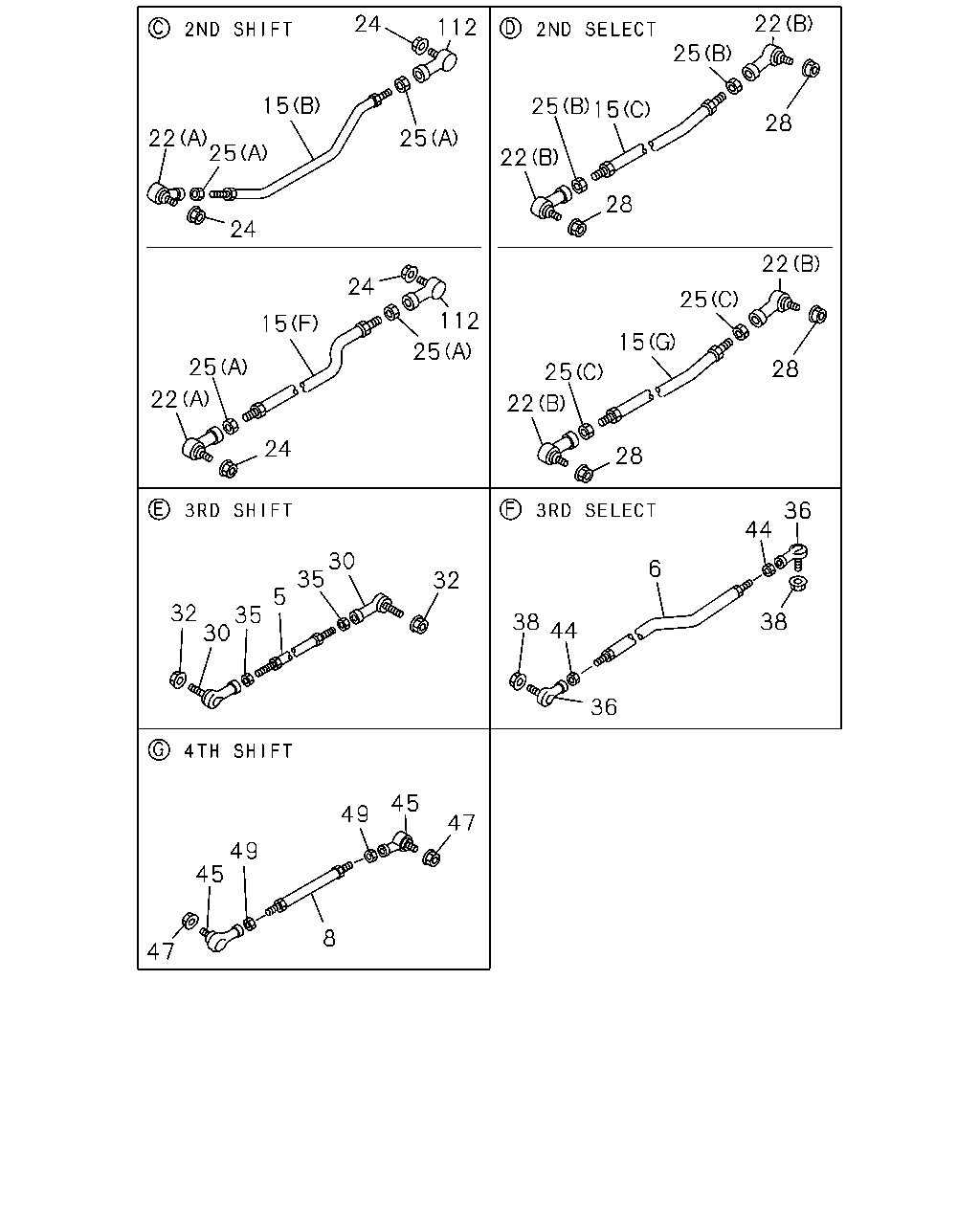

24 22 112 25 15 25 15 28 22 25 25 22 28 24 22 24 25 112 15 15 25 25 28 25 22 22 24 28 36 44 30 35 6 32 5 30 38 38 44 36 45 49 47 49 45 8 47 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0407-0511
5	ROD; LINK,3RD SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) L=1120	1-33652-603-0	01	1	0512-
6	ROD; LINK,3RD SELECT FULLER M/T<X9B> L=1638	1-33652-997-1	01	1	0704-
6	ROD; LINK,3RD SELECT L=1692	1-33662-004-0	01	1	0407-0511
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=1692	1-33662-004-2	01	1	0512-
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> L=480	1-33652-730-0	01	1	0704-
8	ROD; LINK,4TH SHIFT L=410	1-33652-947-0	01	1	0407-0511
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=410	1-33652-947-0	01	1	0512-
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0512-0703
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0704-1011
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=460	1-33652-373-0	01	1	1012-
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0512-0703
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0704-1011
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0512-0703
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0704-
15	ROD; LINK 1ST SHIFT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0512-0703
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0704-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (A) L=435	1-33652-696-0	01	1	0407-0511
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=435	1-33652-696-0	01	1	0512-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	0407-0511
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=474	1-33652-803-2	01	1	0512-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (C) L=446	1-33652-998-0	01	1	0407-0511
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=446	1-33652-998-2	01	1	0512-
22	JOINT; BALL,SCREW,LINK ROD CAB UP +110MM<TGG> (B)	1-09760-109-0	02	1	0407-0511
22	JOINT; BALL,SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09760-109-0	02	1	0512-0703
22	JOINT; BALL,SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09760-109-0	02	1	0704-
22	JOINT; BALL,SCREW,LINK ROD CAB UP +110MM<TGG> (A)	1-09760-125-0	01	1	0407-0511
22	JOINT; BALL,SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09760-125-0	01	1	0512-0703
22	JOINT; BALL,SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09760-125-0	01	1	0704-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0407-0511
24	NUT; 2ND LINK ROD,SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10	9-09111-510-0	02	1	0512-0512
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M10 LH THREAD	9-09840-167-0	02	1	0512-0703
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M10 LH THREAD	9-09840-167-0	02	1	0704-1011
25	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> (B) M10	9-09111-410-0	02	1	0407-0511
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	9-09111-410-0	02	1	0512-0512
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0601-0703
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0704-
25	NUT; LK,RIGHT SCREW,LINK ROD CAB UP +110MM<TGG> (A) M12	9-99111-412-0	02	1	0407-0511
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	9-99111-412-0	02	1	0512-0512
25	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0601-0703
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0704-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0407-0511
28	NUT; 2ND LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	1-09440-062-1	02	1	0512-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0407-0511
30	JOINT; BALL,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	02	1	0512-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0407-0511
32	NUT; 3RD LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0407-0511
35	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	0512-0512
35	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0407-0511
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	02	1	0512-0703
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	02	1	0704-
36	JOINT; BALL,RIGHT SCREW,LINK ROD FULLER M/T<X9B>	1-09760-124-0	02	1	0704-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0407-0511
38	NUT; 3RD LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0407-0511
44	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	0512-0512
44	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0601-0703
44	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0704-
44	NUT; LK,RIGHT SCREW,LINK ROD FULLER M/T<X9B> M10	0-91111-510-0	02	1	0704-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0407-0511
45	JOINT; BALL,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	02	1	0512-0703
45	JOINT; BALL,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	02	1	0704-
45	JOINT; BALL,RIGHT SCREW,LINK ROD FULLER M/T<X9B>	1-09760-125-0	02	1	0704-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0407-0511
47	NUT; 4TH LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0512-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0407-0511
49	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M12	9-99111-412-0	02	1	0512-0512
49	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M12	0-91111-512-0	02	1	0601-0703
49	NUT; LK,RIGHT SCREW,LINK ROD MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M12	0-91111-512-0	02	1	0704-
49	NUT; LK,RIGHT SCREW,LINK ROD FULLER M/T<X9B> M12	0-91111-512-0	02	1	0704-
112	JOINT; RUBBER 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0512-0703
112	JOINT; RUBBER 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0704-
112	JOINT; RUBBER	1-33670-413-1	01	1	0407-0511
112	JOINT; RUBBER CAB UP +110MM<TGG>	1-33670-413-1	01	1	0407-0511
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0512-
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0512-
