2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#3002) — 95 parça
çizim 4635
45 46 47 38 37 36 44 6 44 36 37 38 5 31 32 35 30 31 32 35 30 49 8 49 45 46 47 28 26 27 29 4 29 26 27 28 24 23 22 16 25 3 25 23 24 16 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 ROD; LINK,2ND SHIFT
L=595 		1-33652-568-0 01 1 9002-9306 ● ● ●
3 ROD; LINK,2ND SHIFT
EXC. CAB SUSPENSION RIGID<W71> L=595 		1-33652-568-0 01 1 9002-9306 ● ●
3 ROD; LINK,2ND SHIFT
EXC. CAB SUSPENSION RIGID<W71> L=595 		1-33652-568-0 01 1 9307- ● ●
3 ROD; LINK,2ND SHIFT
L=595 		1-33652-568-0 01 1 9307- ●
3 ROD; LINK,2ND SHIFT
CAB SUSPENSION RIGID<W71> L=600 		1-33652-510-0 01 1 9002- ● ●
4 ROD; LINK,2ND SELECT
L=585 		1-33652-320-0 01 1 9002-9306 ● ● ● ● ●
4 ROD; LINK,2ND SELECT
L=585 		1-33652-320-0 01 1 9307- ● ● ●
5 ROD; LINK,3RD SHIFT
L=1300 		1-33652-342-0 01 1 9002-9306 ● ● ● ●
5 ROD; LINK,3RD SHIFT
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> L=1300 		1-33652-342-0 01 1 9002-9306 ●
5 ROD; LINK,3RD SHIFT
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> L=1300 		1-33652-342-0 01 1 9307- ●
5 ROD; LINK,3RD SHIFT
L=1300 		1-33652-342-0 01 1 9307- ● ●
5 ROD; LINK,3RD SHIFT
CONCRETE PUMP<RA5> L=1220 		1-33652-332-0 01 1 9002- ●
5 ROD; LINK,3RD SHIFT
MIXER TRUCK<RA2> L=1380 		1-33652-341-0 01 1 9002-9306 ●
6 ROD; LINK,3RD SELECT
L=1576 		1-33652-543-0 01 1 9002-9304 ● ●
6 ROD; LINK,3RD SELECT
L=1570 		1-33652-498-1 01 1 9305-9306 ● ●
6 ROD; LINK,3RD SELECT
CONCRETE PUMP<RA5> L=1350 		1-33652-419-0 01 1 9002- ●
6 ROD; LINK,3RD SELECT
MIXER TRUCK<RA2> L=1520 		1-33652-424-2 01 1 9002-9306 ●
6 ROD; LINK,3RD SELECT
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> L=1440 		1-33652-423-2 01 1 9002- ●
6 ROD; LINK,3RD SELECT
L=1440 		1-33652-423-2 01 1 9002- ● ●
8 ROD; LINK,4TH SHIFT
L=277 		1-33652-398-2 01 1 9002-9306 ● ●
8 ROD; LINK,4TH SHIFT
L=120 		1-33652-336-1 01 1 9002-9402 ● ● ●
8 ROD; LINK,4TH SHIFT
L=174 		1-09765-205-0 01 1 9403- ● ● ●
16 JOINT ASM; BALL,CONT ROD
(A) L=48 		1-09760-038-1 02 1 9002-9306 ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
(A) L=48 		1-09760-038-1 02 1 9307- ● ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-078-0 02 1 9301-9306 ● ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. CAB SUSPENSION RIGID<W71> (B) 		1-09760-078-0 02 1 9301-9306 ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. CAB SUSPENSION RIGID<W71> (B) 		1-09760-078-0 02 1 9307- ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-078-0 02 1 9307- ●
22 JOINT; BALL,SCREW,LINK ROD
CAB SUSPENSION RIGID<W71> 		1-09760-078-0 02 1 9002- ● ●
23 WASHER; LK,2ND LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9302-9306 ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9307- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002-9306 ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9307- ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD
L=48 		1-09760-038-1 02 1 9002-9306 ● ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD
L=48 		1-09760-038-1 02 1 9307- ● ● ●
27 WASHER; LK,2ND LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 		9-09110-408-0 02 1 9002-9301 ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 		1-09440-049-0 02 1 9302-9306 ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 		1-09440-049-0 02 1 9307- ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9002-9306 ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9307- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9002-9306 ● ● ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9307- ● ● ●
31 WASHER; LK,3RD LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ●
31 WASHER; LK,3RD LINK ROD
MIXER TRUCK<RA2> ID=10.2 		9-09150-510-0 02 1 9002-9301 ●
31 WASHER; LK,3RD LINK ROD
MIXER TRUCK<RA2> ID=10.2 		9-09150-510-0 02 1 9302-9306 ●
32 NUT; 3RD LINK ROD
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9302-9306 ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9307- ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09110-410-0 02 1 9002-9306 ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002-9306 ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9307- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-039-1 02 1 9002-9306 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-038-1 02 1 9002-9306 ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-038-1 02 1 9307- ● ● ●
37 WASHER; LK,3RD LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 		9-09110-408-0 02 1 9002-9301 ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302-9306 ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9307- ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002-9306 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9002-9306 ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9307- ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9002- ● ● ● ● ●
46 WASHER; LK,4TH LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ●
47 NUT; 4TH LINK ROD
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ●
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9302-9306 ● ● ● ● ●
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9307- ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002-9306 ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9307- ● ● ●

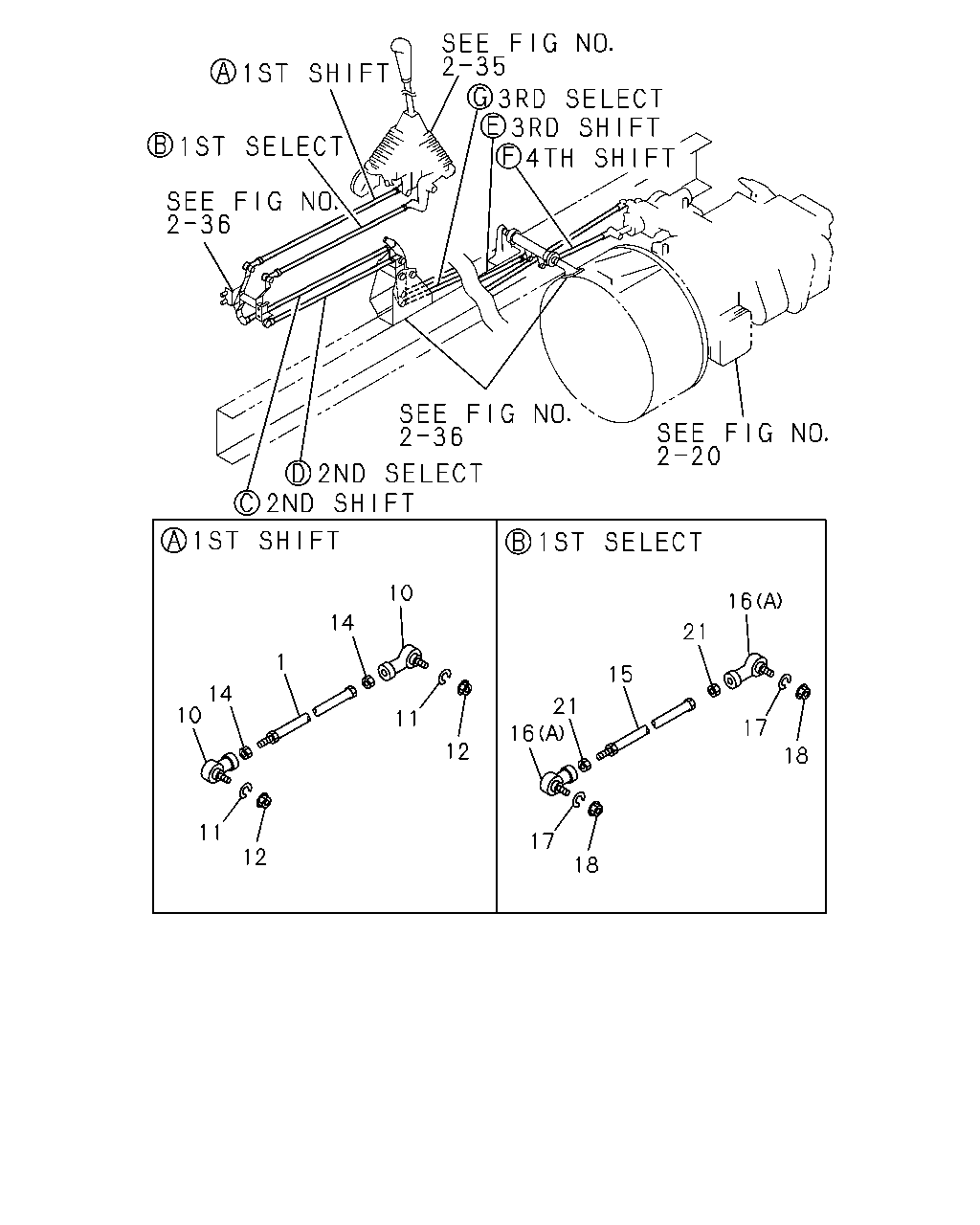

çizim 37026
18 17 18 17 16 21 15 16 21 10 14 11 12 12 11 10 14 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ROD; LINK,1ST SHIFT
L=498 		1-33652-269-1 01 1 9002-9306 ● ● ● ● ●
1 ROD; LINK,1ST SHIFT
L=498 		1-33652-269-1 01 1 9307- ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9002-9306 ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9307- ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 		9-09110-510-0 02 1 9002-9301 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9302-9306 ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9307- ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002-9306 ● ● ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9307- ● ● ●
15 ROD; LINK 1ST SHIFT
L=513 		1-33652-318-1 01 1 9002-9306 ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
L=513 		1-33652-318-1 01 1 9307- ● ● ●
16 JOINT ASM; BALL,CONT ROD
(A) L=48 		1-09760-038-1 02 1 9002-9306 ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
(A) L=48 		1-09760-038-1 02 1 9307- ● ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-078-0 02 1 9301-9306 ● ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. CAB SUSPENSION RIGID<W71> (B) 		1-09760-078-0 02 1 9301-9306 ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. CAB SUSPENSION RIGID<W71> (B) 		1-09760-078-0 02 1 9307- ● ●
16 JOINT ASM; BALL,CONT ROD
(B) 		1-09760-078-0 02 1 9307- ●
17 WASHER; LK,1ST LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 		9-09110-508-0 02 1 9002-9301 ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302-9306 ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9307- ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9002-9306 ● ● ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9307- ● ● ●
