Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#30019) — 477 parça

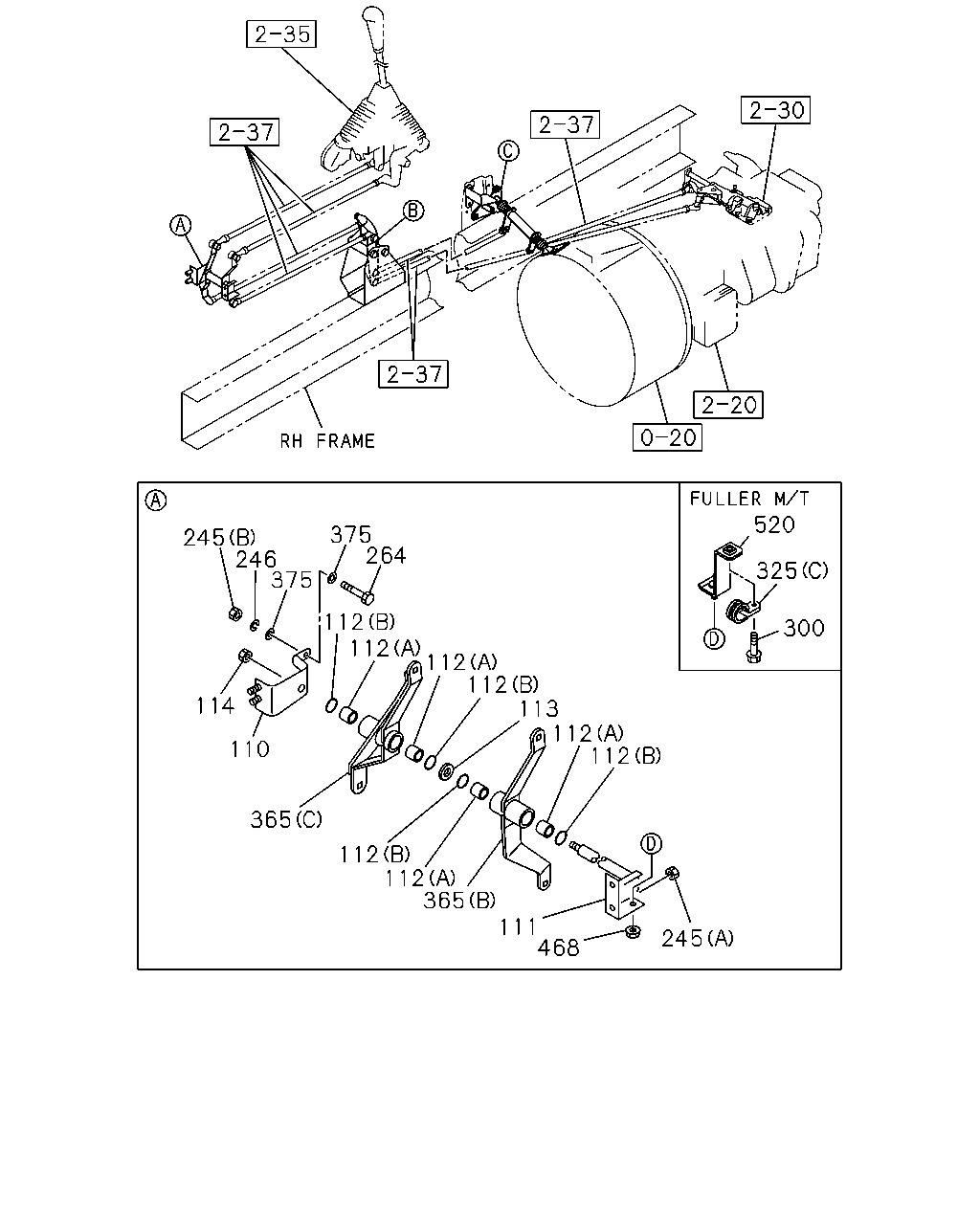

520 375 264 245 246 375 325 112 112 300 112 112 113 112 112 114 110 365 112 112 365 111 468 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	BRACKET; RELAY LEVER,1ST 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-839-1	01	1	0512-0703
110	BRACKET; RELAY LEVER,1ST 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-839-1	01	1	0704-
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	0407-0511
110	BRACKET; RELAY LEVER,1ST 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-598-0	01	1	0512-
111	SHAFT; RELAY LEVER,1ST 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-777-2	01	1	0512-0703
111	SHAFT; RELAY LEVER,1ST 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-777-2	01	1	0704-
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	0407-0511
111	SHAFT; RELAY LEVER,1ST 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-468-1	01	1	0512-
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	0407-0511
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09330-119-0	04	1	0512-
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	0407-0511
112	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09623-594-0	04	1	0512-
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	0407-0511
113	WASHER; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=17	9-09160-516-0	01	1	0512-0605
113	WASHER; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=17 OD=30	0-91610-516-0	01	1	0606-
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0407-0511
114	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-110-0	01	1	0512-0602
114	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	01	1	0603-
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	0407-0511
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91150-210-0	02	1	0512-0602
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-210-0	02	1	0603-1304
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10 FLANGE	0-91180-110-0	02	1	1305-
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	0407-0511
245	NUT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	1-09984-142-0	01	1	0512-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	0407-0511
246	WASHER; LK,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10	1-09985-185-0	01	1	0512-
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	01	1	0407-0511
264	BOLT; BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X105	1-79198-008-1	01	1	0512-
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0704-0904
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	0601-0706
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	0707-
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0707-
300	BOLT; CLIP M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0407-0511
300	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0512-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=31 H=30 L=35	1-09700-994-0	01	1	0707-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (C) ID=19 L=28	0-95235-856-0	01	1	0704-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) ID=9.5	5-09709-020-0	06	1	0704-0706
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=35 L=33	1-09700-945-0	01	1	0707-
325	CLIP; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) ID=18 L=25 H=50	1-09701-096-0	01	1	0512-
325	CLIP; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	01	1	0512-
365	LEVER; RELAY,SELECT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0512-0703
365	LEVER; RELAY,SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0704-
365	LEVER; RELAY,SELECT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0512-0703
365	LEVER; RELAY,SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0704-
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-771-0	01	1	0407-0511
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0512-
365	LEVER; RELAY,SELECT (C)	1-33651-790-0	01	1	0407-0511
365	LEVER; RELAY,SELECT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-790-1	01	1	0512-
365	LEVER; RELAY,SELECT (B)	1-33651-805-0	01	1	0407-0511
365	LEVER; RELAY,SELECT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-805-1	01	1	0512-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0407-0511
375	WASHER; PL,BRKT,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0512-
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0704-
520	BRACKET; NYLON TUBE FULLER M/T<X9B>	1-79996-628-0	01	1	0704-

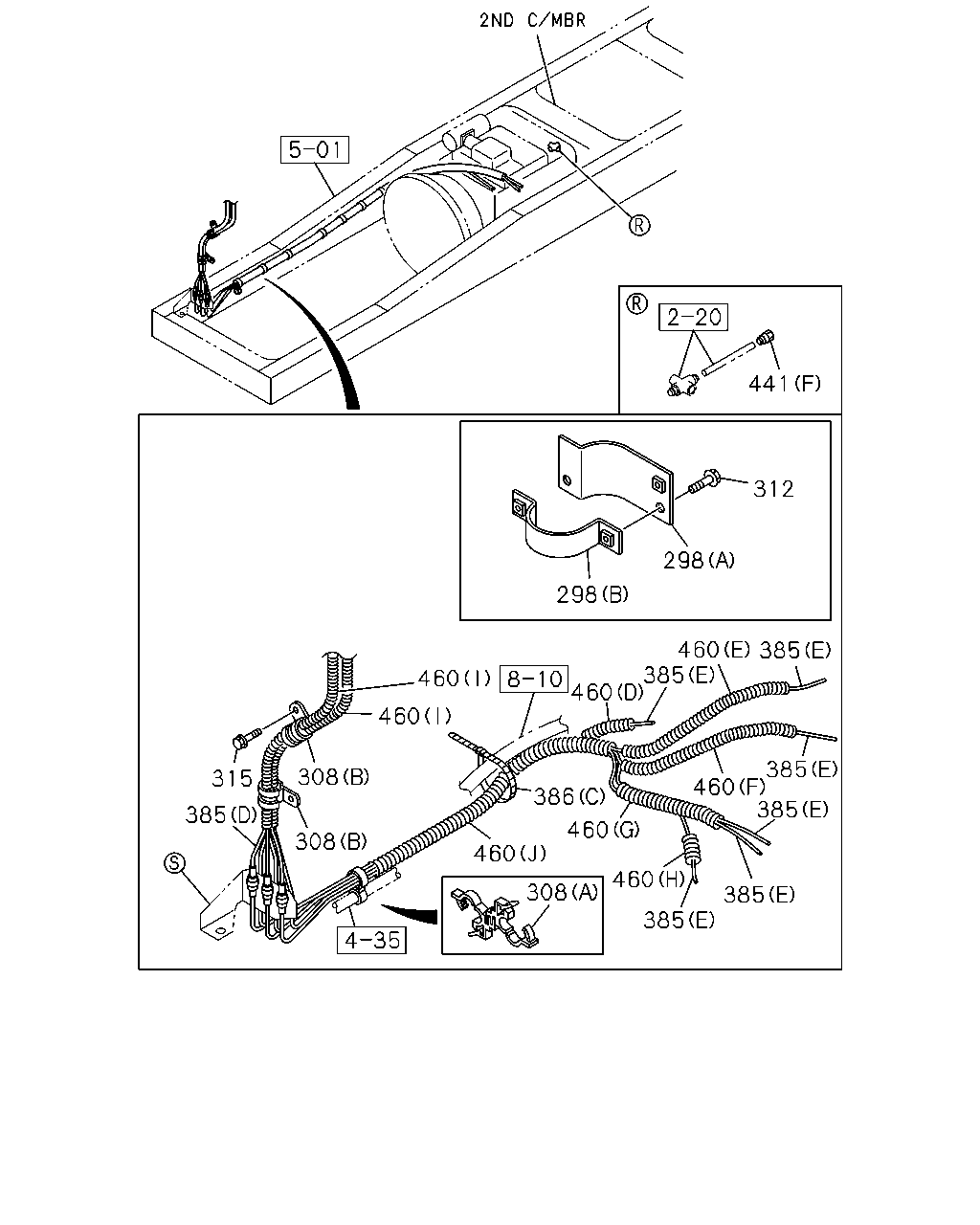

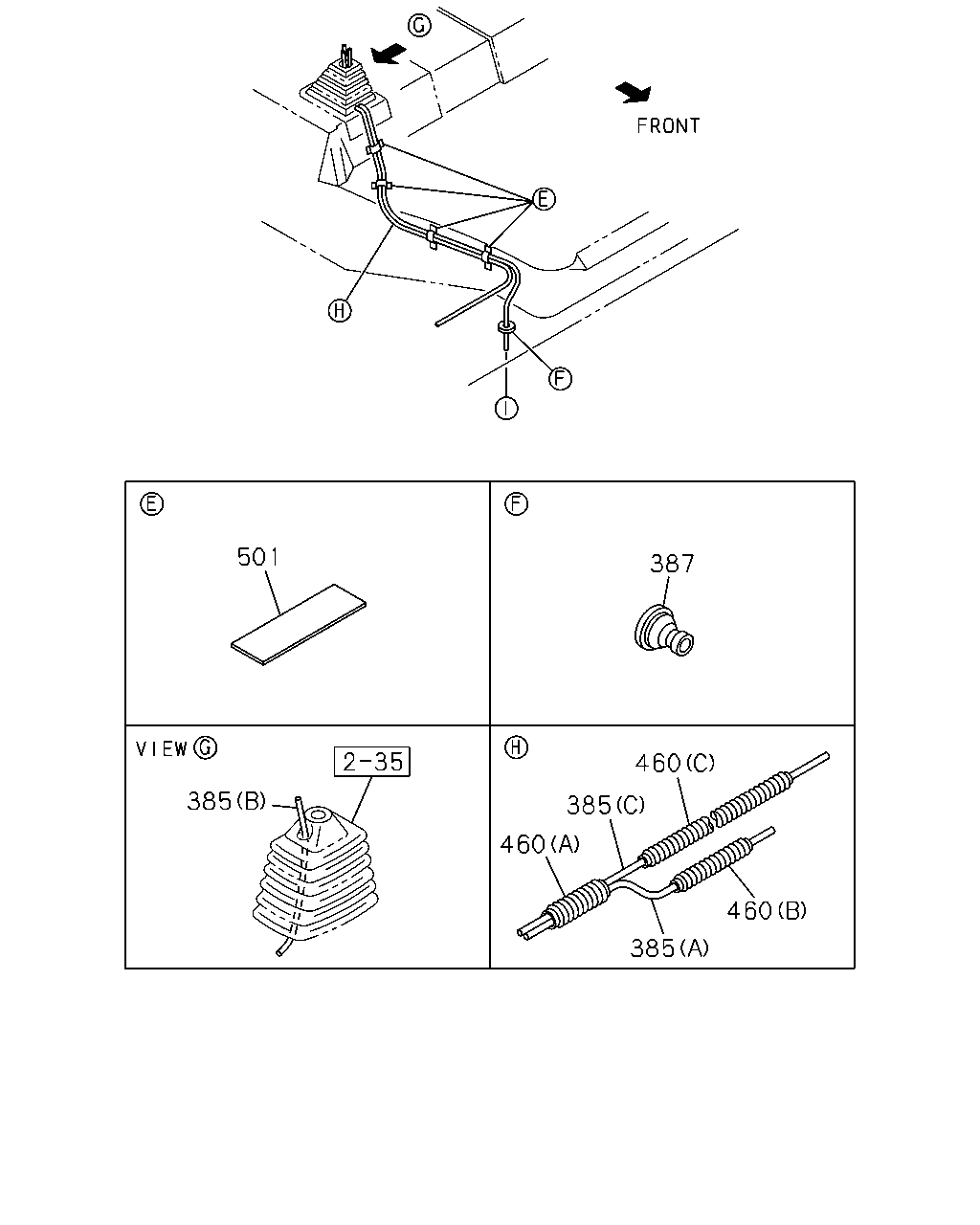

501 387 460 385 385 460 460 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-0708
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0709-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0407
385	TUBE; NYLON (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0408-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0512-
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0704-
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	0407-0511
387	GROMMET; CONT TUBE,FULLER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09332-102-0	01	1	0512-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0704-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0704-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0704-0708
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000	1-83129-335-0	01	1	0709-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0407-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0512-
460	TUBE; CORRUGATE (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-
460	TUBE; CORRUGATE (C) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0407
460	TUBE; CORRUGATE (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0408-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-1	04	1	0704-
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	0407-0511
501	SEAL; HARNESS PROTECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 100X40	1-72498-022-1	04	1	0512-

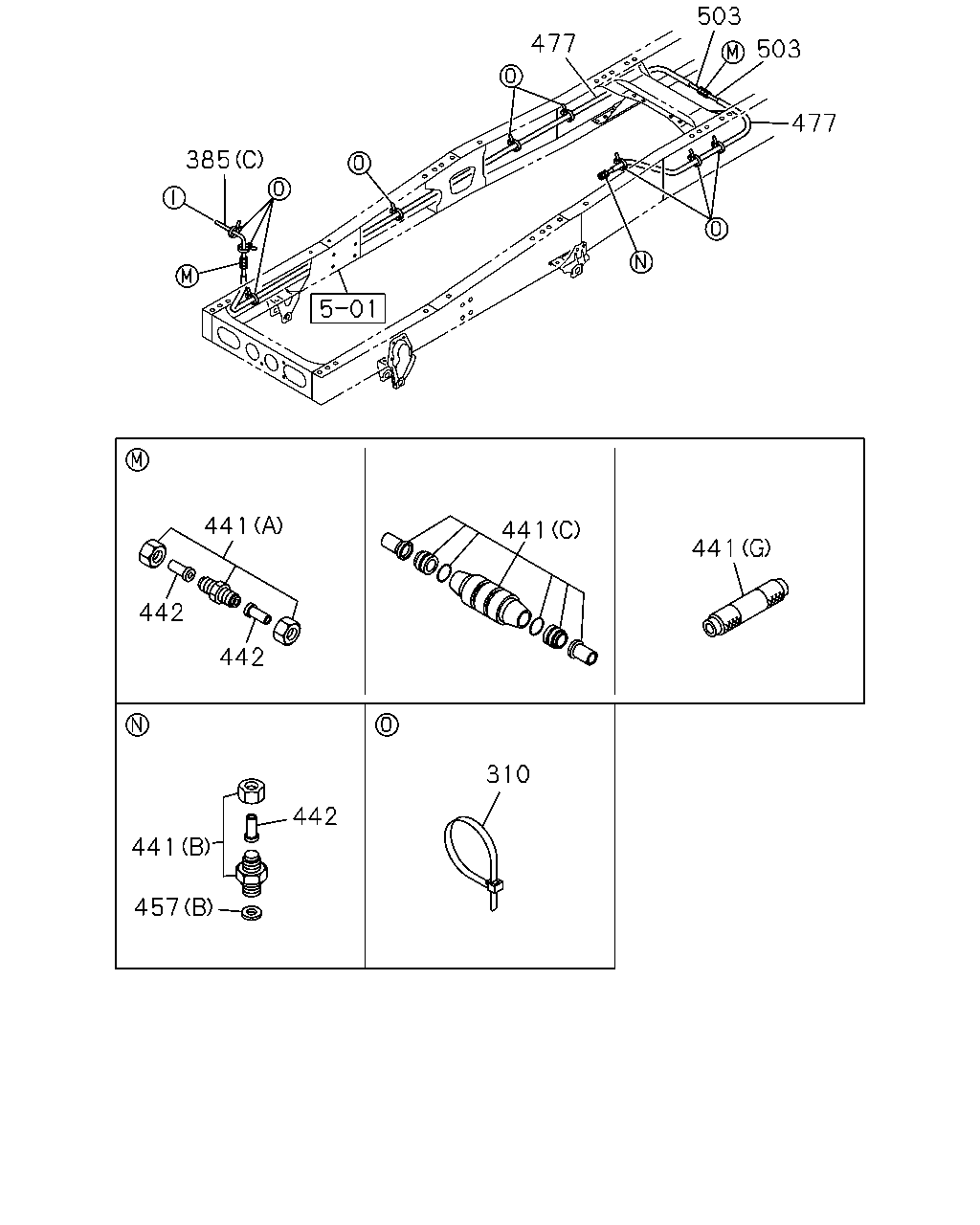

503 477 503 477 385 441 441 441 442 442 310 442 441 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE L=350	1-09707-183-0	13	1	0407-0511
310	CLIP; TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=350	1-09707-183-0	13	1	0512-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-0708
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0709-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0407
385	TUBE; NYLON (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0408-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0512-

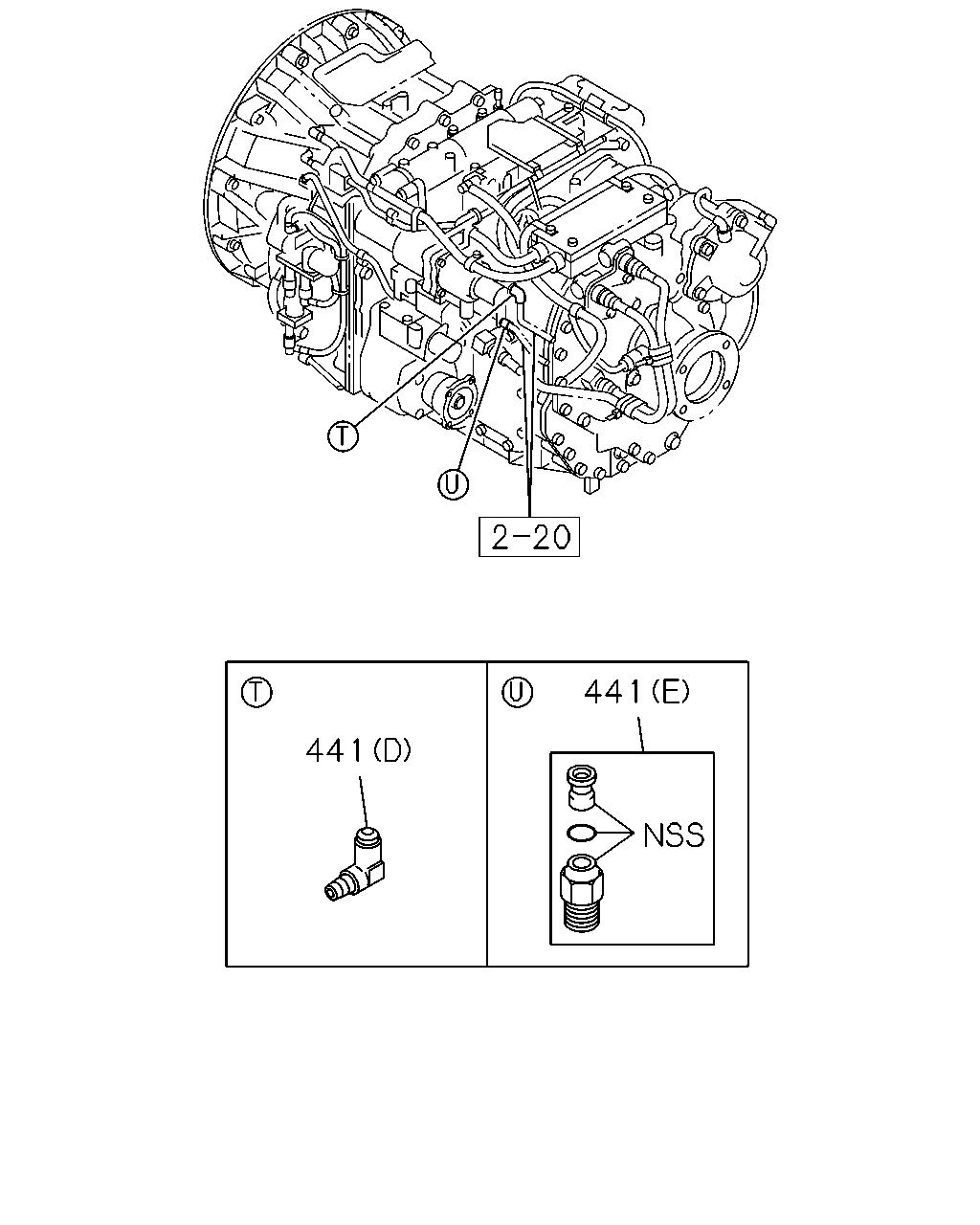

441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0704-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-09660-975-0	06	1	0704-0804
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (G)	8-98120-561-0	06	1	0805-
441	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
441	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0512-
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	0407-0511
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09660-466-0	01	1	0512-
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0407-0511
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0512-0608
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09660-975-0	02	1	0609-0804
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G)	8-98120-561-0	02	1	0805-0805
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G) DIN4 STRAIGHT	1-09660-512-0	02	1	0806-0904
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G)	8-98134-660-0	02	1	0905-
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0407-0511
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0512-0608
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	02	1	0609-0805
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0806-0904
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	02	1	0905-0909
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0910-
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0407-0511
457	GASKET CAB UP +110MM<TGG> (A)	1-09623-594-0	04	1	0407-0511
457	GASKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09623-594-0	04	1	0512-
457	GASKET (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0407-0511
457	GASKET MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0512-
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0511
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-
477	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	0407-0511
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	0512-
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0407-0511
503	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0512-
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0407-0511
503	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0512-

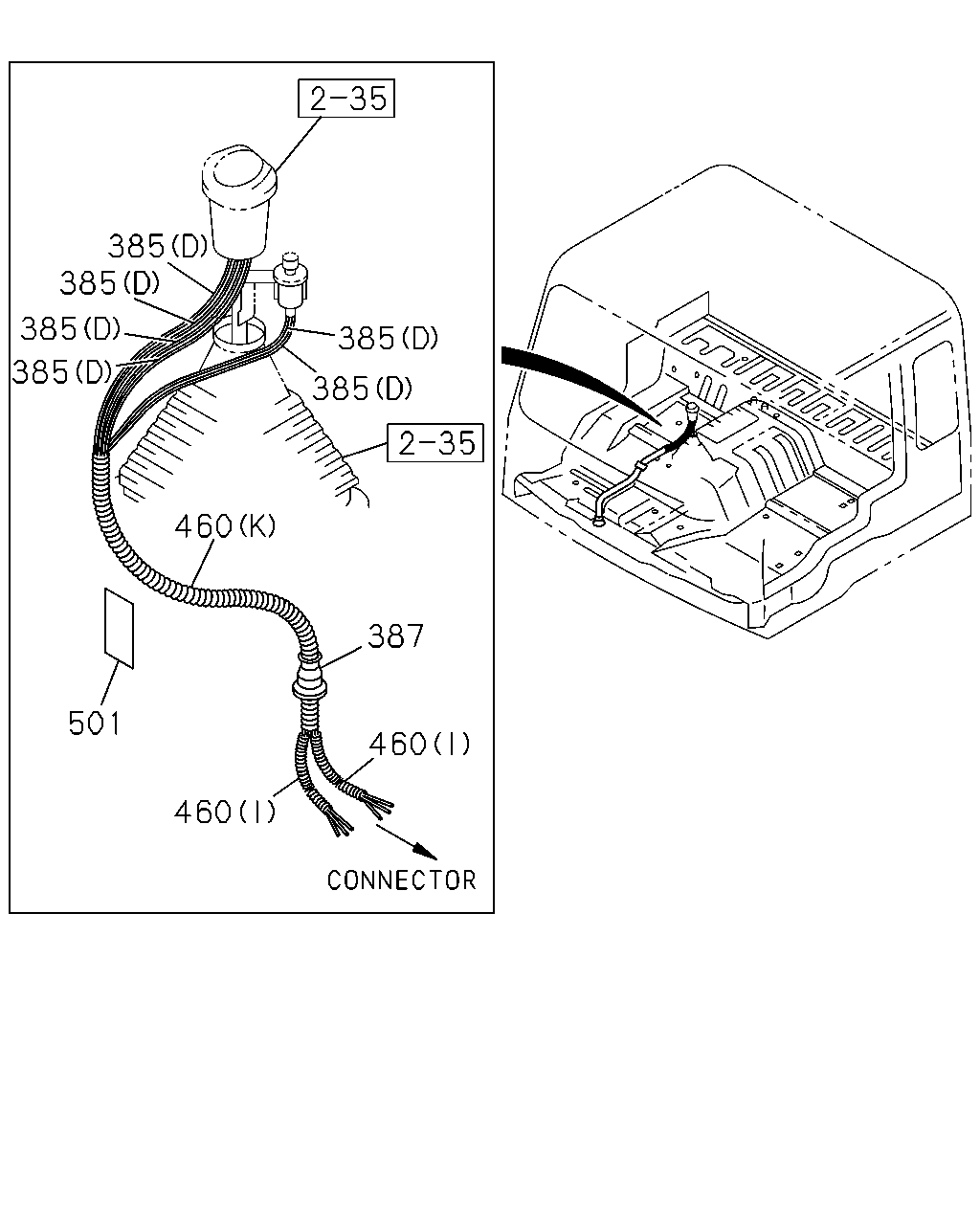

385 385 385 385 385 385 460 387 501 460 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-0708
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0709-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0407
385	TUBE; NYLON (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0408-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0512-
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0704-
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	0407-0511
387	GROMMET; CONT TUBE,FULLER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09332-102-0	01	1	0512-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0704-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0704-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0704-0708
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000	1-83129-335-0	01	1	0709-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0407-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0512-
460	TUBE; CORRUGATE (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-
460	TUBE; CORRUGATE (C) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0407
460	TUBE; CORRUGATE (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0408-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-1	04	1	0704-
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	0407-0511
501	SEAL; HARNESS PROTECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 100X40	1-72498-022-1	04	1	0512-

441 312 298 298 385 460 385 460 460 460 308 315 385 308 308 460 386 460 460 385 385 385 460 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (A)	1-47471-478-0	01	1	0704-
298	BRACKET TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47471-479-0	01	1	0704-
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 L=28	0-95235-856-0	01	1	0704-
308	CLIP; PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=12-16 & 12-16	1-09709-191-0	01	1	0704-
312	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	02	1	0704-
315	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-0708
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0709-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0407
385	TUBE; NYLON (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0408-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0512-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=350	1-09707-183-0	08	1	0704-
386	CLIP; CONT CABLE & TUBE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0407-0511
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0512-0707
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	0407-0511
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	01	1	0512-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0704-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-09660-975-0	06	1	0704-0804
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (G)	8-98120-561-0	06	1	0805-
441	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
441	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0512-
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	0407-0511
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09660-466-0	01	1	0512-
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0407-0511
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0512-0608
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09660-975-0	02	1	0609-0804
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G)	8-98120-561-0	02	1	0805-0805
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G) DIN4 STRAIGHT	1-09660-512-0	02	1	0806-0904
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G)	8-98134-660-0	02	1	0905-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0704-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0704-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0704-0708
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000	1-83129-335-0	01	1	0709-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0407-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0512-
460	TUBE; CORRUGATE (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-
460	TUBE; CORRUGATE (C) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0407
460	TUBE; CORRUGATE (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0408-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-

325 303 325 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0704-0904
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	0601-0706
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	0707-
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0707-
300	BOLT; CLIP M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0407-0511
300	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0512-
303	NUT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	01	1	0512-0602
303	NUT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0603-0706
303	NUT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0707-
303	NUT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0707-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=31 H=30 L=35	1-09700-994-0	01	1	0707-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (C) ID=19 L=28	0-95235-856-0	01	1	0704-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) ID=9.5	5-09709-020-0	06	1	0704-0706
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=35 L=33	1-09700-945-0	01	1	0707-
325	CLIP; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) ID=18 L=25 H=50	1-09701-096-0	01	1	0512-
325	CLIP; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	01	1	0512-

444 441 325 385 325 441 385 445 444 289 300 445 441 325 303 441 385 385 385 385 385 385 385 385 385 385 441 445 300 444 289 325 303 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	SLEEVE; RUBBER TRANSMISSION-FULLER RTLO189 18(Y4W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0707-
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0704-0904
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	0601-0706
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	0707-
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0707-
300	BOLT; CLIP M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0407-0511
300	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0512-
303	NUT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	01	1	0512-0602
303	NUT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0603-0706
303	NUT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0707-
303	NUT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0707-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) ID=31 H=30 L=35	1-09700-994-0	01	1	0707-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (C) ID=19 L=28	0-95235-856-0	01	1	0704-
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) ID=9.5	5-09709-020-0	06	1	0704-0706
325	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (F) ID=35 L=33	1-09700-945-0	01	1	0707-
325	CLIP; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A) ID=18 L=25 H=50	1-09701-096-0	01	1	0512-
325	CLIP; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	01	1	0512-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-0708
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0709-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0407
385	TUBE; NYLON (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0408-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0512-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0704-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-09660-975-0	06	1	0704-0804
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (G)	8-98120-561-0	06	1	0805-
441	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
441	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0512-
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	0407-0511
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09660-466-0	01	1	0512-
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0407-0511
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0512-0608
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09660-975-0	02	1	0609-0804
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G)	8-98120-561-0	02	1	0805-0805
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G) DIN4 STRAIGHT	1-09660-512-0	02	1	0806-0904
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G)	8-98134-660-0	02	1	0905-
444	BOLT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8X25 FLANGE	0-28650-825-0	01	1	0704-
445	NUT; BRKT,NIPPLE TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0704-

441 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0704-
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-09660-975-0	06	1	0704-0804
441	CONNECTOR; NYLON TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (G)	8-98120-561-0	06	1	0805-
441	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0512-
441	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0512-
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	0407-0511
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09660-466-0	01	1	0512-
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0407-0511
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0512-0608
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09660-975-0	02	1	0609-0804
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G)	8-98120-561-0	02	1	0805-0805
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G) DIN4 STRAIGHT	1-09660-512-0	02	1	0806-0904
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (G)	8-98134-660-0	02	1	0905-

390 385 385 460 442 390 386 386 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0704-0904
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	0601-0706
300	BOLT; CLIP 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	0707-
300	BOLT; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X20 FLANGE	0-28650-820-0	01	1	0707-
300	BOLT; CLIP M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0407-0511
300	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0512-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (E) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON FULLER M/T<X9B> (D) L=1820 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0704-0708
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0709-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0704-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0704-
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0512-
385	TUBE; NYLON (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0407-0407
385	TUBE; NYLON (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0408-0511
385	TUBE; NYLON MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0512-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=350	1-09707-183-0	08	1	0704-
386	CLIP; CONT CABLE & TUBE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0407-0511
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0512-0707
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	0407-0511
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=140	5-09707-031-1	01	1	0512-
390	CONNECTOR; STRAIGHT,TRANS SIDE (A) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0407-0511
390	CONNECTOR; STRAIGHT,TRANS SIDE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0512-0909
390	CONNECTOR; STRAIGHT,TRANS SIDE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09661-174-0	01	1	0910-
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0407-0511
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0512-0608
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	02	1	0609-0805
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0806-0904
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	02	1	0905-0909
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0910-
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0407-0511
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=400 SERVICED BY L=800	1-83129-031-1	01	1	0704-0803
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) ID=10 L=400 SERVICED BY L=6000	1-83129-337-0	01	1	0804-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0704-
460	TUBE; CORRUGATE FULLER M/T<X9B> (K) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0704-0708
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (D) L=110 SERVICED BY L=2000	1-83129-335-0	01	1	0709-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (J) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0704-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO189 18(Y4W) (H) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0704-
460	TUBE; CORRUGATE (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0407-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (I) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0512-
460	TUBE; CORRUGATE (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-
460	TUBE; CORRUGATE (C) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0407-0407
460	TUBE; CORRUGATE (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0408-0511
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0512-

457 118 88 365 118 457 457 118 88 115 268 100 253 118 16 254 283 457 253 458 71 103 33 34 46 162 466 35 34 100 34 507 46 242 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER CAB UP +110MM<TGG> M10 FLANGE	0-91150-110-0	02	1	0407-0511
16	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-110-0	02	1	0512-0602
16	NUT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-110-0	02	1	0603-
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0407-0511
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28681-030-0	03	1	0512-0512
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28651-030-0	03	1	0601-1003
33	BOLT; BRKT,3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X35 FLANGE	0-28651-035-0	03	1	1004-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0407-0511
34	SEAT; BALL,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-165-0	04	1	0512-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0407-0511
35	RING; SNAP,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) OD=34.4	9-09180-132-0	01	1	0512-
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0407-0503
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	0504-0511
46	SEAL; DUST,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-248-0	02	1	0512-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0407-0511
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33657-481-0	01	1	0512-
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-706-0	01	1	0407-0511
71	BRACKET; 3RD RELAY LEVER,FRAME TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33657-706-0	01	1	0512-
88	COLLAR; RELAY LEVER CAB UP +110MM<TGG>	1-33659-191-1	02	1	0407-0511
88	COLLAR; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33659-191-1	02	1	0512-
100	SPRING (A)	1-09583-319-0	01	1	0407-0511
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09583-319-0	01	1	0512-
100	SPRING (B)	1-09583-351-0	01	1	0407-0511
100	SPRING TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09583-351-0	01	1	0512-
103	NUT M8 FLANGE	0-91150-108-0	01	1	0407-0511
103	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0512-0602
103	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0603-
115	LEVER; RELAY,2ND SHIFT CAB UP +110MM<TGG>	1-33651-769-0	01	1	0407-0511
115	LEVER; RELAY,2ND SHIFT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-769-1	01	1	0512-
118	BUSHING; RELAY LEVER CAB UP +110MM<TGG>	1-09330-119-0	04	1	0407-0511
118	BUSHING; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-09330-119-0	04	1	0512-
162	LEVER; RELAY	1-33651-625-0	01	1	0407-0511
162	LEVER; RELAY TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-625-1	01	1	0512-
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0407-0511
242	NUT; FLANGE 3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M12 FLANGE	0-91150-212-0	03	1	0512-0602
242	NUT; FLANGE 3RD RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M12 FLANGE	0-91180-212-0	03	1	0603-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0407-0511
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M14X45	0-20801-445-0	02	1	0512-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X25 FLANGE	0-28081-025-0	02	1	0407-0511
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X25 FLANGE	0-28081-025-0	02	1	0512-0512
253	BOLT; BRKT,2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X25 FLANGE	0-28051-025-0	02	1	0601-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0407-0511
254	WASHER; LK,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.2	9-09150-614-0	02	1	0512-0603
254	WASHER; LK,RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.2	0-91510-614-0	02	1	0604-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0407-0511
268	BRACKET; LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-216-0	01	1	0512-
283	BOLT; RELAY LEVER CAB UP +110MM<TGG> M10X110	9-09801-316-1	02	1	0407-0511
283	BOLT; RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X110	9-09801-316-1	02	1	0512-
365	LEVER; RELAY,SELECT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0512-0703
365	LEVER; RELAY,SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-822-3	01	1	0704-
365	LEVER; RELAY,SELECT 6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0512-0703
365	LEVER; RELAY,SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-823-3	01	1	0704-
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-771-0	01	1	0407-0511
365	LEVER; RELAY,SELECT TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33651-771-1	01	1	0512-
365	LEVER; RELAY,SELECT (C)	1-33651-790-0	01	1	0407-0511
365	LEVER; RELAY,SELECT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C)	1-33651-790-1	01	1	0512-
365	LEVER; RELAY,SELECT (B)	1-33651-805-0	01	1	0407-0511
365	LEVER; RELAY,SELECT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-33651-805-1	01	1	0512-
457	GASKET CAB UP +110MM<TGG> (A)	1-09623-594-0	04	1	0407-0511
457	GASKET TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09623-594-0	04	1	0512-
457	GASKET (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0407-0511
457	GASKET MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0512-
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	0407-0511
458	BRACKET; 2ND RELAY LEVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-33657-664-1	01	1	0512-
466	BOLT; FIX M8X20 FLANGE	0-28680-820-0	02	1	0407-0511
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
466	BOLT; FIX TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
507	PROTECTOR; HEAT	1-14181-287-1	01	1	0407-0511
507	PROTECTOR; HEAT TRANSMISSION CONTROL LINK TYPE(B2A)	1-14181-287-1	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
