Sayfa 2-35 - Isuzu EPC

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#30018) — 513 parça

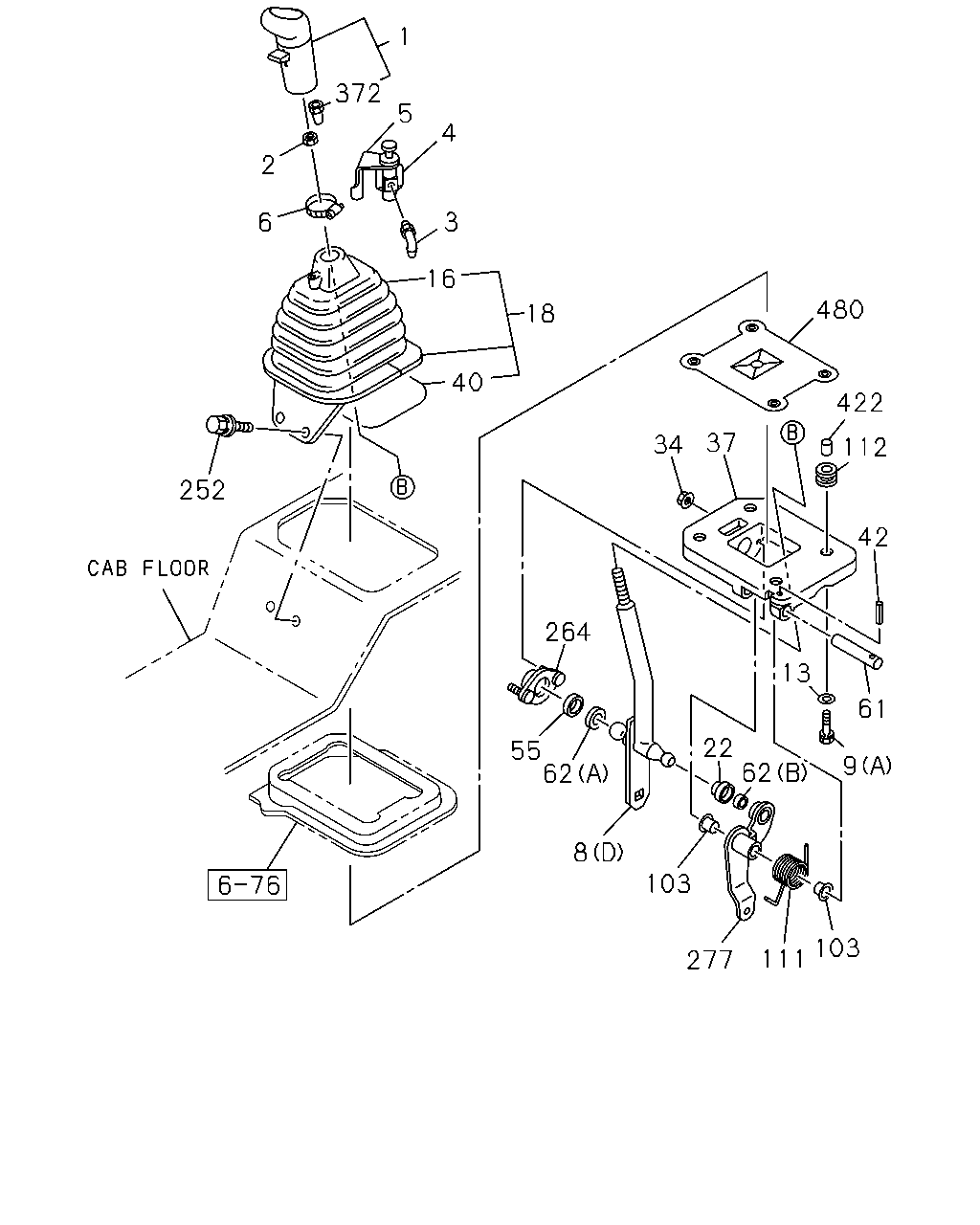

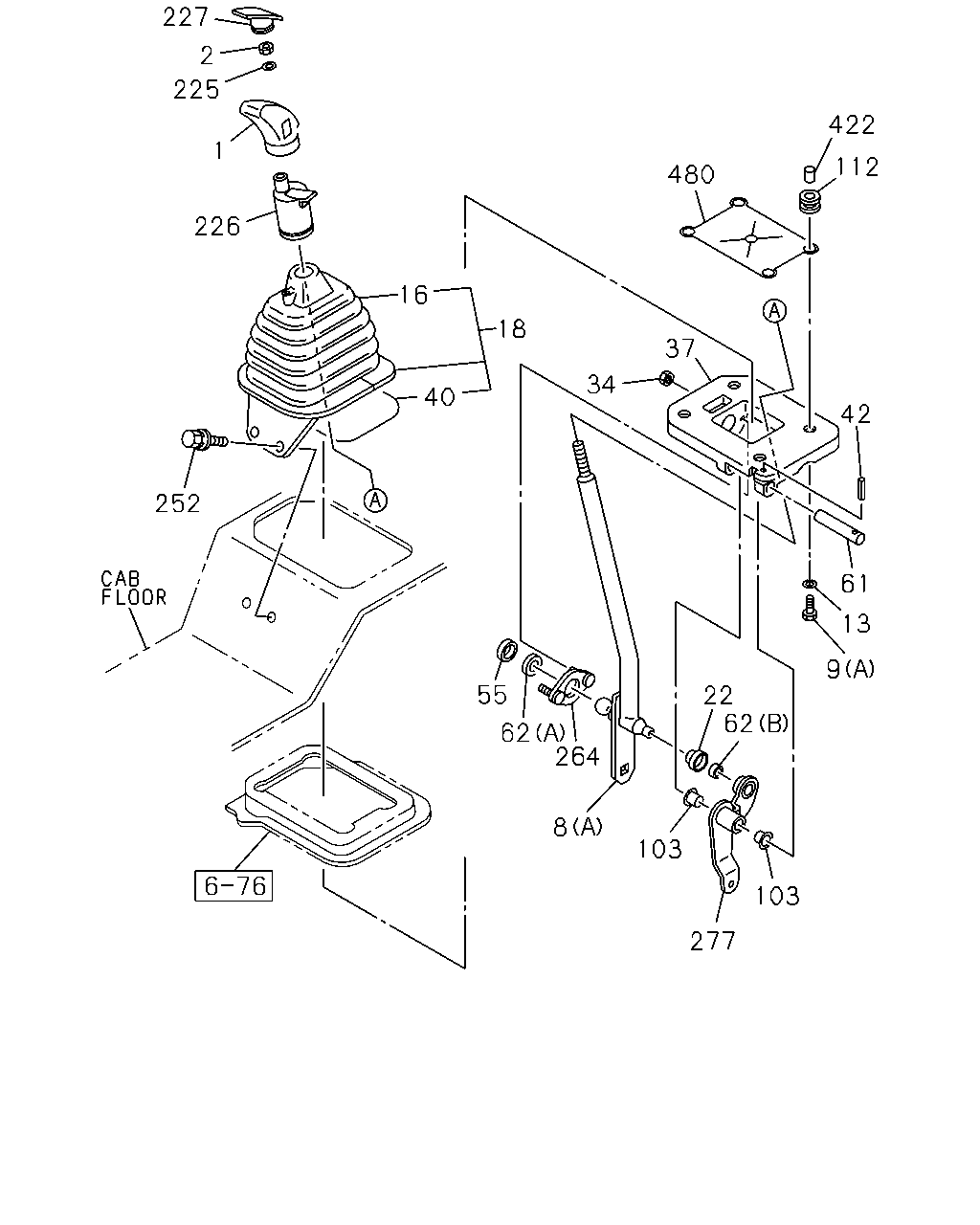

227 2 225 422 1 112 480 226 16 18 37 34 40 42 252 61 13 9 55 22 62 62 264 8 103 103 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	1-33611-116-0	01	1	0704-0804
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	8-98120-384-0	01	1	0805-1401
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	8-98224-285-0	01	1	1402-
1	KNOB; CHANGE LEVER 6WF1 TC-C(1B8),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33611-124-0	01	1	0512-0703
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33611-124-0	01	1	0704-0911
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-98152-481-0	01	1	0912-1010
1	KNOB; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-98152-481-0	01	1	1011-
1	KNOB; CHANGE LEVER	1-33611-038-0	01	1	0407-0511
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33611-038-0	01	1	0512-
2	NUT; KNOB FULLER M/T<X9B> 1/2-13UNC	1-33619-033-0	01	1	0704-
2	NUT; KNOB M10 FLANGE	0-91150-210-0	01	1	0407-0511
2	NUT; KNOB MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-210-0	01	1	0512-0602
2	NUT; KNOB MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-210-0	01	1	0603-
8	LEVER; CHANGE FULLER M/T<X9B> (D)	1-33613-349-0	01	1	0704-
8	LEVER; CHANGE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33620-064-1	01	1	0512-
8	LEVER; CHANGE 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0512-0703
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0704-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33613-345-0	01	1	0407-0511
8	LEVER; CHANGE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33613-345-0	01	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER	9-03900-408-0	04	1	0512-0604
9	BOLT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0512-0703
9	BOLT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0704-1010
9	BOLT; CHANGE LEVER (A) M8X25 FLANGE	0-28680-825-0	04	1	0407-0511
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	04	1	0407-0511
13	WASHER; PL,SUPER SHIFT LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22	9-09160-708-0	04	1	0512-0605
13	WASHER; PL,SUPER SHIFT LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22	0-91610-708-0	04	1	0606-
16	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-367-1	01	1	0704-
16	BOOT; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-133-0	01	1	0512-
16	BOOT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-145-0	01	1	0512-0703
16	BOOT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-145-0	01	1	0704-1010
16	BOOT; CHANGE LEVER	1-79996-369-0	01	1	0407-0511
16	BOOT; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-369-0	01	1	0512-
18	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-435-2	01	1	0704-
18	BOOT; CHANGE LEVER	1-79996-401-0	01	1	0407-0511
18	BOOT; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-401-0	01	1	0512-
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	0407-0511
22	COVER; DUST,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-573-0	01	1	0512-0703
22	COVER; DUST,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-573-0	01	1	0704-
22	COVER; DUST,CHANGE LEVER FULLER M/T<X9B>	1-33619-573-0	01	1	0704-
34	NUT M6 FLANGE	0-91150-106-0	02	1	0407-0511
34	NUT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE	0-91150-106-0	02	1	0512-0602
34	NUT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE	0-91180-106-0	02	1	0603-0703
34	NUT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE	0-91180-106-0	02	1	0704-
34	NUT FULLER M/T<X9B> M6 FLANGE	0-91180-106-0	02	1	0704-
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-467-0	01	1	0407-0511
37	BRACKET; CHANGE LEVER SUPPORT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-467-0	01	1	0512-0703
37	BRACKET; CHANGE LEVER SUPPORT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-467-0	01	1	0704-0802
37	BRACKET; CHANGE LEVER SUPPORT FULLER M/T<X9B>	1-33619-467-0	01	1	0704-0802
37	BRACKET; CHANGE LEVER SUPPORT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-98100-876-1	01	1	0803-
37	BRACKET; CHANGE LEVER SUPPORT FULLER M/T<X9B>	8-98100-876-1	01	1	0803-
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	0407-0511
40	SEAL; BOOT HOLDER CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-345-0	01	1	0512-0703
40	SEAL; BOOT HOLDER CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-345-0	01	1	0704-
40	SEAL; BOOT HOLDER CHANGE LEVER FULLER M/T<X9B>	1-79996-345-0	01	1	0704-
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	0407-0511
42	PIN; SPRING,SELECT LEVER PIN MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) D=5 L=28	8-94252-581-0	01	1	0512-0703
42	PIN; SPRING,SELECT LEVER PIN MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) D=5 L=28	8-94252-581-0	01	1	0704-
42	PIN; SPRING,SELECT LEVER PIN FULLER M/T<X9B> D=5 L=28	8-94252-581-0	01	1	0704-
55	SEAT; RUBBER,SELECT SPRING	1-33619-429-0	01	1	0407-0511
55	SEAT; RUBBER,SELECT SPRING MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-429-0	01	1	0512-0703
55	SEAT; RUBBER,SELECT SPRING MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-429-0	01	1	0704-0802
55	SEAT; RUBBER,SELECT SPRING FULLER M/T<X9B>	1-33619-429-0	01	1	0704-0802
61	PIN; SELECT LEVER	1-33619-470-0	01	1	0407-0511
61	PIN; SELECT LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-470-0	01	1	0512-0703
61	PIN; SELECT LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-470-0	01	1	0704-
61	PIN; SELECT LEVER FULLER M/T<X9B>	1-33619-470-0	01	1	0704-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0407-0511
62	SEAT; BALL,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33619-427-0	01	1	0512-0703
62	SEAT; BALL,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33619-427-0	01	1	0704-
62	SEAT; BALL,CHANGE LEVER FULLER M/T<X9B> (A)	1-33619-427-0	01	1	0704-
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0407-0511
62	SEAT; BALL,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-97011-900-0	01	1	0512-0703
62	SEAT; BALL,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-97011-900-0	01	1	0704-
62	SEAT; BALL,CHANGE LEVER FULLER M/T<X9B> (B)	8-97011-900-0	01	1	0704-
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0407-0511
103	BUSHING; RELAY LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=14 OD=16	8-94252-671-0	02	1	0512-0703
103	BUSHING; RELAY LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=14 OD=16	8-94252-671-0	02	1	0704-
103	BUSHING; RELAY LEVER FULLER M/T<X9B> ID=14 OD=16	8-94252-671-0	02	1	0704-
112	RUBBER; CUSHION	8-97091-426-0	04	1	0407-0511
112	RUBBER; CUSHION MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-97091-426-0	04	1	0512-0703
112	RUBBER; CUSHION MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-97091-426-0	04	1	0704-0810
112	RUBBER; CUSHION FULLER M/T<X9B>	8-97091-426-0	04	1	0704-0810
225	WASHER; PL,KNOB ID=10.5 OD=22	9-09160-610-0	01	1	0407-0511
225	WASHER; PL,KNOB MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=22	9-09160-610-0	01	1	0512-0605
225	WASHER; PL,KNOB MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0606-
226	VALVE; SELECTOR	1-33710-008-0	01	1	0407-0511
226	VALVE; SELECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33710-008-0	01	1	0512-
227	COVER; KNOB	1-33619-219-0	01	1	0407-0511
227	COVER; KNOB MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-219-0	01	1	0512-
252	BOLT; COVER,CHANGE LEVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0407-0511
252	BOLT; COVER,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0512-0703
252	BOLT; COVER,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0704-0904
252	BOLT; COVER,CHANGE LEVER FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0704-0904
252	BOLT; COVER,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
252	BOLT; COVER,CHANGE LEVER FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
264	PLATE; COVER	1-33619-469-0	01	1	0407-0511
264	PLATE; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-469-0	01	1	0512-0703
264	PLATE; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-469-0	01	1	0704-
264	PLATE; COVER FULLER M/T<X9B>	1-33619-469-0	01	1	0704-
277	LEVER; RELAY	1-33651-636-0	01	1	0407-0511
277	LEVER; RELAY MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-636-0	01	1	0512-0703
277	LEVER; RELAY MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-636-1	01	1	0704-
277	LEVER; RELAY FULLER M/T<X9B>	1-33651-636-1	01	1	0704-
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	0407-0511
422	BUSHING; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-97091-427-0	04	1	0512-0703
422	BUSHING; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-97091-427-0	04	1	0704-
422	BUSHING; CHANGE LEVER FULLER M/T<X9B>	8-97091-427-0	04	1	0704-
480	RUBBER; COVER	1-33619-554-0	01	1	0407-0511
480	RUBBER; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-554-0	01	1	0512-0703
480	RUBBER; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-554-0	01	1	0704-0810
480	RUBBER; COVER FULLER M/T<X9B>	1-33619-554-0	01	1	0704-0810
480	RUBBER; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-98119-365-0	01	1	0811-
480	RUBBER; COVER FULLER M/T<X9B>	8-98119-365-0	01	1	0811-

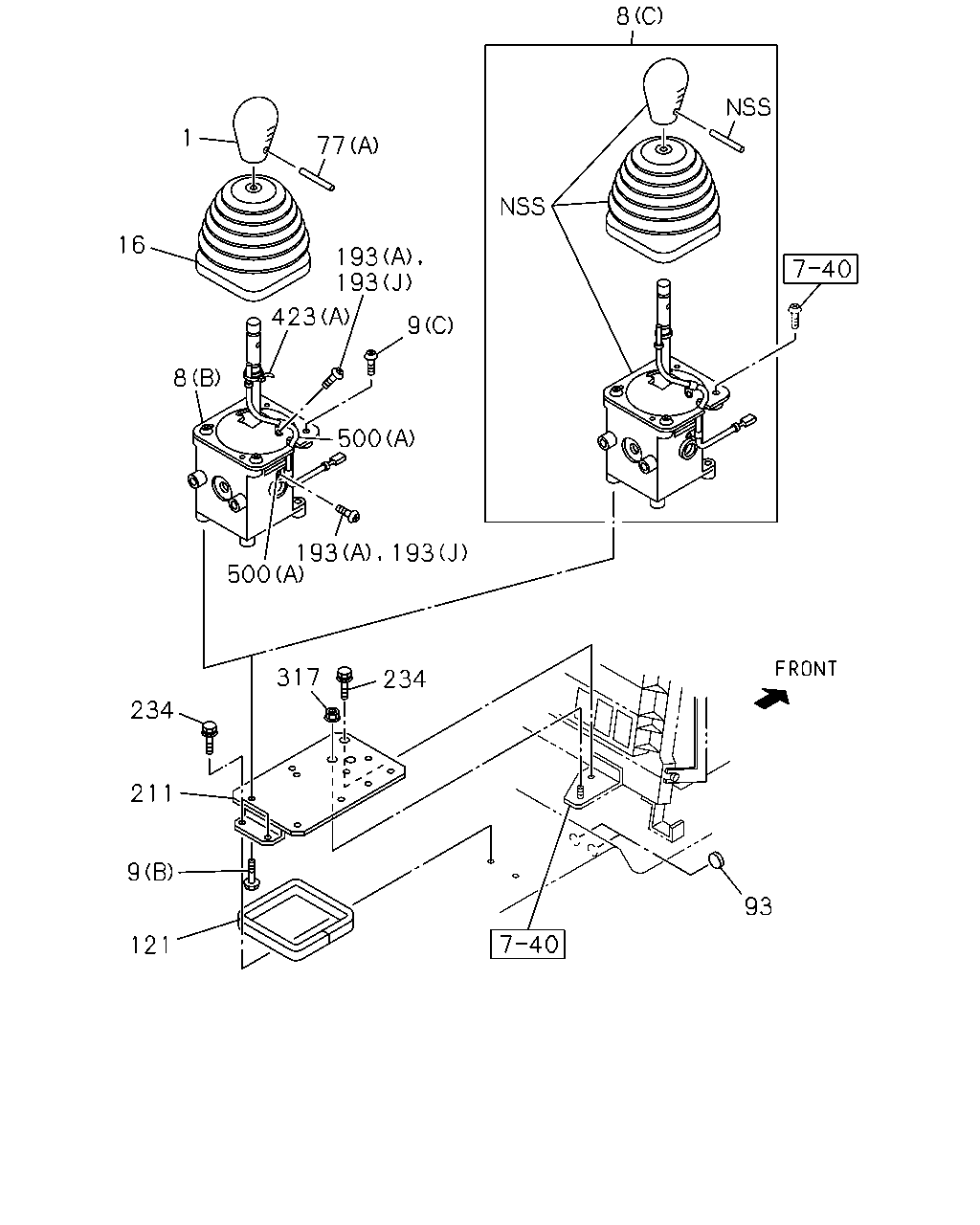

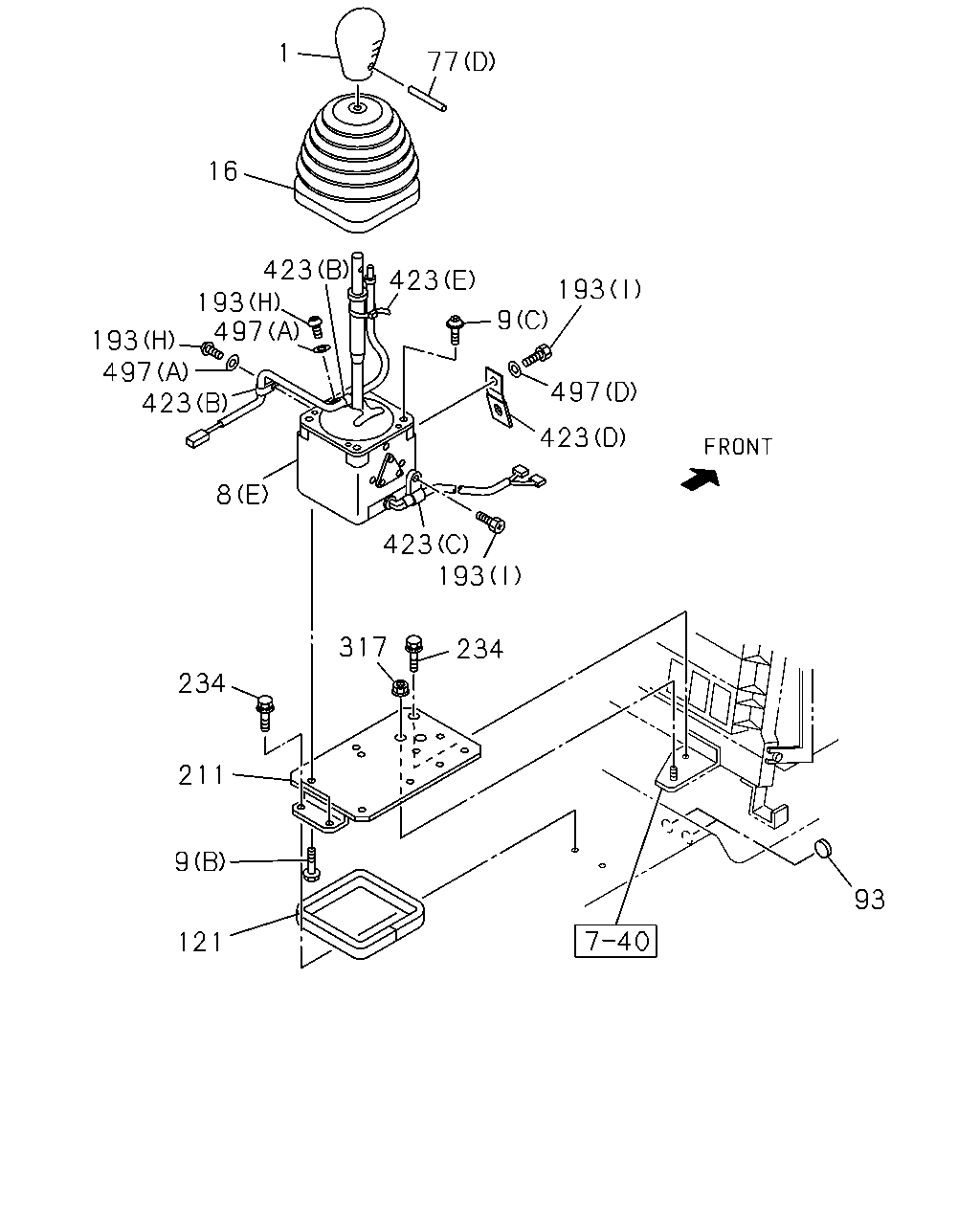

1 77 16 423 193 497 423 193 9 193 497 423 497 423 8 423 193 317 234 234 211 9 93 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	1-33611-116-0	01	1	0704-0804
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	8-98120-384-0	01	1	0805-1401
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	8-98224-285-0	01	1	1402-
1	KNOB; CHANGE LEVER 6WF1 TC-C(1B8),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33611-124-0	01	1	0512-0703
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33611-124-0	01	1	0704-0911
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-98152-481-0	01	1	0912-1010
1	KNOB; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-98152-481-0	01	1	1011-
1	KNOB; CHANGE LEVER	1-33611-038-0	01	1	0407-0511
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33611-038-0	01	1	0512-
8	LEVER; CHANGE FULLER M/T<X9B> (D)	1-33613-349-0	01	1	0704-
8	LEVER; CHANGE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33620-064-1	01	1	0512-
8	LEVER; CHANGE 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0512-0703
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0704-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33613-345-0	01	1	0407-0511
8	LEVER; CHANGE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33613-345-0	01	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER	9-03900-408-0	04	1	0512-0604
9	BOLT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0512-0703
9	BOLT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0704-1010
9	BOLT; CHANGE LEVER (A) M8X25 FLANGE	0-28680-825-0	04	1	0407-0511
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
16	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-367-1	01	1	0704-
16	BOOT; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-133-0	01	1	0512-
16	BOOT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-145-0	01	1	0512-0703
16	BOOT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-145-0	01	1	0704-1010
16	BOOT; CHANGE LEVER	1-79996-369-0	01	1	0407-0511
16	BOOT; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-369-0	01	1	0512-
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-687-0	01	1	0512-
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33738-057-0	01	1	0512-
77	PIN; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-780-0	01	1	0512-0703
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-780-0	01	1	0704-1010
77	PIN; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-795-0	01	1	0512-0703
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-795-0	01	1	0704-1010
93	SEAL; HOLE COVER,GEAR CONT EXC. SMOOTHER-G(C1W) OD=25 BLACK	1-76798-019-0	02	1	1010-
93	SEAL; HOLE COVER,GEAR CONT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) OD=25 BLACK	1-76798-019-0	04	1	0512-
121	SEAL; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-79997-354-0	01	1	0512-
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) M5X12 W/LK WASHER	0-36220-512-0	02	1	0912-1010
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G)	1-33619-501-0	09	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-684-0	06	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33619-690-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-695-0	03	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H)	1-33739-168-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I)	1-33739-302-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	9-88510-210-0	04	1	0512-
193	SCREW; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER	9-03910-408-0	04	1	0512-0703
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER	9-03910-408-0	04	1	0704-1010
193	SCREW; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER	9-03910-512-0	06	1	0512-0703
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER	9-03910-512-0	06	1	0704-0911
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) M5X12 W/LK WASHER	9-03910-512-0	04	1	0912-1010
211	BRACKET; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-79907-115-1	01	1	0512-
234	BOLT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0512-0904
234	BOLT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
317	NUT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	01	1	0512-0602
317	NUT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0603-
423	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) L=60	1-09700-304-0	01	1	0512-
423	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-47829-050-0	01	1	0512-
423	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=9 L=16	9-09524-822-0	02	1	0512-
423	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=13 L=20	9-09525-232-0	01	1	0512-
423	CLIP; BAND 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-781-0	01	1	0512-0703
423	CLIP; BAND 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-781-0	01	1	0704-0911
423	CLIP; BAND 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	8-97138-392-0	01	1	0912-1010
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-715-0	01	1	0512-
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-759-0	01	1	0512-
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=6.4	9-09160-506-0	01	1	0512-
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=12	9-09164-605-0	02	1	0512-

8 1 77 16 193 193 423 9 8 500 193 193 500 317 234 234 211 9 93 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	1-33611-116-0	01	1	0704-0804
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	8-98120-384-0	01	1	0805-1401
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	8-98224-285-0	01	1	1402-
1	KNOB; CHANGE LEVER 6WF1 TC-C(1B8),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33611-124-0	01	1	0512-0703
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33611-124-0	01	1	0704-0911
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-98152-481-0	01	1	0912-1010
1	KNOB; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-98152-481-0	01	1	1011-
1	KNOB; CHANGE LEVER	1-33611-038-0	01	1	0407-0511
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33611-038-0	01	1	0512-
8	LEVER; CHANGE FULLER M/T<X9B> (D)	1-33613-349-0	01	1	0704-
8	LEVER; CHANGE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33620-064-1	01	1	0512-
8	LEVER; CHANGE 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0512-0703
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0704-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33613-345-0	01	1	0407-0511
8	LEVER; CHANGE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33613-345-0	01	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER	9-03900-408-0	04	1	0512-0604
9	BOLT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0512-0703
9	BOLT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0704-1010
9	BOLT; CHANGE LEVER (A) M8X25 FLANGE	0-28680-825-0	04	1	0407-0511
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
16	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-367-1	01	1	0704-
16	BOOT; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-133-0	01	1	0512-
16	BOOT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-145-0	01	1	0512-0703
16	BOOT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-145-0	01	1	0704-1010
16	BOOT; CHANGE LEVER	1-79996-369-0	01	1	0407-0511
16	BOOT; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-369-0	01	1	0512-
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-687-0	01	1	0512-
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33738-057-0	01	1	0512-
77	PIN; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-780-0	01	1	0512-0703
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-780-0	01	1	0704-1010
77	PIN; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-795-0	01	1	0512-0703
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-795-0	01	1	0704-1010
93	SEAL; HOLE COVER,GEAR CONT EXC. SMOOTHER-G(C1W) OD=25 BLACK	1-76798-019-0	02	1	1010-
93	SEAL; HOLE COVER,GEAR CONT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) OD=25 BLACK	1-76798-019-0	04	1	0512-
121	SEAL; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-79997-354-0	01	1	0512-
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) M5X12 W/LK WASHER	0-36220-512-0	02	1	0912-1010
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G)	1-33619-501-0	09	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-684-0	06	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33619-690-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-695-0	03	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H)	1-33739-168-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I)	1-33739-302-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	9-88510-210-0	04	1	0512-
193	SCREW; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER	9-03910-408-0	04	1	0512-0703
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER	9-03910-408-0	04	1	0704-1010
193	SCREW; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER	9-03910-512-0	06	1	0512-0703
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER	9-03910-512-0	06	1	0704-0911
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) M5X12 W/LK WASHER	9-03910-512-0	04	1	0912-1010
211	BRACKET; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-79907-115-1	01	1	0512-
234	BOLT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0512-0904
234	BOLT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
317	NUT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	01	1	0512-0602
317	NUT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0603-
423	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) L=60	1-09700-304-0	01	1	0512-
423	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-47829-050-0	01	1	0512-
423	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=9 L=16	9-09524-822-0	02	1	0512-
423	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=13 L=20	9-09525-232-0	01	1	0512-
423	CLIP; BAND 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-781-0	01	1	0512-0703
423	CLIP; BAND 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-781-0	01	1	0704-0911
423	CLIP; BAND 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	8-97138-392-0	01	1	0912-1010
500	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47829-050-0	01	1	0512-
500	CLIP; HARNESS 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=9 L=16	9-09524-822-0	02	1	0512-0703
500	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=9 L=16	9-09524-822-0	02	1	0704-1010

1 372 5 4 2 3 6 16 480 18 40 422 37 34 112 252 42 264 13 61 22 62 55 62 9 8 103 103 111 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	1-33611-116-0	01	1	0704-0804
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	8-98120-384-0	01	1	0805-1401
1	KNOB; CHANGE LEVER FULLER M/T<X9B>	8-98224-285-0	01	1	1402-
1	KNOB; CHANGE LEVER 6WF1 TC-C(1B8),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33611-124-0	01	1	0512-0703
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33611-124-0	01	1	0704-0911
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-98152-481-0	01	1	0912-1010
1	KNOB; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-98152-481-0	01	1	1011-
1	KNOB; CHANGE LEVER	1-33611-038-0	01	1	0407-0511
1	KNOB; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33611-038-0	01	1	0512-
2	NUT; KNOB FULLER M/T<X9B> 1/2-13UNC	1-33619-033-0	01	1	0704-
2	NUT; KNOB M10 FLANGE	0-91150-210-0	01	1	0407-0511
2	NUT; KNOB MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-210-0	01	1	0512-0602
2	NUT; KNOB MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-210-0	01	1	0603-
3	CONNECTOR; CONT TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-33619-533-0	02	1	0704-0804
3	CONNECTOR; CONT TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP>	8-98114-398-0	02	1	0805-
4	VALVE; ACTUATOR COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-33712-003-0	01	1	0704-
5	BRACKET; ACTUATOR VLV COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-33719-078-0	01	1	0704-
6	CLAMP; BRKT COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-33719-079-0	01	1	0704-
8	LEVER; CHANGE FULLER M/T<X9B> (D)	1-33613-349-0	01	1	0704-
8	LEVER; CHANGE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33620-064-1	01	1	0512-
8	LEVER; CHANGE 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0512-0703
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0704-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33613-345-0	01	1	0407-0511
8	LEVER; CHANGE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33613-345-0	01	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER	9-03900-408-0	04	1	0512-0604
9	BOLT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0512-0703
9	BOLT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0704-1010
9	BOLT; CHANGE LEVER (A) M8X25 FLANGE	0-28680-825-0	04	1	0407-0511
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	04	1	0407-0511
13	WASHER; PL,SUPER SHIFT LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22	9-09160-708-0	04	1	0512-0605
13	WASHER; PL,SUPER SHIFT LEVER TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22	0-91610-708-0	04	1	0606-
16	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-367-1	01	1	0704-
16	BOOT; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-133-0	01	1	0512-
16	BOOT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-145-0	01	1	0512-0703
16	BOOT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33614-145-0	01	1	0704-1010
16	BOOT; CHANGE LEVER	1-79996-369-0	01	1	0407-0511
16	BOOT; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-369-0	01	1	0512-
18	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-435-2	01	1	0704-
18	BOOT; CHANGE LEVER	1-79996-401-0	01	1	0407-0511
18	BOOT; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-401-0	01	1	0512-
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	0407-0511
22	COVER; DUST,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-573-0	01	1	0512-0703
22	COVER; DUST,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-573-0	01	1	0704-
22	COVER; DUST,CHANGE LEVER FULLER M/T<X9B>	1-33619-573-0	01	1	0704-
34	NUT M6 FLANGE	0-91150-106-0	02	1	0407-0511
34	NUT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE	0-91150-106-0	02	1	0512-0602
34	NUT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE	0-91180-106-0	02	1	0603-0703
34	NUT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6 FLANGE	0-91180-106-0	02	1	0704-
34	NUT FULLER M/T<X9B> M6 FLANGE	0-91180-106-0	02	1	0704-
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-467-0	01	1	0407-0511
37	BRACKET; CHANGE LEVER SUPPORT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-467-0	01	1	0512-0703
37	BRACKET; CHANGE LEVER SUPPORT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-467-0	01	1	0704-0802
37	BRACKET; CHANGE LEVER SUPPORT FULLER M/T<X9B>	1-33619-467-0	01	1	0704-0802
37	BRACKET; CHANGE LEVER SUPPORT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-98100-876-1	01	1	0803-
37	BRACKET; CHANGE LEVER SUPPORT FULLER M/T<X9B>	8-98100-876-1	01	1	0803-
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	0407-0511
40	SEAL; BOOT HOLDER CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-345-0	01	1	0512-0703
40	SEAL; BOOT HOLDER CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-79996-345-0	01	1	0704-
40	SEAL; BOOT HOLDER CHANGE LEVER FULLER M/T<X9B>	1-79996-345-0	01	1	0704-
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	0407-0511
42	PIN; SPRING,SELECT LEVER PIN MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) D=5 L=28	8-94252-581-0	01	1	0512-0703
42	PIN; SPRING,SELECT LEVER PIN MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) D=5 L=28	8-94252-581-0	01	1	0704-
42	PIN; SPRING,SELECT LEVER PIN FULLER M/T<X9B> D=5 L=28	8-94252-581-0	01	1	0704-
55	SEAT; RUBBER,SELECT SPRING	1-33619-429-0	01	1	0407-0511
55	SEAT; RUBBER,SELECT SPRING MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-429-0	01	1	0512-0703
55	SEAT; RUBBER,SELECT SPRING MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-429-0	01	1	0704-0802
55	SEAT; RUBBER,SELECT SPRING FULLER M/T<X9B>	1-33619-429-0	01	1	0704-0802
61	PIN; SELECT LEVER	1-33619-470-0	01	1	0407-0511
61	PIN; SELECT LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-470-0	01	1	0512-0703
61	PIN; SELECT LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-470-0	01	1	0704-
61	PIN; SELECT LEVER FULLER M/T<X9B>	1-33619-470-0	01	1	0704-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0407-0511
62	SEAT; BALL,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33619-427-0	01	1	0512-0703
62	SEAT; BALL,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33619-427-0	01	1	0704-
62	SEAT; BALL,CHANGE LEVER FULLER M/T<X9B> (A)	1-33619-427-0	01	1	0704-
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0407-0511
62	SEAT; BALL,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-97011-900-0	01	1	0512-0703
62	SEAT; BALL,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-97011-900-0	01	1	0704-
62	SEAT; BALL,CHANGE LEVER FULLER M/T<X9B> (B)	8-97011-900-0	01	1	0704-
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0407-0511
103	BUSHING; RELAY LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=14 OD=16	8-94252-671-0	02	1	0512-0703
103	BUSHING; RELAY LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=14 OD=16	8-94252-671-0	02	1	0704-
103	BUSHING; RELAY LEVER FULLER M/T<X9B> ID=14 OD=16	8-94252-671-0	02	1	0704-
111	SPRING FULLER M/T<X9B>	1-09585-133-1	01	1	0704-
112	RUBBER; CUSHION	8-97091-426-0	04	1	0407-0511
112	RUBBER; CUSHION MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-97091-426-0	04	1	0512-0703
112	RUBBER; CUSHION MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-97091-426-0	04	1	0704-0810
112	RUBBER; CUSHION FULLER M/T<X9B>	8-97091-426-0	04	1	0704-0810
252	BOLT; COVER,CHANGE LEVER M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0407-0511
252	BOLT; COVER,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0512-0703
252	BOLT; COVER,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0704-0904
252	BOLT; COVER,CHANGE LEVER FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0704-0904
252	BOLT; COVER,CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
252	BOLT; COVER,CHANGE LEVER FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
264	PLATE; COVER	1-33619-469-0	01	1	0407-0511
264	PLATE; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-469-0	01	1	0512-0703
264	PLATE; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-469-0	01	1	0704-
264	PLATE; COVER FULLER M/T<X9B>	1-33619-469-0	01	1	0704-
277	LEVER; RELAY	1-33651-636-0	01	1	0407-0511
277	LEVER; RELAY MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-636-0	01	1	0512-0703
277	LEVER; RELAY MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33651-636-1	01	1	0704-
277	LEVER; RELAY FULLER M/T<X9B>	1-33651-636-1	01	1	0704-
372	CONNECTOR; CHANGE LEVER FULLER M/T<X9B>	8-97500-148-0	04	1	0704-0804
372	CONNECTOR; CHANGE LEVER FULLER M/T<X9B>	8-98114-396-0	04	1	0805-
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	0407-0511
422	BUSHING; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-97091-427-0	04	1	0512-0703
422	BUSHING; CHANGE LEVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-97091-427-0	04	1	0704-
422	BUSHING; CHANGE LEVER FULLER M/T<X9B>	8-97091-427-0	04	1	0704-
480	RUBBER; COVER	1-33619-554-0	01	1	0407-0511
480	RUBBER; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-554-0	01	1	0512-0703
480	RUBBER; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33619-554-0	01	1	0704-0810
480	RUBBER; COVER FULLER M/T<X9B>	1-33619-554-0	01	1	0704-0810
480	RUBBER; COVER MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A)	8-98119-365-0	01	1	0811-
480	RUBBER; COVER FULLER M/T<X9B>	8-98119-365-0	01	1	0811-

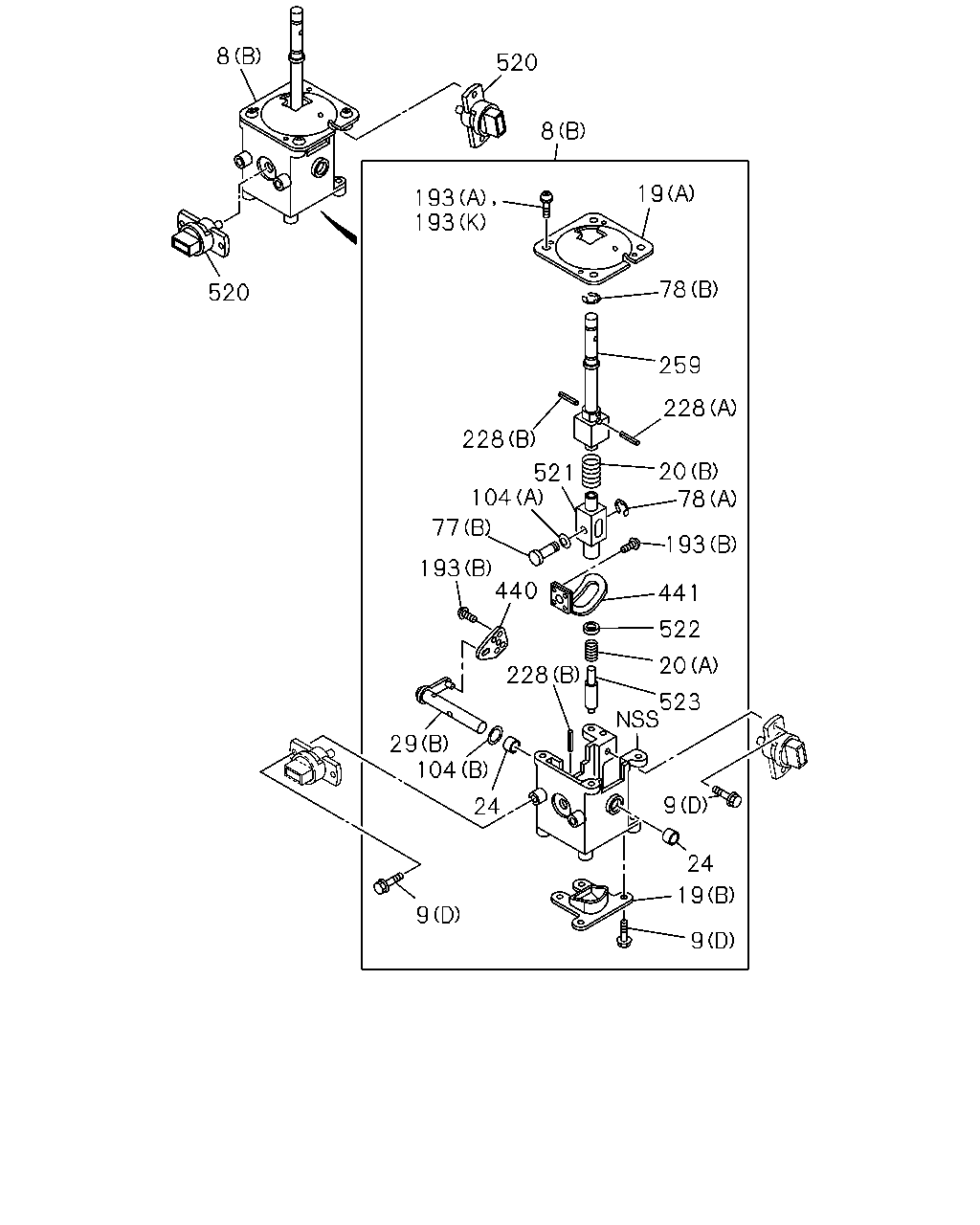

8 520 8 19 193 193 78 520 259 228 228 20 78 521 104 77 193 193 440 441 522 20 228 523 29 104 9 24 24 19 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LEVER; CHANGE FULLER M/T<X9B> (D)	1-33613-349-0	01	1	0704-
8	LEVER; CHANGE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33620-064-1	01	1	0512-
8	LEVER; CHANGE 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0512-0703
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0704-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33613-345-0	01	1	0407-0511
8	LEVER; CHANGE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33613-345-0	01	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0512-
9	BOLT; CHANGE LEVER MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M4X8 W/PL WASHER	9-03900-408-0	04	1	0512-0604
9	BOLT; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0512-0703
9	BOLT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-798-0	08	1	0704-1010
9	BOLT; CHANGE LEVER (A) M8X25 FLANGE	0-28680-825-0	04	1	0407-0511
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
9	BOLT; CHANGE LEVER TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-754-0	01	1	0512-
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-757-0	01	1	0512-
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33619-758-0	01	1	0512-
19	COVER; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-790-0	01	1	0512-0703
19	COVER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-790-0	01	1	0704-1010
19	COVER; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-791-0	01	1	0512-0703
19	COVER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-791-0	01	1	0704-1010
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-712-0	01	1	0512-
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33619-719-0	01	1	0512-
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-760-0	01	1	0512-
20	SPRING; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-786-0	01	1	0512-0703
20	SPRING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-786-0	01	1	0704-1010
20	SPRING; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-787-0	01	1	0512-0703
20	SPRING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-787-0	01	1	0704-1010
24	BUSHING; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-797-0	02	1	0512-0703
24	BUSHING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-797-0	02	1	0704-1010
29	SHAFT 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-756-0	01	1	0512-
29	SHAFT 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-792-0	01	1	0512-0703
29	SHAFT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-792-0	01	1	0704-1010
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-687-0	01	1	0512-
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33738-057-0	01	1	0512-
77	PIN; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-780-0	01	1	0512-0703
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-780-0	01	1	0704-1010
77	PIN; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-795-0	01	1	0512-0703
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-795-0	01	1	0704-1010
78	RING; SNAP,CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=4	9-09185-404-0	01	1	0512-0703
78	RING; SNAP,CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=4	9-09185-404-0	01	1	0704-1010
78	RING; SNAP,CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=9	9-09185-409-0	01	1	0512-0703
78	RING; SNAP,CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=9	9-09185-409-0	01	1	0704-1010
104	WASHER; WAVED 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-788-0	01	1	0512-0703
104	WASHER; WAVED 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-788-0	01	1	0704-1010
104	WASHER; WAVED 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-789-0	01	1	0512-0703
104	WASHER; WAVED 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-789-0	01	1	0704-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) M5X12 W/LK WASHER	0-36220-512-0	02	1	0912-1010
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G)	1-33619-501-0	09	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-684-0	06	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33619-690-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-695-0	03	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H)	1-33739-168-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I)	1-33739-302-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	9-88510-210-0	04	1	0512-
193	SCREW; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER	9-03910-408-0	04	1	0512-0703
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER	9-03910-408-0	04	1	0704-1010
193	SCREW; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER	9-03910-512-0	06	1	0512-0703
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER	9-03910-512-0	06	1	0704-0911
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) M5X12 W/LK WASHER	9-03910-512-0	04	1	0912-1010
228	PIN; SPR,CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-505-0	01	1	0512-0703
228	PIN; SPR,CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-505-0	01	1	0704-1010
228	PIN; SPR,CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-796-0	02	1	0512-0703
228	PIN; SPR,CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-796-0	02	1	0704-1010
259	LEVER; CHANGE,UPR 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-782-0	01	1	0512-0703
259	LEVER; CHANGE,UPR 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-782-0	01	1	0704-1010
440	LEVER; SHIFT 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-794-0	01	1	0512-0703
440	LEVER; SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-794-0	01	1	0704-1010
441	LEVER; SELECT 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-793-0	01	1	0512-0703
441	LEVER; SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-793-0	01	1	0704-1010
520	SENSOR; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-81541-113-0	02	1	0512-0703
520	SENSOR; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-81541-113-0	02	1	0704-1010
521	LEVER; CHANGE,LOW 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-783-0	01	1	0512-0703
521	LEVER; CHANGE,LOW 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-783-0	01	1	0704-1010
522	GUIDE; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-784-0	01	1	0512-0703
522	GUIDE; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-784-0	01	1	0704-1010
523	PLUNGER; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-785-0	01	1	0512-0703
523	PLUNGER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-785-0	01	1	0704-1010

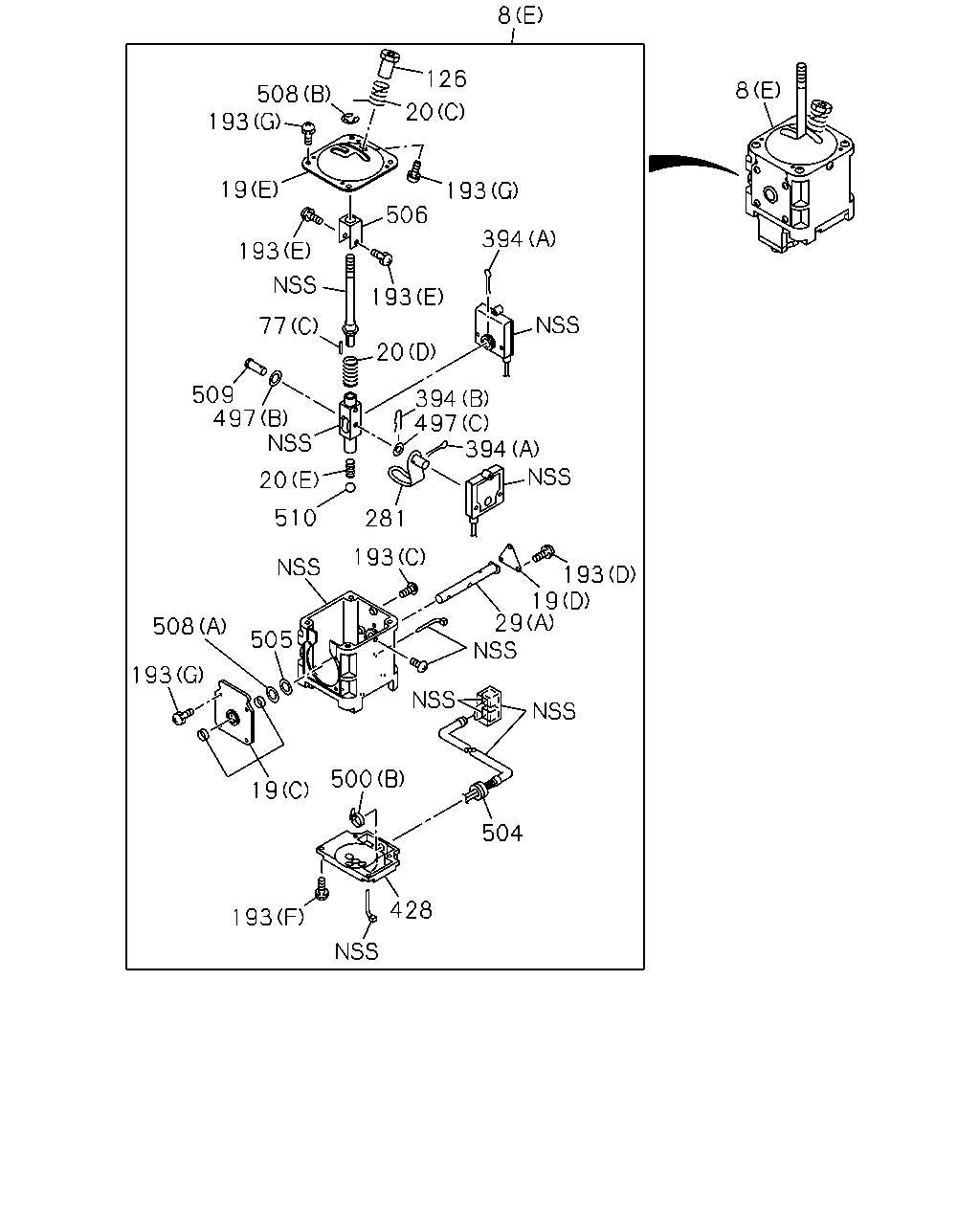

8 126 8 508 193 20 19 193 506 394 193 193 77 20 394 497 394 509 497 20 510 281 193 193 19 29 508 505 193 500 19 504 428 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LEVER; CHANGE FULLER M/T<X9B> (D)	1-33613-349-0	01	1	0704-
8	LEVER; CHANGE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33620-064-1	01	1	0512-
8	LEVER; CHANGE 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0512-0703
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33620-114-2	01	1	0704-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33613-345-0	01	1	0407-0511
8	LEVER; CHANGE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33613-345-0	01	1	0512-
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-754-0	01	1	0512-
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-757-0	01	1	0512-
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33619-758-0	01	1	0512-
19	COVER; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-790-0	01	1	0512-0703
19	COVER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-790-0	01	1	0704-1010
19	COVER; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-791-0	01	1	0512-0703
19	COVER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-791-0	01	1	0704-1010
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-712-0	01	1	0512-
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33619-719-0	01	1	0512-
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-760-0	01	1	0512-
20	SPRING; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-786-0	01	1	0512-0703
20	SPRING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-786-0	01	1	0704-1010
20	SPRING; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-787-0	01	1	0512-0703
20	SPRING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-787-0	01	1	0704-1010
29	SHAFT 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-756-0	01	1	0512-
29	SHAFT 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-792-0	01	1	0512-0703
29	SHAFT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-792-0	01	1	0704-1010
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-687-0	01	1	0512-
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33738-057-0	01	1	0512-
77	PIN; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-780-0	01	1	0512-0703
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-780-0	01	1	0704-1010
77	PIN; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-795-0	01	1	0512-0703
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-795-0	01	1	0704-1010
126	BOSS; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-761-0	01	1	0512-
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) M5X12 W/LK WASHER	0-36220-512-0	02	1	0912-1010
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G)	1-33619-501-0	09	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-33619-684-0	06	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E)	1-33619-690-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-695-0	03	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (H)	1-33739-168-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (I)	1-33739-302-0	02	1	0512-
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	9-88510-210-0	04	1	0512-
193	SCREW; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER	9-03910-408-0	04	1	0512-0703
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER	9-03910-408-0	04	1	0704-1010
193	SCREW; CHANGE LEVER 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER	9-03910-512-0	06	1	0512-0703
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER	9-03910-512-0	06	1	0704-0911
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (K) M5X12 W/LK WASHER	9-03910-512-0	04	1	0912-1010
281	ARM; SELECT,CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-755-0	01	1	0512-
394	PIN; SPLIT,CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-683-0	02	1	0512-
394	PIN; SPLIT,CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-714-0	01	1	0512-
428	BLOCK; ACTION 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-658-0	01	1	0512-
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D)	1-33619-715-0	01	1	0512-
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-33619-759-0	01	1	0512-
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=6.4	9-09160-506-0	01	1	0512-
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=12	9-09164-605-0	02	1	0512-
500	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47829-050-0	01	1	0512-
500	CLIP; HARNESS 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=9 L=16	9-09524-822-0	02	1	0512-0703
500	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=9 L=16	9-09524-822-0	02	1	0704-1010
504	GROMMET; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-681-0	01	1	0512-
505	COLLAR; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-711-0	01	1	0512-
506	CASE; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-713-0	01	1	0512-
508	RING; RETAINING 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-33619-710-0	01	1	0512-
508	RING; RETAINING 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	8-94415-036-0	01	1	0512-
509	ROD; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-762-0	01	1	0512-
510	BALL; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-703-0	01	1	0512-

449 500 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
449	SWITCH; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-657-1	01	1	0512-
500	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47829-050-0	01	1	0512-
500	CLIP; HARNESS 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=9 L=16	9-09524-822-0	02	1	0512-0703
500	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=9 L=16	9-09524-822-0	02	1	0704-1010
504	GROMMET; CHANGE LEVER 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	1-33619-681-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
