Sayfa 2-31 - Isuzu EPC

2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#30017) — 221 parça

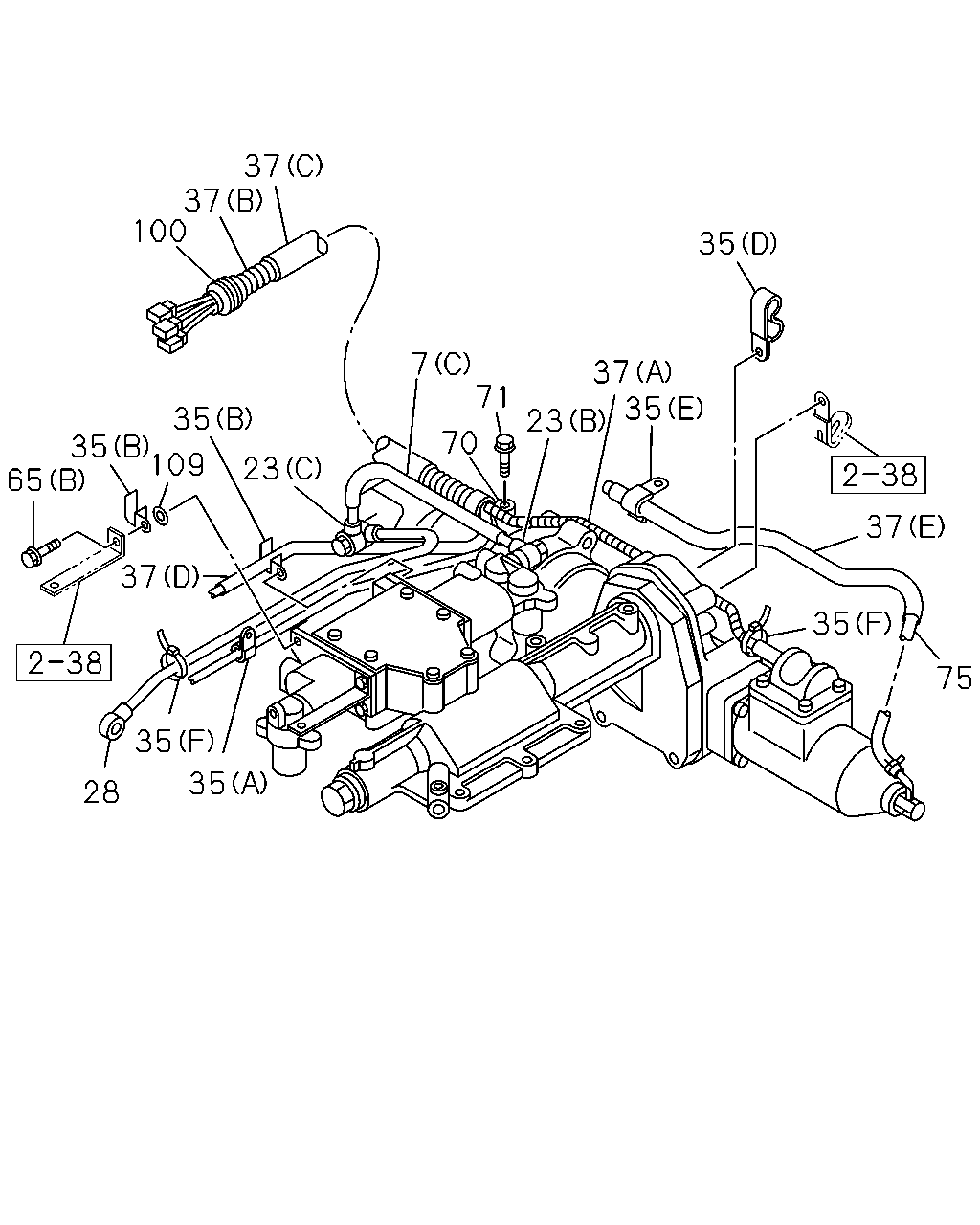

37 37 100 35 7 71 37 35 35 23 70 35 109 65 23 37 37 35 75 35 35 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-127-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-001-0	01	1	-
23	CONNECTOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-126-0	02	1	-
23	CONNECTOR; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-135-0	01	1	-
28	PIPE; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-134-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-47829-050-0	30	1	-
37	PROTECTOR; HARNESS (A), ID=7 ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-048-0	01	1	-
37	PROTECTOR; HARNESS (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-125-0	01	1	-
37	PROTECTOR; HARNESS (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-128-0	01	1	-
37	PROTECTOR; HARNESS (D) ASM PART: B = 1-33730-297-1	1-33738-129-0	01	1	-0810
37	PROTECTOR; HARNESS (D) ASM PART: A = 1-33730-241-9	1-33738-129-0	01	1	-
37	PROTECTOR; HARNESS (E) ASM PART: B = 1-33730-297-1	1-33738-131-0	02	1	0811-
37	PROTECTOR; HARNESS (E) ASM PART: B = 1-33730-297-1	1-33738-131-0	01	1	-0810
37	PROTECTOR; HARNESS (E) ASM PART: A = 1-33730-241-9	1-33738-131-0	01	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-22199-155-0	03	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-020-0	02	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-319-0	01	1	-
70	CLIP; SHIFT UNIT ID=31 L=35 ASM PART: A = 1-33730-241-9	1-09700-329-1	01	1	-
71	SCREW; CLIP ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-764-0	01	1	-
75	HOSE; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-002-0	01	1	-
100	GROMMET; HOSE ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-82699-219-0	01	1	-
109	WASHER; PL ID=8.4 ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	9-09164-508-0	02	1	-

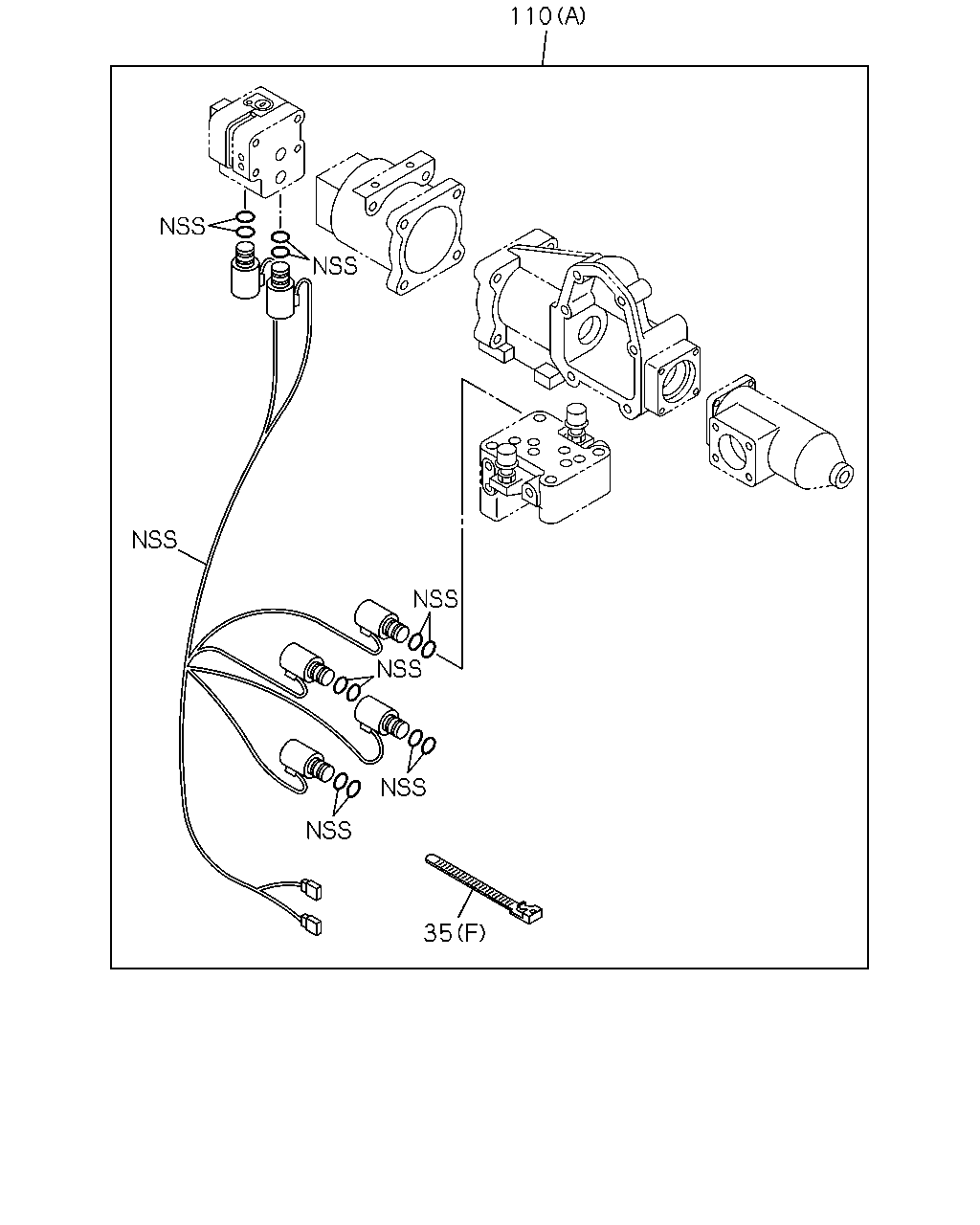

35 7 35 111 110 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-127-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-47829-050-0	30	1	-
110	REPAIR KIT; SHIFT,SOLENOID (B) UPPER BLOW ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-145-1	AR	1	-
110	REPAIR KIT; SHIFT,SOLENOID (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-159-1	01	1	-
111	REPAIR KIT; SELECT,SOLENOID (C) SIDE BLOW ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-144-1	AR	1	-
111	REPAIR KIT; SELECT,SOLENOID (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-146-1	AR	1	-
111	REPAIR KIT; SELECT,SOLENOID (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-158-1	01	1	-

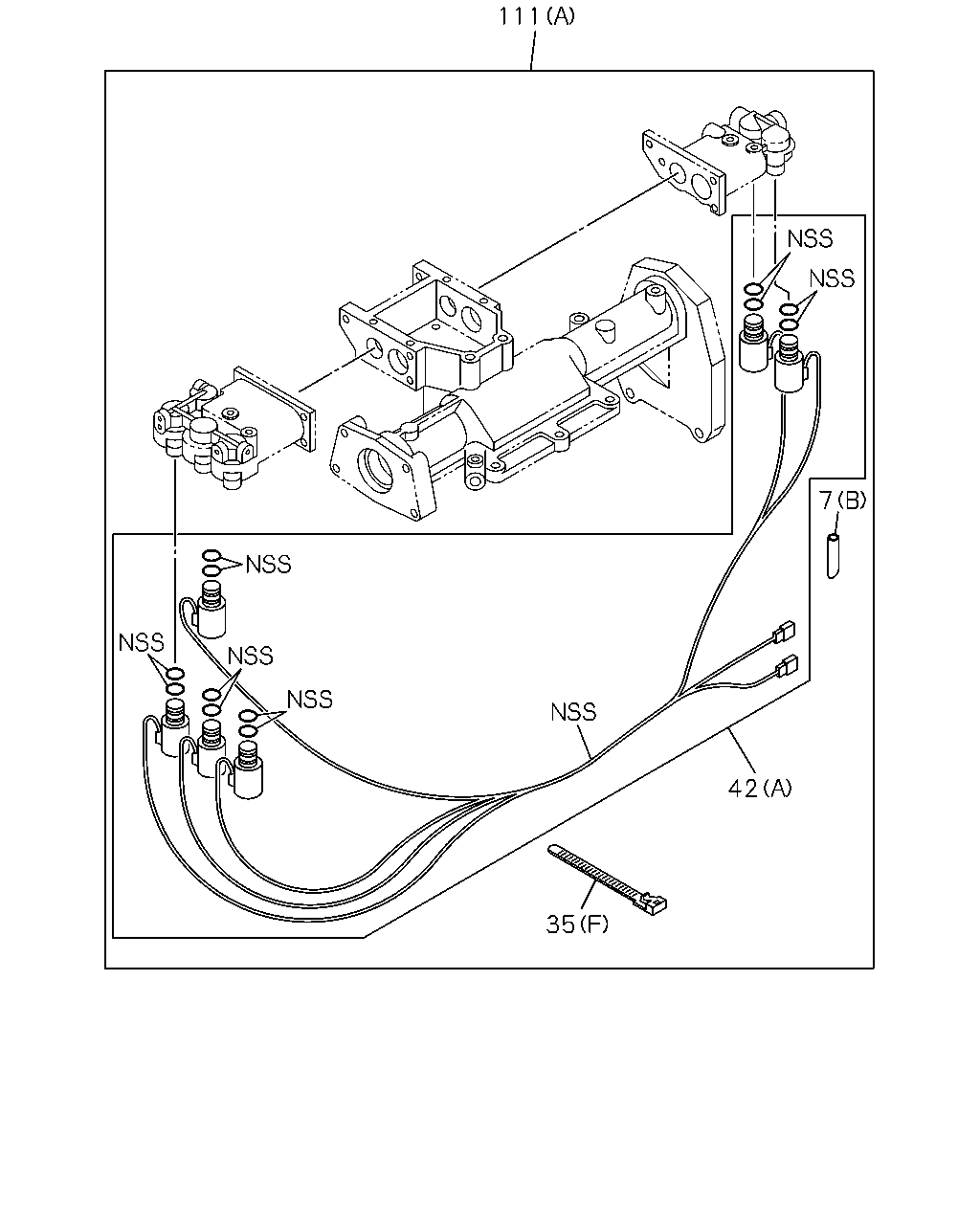

111 7 42 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-127-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-47829-050-0	30	1	-
42	VALVE; MAGNETIC (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-160-1	01	1	-
42	VALVE; MAGNETIC (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-161-1	01	1	-
111	REPAIR KIT; SELECT,SOLENOID (C) SIDE BLOW ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-144-1	AR	1	-
111	REPAIR KIT; SELECT,SOLENOID (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-146-1	AR	1	-
111	REPAIR KIT; SELECT,SOLENOID (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-158-1	01	1	-

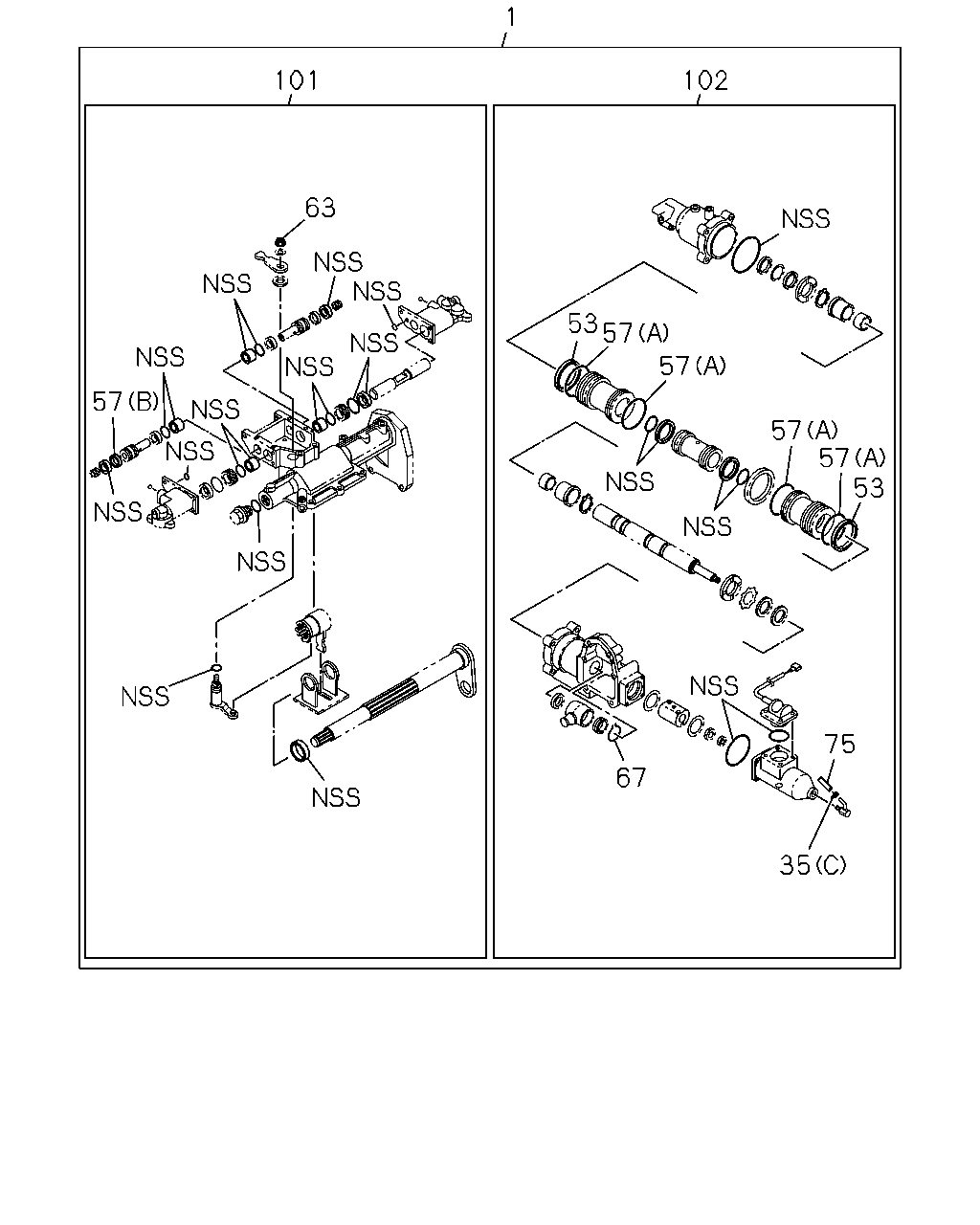

1 101 102 63 53 57 57 57 57 57 53 75 67 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-059-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-47829-050-0	30	1	-
53	GASKET ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-641-0	02	1	-
57	RING; WEAR,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-019-0	02	1	-
57	RING; WEAR,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-316-0	04	1	-
63	NUT; LEVER,GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-985-1	01	1	-
67	CLAMP; ROD ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-190-0	01	1	-
75	HOSE; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-002-0	01	1	-
101	REPAIR KIT; CASE ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-060-0	01	1	-
102	REPAIR KIT; SHIFT CYL ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-062-0	01	1	-

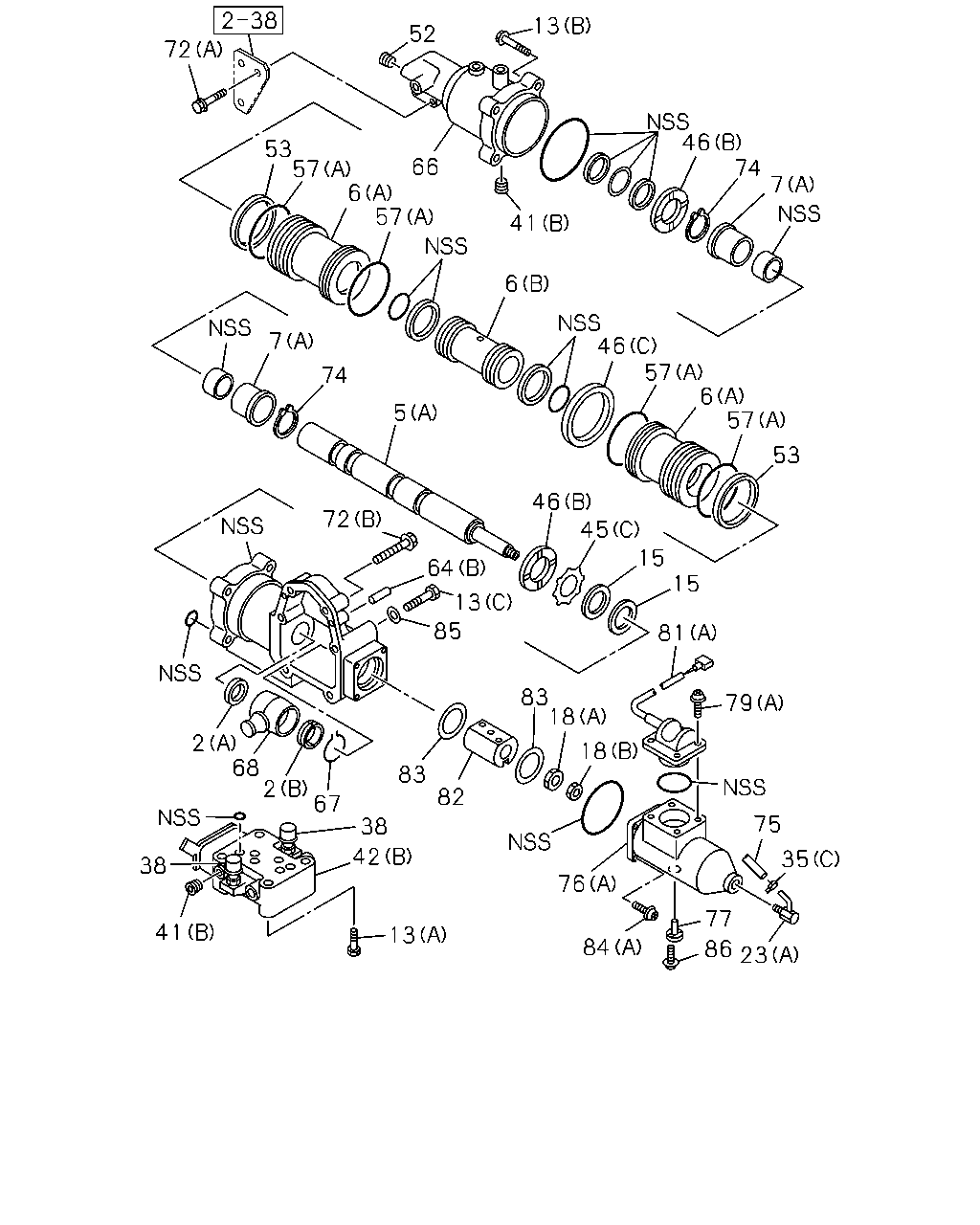

13 52 72 46 74 7 53 57 66 6 57 41 6 46 57 7 6 57 74 5 53 46 45 72 15 64 15 13 85 81 83 18 79 2 68 2 67 18 83 82 75 38 42 35 38 76 77 41 13 84 86 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; STOPPER (A), BLACK ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-091-0	06	1	-
2	RING; STOPPER (B), BLACK ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-092-0	02	1	-
2	RING; STOPPER (A), GOLD ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-681-0	02	1	-
2	RING; STOPPER (A), LIGHT GRAY ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-682-0	02	1	-
2	RING; STOPPER (B), ORANGE ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-684-0	02	1	-
2	RING; STOPPER (B), LIGHT GRAY ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-685-0	02	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33734-011-0	01	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33734-020-0	01	1	-
6	PISTON; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-078-0	01	1	-
6	PISTON; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-081-0	02	1	-
6	PISTON; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-990-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-127-0	01	1	-
13	BOLT; CYL (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-083-0	04	1	-
13	BOLT; CYL (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-133-0	04	1	-
13	BOLT; CYL (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-47819-125-0	04	1	-
15	PLATE; ROD ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-687-0	02	1	-
18	NUT; ROD (A), M12 ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-712-0	01	1	-
18	NUT; ROD (B), M12 ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	9-99111-412-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-001-0	01	1	-
23	CONNECTOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-126-0	02	1	-
23	CONNECTOR; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-135-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-47829-050-0	30	1	-
38	COVER; EXH ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-31829-564-0	02	1	-
41	PLUG; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-044-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-674-0	02	1	-
41	PLUG; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	8-97014-820-0	06	1	-
42	VALVE; MAGNETIC (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-160-1	01	1	-
42	VALVE; MAGNETIC (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-161-1	01	1	-
45	RETAINER; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-033-0	02	1	-
45	RETAINER; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-034-0	01	1	-
45	RETAINER; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-377-0	02	1	-
45	RETAINER; SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-991-0	02	1	-
46	STOPPER; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-038-0	02	1	-
46	STOPPER; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-077-0	02	1	-
46	STOPPER; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-149-0	01	1	-
52	FILTER ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-014-0	02	1	-
53	GASKET ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-641-0	02	1	-
57	RING; WEAR,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-019-0	02	1	-
57	RING; WEAR,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-316-0	04	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-673-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-762-0	02	1	-
66	CYLINDER ASM; GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33731-123-0	01	1	-
67	CLAMP; ROD ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-190-0	01	1	-
68	STRIKER; ROD ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-082-0	01	1	-
72	BOLT; BRKT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-090-0	02	1	-
72	BOLT; BRKT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-699-0	02	1	-
74	RING; RETAINING ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-080-0	02	1	-
75	HOSE; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-002-0	01	1	-
76	CASE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33731-024-1	01	1	-
76	CASE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-039-0	01	1	-
77	PIN; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-707-0	01	1	-
79	SCREW; SENSOR (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-130-0	04	1	-
79	SCREW; SENSOR (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-994-0	04	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9	1-33738-113-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: B = 1-33730-297-1	1-33738-113-0	01	1	-0810
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-137-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: B = 1-33730-297-1	8-98135-828-0	01	1	0811-
82	HOLDER; ROD ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-935-0	01	1	-
83	SHIM; HOLDER ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-450-0	04	1	-
84	SCREW; CASE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-779-0	04	1	-
84	SCREW; CASE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-995-0	04	1	-
85	WASHER; CYL ID=10.2 ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	9-09150-510-0	04	1	-
86	SCREW; HOLDER ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-523-0	02	1	-

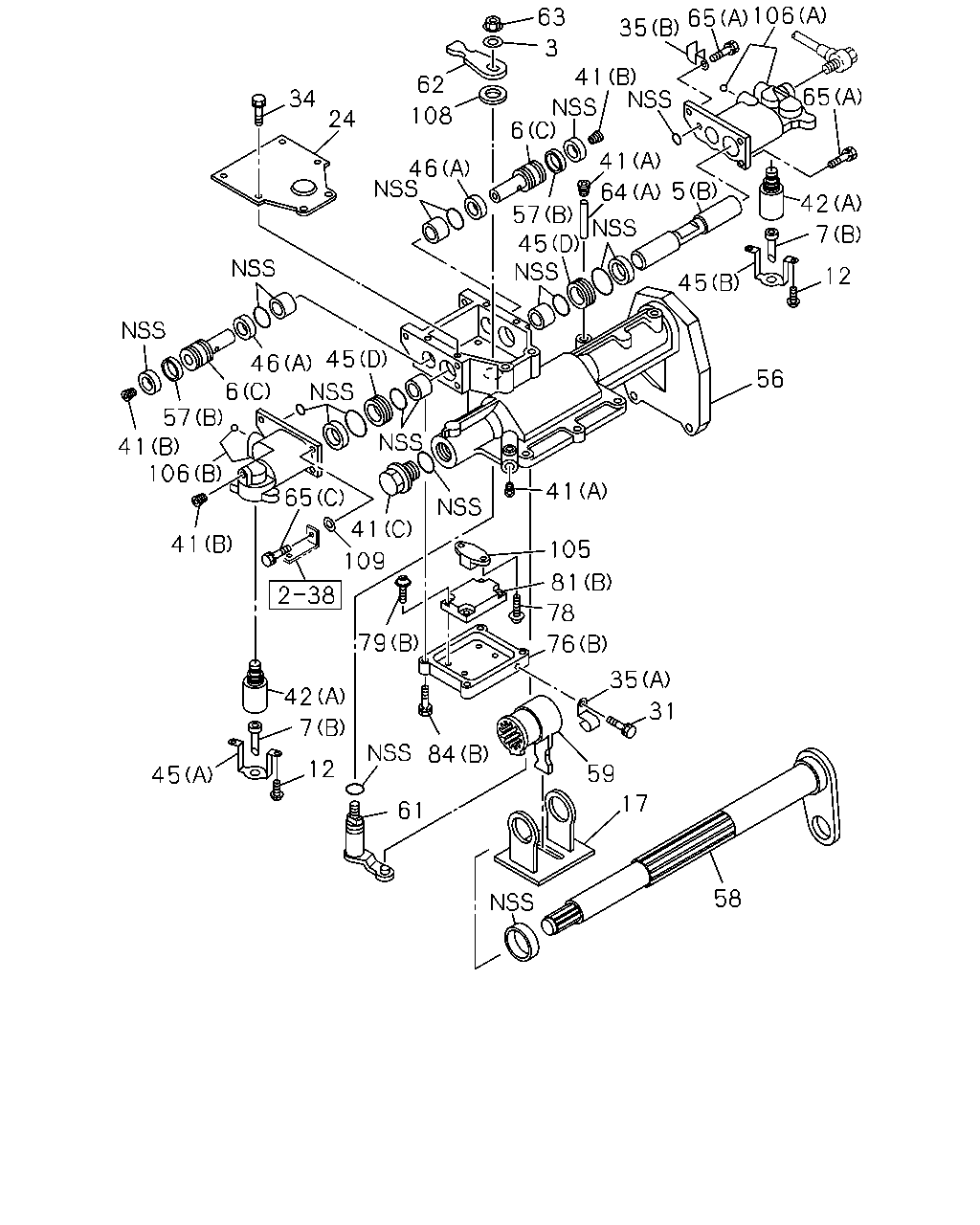

106 63 65 35 3 41 62 65 34 6 108 24 41 46 5 64 42 57 45 7 12 45 45 46 6 57 41 106 56 41 65 41 41 105 109 81 78 79 76 35 42 31 7 84 12 59 45 17 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	PLATE; OIL SEAL ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-984-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33734-011-0	01	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33734-020-0	01	1	-
6	PISTON; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-078-0	01	1	-
6	PISTON; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-081-0	02	1	-
6	PISTON; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-990-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: B = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-127-0	01	1	-
12	CAP; SHIFT CYL ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-716-0	06	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-825-0	01	1	-
24	COVER; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-987-0	01	1	-
31	SCREW; CLAMP ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-996-0	01	1	-
34	SCREW; COVER ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-716-0	06	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-47829-050-0	30	1	-
41	PLUG; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-044-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-674-0	02	1	-
41	PLUG; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	8-97014-820-0	06	1	-
42	VALVE; MAGNETIC (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-160-1	01	1	-
42	VALVE; MAGNETIC (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-161-1	01	1	-
45	RETAINER; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-033-0	02	1	-
45	RETAINER; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-034-0	01	1	-
45	RETAINER; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-377-0	02	1	-
45	RETAINER; SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-991-0	02	1	-
46	STOPPER; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-038-0	02	1	-
46	STOPPER; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-077-0	02	1	-
46	STOPPER; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-149-0	01	1	-
56	CASE ASM; GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33731-119-0	01	1	-
57	RING; WEAR,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-019-0	02	1	-
57	RING; WEAR,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-316-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33734-021-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33735-004-0	01	1	-
61	LEVER; GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33735-020-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33735-015-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-985-1	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-673-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-762-0	02	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-22199-155-0	03	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-020-0	02	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-319-0	01	1	-
76	CASE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33731-024-1	01	1	-
76	CASE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-039-0	01	1	-
78	SCREW; PIN ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-523-0	02	1	-
79	SCREW; SENSOR (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-130-0	04	1	-
79	SCREW; SENSOR (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-994-0	04	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9	1-33738-113-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: B = 1-33730-297-1	1-33738-113-0	01	1	-0810
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-137-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: B = 1-33730-297-1	8-98135-828-0	01	1	0811-
84	SCREW; CASE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-779-0	04	1	-
84	SCREW; CASE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-995-0	04	1	-
105	HOLDER; SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-988-0	01	1	-
106	BODY ASM; GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33731-072-0	01	1	-
106	BODY ASM; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33731-122-0	01	1	-
108	BEARING; GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-986-0	01	1	-
109	WASHER; PL ID=8.4 ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	9-09164-508-0	02	1	-

110 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-47829-050-0	30	1	-
110	REPAIR KIT; SHIFT,SOLENOID (B) UPPER BLOW ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-145-1	AR	1	-
110	REPAIR KIT; SHIFT,SOLENOID (A) ASM PART: A = 1-33730-241-9, B = 1-33730-297-1	1-33738-159-1	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
