2-30A — GEAR SHIFTER AND QUADRANT BOX (#30015) — 563 parça

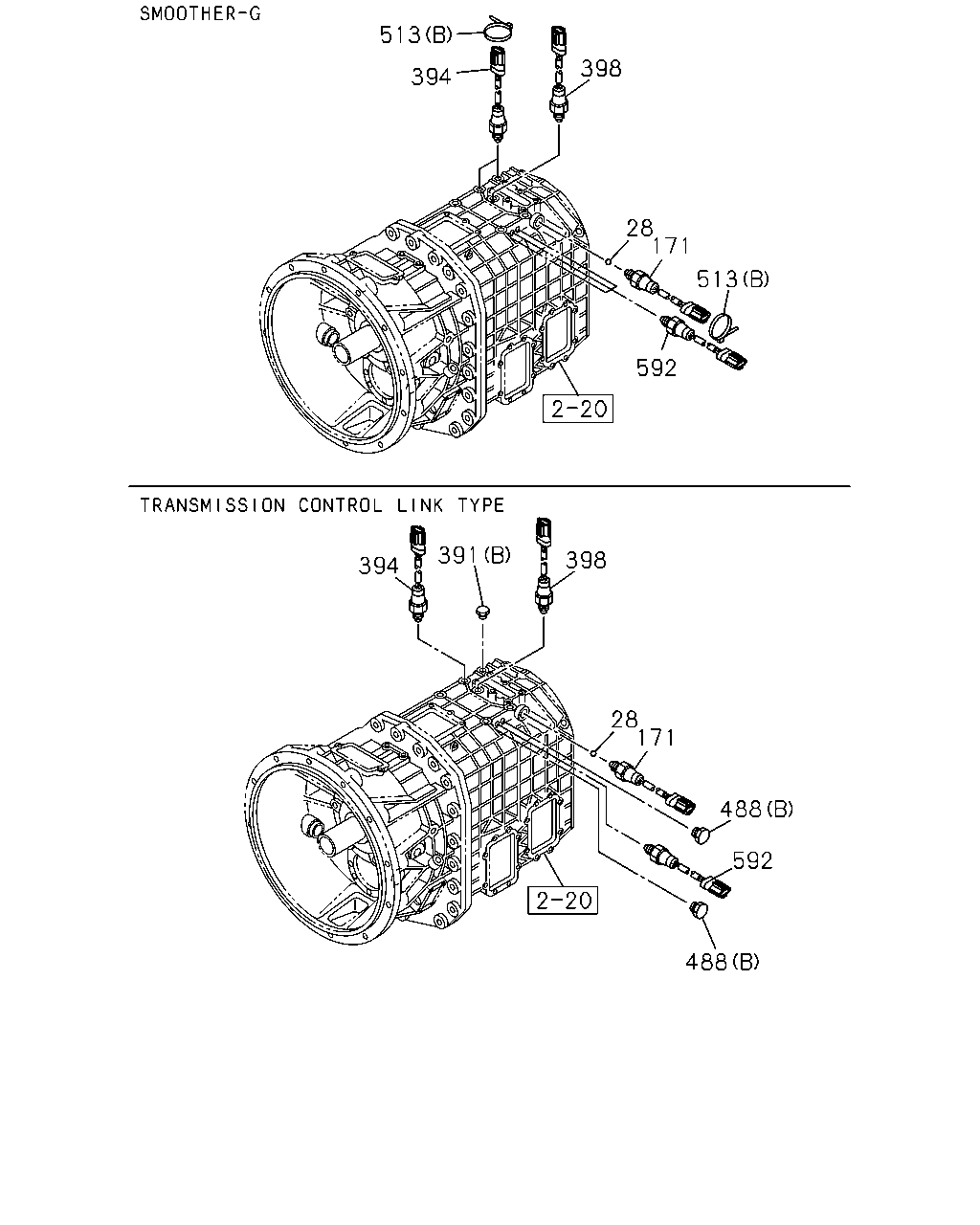

çizim 87584
513 398 394 28 171 513 592 391 398 394 28 171 488 592 488
BalonParca AdiParca NoAdetTipApplied Date
28 BALL; INTER LK 9-00097-501-0 02 1 0407-
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0407-0702
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1005
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1006-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 0407-0511
391 PLUG; SW HOLE
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12X9 		9-99202-312-0 01 1 0512-1304
391 PLUG; SW HOLE
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12X9 		0-92002-412-0 01 1 1305-
391 PLUG; SW HOLE
(B) M14X9 		9-99202-314-0 01 1 0407-0511
391 PLUG; SW HOLE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		9-99202-314-0 01 1 0512-0805
391 PLUG; SW HOLE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		8-98042-944-0 01 1 0806-
394 SWITCH; RANGE CHANGE
SMOOTHER-G(C1W) 		1-82440-083-3 02 1 0512-0602
394 SWITCH; RANGE CHANGE
SMOOTHER-G(C1W) 		8-98042-853-0 02 1 0603-1209
394 SWITCH; RANGE CHANGE
SMOOTHER-G(C1W) 		8-98228-867-0 02 1 1210-
394 SWITCH; RANGE CHANGE 1-82440-083-3 01 1 0407-0511
394 SWITCH; RANGE CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82440-083-3 01 1 0512-0602
394 SWITCH; RANGE CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98042-853-0 01 1 0603-1209
394 SWITCH; RANGE CHANGE
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98228-482-0 01 1 1210-
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0407-0602
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0407-
488 PLUG; AIR CYL
(B) M14X9 		9-99202-314-0 02 1 0407-0511
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		9-99202-314-0 02 1 0512-0805
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		8-98042-944-0 02 1 0806-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0407-0511
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT1/4 		9-99204-513-0 01 1 0512-
513 CLIP; BAND
SMOOTHER-G(C1W) (A) L=250 		5-09707-030-1 02 1 0512-
513 CLIP; BAND
SMOOTHER-G(C1W) (B) L=140 		5-09707-031-1 10 1 0512-
592 SWITCH; POSITION
SMOOTHER-G(C1W) 		1-82440-083-3 03 1 0512-0602
592 SWITCH; POSITION
SMOOTHER-G(C1W) 		8-98042-853-0 03 1 0603-1209
592 SWITCH; POSITION
SMOOTHER-G(C1W) 		8-98228-867-0 03 1 1210-
592 SWITCH; POSITION 1-82440-083-3 01 1 0407-0511
592 SWITCH; POSITION
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82440-083-3 01 1 0512-0602
592 SWITCH; POSITION
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98042-853-0 01 1 0603-1209
592 SWITCH; POSITION
TRANSMISSION CONTROL LINK TYPE(B2A) 		8-98228-482-0 01 1 1210-

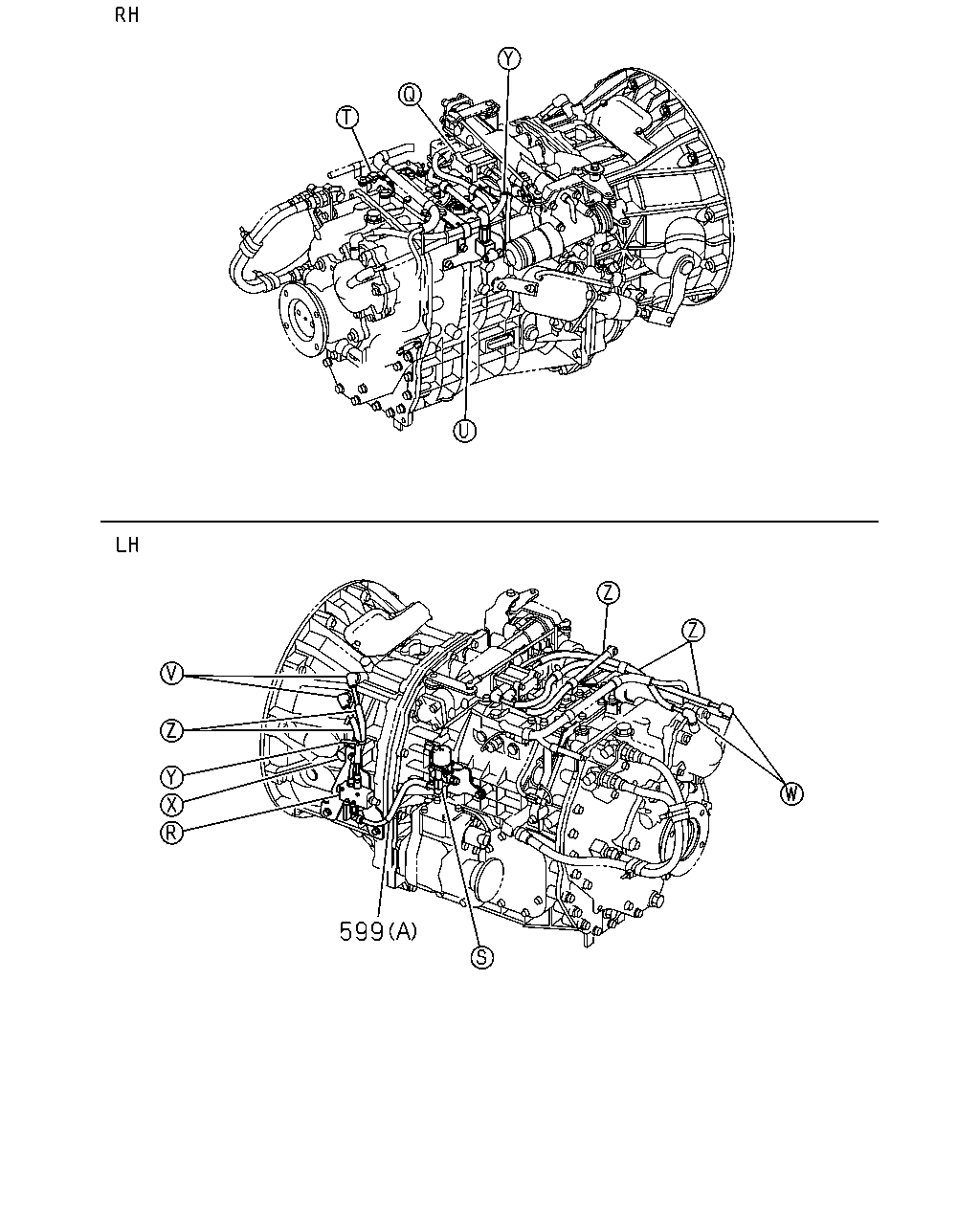

çizim 87865
599
BalonParca AdiParca NoAdetTipApplied Date
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 0407-0511
599 TUBE; NYLON
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-09377-036-1 01 1 0512-
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 0407-0511
599 TUBE; NYLON
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-33712-027-0 01 1 0512-

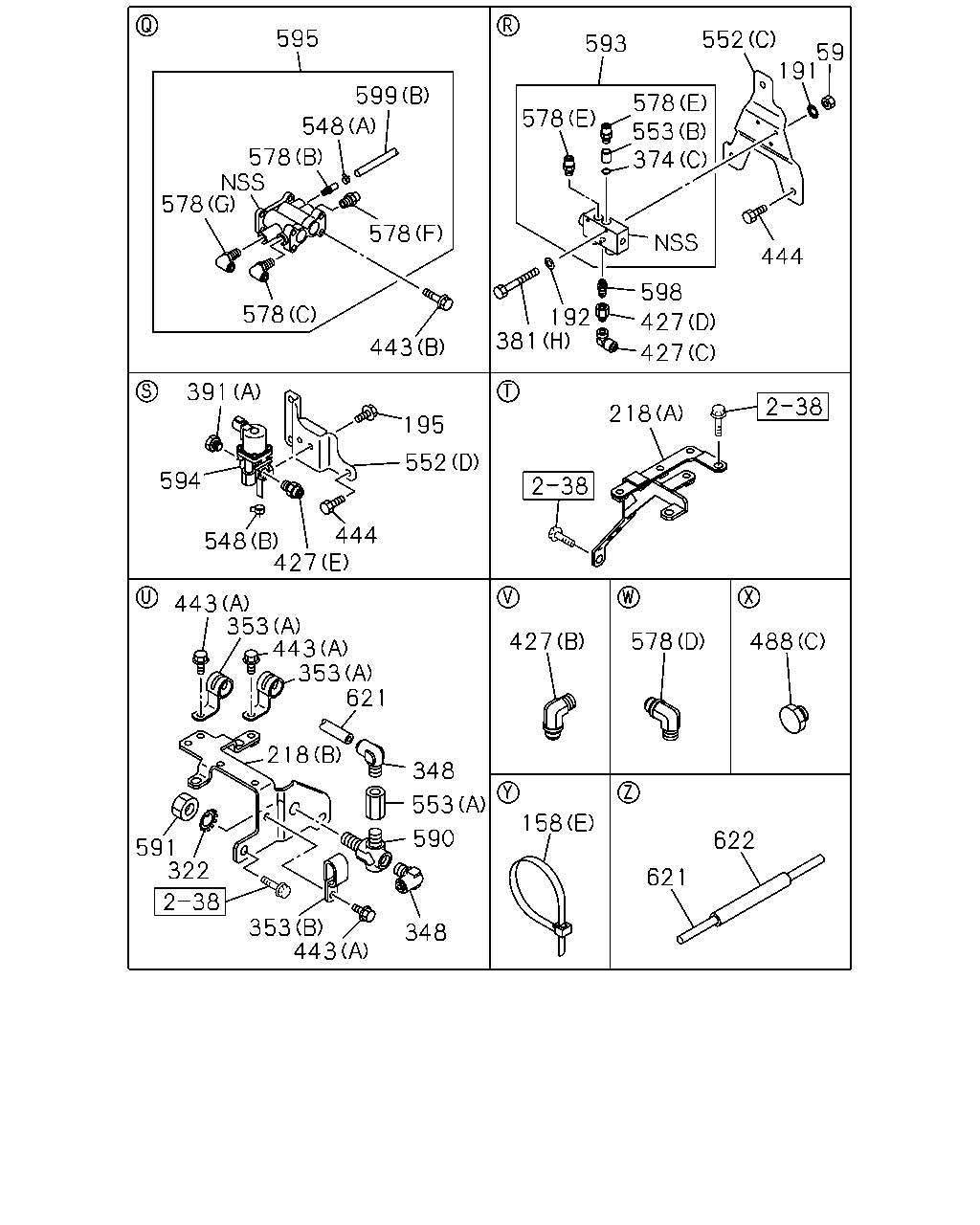

çizim 104590
595 552 593 59 191 599 578 553 374 578 548 578 578 578 444 598 192 81 578 427 443 427 391 218 195 552 594 444 548 427 443 353 443 353 621 427 578 488 218 348 553 158 590 622 591 322 621 353 443 348
BalonParca AdiParca NoAdetTipApplied Date
59 NUT 1-09440-068-0 04 1 0407-0511
59 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09440-068-0 04 1 0512-
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 0407-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (C) L=150 		1-82569-328-0 10 1 0512-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (A) L=36 		8-94224-891-1 01 1 0512-0703
158 CLIP; HARNESS
SMOOTHER-G(C1W) (A) L=36 		8-94224-891-1 01 1 0704-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
158 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=19 L=20 		0-95235-836-0 01 1 0607-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=19 L=60 		9-09525-896-0 01 1 0512-0606
158 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=19 L=60 		0-95235-896-0 01 1 0607-
158 CLIP; HARNESS
(E) L=140 		5-09707-031-1 02 1 0407-0511
158 CLIP; HARNESS
TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=140 		5-09707-031-1 02 1 0512-
191 WASHER; LK 1-09503-311-0 04 1 0407-0511
191 WASHER; LK
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09503-311-0 04 1 0512-
192 WASHER; PL 1-09503-310-0 04 1 0407-0511
192 WASHER; PL
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09503-310-0 04 1 0512-
195 BOLT
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511
195 BOLT
TRANSMISSION CONTROL LINK TYPE(B2A) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
195 BOLT
TRANSMISSION CONTROL LINK TYPE(B2A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 0407-0511
218 BRACKET; HARNESS CLIP,QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-82698-350-0 01 1 0512-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-490-0 01 1 0407-0511
218 BRACKET; HARNESS CLIP,QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-82698-490-0 01 1 0512-
322 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0407-0511
322 WASHER; LK
TRANSMISSION CONTROL LINK TYPE(B2A) ID=16.2 		9-09150-516-0 01 1 0512-0603
322 WASHER; LK
TRANSMISSION CONTROL LINK TYPE(B2A) ID=16.2 		0-91510-516-0 01 1 0604-
348 CONNECTOR; AIR HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0407-0511
348 CONNECTOR; AIR HOSE
TRANSMISSION CONTROL LINK TYPE(B2A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0512-
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
353 CLIP; AIR HOSE
TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 0407-0511
353 CLIP; AIR HOSE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=16X2 L=40 		9-09535-576-0 01 1 0512-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2 		1-09630-084-0 15 1 0512-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2 		8-98251-344-0 15 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8 		9-09565-117-0 02 1 0512-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-09661-390-0 01 1 0407-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-09661-390-0 01 1 0512-
391 PLUG; SW HOLE
(A) M12X9 		9-99202-312-0 01 1 0407-0511
391 PLUG; SW HOLE
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12X9 		9-99202-312-0 01 1 0512-1304
391 PLUG; SW HOLE
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12X9 		0-92002-412-0 01 1 1305-
391 PLUG; SW HOLE
(B) M14X9 		9-99202-314-0 01 1 0407-0511
391 PLUG; SW HOLE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		9-99202-314-0 01 1 0512-0805
391 PLUG; SW HOLE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		8-98042-944-0 01 1 0806-
427 CONNECTOR; NYLON TUBE
SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW 		1-09660-707-1 03 1 0512-
427 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0407-0511
427 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0512-
427 CONNECTOR; NYLON TUBE
(C) DIN8 ELBOW 		1-09660-924-1 01 1 0407-0511
427 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (C) DIN8 ELBOW 		1-09660-924-1 01 1 0512-
427 CONNECTOR; NYLON TUBE
(D) M12 		1-09660-931-1 01 1 0407-0511
427 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (D) M12 		1-09660-931-1 01 1 0512-
427 CONNECTOR; NYLON TUBE
(E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0407-0511
427 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0512-
443 BOLT; CLIP
SMOOTHER-G(C1W) (C) M8X10 FLANGE 		0-28080-810-0 01 1 0512-0512
443 BOLT; CLIP
SMOOTHER-G(C1W) (C) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
443 BOLT; CLIP
SMOOTHER-G(C1W) (D) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
443 BOLT; CLIP
SMOOTHER-G(C1W) (D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 03 1 0407-0511
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28080-890-0 04 1 0407-0511
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE 		0-28080-890-0 04 1 0512-0512
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE 		0-28050-890-0 04 1 0601-
444 BOLT; CLIP
M10X25 FLANGE 		0-28781-025-0 06 1 0407-0511
444 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE 		0-28781-025-0 06 1 0512-0512
444 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE 		0-28751-025-0 06 1 0601-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0407-
488 PLUG; AIR CYL
(B) M14X9 		9-99202-314-0 02 1 0407-0511
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		9-99202-314-0 02 1 0512-0805
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		8-98042-944-0 02 1 0806-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0407-0511
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT1/4 		9-99204-513-0 01 1 0512-
548 CLIP; HOSE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=7.8 		8-94246-958-0 01 1 0512-
548 CLIP; HOSE
(A) 		1-33712-028-0 01 1 0407-0511
548 CLIP; HOSE
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-33712-028-0 01 1 0512-
548 CLIP; HOSE
(B) ID=7.8 		8-94246-958-0 01 1 0407-0511
552 BRACKET
SMOOTHER-G(C1W) (A) 		1-82569-303-2 01 1 0512-
552 BRACKET
SMOOTHER-G(C1W) (B) 		1-82569-304-0 01 1 0512-
552 BRACKET
(D) 		1-33719-082-0 01 1 0407-0511
552 BRACKET
TRANSMISSION CONTROL LINK TYPE(B2A) (D) 		1-33719-082-0 01 1 0512-
552 BRACKET
(C) 		1-33719-083-0 01 1 0407-0511
552 BRACKET
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-33719-083-0 01 1 0512-
553 ADAPTER; AIR
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0407-0511
553 ADAPTER; AIR
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0512-
553 ADAPTER; AIR
(B) 		1-09661-389-0 01 1 0407-0511
553 ADAPTER; AIR
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-09661-389-0 01 1 0512-
578 CONNECTOR
SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0512-
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0512-
578 CONNECTOR
(E) 		1-09661-292-0 02 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (E) 		1-09661-292-0 02 1 0512-
578 CONNECTOR
(F) 		1-33712-023-0 01 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (F) 		1-33712-023-0 01 1 0512-
578 CONNECTOR
(G) 		1-33712-024-0 01 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (G) 		1-33712-024-0 01 1 0512-
578 CONNECTOR
(C) 		1-33712-025-0 01 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-33712-025-0 01 1 0512-
578 CONNECTOR
(B) 		1-33712-026-0 01 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-33712-026-0 01 1 0512-
590 UNION; AIR
M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0407-0511
590 UNION; AIR
TRANSMISSION CONTROL LINK TYPE(B2A) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0512-
591 NUT; UNION
M16 		9-99111-516-0 01 1 0407-0511
591 NUT; UNION
TRANSMISSION CONTROL LINK TYPE(B2A) M16 		9-99111-516-0 01 1 0512-0512
591 NUT; UNION
TRANSMISSION CONTROL LINK TYPE(B2A) M16 		0-91111-516-0 01 1 0601-
593 VALVE; SPLITTER 1-33712-009-0 01 1 0407-0511
593 VALVE; SPLITTER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33712-009-0 01 1 0512-
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 0407-0511
594 VALVE; MAGNETIC,AIR
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82564-069-0 01 1 0512-
595 VALVE; RANGE 1-33712-008-1 01 1 0407-0511
595 VALVE; RANGE
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33712-008-2 01 1 0512-
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0407-0511
598 UNION
TRANSMISSION CONTROL LINK TYPE(B2A) M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0512-
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 0407-0511
599 TUBE; NYLON
TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-09377-036-1 01 1 0512-
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 0407-0511
599 TUBE; NYLON
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-33712-027-0 01 1 0512-
621 TUBE; NYLON
TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=2000 OD=8 		1-87410-073-0 03 1 0512-
621 TUBE; NYLON
TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0512-
621 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 05 1 0407-0511
622 TUBE; CORRUGATE
TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=2000 ID=10 		1-87410-088-0 03 1 0512-
622 TUBE; CORRUGATE
TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0512-
622 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 05 1 0407-0511

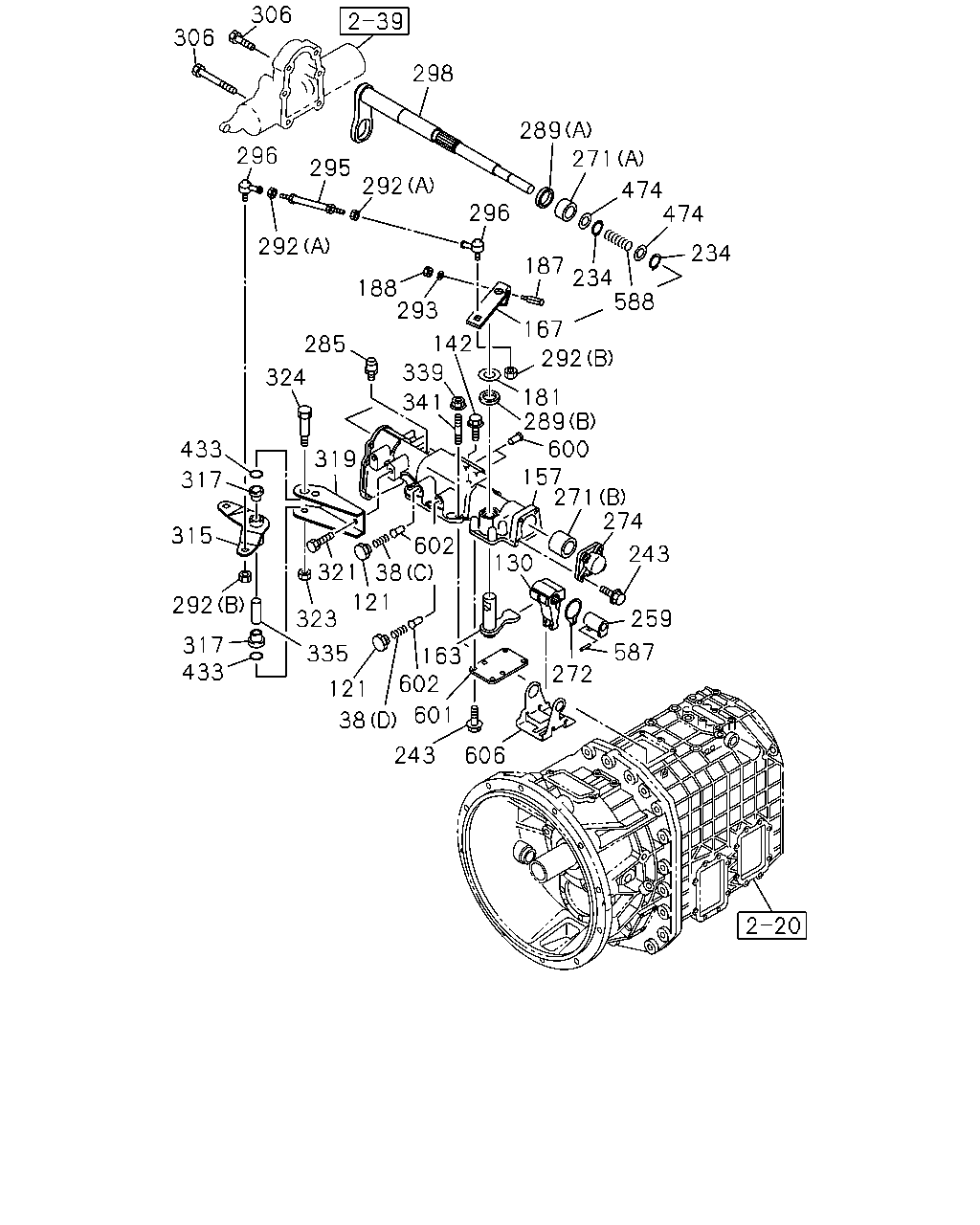

çizim 104593
306 306 298 289 296 271 295 292 474 474 296 292 234 187 234 588 188 293 142 167 285 292 339 324 181 289 600 157 271 274 341 433 319 317 602 38 130 315 243 321 121 292 259 323 317 433 163 602 587 335 272 121 601 38 243 606
BalonParca AdiParca NoAdetTipApplied Date
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0407-
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 0407-
38 SPRING; DETENT
(C) 		1-09580-574-0 01 1 0407-0511
38 SPRING; DETENT
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-09580-574-0 01 1 0512-
38 SPRING; DETENT
(D) 		1-09580-580-0 01 1 0407-0511
38 SPRING; DETENT
TRANSMISSION CONTROL LINK TYPE(B2A) (D) 		1-09580-580-0 01 1 0512-
121 PLUG; DETENT SPR
M14X9 		9-99202-314-0 02 1 0407-0511
121 PLUG; DETENT SPR
TRANSMISSION CONTROL LINK TYPE(B2A) M14X9 		9-99202-314-0 02 1 0512-0805
121 PLUG; DETENT SPR
TRANSMISSION CONTROL LINK TYPE(B2A) M14X9 		8-98042-944-0 02 1 0806-
121 PLUG; DETENT SPR
M16X12 		9-99202-316-0 01 1 0407-0606
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 0607-
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 0407-0511
130 LEVER; SHIFT,INTERNAL
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33521-189-0 01 1 0512-
142 BOLT; QUAD BOX
M10X30 FLANGE 		0-28781-030-0 01 1 0407-0511
142 BOLT; QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE 		0-28781-030-0 01 1 0512-0512
142 BOLT; QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
157 BOX; QUAD,TRANS 1-33541-534-0 01 1 0407-0511
157 BOX; QUAD,TRANS
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33541-534-0 01 1 0512-
163 LEVER; SELECT,INTERNAL 1-33522-171-1 01 1 0407-0511
163 LEVER; SELECT,INTERNAL
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33522-171-1 01 1 0512-
167 LEVER; SELECT,EXTERNAL 1-33521-179-0 01 1 0407-0505
167 LEVER; SELECT,EXTERNAL 1-33521-190-0 01 1 0506-0511
167 LEVER; SELECT,EXTERNAL
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33521-190-0 01 1 0512-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0407-0511
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) OD=40 		1-09532-008-0 01 1 0512-0703
181 WASHER; PL,SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) OD=40 		1-09532-008-0 01 1 0704-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0407-0511
187 BOLT; SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) M8X42 		1-33659-045-0 01 1 0512-0703
187 BOLT; SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) M8X42 		1-33659-045-0 01 1 0704-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0407-0511
188 NUT; SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		1-09440-062-1 01 1 0512-0703
188 NUT; SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		1-09440-062-1 01 1 0704-
234 RING; SNAP
ID=14.7 		9-09180-416-0 02 1 0407-0511
234 RING; SNAP
TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.7 		9-09180-416-0 02 1 0512-0604
234 RING; SNAP
TRANSMISSION CONTROL LINK TYPE(B2A) ID=14.7 		0-91800-616-0 02 1 0605-
243 BOLT; COVER
M8X35 FLANGE 		0-28680-835-0 10 1 0407-0511
243 BOLT; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) M8X35 FLANGE 		0-28680-835-0 10 1 0512-0512
243 BOLT; COVER
TRANSMISSION CONTROL LINK TYPE(B2A) M8X35 FLANGE 		0-28650-835-0 10 1 0601-
259 GUIDE; SELECT,CONT BOX 1-33519-135-0 01 1 0407-0511
259 GUIDE; SELECT,CONT BOX
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33519-135-0 01 1 0512-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0407-0511
271 BUSHING; QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) (B) ID=20 OD=23 		1-33549-016-0 01 1 0512-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0407-0511
271 BUSHING; QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=28 OD=32 		1-33549-104-0 01 1 0512-
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 0407-0511
272 RING; SNAP,QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09588-213-0 01 1 0512-
274 COVER; SHAFT,QUAD BOX 1-33545-010-0 01 1 0407-0511
274 COVER; SHAFT,QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33545-010-0 01 1 0512-
285 BREATHER; AIR,QUAD BOX
SMOOTHER-G(C1W) 		1-33149-008-0 01 1 0512-0703
285 BREATHER; AIR,QUAD BOX
SMOOTHER-G(C1W) 		1-33149-008-0 01 1 0704-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0407-0511
285 BREATHER; AIR,QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33149-003-0 01 1 0512-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0407-0511
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (B) OD=30 		1-09625-386-0 01 1 0512-0703
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (B) OD=30 		1-09625-386-0 01 1 0704-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0407-0511
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (A) OD=41 		1-09625-647-0 01 1 0512-0703
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (A) OD=41 		1-09625-647-0 01 1 0704-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0407-0511
292 NUT; LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE 		1-09440-062-1 02 1 0512-0703
292 NUT; LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE 		1-09440-062-1 02 1 0704-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0407-0511
292 NUT; LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8 		9-09111-408-0 02 1 0512-0512
292 NUT; LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8 		0-91111-508-0 02 1 0601-0703
292 NUT; LINK ROD
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8 		0-91111-508-0 02 1 0704-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0407-0511
293 WASHER; PL,TAPER BOLT
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		9-09160-708-0 01 1 0512-0605
293 WASHER; PL,TAPER BOLT
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		0-91610-708-0 01 1 0606-0703
293 WASHER; PL,TAPER BOLT
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		0-91610-708-0 01 1 0704-
295 ROD; LINK,RELAY LEVER 1-33652-924-0 01 1 0407-0511
295 ROD; LINK,RELAY LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33652-924-0 01 1 0512-
296 ROD END 1-09760-108-0 02 1 0407-0511
296 ROD END
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-108-0 02 1 0512-0703
296 ROD END
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09760-108-0 02 1 0704-
298 SHAFT; SHIFT LEVER 1-33522-196-0 01 1 0407-0511
298 SHAFT; SHIFT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33522-196-0 01 1 0512-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0407-0511
306 BOLT; SHIFT ASSISTOR
TRANSMISSION CONTROL LINK TYPE(B2A) M10X45 FLANGE 		0-28181-045-0 02 1 0512-0512
306 BOLT; SHIFT ASSISTOR
TRANSMISSION CONTROL LINK TYPE(B2A) M10X45 FLANGE 		0-28151-045-0 02 1 0601-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0407-0511
306 BOLT; SHIFT ASSISTOR
TRANSMISSION CONTROL LINK TYPE(B2A) M10X80 FLANGE 		0-28181-080-0 04 1 0512-0512
306 BOLT; SHIFT ASSISTOR
TRANSMISSION CONTROL LINK TYPE(B2A) M10X80 FLANGE 		0-28151-080-0 04 1 0601-
315 LEVER; SELECT 1-33651-754-0 01 1 0407-0511
315 LEVER; SELECT
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33651-754-0 01 1 0512-
317 BUSHING; LEVER 1-09330-119-0 02 1 0407-0511
317 BUSHING; LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09330-119-0 02 1 0512-0703
317 BUSHING; LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09330-119-0 02 1 0704-
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0407-0511
319 BRACKET; SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33657-753-0 01 1 0512-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0407-0511
321 BOLT; BRKT,RELAY LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) M10X22 FLANGE 		0-28181-022-0 02 1 0512-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0407-0511
323 NUT; LK,SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33659-219-0 01 1 0512-0703
323 NUT; LK,SELECT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33659-219-0 01 1 0704-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0407-0511
324 BOLT; SHAFT
TRANSMISSION CONTROL LINK TYPE(B2A) M10X60 FLANGE 		0-28081-060-0 01 1 0512-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0407-0511
335 COLLAR; DIST,RELAY LEVER ASM
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33659-220-0 01 1 0512-
339 NUT; QUAD BOX
M10 FLANGE 		0-91150-210-0 05 1 0407-0602
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 0603-
341 STUD; QUAD BOX
M10X35 L=50 		9-04411-035-0 05 1 0407-0604
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 0605-
433 GASKET; BUSHING 1-09623-636-0 02 1 0407-0511
433 GASKET; BUSHING
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09623-636-0 02 1 0512-0703
433 GASKET; BUSHING
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09623-636-0 02 1 0704-
474 WASHER; SPRING STOPPER 9-09160-716-0 02 1 0407-0511
474 WASHER; SPRING STOPPER
TRANSMISSION CONTROL LINK TYPE(B2A) 		9-09160-716-0 02 1 0512-
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 0407-0511
587 PIN; SHIFT GUIDE
TRANSMISSION CONTROL LINK TYPE(B2A) 		9-08160-420-0 01 1 0512-
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 0407-0511
588 SPRING; RETURN,QUADRANT BOX
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-09580-576-0 01 1 0512-
600 PLUNGER; VLV 1-33263-037-0 02 1 0407-0511
600 PLUNGER; VLV
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33263-037-0 02 1 0512-
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 0407-0511
601 COVER; SHAFT,SELECT
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33545-011-0 01 1 0512-
602 PLUNGER; DETENT 1-33263-037-0 02 1 0407-0511
602 PLUNGER; DETENT
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33263-037-0 02 1 0512-
606 INHIBITOR 1-33529-116-0 01 1 0407-0511
606 INHIBITOR
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33529-116-0 01 1 0512-

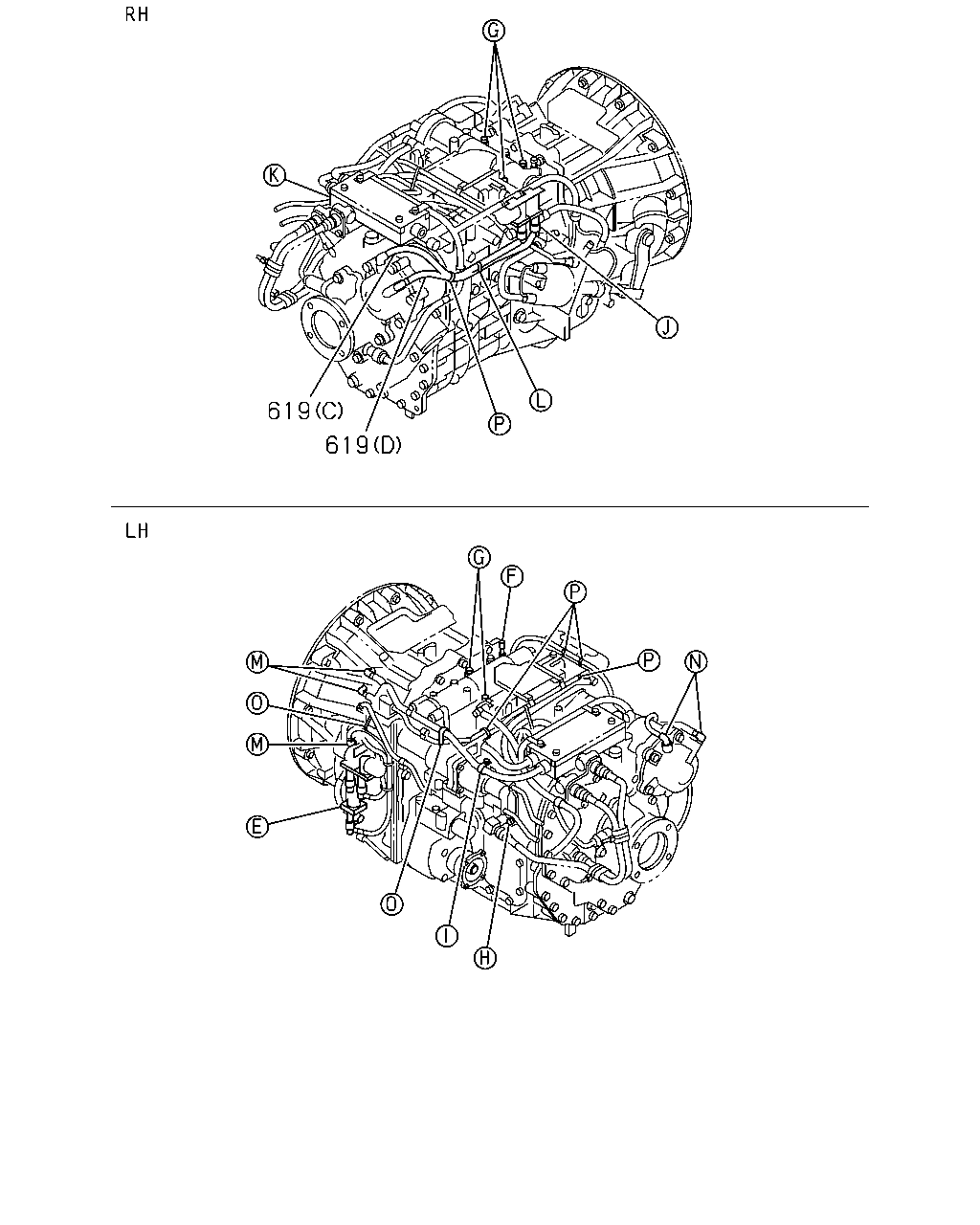

çizim 105044
619 619
BalonParca AdiParca NoAdetTipApplied Date
619 TUBE; NYLON
SMOOTHER-G(C1W) (B) L=430 		1-09376-828-1 01 1 0512-1003
619 TUBE; NYLON
SMOOTHER-G(C1W) (B) L=480 		8-98081-861-0 01 1 1004-
619 TUBE; NYLON
SMOOTHER-G(C1W) (A) L=420 		1-09376-829-1 01 1 0512-1003
619 TUBE; NYLON
SMOOTHER-G(C1W) (A) L=440 		8-98081-863-0 01 1 1004-
619 TUBE; NYLON
SMOOTHER-G(C1W) (C) L=470 		1-09376-831-1 01 1 0512-
619 TUBE; NYLON
SMOOTHER-G(C1W) (D) L=490 		1-09376-832-1 01 1 0512-

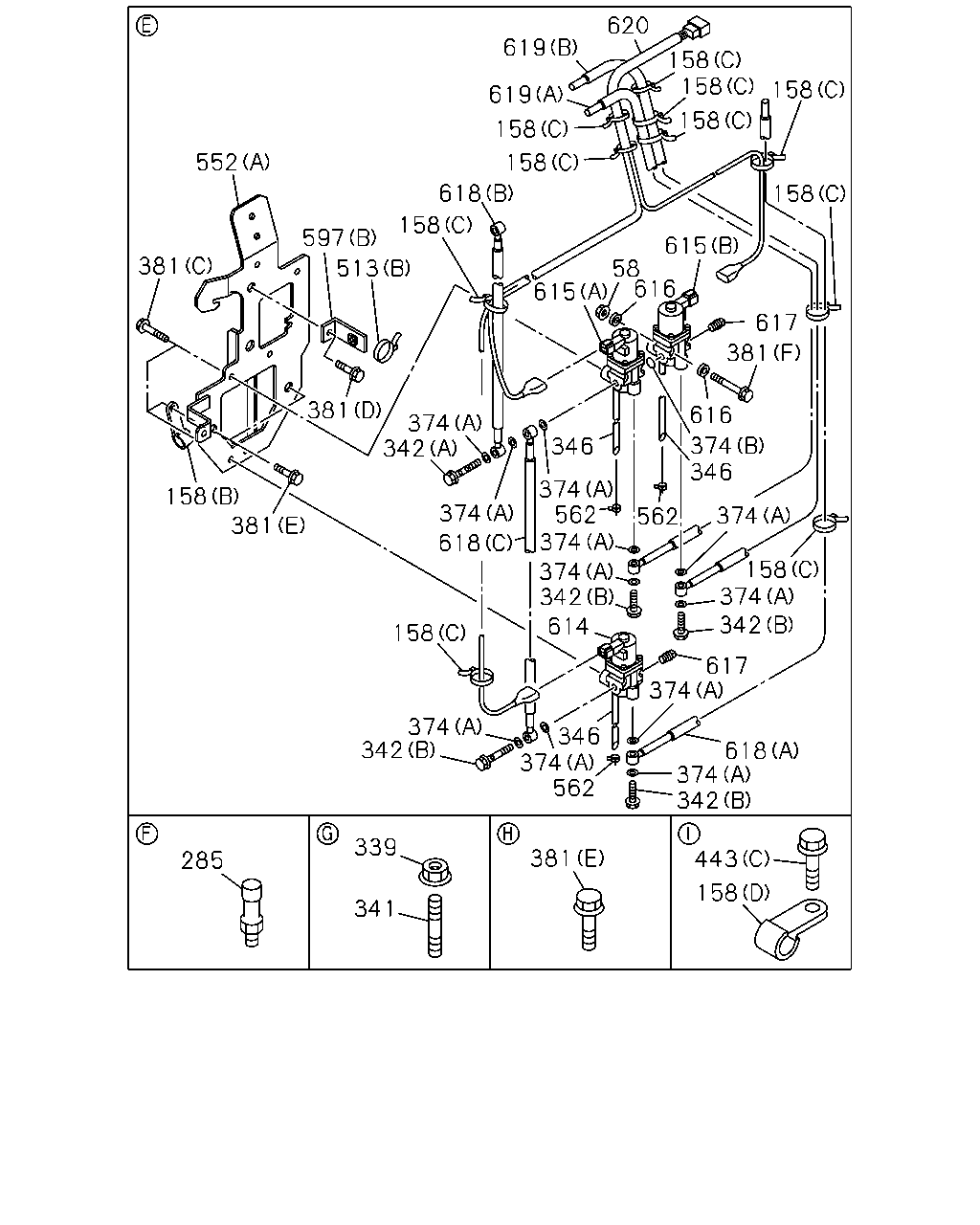

çizim 105045
620 619 158 158 158 619 158 158 552 158 618 158 158 597 615 381 513 58 616 615 617 381 381 616 374 342 346 374 346 374 562 374 158 374 374 562 381 618 158 374 342 374 342 614 158 617 374 374 342 346 374 562 618 374 342 443 339 381 285 158 341
BalonParca AdiParca NoAdetTipApplied Date
58 NUT
SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 02 1 0512-0602
58 NUT
SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0603-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (C) L=150 		1-82569-328-0 10 1 0512-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (A) L=36 		8-94224-891-1 01 1 0512-0703
158 CLIP; HARNESS
SMOOTHER-G(C1W) (A) L=36 		8-94224-891-1 01 1 0704-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
158 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=19 L=20 		0-95235-836-0 01 1 0607-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=19 L=60 		9-09525-896-0 01 1 0512-0606
158 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=19 L=60 		0-95235-896-0 01 1 0607-
158 CLIP; HARNESS
(E) L=140 		5-09707-031-1 02 1 0407-0511
158 CLIP; HARNESS
TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=140 		5-09707-031-1 02 1 0512-
285 BREATHER; AIR,QUAD BOX
SMOOTHER-G(C1W) 		1-33149-008-0 01 1 0512-0703
285 BREATHER; AIR,QUAD BOX
SMOOTHER-G(C1W) 		1-33149-008-0 01 1 0704-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0407-0511
285 BREATHER; AIR,QUAD BOX
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33149-003-0 01 1 0512-
339 NUT; QUAD BOX
M10 FLANGE 		0-91150-210-0 05 1 0407-0602
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 0603-
341 STUD; QUAD BOX
M10X35 L=50 		9-04411-035-0 05 1 0407-0604
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 0605-
342 BOLT
SMOOTHER-G(C1W) (A) M12X41 		1-09675-140-0 01 1 0512-
342 BOLT
SMOOTHER-G(C1W) (B) M12X27 FLANGE 		1-09675-160-0 06 1 0512-0805
342 BOLT
SMOOTHER-G(C1W) (B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 06 1 0806-
346 HOSE; AIR
TRANSMISSION CONTROL LINK TYPE(B2A) ID=6 OD=9 L=150 		1-33739-872-0 01 1 0512-
346 HOSE; AIR
SMOOTHER-G(C1W) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1004-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2 		1-09630-084-0 15 1 0512-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2 		8-98251-344-0 15 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8 		9-09565-117-0 02 1 0512-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-09661-390-0 01 1 0407-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-09661-390-0 01 1 0512-
381 BOLT
SMOOTHER-G(C1W) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
SMOOTHER-G(C1W) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
SMOOTHER-G(C1W) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
SMOOTHER-G(C1W) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0407-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0407-
381 BOLT
(H) 		1-09044-111-0 04 1 0407-0511
381 BOLT
TRANSMISSION CONTROL LINK TYPE(B2A) (H) 		1-09044-111-0 04 1 0512-
443 BOLT; CLIP
SMOOTHER-G(C1W) (C) M8X10 FLANGE 		0-28080-810-0 01 1 0512-0512
443 BOLT; CLIP
SMOOTHER-G(C1W) (C) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
443 BOLT; CLIP
SMOOTHER-G(C1W) (D) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
443 BOLT; CLIP
SMOOTHER-G(C1W) (D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 03 1 0407-0511
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28080-890-0 04 1 0407-0511
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE 		0-28080-890-0 04 1 0512-0512
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE 		0-28050-890-0 04 1 0601-
513 CLIP; BAND
SMOOTHER-G(C1W) (A) L=250 		5-09707-030-1 02 1 0512-
513 CLIP; BAND
SMOOTHER-G(C1W) (B) L=140 		5-09707-031-1 10 1 0512-
552 BRACKET
SMOOTHER-G(C1W) (A) 		1-82569-303-2 01 1 0512-
552 BRACKET
SMOOTHER-G(C1W) (B) 		1-82569-304-0 01 1 0512-
552 BRACKET
(D) 		1-33719-082-0 01 1 0407-0511
552 BRACKET
TRANSMISSION CONTROL LINK TYPE(B2A) (D) 		1-33719-082-0 01 1 0512-
552 BRACKET
(C) 		1-33719-083-0 01 1 0407-0511
552 BRACKET
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-33719-083-0 01 1 0512-
562 CLAMP; LOCKING
SMOOTHER-G(C1W) ID=7.8 		8-94246-958-0 05 1 0512-
597 BRACKET; RANGE,NYLON TUBE
SMOOTHER-G(C1W) (B) L=55 		1-47476-177-0 01 1 0512-
597 BRACKET; RANGE,NYLON TUBE
SMOOTHER-G(C1W) (A) 		1-82699-425-0 01 1 0512-
614 VALVE ASM
SMOOTHER-G(C1W) 		1-82564-068-0 01 1 0512-
615 VALVE; MAGNETIC
SMOOTHER-G(C1W) (A) M12 		1-82560-342-0 01 1 0512-
615 VALVE; MAGNETIC
SMOOTHER-G(C1W) (C) 		1-82560-343-0 01 1 0512-
615 VALVE; MAGNETIC
SMOOTHER-G(C1W) (B) 		1-82560-344-0 02 1 0512-
616 COLLAR
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512-
617 PLUG
SMOOTHER-G(C1W) PT3/8 		8-94475-259-0 02 1 0512-
618 TUBE; NYLON
SMOOTHER-G(C1W) (B) L=470 		1-09376-825-0 01 1 0512-
618 TUBE; NYLON
SMOOTHER-G(C1W) (C) L=140 		1-09376-826-0 01 1 0512-
618 TUBE; NYLON
SMOOTHER-G(C1W) (A) L=550 		1-09376-830-1 01 1 0512-
619 TUBE; NYLON
SMOOTHER-G(C1W) (B) L=430 		1-09376-828-1 01 1 0512-1003
619 TUBE; NYLON
SMOOTHER-G(C1W) (B) L=480 		8-98081-861-0 01 1 1004-
619 TUBE; NYLON
SMOOTHER-G(C1W) (A) L=420 		1-09376-829-1 01 1 0512-1003
619 TUBE; NYLON
SMOOTHER-G(C1W) (A) L=440 		8-98081-863-0 01 1 1004-
619 TUBE; NYLON
SMOOTHER-G(C1W) (C) L=470 		1-09376-831-1 01 1 0512-
619 TUBE; NYLON
SMOOTHER-G(C1W) (D) L=490 		1-09376-832-1 01 1 0512-
620 HARNESS
SMOOTHER-G(C1W) 		1-82675-069-0 01 1 0512-

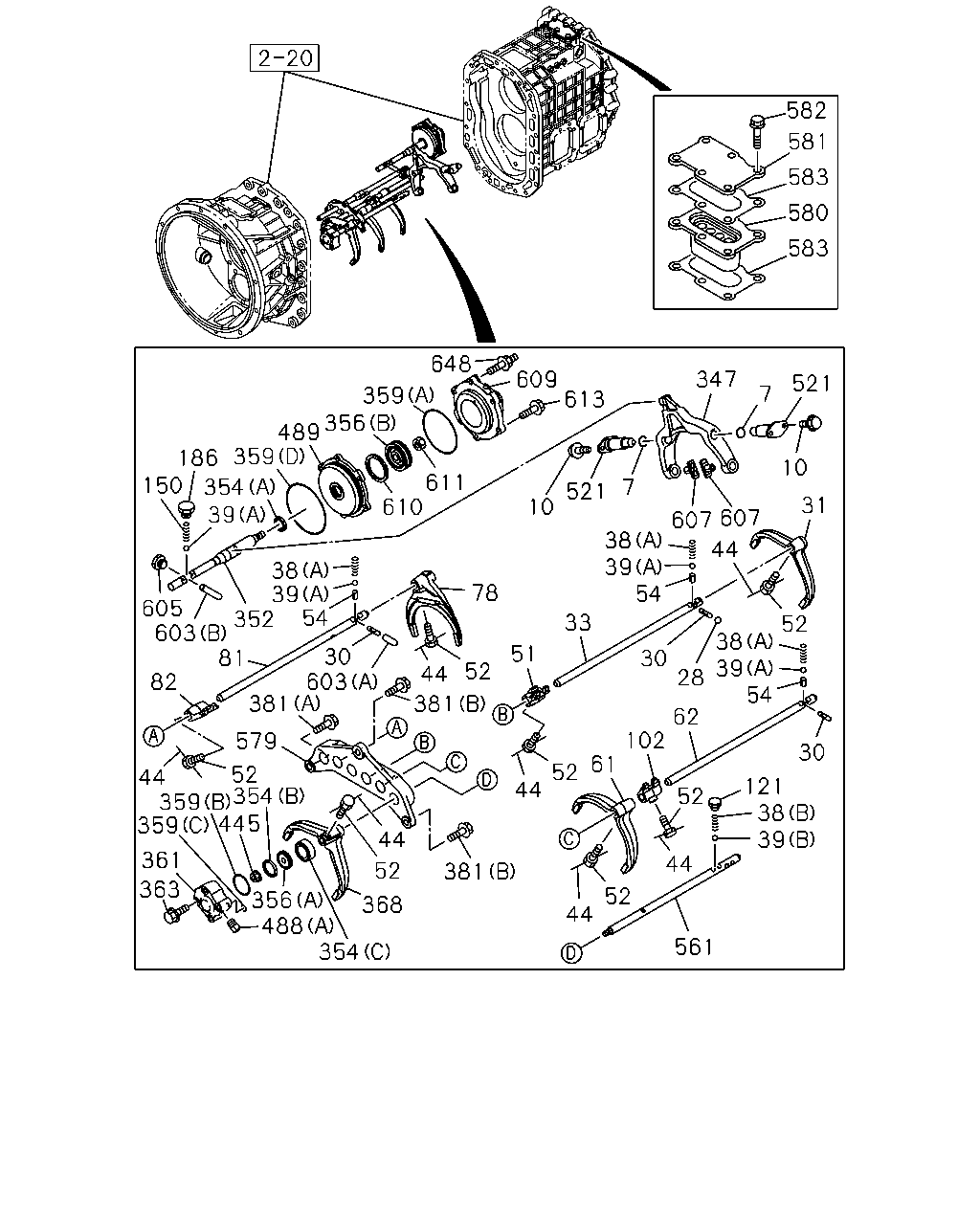

çizim 105048
582 581 583 580 583 648 347 609 613 521 7 359 356 489 359 186 150 10 611 610 354 39 7 521 31 10 607 607 38 39 54 44 38 39 605 603 81 78 33 52 38 39 54 51 30 603 381 30 52 44 28 82 381 62 102 579 30 61 52 44 52 354 359 121 38 39 44 52 44 361 44 52 381 363 488 354 52 368 44 561 445 359 352 356
BalonParca AdiParca NoAdetTipApplied Date
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 0407-
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28781-030-0 04 1 0407-0512
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 0601-
28 BALL; INTER LK 9-00097-501-0 02 1 0407-
30 PIN; INTER LK 9-33534-003-0 03 1 0407-
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 0407-
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 0407-
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0407-
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 0407-
38 SPRING; DETENT
(C) 		1-09580-574-0 01 1 0407-0511
38 SPRING; DETENT
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-09580-574-0 01 1 0512-
38 SPRING; DETENT
(D) 		1-09580-580-0 01 1 0407-0511
38 SPRING; DETENT
TRANSMISSION CONTROL LINK TYPE(B2A) (D) 		1-09580-580-0 01 1 0512-
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 0407-
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 0407-
44 WIRE; LK
L=200 		9-08351-020-0 07 1 0407-
51 BLOCK; SHIFT,1ST & 2ND
SMOOTHER-G(C1W) 		1-33511-590-0 01 1 0512-
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 0407-0511
51 BLOCK; SHIFT,1ST & 2ND
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33511-617-0 01 1 0512-
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 0407-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0407-
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 0407-
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 0407-
78 ARM; SHIFT,REV 1-33511-589-0 01 1 0407-
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 0407-
82 BLOCK; SHIFT,REV
SMOOTHER-G(C1W) 		1-33511-451-0 01 1 0512-
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 0407-0511
82 BLOCK; SHIFT,REV
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33511-600-0 01 1 0512-
102 BLOCK; SHIFT,3RD & 4TH
SMOOTHER-G(C1W) 		1-33511-592-0 01 1 0512-0602
102 BLOCK; SHIFT,3RD & 4TH
SMOOTHER-G(C1W) 		8-98044-038-0 01 1 0603-
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 0407-0511
102 BLOCK; SHIFT,3RD & 4TH
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33511-615-0 01 1 0512-
121 PLUG; DETENT SPR
M14X9 		9-99202-314-0 02 1 0407-0511
121 PLUG; DETENT SPR
TRANSMISSION CONTROL LINK TYPE(B2A) M14X9 		9-99202-314-0 02 1 0512-0805
121 PLUG; DETENT SPR
TRANSMISSION CONTROL LINK TYPE(B2A) M14X9 		8-98042-944-0 02 1 0806-
121 PLUG; DETENT SPR
M16X12 		9-99202-316-0 01 1 0407-0606
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 0607-
150 SPRING; DETENT BALL 1-09580-379-0 01 1 0407-
186 PLUG; SHIFTER ROD
M16X12 		9-99202-316-0 01 1 0407-0606
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 0607-
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 0407-
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 0407-
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 0407-
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 0407-
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 0407-
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 0407-
356 PISTON; AIR CYL
(B) 		1-33551-024-0 01 1 0407-0408
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 0409-
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 0407-
359 GASKET; AIR CYL
(B) ID=55.6 		1-09623-547-0 01 1 0407-0704
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 0705-
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 0407-
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 0407-
361 CYLINDER; AIR,SHIFT 1-33561-013-0 01 1 0407-0702
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 0703-
363 BOLT; AIR CYL
M10X60 FLANGE 		0-28181-060-0 04 1 0407-0512
363 BOLT; AIR CYL
M10X60 FLANGE 		0-28151-060-0 04 1 0601-1003
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1004-
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 0407-
381 BOLT
SMOOTHER-G(C1W) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
SMOOTHER-G(C1W) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
SMOOTHER-G(C1W) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
SMOOTHER-G(C1W) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0407-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0407-
381 BOLT
(H) 		1-09044-111-0 04 1 0407-0511
381 BOLT
TRANSMISSION CONTROL LINK TYPE(B2A) (H) 		1-09044-111-0 04 1 0512-
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91303-612-0 01 1 0407-0604
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 0605-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 0407-
488 PLUG; AIR CYL
(B) M14X9 		9-99202-314-0 02 1 0407-0511
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		9-99202-314-0 02 1 0512-0805
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M14X9 		8-98042-944-0 02 1 0806-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 0407-0511
488 PLUG; AIR CYL
TRANSMISSION CONTROL LINK TYPE(B2A) (C) PT1/4 		9-99204-513-0 01 1 0512-
489 COVER; AIR CYL 1-33569-052-0 01 1 0407-
521 SPINDLE; 6TH 1-33519-131-0 02 1 0407-
561 ROD; SHIFT
SMOOTHER-G(C1W) 		1-33531-460-0 01 1 0512-
561 ROD; SHIFT 1-33531-466-0 01 1 0407-0511
561 ROD; SHIFT
TRANSMISSION CONTROL LINK TYPE(B2A) 		1-33531-466-0 01 1 0512-
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 0407-
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 0407-
581 COVER; BLOCK 1-33141-056-0 01 1 0407-
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28181-035-0 06 1 0407-0512
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 0601-
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 0407-
603 ROD; INTER LK
(A) L=49 		1-33534-005-0 01 1 0407-
603 ROD; INTER LK
(B) L=77 		1-33534-010-0 01 1 0407-0511
603 ROD; INTER LK
TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=77 		1-33534-010-0 01 1 0512-
605 PLUG; INTER LK
M18X12 		9-99202-318-0 01 1 0407-0606
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 0607-
607 PIECE; SHIFT 1-33518-010-0 02 1 0407-
609 BODY; AIR,CYL 1-33561-018-0 01 1 0407-
610 SEAL; PISTON 1-33738-054-0 01 1 0407-
611 NUT; SHAFT 8-97324-304-0 01 1 0407-
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28181-045-0 06 1 0407-0408
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28181-045-0 04 1 0409-0512
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 04 1 0601-
648 STUD; AIR CYL
M10X20,M10X45 L=75 		1-09049-015-0 02 1 0409-0805
648 STUD; AIR CYL
M10X20,M10X45 L=75 		8-98010-335-0 02 1 0806-

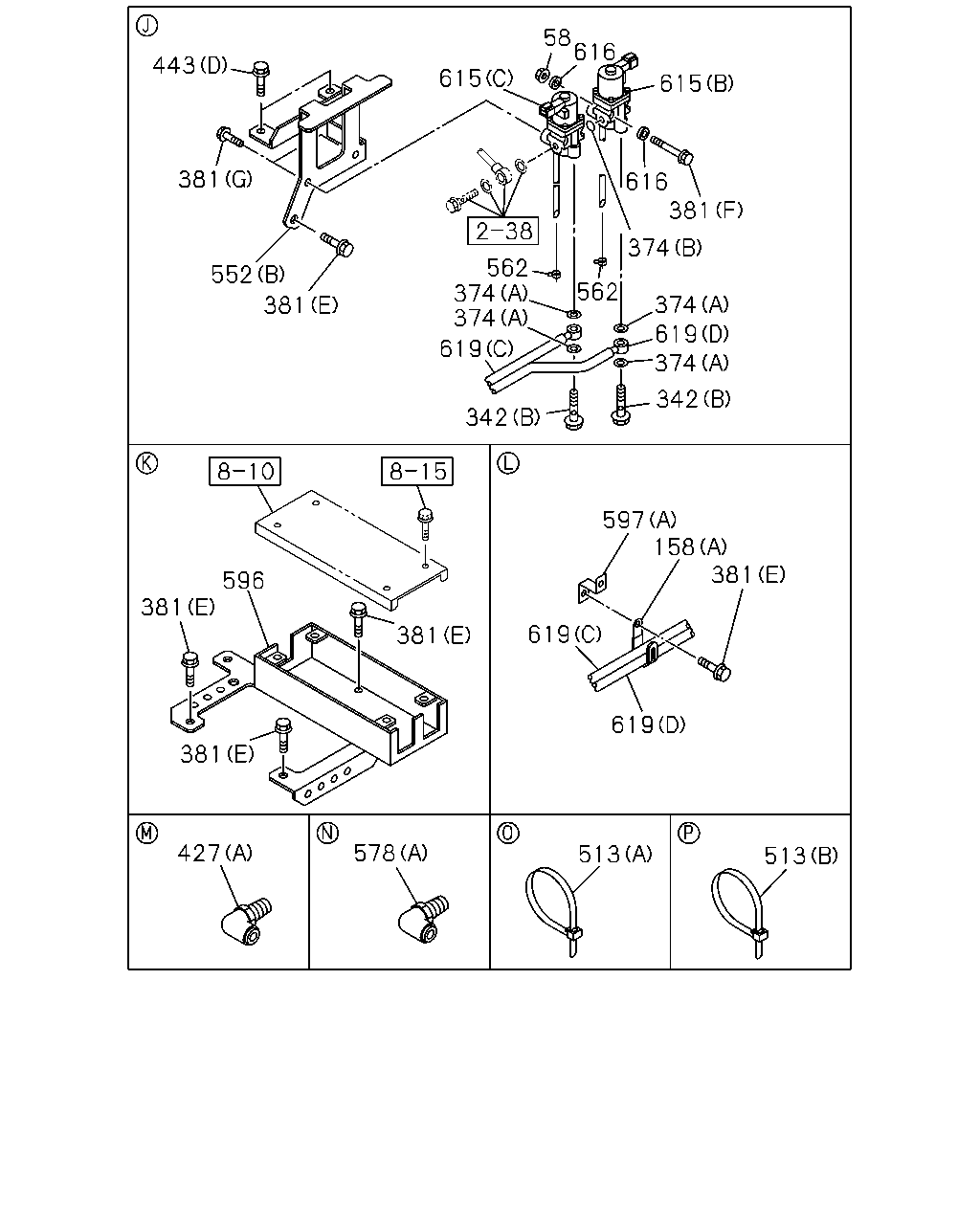

çizim 105050
58 616 443 615 615 381 616 381 374 562 374 374 552 562 374 381 619 619 374 342 342 597 158 381 596 381 619 381 619 381 427 578 513 513
BalonParca AdiParca NoAdetTipApplied Date
58 NUT
SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 02 1 0512-0602
58 NUT
SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0603-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (C) L=150 		1-82569-328-0 10 1 0512-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (A) L=36 		8-94224-891-1 01 1 0512-0703
158 CLIP; HARNESS
SMOOTHER-G(C1W) (A) L=36 		8-94224-891-1 01 1 0704-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
158 CLIP; HARNESS
SMOOTHER-G(C1W) (D) ID=19 L=20 		0-95235-836-0 01 1 0607-
158 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=19 L=60 		9-09525-896-0 01 1 0512-0606
158 CLIP; HARNESS
SMOOTHER-G(C1W) (B) ID=19 L=60 		0-95235-896-0 01 1 0607-
158 CLIP; HARNESS
(E) L=140 		5-09707-031-1 02 1 0407-0511
158 CLIP; HARNESS
TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=140 		5-09707-031-1 02 1 0512-
342 BOLT
SMOOTHER-G(C1W) (A) M12X41 		1-09675-140-0 01 1 0512-
342 BOLT
SMOOTHER-G(C1W) (B) M12X27 FLANGE 		1-09675-160-0 06 1 0512-0805
342 BOLT
SMOOTHER-G(C1W) (B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 06 1 0806-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2 		1-09630-084-0 15 1 0512-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2 		8-98251-344-0 15 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8 		9-09565-117-0 02 1 0512-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-09661-390-0 01 1 0407-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-09661-390-0 01 1 0512-
381 BOLT
SMOOTHER-G(C1W) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
SMOOTHER-G(C1W) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
SMOOTHER-G(C1W) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
SMOOTHER-G(C1W) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0512-0512
381 BOLT
SMOOTHER-G(C1W) (D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0407-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0407-
381 BOLT
(H) 		1-09044-111-0 04 1 0407-0511
381 BOLT
TRANSMISSION CONTROL LINK TYPE(B2A) (H) 		1-09044-111-0 04 1 0512-
427 CONNECTOR; NYLON TUBE
SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW 		1-09660-707-1 03 1 0512-
427 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0407-0511
427 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0512-
427 CONNECTOR; NYLON TUBE
(C) DIN8 ELBOW 		1-09660-924-1 01 1 0407-0511
427 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (C) DIN8 ELBOW 		1-09660-924-1 01 1 0512-
427 CONNECTOR; NYLON TUBE
(D) M12 		1-09660-931-1 01 1 0407-0511
427 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (D) M12 		1-09660-931-1 01 1 0512-
427 CONNECTOR; NYLON TUBE
(E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0407-0511
427 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL LINK TYPE(B2A) (E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0512-
443 BOLT; CLIP
SMOOTHER-G(C1W) (C) M8X10 FLANGE 		0-28080-810-0 01 1 0512-0512
443 BOLT; CLIP
SMOOTHER-G(C1W) (C) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
443 BOLT; CLIP
SMOOTHER-G(C1W) (D) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
443 BOLT; CLIP
SMOOTHER-G(C1W) (D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 03 1 0407-0511
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28080-890-0 04 1 0407-0511
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE 		0-28080-890-0 04 1 0512-0512
443 BOLT; CLIP
TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8X90 FLANGE 		0-28050-890-0 04 1 0601-
513 CLIP; BAND
SMOOTHER-G(C1W) (A) L=250 		5-09707-030-1 02 1 0512-
513 CLIP; BAND
SMOOTHER-G(C1W) (B) L=140 		5-09707-031-1 10 1 0512-
552 BRACKET
SMOOTHER-G(C1W) (A) 		1-82569-303-2 01 1 0512-
552 BRACKET
SMOOTHER-G(C1W) (B) 		1-82569-304-0 01 1 0512-
552 BRACKET
(D) 		1-33719-082-0 01 1 0407-0511
552 BRACKET
TRANSMISSION CONTROL LINK TYPE(B2A) (D) 		1-33719-082-0 01 1 0512-
552 BRACKET
(C) 		1-33719-083-0 01 1 0407-0511
552 BRACKET
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-33719-083-0 01 1 0512-
562 CLAMP; LOCKING
SMOOTHER-G(C1W) ID=7.8 		8-94246-958-0 05 1 0512-
578 CONNECTOR
SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0512-
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 0512-
578 CONNECTOR
(E) 		1-09661-292-0 02 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (E) 		1-09661-292-0 02 1 0512-
578 CONNECTOR
(F) 		1-33712-023-0 01 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (F) 		1-33712-023-0 01 1 0512-
578 CONNECTOR
(G) 		1-33712-024-0 01 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (G) 		1-33712-024-0 01 1 0512-
578 CONNECTOR
(C) 		1-33712-025-0 01 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (C) 		1-33712-025-0 01 1 0512-
578 CONNECTOR
(B) 		1-33712-026-0 01 1 0407-0511
578 CONNECTOR
TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-33712-026-0 01 1 0512-
596 BOX; CONNECTOR
SMOOTHER-G(C1W) 		1-82569-315-1 01 1 0512-
597 BRACKET; RANGE,NYLON TUBE
SMOOTHER-G(C1W) (B) L=55 		1-47476-177-0 01 1 0512-
597 BRACKET; RANGE,NYLON TUBE
SMOOTHER-G(C1W) (A) 		1-82699-425-0 01 1 0512-
615 VALVE; MAGNETIC
SMOOTHER-G(C1W) (A) M12 		1-82560-342-0 01 1 0512-
615 VALVE; MAGNETIC
SMOOTHER-G(C1W) (C) 		1-82560-343-0 01 1 0512-
615 VALVE; MAGNETIC
SMOOTHER-G(C1W) (B) 		1-82560-344-0 02 1 0512-
616 COLLAR
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512-
619 TUBE; NYLON
SMOOTHER-G(C1W) (B) L=430 		1-09376-828-1 01 1 0512-1003
619 TUBE; NYLON
SMOOTHER-G(C1W) (B) L=480 		8-98081-861-0 01 1 1004-
619 TUBE; NYLON
SMOOTHER-G(C1W) (A) L=420 		1-09376-829-1 01 1 0512-1003
619 TUBE; NYLON
SMOOTHER-G(C1W) (A) L=440 		8-98081-863-0 01 1 1004-
619 TUBE; NYLON
SMOOTHER-G(C1W) (C) L=470 		1-09376-831-1 01 1 0512-
619 TUBE; NYLON
SMOOTHER-G(C1W) (D) L=490 		1-09376-832-1 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
