◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#30010) — 47 parça

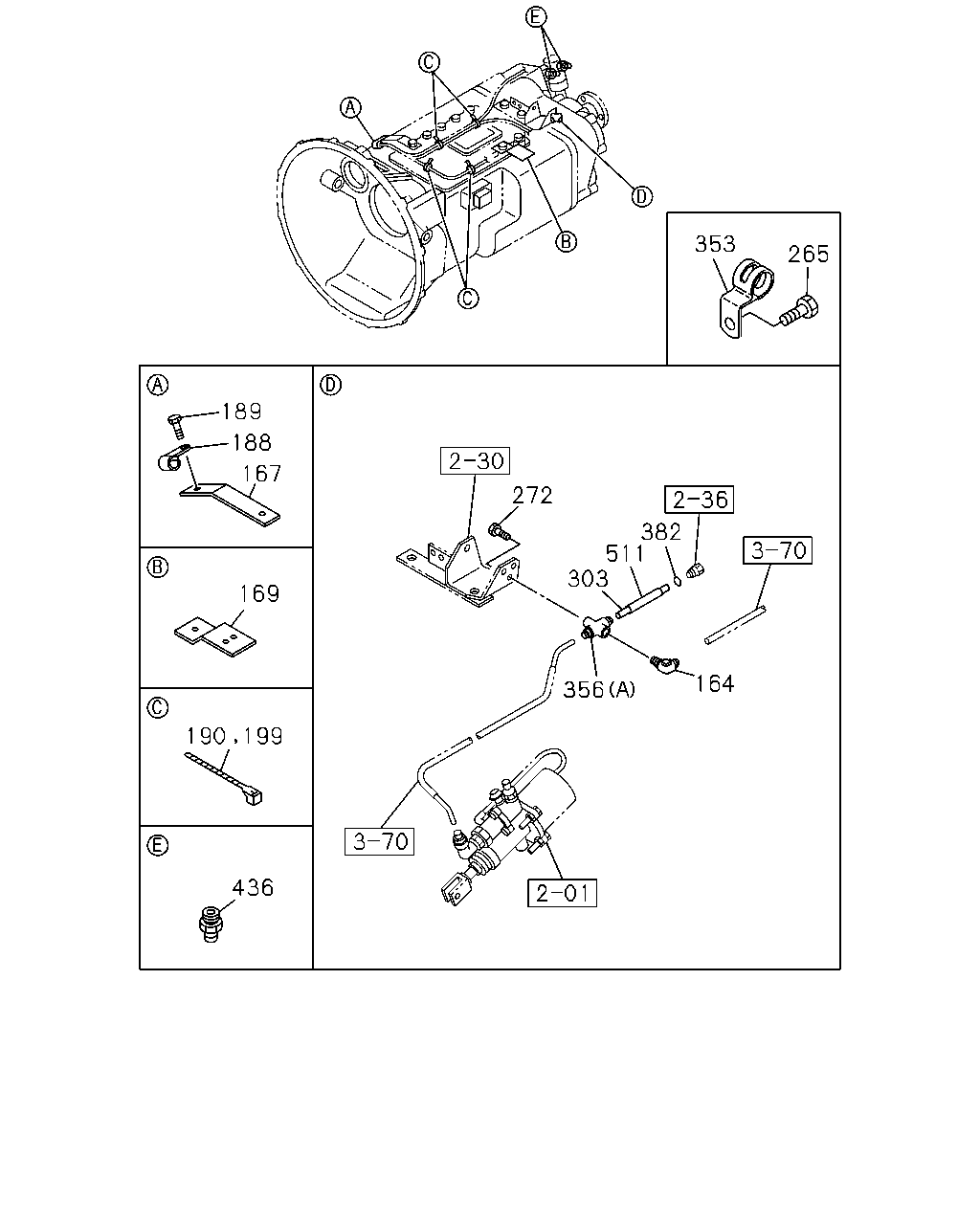

çizim 87762
353 265 189 188 167 272 382 511 303 169 164 356 190 436 199
BalonParca AdiParca NoAdetTipApplied Date
164 CONNECTOR; ELBOW
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0704-
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 0704-
169 BRACKET; CLIP,PIPE HOSE 1-47475-633-0 01 1 0704-
188 CLIP; PIPE,BRKT
ID=16 L=28 		0-95235-556-0 01 1 0704-
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0704-
190 CLIP; BAND,CONT TUBE
L=350 		1-09707-183-0 05 1 0704-
199 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0704-
265 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0704-
265 BOLT; CLIP
6WG1 TC-C(72L) COUNTER SHAFT BRAKE MULTI DISC<BCP> CLUTCH-15.5" TWIN PLATE SPICER(TEY) M8X20 FLANGE 		0-28650-820-0 01 1 0704-
272 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0704-
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0704-0704
353 CLIP; NYLON TUBE
ID=16 L=50 H=25 		1-09700-838-0 02 1 0704-
356 UNION
(B) 		1-09664-020-1 02 1 0704-
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0704-
382 GASKET; ADAPTER
ID=11 OD=18 		9-09572-510-0 01 1 0704-
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 02 1 0704-1104
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 01 1 1105-
511 TUBE; CORRUGATE
TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0704-0704

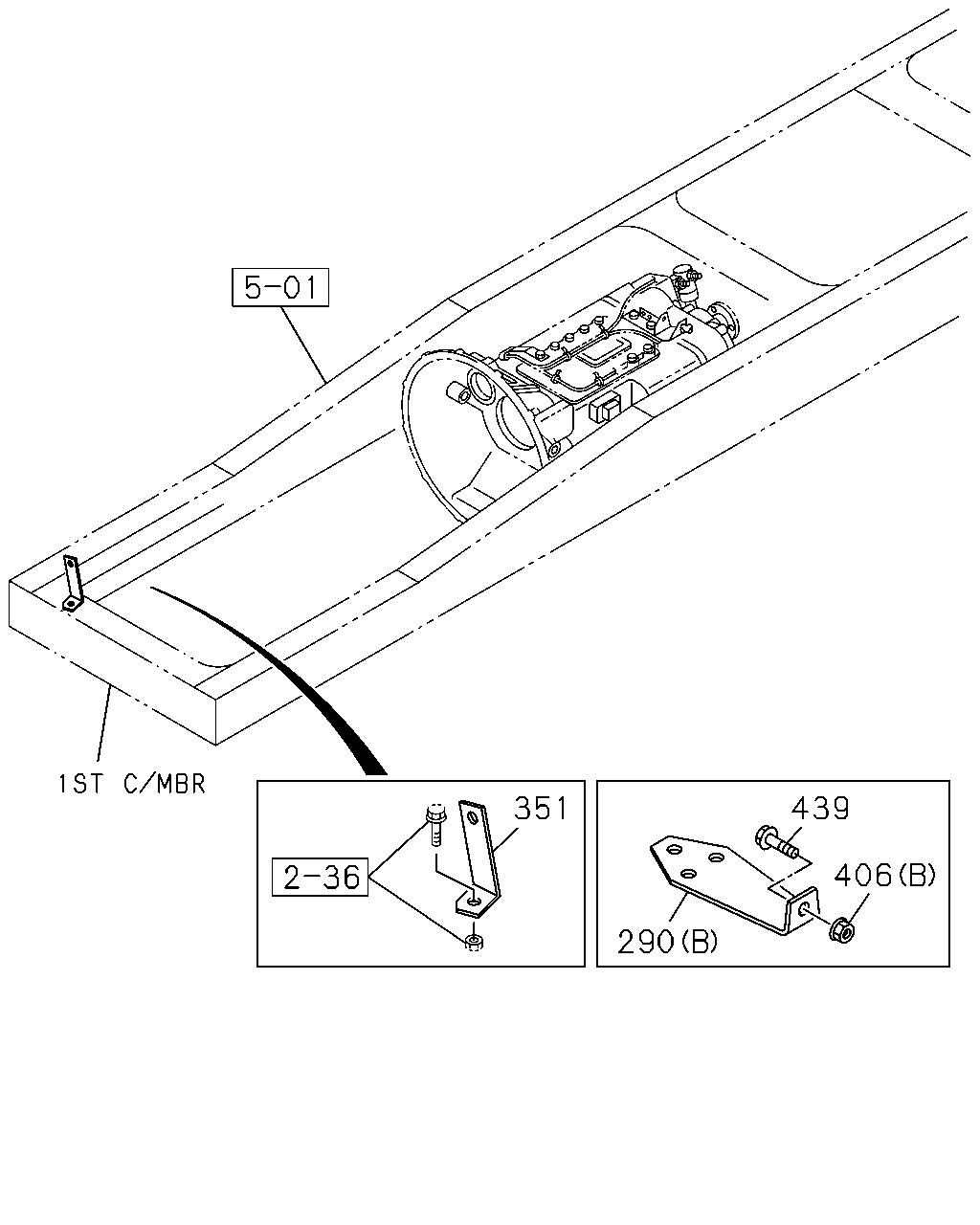

çizim 87900
351 439 406 290
BalonParca AdiParca NoAdetTipApplied Date
290 BRACKET; CLIP 1-38329-074-0 01 1 0704-
290 BRACKET; CLIP
(B) 		1-47479-779-0 01 1 0706-
351 BRACKET; UNION,FLEX HOSE 1-47471-480-0 01 1 0704-0706
351 BRACKET; UNION,FLEX HOSE 1-82698-440-0 01 1 0707-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0706-
439 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0706-

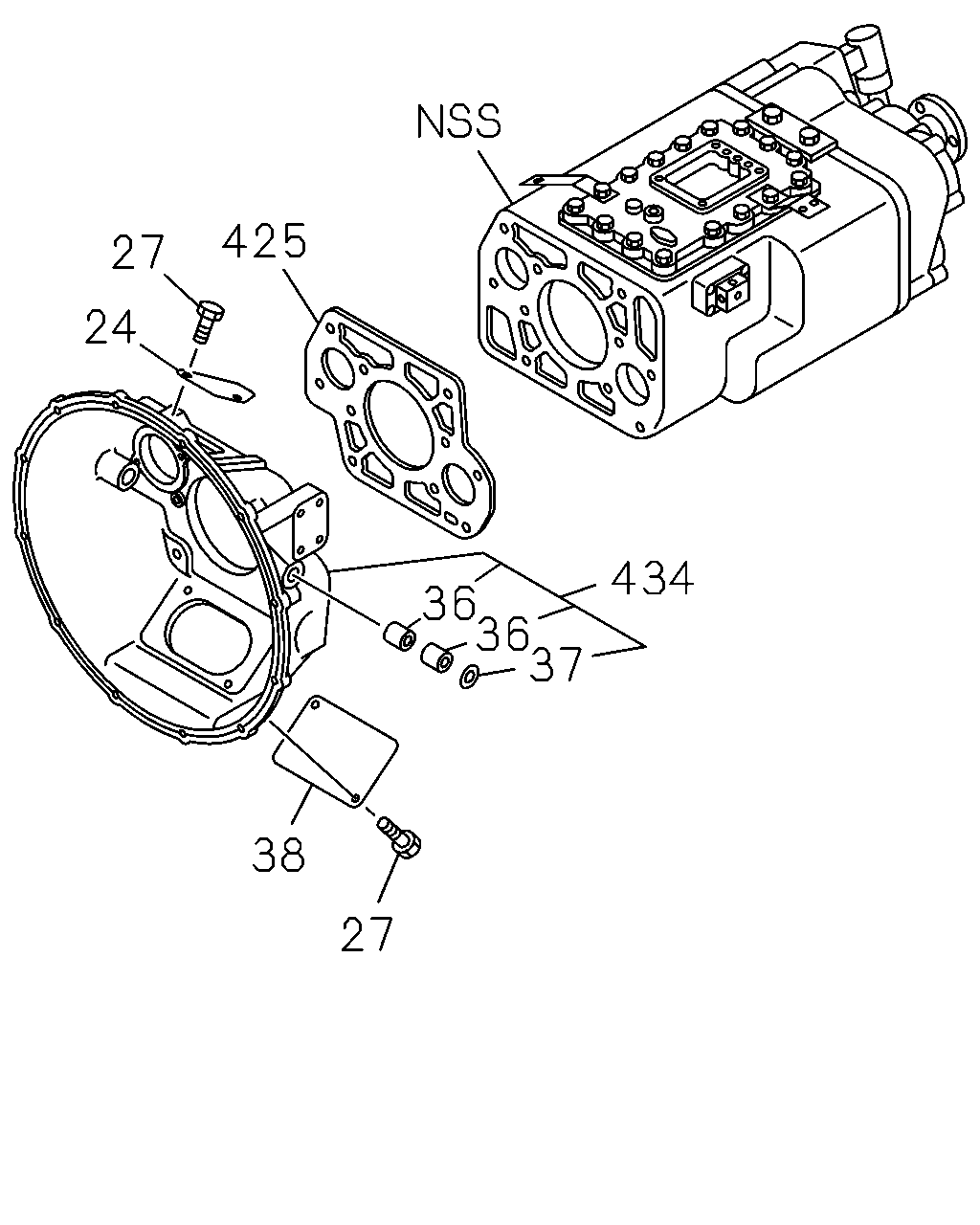

çizim 87922
425 27 24 434 36 36 37 38 27
BalonParca AdiParca NoAdetTipApplied Date
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 0704-
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 04 1 0704-
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 0704-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-215-0 02 1 0704-
38 COVER; CHECK HOLE,LWR 1-31131-044-1 01 1 0704-
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-011-0 01 1 0704-
434 HOUSING; CLU 1-31110-220-0 01 1 0704-1104
434 HOUSING; CLU 8-98181-241-0 01 1 1105-

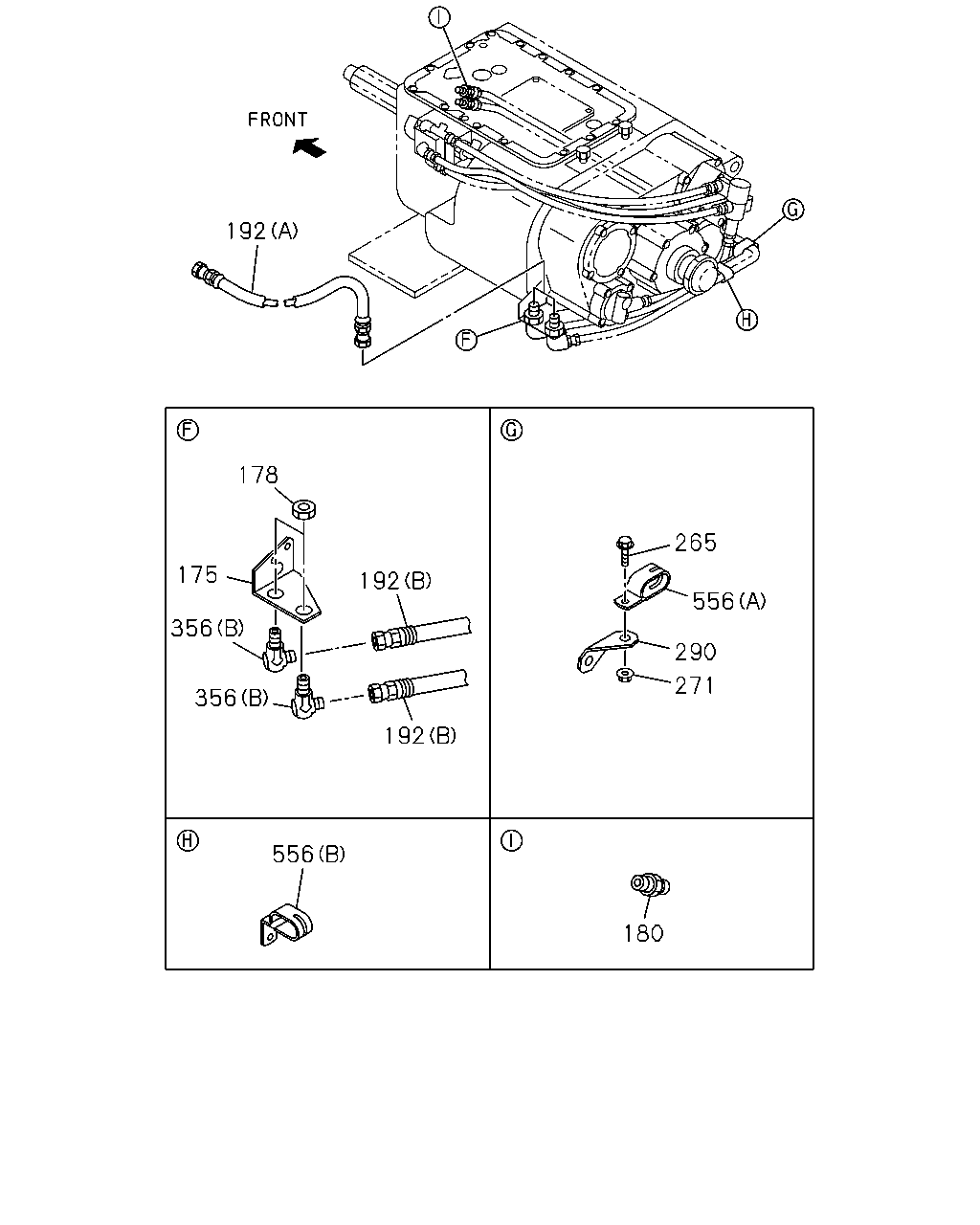

çizim 104820
192 178 265 175 192 556 356 290 271 356 192 556 180
BalonParca AdiParca NoAdetTipApplied Date
175 BRACKET; UNION 1-47478-084-0 01 1 0704-
178 NUT; UNION
M22 		0-91111-522-0 02 1 0704-
180 CONNECTOR; NYLON TUBE 1-09661-055-0 02 1 0704-
192 HOSE; FLEX,TRANS
(B) L=1120 		1-09365-010-0 02 1 0704-
192 HOSE; FLEX,TRANS
(A) L=400 		1-09365-279-0 01 1 0704-
192 HOSE; FLEX,TRANS
(A) L=450 		1-09365-280-0 01 1 0704-
265 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0704-
265 BOLT; CLIP
6WG1 TC-C(72L) COUNTER SHAFT BRAKE MULTI DISC<BCP> CLUTCH-15.5" TWIN PLATE SPICER(TEY) M8X20 FLANGE 		0-28650-820-0 01 1 0704-
271 NUT; CLIP
M8 FLANGE 		0-91180-208-0 01 1 0704-
290 BRACKET; CLIP 1-38329-074-0 01 1 0704-
290 BRACKET; CLIP
(B) 		1-47479-779-0 01 1 0706-
356 UNION
(B) 		1-09664-020-1 02 1 0704-
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0704-
556 CLIP; OIL HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 0704-
556 CLIP; OIL HOSE
(B) 		8-97019-083-0 01 1 0704-
