2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#3001) — 114 parça

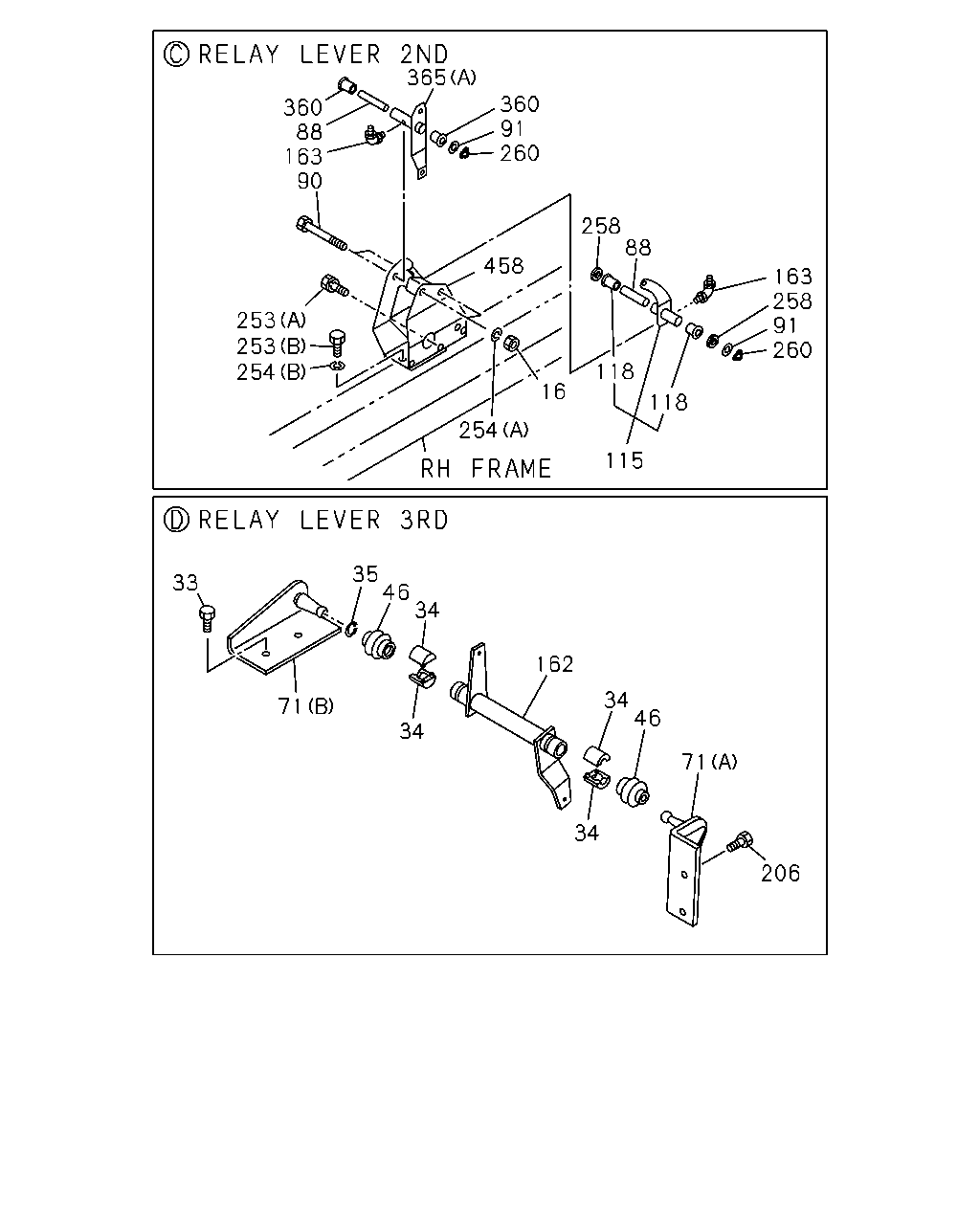

206 71 34 46 34 162 34 34 46 35 71 33 254 115 118 118 16 260 91 258 163 88 258 260 91 360 365 360 88 163 90 458 253 253 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	9002-9306
33	BOLT; BRKT,3RD RELAY LEVER M12X45	9-01911-245-0	02	1	9002-9005
33	BOLT; BRKT,3RD RELAY LEVER M12X45 W/LK WASHER	0-50041-245-0	02	1	9006-9306
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	9002-9306
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	9002-9306
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	9002-9306
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-193-2	01	1	9002-9306
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-200-0	01	1	9002-9306
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	9002-9306
90	SHAFT	1-33619-125-0	02	1	9002-9306
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	9002-9306
115	LEVER; RELAY,2ND SHIFT	1-33651-505-0	01	1	9002-9306
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-9306
162	LEVER; RELAY	1-33651-338-1	01	1	9002-9306
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	9002-9306
206	BOLT; BRKT,3RD RELAY LEVER,ENG M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005
206	BOLT; BRKT,3RD RELAY LEVER,ENG M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-9306
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9002-9306
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X40	9-92051-440-0	02	1	9002-9005
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X40	0-20801-440-0	02	1	9006-9306
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	9002-9306
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	9002-9306
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	9002-9306
260	WASHER; WAVED	1-33659-093-0	02	1	9002-9306
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	9002-9306
365	LEVER; RELAY,SELECT CVR&RHD(CVR5M*) (C)	1-33651-285-2	01	1	9002-9306
365	LEVER; RELAY,SELECT CVR&RHD(CVR5M*) (B)	1-33651-286-2	01	1	9002-9306
365	LEVER; RELAY,SELECT CVR&LHD(CVR6M*) (D)	1-33651-328-2	01	1	9002-9306
365	LEVER; RELAY,SELECT (A)	1-33651-295-1	01	1	9002-9306
458	BRACKET; 2ND RELAY LEVER	1-33657-221-5	01	1	9002-9306

386 314 315 317 316 309 309 309 307 315 310 308 315 309 386 387 366 366

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
307	CLIP; PIPE BRKT CVR&LHD(CVR6M*) ID=16 L=20	9-09525-536-0	01	1	9006-9007
308	CLIP; PIPE CVR&LHD(CVR6M*) REINFORCEMENT BUMPER<VG7>	1-09700-780-1	01	1	9006-9306
308	CLIP; PIPE CVR&LHD(CVR6M*) EXC. REINFORCEMENT BUMPER<VG7>	1-09700-772-2	01	1	9006-9306
309	NUT; PIPE CLIP CVR&LHD(CVR6M*) M8	9-09110-408-0	02	1	9006-9007
309	NUT; PIPE CLIP CVR&LHD(CVR6M*) REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9006-9007
309	NUT; PIPE CLIP CVR&LHD(CVR6M*) REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9008-9306
309	NUT; PIPE CLIP CVR&LHD(CVR6M*) EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9006-9007
309	NUT; PIPE CLIP CVR&LHD(CVR6M*) M8	9-09110-408-0	01	1	9008-9306
309	NUT; PIPE CLIP CVR&LHD(CVR6M*) EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9008-9306
310	CLIP; TUBE ID=13.5 & 11	1-09709-123-0	02	1	9006-9007
314	CLIP; PIPE,UNDER MBR CVR&LHD(CVR6M*) ID=19.5X2 L=24.5	9-09917-356-0	01	1	9006-9306
315	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M8X16 W/LK WASHER	9-01900-816-0	01	1	9006-9007
315	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M8X20 W/LK WASHER	9-01900-820-0	01	1	9006-9204
315	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
315	BOLT; PIPE CLIP CVR&LHD(CVR6M*) M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
315	BOLT; PIPE CLIP CVR&LHD(CVR6M*) REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9006-9204
315	BOLT; PIPE CLIP CVR&LHD(CVR6M*) REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9306
315	BOLT; PIPE CLIP CVR&LHD(CVR6M*) EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9006-9204
315	BOLT; PIPE CLIP CVR&LHD(CVR6M*) EXC. REINFORCEMENT BUMPER<VG7> M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9205-9306
316	BRACKET; CLIP CVR&LHD(CVR6M*)	1-47465-449-1	01	1	9006-9306
317	BOLT; BRKT,SIDE MBR CVR&LHD(CVR6M*) M8X30 W/LK WASHER	9-01900-830-0	01	1	9006-9204
317	BOLT; BRKT,SIDE MBR CVR&LHD(CVR6M*) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302
317	BOLT; BRKT,SIDE MBR CVR&LHD(CVR6M*) M8X30 FLANGE	0-28080-830-0	01	1	9303-9306
366	TUBE; NYLON,FULLER CONT 3/8" TUBE SERVICED BY L=30000	1-09369-315-0	AR	1	9002-9306
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	01	1	9006-9007
386	CLIP; CONT CABLE & TUBE CVR&RHD(CVR5M*) (A) L=140	5-09707-031-0	01	1	9006-9007
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-0	01	1	9008-9306
386	CLIP; CONT CABLE & TUBE CVR&LHD(CVR6M*) (B) L=250	5-09707-030-0	02	1	9006-9007
386	CLIP; CONT CABLE & TUBE CVR&LHD(CVR6M*) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=250	5-09707-030-0	01	1	9006-9306
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9006-9306

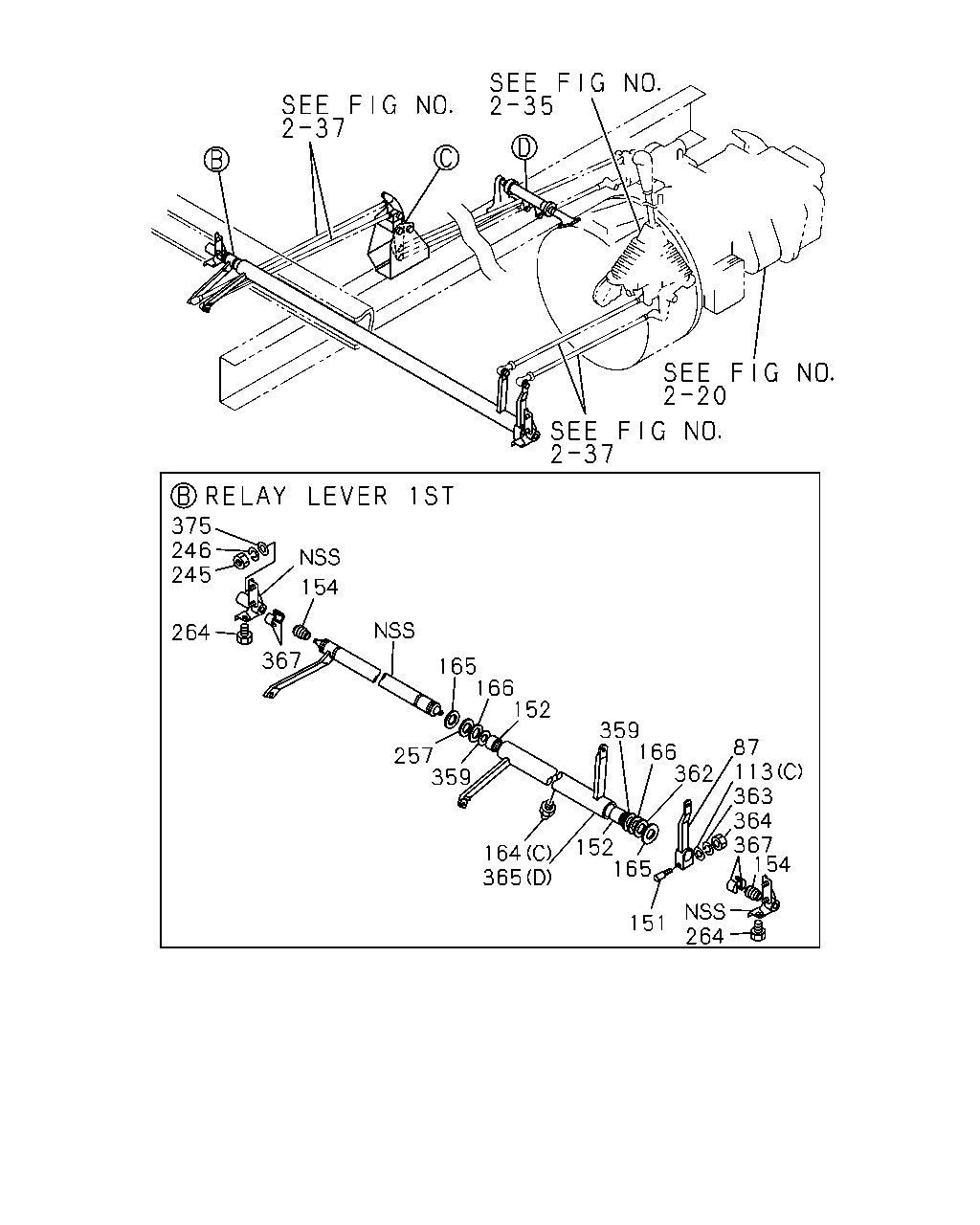

264 151 165 152 164 365 154 367 364 363 113 87 362 166 359 152 166 165 257 359 154 367 264 245 246 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	LEVER; RELAY,SELECT CVR&LHD(CVR6M*)	1-33651-327-1	01	1	9002-9306
113	WASHER; RELAY LEVER CVR&RHD(CVR5M*) (A)	1-09509-041-0	02	1	9002-9306
113	WASHER; RELAY LEVER CVR&RHD(CVR5M*) (B) ID=6.4	9-09160-506-0	01	1	9002-9306
113	WASHER; RELAY LEVER CVR&LHD(CVR6M*) (C)	9-09160-710-0	01	1	9002-9306
151	BOLT; KEY,RELAY LEVER CVR&LHD(CVR6M*)	1-33659-063-0	01	1	9002-9306
152	BEARING; NEEDLE,RELAY LEVER CVR&LHD(CVR6M*)	1-09811-328-0	02	1	9002-9306
154	COVER; DUST,RELAY LEVER CVR&LHD(CVR6M*)	1-33659-068-0	02	1	9002-9306
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD CVR&RHD(CVR5M*) (B)	9-09031-006-0	01	1	9002-9306
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD CVR&RHD(CVR5M*) (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-9306
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD CVR&LHD(CVR6M*) (C) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9002-9306
165	WASHER; RELAY LEVER CVR&LHD(CVR6M*)	1-09503-148-0	AR	1	9002-9306
166	WASHER; NYLON,RELAY LEVER CVR&LHD(CVR6M*)	1-09509-040-0	02	1	9002-9306
245	NUT; BRKT,RELAY LEVER CVR&LHD(CVR6M*) M8	9-09110-508-0	04	1	9002-9306
246	WASHER; LK,BRKT,RELAY LEVER CVR&LHD(CVR6M*) ID=8.2	9-09150-508-0	04	1	9002-9306
257	PIECE; DIST,RELAY LEVER CVR&LHD(CVR6M*)	1-09503-198-0	AR	1	9002-9306
264	BOLT; BRKT,RELAY LEVER CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005
264	BOLT; BRKT,RELAY LEVER CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-9306
264	BOLT; BRKT,RELAY LEVER CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER	9-01970-825-0	02	1	9002-9005
264	BOLT; BRKT,RELAY LEVER CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9006-9306
359	SEAL; RUBBER,RELAY LEVER CVR&LHD(CVR6M*)	1-09625-005-1	02	1	9002-9306
362	SHIM CVR&RHD(CVR5M*)	1-33659-092-0	02	1	9002-9306
362	SHIM CVR&LHD(CVR6M*)	1-09503-172-0	01	1	9002-9306
363	WASHER; LK,KEY BOLT CVR&LHD(CVR6M*) ID=10.2	9-09150-510-0	01	1	9002-9306
364	NUT; KEY BOLT CVR&LHD(CVR6M*) M10	9-09111-410-0	01	1	9002-9306
365	LEVER; RELAY,SELECT CVR&RHD(CVR5M*) (C)	1-33651-285-2	01	1	9002-9306
365	LEVER; RELAY,SELECT CVR&RHD(CVR5M*) (B)	1-33651-286-2	01	1	9002-9306
365	LEVER; RELAY,SELECT CVR&LHD(CVR6M*) (D)	1-33651-328-2	01	1	9002-9306
365	LEVER; RELAY,SELECT (A)	1-33651-295-1	01	1	9002-9306
367	SEAT; BALL,CONT SHAFT CVR&LHD(CVR6M*)	1-33659-053-0	04	1	9002-9306
375	WASHER; PL,BRKT,RELAY LEVER CVR&LHD(CVR6M*) ID=8.4	9-09160-508-0	04	1	9002-9306

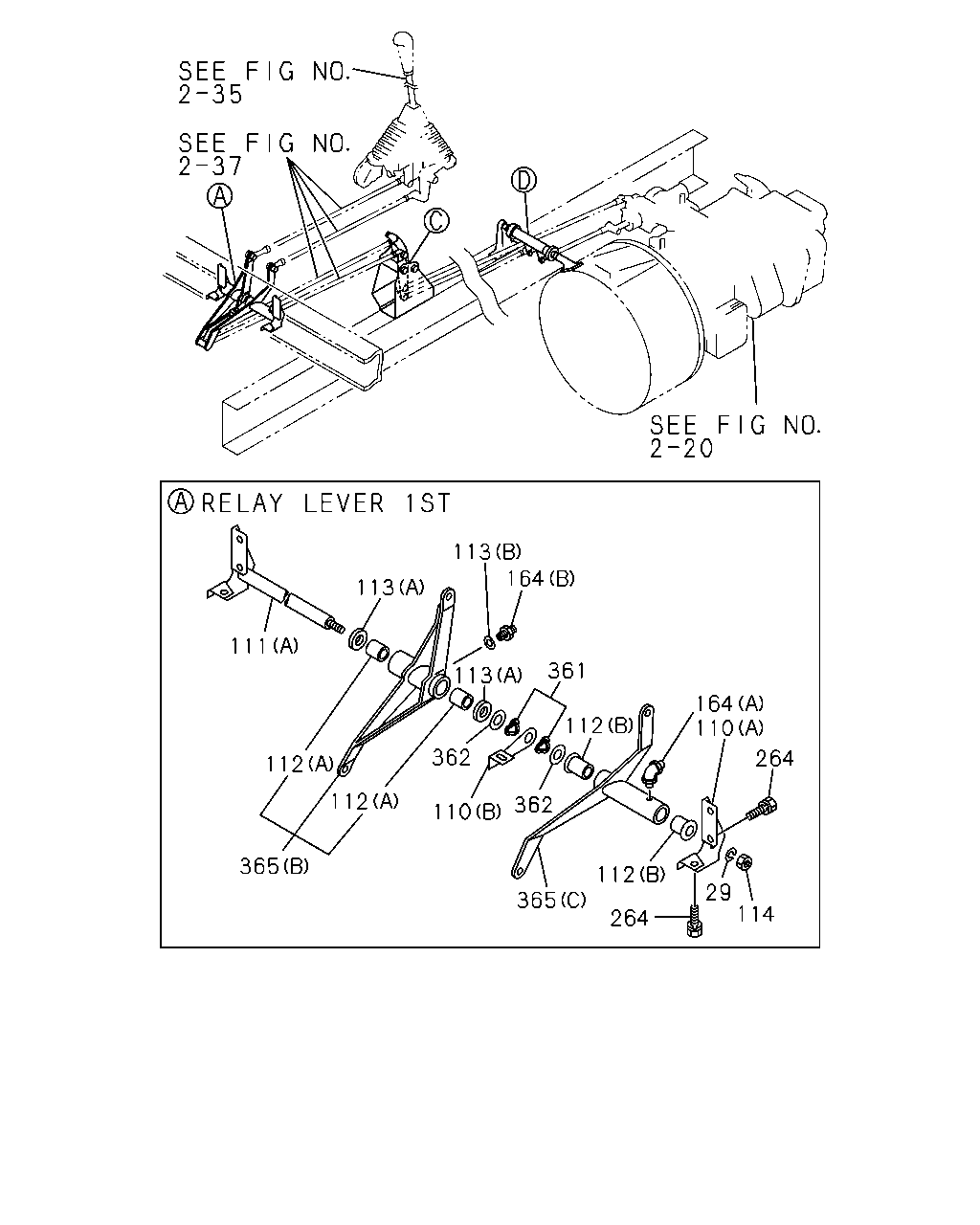

114 29 264 112 365 362 110 362 112 365 112 111 113 113 361 112 164 110 264 164 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	WASHER; LK,RELAY LEVER CVR&RHD(CVR5M*) ID=14.2	9-09150-514-0	01	1	9002-9306
110	BRACKET; RELAY LEVER,1ST CVR&RHD(CVR5M*) (A)	1-33657-180-1	01	1	9002-9306
110	BRACKET; RELAY LEVER,1ST CVR&RHD(CVR5M*) (B)	1-33657-184-2	01	1	9002-9306
111	SHAFT; RELAY LEVER,1ST CVR&RHD(CVR5M*) (A)	1-33619-123-1	01	1	9002-9306
112	BUSHING; RELAY LEVER CVR&RHD(CVR5M*) (A) ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-9306
112	BUSHING; RELAY LEVER CVR&RHD(CVR5M*) (B) L=24	5-33659-054-0	02	1	9002-9306
113	WASHER; RELAY LEVER CVR&RHD(CVR5M*) (A)	1-09509-041-0	02	1	9002-9306
113	WASHER; RELAY LEVER CVR&RHD(CVR5M*) (B) ID=6.4	9-09160-506-0	01	1	9002-9306
113	WASHER; RELAY LEVER CVR&LHD(CVR6M*) (C)	9-09160-710-0	01	1	9002-9306
114	NUT; RELAY LEVER CVR&RHD(CVR5M*) M14	9-99110-414-0	01	1	9002-9306
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD CVR&RHD(CVR5M*) (B)	9-09031-006-0	01	1	9002-9306
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD CVR&RHD(CVR5M*) (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-9306
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD CVR&LHD(CVR6M*) (C) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9002-9306
264	BOLT; BRKT,RELAY LEVER CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005
264	BOLT; BRKT,RELAY LEVER CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-9306
264	BOLT; BRKT,RELAY LEVER CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER	9-01970-825-0	02	1	9002-9005
264	BOLT; BRKT,RELAY LEVER CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9006-9306
361	WASHER; WAVED CVR&RHD(CVR5M*)	1-33659-093-0	02	1	9002-9306
362	SHIM CVR&RHD(CVR5M*)	1-33659-092-0	02	1	9002-9306
362	SHIM CVR&LHD(CVR6M*)	1-09503-172-0	01	1	9002-9306
365	LEVER; RELAY,SELECT CVR&RHD(CVR5M*) (C)	1-33651-285-2	01	1	9002-9306
365	LEVER; RELAY,SELECT CVR&RHD(CVR5M*) (B)	1-33651-286-2	01	1	9002-9306
365	LEVER; RELAY,SELECT CVR&LHD(CVR6M*) (D)	1-33651-328-2	01	1	9002-9306
365	LEVER; RELAY,SELECT (A)	1-33651-295-1	01	1	9002-9306
