Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#30009) — 263 parça

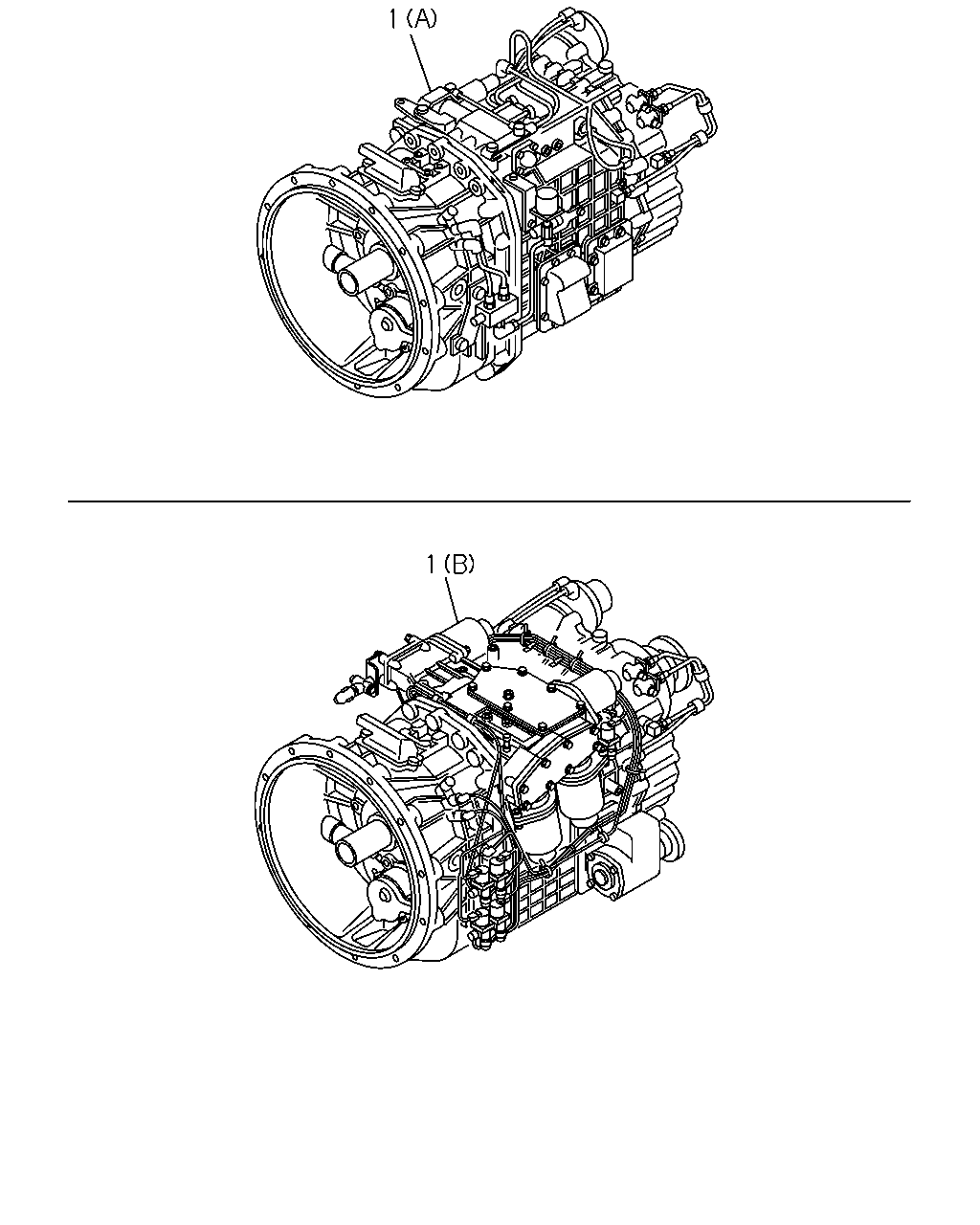

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) (B)	1-33043-713-0	01	1	0512-
1	TRANSMISSION ASM; MANUAL SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33043-713-0	01	1	0512-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-33043-667-0	01	1	0407-0511
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-33043-667-0	01	1	0512-
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-33043-667-0	01	1	0407-0511
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL LINK TYPE(B2A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-33043-667-0	01	1	0512-

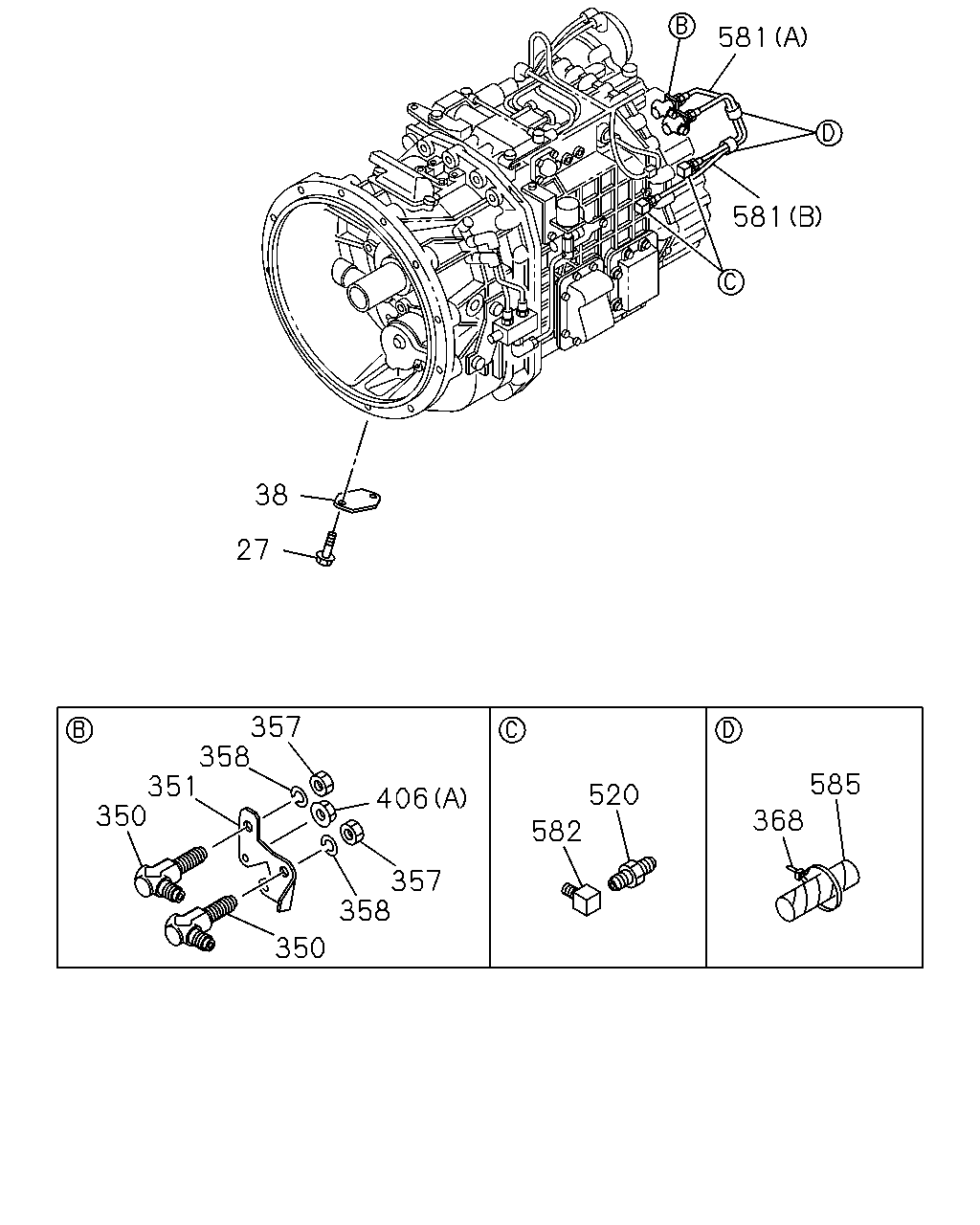

581 581 38 27 357 358 351 350 585 520 406 368 582 357 358 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0407-0512
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0407-
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	0407-
351	BRACKET; UNION,FLEX HOSE	1-46147-302-0	01	1	0407-
357	NUT; UNION,FLEX HOSE M22	9-09111-422-0	02	1	0407-0512
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0601-
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0407-0603
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	0407-
406	NUT; BRKT 6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91150-210-0	01	1	0512-0602
406	NUT; BRKT 6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	0603-0703
406	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	0704-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0407-0511
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91150-108-0	01	1	0512-0602
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91180-108-0	01	1	0603-0705
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0706-
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
520	CONNECTOR M20	9-99220-610-0	02	1	0407-0607
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	0608-
581	HOSE; OIL COOLER (A) L=520	1-09365-144-0	01	1	0407-
581	HOSE; OIL COOLER (B) L=650	1-09365-145-0	01	1	0407-
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0407-
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0407-

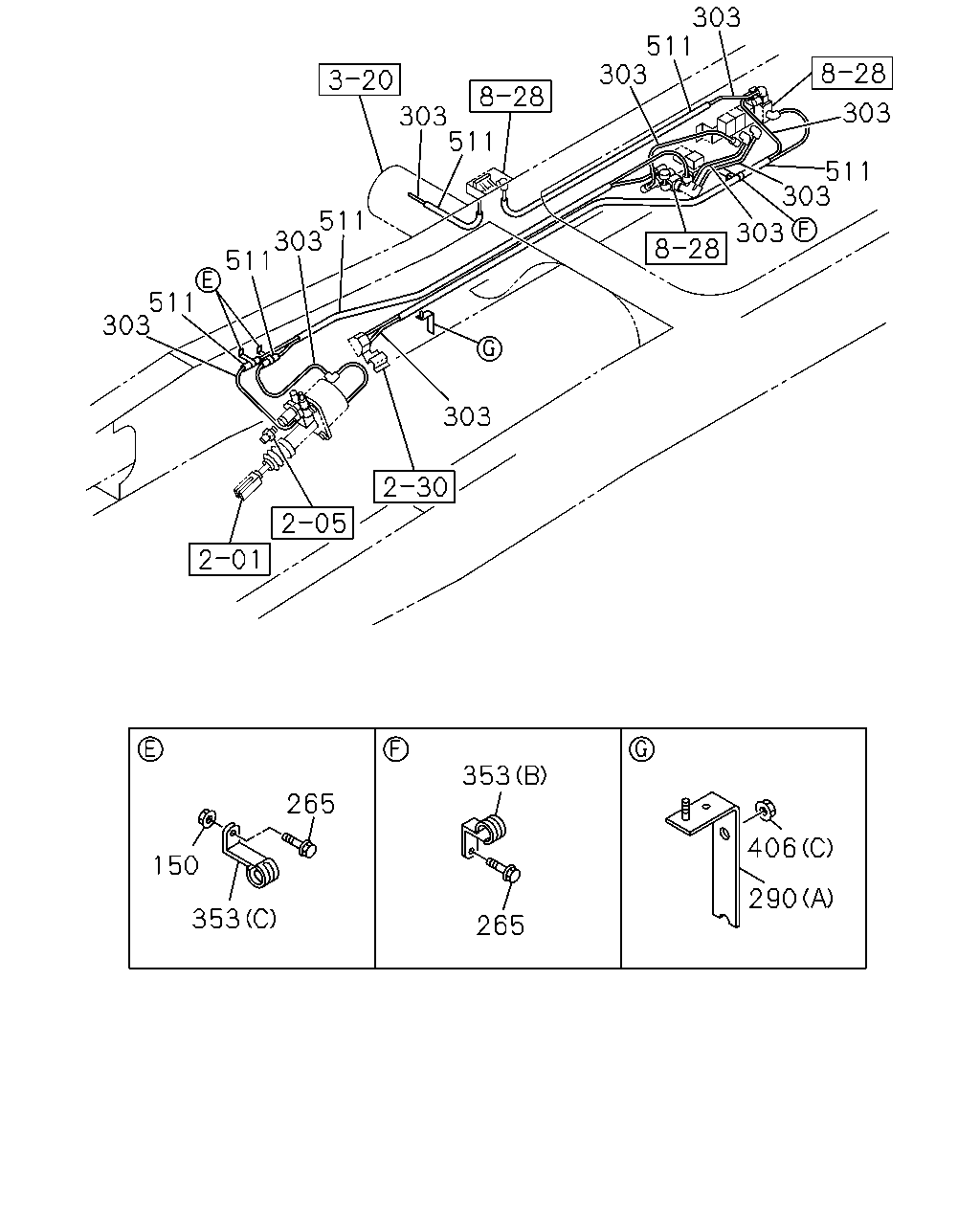

303 511 303 303 303 511 511 303 511 303 511 303 511 303 303 353 265 406 150 290 353 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	03	1	0512-0602
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	03	1	0603-
150	NUT M8 FLANGE	0-91150-108-0	01	1	0407-0511
150	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0512-0602
150	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0603-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	0601-0703
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	01	1	0601-
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0703
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0704-
290	BRACKET; CLIP 6WG1 TC-S(97L) SMOOTHER-G(C1W) (A)	8-97609-042-0	01	1	0512-0703
290	BRACKET; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A)	8-97609-042-0	01	1	0704-
290	BRACKET; CLIP (B)	1-47479-779-0	01	1	0407-0511
290	BRACKET; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-47479-779-0	01	1	0512-0705
290	BRACKET; CLIP (B)	1-47479-779-0	01	1	0706-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0512-
303	TUBE; NYLON 6WF1 TC-C(1B8) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0512-
303	TUBE; NYLON 6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-0703
303	TUBE; NYLON 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0704-
303	TUBE; NYLON 6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0512-0703
303	TUBE; NYLON 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0704-
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0407-0703
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0704-0704
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0705-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (C) ID=16 L=50 H=25	1-09700-838-0	02	1	0512-0703
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (B) ID=25 H=30 L=35	1-09700-875-0	01	1	0512-
353	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0407-0511
353	CLIP; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0512-
406	NUT; BRKT 6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91150-210-0	01	1	0512-0602
406	NUT; BRKT 6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	0603-0703
406	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	0704-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0407-0511
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91150-108-0	01	1	0512-0602
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91180-108-0	01	1	0603-0705
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0706-
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0512-
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0512-0703
511	TUBE; CORRUGATE 6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0512-0703
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0704-
511	TUBE; CORRUGATE 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0704-
511	TUBE; CORRUGATE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0512-
511	TUBE; CORRUGATE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0512-
511	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0407-0511
511	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0512-0703
511	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0704-0704
511	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0705-

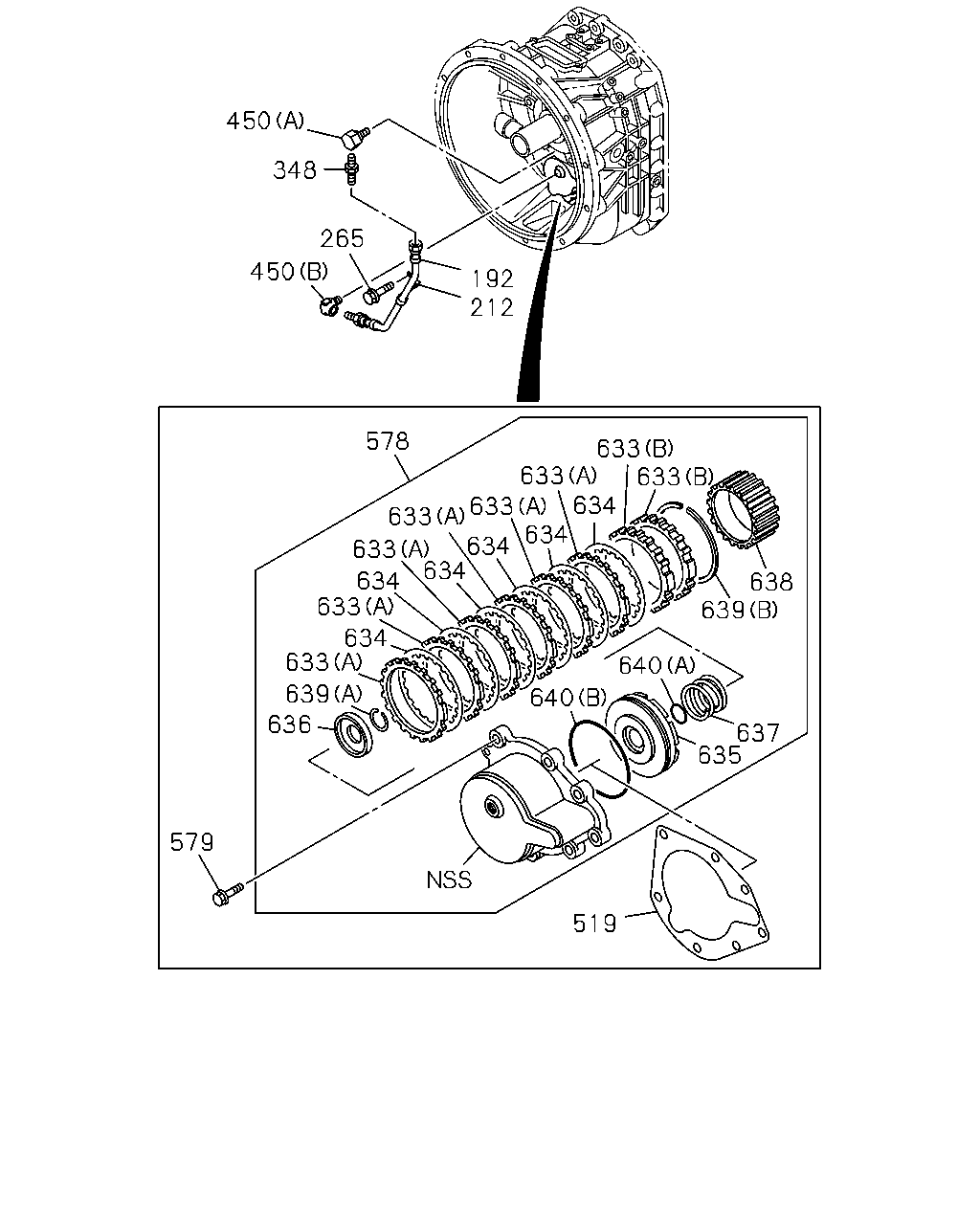

450 348 265 450 192 212 578 633 633 633 633 634 634 634 634 633 633 634 633 638 639 634 633 640 639 640 636 637 635 579 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=252	1-09365-062-0	01	1	0512-
212	CLIP; FLEX HOSE SMOOTHER-G(C1W) ID=9 H=20 L=25	1-09701-073-0	01	1	0512-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	0601-0703
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	01	1	0601-
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0703
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0704-
348	NIPPLE; GREASE,SHAFT SMOOTHER-G(C1W)	9-09902-299-0	01	1	0512-
450	ADAPTER; OIL SMOOTHER-G(C1W) (A)	1-09660-012-0	01	1	0512-
450	ADAPTER; OIL SMOOTHER-G(C1W) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0512-
519	GASKET; SHAFT SMOOTHER-G(C1W)	1-34142-034-0	01	1	0512-
578	BRAKE; COUNTER SHAFT SMOOTHER-G(C1W)	1-33316-005-1	01	1	0512-
579	BOLT; COUNTER SHAFT SMOOTHER-G(C1W) M10X30 FLANGE	0-28181-030-0	07	1	0512-0512
579	BOLT; COUNTER SHAFT SMOOTHER-G(C1W) M10X30 FLANGE	0-28151-030-0	07	1	0601-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (A)	1-33319-208-0	06	1	0512-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=3.6	1-33319-209-0	02	1	0512-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=3.8	1-33319-210-0	02	1	0512-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=4.0	1-33319-211-0	02	1	0512-
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=4.2	1-33319-212-0	02	1	0512-
634	PLATE; FRICTION,BRAKE SMOOTHER-G(C1W)	1-33319-207-0	06	1	0512-
635	PISTON; BRAKE SMOOTHER-G(C1W) T=4.90	1-33319-230-0	01	1	0512-
636	PLATE; PRESSURE,BRAKE SMOOTHER-G(C1W)	1-33319-213-1	01	1	0512-
637	SPRING; BRAKE SMOOTHER-G(C1W)	1-33319-215-0	01	1	0512-
638	HUB; BRAKE SMOOTHER-G(C1W)	1-33319-220-0	01	1	0512-
639	RING; BRAKE SMOOTHER-G(C1W) (A)	1-33319-216-0	01	1	0512-
639	RING; BRAKE SMOOTHER-G(C1W) (B)	1-33319-217-0	01	1	0512-
640	GASKET; BRAKE SMOOTHER-G(C1W) (A)	1-33319-218-0	01	1	0512-
640	GASKET; BRAKE SMOOTHER-G(C1W) (B)	1-33319-219-0	01	1	0512-

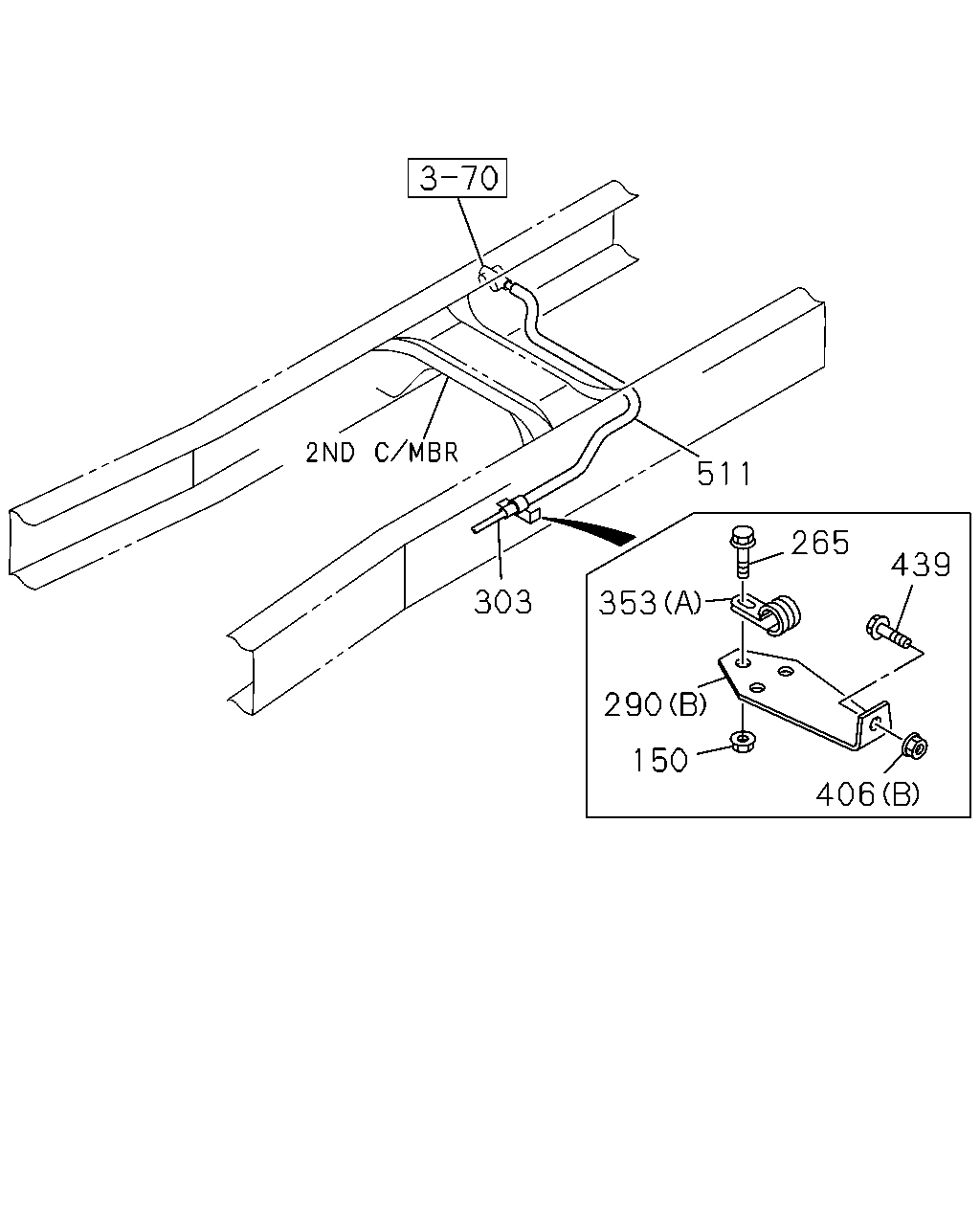

511 265 439 303 353 290 150 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	03	1	0512-0602
150	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	03	1	0603-
150	NUT M8 FLANGE	0-91150-108-0	01	1	0407-0511
150	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	01	1	0512-0602
150	NUT TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	01	1	0603-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	0601-0703
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	0601-
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
265	BOLT; CLIP SMOOTHER-G(C1W) M8X25 FLANGE	0-28650-825-0	01	1	0601-
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0703
265	BOLT; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) M8X20 FLANGE	0-28650-820-0	01	1	0704-
290	BRACKET; CLIP 6WG1 TC-S(97L) SMOOTHER-G(C1W) (A)	8-97609-042-0	01	1	0512-0703
290	BRACKET; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A)	8-97609-042-0	01	1	0704-
290	BRACKET; CLIP (B)	1-47479-779-0	01	1	0407-0511
290	BRACKET; CLIP TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-47479-779-0	01	1	0512-0705
290	BRACKET; CLIP (B)	1-47479-779-0	01	1	0706-
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0512-
303	TUBE; NYLON 6WF1 TC-C(1B8) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0512-
303	TUBE; NYLON 6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-0703
303	TUBE; NYLON 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0704-
303	TUBE; NYLON 6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0512-0703
303	TUBE; NYLON 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0704-
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0407-0703
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0704-0704
303	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0705-
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (C) ID=16 L=50 H=25	1-09700-838-0	02	1	0512-0703
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (B) ID=25 H=30 L=35	1-09700-875-0	01	1	0512-
353	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0407-0511
353	CLIP; NYLON TUBE TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0512-
406	NUT; BRKT 6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91150-210-0	01	1	0512-0602
406	NUT; BRKT 6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	0603-0703
406	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	0704-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0407-0511
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91150-108-0	01	1	0512-0602
406	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) (B) M8 FLANGE	0-91180-108-0	01	1	0603-0705
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0706-
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
439	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
439	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
439	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M8X30 FLANGE	0-28650-830-0	01	1	0601-0705
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0706-
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0512-
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0512-0703
511	TUBE; CORRUGATE 6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0512-0703
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0704-
511	TUBE; CORRUGATE 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	0704-
511	TUBE; CORRUGATE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0512-
511	TUBE; CORRUGATE 6WF1 TC-C(1B8) SMOOTHER-G(C1W) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0512-
511	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0407-0511
511	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0512-0703
511	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0704-0704
511	TUBE; CORRUGATE TRANSMISSION CONTROL LINK TYPE(B2A) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0705-

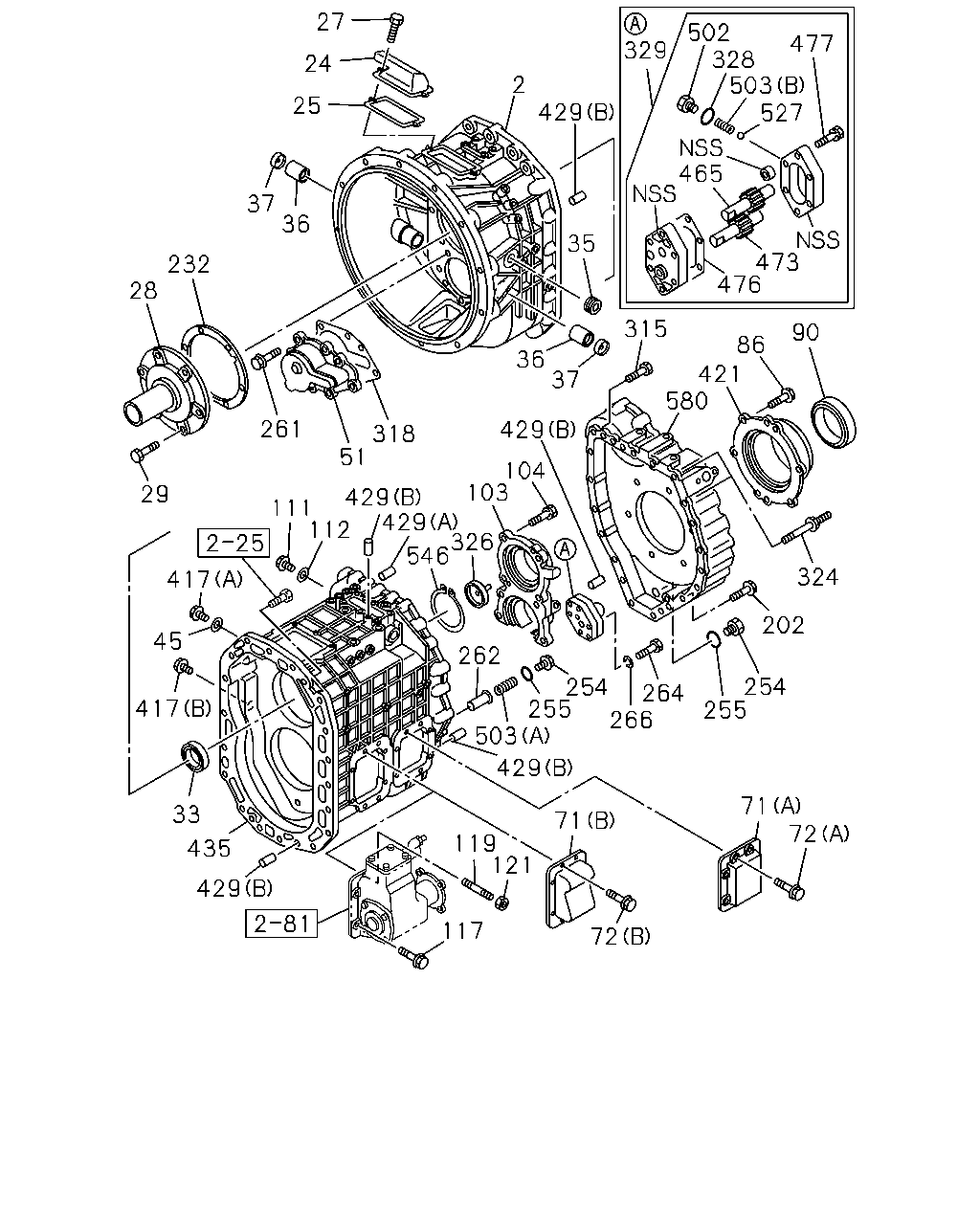

27 329 502 328 503 527 477 24 2 25 429 465 37 36 473 476 35 232 28 315 90 86 421 580 36 37 261 429 318 51 104 103 29 429 429 111 112 326 546 324 417 202 45 417 262 254 255 254 255 503 264 266 429 71 72 33 71 119 121 435 429 117 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-204-5	01	1	0407-0608
2	HOUSING; CLU	8-98052-280-0	01	1	0609-1003
2	HOUSING; CLU	8-98168-737-0	01	1	1004-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0407-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0407-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0407-0512
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0407-
29	BOLT; FRT COVER M10X40	0-28191-040-0	06	1	0407-0512
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0601-1211
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0407-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0407-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0407-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0407-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0407-
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	0407-0511
51	COVER; SEAL,COUNTER,FRT TRANSMISSION CONTROL LINK TYPE(B2A)	1-33319-200-1	01	1	0512-
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0407-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	0407-
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28781-035-0	08	1	0407-0512
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	0601-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	0407-
86	BOLT; RR COVER M17X35	1-09044-076-0	06	1	0407-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0407-
103	RETAINER; BRG SMOOTHER-G(C1W)	1-33151-062-0	01	1	0512-0910
103	RETAINER; BRG SMOOTHER-G(C1W)	1-33151-060-1	01	1	0911-
103	RETAINER; BRG	1-33151-063-0	01	1	0407-0511
103	RETAINER; BRG TRANSMISSION CONTROL LINK TYPE(B2A)	1-33151-063-0	01	1	0512-0910
103	RETAINER; BRG TRANSMISSION CONTROL LINK TYPE(B2A)	1-33151-061-0	01	1	0911-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0407-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	0407-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0407-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28781-235-0	04	1	0407-0512
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	0601-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	9-94411-230-0	04	1	0407-0604
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	0-44011-230-0	04	1	0605-0609
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	0610-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91150-212-0	04	1	0407-0602
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	0603-
202	BOLT; PLATE M12X35 FLANGE	0-28781-235-0	09	1	0407-0512
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	0601-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0407-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	0407-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0407-
261	BOLT; COVER M10X30 FLANGE	0-28181-030-0	07	1	0407-0511
261	BOLT; COVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28181-030-0	07	1	0512-0512
261	BOLT; COVER TRANSMISSION CONTROL LINK TYPE(B2A) M10X30 FLANGE	0-28151-030-0	07	1	0601-
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	0407-
264	BOLT; OIL PUMP M8X50	0-10805-850-0	02	1	0407-0512
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	0601-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	0407-
266	WASHER; LK ID=8.2	9-09150-508-0	04	1	0407-0603
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	0604-
315	BOLT; CASE M12X50 FLANGE	0-28181-250-0	11	1	0407-0512
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	0601-
315	BOLT; CASE M12X110	0-28186-211-0	05	1	0407-0512
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	0601-
315	BOLT; CASE M12X35 FLANGE	0-28781-235-0	02	1	0407-0512
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	0601-
318	GASKET; COVER	1-34142-034-0	01	1	0407-0511
318	GASKET; COVER TRANSMISSION CONTROL LINK TYPE(B2A)	1-34142-034-0	01	1	0512-
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	0407-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0407-
328	GASKET; PLUG	1-34159-100-0	01	1	0407-
329	PUMP ASM; OIL	1-34150-117-0	01	1	0407-1408
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0407-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0407-0511
417	PLUG; OIL FILLER,TRANS TRANSMISSION CONTROL LINK TYPE(B2A) (B) M22X12	1-09604-035-0	01	1	0512-
421	COVER; RR,TRANS SMOOTHER-G(C1W)	1-33131-234-0	01	1	0512-
421	COVER; RR,TRANS	1-33131-238-0	01	1	0407-0511
421	COVER; RR,TRANS TRANSMISSION CONTROL LINK TYPE(B2A)	1-33131-238-0	01	1	0512-
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	0407-
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	0407-
435	CASE; TRANS	1-33111-319-6	01	1	0407-0409
435	CASE; TRANS	1-33111-352-1	01	1	0410-0412
435	CASE; TRANS	1-33111-361-1	01	1	0501-
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	0407-1408
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	0407-1408
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	0407-
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0407-1408
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0407-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0407-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0407-
527	BALL; OIL PUMP	9-00097-531-0	01	1	0407-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	0407-
580	CASE; RANGE	1-33115-051-2	01	1	0407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
