2-07B — CLUTCH BOOSTER; MINIPACK (#30006) — 53 parça

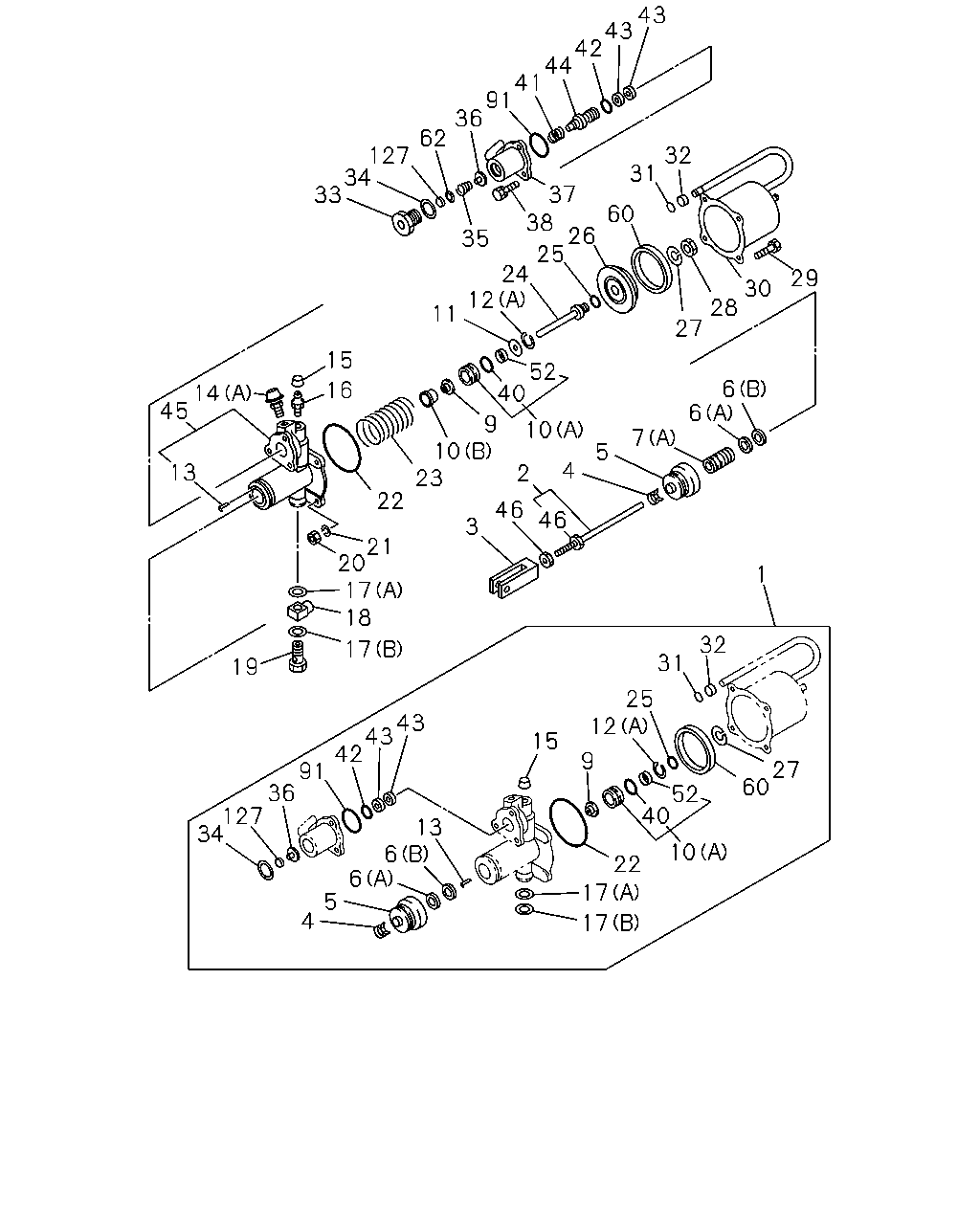

çizim 104934
43 43 42 44 41 91 36 62 32 127 34 33 31 37 38 60 26 25 24 12 35 29 30 28 27 11 15 52 40 6 16 14 45 6 9 10 23 10 7 5 4 13 2 22 46 46 3 21 20 17 18 1 32 17 31 19 25 12 43 43 42 15 27 60 9 91 36 127 34 52 40 13 6 10 22 17 6 5 4 17
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 0704-
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 0704-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 0704-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0704-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0704-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0704-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0704-
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 0704-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0704-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0704-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0704-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0704-
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0704-
13 PIN; SPR 1-31829-109-0 01 1 0704-
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 0704-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0704-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0704-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0704-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0704-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0704-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0704-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0704-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0704-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0704-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0704-
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 0704-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0704-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0704-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0704-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0704-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0704-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0704-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0704-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0704-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0704-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0704-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0704-
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0704-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 0704-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0704-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0704-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0704-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0704-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 0704-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 0704-
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0704-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0704-1105
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1106-
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0704-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0704-
62 RETAINER; POPPET 1-31829-489-0 01 1 0704-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0704-
127 FILTER; POPPET 1-31829-495-0 01 1 0704-
