Sayfa 2-07A - Isuzu EPC

2-07A — CLUTCH BOOSTER; MINIPACK (#30005) — 285 parça

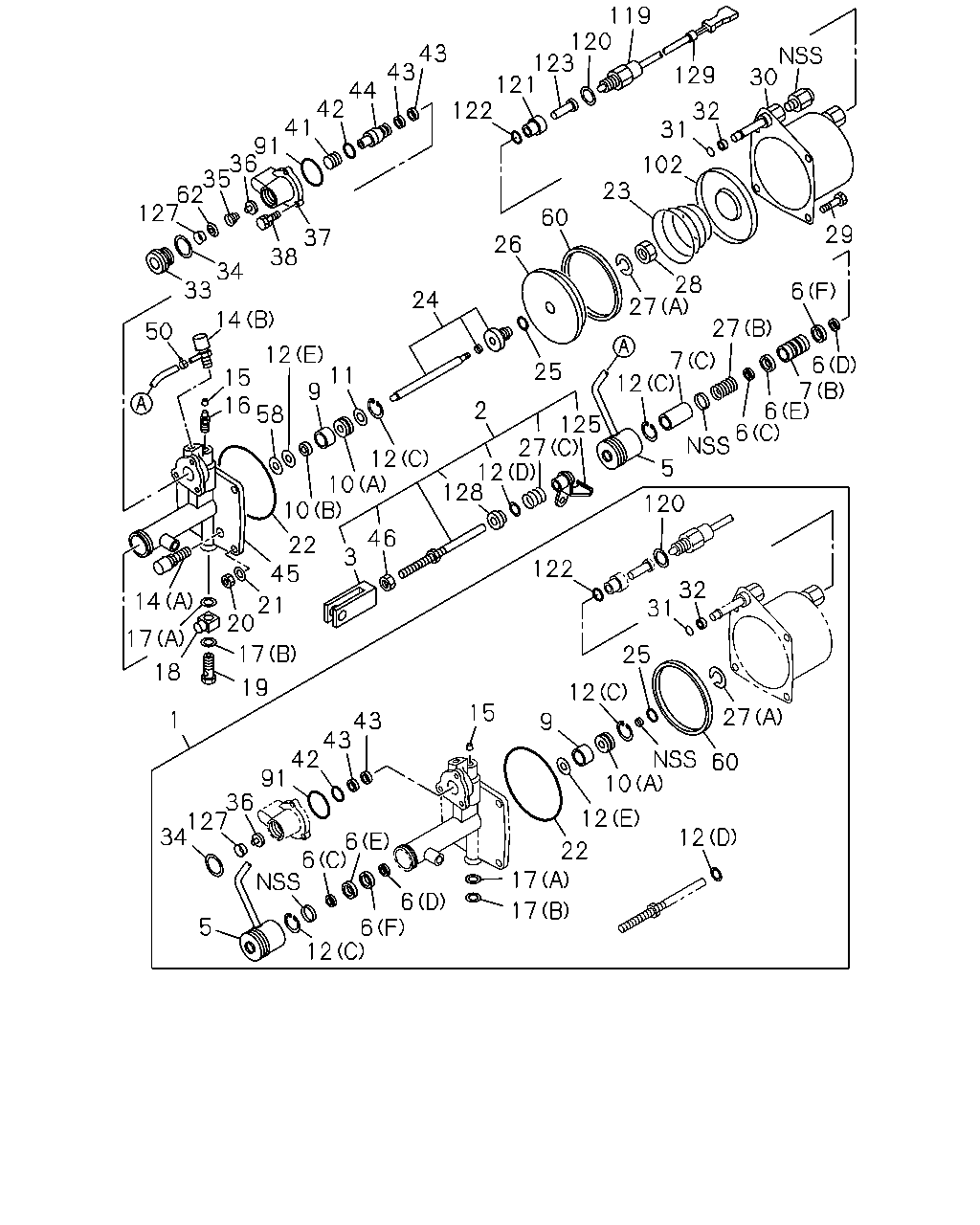

119 120 123 121 122 43 43 44 42 41 91 36 35 62 127 30 129 32 31 102 23 60 29 37 38 26 34 33 28 27 6 24 14 27 7 12 50 12 11 6 7 6 6 25 15 16 58 9 2 125 27 12 128 12 10 10 5 120 46 22 45 3 122 32 31 14 21 20 17 17 25 18 19 12 15 27 1 43 43 42 91 36 127 34 9 60 10 12 12 6 6 22 17 6 6 12 17 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-507-0	01	1	0512-1105
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-620-0	01	1	1106-
1	REPAIR KIT; CLU BOOSTER	1-31829-560-0	01	1	0407-0511
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-560-0	01	1	0512-
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-213-0	01	1	0512-1105
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-256-0	01	1	1106-
2	ROD; PUSH,CLU BOOSTER	1-31824-227-0	01	1	0407-0511
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-227-0	01	1	0512-
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-619-0	01	1	1106-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0407-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-287-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-486-0	01	1	0512-1105
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-626-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER	1-31829-555-0	01	1	0407-0511
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-555-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0512-0703
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0704-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0512-0703
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0704-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	0512-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-081-0	01	1	0512-
7	PISTON; CLU BOOSTER (A)	1-31821-048-0	01	1	0407-0511
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31821-048-0	01	1	0512-0703
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31821-048-0	01	1	0704-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0407-0703
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0704-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0407-0703
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0704-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0407-0703
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0704-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0407-0703
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0704-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-446-0	01	1	0512-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-511-0	01	1	0512-1105
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-621-0	01	1	1106-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-142-0	02	1	0512-
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0512-0703
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0704-
12	RING; RET,CLU BOOSTER (B)	8-94415-036-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-94415-036-0	01	1	0512-
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0512-0703
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0704-
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	0407-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0407-0703
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0704-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0407-0703
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0704-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0407-0703
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0704-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0407-0703
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0704-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0407-0703
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0704-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0407-0703
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0704-
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-624-0	04	1	1106-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0407-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	04	1	1106-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0407-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0407-
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-506-0	01	1	0512-
23	SPRING; SHELL,CLU BOOSTER	1-31829-554-0	01	1	0407-0511
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-554-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-211-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER	1-31824-224-0	01	1	0407-0511
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-224-0	01	1	0512-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0407-
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-080-0	01	1	0512-
26	PISTON; SHELL,CLU BOOSTER	1-31821-050-0	01	1	0407-0511
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-050-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	0512-
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	0407-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0407-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-02041-045-0	04	1	0512-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-83315-078-0	04	1	1106-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0407-0511
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	9-83315-099-0	04	1	0512-
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-120-0	01	1	0512-
30	SHELL; CYL,CLU BOOSTER	1-31811-128-0	01	1	0407-0511
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-128-0	01	1	0512-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0407-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0407-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	0407-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0407-0703
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0704-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0407-0703
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0704-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0407-0703
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0704-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0407-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0407-0703
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0704-
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-288-0	01	1	0512-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-458-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-143-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	0407-0511
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-148-0	01	1	0512-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0407-
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-049-0	01	1	0512-1105
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-087-0	01	1	1106-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	0407-0511
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-058-0	01	1	0512-
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-119-0	01	1	0512-
45	PLATE; END,CLU BOOSTER	1-31811-133-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-133-0	01	1	0512-
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-625-0	01	1	1106-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0407-0703
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0704-1105
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	1106-
50	CLAMP; PISTON GUARD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-063-0	01	1	0512-
58	WASHER; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-294-0	01	1	0512-
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-454-0	01	1	0512-
60	GASKET; SHELL,CLU BOOSTER	1-31829-292-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-292-0	01	1	0512-
62	RETAINER; POPPET SMOOTHER-G(C1W)	1-31829-489-0	01	1	0512-0703
62	RETAINER; POPPET SMOOTHER-G(C1W)	1-31829-489-0	01	1	0704-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0407-0703
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0704-
102	PLATE; BOOSTER SMOOTHER-G(C1W)	1-31829-508-0	01	1	0512-
102	PLATE; BOOSTER	1-31829-559-0	01	1	0407-0511
102	PLATE; BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-559-0	01	1	0512-
119	SWITCH; CLU BOOSTER SMOOTHER-G(C1W)	1-31824-178-0	01	1	0512-
120	GASKET; SWITCH SMOOTHER-G(C1W)	1-31829-361-0	01	1	0512-
121	GUIDE; ROD SMOOTHER-G(C1W)	1-31824-165-0	01	1	0512-
122	GASKET; ROD SMOOTHER-G(C1W)	1-31829-360-0	01	1	0512-
123	ROD; SWITCH SMOOTHER-G(C1W) L=23.2	1-31824-167-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=23.2	1-31824-167-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.0	1-31824-168-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.0	1-31824-168-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=22.5	1-31824-176-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=22.5	1-31824-176-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.5	1-31824-189-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.5	1-31824-189-0	AR	1	1106-
123	ROD; SWITCH SMOOTHER-G(C1W) L=25.0	1-31824-212-0	01	1	0512-1105
123	ROD; SWITCH SMOOTHER-G(C1W) L=25.0	1-31824-212-0	AR	1	1106-
125	BRACKET; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-512-0	01	1	0512-1105
125	BRACKET; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-622-0	01	1	1106-
127	FILTER; POPPET SMOOTHER-G(C1W)	1-31829-488-0	01	1	0512-
128	COLLAR; ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-509-0	01	1	0512-1105
129	CONNECTOR ASM; CLU BOOSTER SMOOTHER-G(C1W)	1-09656-753-0	01	1	0512-

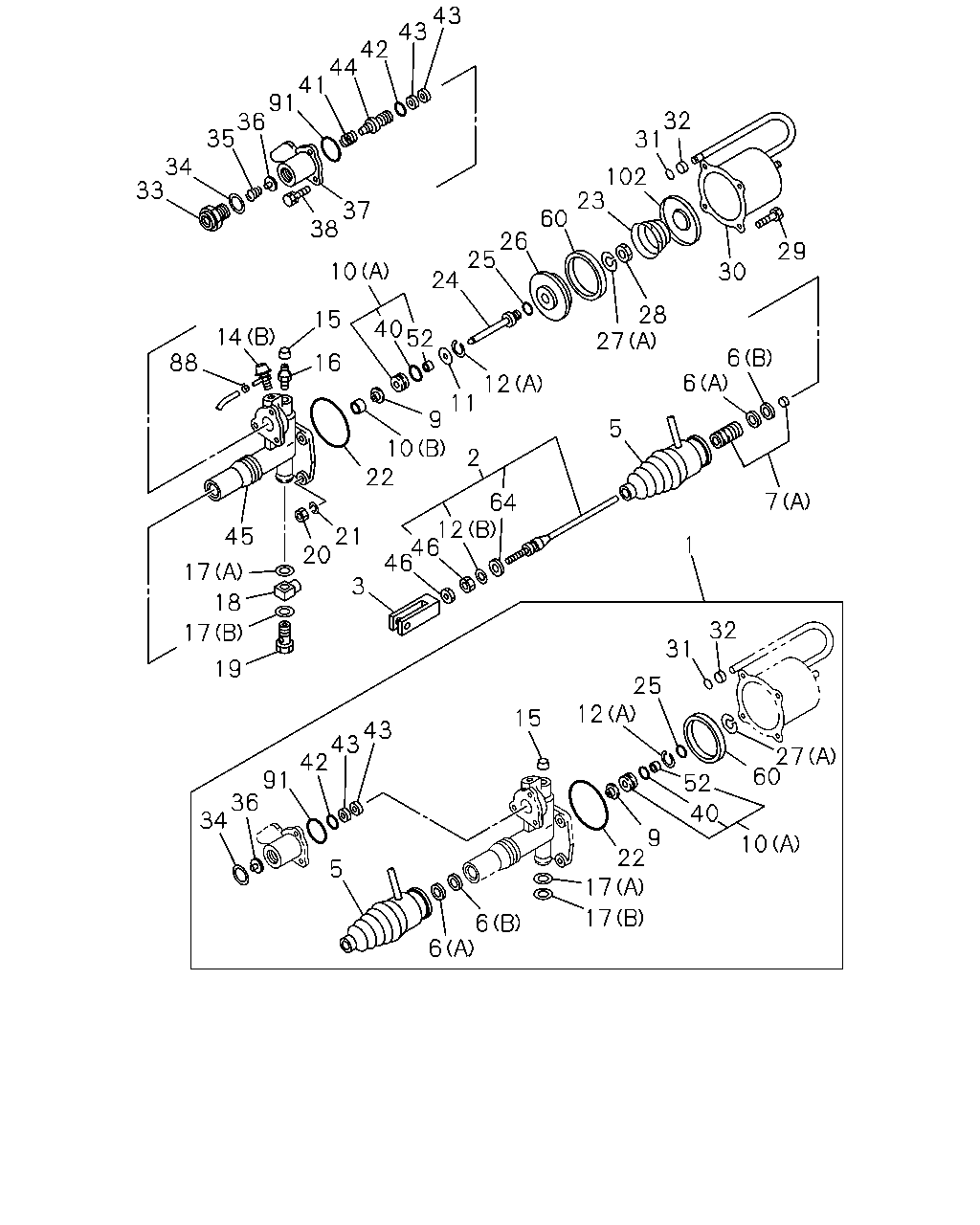

43 43 42 44 41 91 36 35 32 31 34 33 102 23 60 37 38 26 25 24 29 10 30 28 27 15 40 52 14 6 88 16 6 12 11 9 10 22 5 2 7 64 12 46 46 21 20 45 1 17 3 18 32 7 31 19 25 12 15 43 43 42 27 60 91 36 34 52 40 9 22 17 10 5 17 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-507-0	01	1	0512-1105
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-620-0	01	1	1106-
1	REPAIR KIT; CLU BOOSTER	1-31829-560-0	01	1	0407-0511
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-560-0	01	1	0512-
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-213-0	01	1	0512-1105
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-256-0	01	1	1106-
2	ROD; PUSH,CLU BOOSTER	1-31824-227-0	01	1	0407-0511
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-227-0	01	1	0512-
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-619-0	01	1	1106-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0407-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-287-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-486-0	01	1	0512-1105
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-626-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER	1-31829-555-0	01	1	0407-0511
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-555-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-441-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-442-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-443-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (F)	1-31829-444-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0512-0703
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-055-0	01	1	0704-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0407-0511
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0512-0703
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31829-056-0	01	1	0704-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	0512-
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31821-081-0	01	1	0512-
7	PISTON; CLU BOOSTER (A)	1-31821-048-0	01	1	0407-0511
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31821-048-0	01	1	0512-0703
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31821-048-0	01	1	0704-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0407-0703
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0704-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0407-0703
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0704-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0407-0703
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0704-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0407-0703
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0704-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (E)	1-31829-446-0	01	1	0512-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-511-0	01	1	0512-1105
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-621-0	01	1	1106-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-142-0	02	1	0512-
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0512-0703
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31829-142-0	01	1	0704-
12	RING; RET,CLU BOOSTER (B)	8-94415-036-0	01	1	0407-0511
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-94415-036-0	01	1	0512-
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0512-0703
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	0704-
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	0407-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0407-0703
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0704-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0407-0703
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0704-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0407-0703
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0704-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0407-0703
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0704-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0407-0703
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0704-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0407-0703
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0704-
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-624-0	04	1	1106-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0407-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	04	1	1106-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0407-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0407-
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-506-0	01	1	0512-
23	SPRING; SHELL,CLU BOOSTER	1-31829-554-0	01	1	0407-0511
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-554-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-211-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER	1-31824-224-0	01	1	0407-0511
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31824-224-0	01	1	0512-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0407-
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-080-0	01	1	0512-
26	PISTON; SHELL,CLU BOOSTER	1-31821-050-0	01	1	0407-0511
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-050-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	0512-
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	0512-
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	0407-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0407-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-02041-045-0	04	1	0512-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-83315-078-0	04	1	1106-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0407-0511
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	9-83315-099-0	04	1	0512-
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-120-0	01	1	0512-
30	SHELL; CYL,CLU BOOSTER	1-31811-128-0	01	1	0407-0511
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-128-0	01	1	0512-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0407-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0407-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	0407-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0407-0703
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0704-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0407-0703
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0704-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0407-0703
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0704-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0407-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0407-0703
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0704-
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0407-0511
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-037-0	01	1	0512-0703
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-037-0	01	1	0704-
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-288-0	01	1	0512-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	0407-0511
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-458-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-143-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	0407-0511
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-148-0	01	1	0512-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0407-
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-049-0	01	1	0512-1105
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-087-0	01	1	1106-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	0407-0511
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31821-058-0	01	1	0512-
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-119-0	01	1	0512-
45	PLATE; END,CLU BOOSTER	1-31811-133-0	01	1	0407-0511
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31811-133-0	01	1	0512-
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-625-0	01	1	1106-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0407-0703
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0704-1105
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A) M10	9-09111-410-0	02	1	1106-
52	SEAL; OIL,END PLATE,CLU BOOSTER	1-47819-027-0	01	1	0407-0511
52	SEAL; OIL,END PLATE,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-47819-027-0	01	1	0512-0703
52	SEAL; OIL,END PLATE,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-47819-027-0	01	1	0704-
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-454-0	01	1	0512-
60	GASKET; SHELL,CLU BOOSTER	1-31829-292-0	01	1	0407-0511
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-292-0	01	1	0512-
64	WASHER; PUSH ROD ID=10.5 OD=22	9-09164-610-0	01	1	0407-0511
64	WASHER; PUSH ROD TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=22	9-09164-610-0	01	1	0512-
88	CLAMP; HOSE,CLU BOOSTER	1-31829-063-0	01	1	0407-0511
88	CLAMP; HOSE,CLU BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-063-0	01	1	0512-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0407-0703
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0704-
102	PLATE; BOOSTER SMOOTHER-G(C1W)	1-31829-508-0	01	1	0512-
102	PLATE; BOOSTER	1-31829-559-0	01	1	0407-0511
102	PLATE; BOOSTER TRANSMISSION CONTROL LINK TYPE(B2A)	1-31829-559-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
