2-05 — CLUTCH PIPING (#30004) — 299 parça

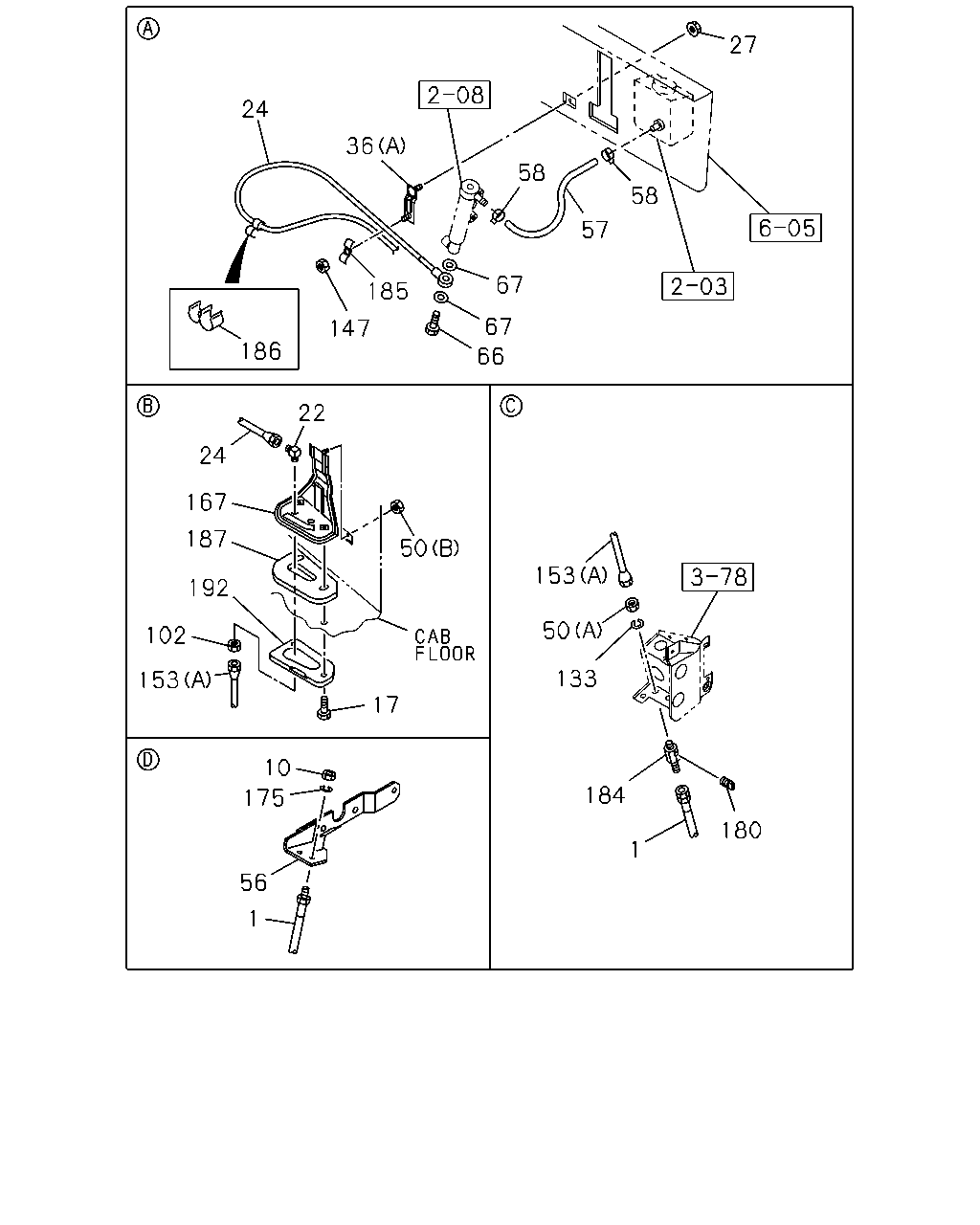

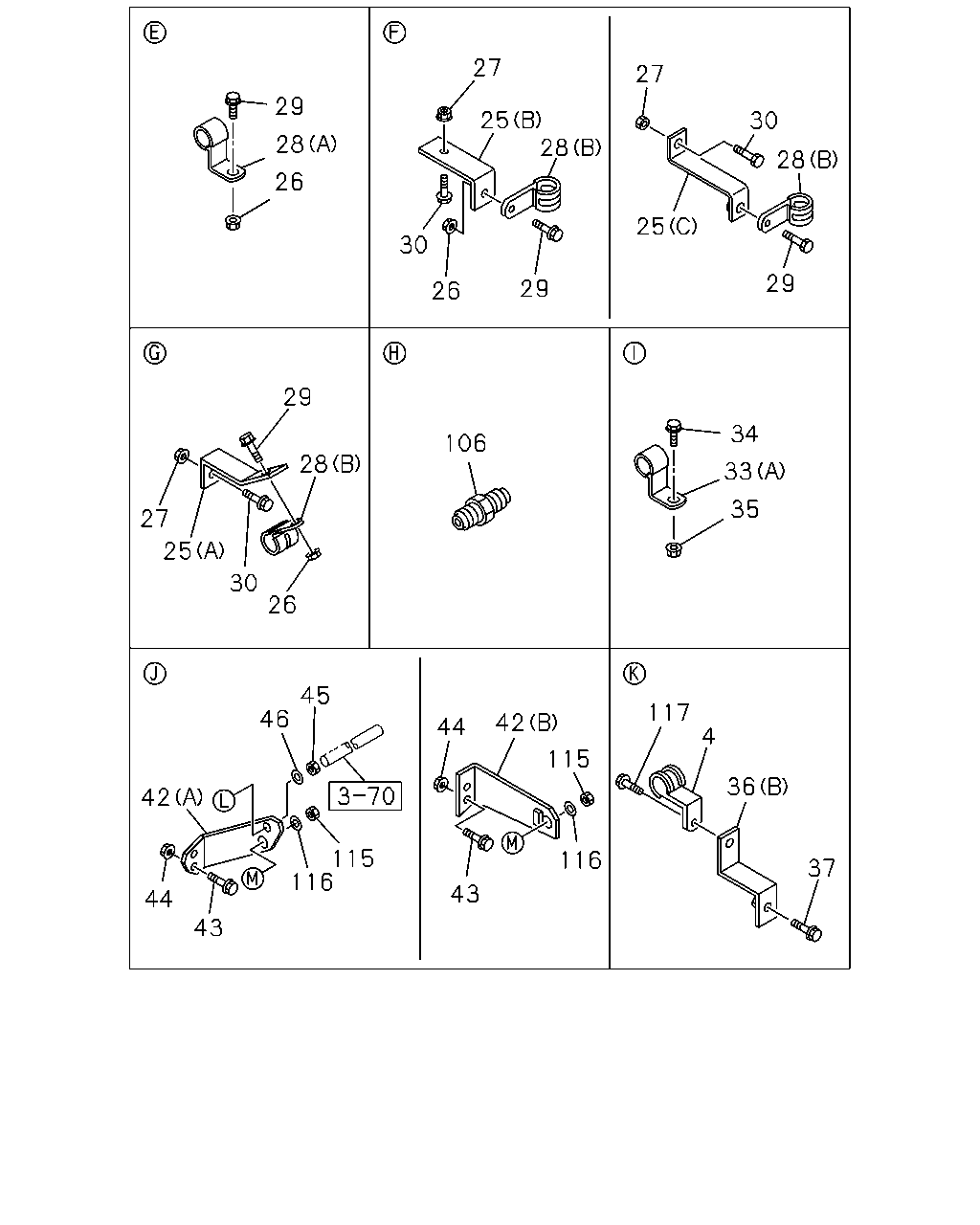

27 24 36 58 58 57 67 185 67 147 186 66 22 24 167 187 50 153 192 50 102 133 153 17 10 184 175 180 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0407-0703
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0407-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0407-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0407-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511
27	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0407-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-358-0	01	1	0704-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0407-0511
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0512-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0407-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0407-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0407-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0407-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0407-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0407-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0407-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0407-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0407-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=534	1-49166-190-0	01	1	0512-0704
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0705-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2013 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
167	BRACKET; UNION	1-71117-183-3	01	1	0407-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0407-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0407-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0407-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0407-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP	8-94107-710-0	02	1	0407-0511
186	HOLDER; CLIP MJX16P M/T(Y3Z) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0512-0711
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0712-
187	SEAL; BRKT	1-71117-222-0	01	1	0407-
192	PLATE	1-71117-221-0	01	1	0407-

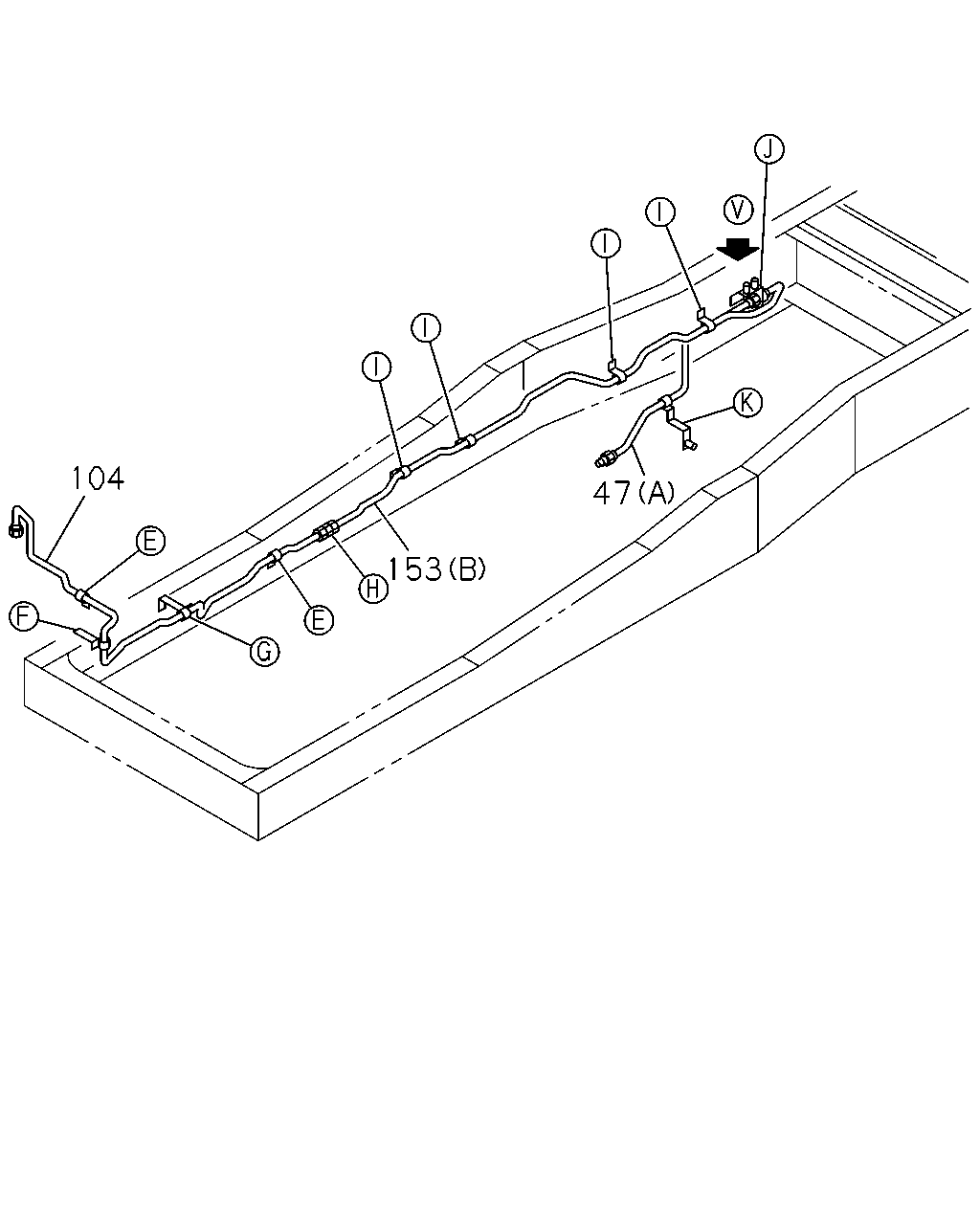

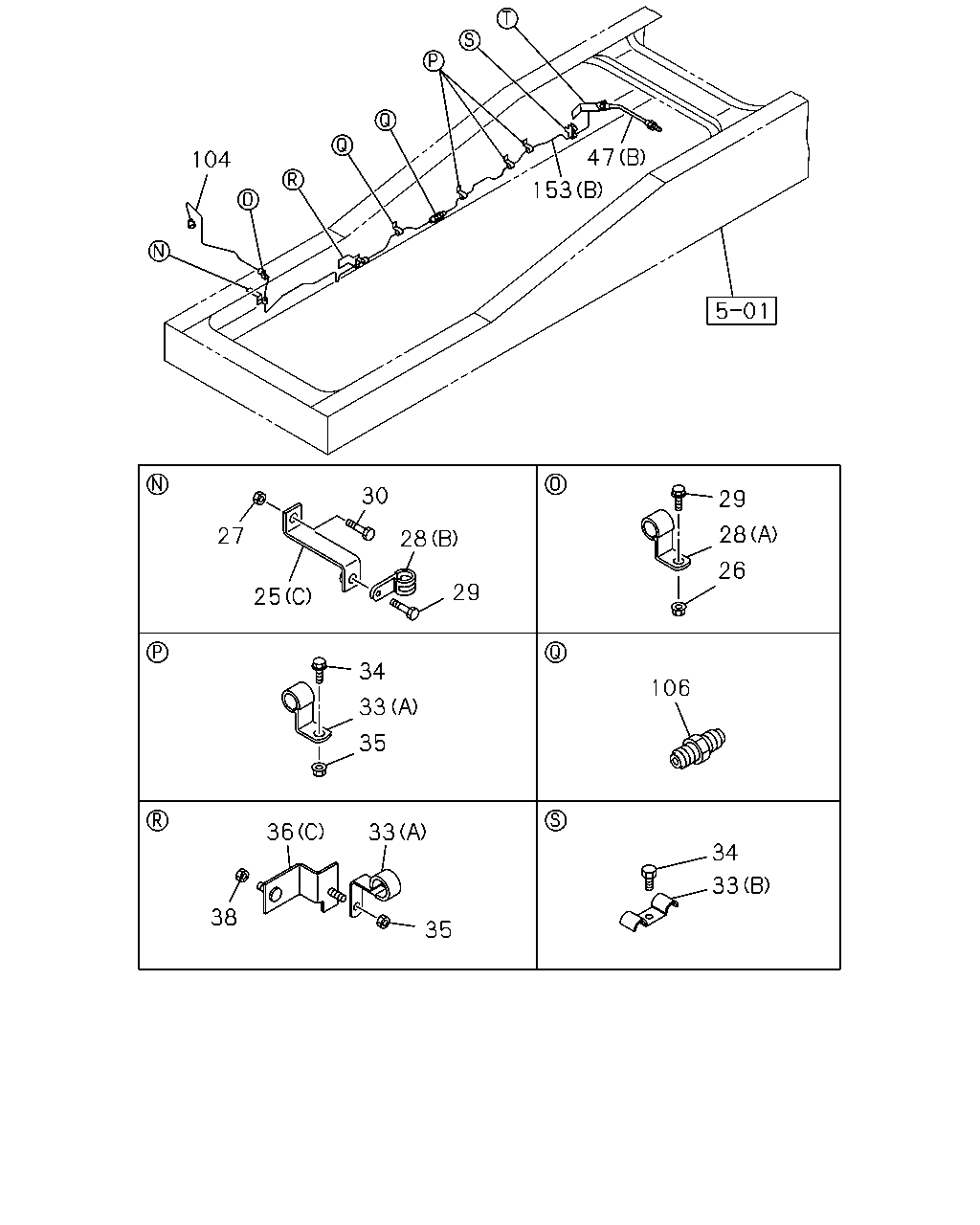

47 104 153 30 29 28 27 28 26 29 25 34 106 33 35 36 33 34 33 38 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	0407-0511
25	BRACKET; OIL PIPE (C)	1-46147-101-0	01	1	0512-
25	BRACKET; OIL PIPE (A)	1-47477-406-0	01	1	0407-0511
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0407-0511
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0512-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511
27	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0407-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0407-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0407-0511
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0512-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0407-0511
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0704-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0704-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0407-0511
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0512-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0704-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0704-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0407-0511
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	04	1	0512-0512
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0601-
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	0704-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0511
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	04	1	0512-0602
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0603-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-358-0	01	1	0704-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0407-0511
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0512-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0407-
38	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0704-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (C) L=550	1-09365-377-1	01	1	0704-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=445	1-09364-478-0	01	1	0704-
47	HOSE; FLEX,CLU CONT (A) L=650	1-09364-694-0	01	1	0407-0511
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (A) L=650	1-09364-694-0	01	1	0512-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0407-0511
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0512-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0407-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=534	1-49166-190-0	01	1	0512-0704
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0705-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2013 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0704-

173 173 220 48 207 47 173 200 201 173 173 218 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (C) L=550	1-09365-377-1	01	1	0704-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=445	1-09364-478-0	01	1	0704-
47	HOSE; FLEX,CLU CONT (A) L=650	1-09364-694-0	01	1	0407-0511
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (A) L=650	1-09364-694-0	01	1	0512-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0407-0511
48	GASKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=10.2 OD=16.0	9-09571-410-0	01	1	0512-
173	CONNECTOR 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0512-0703
173	CONNECTOR 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0704-
173	CONNECTOR 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0512-0703
173	CONNECTOR 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0704-
173	CONNECTOR 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	0512-0703
173	CONNECTOR 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	0704-
173	CONNECTOR (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0407-0511
173	CONNECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0512-
173	CONNECTOR (E) R1/4 & RC1/4	1-09664-211-0	01	1	0407-0511
173	CONNECTOR MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (E) R1/4 & RC1/4	1-09664-211-0	01	1	0512-
200	TUBE; NYLON 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0512-0703
200	TUBE; NYLON 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0704-
201	CLIP; NYLON TUBE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=6.35 & 12	1-09709-275-1	01	1	0512-0703
201	CLIP; NYLON TUBE 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=6.35 & 12	1-09709-275-1	01	1	0704-
207	BOLT; CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
207	BOLT; CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0703
207	BOLT; CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M8X16 FLANGE	0-28050-816-0	01	1	0704-
207	BOLT; CLIP (B) M10X16 FLANGE	0-28181-016-0	02	1	0407-0511
207	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X16 FLANGE	0-28181-016-0	02	1	0512-0512
207	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-0703
207	BOLT; CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) M10X16 FLANGE	0-28151-016-0	02	1	0704-
218	CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=11 L=20	9-09525-035-0	01	1	0512-0606
218	CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) ID=11 L=20	0-95235-035-0	01	1	0607-0703
218	CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=11 L=20	0-95235-035-0	01	1	0704-
220	HOSE; FLEX,POWER ASSIST L=320	1-09363-656-0	01	1	0407-0511
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=320	1-09363-656-0	01	1	0512-

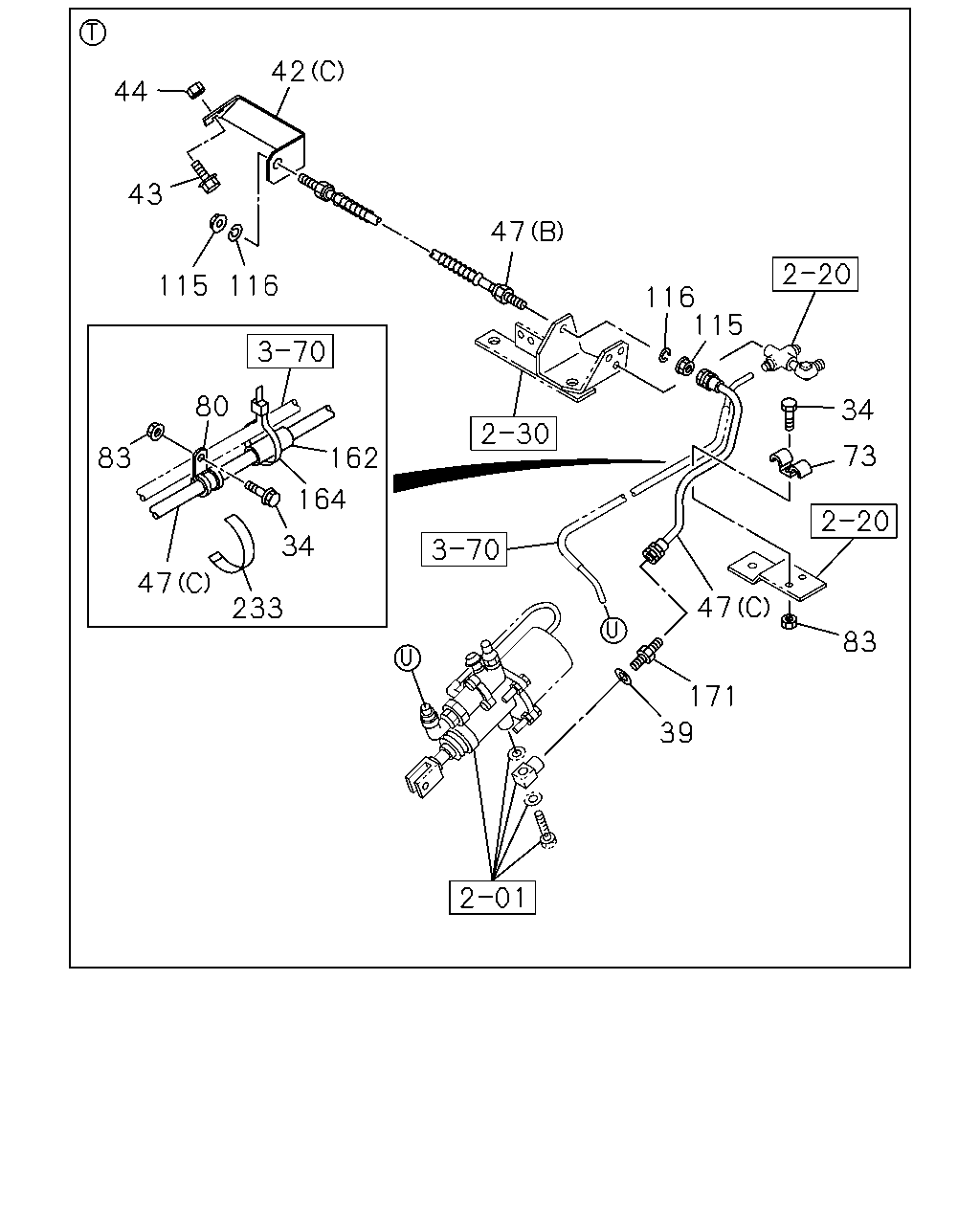

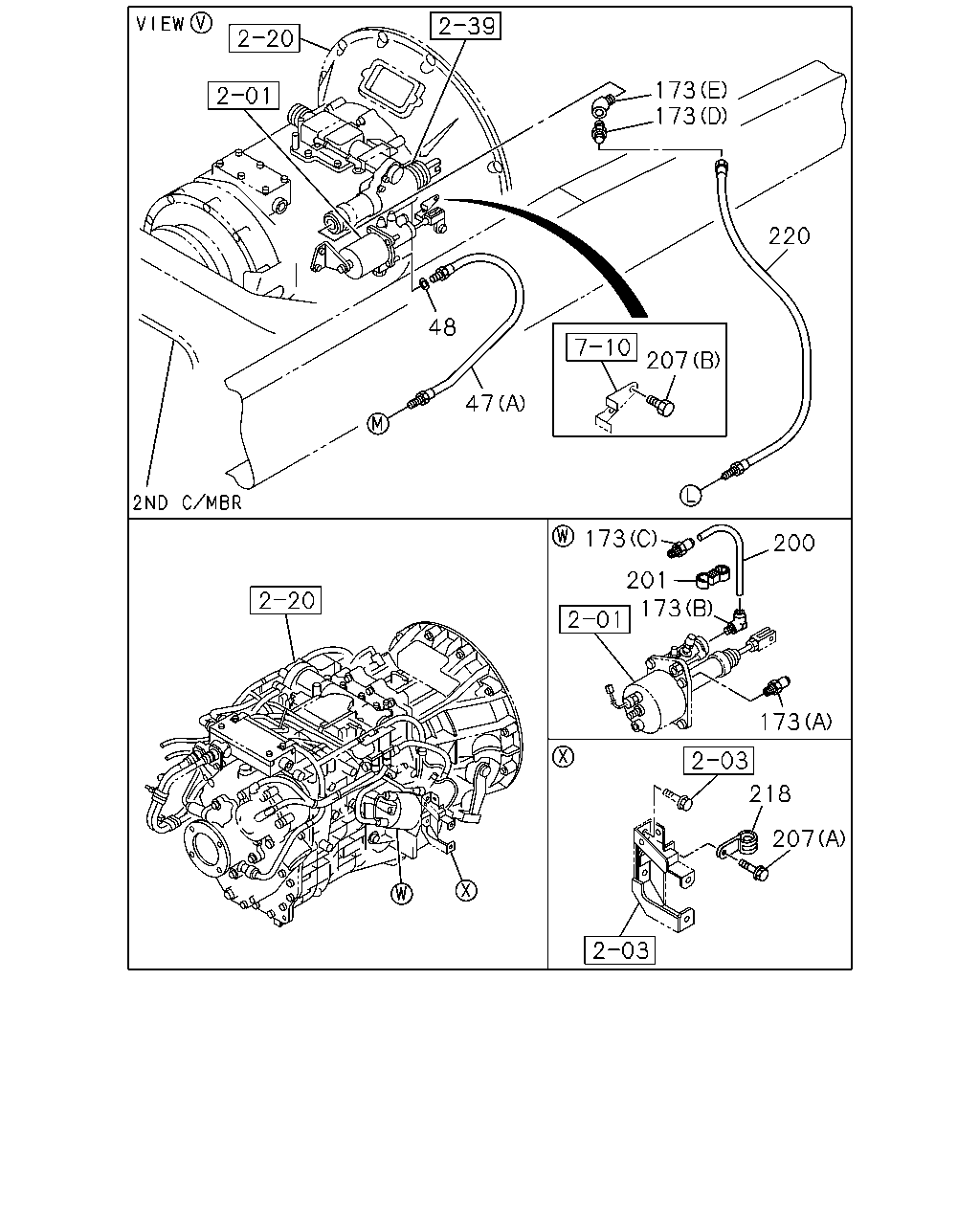

42 44 43 47 115 116 116 115 80 34 73 162 83 164 34 47 47 233 83 171 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0704-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0704-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0407-0511
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	04	1	0512-0512
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0601-
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0704-
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-359-0	01	1	0704-
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47471-235-0	01	1	0512-0703
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47471-235-0	01	1	0704-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47479-762-0	01	1	0407-0511
42	BRACKET; FLEX HOSE,CLU CONT 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-47479-626-0	01	1	0512-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-47479-626-0	01	1	0512-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0704-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0407-0511
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28680-835-0	02	1	0512-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28680-835-0	02	1	0512-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	0601-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	02	1	0704-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0407-0511
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	02	1	0512-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0603-0703
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (C) L=550	1-09365-377-1	01	1	0704-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=445	1-09364-478-0	01	1	0704-
47	HOSE; FLEX,CLU CONT (A) L=650	1-09364-694-0	01	1	0407-0511
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (A) L=650	1-09364-694-0	01	1	0512-
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0704-
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0704-
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	0704-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0407-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	0704-
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	0704-
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0704-
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0704-

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0407-0703
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0704-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0407-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0407-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0407-0511
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0512-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=534	1-49166-190-0	01	1	0512-0704
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0705-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2013 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
167	BRACKET; UNION	1-71117-183-3	01	1	0407-

104 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (C) L=550	1-09365-377-1	01	1	0704-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=445	1-09364-478-0	01	1	0704-
47	HOSE; FLEX,CLU CONT (A) L=650	1-09364-694-0	01	1	0407-0511
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (A) L=650	1-09364-694-0	01	1	0512-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0407-0511
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0512-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=534	1-49166-190-0	01	1	0512-0704
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0705-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2013 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-0703
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0704-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0704-

27 27 29 25 28 30 28 28 26 25 30 29 29 26 29 34 106 28 33 35 27 25 30 26 45 117 46 42 44 4 115 36 42 115 116 116 37 43 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0407-0511
4	CLIP; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=16 H=25 L=25	1-09701-162-0	01	1	0512-
25	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	0407-0511
25	BRACKET; OIL PIPE (C)	1-46147-101-0	01	1	0512-
25	BRACKET; OIL PIPE (A)	1-47477-406-0	01	1	0407-0511
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0407-0511
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0512-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511
27	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0407-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0407-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0407-0511
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0512-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0407-0511
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0704-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0704-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0407-0511
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0512-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0704-
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0704-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0407-0511
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	04	1	0512-0512
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0601-
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	0704-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0511
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	04	1	0512-0602
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0603-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-358-0	01	1	0704-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0407-0511
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0512-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0407-
37	BOLT; CLIP BRKT M10X18 FLANGE	0-28181-018-0	01	1	0407-0511
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	01	1	0512-0512
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	01	1	0601-
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-359-0	01	1	0704-
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47471-235-0	01	1	0512-0703
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B)	1-47471-235-0	01	1	0704-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47479-762-0	01	1	0407-0511
42	BRACKET; FLEX HOSE,CLU CONT 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-47479-626-0	01	1	0512-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-47479-626-0	01	1	0512-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0704-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0407-0511
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28680-835-0	02	1	0512-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28680-835-0	02	1	0512-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	0601-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	02	1	0704-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0407-0511
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	02	1	0512-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0603-0703
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0407-0511
45	NUT; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M12	9-09840-280-0	01	1	0512-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0407-0511
46	WASHER; LK,FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=12.2	9-09150-512-0	01	1	0512-0603
46	WASHER; LK,FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=12.2	0-91510-512-0	01	1	0604-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0407-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0407-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28080-816-0	01	1	0407-0511
117	BOLT; CLIP,FLEX HOSE MJX16P M/T(Y3Z) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
117	BOLT; CLIP,FLEX HOSE MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
