2-03 — CLUTCH PEDAL AND CONTROL (#30003) — 171 parça

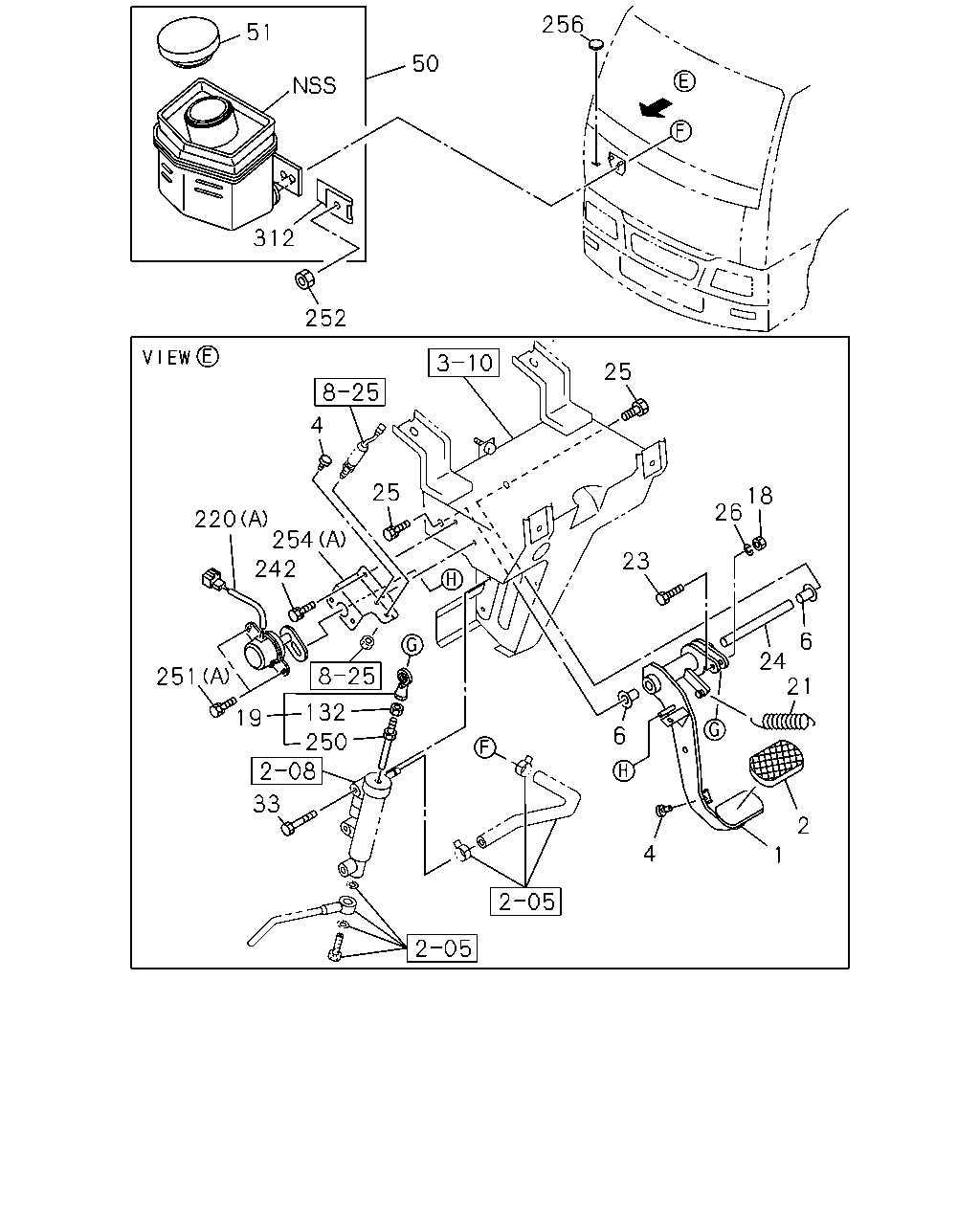

çizim 87523
256 51 50 312 252 25 4 25 18 26 220 254 23 242 6 24 21 251 132 19 6 250 33 2 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-474-1 01 1 0512-0703
1 PEDAL; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-474-1 01 1 0704-
1 PEDAL; CLU
FULLER M/T<X9B> 		1-73907-474-1 01 1 0704-
1 PEDAL; CLU 1-73907-510-1 01 1 0407-0511
1 PEDAL; CLU
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-510-1 01 1 0512-
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0407-0511
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0512-
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0407-0511
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0512-
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0407-0511
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0512-
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0407-0511
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0512-
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0407-0511
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0512-
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73908-265-0 01 1 0512-0703
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73908-265-0 01 1 0704-
21 SPRING; RETURN,CLU PEDAL
FULLER M/T<X9B> 		1-73908-265-0 01 1 0704-
21 SPRING; RETURN,CLU PEDAL 1-73907-445-0 01 1 0407-0511
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-445-0 01 1 0512-
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0407-0511
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0512-
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0407-0511
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0512-
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0407-0511
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0512-
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0407-0511
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0512-
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0407-0512
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601-
50 TANK; OIL,CLU 1-47530-182-0 01 1 0407-
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0407-
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0407-0511
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0512-
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 0512-
220 SENSOR; CLUTCH
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-106-1 01 1 0512-
220 SENSOR; CLUTCH
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-121-0 01 1 0512-0703
220 SENSOR; CLUTCH
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-121-0 01 1 0704-
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0512-0703
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0704-
242 BOLT; BRKT,CLUTCH
FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 04 1 0704-
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 06 1 0407-0511
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X16 W/LK WASHER 		0-50040-616-0 06 1 0512-
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0407-0511
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0512-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28680-616-0 02 1 0512-0512
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0601-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512-
251 BOLT; SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28781-025-0 01 1 0512-0512
251 BOLT; SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28751-025-0 01 1 0601-0703
251 BOLT; SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) M10X25 FLANGE 		0-28751-025-0 01 1 0704-
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0407-
254 BRACKET; CLU SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 0512-0703
254 BRACKET; CLU SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) 		1-31349-072-1 01 1 0704-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0407-0511
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0512-
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0407-
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0407-

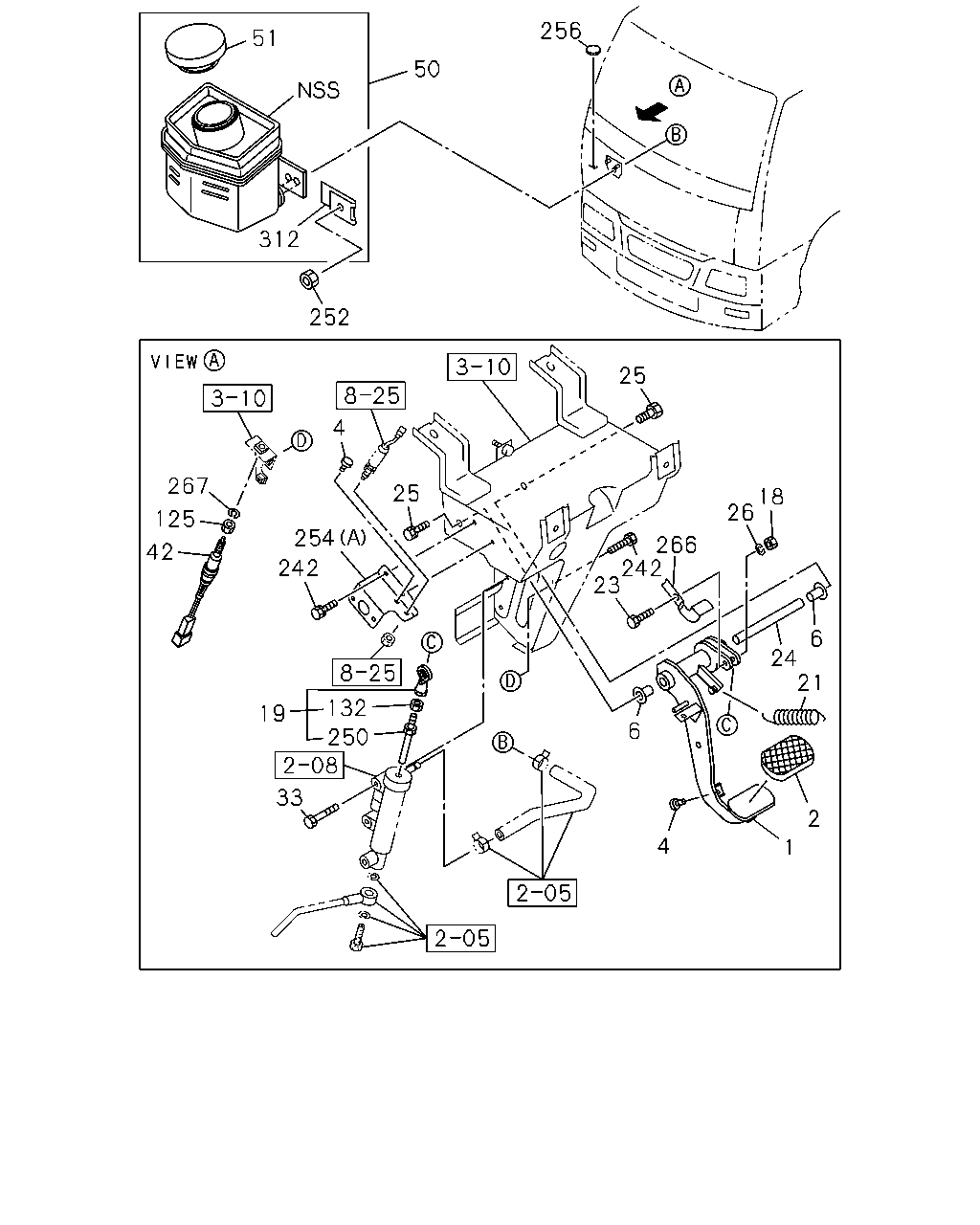

çizim 87642
256 51 50 312 252 25 4 267 25 18 26 125 254 266 242 23 42 242 6 24 21 132 19 6 250 33 2 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-474-1 01 1 0512-0703
1 PEDAL; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73907-474-1 01 1 0704-
1 PEDAL; CLU
FULLER M/T<X9B> 		1-73907-474-1 01 1 0704-
1 PEDAL; CLU 1-73907-510-1 01 1 0407-0511
1 PEDAL; CLU
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-510-1 01 1 0512-
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0407-0511
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0512-
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0407-0511
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0512-
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0407-0511
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0512-
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0407-0511
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0512-
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0407-0511
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0512-
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73908-265-0 01 1 0512-0703
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-73908-265-0 01 1 0704-
21 SPRING; RETURN,CLU PEDAL
FULLER M/T<X9B> 		1-73908-265-0 01 1 0704-
21 SPRING; RETURN,CLU PEDAL 1-73907-445-0 01 1 0407-0511
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-445-0 01 1 0512-
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0407-0511
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0512-
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0407-0511
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0512-
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0407-0511
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0512-
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0407-0511
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0512-
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0407-0512
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601-
42 SWITCH; CLU 1-82380-114-2 01 1 0407-0511
42 SWITCH; CLU
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82380-114-2 01 1 0512-
50 TANK; OIL,CLU 1-47530-182-0 01 1 0407-
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0407-
125 NUT; CLU SWITCH
M10 		9-09110-510-0 01 1 0407-0511
125 NUT; CLU SWITCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M10 		9-09110-510-0 01 1 0512-
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0407-0511
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0512-
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0512-0703
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0704-
242 BOLT; BRKT,CLUTCH
FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 04 1 0704-
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 06 1 0407-0511
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M6X16 W/LK WASHER 		0-50040-616-0 06 1 0512-
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0407-0511
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0512-
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0407-
254 BRACKET; CLU SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 0512-0703
254 BRACKET; CLU SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) 		1-31349-072-1 01 1 0704-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0407-0511
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0512-
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0407-
266 BRACKET; CLU SWITCH 1-73907-395-1 01 1 0407-0511
266 BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-73907-395-1 01 1 0512-
267 WASHER; LK,CLU SWITCH
ID=10.2 		9-09150-510-0 01 1 0407-0511
267 WASHER; LK,CLU SWITCH
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.2 		9-09150-510-0 01 1 0512-
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0407-

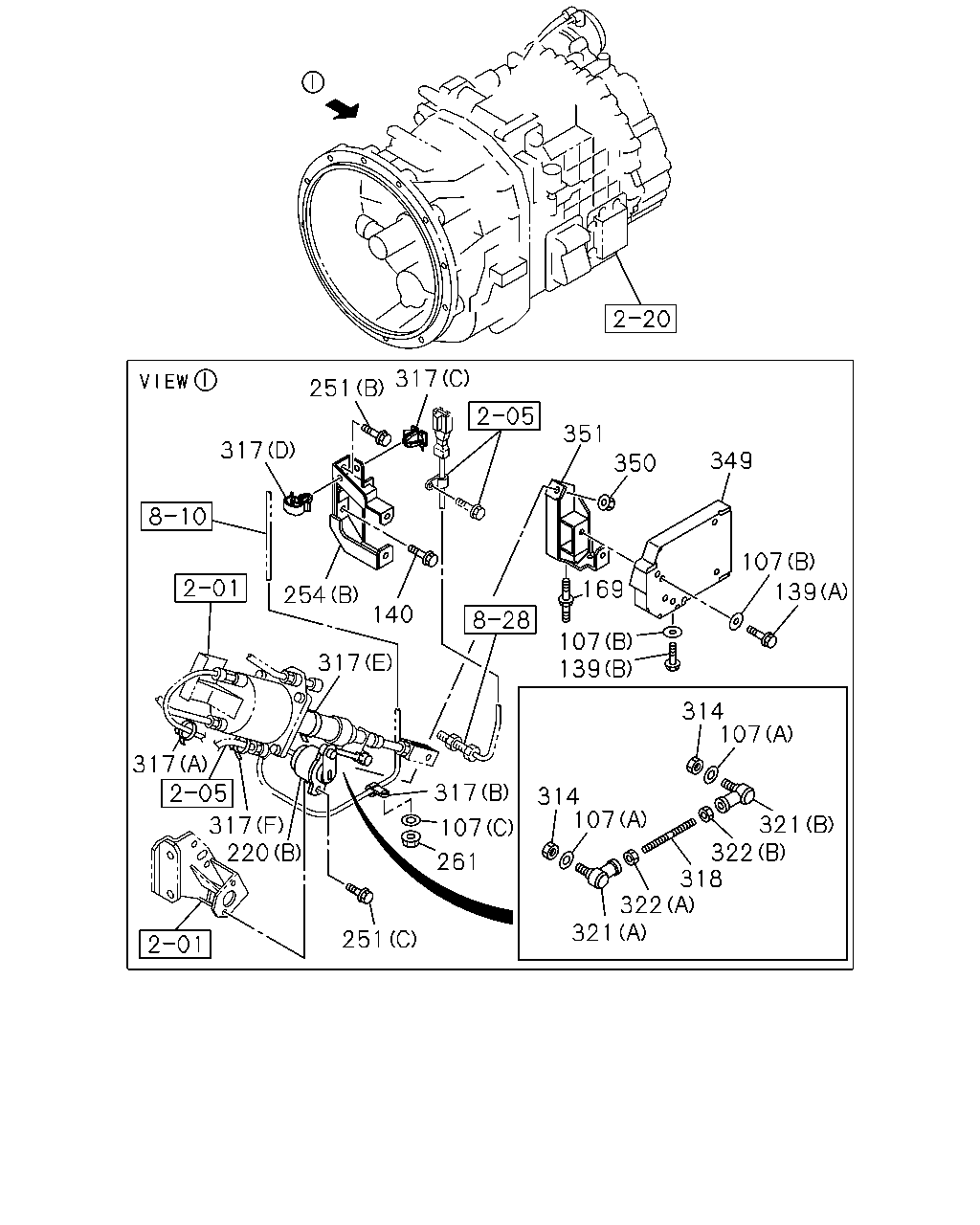

çizim 87832
317 251 351 317 349 350 169 107 139 254 140 107 139 317 314 107 317 317 314 107 321 322 318 322 321 317 220 107 261 251
BalonParca AdiParca NoAdetTipApplied Date
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=8.4 OD=16 		0-91610-508-0 01 1 0512-
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=8.4 OD=22 		9-09160-708-0 06 1 0512-0605
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=8.4 OD=22 		0-91610-708-0 06 1 0606-
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=16 		9-09164-705-0 02 1 0512-0605
107 WASHER; PL
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=5.3 OD=16 		0-91614-705-0 02 1 0606-
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE 		0-28080-816-0 05 1 0512-0512
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X16 FLANGE 		0-28050-816-0 05 1 0601-
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X35 FLANGE 		0-28680-835-0 01 1 0512-0512
139 BOLT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
140 BOLT; BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10X30 FLANGE 		0-28781-030-0 01 1 0512-0512
140 BOLT; BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10X30 FLANGE 		0-28751-030-0 01 1 0601-0703
140 BOLT; BRKT
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X30 FLANGE 		0-28751-030-0 01 1 0704-
169 BOLT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-97320-627-0 01 1 0512-0805
169 BOLT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-98009-913-0 01 1 0806-
220 SENSOR; CLUTCH
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-80250-014-0 01 1 0512-
220 SENSOR; CLUTCH
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-106-1 01 1 0512-
220 SENSOR; CLUTCH
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-121-0 01 1 0512-0703
220 SENSOR; CLUTCH
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-81541-121-0 01 1 0704-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28680-616-0 02 1 0512-0512
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0601-
251 BOLT; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512-
251 BOLT; SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28781-025-0 01 1 0512-0512
251 BOLT; SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X25 FLANGE 		0-28751-025-0 01 1 0601-0703
251 BOLT; SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) M10X25 FLANGE 		0-28751-025-0 01 1 0704-
254 BRACKET; CLU SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-31349-072-1 01 1 0512-0703
254 BRACKET; CLU SENSOR
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) 		1-31349-072-1 01 1 0704-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0407-0511
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0512-
261 NUT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91150-208-0 01 1 0512-0602
261 NUT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-208-0 01 1 0603-0811
261 NUT; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0812-
314 NUT; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		9-99110-405-0 02 1 0512-0512
314 NUT; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M5 		0-91110-505-0 02 1 0601-
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 01 1 0512-
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (E) L=250 		5-09707-030-1 01 1 0512-
317 CLIP; CABLE
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F) L=140 		5-09707-031-1 01 1 0512-
317 CLIP; CABLE
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 02 1 0512-
317 CLIP; CABLE
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=20 		9-09525-035-0 01 1 0512-0606
317 CLIP; CABLE
6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=20 		0-95235-035-0 01 1 0607-
317 CLIP; CABLE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 01 1 0512-0703
317 CLIP; CABLE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 01 1 0704-
317 CLIP; CABLE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-0703
317 CLIP; CABLE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0704-
317 CLIP; CABLE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32 		9-09525-065-0 01 1 0512-0606
317 CLIP; CABLE
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32 		0-95235-065-0 01 1 0607-0703
317 CLIP; CABLE
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) ID=11 L=32 		0-95235-065-0 01 1 0704-
318 ROD; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		9-08410-506-0 01 1 0512-0606
318 ROD; CLU
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		0-84100-506-0 01 1 0607-
321 END; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-09760-103-2 01 1 0512-
321 END; ROD
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-09760-104-2 01 1 0512-
322 NUT; ROD END
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M5 LH THREAD 		9-09840-277-0 01 1 0512-
322 NUT; ROD END
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5 		9-99110-405-0 01 1 0512-0512
322 NUT; ROD END
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M5 		0-91110-505-0 01 1 0601-
349 COVER; SENSOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-31349-075-0 01 1 0512-
350 NUT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10 FLANGE 		0-91150-210-0 01 1 0512-0602
350 NUT; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 01 1 0603-
351 BRACKET; COVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-31349-079-0 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
