2-01A — CLUTCH (#30001) — 108 parça

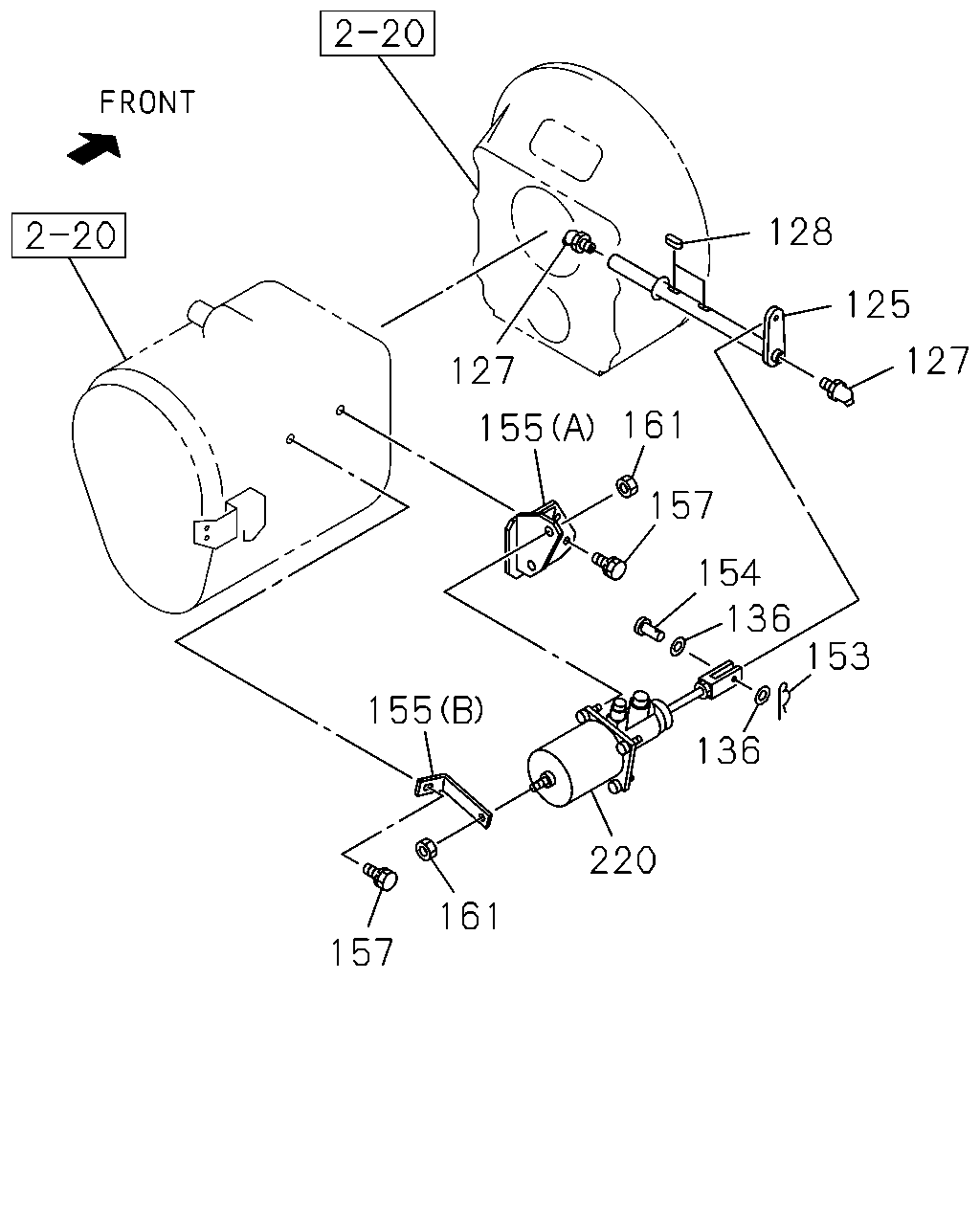

128 125 127 127 161 155 157 154 136 153 155 136 220 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
125	SHAFT; CLU SMOOTHER-G(C1W)	1-31342-312-0	01	1	0512-
125	SHAFT; CLU	1-31342-324-0	01	1	0407-0511
125	SHAFT; CLU TRANSMISSION CONTROL LINK TYPE(B2A)	1-31342-324-0	01	1	0512-
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0407-0512
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-0703
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0704-
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0407-
136	WASHER; PL ID=15	9-09160-514-0	02	1	0407-0605
136	WASHER; PL ID=15	0-91610-514-0	02	1	0606-
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0407-0703
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0704-
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0407-0703
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0704-
155	BRACKET; MINIPACK SMOOTHER-G(C1W) (A)	1-31429-421-0	01	1	0512-
155	BRACKET; MINIPACK (A)	1-31429-456-0	01	1	0407-0511
155	BRACKET; MINIPACK TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31429-456-0	01	1	0512-
155	BRACKET; MINIPACK (B)	1-31429-457-0	01	1	0407-0511
155	BRACKET; MINIPACK TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31429-457-0	01	1	0512-
157	BOLT; BRKT SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
157	BOLT; BRKT SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	0601-
157	BOLT; BRKT SMOOTHER-G(C1W) M10X25 FLANGE	0-28781-025-0	02	1	0512-0512
157	BOLT; BRKT SMOOTHER-G(C1W) M10X25 FLANGE	0-28751-025-0	02	1	0601-
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	01	1	0407-0511
157	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28781-025-0	01	1	0512-0512
157	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28751-025-0	01	1	0601-
157	BOLT; BRKT M10X30 FLANGE	0-28781-030-0	02	1	0407-0512
157	BOLT; BRKT M10X30 FLANGE	0-28751-030-0	02	1	0601-
161	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	02	1	0512-0602
161	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	02	1	0603-
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0407-0511
161	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-210-0	03	1	0512-0602
161	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-210-0	03	1	0603-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. SMOOTHER-G(C1W)	1-31800-440-0	01	1	0512-1105
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. SMOOTHER-G(C1W)	1-31800-564-0	01	1	1106-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-500-0	01	1	0407-0511
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL LINK TYPE(B2A)	1-31800-500-0	01	1	0512-

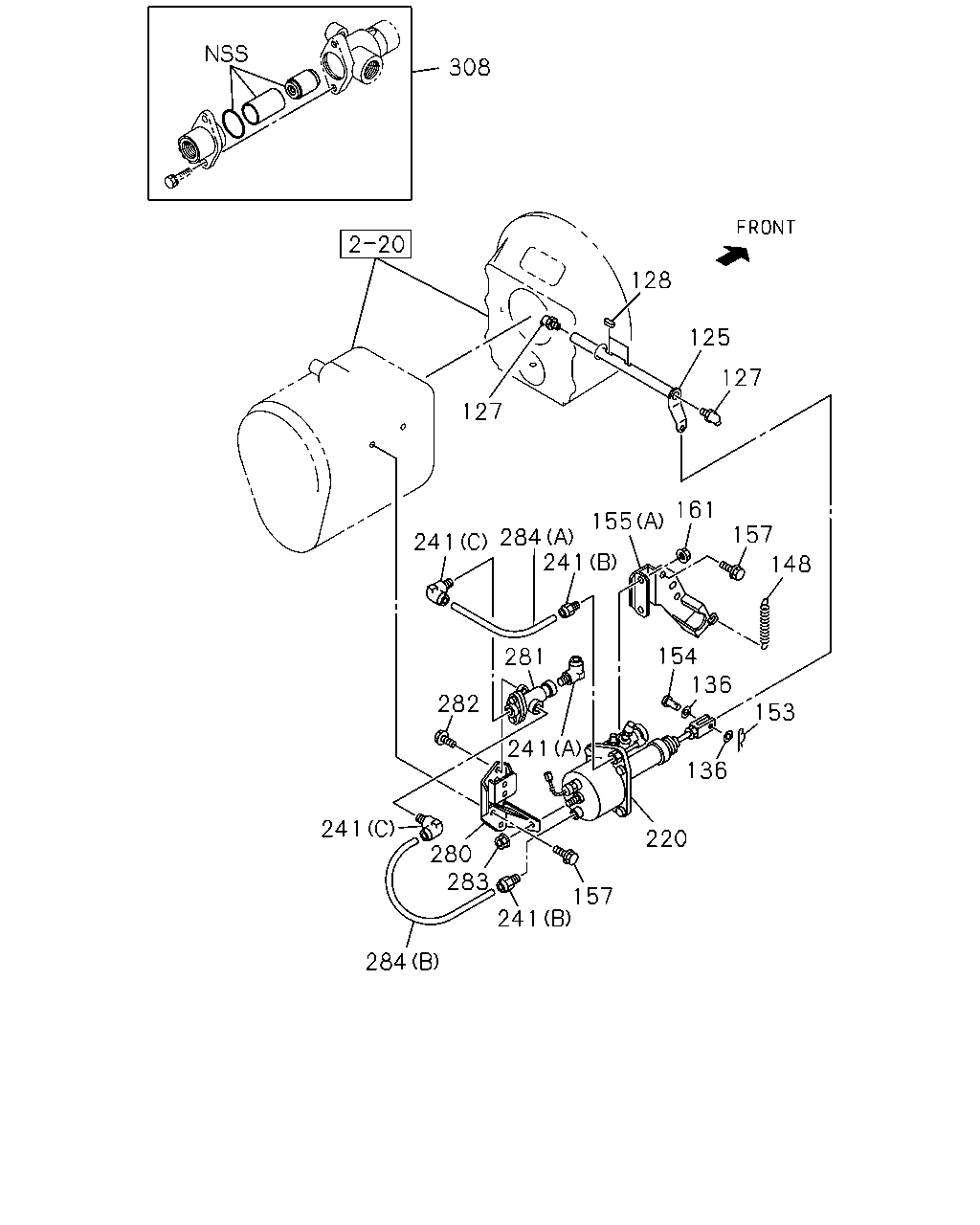

308 128 125 127 127 161 155 157 284 241 241 148 154 136 281 282 153 241 136 241 220 280 283 157 241 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
125	SHAFT; CLU SMOOTHER-G(C1W)	1-31342-312-0	01	1	0512-
125	SHAFT; CLU	1-31342-324-0	01	1	0407-0511
125	SHAFT; CLU TRANSMISSION CONTROL LINK TYPE(B2A)	1-31342-324-0	01	1	0512-
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0407-0512
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-0703
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0704-
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0407-
136	WASHER; PL ID=15	9-09160-514-0	02	1	0407-0605
136	WASHER; PL ID=15	0-91610-514-0	02	1	0606-
148	SPRING; CLU RETURN SMOOTHER-G(C1W) L=43	1-31349-024-0	01	1	0512-
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0407-0703
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0704-
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0407-0703
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0704-
155	BRACKET; MINIPACK SMOOTHER-G(C1W) (A)	1-31429-421-0	01	1	0512-
155	BRACKET; MINIPACK (A)	1-31429-456-0	01	1	0407-0511
155	BRACKET; MINIPACK TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-31429-456-0	01	1	0512-
155	BRACKET; MINIPACK (B)	1-31429-457-0	01	1	0407-0511
155	BRACKET; MINIPACK TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-31429-457-0	01	1	0512-
157	BOLT; BRKT SMOOTHER-G(C1W) M8X16 FLANGE	0-28080-816-0	01	1	0512-0512
157	BOLT; BRKT SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	0601-
157	BOLT; BRKT SMOOTHER-G(C1W) M10X25 FLANGE	0-28781-025-0	02	1	0512-0512
157	BOLT; BRKT SMOOTHER-G(C1W) M10X25 FLANGE	0-28751-025-0	02	1	0601-
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	01	1	0407-0511
157	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28781-025-0	01	1	0512-0512
157	BOLT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10X25 FLANGE	0-28751-025-0	01	1	0601-
157	BOLT; BRKT M10X30 FLANGE	0-28781-030-0	02	1	0407-0512
157	BOLT; BRKT M10X30 FLANGE	0-28751-030-0	02	1	0601-
161	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	02	1	0512-0602
161	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	02	1	0603-
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0407-0511
161	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91150-210-0	03	1	0512-0602
161	NUT; BRKT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	0-91180-210-0	03	1	0603-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. SMOOTHER-G(C1W)	1-31800-440-0	01	1	0512-1105
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. SMOOTHER-G(C1W)	1-31800-564-0	01	1	1106-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-500-0	01	1	0407-0511
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL LINK TYPE(B2A)	1-31800-500-0	01	1	0512-
241	CONNECTOR SMOOTHER-G(C1W) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0512-
241	CONNECTOR SMOOTHER-G(C1W) (B)	1-31829-590-0	02	1	0512-
241	CONNECTOR SMOOTHER-G(C1W) (C) ELBOW	1-31829-591-0	02	1	0512-
280	BRACKET; VLV,CHK SMOOTHER-G(C1W)	1-31429-422-1	01	1	0512-
281	VALVE; CHK SMOOTHER-G(C1W)	1-48410-594-0	01	1	0512-
282	BOLT; VLV SMOOTHER-G(C1W) M8X12 FLANGE	0-28080-812-0	02	1	0512-0512
282	BOLT; VLV SMOOTHER-G(C1W) M8X12 FLANGE	0-28050-812-0	02	1	0601-
283	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91150-210-0	01	1	0512-0602
283	NUT; BRKT SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	01	1	0603-
284	TUBE; NYLON SMOOTHER-G(C1W) (A)	1-09376-833-1	01	1	0512-
284	TUBE; NYLON SMOOTHER-G(C1W) (B)	1-09376-834-1	01	1	0512-
308	REPAIR KIT; CHECK VALVE SMOOTHER-G(C1W)	1-31829-514-0	01	1	0512-

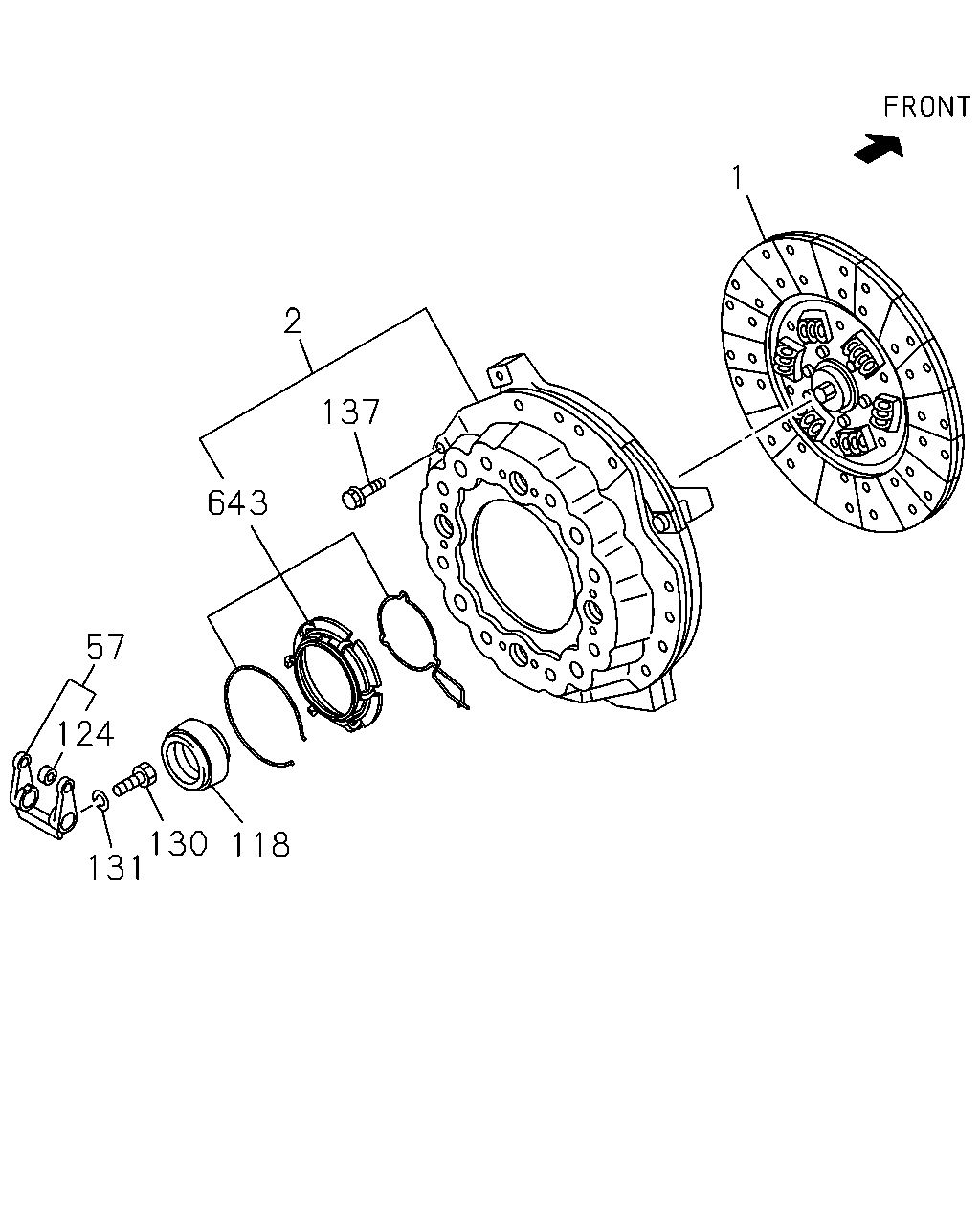

137 643 2 1 118 130 131 124 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH SMOOTHER-G(C1W) 15.5"	1-31240-802-0	01	1	0512-1008
1	DISC; CLUTCH SMOOTHER-G(C1W) 15.5"	1-31240-975-0	01	1	1009-
1	DISC; CLUTCH 15.5"	1-31240-907-0	01	1	0407-0511
1	DISC; CLUTCH EXC. SMOOTHER-G(C1W) 15.5"	1-31240-907-0	01	1	0512-0709
1	DISC; CLUTCH EXC. SMOOTHER-G(C1W) 15.5"	1-31240-976-0	01	1	0710-
2	PLATE ASM; PRESSURE,CLU SMOOTHER-G(C1W)	1-31220-337-0	01	1	0512-1008
2	PLATE ASM; PRESSURE,CLU SMOOTHER-G(C1W)	1-31220-414-0	01	1	1009-
2	PLATE ASM; PRESSURE,CLU	1-31220-352-0	01	1	0407-0511
2	PLATE ASM; PRESSURE,CLU EXC. SMOOTHER-G(C1W)	1-31220-352-0	01	1	0512-0709
2	PLATE ASM; PRESSURE,CLU EXC. SMOOTHER-G(C1W)	1-31220-415-0	01	1	0710-
57	FORK; SHIFT,CLU	1-31340-066-1	01	1	0407-
118	BEARING; CLU RELEASE	1-31310-006-0	01	1	0407-0803
118	BEARING; CLU RELEASE	1-31310-021-0	01	1	0804-1306
118	BEARING; CLU RELEASE	1-31310-028-0	01	1	1307-
124	BEARING; CAM,SHIFT FORK	1-31349-060-1	02	1	0407-
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0407-0512
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0407-0603
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-
137	BOLT; CLU COVER M10X110 FLANGE	0-28186-011-0	12	1	0407-0512
137	BOLT; CLU COVER M10X110 FLANGE	0-28156-011-0	12	1	0601-
643	REPAIR KIT; CLUTCH SMOOTHER-G(C1W)	8-98207-785-0	01	1	0512-
643	REPAIR KIT; CLUTCH EXC. SMOOTHER-G(C1W)	8-98207-785-0	01	1	0710-
