2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#3000) — 249 parça

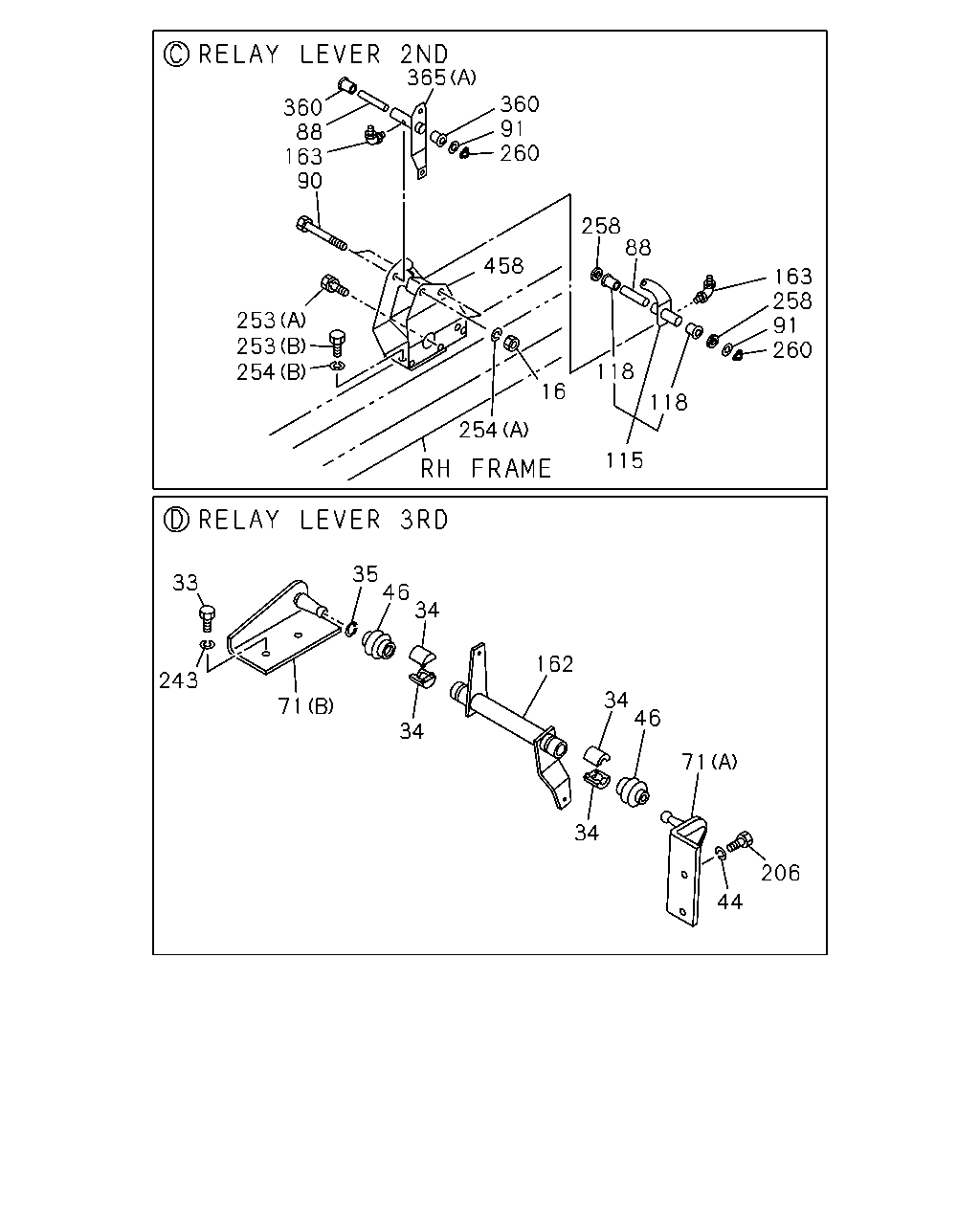

çizim 3251
44 206 71 34 46 34 162 34 34 46 35 71 243 33 254 115 16 118 118 260 91 258 163 88 258 458 254 253 253 90 163 88 360 365 360 91 260
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 NUT; RELAY LEVER
M14 		9-99111-514-0 02 1 9002-9306 ● ● ● ● ●
16 NUT; RELAY LEVER
M14 		9-99111-514-0 02 1 9307- ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
M12X45 		9-01911-245-0 02 1 9002-9005 ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> M12X45 		9-01911-245-0 02 1 9002-9005 ●
33 BOLT; BRKT,3RD RELAY LEVER
M12X45 W/LK WASHER 		0-50041-245-0 02 1 9006-9306 ● ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9006-9306 ●
33 BOLT; BRKT,3RD RELAY LEVER
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9307- ●
33 BOLT; BRKT,3RD RELAY LEVER
M12X45 W/LK WASHER 		0-50041-245-0 02 1 9307- ● ●
33 BOLT; BRKT,3RD RELAY LEVER
CONCRETE PUMP<RA5> M12X45 		9-01911-245-0 01 1 9002-9005 ●
33 BOLT; BRKT,3RD RELAY LEVER
CONCRETE PUMP<RA5> M12X45 W/LK WASHER 		0-50041-245-0 01 1 9006- ●
33 BOLT; BRKT,3RD RELAY LEVER
MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> M14X45 		9-92051-445-0 01 1 9002-9005 ●
33 BOLT; BRKT,3RD RELAY LEVER
MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> M14X45 		0-20801-445-0 01 1 9006- ●
34 SEAT; BALL,RELAY LEVER 1-33659-118-0 04 1 9002-9306 ● ● ● ●
34 SEAT; BALL,RELAY LEVER
EXC. MIXER TRUCK<RA2> 		1-33659-118-0 04 1 9002-9306 ●
34 SEAT; BALL,RELAY LEVER
EXC. MIXER TRUCK<RA2> 		1-33659-118-0 04 1 9307- ●
34 SEAT; BALL,RELAY LEVER 1-33659-118-0 04 1 9307- ● ●
35 RING; SNAP,RELAY LEVER
OD=23.5 		9-09180-122-0 01 1 9002-9306 ● ● ● ●
35 RING; SNAP,RELAY LEVER
EXC. MIXER TRUCK<RA2> OD=23.5 		9-09180-122-0 01 1 9002-9306 ●
35 RING; SNAP,RELAY LEVER
EXC. MIXER TRUCK<RA2> OD=23.5 		9-09180-122-0 01 1 9307- ●
35 RING; SNAP,RELAY LEVER
OD=23.5 		9-09180-122-0 01 1 9307- ● ●
44 WASHER; LK,BRKT
CONCRETE PUMP<RA5> ID=12.2 		9-09150-512-0 02 1 9002- ●
46 SEAL; DUST,RELAY LEVER
EXC. MIXER TRUCK<RA2> 		1-33659-076-0 02 1 9002-9306 ● ● ● ● ●
46 SEAL; DUST,RELAY LEVER
EXC. MIXER TRUCK<RA2> 		1-33659-076-0 02 1 9307- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-193-2 01 1 9002-9306 ● ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
EXC. MIXER TRUCK<RA2> (A) 		1-33657-193-2 01 1 9002-9306 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
EXC. MIXER TRUCK<RA2> (A) 		1-33657-193-2 01 1 9307- ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-193-2 01 1 9307- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-200-0 01 1 9002-9306 ● ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> (B) 		1-33657-200-0 01 1 9002-9306 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> (B) 		1-33657-200-0 01 1 9307- ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-200-0 01 1 9307- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
CONCRETE PUMP<RA5> (B) 		1-33657-194-1 01 1 9002- ●
71 BRACKET; 3RD RELAY LEVER,FRAME
MIXER TRUCK<RA2> (A) 		1-33657-244-1 01 1 9202-9306 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
MIXER TRUCK<RA2> (B) 		1-33657-334-1 01 1 9202-9306 ●
88 COLLAR; RELAY LEVER 1-33659-074-0 02 1 9002-9306 ● ● ● ● ●
88 COLLAR; RELAY LEVER 1-33659-074-0 02 1 9307- ● ● ●
90 SHAFT 1-33619-125-0 02 1 9002-9306 ● ● ● ● ●
90 SHAFT 1-33619-125-0 02 1 9307- ● ● ●
91 SHIM; RELAY LEVER 1-33659-092-0 02 1 9002-9306 ● ● ● ● ●
91 SHIM; RELAY LEVER 1-33659-092-0 02 1 9307- ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-505-0 01 1 9002-9306 ● ● ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-505-1 01 1 9307- ● ● ●
118 BUSHING; RELAY LEVER
ID=22 OD=25 L=18 		1-09330-050-0 02 1 9002-9306 ● ● ● ● ●
118 BUSHING; RELAY LEVER
ID=22 OD=25 L=18 		1-09330-050-0 02 1 9307- ● ● ●
162 LEVER; RELAY 1-33651-270-4 01 1 9002- ● ● ● ● ●
163 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 02 1 9002-9306 ● ● ● ● ●
163 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 02 1 9307- ● ● ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
M12X30 W/LK WASHER 		9-01911-230-0 02 1 9002-9005 ● ● ● ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
EXC. CONCRETE PUMP<RA5> M12X30 W/LK WASHER 		9-01911-230-0 02 1 9002-9005 ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9006-9306 ● ● ● ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
EXC. CONCRETE PUMP<RA5> M12X30 W/LK WASHER 		0-50041-230-0 02 1 9006-9306 ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
EXC. CONCRETE PUMP<RA5> M12X30 W/LK WASHER 		0-50041-230-0 02 1 9307- ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9307- ● ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
CONCRETE PUMP<RA5> M12X38 		9-92051-238-0 02 1 9002-9005 ●
206 BOLT; BRKT,3RD RELAY LEVER,ENG
CONCRETE PUMP<RA5> M12X38 		0-20801-238-0 02 1 9006- ●
243 WASHER; LK,BRKT
MIXER TRUCK<RA2>,CONCRETE PUMP<RA5> ID=14.2 		9-09150-614-0 01 1 9002- ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9002-9306 ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9307- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M14X40 		9-92051-440-0 02 1 9002-9005 ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M14X40 		0-20801-440-0 02 1 9006-9306 ● ● ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M14X40 		0-20801-440-0 02 1 9307- ● ● ●
254 WASHER; LK,RELAY LEVER
(A) ID=14.2 		9-09150-514-0 02 1 9002-9306 ● ● ● ● ●
254 WASHER; LK,RELAY LEVER
(A) ID=14.2 		9-09150-514-0 02 1 9307- ● ● ●
254 WASHER; LK,RELAY LEVER
(B) ID=14.2 		9-09150-614-0 02 1 9002-9306 ● ● ● ● ●
254 WASHER; LK,RELAY LEVER
(B) ID=14.2 		9-09150-614-0 02 1 9307- ● ● ●
258 WASHER; RELAY LEVER 1-09509-041-0 02 1 9002-9306 ● ● ● ● ●
258 WASHER; RELAY LEVER 1-09509-041-0 02 1 9307- ● ● ●
260 WASHER; WAVED 1-33659-093-0 02 1 9002-9306 ● ● ● ● ●
260 WASHER; WAVED 1-33659-093-0 02 1 9307- ● ● ●
360 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9002-9306 ● ● ● ● ●
360 BUSHING; RELAY LEVER
L=24 		5-33659-054-0 02 1 9307- ● ● ●
365 LEVER; RELAY,SELECT
CVR&RHD(CVR5M*) (C) 		1-33651-285-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-285-2 01 1 9002-9306 ●
365 LEVER; RELAY,SELECT
CVR LONG CHASSIS&RHD(CVR5MF) (C) 		1-33651-557-0 01 1 9307- ● ● ●
365 LEVER; RELAY,SELECT
CVR&RHD(CVR5M*) (B) 		1-33651-286-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-286-2 01 1 9002-9306 ●
365 LEVER; RELAY,SELECT
CVR LONG CHASSIS&RHD(CVR5MF) (B) 		1-33651-555-0 01 1 9307- ● ● ●
365 LEVER; RELAY,SELECT
CVR&LHD(CVR6M*) (D) 		1-33651-328-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
CVR&LHD(CVR6M*) (D) 		1-33651-328-2 01 1 9307- ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-249-4 01 1 9002- ● ● ● ● ●
458 BRACKET; 2ND RELAY LEVER 1-33657-210-4 01 1 9002- ● ● ● ● ●

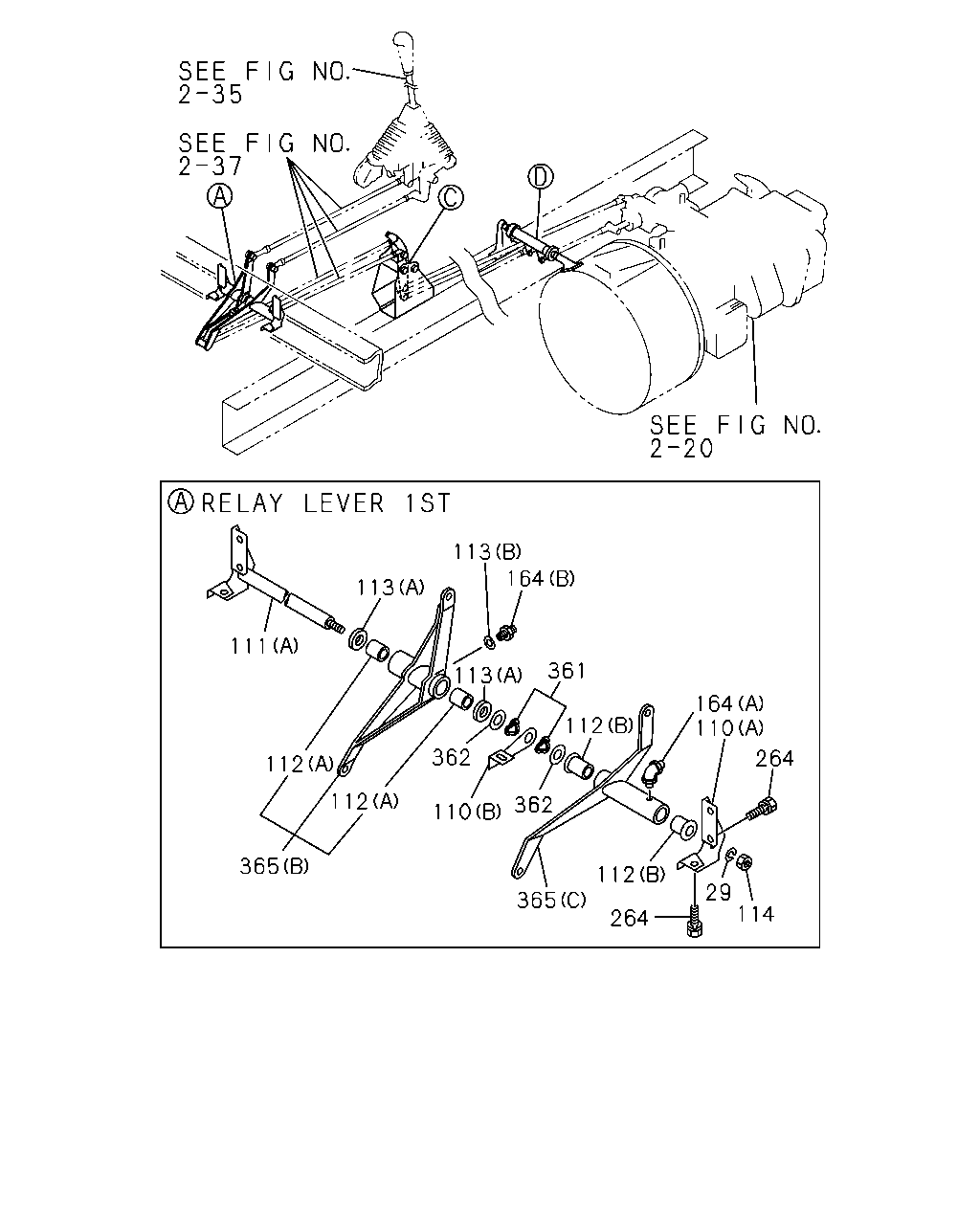

çizim 35292
114 29 264 365 112 264 110 164 112 362 110 112 362 365 112 111 113 113 164 113 361
BalonParca AdiParca NoAdetTipApplied Date A B C D E
29 WASHER; LK,RELAY LEVER
CVR&RHD(CVR5M*) ID=14.2 		9-09150-514-0 01 1 9002-9306 ● ● ● ●
29 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9002-9306 ●
29 WASHER; LK,RELAY LEVER
CVR&RHD(CVR5M*) ID=14.2 		9-09150-514-0 01 1 9307- ● ●
29 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-514-0 01 1 9307- ●
110 BRACKET; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (A) 		1-33657-180-1 01 1 9002-9306 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-180-1 01 1 9002-9306 ●
110 BRACKET; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (A) 		1-33657-180-1 01 1 9307- ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-180-1 01 1 9307- ●
110 BRACKET; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (B) 		1-33657-184-2 01 1 9002-9306 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-184-2 01 1 9002-9306 ●
110 BRACKET; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (B) 		1-33657-184-2 01 1 9307- ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-184-2 01 1 9307- ●
110 BRACKET; RELAY LEVER,1ST
CVR LONG CHASSIS&LHD(CVR6MF) (C) 		1-33657-261-3 01 1 9307- ● ●
110 BRACKET; RELAY LEVER,1ST
CVR LONG CHASSIS&LHD(CVR6MF) (D) 		1-33657-383-0 01 1 9307- ● ●
111 SHAFT; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (A) 		1-33619-123-1 01 1 9002-9306 ● ● ● ●
111 SHAFT; RELAY LEVER,1ST
(A) 		1-33619-123-1 01 1 9002-9306 ●
111 SHAFT; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (A) 		1-33619-123-1 01 1 9307- ● ●
111 SHAFT; RELAY LEVER,1ST
(A) 		1-33619-123-1 01 1 9307- ●
111 SHAFT; RELAY LEVER,1ST
CVR LONG CHASSIS&LHD(CVR6MF) (B) 		1-33659-103-2 01 1 9307- ● ●
112 BUSHING; RELAY LEVER
CVR&RHD(CVR5M*) (A) ID=22 OD=25 L=18 		1-09330-050-0 02 1 9002-9306 ● ● ● ●
112 BUSHING; RELAY LEVER
(A) ID=22 OD=25 L=18 		1-09330-050-0 02 1 9002-9306 ●
112 BUSHING; RELAY LEVER
CVR&RHD(CVR5M*) (A) ID=22 OD=25 L=18 		1-09330-050-0 02 1 9307- ● ●
112 BUSHING; RELAY LEVER
(A) ID=22 OD=25 L=18 		1-09330-050-0 02 1 9307- ●
112 BUSHING; RELAY LEVER
CVR&RHD(CVR5M*) (B) L=24 		5-33659-054-0 02 1 9002-9306 ● ● ● ●
112 BUSHING; RELAY LEVER
(B) L=24 		5-33659-054-0 02 1 9002-9306 ●
112 BUSHING; RELAY LEVER
CVR&RHD(CVR5M*) (B) L=24 		5-33659-054-0 02 1 9307- ● ●
112 BUSHING; RELAY LEVER
(B) L=24 		5-33659-054-0 02 1 9307- ●
113 WASHER; RELAY LEVER
CVR&RHD(CVR5M*) (A) 		1-09509-041-0 02 1 9002-9306 ● ● ● ●
113 WASHER; RELAY LEVER
(A) 		1-09509-041-0 02 1 9002-9306 ●
113 WASHER; RELAY LEVER
CVR&RHD(CVR5M*) (A) 		1-09509-041-0 02 1 9307- ● ●
113 WASHER; RELAY LEVER
(A) 		1-09509-041-0 02 1 9307- ●
113 WASHER; RELAY LEVER
CVR&RHD(CVR5M*) (B) ID=6.4 		9-09160-506-0 01 1 9002-9306 ● ● ● ●
113 WASHER; RELAY LEVER
(B) ID=6.4 		9-09160-506-0 01 1 9002-9306 ●
113 WASHER; RELAY LEVER
CVR&RHD(CVR5M*) (B) 		9-09160-506-0 01 1 9307- ● ●
113 WASHER; RELAY LEVER
(B) 		9-09160-506-0 01 1 9307- ●
113 WASHER; RELAY LEVER
CVR&LHD(CVR6M*) (C) 		9-09160-710-0 01 1 9002-9306 ● ● ● ●
113 WASHER; RELAY LEVER
CVR&LHD(CVR6M*) (C) 		9-09160-710-0 01 1 9307- ● ●
114 NUT; RELAY LEVER
CVR&RHD(CVR5M*) M14 		9-99110-414-0 01 1 9002-9306 ● ● ● ●
114 NUT; RELAY LEVER
M14 		9-99110-414-0 01 1 9002-9306 ●
114 NUT; RELAY LEVER
CVR&RHD(CVR5M*) M14 		9-99110-414-0 01 1 9307- ● ●
114 NUT; RELAY LEVER
M14 		9-99110-414-0 01 1 9307- ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&RHD(CVR5M*) (B) 		9-09031-006-0 01 1 9002-9306 ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
(B) 		9-09031-006-0 01 1 9002-9306 ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&RHD(CVR5M*) (B) 		9-09031-006-0 01 1 9307- ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
(B) 		9-09031-006-0 01 1 9307- ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&RHD(CVR5M*) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 9002-9306 ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9002-9306 ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&RHD(CVR5M*) (A) 		9-09031-210-0 01 1 9307- ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
(A) 		9-09031-210-0 01 1 9307- ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&LHD(CVR6M*) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&LHD(CVR6M*) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9307- ● ●
264 BOLT; BRKT,RELAY LEVER
CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER 		9-01970-825-0 07 1 9002-9005 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		9-01970-825-0 07 1 9002-9005 ●
264 BOLT; BRKT,RELAY LEVER
CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER 		0-50140-825-0 07 1 9006-9306 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		0-50140-825-0 07 1 9006-9306 ●
264 BOLT; BRKT,RELAY LEVER
CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER 		0-50140-825-0 07 1 9307- ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		0-50140-825-0 07 1 9307- ●
264 BOLT; BRKT,RELAY LEVER
CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER 		9-01970-825-0 02 1 9002-9005 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9006-9306 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9307- ● ●
361 WASHER; WAVED
CVR&RHD(CVR5M*) 		1-33659-093-0 02 1 9002-9306 ● ● ● ●
361 WASHER; WAVED 1-33659-093-0 02 1 9002-9306 ●
361 WASHER; WAVED
CVR&RHD(CVR5M*) 		1-33659-093-0 02 1 9307- ● ●
361 WASHER; WAVED 1-33659-093-0 02 1 9307- ●
362 SHIM
CVR&RHD(CVR5M*) 		1-33659-092-0 02 1 9002-9306 ● ● ● ●
362 SHIM 1-33659-092-0 02 1 9002-9306 ●
362 SHIM
CVR&RHD(CVR5M*) 		1-33659-092-0 02 1 9307- ● ●
362 SHIM 1-33659-092-0 02 1 9307- ●
362 SHIM
CVR&LHD(CVR6M*) 		1-09503-172-0 01 1 9002-9306 ● ● ● ●
362 SHIM
CVR&LHD(CVR6M*) 		1-09503-172-0 01 1 9307- ● ●
365 LEVER; RELAY,SELECT
CVR&RHD(CVR5M*) (C) 		1-33651-285-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-285-2 01 1 9002-9306 ●
365 LEVER; RELAY,SELECT
CVR LONG CHASSIS&RHD(CVR5MF) (C) 		1-33651-557-0 01 1 9307- ● ● ●
365 LEVER; RELAY,SELECT
CVR&RHD(CVR5M*) (B) 		1-33651-286-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-286-2 01 1 9002-9306 ●
365 LEVER; RELAY,SELECT
CVR LONG CHASSIS&RHD(CVR5MF) (B) 		1-33651-555-0 01 1 9307- ● ● ●
365 LEVER; RELAY,SELECT
CVR&LHD(CVR6M*) (D) 		1-33651-328-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
CVR&LHD(CVR6M*) (D) 		1-33651-328-2 01 1 9307- ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-249-4 01 1 9002- ● ● ● ● ●

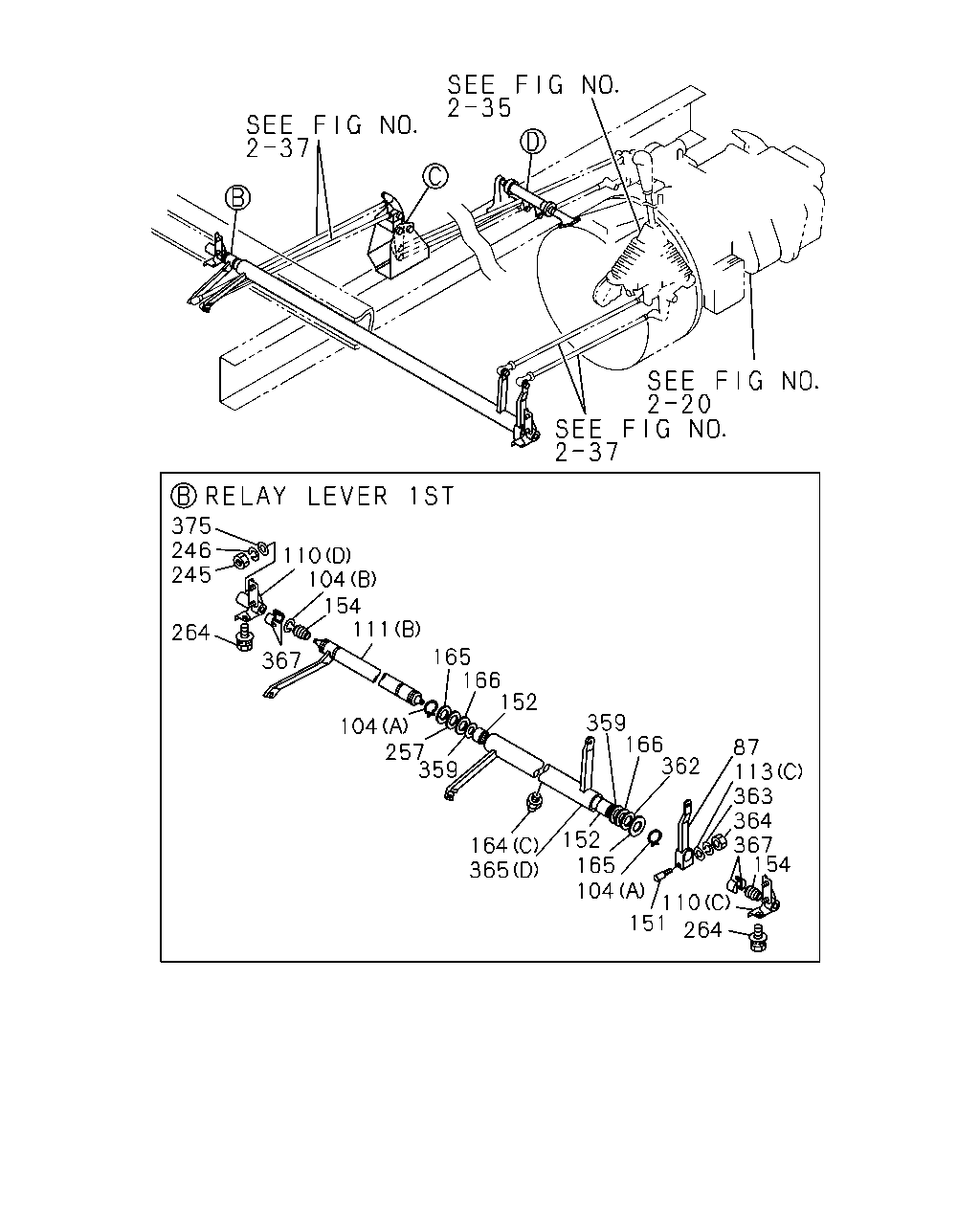

çizim 36739
264 151 110 104 165 152 164 365 154 367 364 363 113 87 362 166 359 152 166 165 359 257 104 111 367 154 104 110 264 245 246 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E
87 LEVER; RELAY,SELECT
CVR&LHD(CVR6M*) 		1-33651-327-1 01 1 9002-9306 ● ● ● ●
87 LEVER; RELAY,SELECT
CVR&LHD(CVR6M*) 		1-33651-327-1 01 1 9307- ● ●
104 RING; SNAP
CVR LONG CHASSIS&LHD(CVR6MF) (A) ID=32.2 		9-09180-035-0 02 1 9307- ● ●
104 RING; SNAP
CVR LONG CHASSIS&LHD(CVR6MF) (B) OD=23.5 		9-09180-122-0 01 1 9307- ● ●
110 BRACKET; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (A) 		1-33657-180-1 01 1 9002-9306 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-180-1 01 1 9002-9306 ●
110 BRACKET; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (A) 		1-33657-180-1 01 1 9307- ● ●
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-180-1 01 1 9307- ●
110 BRACKET; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (B) 		1-33657-184-2 01 1 9002-9306 ● ● ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-184-2 01 1 9002-9306 ●
110 BRACKET; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (B) 		1-33657-184-2 01 1 9307- ● ●
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-184-2 01 1 9307- ●
110 BRACKET; RELAY LEVER,1ST
CVR LONG CHASSIS&LHD(CVR6MF) (C) 		1-33657-261-3 01 1 9307- ● ●
110 BRACKET; RELAY LEVER,1ST
CVR LONG CHASSIS&LHD(CVR6MF) (D) 		1-33657-383-0 01 1 9307- ● ●
111 SHAFT; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (A) 		1-33619-123-1 01 1 9002-9306 ● ● ● ●
111 SHAFT; RELAY LEVER,1ST
(A) 		1-33619-123-1 01 1 9002-9306 ●
111 SHAFT; RELAY LEVER,1ST
CVR&RHD(CVR5M*) (A) 		1-33619-123-1 01 1 9307- ● ●
111 SHAFT; RELAY LEVER,1ST
(A) 		1-33619-123-1 01 1 9307- ●
111 SHAFT; RELAY LEVER,1ST
CVR LONG CHASSIS&LHD(CVR6MF) (B) 		1-33659-103-2 01 1 9307- ● ●
113 WASHER; RELAY LEVER
CVR&RHD(CVR5M*) (A) 		1-09509-041-0 02 1 9002-9306 ● ● ● ●
113 WASHER; RELAY LEVER
(A) 		1-09509-041-0 02 1 9002-9306 ●
113 WASHER; RELAY LEVER
CVR&RHD(CVR5M*) (A) 		1-09509-041-0 02 1 9307- ● ●
113 WASHER; RELAY LEVER
(A) 		1-09509-041-0 02 1 9307- ●
113 WASHER; RELAY LEVER
CVR&RHD(CVR5M*) (B) ID=6.4 		9-09160-506-0 01 1 9002-9306 ● ● ● ●
113 WASHER; RELAY LEVER
(B) ID=6.4 		9-09160-506-0 01 1 9002-9306 ●
113 WASHER; RELAY LEVER
CVR&RHD(CVR5M*) (B) 		9-09160-506-0 01 1 9307- ● ●
113 WASHER; RELAY LEVER
(B) 		9-09160-506-0 01 1 9307- ●
113 WASHER; RELAY LEVER
CVR&LHD(CVR6M*) (C) 		9-09160-710-0 01 1 9002-9306 ● ● ● ●
113 WASHER; RELAY LEVER
CVR&LHD(CVR6M*) (C) 		9-09160-710-0 01 1 9307- ● ●
151 BOLT; KEY,RELAY LEVER
CVR&LHD(CVR6M*) 		1-33659-063-0 01 1 9002-9306 ● ● ● ●
151 BOLT; KEY,RELAY LEVER
CVR&LHD(CVR6M*) 		1-33659-063-0 01 1 9307- ● ●
152 BEARING; NEEDLE,RELAY LEVER
CVR&LHD(CVR6M*) 		1-09811-328-0 02 1 9002-9306 ● ● ● ●
152 BEARING; NEEDLE,RELAY LEVER
CVR&LHD(CVR6M*) 		1-09811-328-0 02 1 9307- ● ●
154 COVER; DUST,RELAY LEVER
CVR&LHD(CVR6M*) 		1-33659-068-0 02 1 9002-9306 ● ● ● ●
154 COVER; DUST,RELAY LEVER
CVR&LHD(CVR6M*) 		1-33659-068-0 02 1 9307- ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&RHD(CVR5M*) (B) 		9-09031-006-0 01 1 9002-9306 ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
(B) 		9-09031-006-0 01 1 9002-9306 ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&RHD(CVR5M*) (B) 		9-09031-006-0 01 1 9307- ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
(B) 		9-09031-006-0 01 1 9307- ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&RHD(CVR5M*) (A) PT1/8 ELBOW 		9-09031-210-0 01 1 9002-9306 ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
(A) PT1/8 ELBOW 		9-09031-210-0 01 1 9002-9306 ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&RHD(CVR5M*) (A) 		9-09031-210-0 01 1 9307- ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
(A) 		9-09031-210-0 01 1 9307- ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&LHD(CVR6M*) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9002-9306 ● ● ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
CVR&LHD(CVR6M*) (C) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9307- ● ●
165 WASHER; RELAY LEVER
CVR&LHD(CVR6M*) 		1-09503-148-0 AR 1 9002-9306 ● ● ● ●
165 WASHER; RELAY LEVER
CVR&LHD(CVR6M*) 		1-09503-148-0 AR 1 9307- ● ●
166 WASHER; NYLON,RELAY LEVER
CVR&LHD(CVR6M*) 		1-09509-040-0 02 1 9002-9306 ● ● ● ●
166 WASHER; NYLON,RELAY LEVER
CVR&LHD(CVR6M*) 		1-09509-040-0 02 1 9307- ● ●
245 NUT; BRKT,RELAY LEVER
CVR&LHD(CVR6M*) M8 		9-09110-508-0 04 1 9002-9306 ● ● ● ●
245 NUT; BRKT,RELAY LEVER
CVR&LHD(CVR6M*) M8 		9-09110-508-0 04 1 9307- ● ●
246 WASHER; LK,BRKT,RELAY LEVER
CVR&LHD(CVR6M*) ID=8.2 		9-09150-508-0 04 1 9002-9306 ● ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
CVR&LHD(CVR6M*) ID=8.2 		9-09150-508-0 04 1 9307- ● ●
257 PIECE; DIST,RELAY LEVER
CVR&LHD(CVR6M*) 		1-09503-198-0 AR 1 9002-9306 ● ● ● ●
257 PIECE; DIST,RELAY LEVER
CVR&LHD(CVR6M*) 		1-09503-198-0 AR 1 9307- ● ●
264 BOLT; BRKT,RELAY LEVER
CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER 		9-01970-825-0 07 1 9002-9005 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		9-01970-825-0 07 1 9002-9005 ●
264 BOLT; BRKT,RELAY LEVER
CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER 		0-50140-825-0 07 1 9006-9306 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		0-50140-825-0 07 1 9006-9306 ●
264 BOLT; BRKT,RELAY LEVER
CVR&RHD(CVR5M*) M8X25 W/LK&PL WASHER 		0-50140-825-0 07 1 9307- ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 W/LK&PL WASHER 		0-50140-825-0 07 1 9307- ●
264 BOLT; BRKT,RELAY LEVER
CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER 		9-01970-825-0 02 1 9002-9005 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9006-9306 ● ● ● ●
264 BOLT; BRKT,RELAY LEVER
CVR&LHD(CVR6M*) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9307- ● ●
359 SEAL; RUBBER,RELAY LEVER
CVR&LHD(CVR6M*) 		1-09625-005-1 02 1 9002-9306 ● ● ● ●
359 SEAL; RUBBER,RELAY LEVER
CVR&LHD(CVR6M*) 		1-09625-005-1 02 1 9307- ● ●
362 SHIM
CVR&RHD(CVR5M*) 		1-33659-092-0 02 1 9002-9306 ● ● ● ●
362 SHIM 1-33659-092-0 02 1 9002-9306 ●
362 SHIM
CVR&RHD(CVR5M*) 		1-33659-092-0 02 1 9307- ● ●
362 SHIM 1-33659-092-0 02 1 9307- ●
362 SHIM
CVR&LHD(CVR6M*) 		1-09503-172-0 01 1 9002-9306 ● ● ● ●
362 SHIM
CVR&LHD(CVR6M*) 		1-09503-172-0 01 1 9307- ● ●
363 WASHER; LK,KEY BOLT
CVR&LHD(CVR6M*) ID=10.2 		9-09150-510-0 01 1 9002-9306 ● ● ● ●
363 WASHER; LK,KEY BOLT
CVR&LHD(CVR6M*) ID=10.2 		9-09150-510-0 01 1 9307- ● ●
364 NUT; KEY BOLT
CVR&LHD(CVR6M*) M10 		9-09111-410-0 01 1 9002-9306 ● ● ● ●
364 NUT; KEY BOLT
CVR&LHD(CVR6M*) M10 		9-09111-410-0 01 1 9307- ● ●
365 LEVER; RELAY,SELECT
CVR&RHD(CVR5M*) (C) 		1-33651-285-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-285-2 01 1 9002-9306 ●
365 LEVER; RELAY,SELECT
CVR LONG CHASSIS&RHD(CVR5MF) (C) 		1-33651-557-0 01 1 9307- ● ● ●
365 LEVER; RELAY,SELECT
CVR&RHD(CVR5M*) (B) 		1-33651-286-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-286-2 01 1 9002-9306 ●
365 LEVER; RELAY,SELECT
CVR LONG CHASSIS&RHD(CVR5MF) (B) 		1-33651-555-0 01 1 9307- ● ● ●
365 LEVER; RELAY,SELECT
CVR&LHD(CVR6M*) (D) 		1-33651-328-2 01 1 9002-9306 ● ● ● ●
365 LEVER; RELAY,SELECT
CVR&LHD(CVR6M*) (D) 		1-33651-328-2 01 1 9307- ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-249-4 01 1 9002- ● ● ● ● ●
367 SEAT; BALL,CONT SHAFT
CVR&LHD(CVR6M*) 		1-33659-053-0 04 1 9002-9306 ● ● ● ●
367 SEAT; BALL,CONT SHAFT
CVR&LHD(CVR6M*) 		1-33659-053-0 04 1 9307- ● ●
375 WASHER; PL,BRKT,RELAY LEVER
CVR&LHD(CVR6M*) ID=8.4 		9-09160-508-0 04 1 9002-9306 ● ● ● ●
375 WASHER; PL,BRKT,RELAY LEVER
CVR&LHD(CVR6M*) ID=8.4 		9-09160-508-0 04 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
