0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#300) — 100 parça

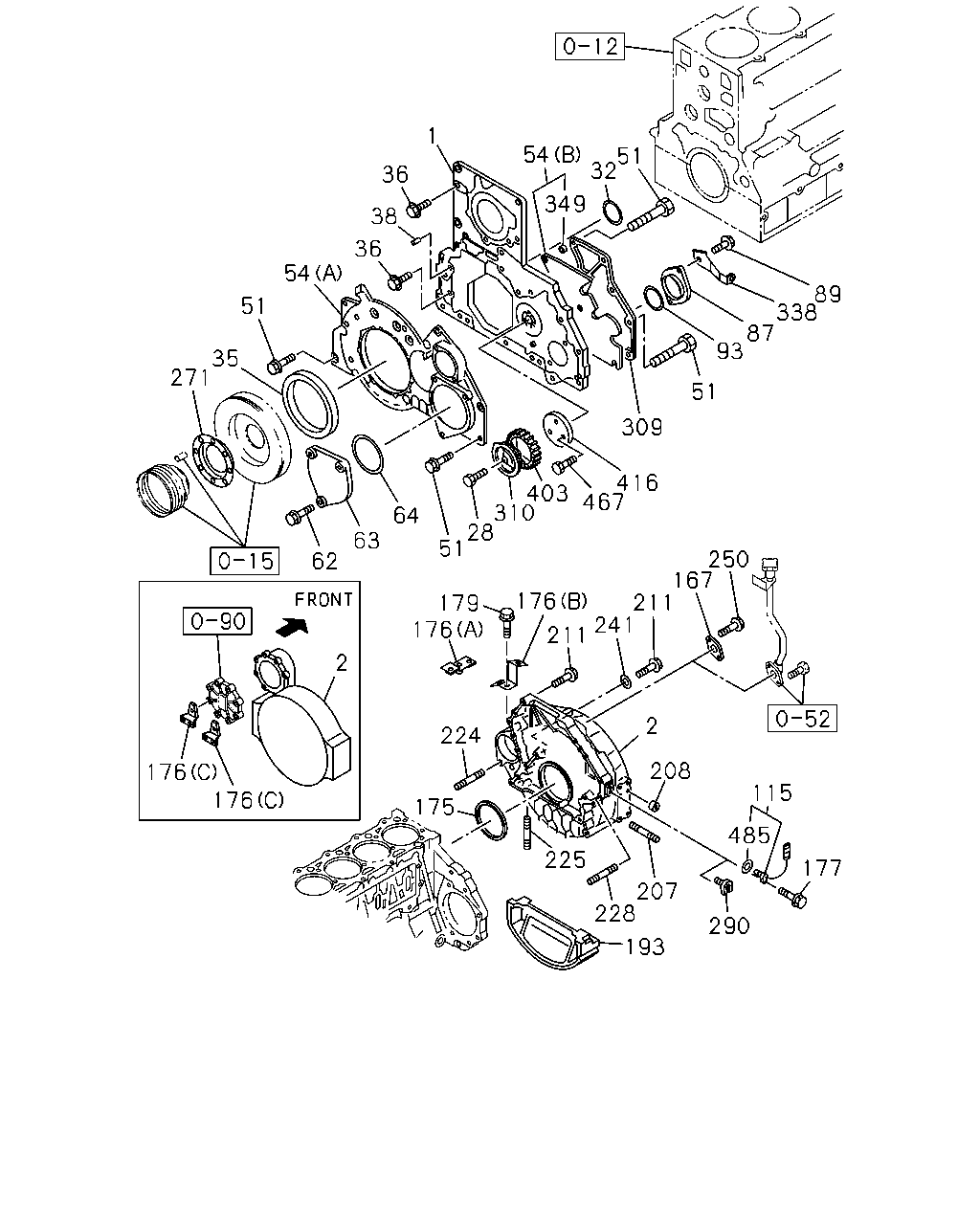

çizim 27636
1 54 51 32 36 349 38 36 54 89 338 87 93 51 35 271 51 309 416 467 403 310 28 51 64 63 250 167 176 211 241 62 179 176 211 2 2 224 208 176 176 115 175 485 225 177 207 228 290 193
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR 8-94393-110-2 01 1 9202- ● ●
2 HOUSING; FLYWHEEL
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> ENGINE REAR PTO(SV1) 		8-94393-384-3 01 1 9202- ● ●
2 HOUSING; FLYWHEEL
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) 		8-94396-732-7 01 1 9202- ● ●
2 HOUSING; FLYWHEEL
MBG5 M/T<X9W> 		8-94396-101-9 01 1 9202-9505 ●
2 HOUSING; FLYWHEEL
MBG5 M/T<X9W> 		8-94390-036-0 01 1 9506- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 9202- ●
28 BOLT; DRIVE GEAR
EXC. ENGINE REAR PTO(SV1) M8X28 		8-94399-256-0 03 1 9202- ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		8-94397-364-0 01 1 9202- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9202- ● ●
36 BOLT; GEAR CASE
M8X28 FLANGE 		0-28080-828-0 02 1 9202- ● ●
36 BOLT; GEAR CASE
M8X32 FLANGE 		0-28080-832-0 04 1 9202- ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9202- ● ●
51 BOLT; GEAR CASE COVER
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 06 1 9202-9410 ●
51 BOLT; GEAR CASE COVER
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 06 1 9411- ●
51 BOLT; GEAR CASE COVER
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 06 1 9411- ●
51 BOLT; GEAR CASE COVER
M8X18 FLANGE 		0-28080-818-0 06 1 9202-9412 ● ●
51 BOLT; GEAR CASE COVER
M8X20 FLANGE 		0-28680-820-0 06 1 9501- ● ●
51 BOLT; GEAR CASE COVER
M8X40 FLANGE 		0-28080-840-0 11 1 9202-9203 ● ●
51 BOLT; GEAR CASE COVER
M8X40 FLANGE 		0-28080-840-0 10 1 9204- ● ●
51 BOLT; GEAR CASE COVER
M8X45 FLANGE 		0-28080-845-0 01 1 9204- ● ●
54 COVER; GEAR CASE
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94397-449-0 01 1 9202-9410 ●
54 COVER; GEAR CASE
ANTI NOISE EQUIPMENT VAR2<TAK> (B) 		8-94397-449-0 01 1 9411- ●
54 COVER; GEAR CASE
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94397-449-0 01 1 9411- ●
54 COVER; GEAR CASE
(A) 		8-94396-085-3 01 1 9202- ● ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X25 FLANGE 		0-28181-025-0 01 1 9202- ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X55 FLANGE 		8-94399-863-1 02 1 9202- ●
63 COVER; P/S
EXC. POWER STEERING(N40) 		8-94399-436-0 01 1 9202- ●
64 GASKET; COVER,P/S
EXC. POWER STEERING(N40) 		8-94396-678-0 01 1 9202- ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9202- ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9202- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9202- ● ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-343-2 01 1 9202- ● ●
167 COVER; OIL
MBG5 M/T<X9W> 		1-11219-163-0 01 1 9202- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9202- ● ●
176 BRACKET; HARNESS
(A) 		1-82699-402-3 01 1 9202- ●
176 BRACKET; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) 		1-82699-402-3 01 1 9202- ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 9202- ● ●
176 BRACKET; HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> ENGINE REAR PTO(SV1) (C) 		1-82699-457-0 02 1 9202- ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28210-616-0 02 1 9202-9204 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28280-616-0 02 1 9205-9305 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 02 1 9306-9308 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9309- ● ●
177 BOLT; SENSOR
TACHOMETER<UD7> M6X16 FLANGE 		0-28080-616-0 02 1 9309- ● ●
179 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9202- ● ●
179 BOLT; BRKT
EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE 		0-28080-816-0 01 1 9202- ● ●
193 SPACER; STAY TO OIL,PAN
AUSTRALIA EQUIPMENT(RR3) 		8-94396-829-2 01 1 9202-9410 ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94395-674-0 01 1 9411- ●
193 SPACER; STAY TO OIL,PAN
AUSTRALIA EQUIPMENT(RR3) 		8-94395-674-0 01 1 9411- ●
207 STUD; ENG FOOT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M12X10 L=55 		9-94321-255-0 08 1 9202- ● ●
208 DOWEL; ENG FOOT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> 		9-43269-009-1 04 1 9202- ● ●
208 DOWEL; ENG FOOT
MBG5 M/T<X9W> 		8-94396-208-0 04 1 9202- ●
211 BOLT; HSG
M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9202- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9202- ●
211 BOLT; HSG
M12X70 		9-01666-270-0 09 1 9202- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) M12X70 		9-01666-270-0 09 1 9202- ●
211 BOLT; HSG
M10X50 FLANGE 		0-28181-050-0 02 1 9202- ● ●
211 BOLT; HSG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) M12X153 		1-09020-054-1 01 1 9202- ● ●
211 BOLT; HSG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) M12X128 		8-94399-252-0 02 1 9202-9407 ● ●
211 BOLT; HSG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) M12X128 		8-94399-252-0 01 1 9408- ● ●
211 BOLT; HSG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) M12X65 		9-01666-265-0 01 1 9202- ● ●
211 BOLT; HSG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) M12X130 FLANGE 		0-28196-213-0 01 1 9408- ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) M12X185 		8-94393-483-0 03 1 9202- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) M14X127 FLANGE W/PL WASHER 		8-94396-096-0 01 1 9202- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) M12X128 		8-94399-252-0 09 1 9202- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) M12X75 		9-01666-275-0 01 1 9202- ●
211 BOLT; HSG
MBG5 M/T<X9W> M12X65 		9-01666-265-0 03 1 9202- ●
211 BOLT; HSG
MBG5 M/T<X9W> M12X70 		9-01666-270-0 01 1 9202- ●
224 STUD; STARTER
M14X40 L=61 		9-04411-440-0 02 1 9202-9407 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9408- ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 01 1 9202-9501 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9502- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9202- ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9202-9407 ● ●
241 WASHER; PL,HSG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 13 1 9408- ●
241 WASHER; PL,HSG
MBG5 M/T<X9W> ID=12.5 OD=22 		8-94393-140-1 13 1 9408- ●
241 WASHER; PL,HSG
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> EXC. ENGINE REAR PTO(SV1) ID=12.5 OD=22 		8-94393-140-1 12 1 9408- ● ●
250 BOLT; COVER,OIL
MBG5 M/T<X9W> M8X18 FLANGE 		0-28080-818-0 02 1 9202- ●
271 COVER; DUST
THAILAND EQUIPMENT(PM9) 		8-94395-287-1 01 1 9211- ●
290 PLUG; SENSOR HOLE
EXC. TACHOMETER<UD7> 		1-11349-157-0 01 1 9202- ● ●
309 FLANGE; GEAR CASE COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94397-448-0 01 1 9202-9410 ●
309 FLANGE; GEAR CASE COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94397-448-0 01 1 9411- ●
309 FLANGE; GEAR CASE COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94397-448-0 01 1 9411- ●
310 SHAFT; IDLE GEAR 8-94311-160-4 01 1 9202-9412 ●
310 SHAFT; IDLE GEAR
EXC. ENGINE REAR PTO(SV1) 		8-94311-160-4 01 1 9202-9412 ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 9501- ●
310 SHAFT; IDLE GEAR
EXC. ENGINE REAR PTO(SV1) 		8-94394-806-0 01 1 9501- ●
338 BRACKET; CLIP,HARNESS 8-94396-520-0 01 1 9202-9307 ● ●
338 BRACKET; CLIP,HARNESS 8-94394-412-0 01 1 9308-9501 ● ●
338 BRACKET; CLIP,HARNESS 1-82699-867-0 01 1 9502-9506 ● ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 9507- ● ●
349 SPACER; GEAR CASE COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94397-312-0 02 1 9202-9410 ●
349 SPACER; GEAR CASE COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94397-312-0 02 1 9411- ●
349 SPACER; GEAR CASE COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94397-312-0 02 1 9411- ●
403 GEAR; IDLE,FRONT
Z=33 		8-94396-955-2 01 1 9202-9412 ●
403 GEAR; IDLE,FRONT
EXC. ENGINE REAR PTO(SV1) Z=33 		8-94396-955-2 01 1 9202-9412 ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 9501- ●
403 GEAR; IDLE,FRONT
EXC. ENGINE REAR PTO(SV1) Z=33 		8-94395-943-1 01 1 9501- ●
416 COVER; IDLE GEAR
EXC. POWER STEERING(N40) 		8-94399-420-0 01 1 9202- ●
467 BOLT; PLATE
EXC. POWER STEERING(N40) M8X28 		8-94399-256-0 03 1 9202- ●
485 GASKET; SENSOR
TACHOMETER<UD7> 		9-09565-212-0 01 1 9202- ● ●
