◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#29992) — 23 parça

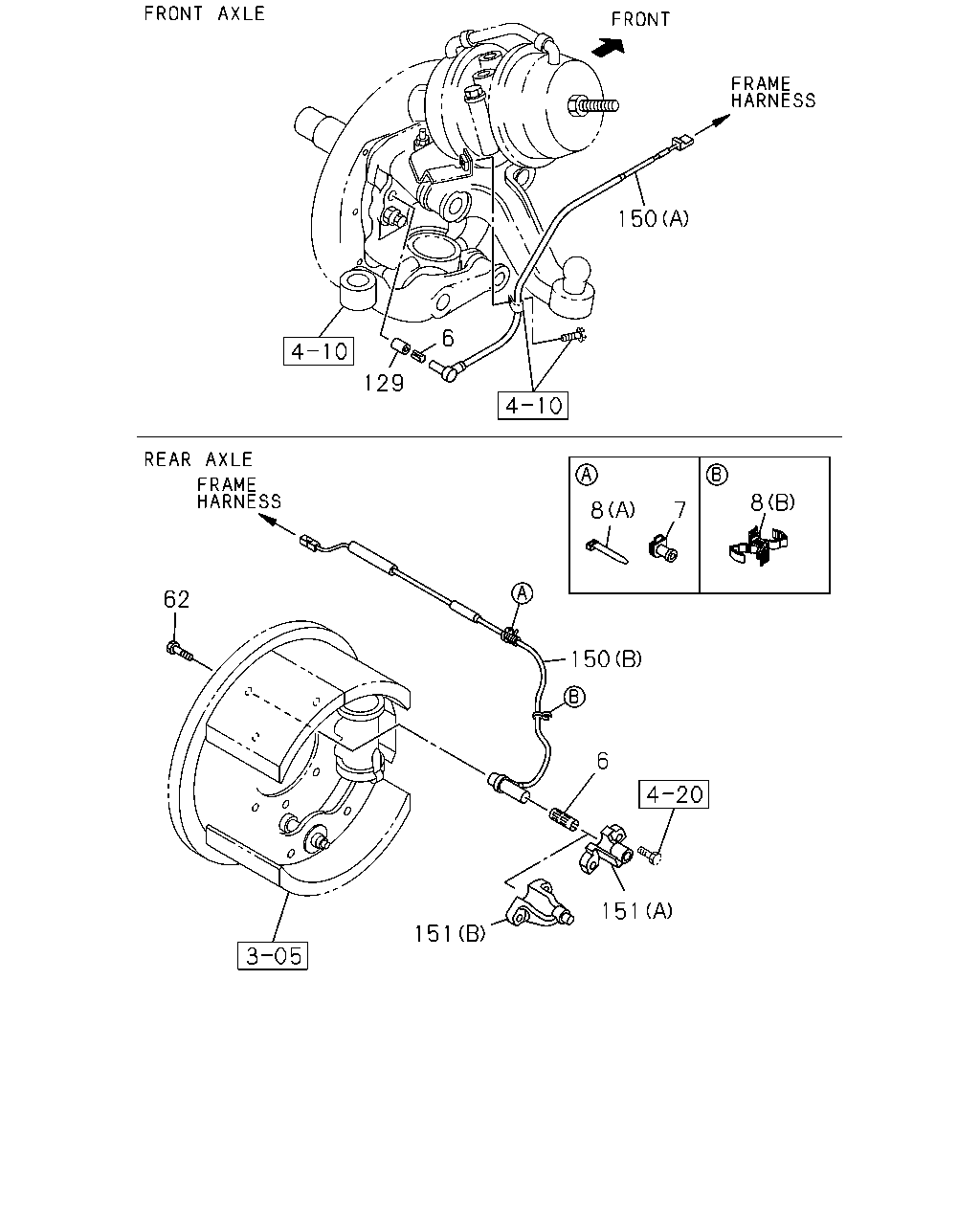

çizim 86124
150 129 6 62 8 7 8 150 6 151 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0509-
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0509-
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0509-
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0509-
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0509-
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0509-1506
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-
129 COLLAR 1-83129-471-0 02 1 0509-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) (B) 		8-98128-858-0 01 1 0902-0902
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) (B) 		8-98128-858-0 01 1 0902-
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) (B) 		8-98128-859-0 01 1 0902-0902
150 SENSOR; SPEED,ABS
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) (B) 		8-98128-859-0 01 1 0902-
150 SENSOR; SPEED,ABS
(B) 		1-83127-937-1 01 1 0509-0809
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (B) 		1-83127-937-1 01 1 0810-
150 SENSOR; SPEED,ABS
(B) 		1-83127-938-1 01 1 0509-0809
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (B) 		1-83127-938-1 01 1 0810-
150 SENSOR; SPEED,ABS
(A) 		1-83127-961-1 02 1 0509-
151 BRACKET; SPD SENSOR
(A) 		1-83129-405-0 01 1 0509-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-398-0 01 1 1505-
151 BRACKET; SPD SENSOR
(A) 		1-83129-406-0 01 1 0509-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-399-0 01 1 1505-

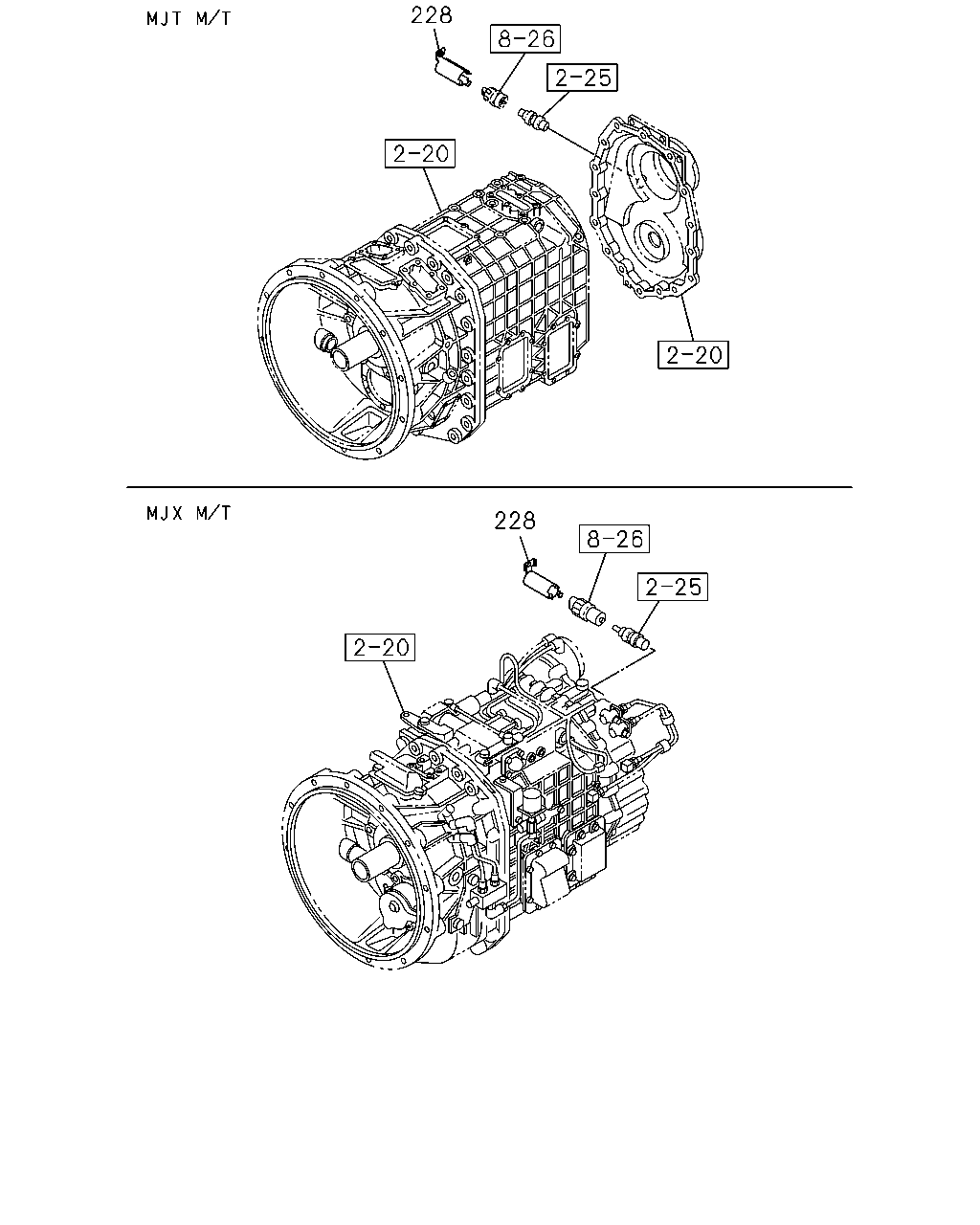

çizim 86129
228 228
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0509-0808
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809-
