◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#29990) — 191 parça
çizim 86287
255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 0509-1202
255 HARNESS; ELEC GOV
(A) 		8-97642-187-1 01 1 1203-
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 0509-1202
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203-
533 CLIP
ID=26 L=26 		1-09701-236-0 02 1 0509-0907
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 0908-
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0509-

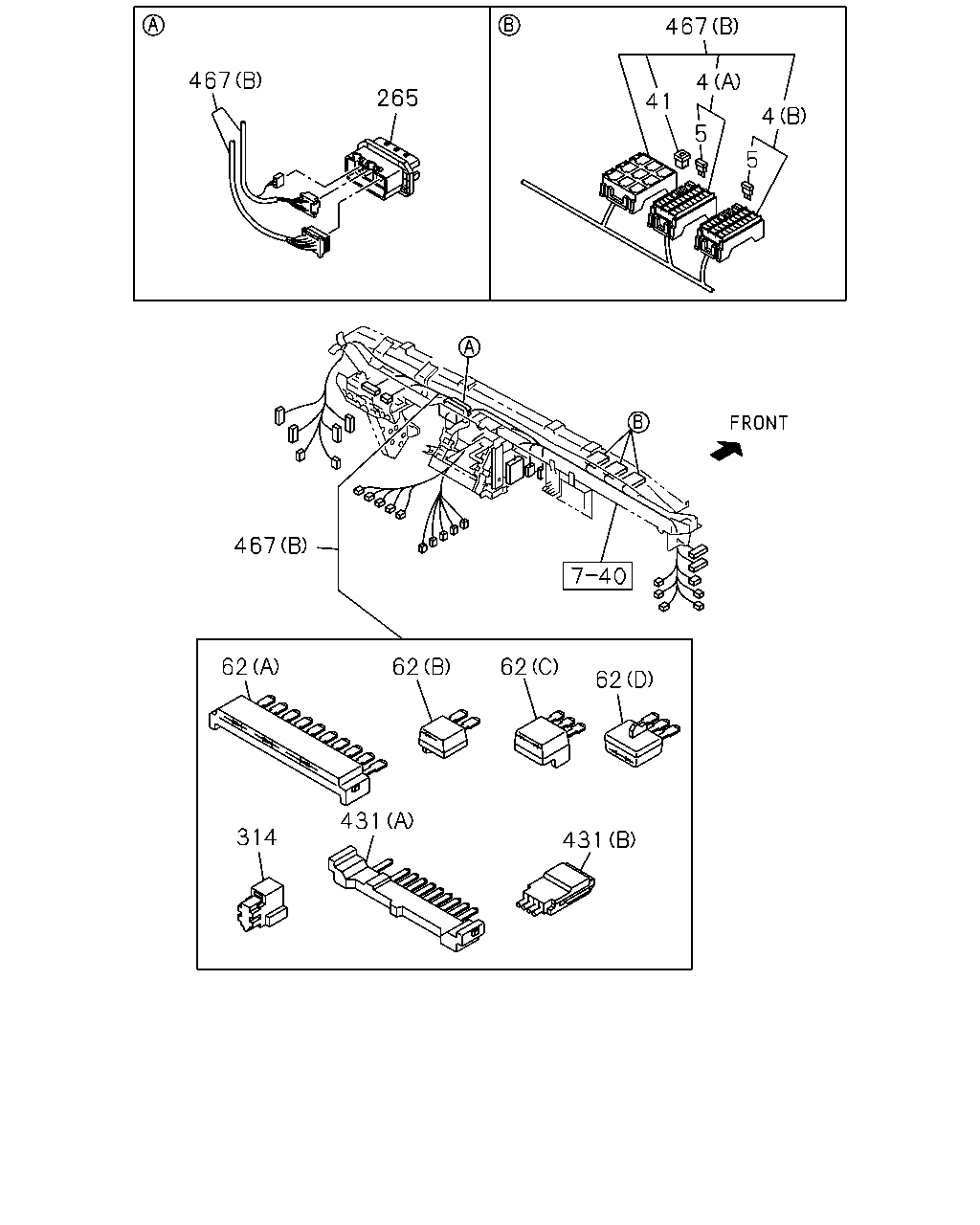

çizim 86314
467 467 4 265 41 4 5 5 467 62 62 62 62 431 314 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 15AX22 25AX3 		8-98126-046-0 01 1 0807-
4 BOX ASM; FUSE,HARNESS
(A) 		1-82510-420-0 01 1 0509-
4 BOX ASM; FUSE,HARNESS
(B) 		1-82510-513-0 01 1 0509-0806
4 BOX ASM; FUSE,HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82510-513-0 01 1 0807-
4 BOX ASM; FUSE,HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 		1-82510-513-0 01 1 0807-
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) 15A BLUE 		5-82516-003-0 22 1 0807-
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) 25A CLEAR 		5-82516-005-0 03 1 0807-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 21 1 0509-0806
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) 15A BLUE 		5-82516-003-0 21 1 0807-
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> 15A BLUE 		5-82516-003-0 21 1 0807-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0509-0806
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) 25A CLEAR 		5-82516-005-0 02 1 0807-
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> 25A CLEAR 		5-82516-005-0 02 1 0807-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 21 1 0509-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0509-
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A 		8-94422-639-1 10 1 0806-0907
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0806-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 04 1 0509-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0509-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0509-0805
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0806-0907
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 06 1 0908-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0509-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0509-
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 02 1 0509-0708
431 CONNECTOR; JOINT
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 4P 		8-97376-776-0 02 1 0709-0802
431 CONNECTOR; JOINT
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 4P 		8-97376-776-0 02 1 0803-0805
431 CONNECTOR; JOINT
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 4P 		8-97376-776-0 03 1 0806-0907
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 03 1 0908-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0509-
467 HARNESS; FACIA
RUSSIA COUNTRY(CZ3) LIGHTING SYSTEM ECE<SLC> (A) 		8-98131-064-0 01 1 0810-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98126-514-1 01 1 0807-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98142-974-3 01 1 0908-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98094-269-0 01 1 0709-0802
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98094-269-0 01 1 0803-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98142-966-2 01 1 0908-
467 HARNESS; FACIA
(A) 		1-82662-742-1 01 1 0509-0809
467 HARNESS; FACIA
EXC. RUSSIA COUNTRY(CZ3) (A) 		1-82662-742-1 01 1 0810-
467 HARNESS; FACIA
(B) 		1-82662-743-3 01 1 0509-0708
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82662-743-3 01 1 0709-0802
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82662-743-3 01 1 0803-0805
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-97625-937-0 01 1 0806-0806
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98126-513-0 01 1 0807-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98142-973-3 01 1 0908-

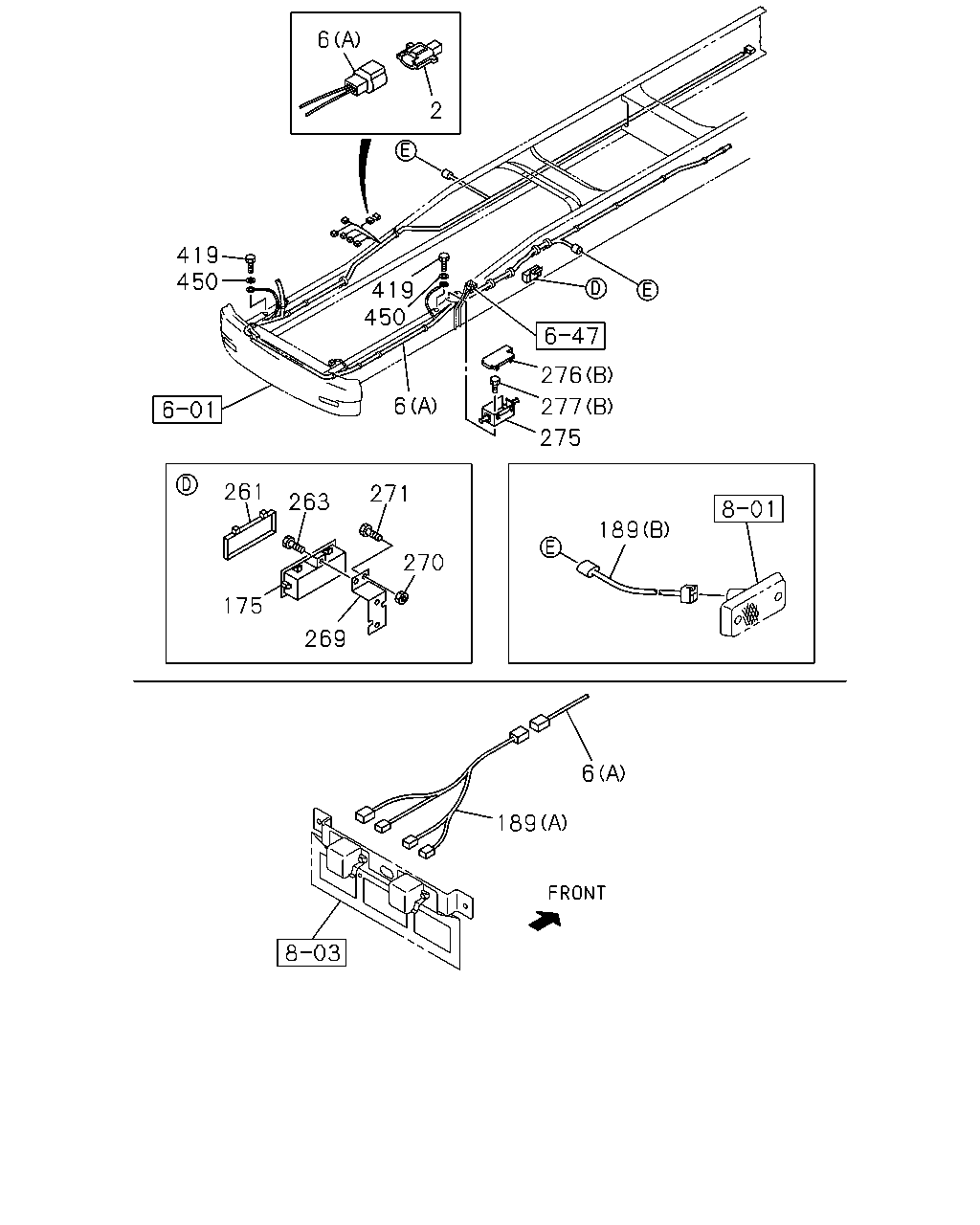

çizim 86315
189 6 189 271 269 175 261 263 6 275 277 276 450 419 450 419 2 6 270
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0509-
6 HARNESS; FRAME
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FULL FLOATING CAB(W16) (A) 		8-98131-404-0 01 1 0810-
6 HARNESS; FRAME
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FULL FLOATING CAB(W16) (A) 		8-98124-615-0 01 1 0807-0809
6 HARNESS; FRAME
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),FULL FLOATING CAB(W16) (A) 		8-98124-615-0 01 1 0810-
6 HARNESS; FRAME
(B) 		1-82677-379-4 01 1 0509-0706
6 HARNESS; FRAME
(B) 		1-82677-379-4 01 1 0707-
6 HARNESS; FRAME
(A) 		1-82677-365-8 01 1 0509-0806
6 HARNESS; FRAME
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16),FUEL SEDIMENTER WITH HEATER<6HU> (A) 		1-82677-365-9 01 1 0807-1407
6 HARNESS; FRAME
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16),FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-98276-855-0 01 1 1408-
175 BOX; CONNECTOR 1-82699-467-0 01 1 0509-0602
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-467-0 01 1 0603-0802
175 BOX; CONNECTOR 1-82699-467-0 01 1 0803-
189 HARNESS; EXT
RUSSIA COUNTRY(CZ3) LIGHTING SYSTEM ECE<SLC> (B) 		1-82673-735-0 06 1 0810-
189 HARNESS; EXT
RUSSIA COUNTRY(CZ3) LIGHTING SYSTEM ECE<SLC> (A) 		8-98131-066-0 01 1 0810-
261 COVER; CONNECTOR BOX 1-82699-320-0 01 1 0509-0602
261 COVER; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-320-0 01 1 0603-0802
261 COVER; CONNECTOR BOX 1-82699-320-0 01 1 0803-
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0509-0602
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0603-0802
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0803-
269 BRACKET; CONNECTOR BOX 1-82699-547-0 01 1 0509-0602
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-547-0 01 1 0603-0802
269 BRACKET; CONNECTOR BOX 1-82699-547-0 01 1 0803-
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0603-0603
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 02 1 0603-
271 BOLT; BRKT CONNECTOR BOX
M8X30 FLANGE 		0-28680-830-0 02 1 0509-0512
271 BOLT; BRKT CONNECTOR BOX
M8X30 FLANGE 		0-28650-830-0 02 1 0601-0602
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 0603-0802
271 BOLT; BRKT CONNECTOR BOX
M8X30 FLANGE 		0-28650-830-0 02 1 0803-
275 BOX ASM; FRAME HARNESS 1-82699-474-2 01 1 0509-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0509-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0509-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0509-0512
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0509-
419 BOLT; CAB EARTH
EXC. ENGINE CONTROL COMMON RAIL(Q4R) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0707-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
M8X30 W/LK&PL WASHER 		8-97087-204-0 02 1 0509-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 07 1 0509-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
450 WASHER; PL,CAB EARTH
EXC. ENGINE CONTROL COMMON RAIL(Q4R) ID=8.4 		1-09503-264-0 02 1 0707-0810
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 0509-0810
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0811-

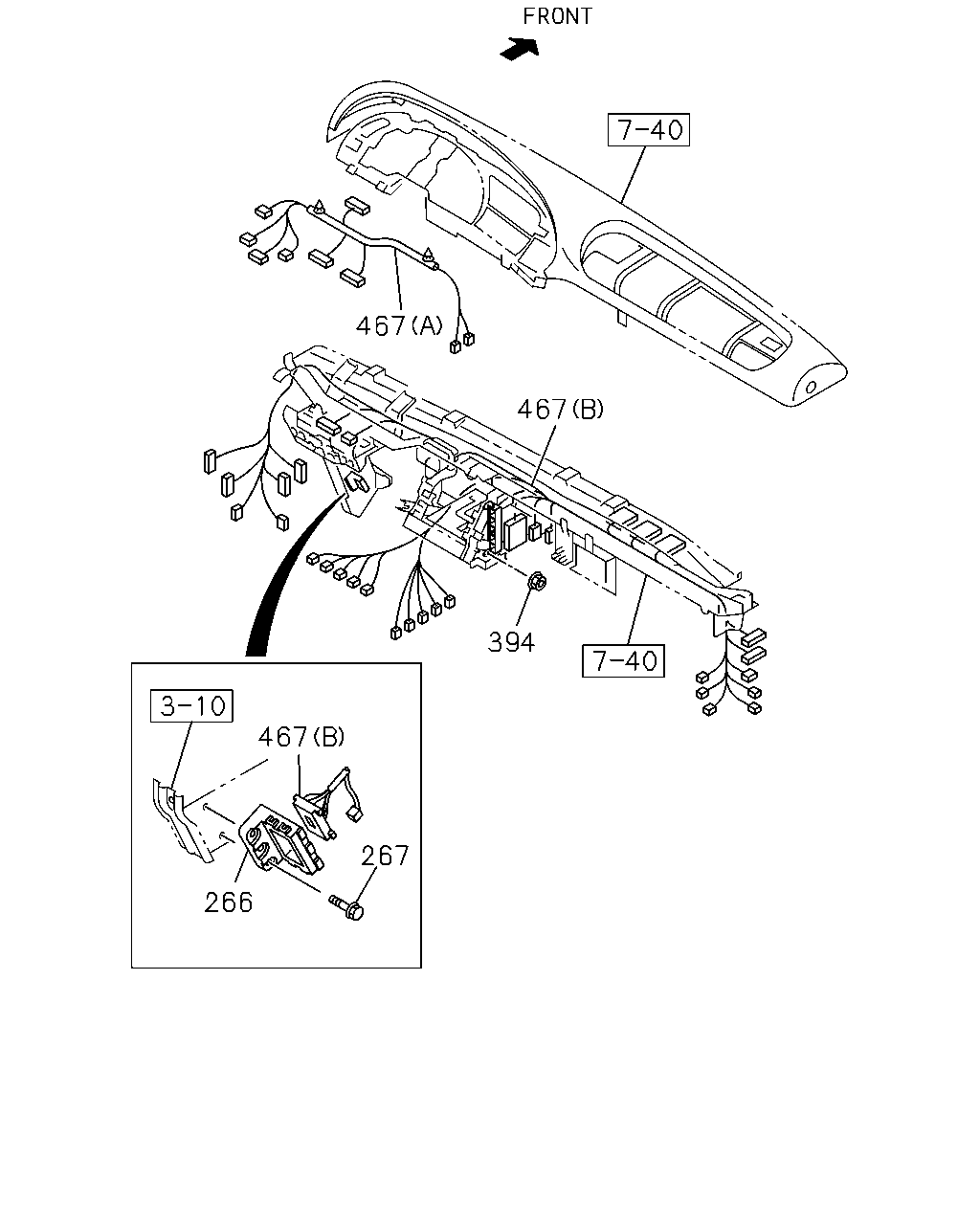

çizim 86316
467 467 394 467 267 266
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0509-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0509-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0509-0602
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0603-
467 HARNESS; FACIA
RUSSIA COUNTRY(CZ3) LIGHTING SYSTEM ECE<SLC> (A) 		8-98131-064-0 01 1 0810-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98126-514-1 01 1 0807-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98142-974-3 01 1 0908-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98094-269-0 01 1 0709-0802
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98094-269-0 01 1 0803-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98142-966-2 01 1 0908-
467 HARNESS; FACIA
(A) 		1-82662-742-1 01 1 0509-0809
467 HARNESS; FACIA
EXC. RUSSIA COUNTRY(CZ3) (A) 		1-82662-742-1 01 1 0810-
467 HARNESS; FACIA
(B) 		1-82662-743-3 01 1 0509-0708
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82662-743-3 01 1 0709-0802
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82662-743-3 01 1 0803-0805
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-97625-937-0 01 1 0806-0806
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98126-513-0 01 1 0807-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98142-973-3 01 1 0908-

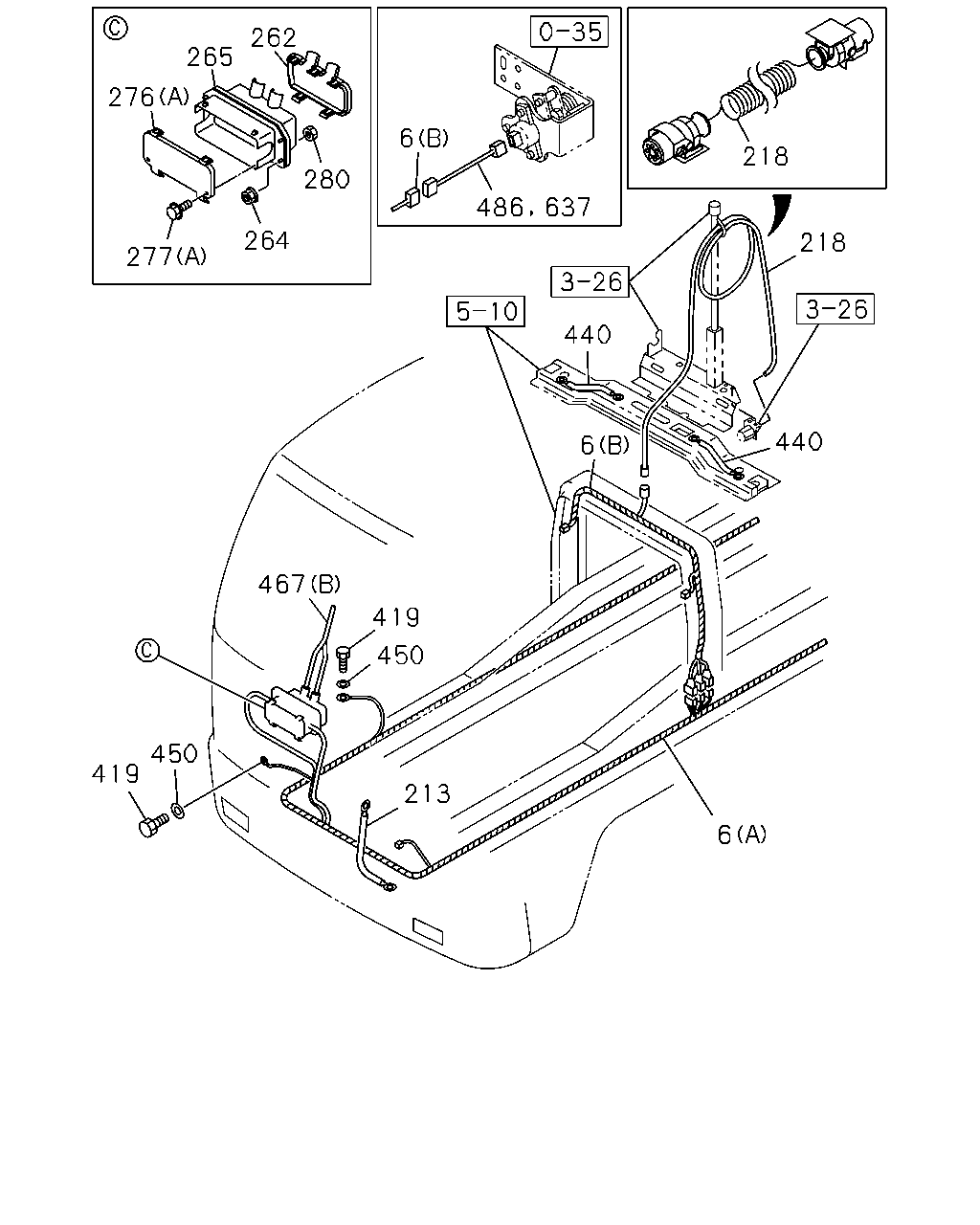

çizim 86510
262 265 276 6 218 280 486 637 264 218 277 440 440 6 467 419 450 450 419 213 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FULL FLOATING CAB(W16) (A) 		8-98131-404-0 01 1 0810-
6 HARNESS; FRAME
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FULL FLOATING CAB(W16) (A) 		8-98124-615-0 01 1 0807-0809
6 HARNESS; FRAME
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),FULL FLOATING CAB(W16) (A) 		8-98124-615-0 01 1 0810-
6 HARNESS; FRAME
(B) 		1-82677-379-4 01 1 0509-0706
6 HARNESS; FRAME
(B) 		1-82677-379-4 01 1 0707-
6 HARNESS; FRAME
(A) 		1-82677-365-8 01 1 0509-0806
6 HARNESS; FRAME
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16),FUEL SEDIMENTER WITH HEATER<6HU> (A) 		1-82677-365-9 01 1 0807-1407
6 HARNESS; FRAME
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16),FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-98276-855-0 01 1 1408-
213 CABLE; EARTH,CAB TO FRAME 1-82677-900-1 01 1 0509-
218 CABLE; JUMPER,ABS
L=4000 		1-82659-187-3 01 1 0509-0602
218 CABLE; JUMPER,ABS
ANTILOCK BRAKE SYSTEM(BFA) L=4000 		1-82659-187-3 01 1 0603-0802
218 CABLE; JUMPER,ABS
L=4000 		1-82659-187-3 01 1 0803-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0509-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0509-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0509-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0509-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0509-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0509-0512
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0509-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0509-0810
419 BOLT; CAB EARTH
EXC. ENGINE CONTROL COMMON RAIL(Q4R) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0707-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
M8X30 W/LK&PL WASHER 		8-97087-204-0 02 1 0509-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 07 1 0509-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
440 CABLE; EARTH 1-82678-273-0 02 1 0509-
450 WASHER; PL,CAB EARTH
EXC. ENGINE CONTROL COMMON RAIL(Q4R) ID=8.4 		1-09503-264-0 02 1 0707-0810
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 0509-0810
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0811-
467 HARNESS; FACIA
RUSSIA COUNTRY(CZ3) LIGHTING SYSTEM ECE<SLC> (A) 		8-98131-064-0 01 1 0810-
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98126-514-1 01 1 0807-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98142-974-3 01 1 0908-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98094-269-0 01 1 0709-0802
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98094-269-0 01 1 0803-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-98142-966-2 01 1 0908-
467 HARNESS; FACIA
(A) 		1-82662-742-1 01 1 0509-0809
467 HARNESS; FACIA
EXC. RUSSIA COUNTRY(CZ3) (A) 		1-82662-742-1 01 1 0810-
467 HARNESS; FACIA
(B) 		1-82662-743-3 01 1 0509-0708
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82662-743-3 01 1 0709-0802
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-82662-743-3 01 1 0803-0805
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		8-97625-937-0 01 1 0806-0806
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98126-513-0 01 1 0807-0907
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98142-973-3 01 1 0908-
486 HARNESS; ALL SPEED ACCEL
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82676-925-0 01 1 0907-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0810-

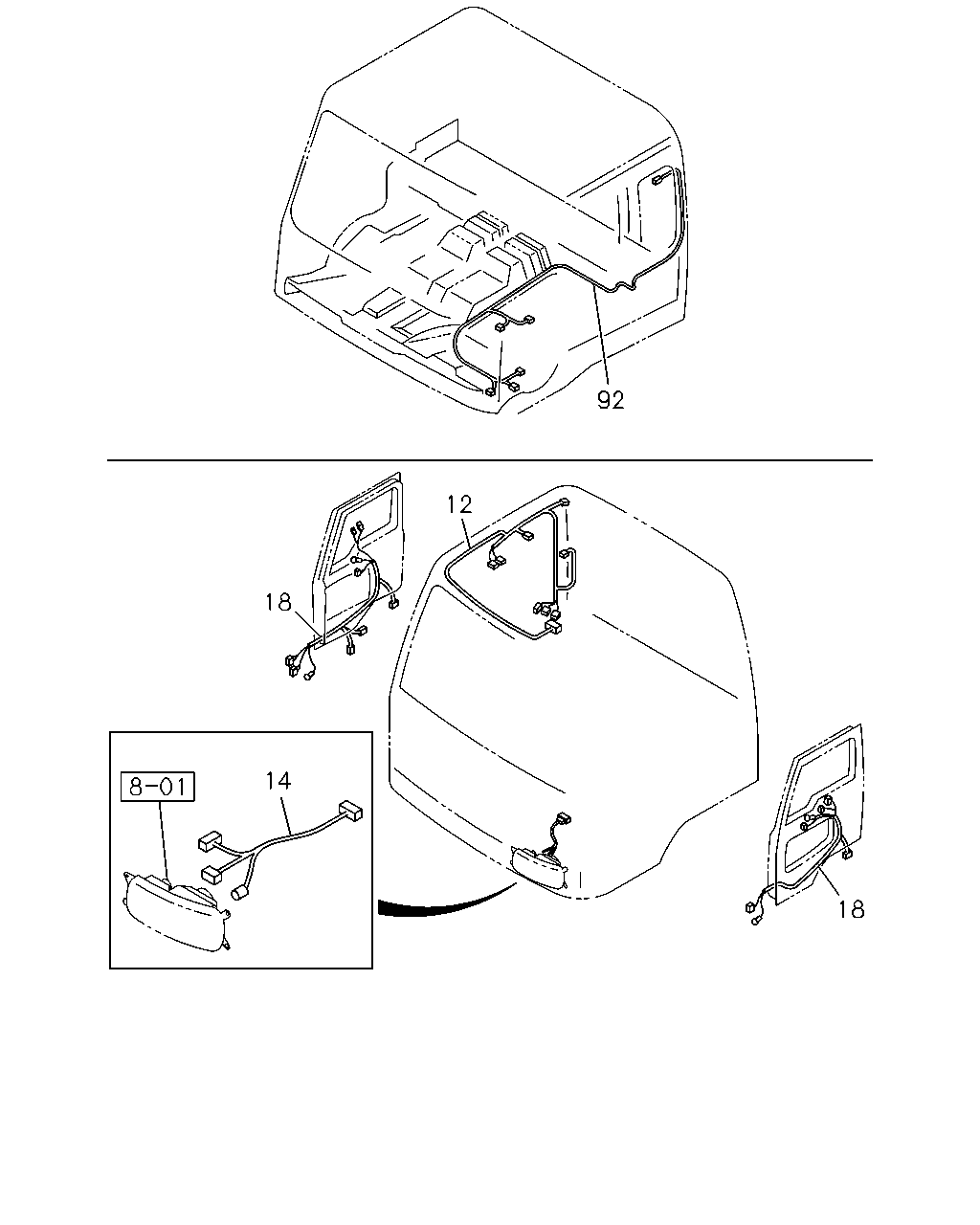

çizim 104250
92 12 18 14 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
ROOF MARKER LAMP<U01> 		8-98131-062-0 01 1 0810-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> 		1-82629-920-2 01 1 0603-0809
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> 		1-82629-920-2 01 1 0810-
12 HARNESS; ROOF 1-82629-921-2 01 1 0509-0602
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		1-82629-921-2 01 1 0603-
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82625-150-2 02 1 0603-0802
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 0509-0602
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82677-628-3 02 1 0603-0802
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 0803-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-582-0 01 1 0509-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-584-0 01 1 0509-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-032-0 01 1 0509-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-037-0 01 1 0509-
92 HARNESS; FLOOR
ENGINE CONTROL COMMON RAIL(Q4R) SAUDI ARABIA EQUIPMENT(WH1) 		8-98093-664-0 01 1 0709-
92 HARNESS; FLOOR 1-82662-036-1 01 1 0509-0708
92 HARNESS; FLOOR
ENGINE CONTROL COMMON RAIL(Q4R) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-82662-036-2 01 1 0709-

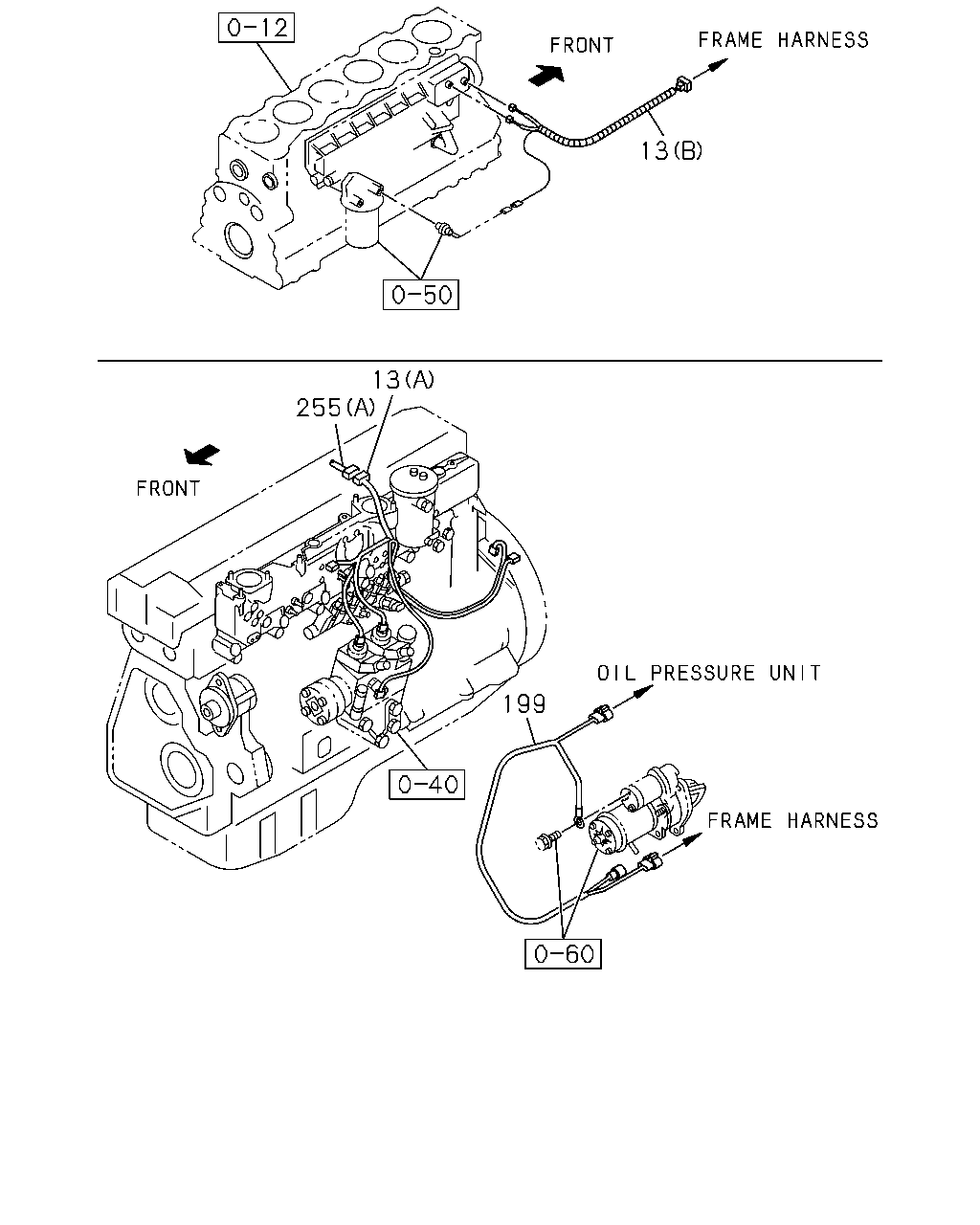

çizim 104333
199 255 13 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(A) 		1-82641-345-0 01 1 0509-0612
13 HARNESS; ENG
(A) 		8-97617-395-0 01 1 0701-1004
13 HARNESS; ENG
(A) 		8-98169-641-0 01 1 1005-
13 HARNESS; ENG
(B) 		1-82640-553-4 01 1 0509-
199 HARNESS; STARTER 1-82641-329-3 01 1 0509-
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 0509-1202
255 HARNESS; ELEC GOV
(A) 		8-97642-187-1 01 1 1203-
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 0509-1202
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203-

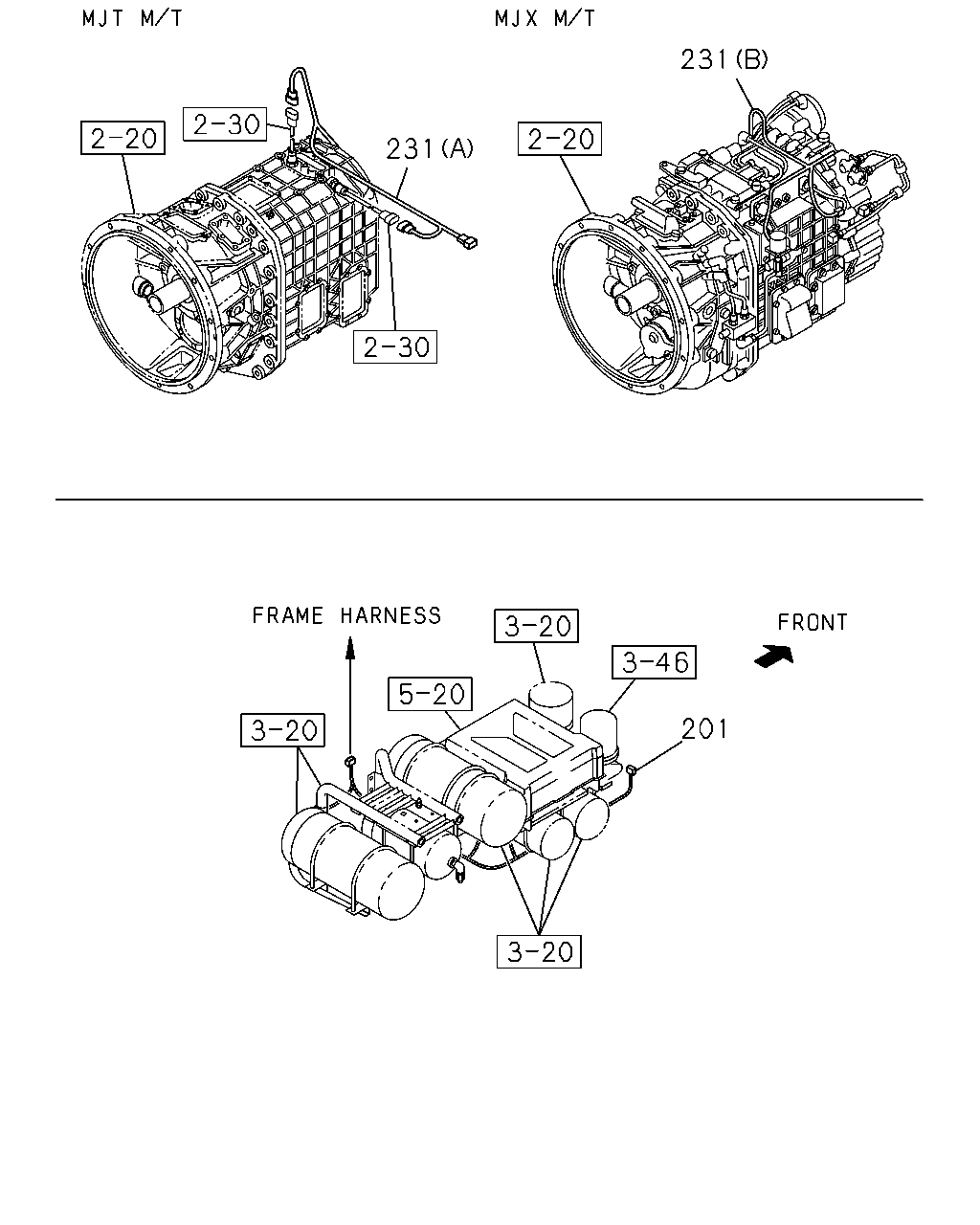

çizim 104335
231 231 201
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK 1-82678-222-1 01 1 0509-
231 HARNESS; TRANS
MJX M/T<Y9N> (B) 		1-82676-973-3 01 1 0810-
231 HARNESS; TRANS
(A) 		1-82676-366-4 01 1 0509-0609
231 HARNESS; TRANS
(A) 		8-97615-725-1 01 1 0610-0809
231 HARNESS; TRANS
MJT7 M/T<Y9E> (A) 		8-97615-725-1 01 1 0810-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
