Isuzu WW
▶
TRUCKS
▶
CVR
▶
10661 - CVR
▶
2 - Clutch, Transmission, Trans Axle
▶

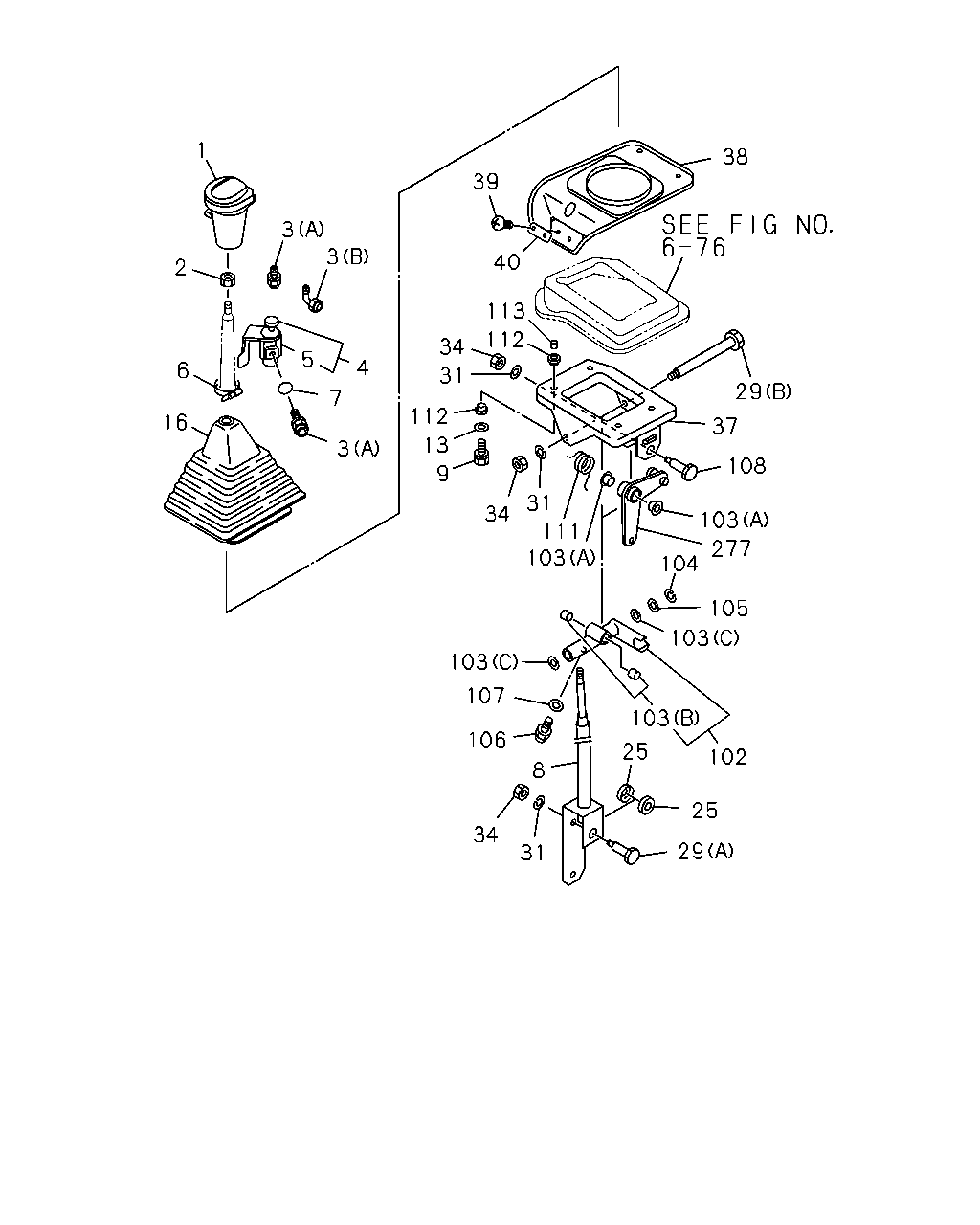

2-35B - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#2999) — 41 parça
29
25
102
25
103
31
34
106
8
107
103
103
105
104
277
103
108
37
29
103
111
31
34
9
13
112
31
34
112
113
40
39
38
1
3
3
2
6
16
3
7
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
CVR&RHD(CVR5M*)
1-33611-042-0
01
1
9002-9306
1
KNOB; CHANGE LEVER
CVR&LHD(CVR6M*)
1-33611-030-0
01
1
9002-9306
2
NUT; KNOB
1/2-13UNC
1-33619-033-0
01
1
9002-9306
3
CONNECTOR; CONT TUBE
(A)
1-33619-035-0
02
1
9002-9306
3
CONNECTOR; CONT TUBE
(B)
1-33619-036-0
02
1
9002-9306
4
VALVE; ACTUATOR
1-33712-003-0
01
1
9002-9306
5
BRACKET; ACTUATOR VLV
1-33719-078-0
01
1
9002-9306
6
CLAMP; BRKT
1-33719-079-0
01
1
9002-9306
7
GASKET; CONNECTOR
1-33619-034-0
03
1
9002-9306
8
LEVER; CHANGE
CVR&RHD(CVR5M*) L=298
1-33613-252-0
01
1
9002-9306
8
LEVER; CHANGE
CVR&LHD(CVR6M*) L=308
1-33613-223-1
01
1
9002-9306
9
BOLT; CHANGE LEVER
M8X25 W/LK WASHER
9-01910-825-0
04
1
9002-9005
9
BOLT; CHANGE LEVER
M8X25 W/LK WASHER
0-50040-825-0
04
1
9006-9302
9
BOLT; CHANGE LEVER
M8X25 FLANGE
0-28080-825-0
04
1
9303-9306
13
WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22
9-09160-708-0
04
1
9002-9306
16
BOOT; CHANGE LEVER
CVR&RHD(CVR5M*)
1-79997-145-5
01
1
9002-9306
16
BOOT; CHANGE LEVER
CVR&LHD(CVR6M*)
1-79997-179-4
01
1
9002-9306
25
WASHER
ID=16.5 OD=27.8 H=3.5
1-09503-047-0
02
1
9002-9306
29
SHAFT
(A) L=61
1-33619-126-2
01
1
9002-9306
29
SHAFT
(B) L=135
1-33619-127-0
01
1
9002-9306
31
WASHER; LK
ID=10.2
9-09150-510-0
03
1
9002-9306
34
NUT
M10
9-09110-410-0
03
1
9002-9306
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-166-1
01
1
9002-9306
38
HOLDER; BOOT CHANGE LEVER
1-79997-152-5
01
1
9002-9306
39
SCREW; BOOT,CHANGE LEVER
M6X20 W/LK&PL WASHER
1-09981-312-0
04
1
9002-9306
40
SEAL; BOOT HOLDER CHANGE LEVER
1-79997-151-1
01
1
9002-9306
102
SPIDER ASM
1-33615-022-3
01
1
9002-9306
103
BUSHING; RELAY LEVER
(A) ID=16 OD=18 L=12.5
1-09330-048-0
02
1
9002-9306
103
BUSHING; RELAY LEVER
(B) ID=16 OD=18 L=16
1-09330-049-0
02
1
9002-9306
103
BUSHING; RELAY LEVER
(C) ID=16 OD=18 H=16
1-09503-151-0
02
1
9002-9306
104
WASHER; WAVED
9-09855-315-0
03
1
9002-9306
105
SHIM; CHANGE LEVER
1-33659-096-0
03
1
9002-9306
106
NIPPLE; GREASE
M6 STRAIGHT
9-09031-006-0
01
1
9002-9306
107
WASHER; PL
ID=6.4
9-09160-506-0
01
1
9002-9306
108
SHAFT; SELECT LEVER
1-33619-128-1
01
1
9002-9306
111
SPRING
CVR&RHD(CVR5M*)
1-09585-091-2
01
1
9002-9306
111
SPRING
CVR&LHD(CVR6M*)
1-09585-106-0
01
1
9002-9306
112
RUBBER; CUSHION
1-33619-148-0
08
1
9002-9306
113
SPACER
9-09651-072-0
04
1
9002-9306
277
LEVER; RELAY
CVR&RHD(CVR5M*)
1-33651-250-3
01
1
9002-9306
277
LEVER; RELAY
CVR&LHD(CVR6M*)
1-33651-314-0
01
1
9002-9306
