8-01 — LAMP; FRONT AND FRONT SIDE (#29987) — 258 parça

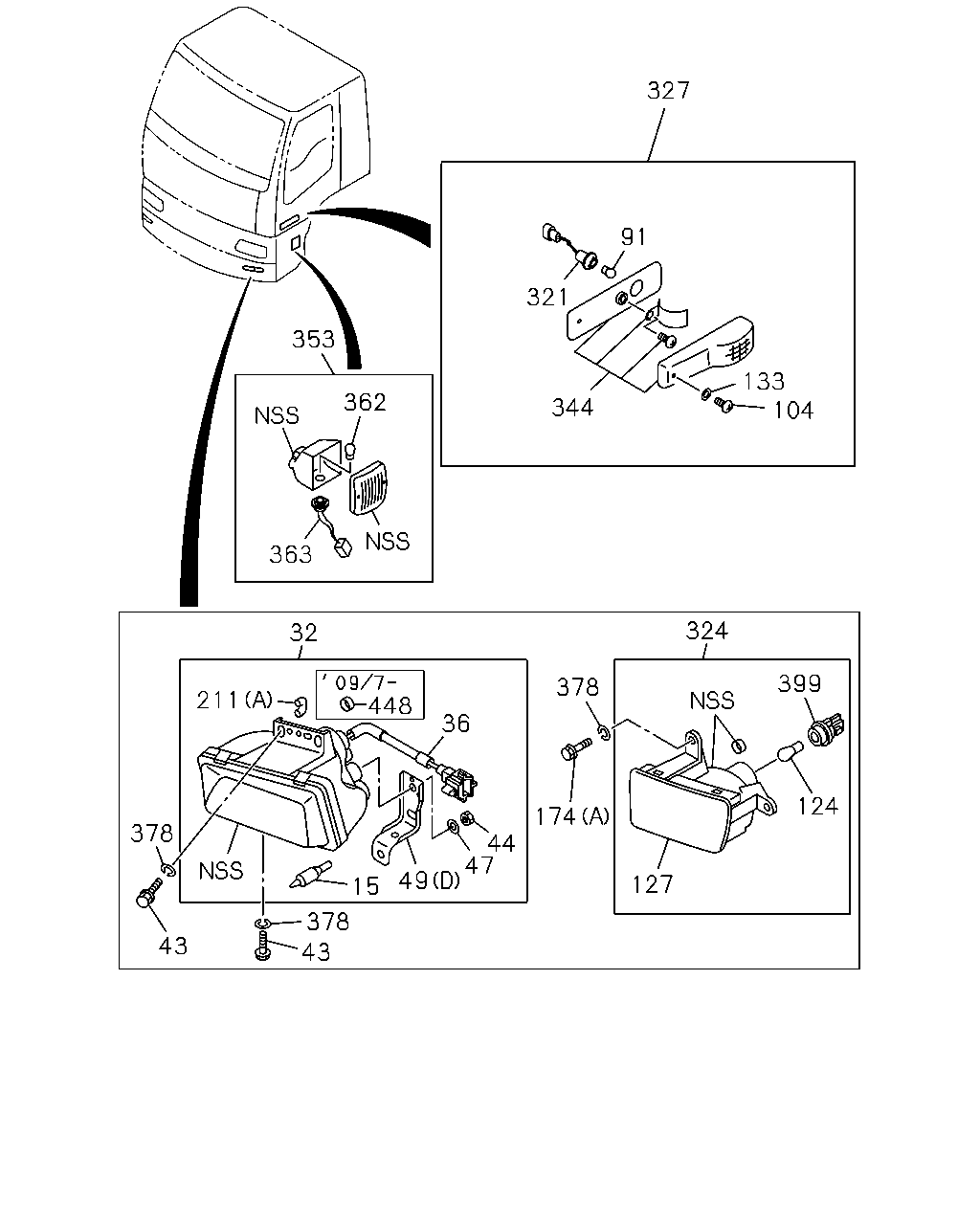

çizim 86282
327 133 344 321 91 104 399 124 127 174 44 47 49 15 378 43 43 378 211 448 36 378 324 362 353 363 32
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0509-
32 LAMP ASM; FOG
CHINA EQUIPMENT(YT2) 		1-82110-475-0 01 1 0701-0712
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302-
32 LAMP ASM; FOG
CHINA EQUIPMENT(YT2) 		1-82110-476-0 01 1 0701-0712
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302-
32 LAMP ASM; FOG 1-82110-453-0 01 1 0509-0612
32 LAMP ASM; FOG
EXC. CHINA EQUIPMENT(YT2) 		1-82110-453-0 01 1 0701-0712
32 LAMP ASM; FOG 1-82110-454-0 01 1 0509-0612
32 LAMP ASM; FOG
EXC. CHINA EQUIPMENT(YT2) 		1-82110-454-0 01 1 0701-0712
36 CORD; FOG LAMP 1-82118-015-0 01 1 0509-
36 CORD; FOG LAMP 1-82118-016-0 01 1 0509-
43 BOLT; FOG LAMP
M6X20 W/LK&PL WASHER 		0-50140-620-0 06 1 0509-0512
43 BOLT; FOG LAMP
M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0601-0601
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 06 1 0602-
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0509-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0509-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0509-0602
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-100-0 02 1 0603-0802
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0803-
49 BRACKET; LAMP
(B) 		1-82117-101-0 01 1 0509-0602
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-101-0 01 1 0603-0802
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0803-
49 BRACKET; LAMP
(B) 		1-82117-102-0 01 1 0509-0602
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-102-0 01 1 0603-0802
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0803-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0509-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0509-
91 BULB; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 0603-0708
91 BULB; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 12W 		1-82194-030-0 02 1 0709-
91 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0509-0602
91 BULB; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0603-0708
91 BULB; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 02 1 0709-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0509-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0509-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0509-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0509-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0509-0602
133 WASHER; PL,SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0603-0708
133 WASHER; PL,SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-150-0 02 1 0709-
174 BOLT
(A) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 0509-0512
174 BOLT
(A) M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601-0601
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0602-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0509-0808
174 BOLT
LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0809-0809
174 BOLT
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0810-
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0509-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0509-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0509-0906
321 HARNESS; SIDE FLASHER LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0603-0708
321 HARNESS; SIDE FLASHER LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-253-0 02 1 0709-
321 HARNESS; SIDE FLASHER LAMP 1-82218-002-0 02 1 0509-0602
321 HARNESS; SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0603-0708
321 HARNESS; SIDE FLASHER LAMP
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82218-002-0 02 1 0709-
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0509-
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0509-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 0603-0708
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-007-6 01 1 0709-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 0603-0708
327 LAMP ASM; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-011-6 01 1 0709-
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-227-2 01 1 0509-0602
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82210-227-2 01 1 0603-0708
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82210-227-2 01 1 0709-
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-228-2 01 1 0509-0602
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82210-228-2 01 1 0603-0708
327 LAMP ASM; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82210-228-2 01 1 0709-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 0603-0708
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-240-1 01 1 0709-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 0603-0708
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-241-1 01 1 0709-
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-020-0 01 1 0509-0602
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0603-0708
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82213-020-0 01 1 0709-
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-021-0 01 1 0509-0602
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0603-0708
344 LAMP UNIT; SIDE TURN SIGNAL
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82213-021-0 01 1 0709-
353 LAMP ASM; STEP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 5W 		1-86830-248-2 01 1 0603-0708
353 LAMP ASM; STEP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 5W 		1-86830-248-3 01 1 0709-
362 BULB; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 5W 		1-82194-042-0 01 1 0603-0708
362 BULB; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 5W 		1-82194-042-0 01 1 0709-
363 HARNESS; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-86830-296-0 01 1 0603-0708
363 HARNESS; STEP LAMP
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-86830-296-0 01 1 0709-
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 04 1 0602-0605
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0606-
378 WASHER; PL
ID=6.4 OD=14 		9-09160-606-0 06 1 0602-0605
378 WASHER; PL
ID=6.4 		0-91610-606-0 06 1 0606-
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0509-
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907-

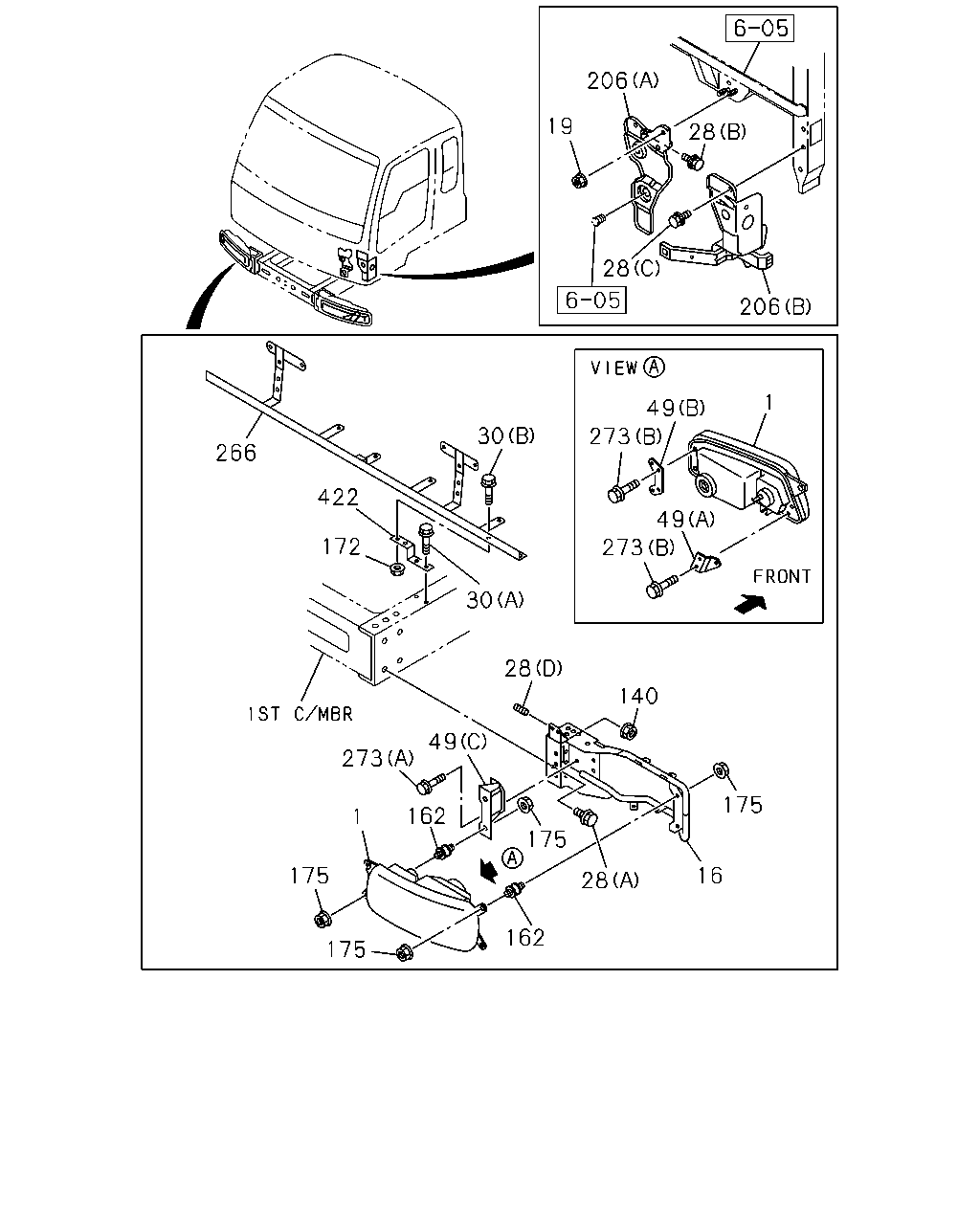

çizim 86283
206 19 28 28 206 1 49 30 266 422 49 172 30 28 140 49 273 175 12 1 175 175 16 28 162 175 273 273
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2) 		1-82110-480-0 01 1 0701-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2) 		8-98097-190-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-190-1 01 1 0801-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2) 		1-82110-481-0 01 1 0701-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2) 		8-98097-191-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-191-1 01 1 0801-
1 LAMP ASM; HEAD 1-82110-455-2 01 1 0509-0602
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-455-2 01 1 0603-0612
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2) 		1-82110-455-2 01 1 0701-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2) 		8-98097-192-0 01 1 0712-0712
1 LAMP ASM; HEAD 1-82110-456-2 01 1 0509-0602
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-456-2 01 1 0603-0612
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2) 		1-82110-456-2 01 1 0701-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2) 		8-98097-193-0 01 1 0712-0712
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-393-2 01 1 0603-0711
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-196-0 01 1 0712-
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-394-2 01 1 0603-0711
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-197-0 01 1 0712-
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0509-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0509-0602
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-97608-505-1 01 1 0603-0802
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0803-
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0509-0602
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-97608-506-2 01 1 0603-0802
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0803-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0509-
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28681-030-0 06 1 0509-0512
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0601-0602
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) M10X30 FLANGE 		0-28651-030-0 06 1 0603-0802
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0803-
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0509-0602
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0603-0802
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0803-
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0509-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0509-
30 BOLT; STAY
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512
30 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
30 BOLT; STAY
(A) M10X25 FLANGE 		0-28681-025-0 04 1 0509-0512
30 BOLT; STAY
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0601-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0509-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0509-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0509-0602
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-100-0 02 1 0603-0802
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0803-
49 BRACKET; LAMP
(B) 		1-82117-101-0 01 1 0509-0602
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-101-0 01 1 0603-0802
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0803-
49 BRACKET; LAMP
(B) 		1-82117-102-0 01 1 0509-0602
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-102-0 01 1 0603-0802
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0803-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0509-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0509-
140 NUT
M10 FLANGE 		0-91150-210-0 02 1 0509-0602
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91150-210-0 02 1 0603-0603
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 02 1 0603-0802
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0803-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0509-0602
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-086-0 08 1 0603-0802
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0803-
172 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
172 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0509-0602
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91150-108-0 16 1 0603-0603
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 0603-0802
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0803-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0509-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0509-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0509-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0509-
266 STAY; BRKT,HEADLAMP 1-82117-163-2 01 1 0509-
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 04 1 0509-0512
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28680-616-0 08 1 0509-0512
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0601-0602
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE 		0-28650-616-0 08 1 0603-0802
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0803-
422 BRACKET; HEADLAMP STAY 1-82698-605-0 02 1 0509-

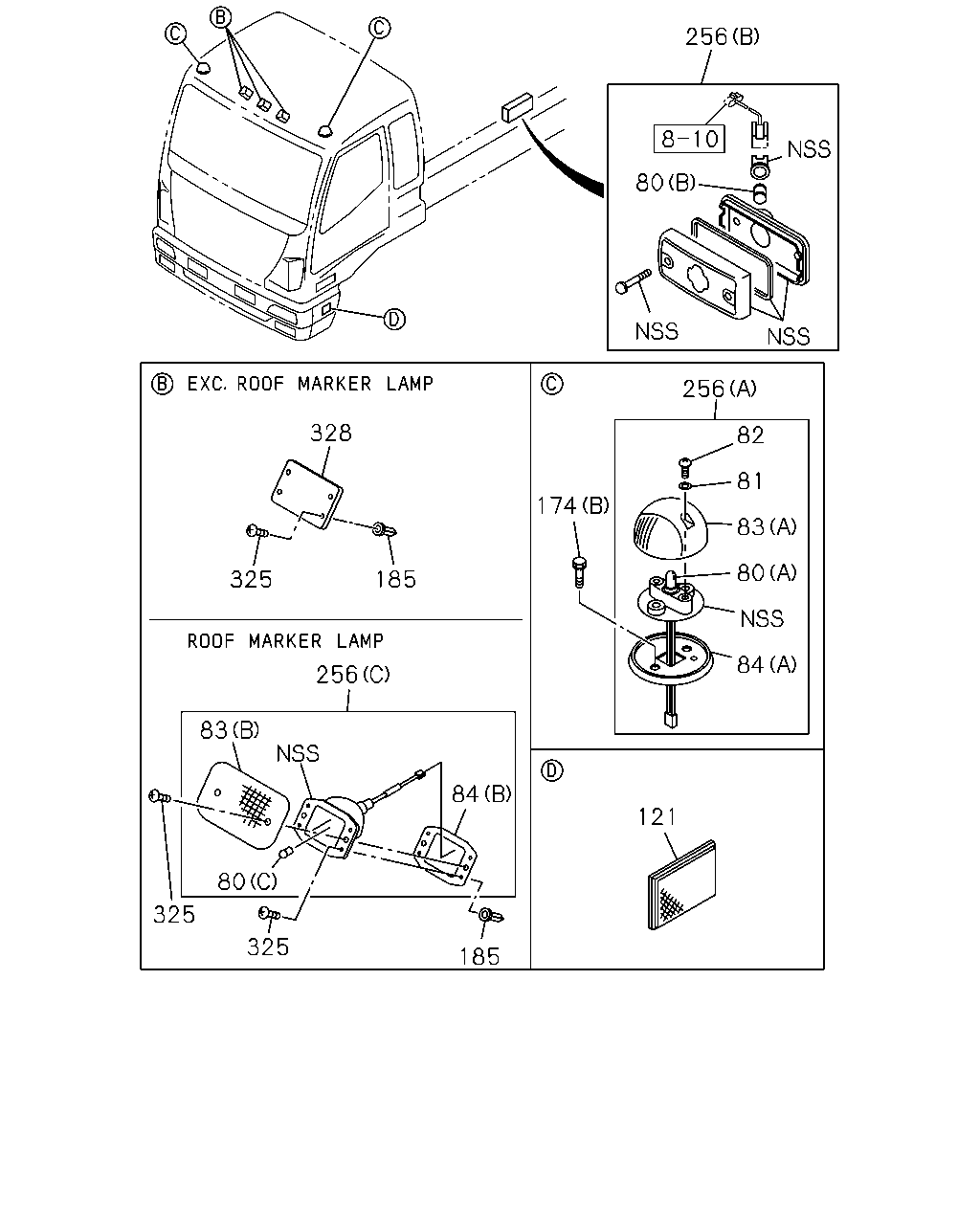

çizim 86306
256 80 256 328 82 81 174 83 80 185 325 84 256 83 84 121 80 325 325 185
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
RUSSIA COUNTRY(CZ3) LIGHTING SYSTEM ECE<SLC> (B) 24V 3W 		1-82219-035-0 06 1 0810-
80 BULB; MARKER LAMP
ROOF MARKER LAMP<U01> (C) 24V 12W 		9-82691-302-0 03 1 0810-
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 0509-0602
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W 		8-94135-397-0 02 1 0603-0809
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (A) 24V 5W 		8-94135-397-0 02 1 0810-
81 SEAT; SCREW 1-82219-012-0 04 1 0509-0602
81 SEAT; SCREW
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 0603-0809
81 SEAT; SCREW
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> 		1-82219-012-0 04 1 0810-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0509-0602
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 0603-0809
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> 		1-82219-011-0 04 1 0810-
83 LENS; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-82215-068-0 03 1 0810-
83 LENS; MARKER LAMP
(A) 		1-82215-046-0 02 1 0509-0602
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 		1-82215-046-0 02 1 0603-0809
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (A) 		1-82215-046-0 02 1 0810-
84 GASKET; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-86830-153-0 03 1 0810-
84 GASKET; MARKER LAMP
(A) 		1-86830-288-0 02 1 0509-0602
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-288-0 02 1 0603-0809
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (A) 		1-86830-288-0 02 1 0810-
121 REFLECTOR; REFLEX
RUSSIA COUNTRY(CZ3) LIGHTING SYSTEM ECE<SLC> 		8-98013-990-1 02 1 0810-
174 BOLT
(A) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 0509-0512
174 BOLT
(A) M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601-0601
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0602-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0509-0808
174 BOLT
LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0809-0809
174 BOLT
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0810-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0509-
256 LAMP; MARKER
RUSSIA COUNTRY(CZ3) LIGHTING SYSTEM ECE<SLC> (B) 		1-82210-244-0 06 1 0810-
256 LAMP; MARKER
ROOF MARKER LAMP<U01> (C) 		1-86830-170-0 03 1 0810-
256 LAMP; MARKER
(A) 		1-86830-242-2 02 1 0509-0602
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> (A) 		1-86830-242-3 02 1 0603-0809
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01> (A) 		1-86830-242-3 02 1 0810-
325 SCREW; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> M5X20 TAPPING 		0-71090-520-0 18 1 0812-
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		9-07066-514-0 12 1 0509-0603
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0604-0811
325 SCREW; SPD INDICATOR LAMP
EXC. ROOF MARKER LAMP<U01> M5X14 TAPPING 		0-71040-514-0 12 1 0812-
328 COVER; LAMP 1-76217-122-1 03 1 0509-0809
328 COVER; LAMP
EXC. ROOF MARKER LAMP<U01> 		1-76217-122-1 03 1 0810-
çizim 86531
1 12 340 5 14 23 202 202 18 339 338 13 211 13 13 4
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2) 		1-82110-480-0 01 1 0701-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2) 		8-98097-190-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-190-1 01 1 0801-
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2) 		1-82110-481-0 01 1 0701-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2) 		8-98097-191-0 01 1 0712-0712
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-191-1 01 1 0801-
1 LAMP ASM; HEAD 1-82110-455-2 01 1 0509-0602
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-455-2 01 1 0603-0612
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2) 		1-82110-455-2 01 1 0701-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2) 		8-98097-192-0 01 1 0712-0712
1 LAMP ASM; HEAD 1-82110-456-2 01 1 0509-0602
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-456-2 01 1 0603-0612
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2) 		1-82110-456-2 01 1 0701-0711
1 LAMP ASM; HEAD
BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2) 		8-98097-193-0 01 1 0712-0712
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-393-2 01 1 0603-0711
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-196-0 01 1 0712-
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-394-2 01 1 0603-0711
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98097-197-0 01 1 0712-
4 HEADLAMP UNIT 1-82119-212-0 01 1 0509-0602
4 HEADLAMP UNIT
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-212-0 01 1 0603-
4 HEADLAMP UNIT 1-82119-213-0 01 1 0509-0602
4 HEADLAMP UNIT
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-213-0 01 1 0603-
4 HEADLAMP UNIT
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-175-0 01 1 0603-
4 HEADLAMP UNIT
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-176-0 01 1 0603-
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0509-
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0509-
13 CLIP; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 02 1 0509-0510
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0511-0602
13 CLIP; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 02 1 0603-0711
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0712-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0509-
13 CLIP; HEADLAMP
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 04 1 0509-0510
13 CLIP; HEADLAMP
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 04 1 0603-0711
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0509-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0509-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0509-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0509-
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0509-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0509-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0509-0906
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 0509-0602
338 LEVELING; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98010-256-0 02 1 0603-
339 GASKET; LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-86830-158-0 02 1 0509-0510
339 GASKET; LEVELING 1-86830-158-0 02 1 0511-0602
339 GASKET; LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-86830-158-0 02 1 0603-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
