Sayfa 7-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

7-10 — CAUTION PLATE AND LABEL (#29978) — 115 parça

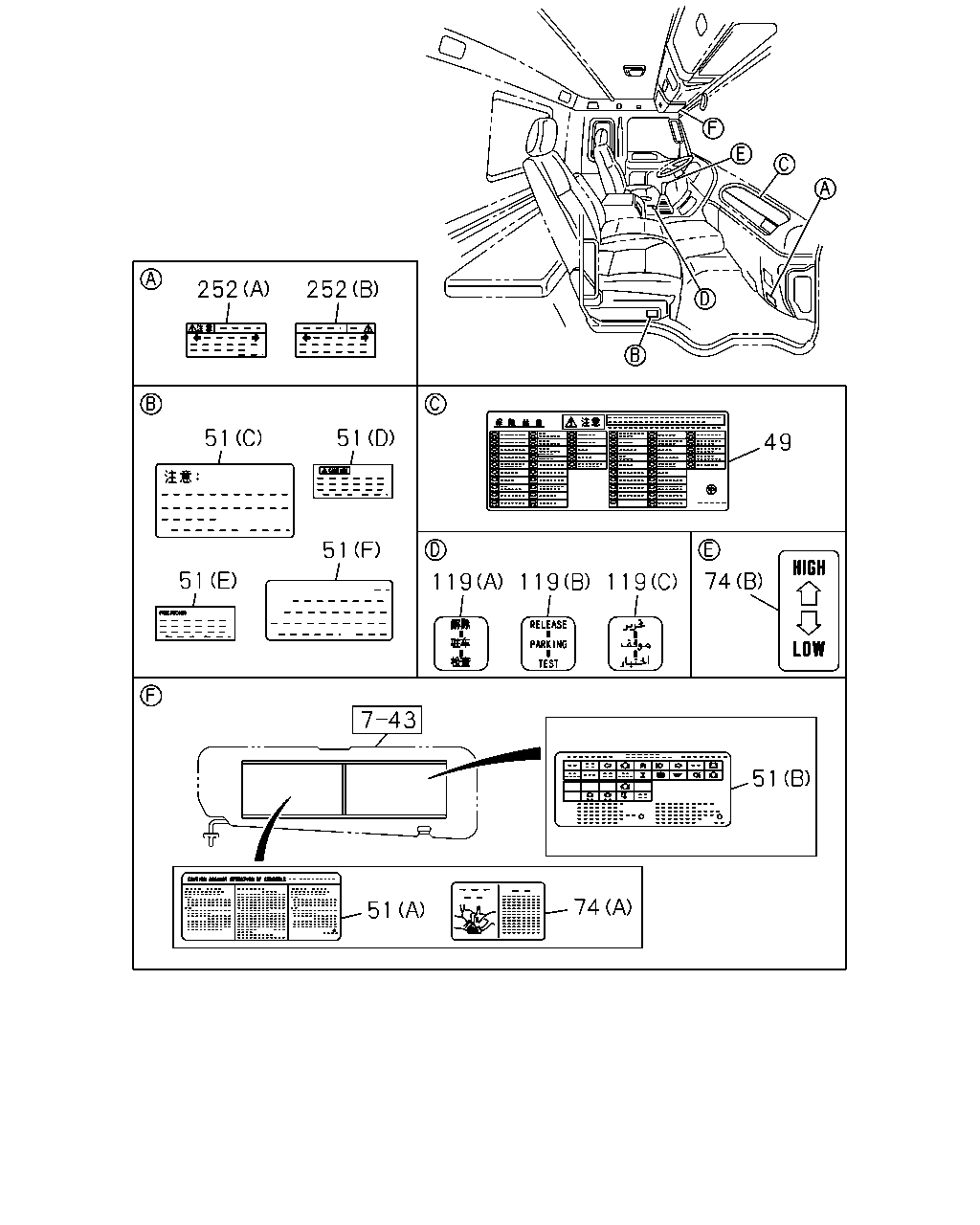

252 252 51 51 49 51 51 74 119 119 119 51 74 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8> FUEL SEDIMENTER WITH HEATER<6HU>	8-98124-638-0	01	1	0807-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-331-0	01	1	0707-0708
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	8-97624-086-0	01	1	0709-
49	PLATE; CAUTION,FUSE BOX CAUTIONS PORTUGUESE<NAT>	1-85878-332-0	01	1	0603-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	1-85878-393-0	01	1	0603-0806
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8> EXC. FUEL SEDIMENTER WITH HEATER<6HU>	1-85878-393-0	01	1	0807-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-331-0	01	1	0603-0705
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85878-556-0	01	1	0603-
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-555-0	01	1	0603-
49	PLATE; CAUTION,FUSE BOX	1-85878-431-0	01	1	0509-0602
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-431-0	01	1	0603-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (G)	8-97633-742-0	01	1	0905-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-787-0	01	1	0709-
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (F)	8-97624-052-0	01	1	0709-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (D)	1-85878-544-0	01	1	0603-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (E)	8-97613-336-0	01	1	0603-
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (B)	1-85878-434-0	01	1	0603-0705
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (B)	1-85878-434-0	01	1	0706-0706
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (B)	1-85878-434-0	01	1	0707-0708
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1) (B)	1-85878-434-0	01	1	0709-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> EXC. CHINA EQUIPMENT(YT2) (A)	1-85880-777-0	01	1	0603-
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8>,CAUTIONS SPANISH<YN1> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (B)	1-85878-433-0	01	1	0603-
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) (B)	1-85878-432-0	01	1	0603-0708
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B)	1-85878-432-0	01	1	0709-
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-786-0	01	1	0603-
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	1-85880-785-0	01	1	0603-
51	PLATE; CAUTION,WARNING (C)	8-97606-278-0	01	1	0509-0602
51	PLATE; CAUTION,WARNING CHINA EQUIPMENT(YT2) (C)	8-97606-278-0	01	1	0603-0605
51	PLATE; CAUTION,WARNING CHINA EQUIPMENT(YT2) (C)	8-97616-500-0	01	1	0606-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS ARABIAN<WJ7> (A)	8-98124-445-0	01	1	0812-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS CHINESE<SL7> (A)	1-85881-849-0	01	1	0810-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS CHINESE<SL7> (B)	8-98120-457-0	01	1	0810-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS SPANISH<YN1> (A)	1-85881-946-0	01	1	0810-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) EXC. CAUTIONS CHINESE<SL7> (B)	8-98118-493-0	01	1	0810-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> (A)	1-85881-836-0	01	1	0810-1004
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> (A)	1-85881-836-0	01	1	1005-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ARABIAN<WJ7> (C)	1-85881-980-0	01	1	0709-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS FRENCH<WJ8> (B)	1-85881-943-0	01	1	0603-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1> (B)	1-85881-942-0	01	1	0603-
119	PLATE; CAUTION,HAND BRK LEVER EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B)	1-85881-791-0	01	1	0603-0705
119	PLATE; CAUTION,HAND BRK LEVER EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	1-85881-791-0	01	1	0706-0706
119	PLATE; CAUTION,HAND BRK LEVER EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B)	1-85881-791-0	01	1	0707-
119	PLATE; CAUTION,HAND BRK LEVER (A)	1-85881-883-0	01	1	0509-0602
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS CHINESE<SL7> (A)	1-85881-883-0	01	1	0603-
252	PLATE; CAUTION,HARNESS CAUTIONS ARABIAN<WJ7> (B)	8-97623-996-0	01	1	0709-
252	PLATE; CAUTION,HARNESS CAUTIONS ENGLISH<RR8> (A)	1-85878-488-1	01	1	0603-
252	PLATE; CAUTION,HARNESS CAUTIONS FRENCH<WJ8> (A)	1-85878-560-0	01	1	0603-
252	PLATE; CAUTION,HARNESS CAUTIONS SPANISH<YN1> (A)	1-85878-559-0	01	1	0603-
252	PLATE; CAUTION,HARNESS (A)	1-85878-515-0	01	1	0509-0602
252	PLATE; CAUTION,HARNESS CAUTIONS CHINESE<SL7> (A)	1-85878-515-0	01	1	0603-

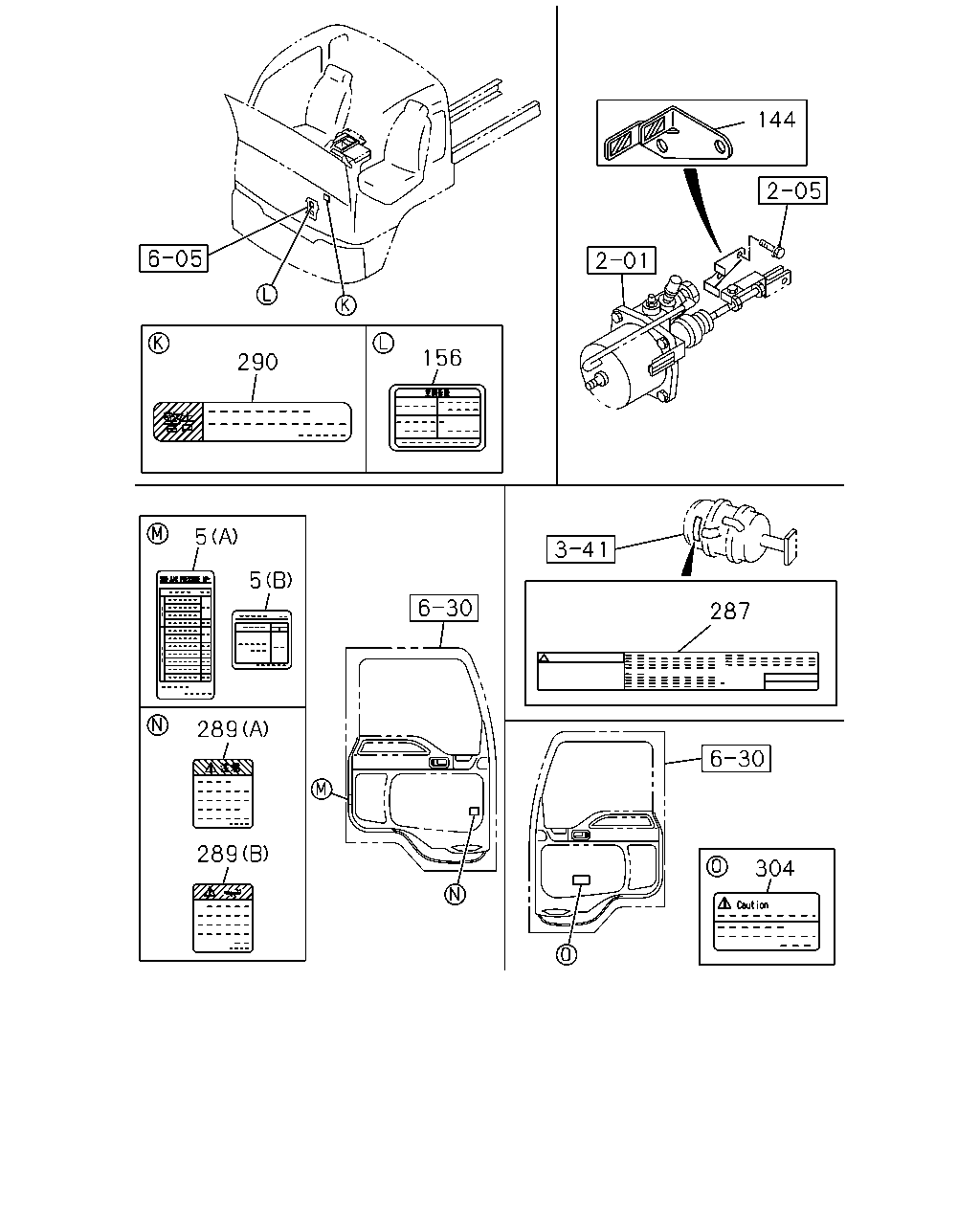

144 156 290 5 5 287 289 289 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	LABEL; TIRE AIR PRESSURE EXC. CHINA EQUIPMENT(YT2) (A)	1-85880-778-0	01	1	0603-
5	LABEL; TIRE AIR PRESSURE (B)	1-85881-887-0	01	1	0509-0602
5	LABEL; TIRE AIR PRESSURE CHINA EQUIPMENT(YT2) (B)	1-85881-887-0	01	1	0603-1109
5	LABEL; TIRE AIR PRESSURE CHINA EQUIPMENT(YT2) (B)	8-98201-252-0	01	1	1110-
144	PLATE; CAUTION,CLU MJX16P M/T(Y3Z)	1-85878-345-0	01	1	0810-
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-85878-528-0	01	1	0509-0602
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60) CHINA EQUIPMENT(YT2)	1-85878-528-0	01	1	0603-
287	PLATE; CAUTION,SPRING CHAMBER CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-238-0	04	1	0603-0709
289	PLATE; CAUTION,DRIVING CAUTIONS ARABIAN<WJ7> (B)	8-98093-472-0	01	1	0709-
289	PLATE; CAUTION,DRIVING (A)	1-85883-223-1	01	1	0509-0602
289	PLATE; CAUTION,DRIVING CAUTIONS CHINESE<SL7> (A)	1-85883-223-1	01	1	0603-
290	PLATE; CAUTION,OIL TANK	1-85881-876-0	01	1	0509-0602
290	PLATE; CAUTION,OIL TANK CHINA EQUIPMENT(YT2)	1-85881-876-0	01	1	0603-
304	PLATE; CAUTION,LOW TEMP CAUTIONS ENGLISH<RR8>	8-98048-989-0	01	1	0810-

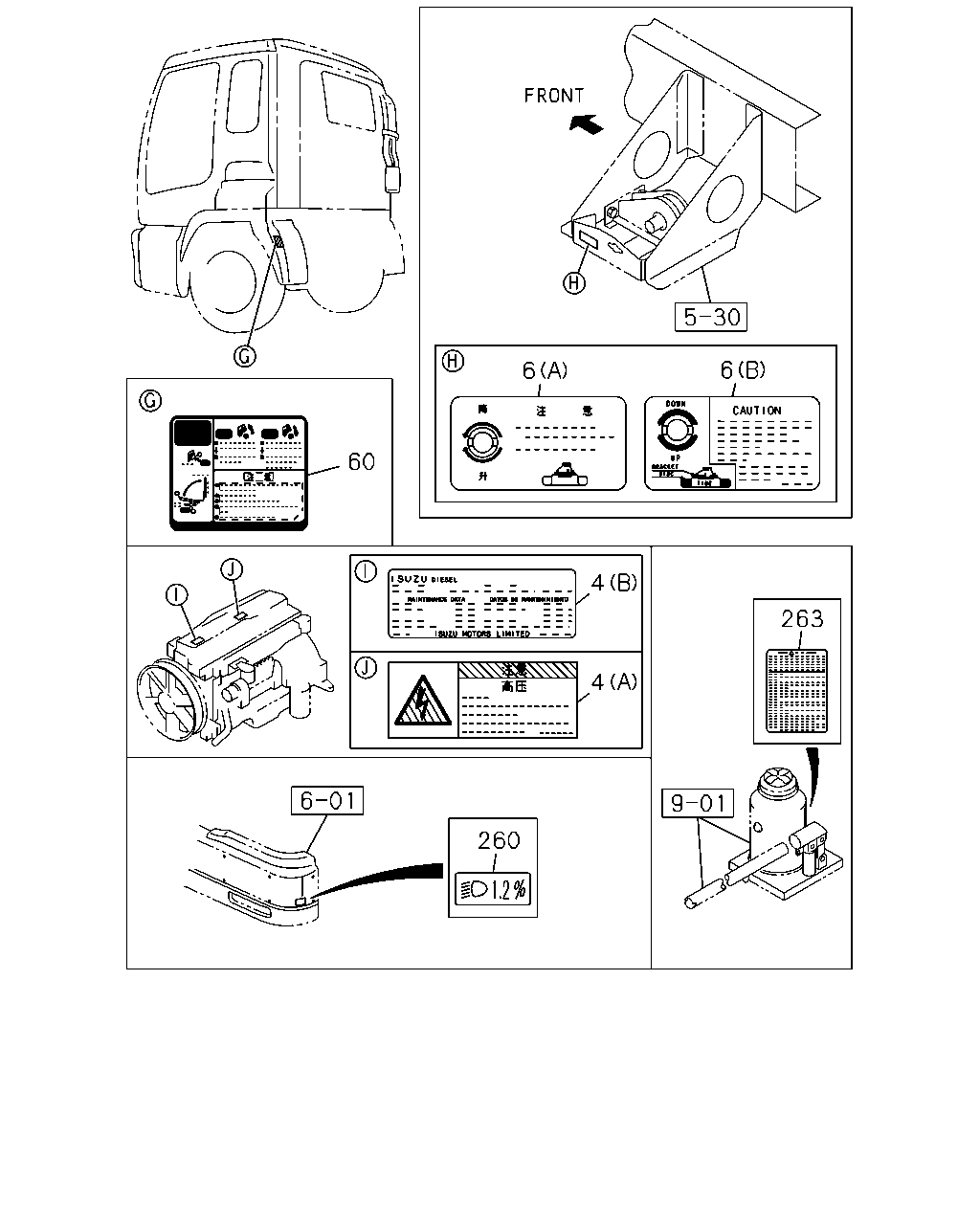

6 6 60 4 263 4 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) SAUDI ARABIA EQUIPMENT(WH1) (A)	8-98088-627-0	01	1	0707-
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98088-630-0	01	1	0707-
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (A)	8-94391-524-0	01	1	0603-0704
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (A)	8-94391-524-0	02	1	0705-0902
4	LABEL; ENG MAINTENANCE GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) (A)	8-94391-524-0	01	1	0903-
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) GENERAL EXPORT EQUIPMENT(TAA) (B)	1-85875-462-0	01	1	0603-0704
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) GENERAL EXPORT EQUIPMENT(TAA) (B)	1-85875-462-0	02	1	0705-0902
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) GENERAL EXPORT EQUIPMENT(TAA) (B)	1-85875-462-1	01	1	0903-
4	LABEL; ENG MAINTENANCE 6WF1 TC(84L) (B)	1-85875-463-0	01	1	0603-0704
4	LABEL; ENG MAINTENANCE 6WF1 TC(84L) (B)	1-85875-463-0	02	1	0705-0902
4	LABEL; ENG MAINTENANCE 6WF1 TC(84L) (B)	1-85875-463-1	01	1	0903-
4	LABEL; ENG MAINTENANCE (A)	1-85875-456-0	01	1	0509-0602
4	LABEL; ENG MAINTENANCE CHINA EQUIPMENT(YT2) (A)	1-85875-456-0	01	1	0603-
4	LABEL; ENG MAINTENANCE (B)	8-97612-153-0	01	1	0509-0602
4	LABEL; ENG MAINTENANCE CHINA EQUIPMENT(YT2) (B)	8-97612-153-1	01	1	0603-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> (B)	8-98082-441-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	0603-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	0603-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (B)	8-98082-439-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	0603-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	0709-0709
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	8-98082-437-0	01	1	0709-
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-85883-113-0	01	1	0509-0602
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A)	1-85883-113-0	01	1	0603-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (B)	8-98082-438-0	01	1	0709-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	0707-
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT>	1-85883-182-0	01	1	0603-
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	0603-0705
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	0603-
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	0603-
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0603-0705
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0706-0706
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0707-
60	PLATE; CAUTION,CAB TILT	1-85883-175-0	01	1	0509-0602
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	0603-
260	PLATE; CAUTION,HEAD LAMP LEVELING HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-85878-416-1	01	1	0509-0510
260	PLATE; CAUTION,HEAD LAMP LEVELING	1-85878-416-1	01	1	0511-0602
260	PLATE; CAUTION,HEAD LAMP LEVELING HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-85878-416-1	01	1	0603-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7>	8-98094-561-0	01	1	0709-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1>	1-85881-878-0	01	1	0509-0708
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85881-878-0	01	1	0709-

181 181 181 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
162	PLATE; CAUTION,FUEL CAUTIONS FRENCH<WJ8>	8-97621-140-0	01	1	0704-
162	PLATE; CAUTION,FUEL CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7>	8-98083-160-0	01	1	0706-0706
162	PLATE; CAUTION,FUEL CAUTIONS PORTUGUESE<NAT>	8-98083-160-0	01	1	0706-0706
162	PLATE; CAUTION,FUEL CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7>	8-98083-160-0	01	1	0707-
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B)	1-85886-813-1	01	1	0509-0602
181	PLATE; CAUTION,AIR CLEANER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS PORTUGUESE<NAT> (B)	1-85886-813-1	01	1	0603-
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	0509-0602
181	PLATE; CAUTION,AIR CLEANER EXC. CAUTIONS PORTUGUESE<NAT> (A)	1-85886-796-1	01	1	0603-
181	PLATE; CAUTION,AIR CLEANER CAUTIONS PORTUGUESE<NAT> (C)	1-85886-884-0	01	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
