◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#29969) — 64 parça

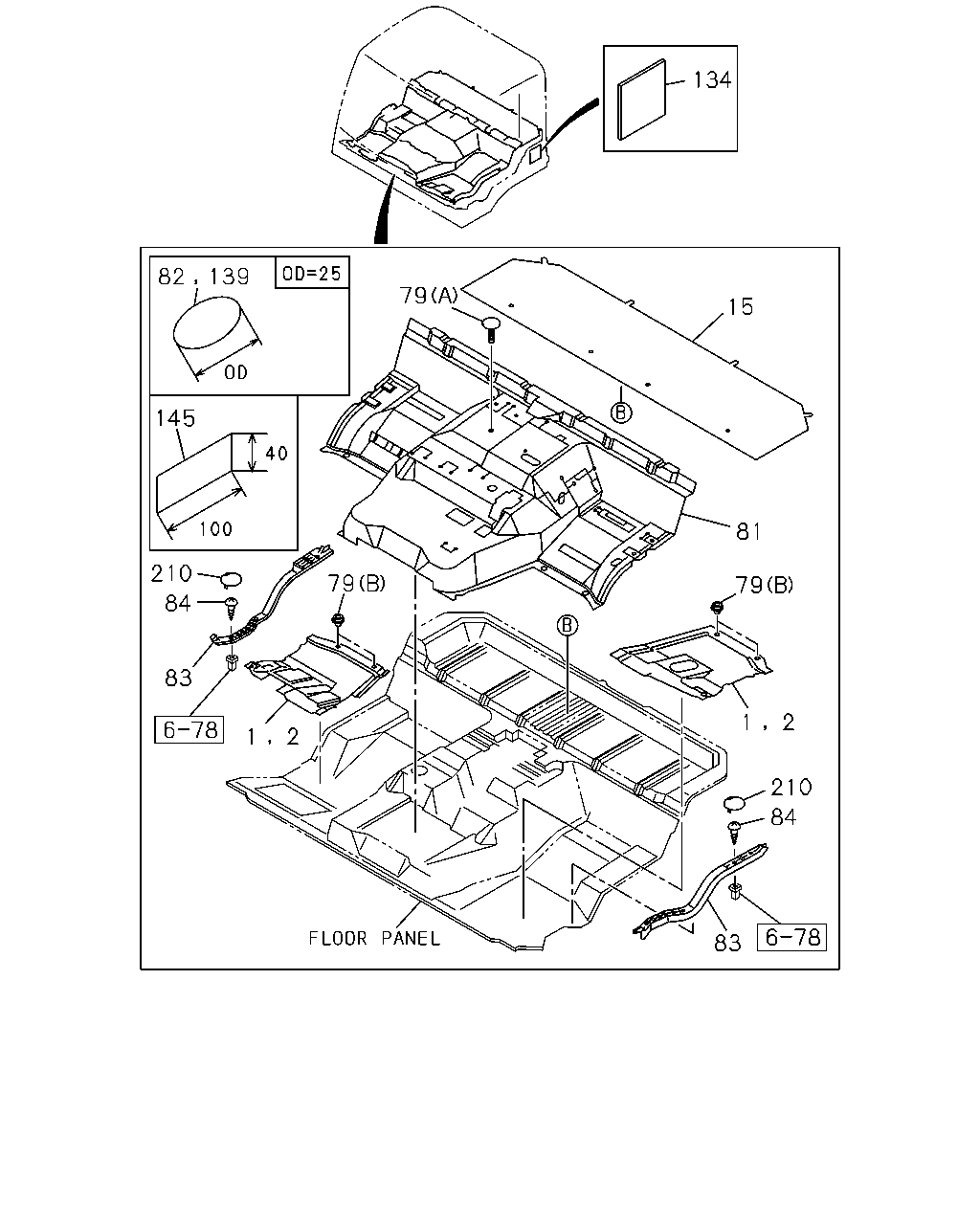

çizim 86122
134 82 139 79 15 145 81 210 79 79 84 83 2 1 2 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CHINA EQUIPMENT(YT2) 		1-73237-932-1 01 1 0612-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CHINA EQUIPMENT(YT2) 		1-73237-933-1 01 1 0612-
1 CARPET; FLOOR,FRT 1-73237-865-1 01 1 0509-0512
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-865-1 01 1 0601-0611
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. CHINA EQUIPMENT(YT2) 		1-73237-865-2 01 1 0612-
1 CARPET; FLOOR,FRT 1-73237-866-1 01 1 0509-0512
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-866-1 01 1 0601-0611
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. CHINA EQUIPMENT(YT2) 		1-73237-866-2 01 1 0612-
2 MAT; FLOOR
CHINA EQUIPMENT(YT2) EXC. DELUXE CARPET<BF2> 		1-73237-936-0 01 1 0612-
2 MAT; FLOOR
CHINA EQUIPMENT(YT2) EXC. DELUXE CARPET<BF2> 		1-73237-937-0 01 1 0612-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-785-1 01 1 0601-0611
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2>,CHINA EQUIPMENT(YT2) 		1-73237-785-1 01 1 0612-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-787-1 01 1 0601-0611
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2>,CHINA EQUIPMENT(YT2) 		1-73237-787-1 01 1 0612-
15 MAT; FLOOR REAR
CENTER SEAT DELETE(SP9) CHINA EQUIPMENT(YT2) EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-941-0 01 1 0612-
15 MAT; FLOOR REAR
CHINA EQUIPMENT(YT2) EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) 		1-73237-940-0 01 1 0612-
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) 		1-73237-783-1 01 1 0601-0611
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9),CHINA EQUIPMENT(YT2) 		1-73237-783-1 01 1 0612-
15 MAT; FLOOR REAR
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-831-1 01 1 0509-0611
15 MAT; FLOOR REAR
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>, CHINA EQUIPMENT(YT2) 		1-73237-831-1 01 1 0612-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 0509-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0509-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) CHINA EQUIPMENT(YT2) EXC. DELUXE CARPET<BF2> 		1-73237-939-0 01 1 0612-
81 MAT; FLOOR,CENTER
CHINA EQUIPMENT(YT2) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-938-0 01 1 0612-
81 MAT; FLOOR,CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-73237-813-3 01 1 0601-0601
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-813-3 01 1 0601-0601
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-813-3 01 1 0602-0611
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9), CHINA EQUIPMENT(YT2) 		1-73237-813-3 01 1 0612-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-830-2 01 1 0509-0611
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,CHINA EQUIPMENT(YT2) 		1-73237-830-2 01 1 0612-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 0509-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0509-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0509-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0509-
134 SILENCER; RR FLOOR,SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-73367-016-2 01 1 0705-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 0509-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0509-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0509-

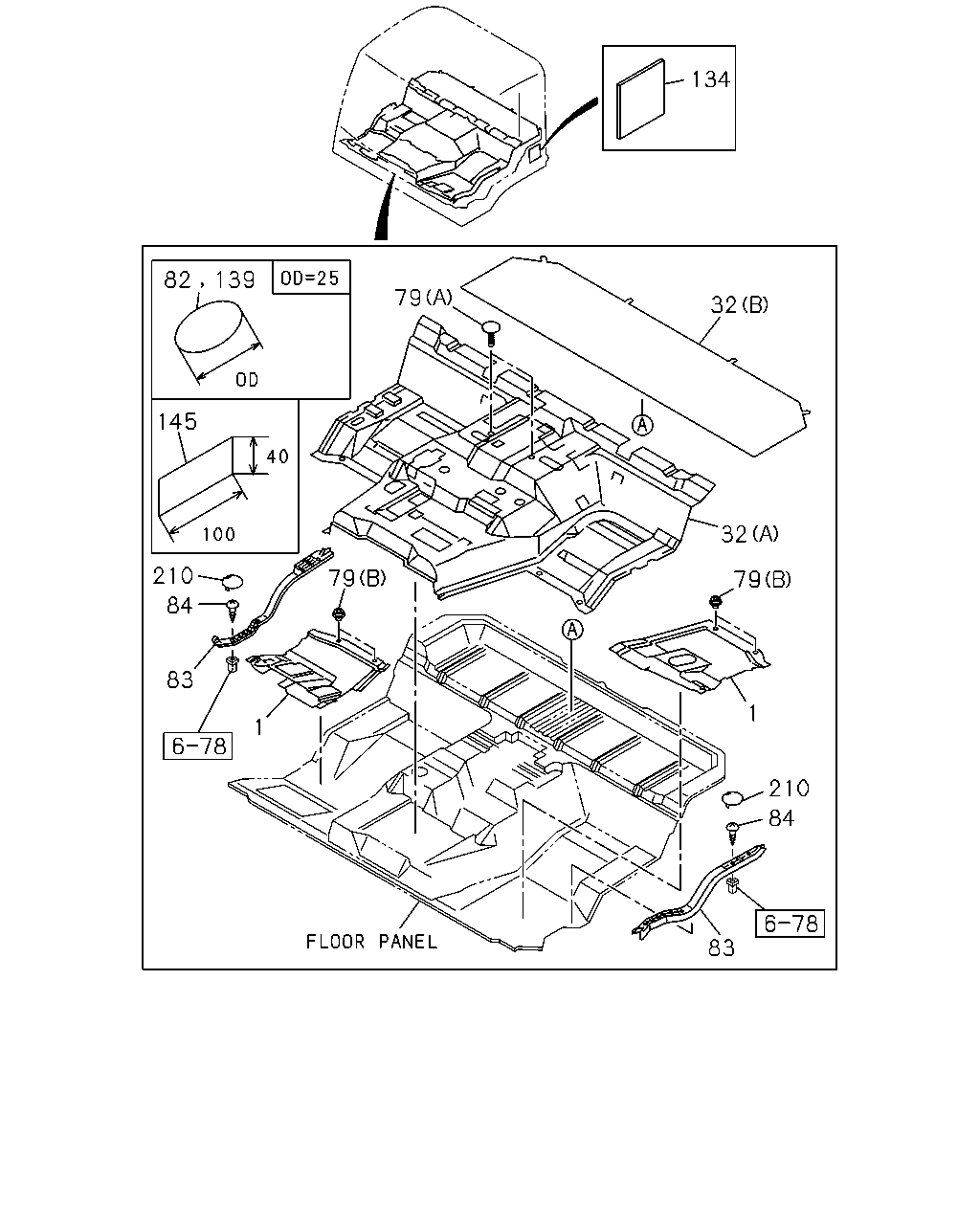

çizim 86187
134 82 139 79 32 145 32 210 79 79 84 83 1 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CHINA EQUIPMENT(YT2) 		1-73237-932-1 01 1 0612-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CHINA EQUIPMENT(YT2) 		1-73237-933-1 01 1 0612-
1 CARPET; FLOOR,FRT 1-73237-865-1 01 1 0509-0512
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-865-1 01 1 0601-0611
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. CHINA EQUIPMENT(YT2) 		1-73237-865-2 01 1 0612-
1 CARPET; FLOOR,FRT 1-73237-866-1 01 1 0509-0512
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-866-1 01 1 0601-0611
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. CHINA EQUIPMENT(YT2) 		1-73237-866-2 01 1 0612-
32 CARPET; FLOOR
DELUXE CARPET<BF2> CHINA EQUIPMENT(YT2) EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) (B) 		1-73237-935-1 01 1 0612-
32 CARPET; FLOOR
DELUXE CARPET<BF2> CHINA EQUIPMENT(YT2) EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-934-1 01 1 0612-
32 CARPET; FLOOR
EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) (B) 		1-73237-867-1 01 1 0509-0512
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) (B) 		1-73237-867-1 01 1 0601-0611
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9),CHINA EQUIPMENT(YT2) (B) 		1-73237-867-2 01 1 0612-
32 CARPET; FLOOR
EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-860-4 01 1 0509-0512
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-860-4 01 1 0601-0611
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9),CHINA EQUIPMENT(YT2) (A) 		1-73237-860-5 01 1 0612-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 0509-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0509-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 0509-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0509-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0509-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0509-
134 SILENCER; RR FLOOR,SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-73367-016-2 01 1 0705-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 0509-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0509-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
