Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#2996) — 634 parça

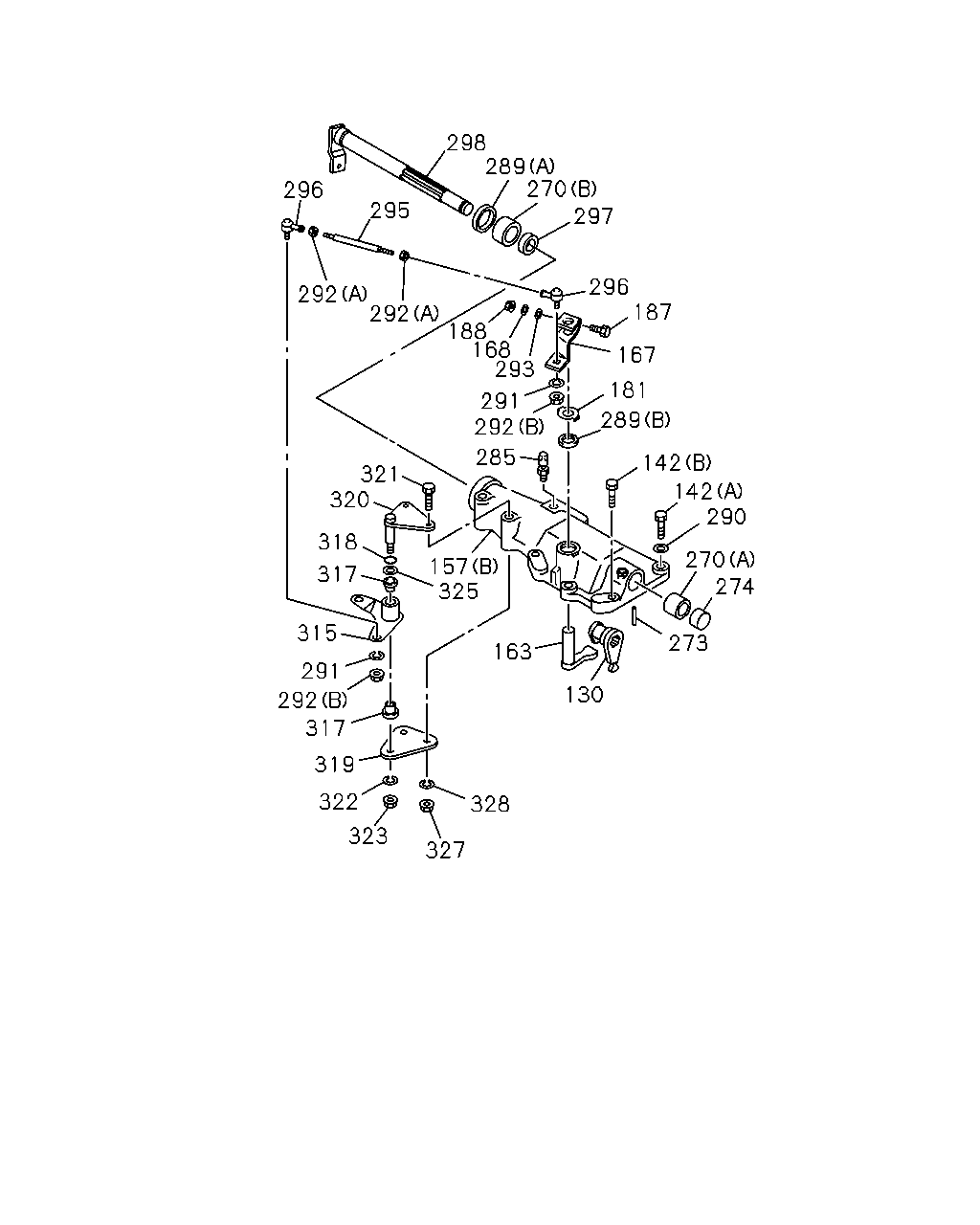

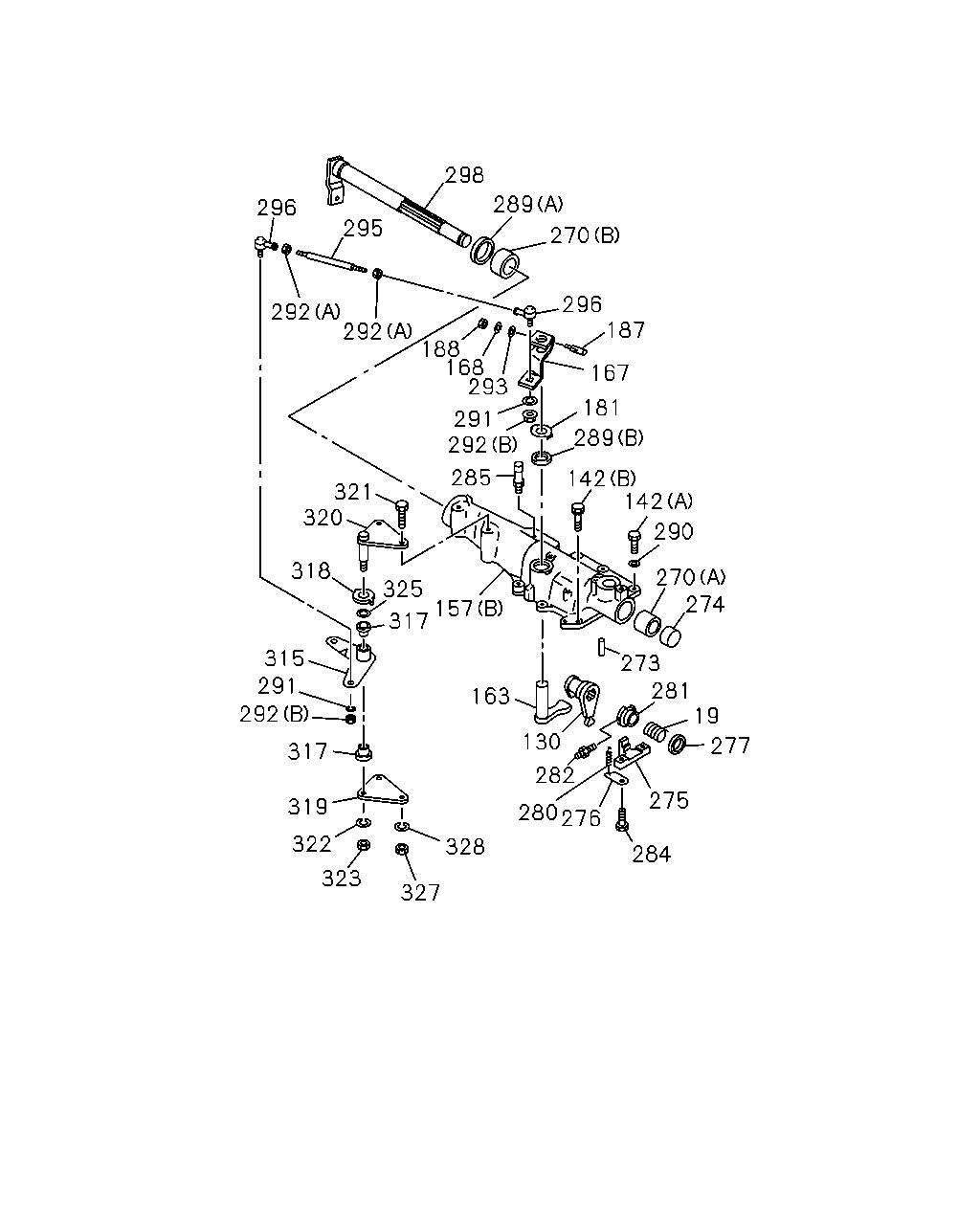

327 323 322 319 317 292 291 315 317 318 320 321 157 325 163 130 328 273 274 270 290 142 142 289 181 167 187 296 285 292 291 293 168 188 292 292 296 295 298 289 270 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	9002-9306	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	9002-			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9002-9306	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9002-9306	●	●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	04	1	9002-9406	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	10	1	9002-9406			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	11	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X45 FLANGE	0-28181-045-0	01	1	9002-9306			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9307-			●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01656-060-0	03	1	9002-9004			●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9005-			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	01	1	9307-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108		●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-9306		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-9306	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-9306	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9002-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9002-			●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9002-9306	●	●	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9307-			●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-079-0	01	1	9002-	●	●	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9002-9306	●	●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9002-9306	●	●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9307-			●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9002-9306	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9307-			●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9002-9205	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9002-9306	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9307-			●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9002-9306	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9307-			●	●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9002-9306	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9307-			●	●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9002-9306	●	●	●	●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9307-			●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9002-9306	●	●	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9307-			●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	9002-9008	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-9306	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9307-			●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9002-9306	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9307-			●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9002-9306	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9307-			●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-9205	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9205	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9002-9205	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9002-9306	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9307-			●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9002-9306	●	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9307-			●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9306	●	●	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9307-9510			●	●	●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-			●	●	●
296	ROD END L=48	1-09760-038-1	02	1	9002-9306	●	●	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	9307-			●	●	●
297	STOPPER; SELECT	1-33537-012-0	01	1	9002-					●
298	SHAFT; SHIFT LEVER	1-33522-089-0	01	1	9002-9306	●	●
298	SHAFT; SHIFT LEVER	1-33522-058-1	01	1	9002-			●	●	●
315	LEVER; SELECT	1-33651-416-0	01	1	9002-9306	●	●
315	LEVER; SELECT	1-33651-524-0	01	1	9002-			●	●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9002-9306	●	●	●	●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9307-			●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●	●	●	●	●
319	BRACKET; SELECT LEVER	1-33657-196-0	01	1	9002-9306	●	●
319	BRACKET; SELECT LEVER	1-33657-454-0	01	1	9002-			●	●	●
320	SHAFT; LEVER	1-33619-134-0	01	1	9002-9306	●	●
320	SHAFT; LEVER	1-33619-306-0	01	1	9002-			●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	9002-9004	●	●	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9005-9306	●	●	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9307-			●	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-9306	●	●	●	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9307-			●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9002-9306	●	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9307-			●	●	●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9002-9205	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●	●	●	●	●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●	●	●

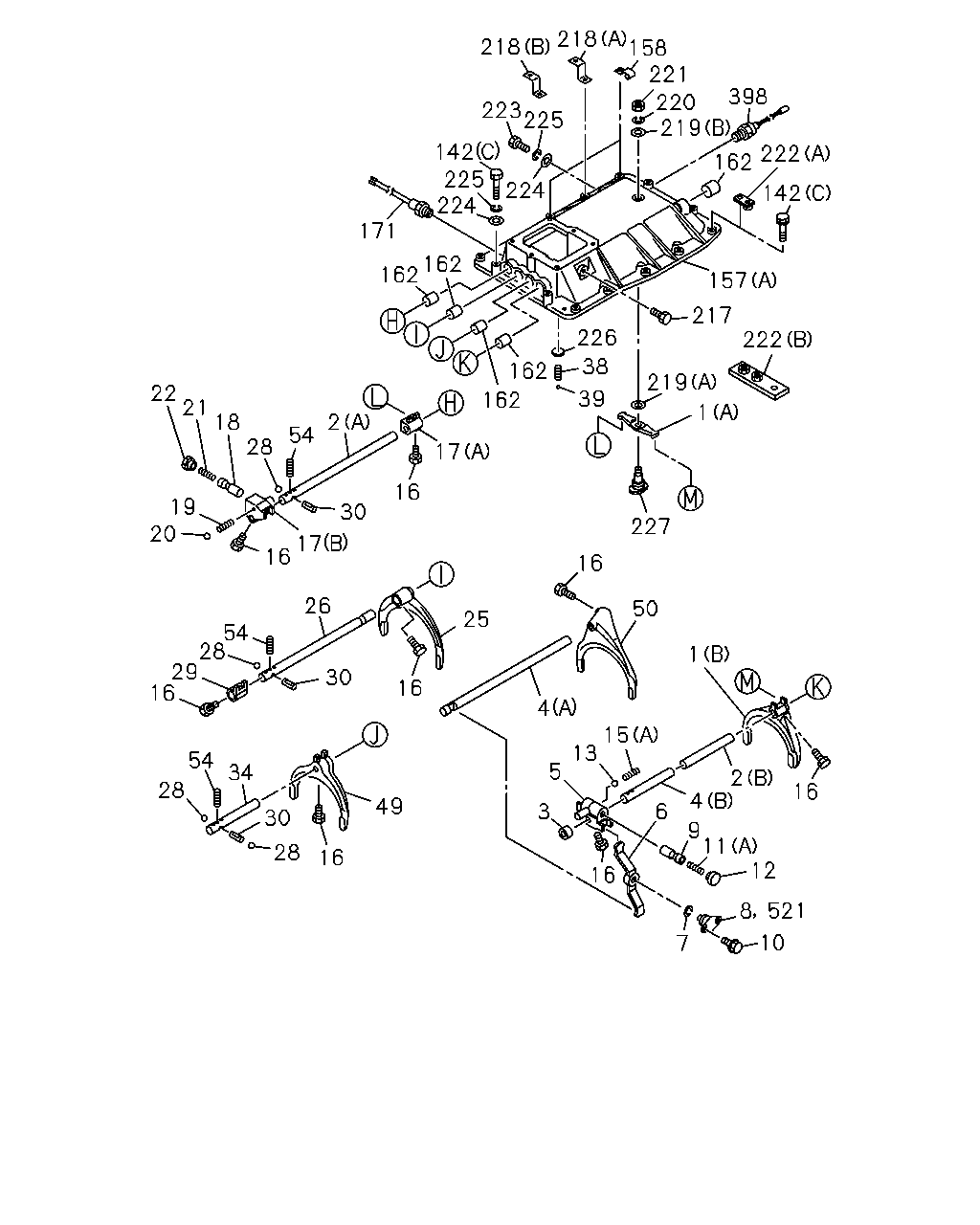

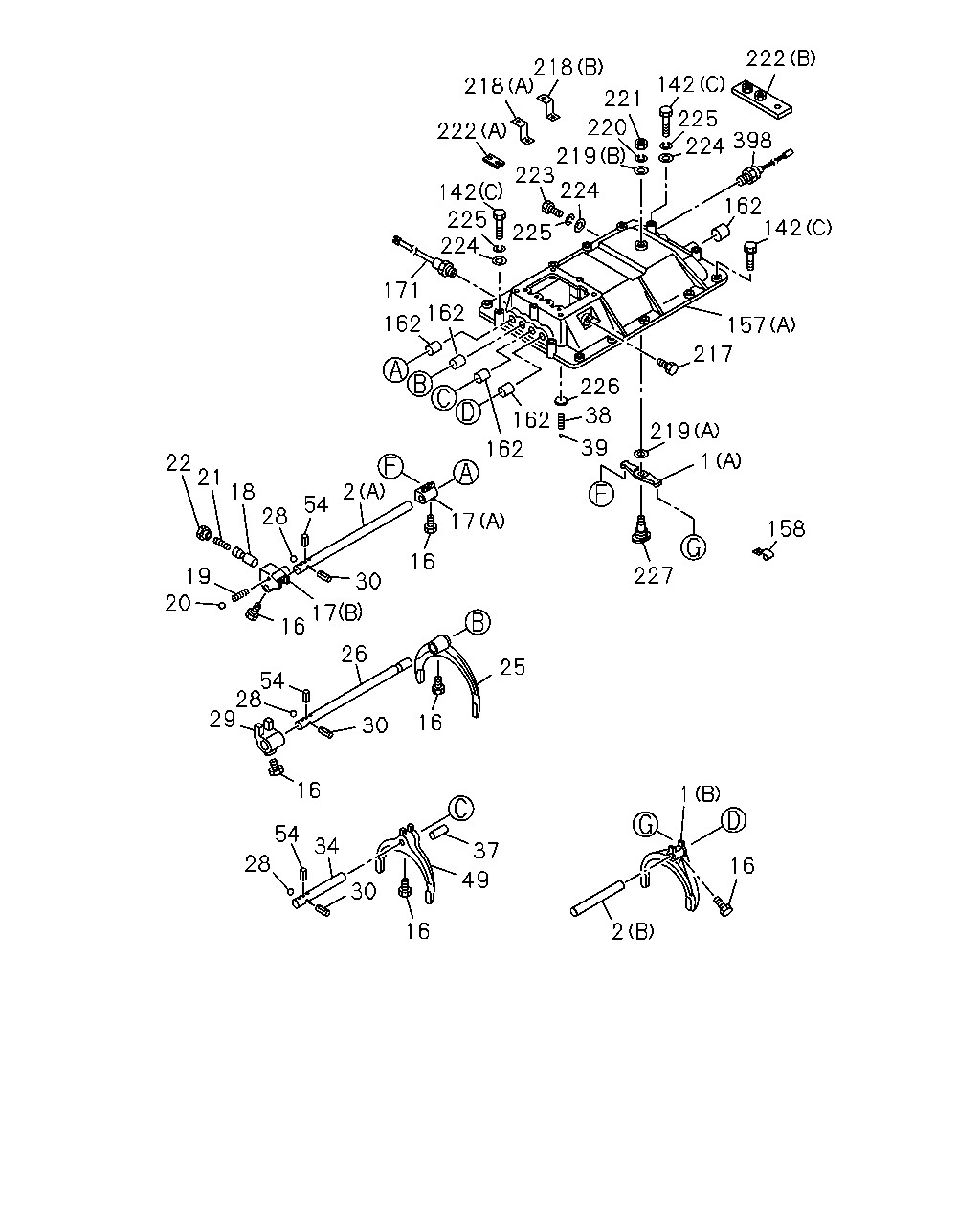

10 7 521 8 12 11 9 6 4 16 3 5 13 15 4 2 16 1 50 16 227 25 16 49 16 28 30 34 54 28 16 29 28 54 30 26 16 17 19 20 22 21 18 28 54 2 16 30 17 162 162 38 226 39 219 1 222 217 157 142 222 162 219 398 220 221 158 218 218 223 225 142 224 225 224 171 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9002-			●	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-166-2	01	1	9002-			●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-298-1	01	1	9002-			●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-324-0	01	1	9002-9010			●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-351-0	01	1	9011-			●	●	●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9002-			●	●
4	ROD; SHIFT,6TH (A)	1-33531-300-0	01	1	9002-			●	●
4	ROD; SHIFT,6TH (B)	1-33531-328-1	01	1	9002-			●	●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	9002-			●	●
6	LEVER; RELAY	1-33511-233-1	01	1	9002-9306	●
6	LEVER; RELAY	9-33511-402-1	01	1	9002-			●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	9002-	●		●	●
8	SPINDLE; REV & 7TH	1-33519-008-1	01	1	9002-9306	●		●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	9002-			●	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9002-9203	●		●	●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205	●		●	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-	●		●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-420-0	01	1	9002-9004		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9002-	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9002-9004	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9005-9306	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-9306	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9002-			●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9005-9306		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9002-9004	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9005-9306	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9002-	●	●	●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 3-HOLE	1-09052-025-0	06	1	9002-9107					●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 NO-HOLE	1-09052-032-1	06	1	9108-9512					●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	06	1	9601-					●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 3-HOLE	1-09052-025-0	08	1	9002-9107			●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 NO-HOLE	1-09052-032-1	08	1	9108-9512			●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	08	1	9601-			●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-371-1	01	1	9002-					●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9002-			●	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-3	01	1	9002-			●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-034-1	01	1	9002-					●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9002-			●	●
19	SPRING; COIL COMP	1-09580-431-0	01	1	9002-9205	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-9306	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9002-			●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9002-			●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-9306	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9002-			●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-187-1	01	1	9002-9402			●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-481-0	01	1	9403-			●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-325-0	01	1	9002-			●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9002-	●	●	●	●
28	BALL; INTER LK	9-00097-501-0	03	1	9002-					●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-364-1	01	1	9002-					●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9002-			●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9002-	●	●	●	●
30	PIN; INTER LK	9-33534-003-0	02	1	9002-					●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-327-0	01	1	9002-			●	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	9002-	●	●	●	●
38	SPRING; DETENT	1-09580-379-0	03	1	9002-					●
39	BALL; DETENT	1-09843-012-0	04	1	9002-	●	●	●	●
39	BALL; DETENT	1-09843-012-0	03	1	9002-					●
49	ARM; SHIFT,4TH & 5TH	1-33511-365-1	01	1	9002-					●
49	ARM; SHIFT,4TH & 5TH	1-33511-368-1	01	1	9002-			●	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9002-			●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9002-	●	●	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9002-					●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9002-9306	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9002-9306	●	●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	04	1	9002-9406	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	10	1	9002-9406			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	11	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X45 FLANGE	0-28181-045-0	01	1	9002-9306			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9307-			●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01656-060-0	03	1	9002-9004			●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9005-			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	01	1	9307-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108		●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-9306		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-9306	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-9306	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9002-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9002-			●	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	01	1	9004-9306	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	02	1	9002-9306			●	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9307-			●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9002-			●	●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9002-9009	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509			●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-			●	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9002-			●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) W/NUT	1-47475-689-0	02	1	9002-9306	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) W/NUT	1-47475-689-0	01	1	9002-			●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B) W/O NUT	1-82699-425-0	01	1	9307-			●	●	●
219	WASHER; PL,SPINDLE (B) ID=12.5 OD=26	9-09164-612-0	01	1	9002-9205	●	●	●	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9002-	●	●	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9002-9205	●	●	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9002-9205	●	●	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	01	1	9002-9306	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	02	1	9002-9306			●	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	01	1	9307-			●	●	●
222	BRACKET; CLIP (B)	1-47476-932-0	01	1	9307-			●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9002-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●
226	SPRING; REV INHIBITOR	1-33549-072-0	03	1	9002-					●
226	SPRING; REV INHIBITOR	1-33549-072-0	04	1	9002-			●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9002-	●	●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●
398	SWITCH; REV LAMP	1-82440-054-0	01	1	9002-9306			●	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9307-			●	●	●
521	SPINDLE; 6TH	1-33519-008-1	01	1	9307-			●	●

2 16 1 37 49 16 30 34 54 28 16 30 16 25 26 54 28 29 16 17 19 20 30 16 17 2 54 28 18 21 22 162 162 226 38 39 219 1 227 158 217 157 142 162 398 224 225 142 222 221 220 219 224 223 225 224 162 162 171 225 142 222 218 218

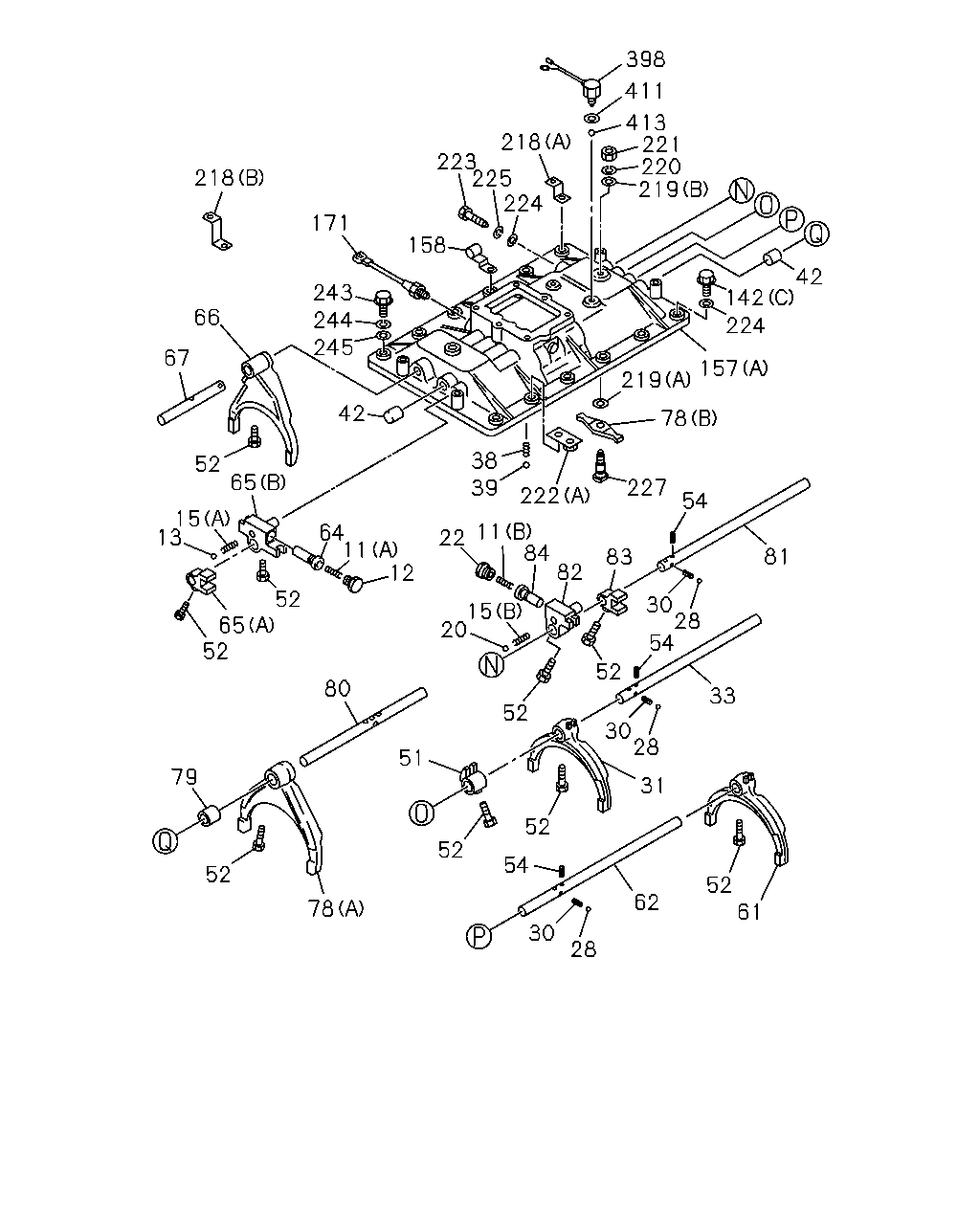

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9002-			●	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-166-2	01	1	9002-			●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-298-1	01	1	9002-			●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-324-0	01	1	9002-9010			●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-351-0	01	1	9011-			●	●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 3-HOLE	1-09052-025-0	06	1	9002-9107					●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 NO-HOLE	1-09052-032-1	06	1	9108-9512					●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	06	1	9601-					●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 3-HOLE	1-09052-025-0	08	1	9002-9107			●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 NO-HOLE	1-09052-032-1	08	1	9108-9512			●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20	1-09052-039-0	08	1	9601-			●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-371-1	01	1	9002-					●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9002-			●	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-3	01	1	9002-			●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-034-1	01	1	9002-					●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	9002-			●	●
19	SPRING; COIL COMP	1-09580-431-0	01	1	9002-9205	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-9306	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9002-			●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	9002-			●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-9306	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9002-			●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-187-1	01	1	9002-9402			●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-481-0	01	1	9403-			●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-325-0	01	1	9002-			●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9002-	●	●	●	●
28	BALL; INTER LK	9-00097-501-0	03	1	9002-					●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-364-1	01	1	9002-					●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	9002-			●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9002-	●	●	●	●
30	PIN; INTER LK	9-33534-003-0	02	1	9002-					●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-327-0	01	1	9002-			●	●	●
37	PIN; STOPPER ARM	9-09878-624-0	01	1	9002-					●
38	SPRING; DETENT	1-09580-379-0	04	1	9002-	●	●	●	●
38	SPRING; DETENT	1-09580-379-0	03	1	9002-					●
39	BALL; DETENT	1-09843-012-0	04	1	9002-	●	●	●	●
39	BALL; DETENT	1-09843-012-0	03	1	9002-					●
49	ARM; SHIFT,4TH & 5TH	1-33511-365-1	01	1	9002-					●
49	ARM; SHIFT,4TH & 5TH	1-33511-368-1	01	1	9002-			●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9002-	●	●	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9002-					●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9002-9306	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9002-9306	●	●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	04	1	9002-9406	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	10	1	9002-9406			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	11	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X45 FLANGE	0-28181-045-0	01	1	9002-9306			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9307-			●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01656-060-0	03	1	9002-9004			●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9005-			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	01	1	9307-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108		●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-9306		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-9306	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-9306	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9002-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9002-			●	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	01	1	9004-9306	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	02	1	9002-9306			●	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9307-			●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9002-			●	●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9002-9009	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509			●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-			●	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9002-			●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) W/NUT	1-47475-689-0	02	1	9002-9306	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) W/NUT	1-47475-689-0	01	1	9002-			●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B) W/O NUT	1-82699-425-0	01	1	9307-			●	●	●
219	WASHER; PL,SPINDLE (B) ID=12.5 OD=26	9-09164-612-0	01	1	9002-9205	●	●	●	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9002-	●	●	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9002-9205	●	●	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9002-9205	●	●	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	01	1	9002-9306	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	02	1	9002-9306			●	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	01	1	9307-			●	●	●
222	BRACKET; CLIP (B)	1-47476-932-0	01	1	9307-			●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9002-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●
226	SPRING; REV INHIBITOR	1-33549-072-0	03	1	9002-					●
226	SPRING; REV INHIBITOR	1-33549-072-0	04	1	9002-			●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9002-	●	●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●
398	SWITCH; REV LAMP	1-82440-054-0	01	1	9002-9306			●	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9307-			●	●	●

12 11 77 52 14 13 15 75 76 52 75 61 52 62 28 30 52 28 66 52 30 67 54 65 52 52 51 52 30 28 54 31 78 227 78 219 173 157 158 224 142 42 219 220 221 413 218 411 398 224 225 223 218 222 171 243 244 245 52 88 87 42 38 39 33 10 8 7 6 54 51 55 11 22 20 15

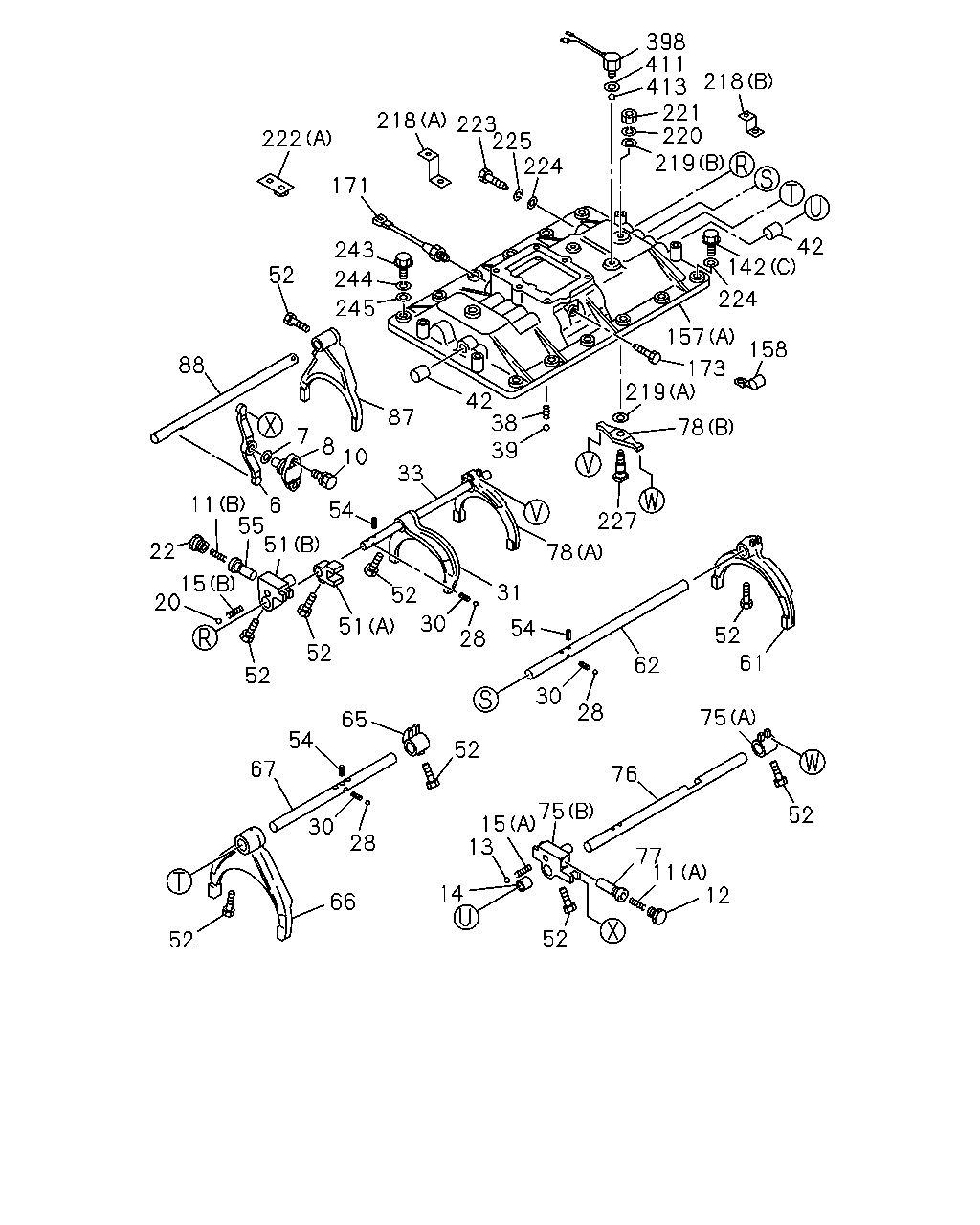

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	LEVER; RELAY	1-33511-233-1	01	1	9002-9306	●
6	LEVER; RELAY	9-33511-402-1	01	1	9002-			●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	9002-	●		●	●
8	SPINDLE; REV & 7TH	1-33519-008-1	01	1	9002-9306	●		●	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9002-9203	●		●	●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205	●		●	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-	●		●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-420-0	01	1	9002-9004		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9002-	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9002-9004	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9005-9306	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-9306	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9002-			●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●	●
14	STOPPER; SHIFT ROD,7TH TO RR	1-33537-019-0	01	1	9002-9306	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9005-9306		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9002-9004	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9005-9306	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9002-	●	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-9306	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9002-			●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9002-	●	●	●	●
28	BALL; INTER LK	9-00097-501-0	03	1	9002-					●
30	PIN; INTER LK	9-33534-003-0	03	1	9002-	●	●	●	●
30	PIN; INTER LK	9-33534-003-0	02	1	9002-					●
31	ARM; SHIFT,LOW & 2ND	1-33511-295-1	01	1	9002-9306		●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9002-9306	●
33	ROD; SHIFT,LOW & 2ND	1-33531-296-1	01	1	9002-9306		●
33	ROD; SHIFT,LOW & 2ND	1-33531-293-1	01	1	9002-9010	●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9011-9306	●
38	SPRING; DETENT	1-09580-379-0	04	1	9002-	●	●	●	●
38	SPRING; DETENT	1-09580-379-0	03	1	9002-					●
39	BALL; DETENT	1-09843-012-0	04	1	9002-	●	●	●	●
39	BALL; DETENT	1-09843-012-0	03	1	9002-					●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9002-9306	●	●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-286-0	01	1	9002-9306		●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-1	01	1	9002-9306	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-3	01	1	9002-9306	●
52	BOLT; SHIFT ARM M12X20 3-HOLE	1-09052-025-0	09	1	9002-9107	●	●
52	BOLT; SHIFT ARM M12X20 NO-HOLE	1-09052-032-1	09	1	9108-9306	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9002-	●	●	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9002-					●
55	SLEEVE; 1ST & 2ND	1-33516-022-1	01	1	9002-9306	●
61	ARM; SHIFT,3RD & 4TH	1-33511-315-1	01	1	9002-9306		●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9002-9306	●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	9002-9306	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-256-1	01	1	9002-9306		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-293-1	01	1	9002-9306		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-0	01	1	9002-9306	●
66	ARM; SHIFT,5TH & 6TH	1-33511-297-1	01	1	9002-9306		●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9002-9306	●
67	ROD; SHIFT,5TH & 6TH	1-33531-297-1	01	1	9002-9306		●
67	ROD; SHIFT,5TH & 6TH L=321	1-33531-291-1	01	1	9002-9306	●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-236-1	01	1	9002-9306	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-300-2	01	1	9002-9306	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-294-1	01	1	9002-9306	●
77	SLEEVE; REV & 7TH	1-33516-022-1	01	1	9002-9306	●
78	ARM; SHIFT,REV (A)	1-33511-245-1	01	1	9002-9306		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9002-9306	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9002-9306	●
87	ARM; SHIFT,7TH	1-33511-275-1	01	1	9002-9306	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-285-0	01	1	9002-9306	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9002-9306	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9002-9306	●	●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	04	1	9002-9406	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	10	1	9002-9406			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	11	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X45 FLANGE	0-28181-045-0	01	1	9002-9306			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9307-			●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01656-060-0	03	1	9002-9004			●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9005-			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	01	1	9307-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108		●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-9306		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-9306	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-9306	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9002-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9002-			●	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	01	1	9004-9306	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	02	1	9002-9306			●	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9307-			●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9002-9009	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509			●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-			●	●	●
173	SCREW; SET,7TH TO REV	1-09000-446-0	01	1	9002-9306	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) W/NUT	1-47475-689-0	02	1	9002-9306	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) W/NUT	1-47475-689-0	01	1	9002-			●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B) W/O NUT	1-82699-425-0	01	1	9307-			●	●	●
219	WASHER; PL,SPINDLE (B) ID=12.5 OD=26	9-09164-612-0	01	1	9002-9205	●	●	●	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9002-	●	●	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9002-9205	●	●	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9002-9205	●	●	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	01	1	9002-9306	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	02	1	9002-9306			●	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	01	1	9307-			●	●	●
222	BRACKET; CLIP (B)	1-47476-932-0	01	1	9307-			●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9002-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9002-	●	●	●	●	●
243	BOLT; COVER M6X10	9-02050-610-0	01	1	9002-9005	●	●
243	BOLT; COVER M6X10 W/PL WASHER	0-20800-610-0	01	1	9006-9205	●	●
243	BOLT; COVER M6X10 FLANGE	0-28080-610-0	01	1	9206-9306	●	●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	9002-9205	●	●
245	WASHER; PL,COVER ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●
398	SWITCH; REV LAMP	1-82440-054-0	01	1	9002-9306			●	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9307-			●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9002-9208	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-9306	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9002-9306	●	●

284 276 280 328 327 323 322 319 317 292 291 315 317 325 157 163 130 282 275 277 19 281 273 274 270 290 142 142 289 181 167 187 296 270 289 298 295 296 292 292 188 168 293 291 292 285 321 320 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	SPRING; COIL COMP	1-09580-431-0	01	1	9002-9205	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-9306	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9002-			●	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	9002-9306	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-119-0	01	1	9002-			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9002-9306	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9002-9306	●	●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	04	1	9002-9406	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	10	1	9002-9406			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	11	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X45 FLANGE	0-28181-045-0	01	1	9002-9306			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9307-			●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01656-060-0	03	1	9002-9004			●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9005-			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	01	1	9307-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108		●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-9306		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-9306	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-9306	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9002-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9002-			●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9002-9306	●	●	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9307-			●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-079-0	01	1	9002-	●	●	●	●	●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9002-9306	●	●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9002-9306	●	●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9307-			●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9002-9306	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9307-			●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9002-9205	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9002-9306	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9307-			●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9002-9306	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9307-			●	●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9002-9306	●	●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9307-			●	●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9002-9306	●	●	●	●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9307-			●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9002-9306	●	●	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9307-			●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	9002-9306	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9002-9306	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9002-9306	●
280	SPRING; COIL TENSION	1-09583-255-0	01	1	9002-9306	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	9002-9306	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9002-9306	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9002-9306	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	9002-9008	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-9306	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9307-			●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9002-9306	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9307-			●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9002-9306	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9307-			●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9002-9205	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9002-9205	●	●	●	●	●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	9002-9205	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9002-9306	●	●	●	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9307-			●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●	●	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-	●	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9002-9306	●	●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9307-			●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9306	●	●	●	●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9307-9510			●	●	●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-			●	●	●
296	ROD END L=48	1-09760-038-1	02	1	9002-9306	●	●	●	●	●
296	ROD END L=48	1-09760-038-1	02	1	9307-			●	●	●
298	SHAFT; SHIFT LEVER	1-33522-089-0	01	1	9002-9306	●	●
298	SHAFT; SHIFT LEVER	1-33522-058-1	01	1	9002-			●	●	●
315	LEVER; SELECT	1-33651-416-0	01	1	9002-9306	●	●
315	LEVER; SELECT	1-33651-524-0	01	1	9002-			●	●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9002-9306	●	●	●	●	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9307-			●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●	●	●	●	●
319	BRACKET; SELECT LEVER	1-33657-196-0	01	1	9002-9306	●	●
319	BRACKET; SELECT LEVER	1-33657-454-0	01	1	9002-			●	●	●
320	SHAFT; LEVER	1-33619-134-0	01	1	9002-9306	●	●
320	SHAFT; LEVER	1-33619-306-0	01	1	9002-			●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	9002-9004	●	●	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9005-9306	●	●	●	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9307-			●	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-9306	●	●	●	●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9307-			●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9002-9306	●	●	●	●	●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9307-			●	●	●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9002-9205	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●	●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●	●	●	●	●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●	●	●

61 52 62 28 30 54 52 52 31 28 30 33 81 28 30 54 52 52 51 52 78 79 80 20 15 82 83 54 227 222 84 11 22 12 11 64 52 65 52 13 15 65 52 67 66 218 171 243 244 245 42 38 39 78 219 157 224 142 42 219 220 221 413 411 398 218 223 225 224 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-420-0	01	1	9002-9004		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9002-	●	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9002-9004	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9005-9306	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-9306	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9002-			●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9005-9306		●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9002-9004	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9005-9306	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9002-	●	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9002-	●	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	9002-9306	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9002-			●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9002-	●	●	●	●
28	BALL; INTER LK	9-00097-501-0	03	1	9002-					●
30	PIN; INTER LK	9-33534-003-0	03	1	9002-	●	●	●	●
30	PIN; INTER LK	9-33534-003-0	02	1	9002-					●
31	ARM; SHIFT,LOW & 2ND	1-33511-295-1	01	1	9002-9306		●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9002-9306	●
33	ROD; SHIFT,LOW & 2ND	1-33531-296-1	01	1	9002-9306		●
33	ROD; SHIFT,LOW & 2ND	1-33531-293-1	01	1	9002-9010	●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9011-9306	●
38	SPRING; DETENT	1-09580-379-0	04	1	9002-	●	●	●	●
38	SPRING; DETENT	1-09580-379-0	03	1	9002-					●
39	BALL; DETENT	1-09843-012-0	04	1	9002-	●	●	●	●
39	BALL; DETENT	1-09843-012-0	03	1	9002-					●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9002-9306	●	●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-286-0	01	1	9002-9306		●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-1	01	1	9002-9306	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-3	01	1	9002-9306	●
52	BOLT; SHIFT ARM M12X20 3-HOLE	1-09052-025-0	09	1	9002-9107	●	●
52	BOLT; SHIFT ARM M12X20 NO-HOLE	1-09052-032-1	09	1	9108-9306	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9002-	●	●	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9002-					●
61	ARM; SHIFT,3RD & 4TH	1-33511-315-1	01	1	9002-9306		●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9002-9306	●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	9002-9306	●	●
64	SLEEVE; SHIFT BLOCK,5TH TO 6TH	1-33516-022-1	01	1	9002-9306		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-256-1	01	1	9002-9306		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-293-1	01	1	9002-9306		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-0	01	1	9002-9306	●
66	ARM; SHIFT,5TH & 6TH	1-33511-297-1	01	1	9002-9306		●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9002-9306	●
67	ROD; SHIFT,5TH & 6TH	1-33531-297-1	01	1	9002-9306		●
67	ROD; SHIFT,5TH & 6TH L=321	1-33531-291-1	01	1	9002-9306	●
78	ARM; SHIFT,REV (A)	1-33511-245-1	01	1	9002-9306		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9002-9306	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9002-9306	●
79	STOPPER; REV BLOCK	9-33537-018-0	01	1	9002-9306		●
80	ROD; SHIFT,REV ARM	1-33531-289-0	01	1	9002-9306		●
81	ROD; SHIFT,REV BLOCK	1-33531-295-1	01	1	9002-9306		●
82	BLOCK; SHIFT,REV	1-33511-298-3	01	1	9002-9306		●
83	BLOCK; SHIFT,REV LEVER	1-33511-038-1	01	1	9002-9306		●
84	SLEEVE; REV	1-33516-022-1	01	1	9002-9306		●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	15	1	9002-9306	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	04	1	9002-9306	●	●
142	BOLT; QUAD BOX (B) M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X35	1-09040-064-1	02	1	9002-9205	●	●	●	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-0	04	1	9002-9406	●	●	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	10	1	9002-9406			●	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE	0-28181-028-0	11	1	9407-			●	●	●
142	BOLT; QUAD BOX (C) M10X45 FLANGE	0-28181-045-0	01	1	9002-9306			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	9307-			●	●	●
142	BOLT; QUAD BOX (C) M10X60	9-01656-060-0	03	1	9002-9004			●	●	●
142	BOLT; QUAD BOX (C) M10X55 FLANGE	8-94399-863-1	02	1	9005-			●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X55 L=85	1-09049-016-0	01	1	9307-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-320-3	01	1	9002-9108		●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9109-9306		●
157	BOX; QUAD,TRANS (B)	1-33541-393-1	01	1	9002-9306	●	●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	9002-9108	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-9306	●
157	BOX; QUAD,TRANS (B)	1-33541-256-2	01	1	9002-			●	●	●
157	BOX; QUAD,TRANS (A)	1-33541-345-2	01	1	9002-			●	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	01	1	9004-9306	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	02	1	9002-9306			●	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9307-			●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9002-9009	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509			●	●	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-			●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) W/NUT	1-47475-689-0	02	1	9002-9306	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) W/NUT	1-47475-689-0	01	1	9002-			●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B) W/O NUT	1-82699-425-0	01	1	9307-			●	●	●
219	WASHER; PL,SPINDLE (B) ID=12.5 OD=26	9-09164-612-0	01	1	9002-9205	●	●	●	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9002-	●	●	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9002-9205	●	●	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9002-9205	●	●	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	01	1	9002-9306	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	02	1	9002-9306			●	●	●
222	BRACKET; CLIP (A) L=65	1-47476-513-0	01	1	9307-			●	●	●
222	BRACKET; CLIP (B)	1-47476-932-0	01	1	9307-			●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9002-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9002-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	9002-9205	●	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	9002-9205	●	●	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9002-	●	●	●	●	●
243	BOLT; COVER M6X10	9-02050-610-0	01	1	9002-9005	●	●
243	BOLT; COVER M6X10 W/PL WASHER	0-20800-610-0	01	1	9006-9205	●	●
243	BOLT; COVER M6X10 FLANGE	0-28080-610-0	01	1	9206-9306	●	●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	9002-9205	●	●
245	WASHER; PL,COVER ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9002-9306	●	●
398	SWITCH; REV LAMP	1-82440-054-0	01	1	9002-9306			●	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	9307-			●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9002-9208	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-9306	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9002-9306	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
