6-05 — FRONT PANEL (#29956) — 197 parça
çizim 86080
544 547 544 560 548 545 545 545 548 532 548
BalonParca AdiParca NoAdetTipApplied Date
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0509-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0509-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0509-
544 LID; FRT
BODY COLOR POLAR WHITE(982) CHEV BRAND PACKAGE<PS2> 		1-71107-404-0 01 1 0711-
544 LID; FRT 1-71107-403-0 01 1 0509-0710
544 LID; FRT
CHEV BRAND PACKAGE<PS2> EXC. CHINA EQUIPMENT(YT2) 		1-71107-404-0 01 1 0711-
544 LID; FRT
CHINA EQUIPMENT(YT2) 		1-71107-403-0 01 1 0711-
544 LID; FRT
EXC. CHEV BRAND PACKAGE<PS2>,CHINA EQUIPMENT(YT2) 		1-71107-403-0 01 1 0711-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0509-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0509-
545 SEAL; FRT LID
(D) 		1-71907-578-0 02 1 0509-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0509-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0509-
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 0509-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0509-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0509-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0509-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0509-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0509-1105
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0509-1105
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0509-

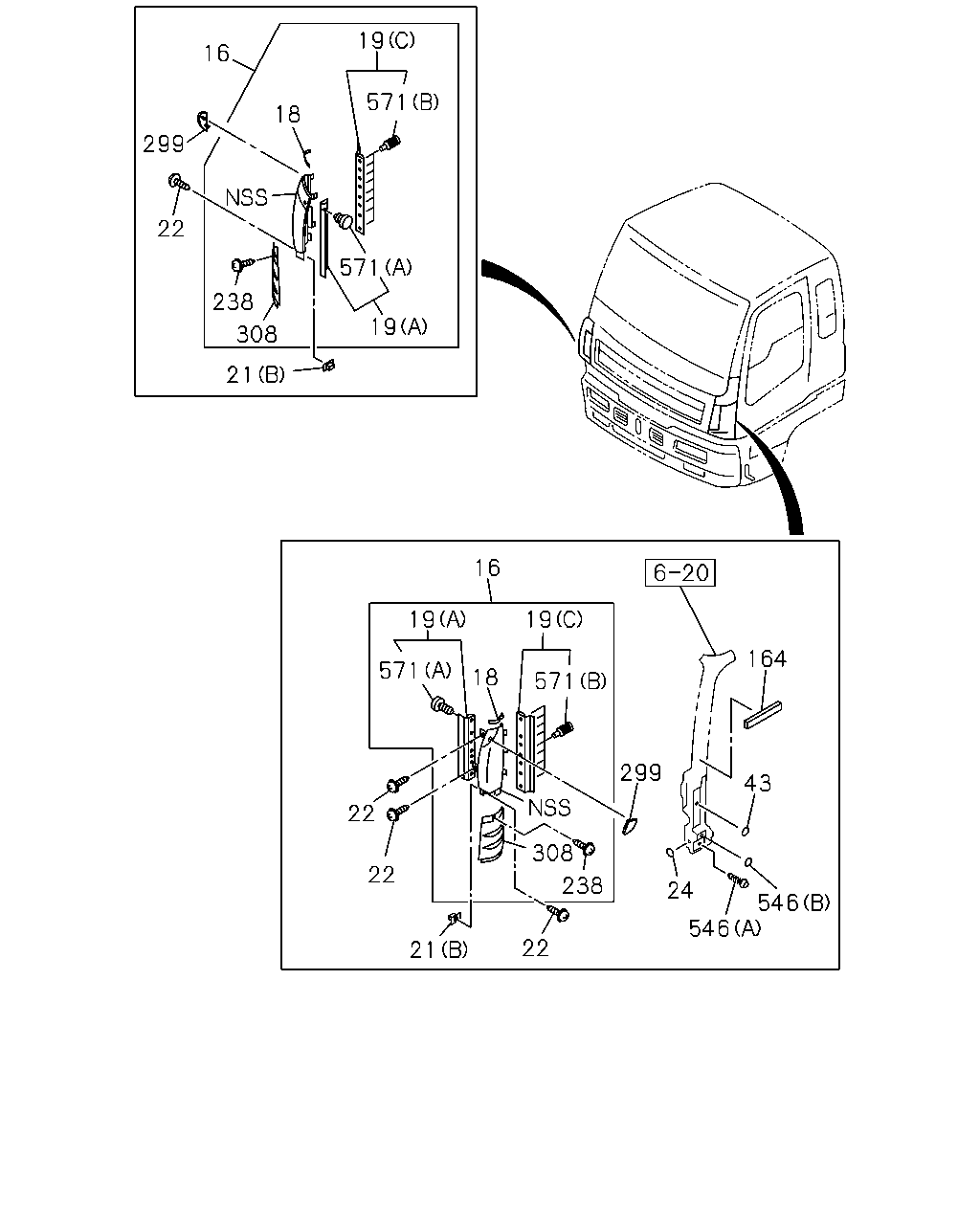

çizim 86082
19 16 571 18 299 22 571 238 19 308 21 16 19 19 164 571 18 571 299 43 22 308 22 546 238 24 546 22 21
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65472-648-3 01 1 0509-
16 PANEL; FRONT,SIDE
WHITE 		1-65472-649-3 01 1 0509-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0509-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0509-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0509-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0509-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0509-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0509-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0509-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0509-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0509-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0509-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011-
24 SEAL; FRT PANEL LWR
AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 06 1 0509-
24 SEAL; FRT PANEL LWR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 07 1 0509-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0509-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0509-
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0509-
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0509-0512
299 COVER; FRT PANEL SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		1-71998-995-1 01 1 0601-0602
299 COVER; FRT PANEL SIDE
EXC. MIRROR O/S RR VIEW<D37>,MIRROR O/S UNDER VIEW<RR9> 		1-71998-995-1 01 1 0603-
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 0509-
308 PLATE; FRT PANEL 1-65472-568-1 01 1 0509-
308 PLATE; FRT PANEL 1-65472-569-1 01 1 0509-
546 PLUG; DUMMY HOLE
(A) OD=16 L=11 		1-76378-155-0 02 1 0509-
546 PLUG; DUMMY HOLE
(B) OD=25 BLACK 		1-76798-019-0 04 1 0509-
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0509-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0509-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0509-

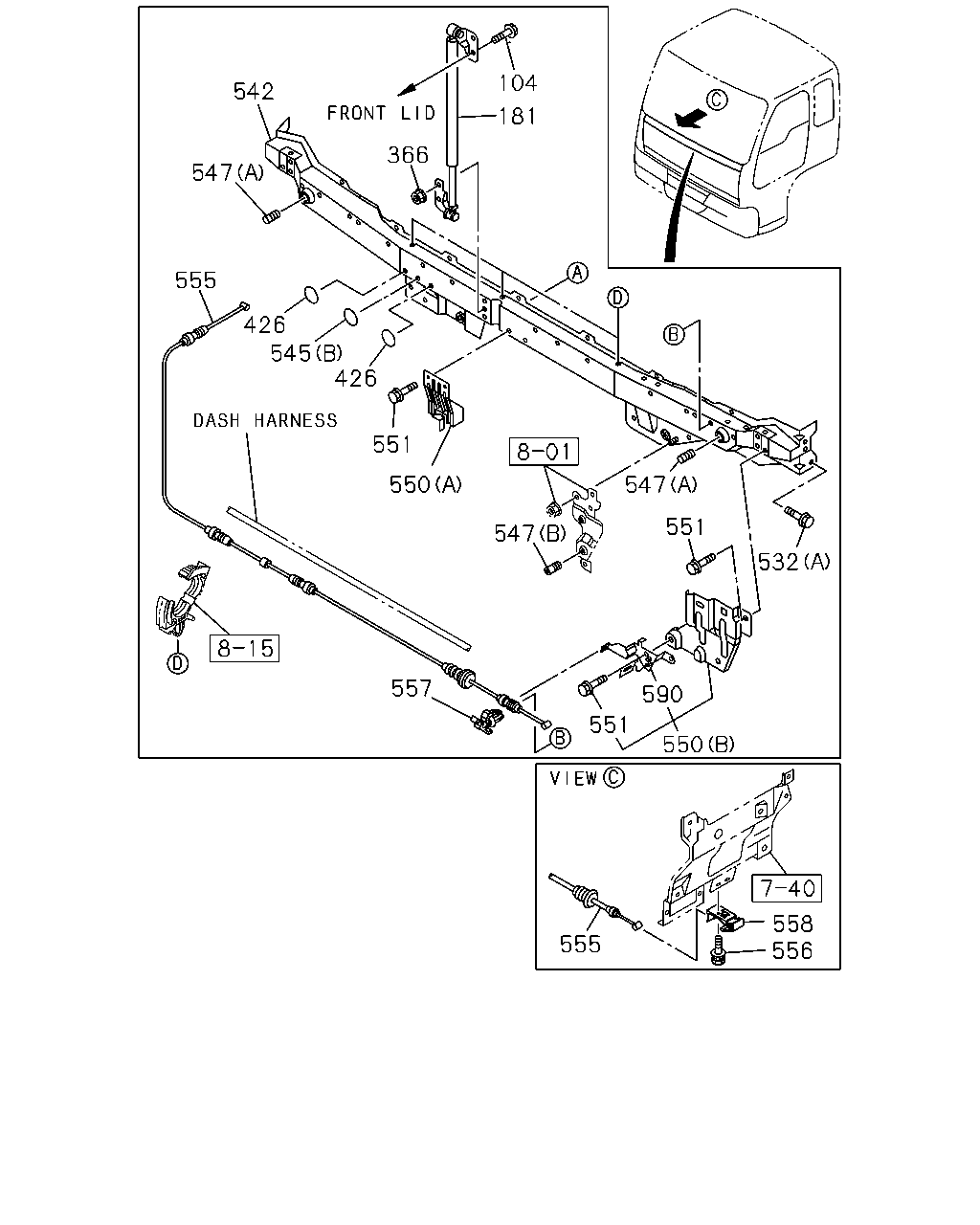

çizim 87009
104 542 181 366 547 555 426 545 426 551 550 547 547 551 532 557 590 551 550 558 556 555
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0509-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0509-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0509-
426 GASKET
OD=25 BLACK 		1-76798-019-0 11 1 0509-
426 GASKET
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0509-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0509-
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0509-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0509-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0509-
542 RAIL; FRT MOUNTING 1-61470-722-1 01 1 0509-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0509-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0509-
545 SEAL; FRT LID
(D) 		1-71907-578-0 02 1 0509-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0509-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0509-
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 0509-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0509-
550 LOCK ASM; FRT LID
(A) 		1-79317-013-1 01 1 0509-
550 LOCK ASM; FRT LID
(B) 		1-79317-016-1 01 1 0509-
550 LOCK ASM; FRT LID
(B) 		1-79317-017-1 01 1 0509-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0509-
555 CABLE; FRT LID
L=2612 		1-79347-008-1 01 1 0509-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0509-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 04 1 0509-
558 LEVER; FRT LID 8-97865-110-0 01 1 0509-
590 LOCK; FRT LID 1-79318-006-3 01 1 0509-
590 LOCK; FRT LID 1-79318-007-5 01 1 0509-

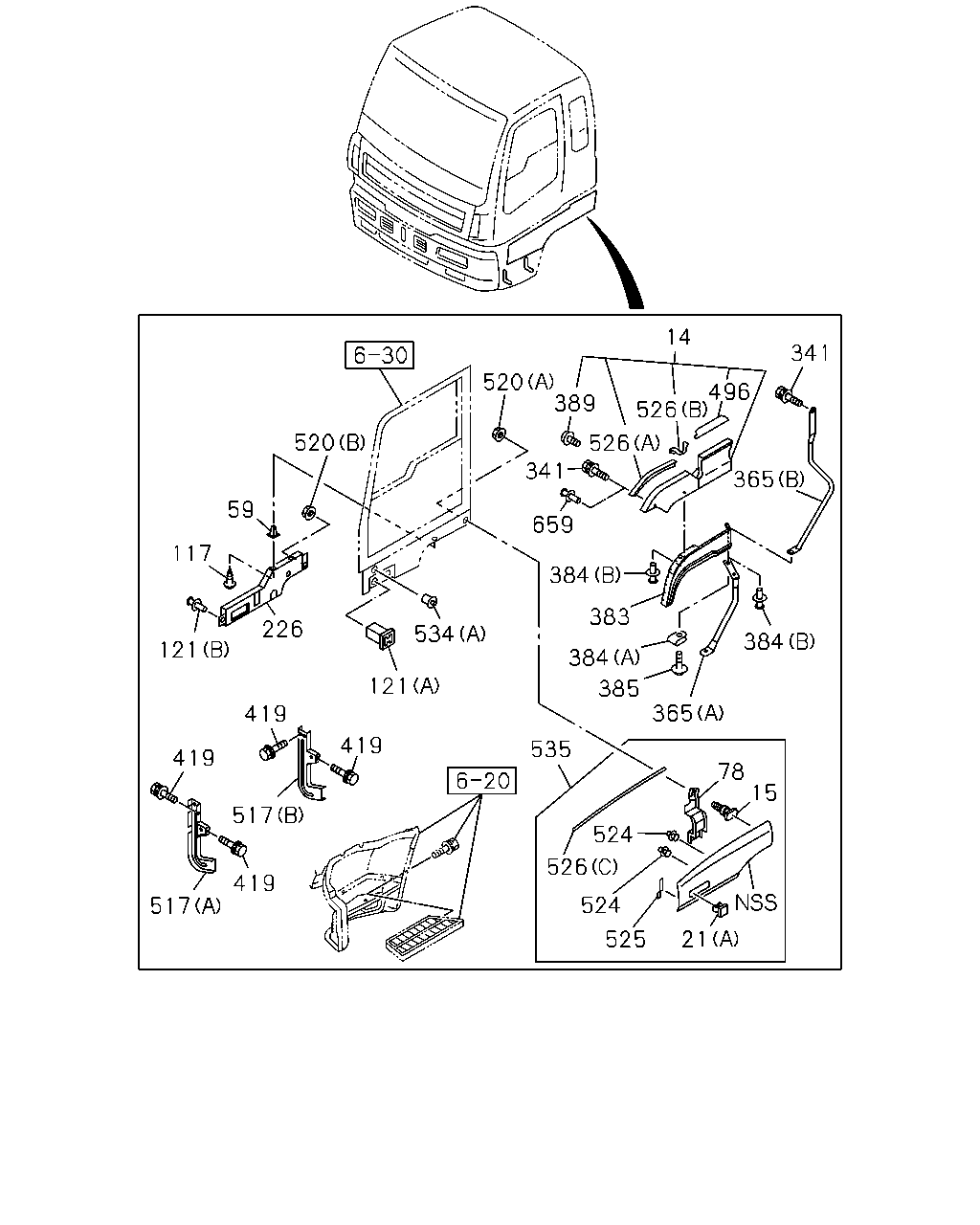

çizim 104049
14 341 520 389 496 526 520 526 365 341 59 659 117 384 383 226 534 384 121 384 121 385 365 419 419 535 419 78 15 517 524 526 419 524 517 21 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT 1-65472-874-9 01 1 0509-0901
14 FENDER; FRT 1-65472-875-9 01 1 0509-0901
14 FENDER; FRT 8-98137-383-0 01 1 0902-0910
14 FENDER; FRT 8-98137-384-0 01 1 0902-0910
14 FENDER; FRT 8-98154-744-1 01 1 0911-
14 FENDER; FRT 8-98154-745-1 01 1 0911-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0509-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0509-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0509-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0509-
78 BRACKET; FENDER 1-71267-214-0 01 1 0509-
78 BRACKET; FENDER 1-71267-215-0 01 1 0509-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0509-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0509-
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0509-
226 PROTECTOR; FRT 1-71267-268-1 01 1 0509-
226 PROTECTOR; FRT 1-71267-269-1 01 1 0509-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 15 1 0509-0810
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0509-0809
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 0810-0810
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0910
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911-
365 SUPPORT; FENDER
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) (A) 		1-71907-417-1 01 1 0603-0709
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 0710-0810
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811-
365 SUPPORT; FENDER
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) (A) 		1-71907-418-1 01 1 0603-0709
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 0710-0810
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811-
383 GUARD; MUD,FENDER LWR
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-71907-456-2 01 1 0603-0709
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0710-
383 GUARD; MUD,FENDER LWR
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-71907-457-2 01 1 0603-0709
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0710-
383 GUARD; MUD,FENDER LWR 1-71907-415-2 01 1 0509-0602
383 GUARD; MUD,FENDER LWR
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-71907-415-2 01 1 0603-0709
383 GUARD; MUD,FENDER LWR 1-71907-416-2 01 1 0509-0602
383 GUARD; MUD,FENDER LWR
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-71907-416-2 01 1 0603-0709
384 CLIP; FENDER LWR
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) (B) D8X13.5 		1-09987-248-1 09 1 0603-0709
384 CLIP; FENDER LWR
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) (A) ID=6 		1-09987-266-0 04 1 0603-0709
384 CLIP; FENDER LWR
(A) ID=6 		1-09987-266-0 04 1 0710-0810
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 13 1 0509-0602
384 CLIP; FENDER LWR
GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) (B) D8X13.5 		1-09987-248-1 13 1 0603-0709
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 09 1 0710-0810
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 13 1 0811-
385 SCREW; FENDER LWR
EXC. GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) M6X25 		1-65481-736-0 04 1 0603-0709
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 0710-0810
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0509-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0509-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
496 RUBBER; STEP 1-71998-861-2 01 1 0509-
496 RUBBER; STEP 1-71998-862-2 01 1 0509-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0509-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0509-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0509-
517 SUPPORT; STEP PANEL
(A) 		1-65671-778-0 01 1 0509-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0509-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0509-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0509-
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0509-
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0509-
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0509-
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0509-
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0509-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0509-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0509-
535 FENDER; BLISTER 1-71267-293-1 01 1 0509-
535 FENDER; BLISTER 1-71267-294-1 01 1 0509-
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 0911-

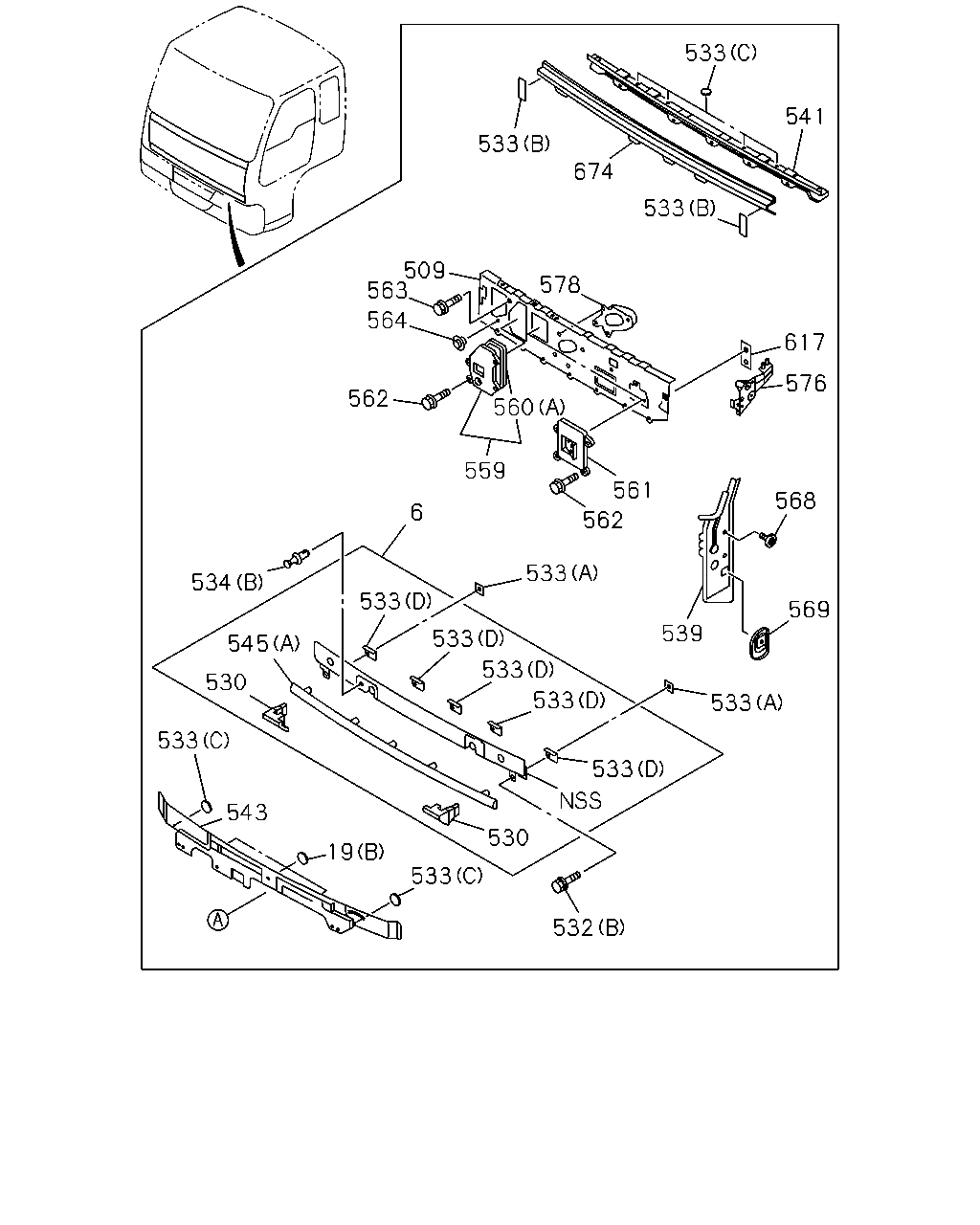

çizim 104050
533 541 533 674 533 509 563 578 564 617 560 576 562 559 561 568 6 562 533 534 533 533 569 539 545 533 530 533 533 533 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65472-551-3 01 1 0509-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0509-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0509-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0509-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0509-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0509-
509 PANEL; DASH 1-62270-496-2 01 1 0509-1210
509 PANEL; DASH 8-98198-669-0 01 1 1211-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0509-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0509-
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0509-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0509-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0509-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0509-0809
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0810-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0509-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0509-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0509-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0509-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0509-
539 CLOSING; PILLAR 1-61480-762-1 01 1 0509-
539 CLOSING; PILLAR 1-61480-763-1 01 1 0509-
541 PANEL; FRONT,INNER 1-61470-700-1 01 1 0509-
543 CLOSING; FRT MTG RAIL 1-61470-726-0 01 1 0509-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0509-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0509-
545 SEAL; FRT LID
(D) 		1-71907-578-0 02 1 0509-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0509-
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 0509-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0509-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0509-1105
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0509-1105
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0509-
561 COVER; HEATER CORE 1-71998-993-2 01 1 0509-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0509-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0509-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0509-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0509-
568 PATCH; INST REINF 1-61480-675-2 02 1 0509-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0509-
569 PATCH; LWR GRIP 1-61480-772-0 01 1 0509-
576 FRAME; INST SIDE 1-62280-200-2 01 1 0509-
576 FRAME; INST SIDE 1-62280-201-2 01 1 0509-
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0509-
617 SEAL; DASH 1-61281-497-1 02 1 0509-
674 PANEL; UPR 1-61470-699-2 01 1 0509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
