6-01 — FRONT BUMPER (#29954) — 127 parça

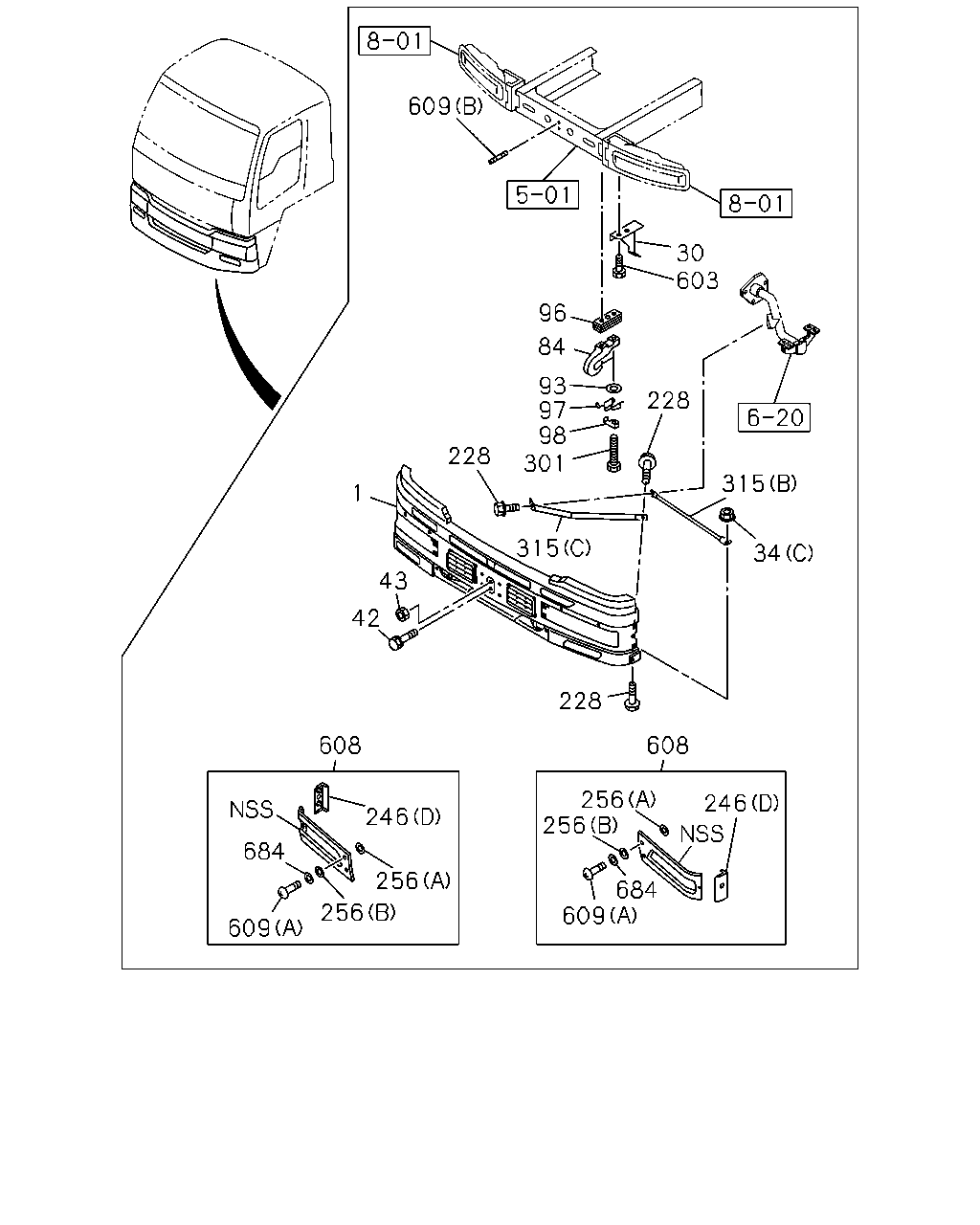

çizim 87008
30 42 43 84 93 96 97 98 228 256 301 603 608 609 684 684 228 315 34 315 228 1 608 246 256 256 609 609 256 246
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-385-0 01 1 0509-0602
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		1-71211-385-0 01 1 0603-0901
1 BUMPER ASM; FRT
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) WHITE 		1-71211-427-0 01 1 0603-0708
1 BUMPER ASM; FRT
EXC. CHINA EQUIPMENT(YT2) WHITE 		1-71211-427-1 01 1 0709-
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		8-98139-028-0 01 1 0902-
30 BRACKET; FRT BUMPER 1-71230-638-0 01 1 0509-
30 BRACKET; FRT BUMPER 1-71230-639-0 01 1 0509-
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91150-108-0 04 1 0509-0602
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0603-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0509-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0509-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0509-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 02 1 0509-0602
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0603-
84 HOOK 1-57181-027-1 01 1 0509-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0509-0603
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604-
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0509-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0509-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0509-
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0509-0512
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-104-1 01 1 0902-
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-105-1 01 1 0902-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0509-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0509-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0509-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0509-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0509-0602
256 WASHER; PL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0603-0802
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0803-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0509-0602
256 WASHER; PL
BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0603-0802
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0803-
301 BOLT; HOOK TO FRAME
M16X90 		0-10811-690-0 01 1 0509-0512
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0601-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0509-
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0509-
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0509-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0509-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0509-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0509-
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) 		8-98138-788-3 01 1 0902-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) 		8-98138-789-3 01 1 0902-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) CHINA EQUIPMENT(YT2) 		8-98139-039-3 01 1 0902-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) CHINA EQUIPMENT(YT2) 		8-98139-040-3 01 1 0902-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) CHINA EQUIPMENT(YT2) 		8-98139-037-3 01 1 0902-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) CHINA EQUIPMENT(YT2) 		8-98139-038-3 01 1 0902-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> 		1-71211-317-1 01 1 0603-0710
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> 		1-71211-317-1 01 1 0711-0802
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) 		1-71211-317-1 01 1 0803-0901
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) EXC. CHINA EQUIPMENT(YT2) 		1-71211-317-2 01 1 0902-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> 		1-71211-318-1 01 1 0603-0710
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> 		1-71211-318-1 01 1 0711-0802
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) 		1-71211-318-1 01 1 0803-0901
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) EXC. CHINA EQUIPMENT(YT2) 		1-71211-318-2 01 1 0902-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> 		1-71211-284-1 01 1 0603-0802
608 LID; BUMPER
BODY COLOR ARC WHITE(729) 		1-71211-284-1 01 1 0803-0901
608 LID; BUMPER
BODY COLOR ARC WHITE(729) EXC. CHINA EQUIPMENT(YT2) 		1-71211-284-2 01 1 0902-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> 		1-71211-285-1 01 1 0603-0802
608 LID; BUMPER
BODY COLOR ARC WHITE(729) 		1-71211-285-1 01 1 0803-0901
608 LID; BUMPER
BODY COLOR ARC WHITE(729) EXC. CHINA EQUIPMENT(YT2) 		1-71211-285-2 01 1 0902-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> 		1-71211-284-1 01 1 0603-0802
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) 		1-71211-284-1 01 1 0803-0901
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) EXC. CHINA EQUIPMENT(YT2) 		1-71211-284-2 01 1 0902-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> 		1-71211-285-1 01 1 0603-0802
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) 		1-71211-285-1 01 1 0803-0901
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) EXC. CHINA EQUIPMENT(YT2) 		1-71211-285-2 01 1 0902-
608 LID; BUMPER 1-71211-284-0 01 1 0509-0602
608 LID; BUMPER 1-71211-285-0 01 1 0509-0602
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0509-0602
609 STUD; BUMPER
BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-175-0 06 1 0603-0802
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0803-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0509-
684 WASHER
CHINA EQUIPMENT(YT2) 		8-98148-221-0 06 1 0906-

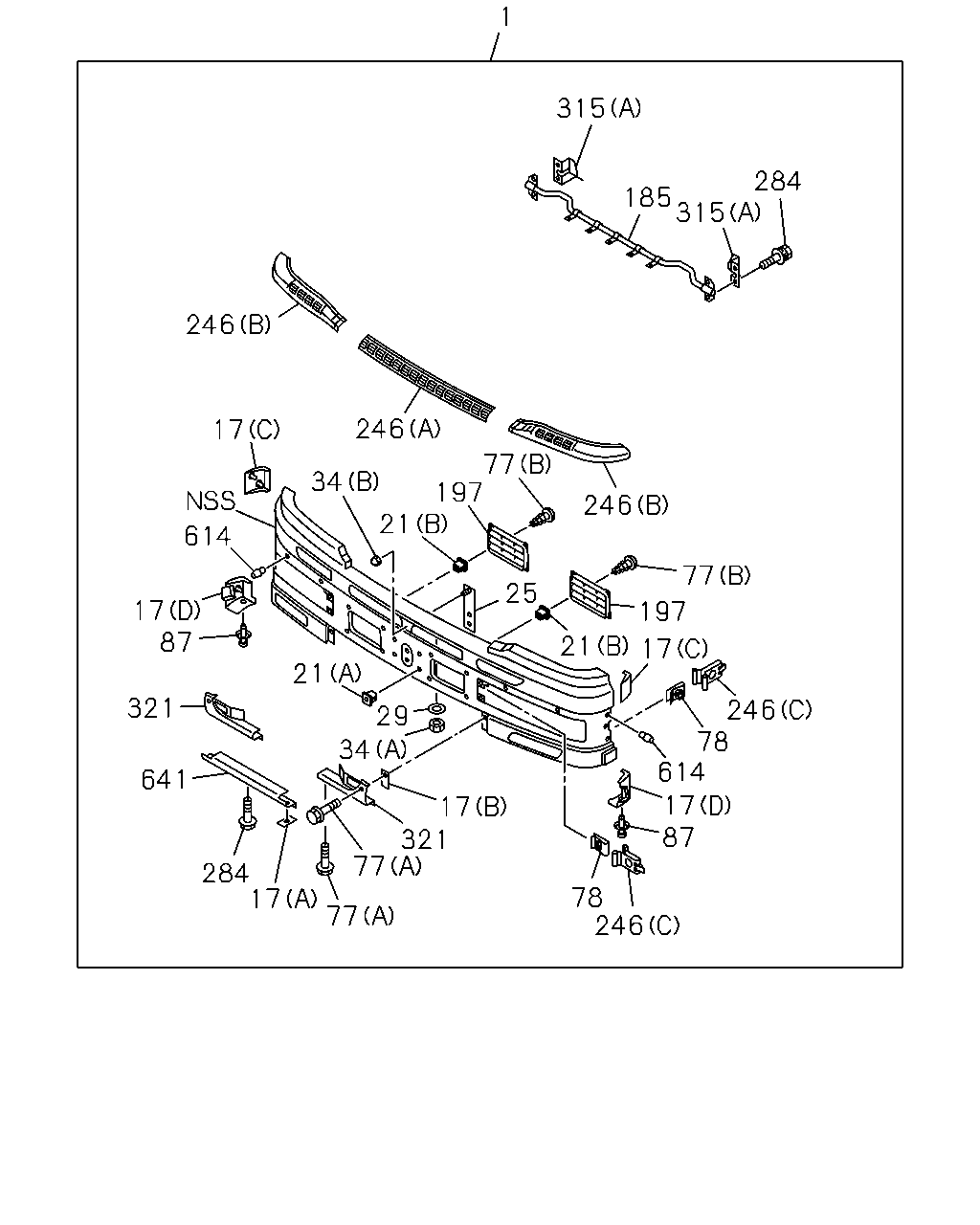

çizim 103956
1 315 284 185 315 246 246 17 77 197 21 34 246 614 77 25 17 87 197 21 17 21 29 321 246 78 614 34 641 17 87 17 321 77 284 17 78 246 77
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-385-0 01 1 0509-0602
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		1-71211-385-0 01 1 0603-0901
1 BUMPER ASM; FRT
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) WHITE 		1-71211-427-0 01 1 0603-0708
1 BUMPER ASM; FRT
EXC. CHINA EQUIPMENT(YT2) WHITE 		1-71211-427-1 01 1 0709-
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		8-98139-028-0 01 1 0902-
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (C) 		8-98139-102-1 01 1 0902-
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (C) 		8-98139-103-1 01 1 0902-
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-106-2 01 1 0902-
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-107-2 01 1 0902-
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 0509-
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 0509-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0509-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0509-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0509-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0509-0510
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 13 1 0511-0605
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0606-
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91150-108-0 04 1 0509-0602
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0603-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0509-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0509-
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0509-
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 08 1 0509-0603
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0604-
78 NUT; SPIRE 1-71260-174-0 06 1 0509-
87 RIVET; POP,FRT BUMPER
CHINA EQUIPMENT(YT2) D8X13.5 		1-09987-248-1 02 1 0902-
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 0509-
197 GRILLE; BUMPER 1-71260-115-1 01 1 0509-
197 GRILLE; BUMPER 1-71260-116-1 01 1 0509-
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-104-1 01 1 0902-
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-105-1 01 1 0902-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0509-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0509-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0509-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0509-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 0509-0512
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0601-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0509-0512
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601-
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0509-
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0509-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0509-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0509-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0509-
321 COVER; BUMPER FRT SIDE 1-71260-263-0 01 1 0509-
321 COVER; BUMPER FRT SIDE 1-71260-264-0 01 1 0509-
614 STOPPER; LID 1-71260-163-0 12 1 0509-
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 0509-
