4-80 — ROAD WHEEL (#29946) — 53 parça

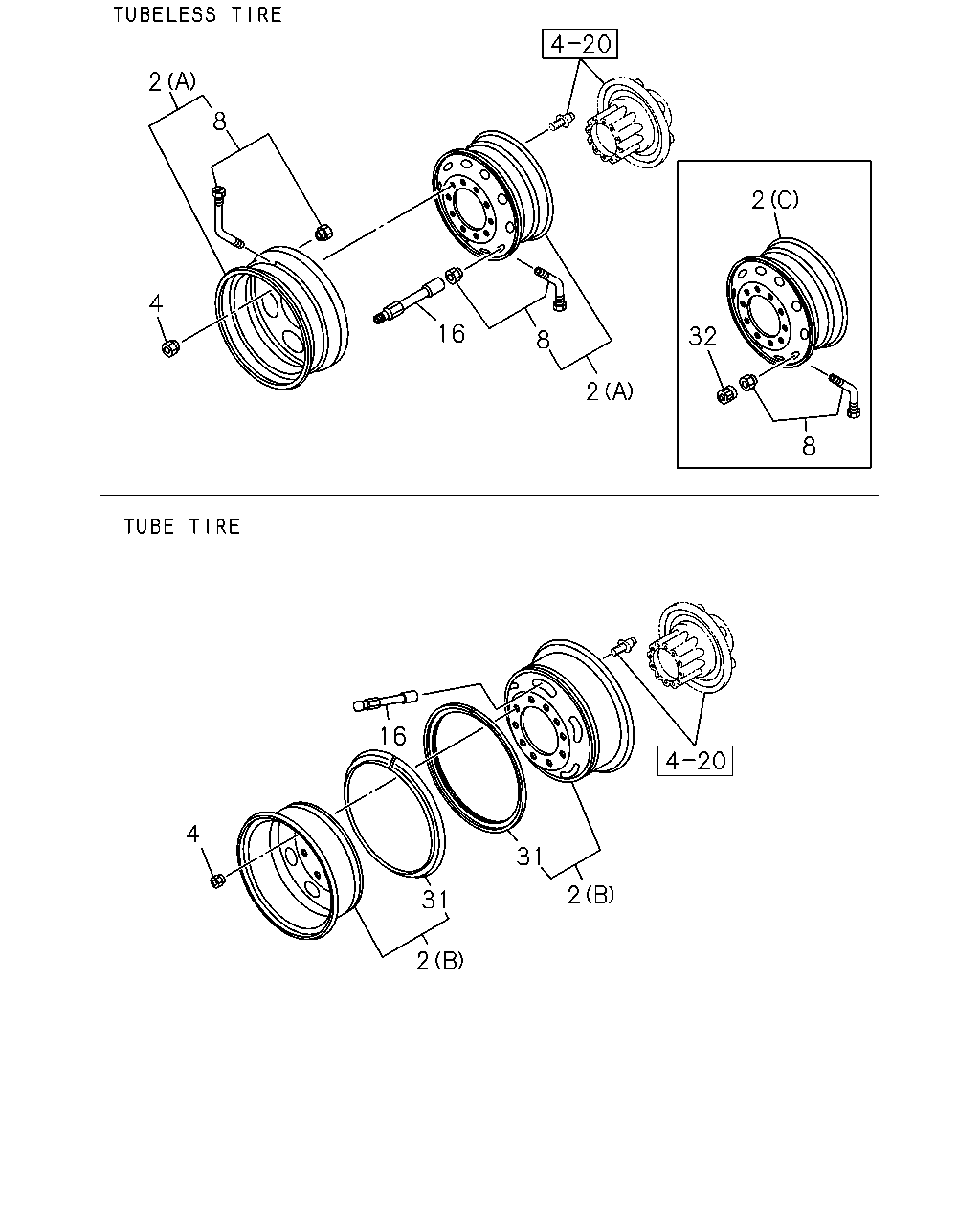

2 8 2 4 16 32 8 2 8 16 4 31 2 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42350-638-1	06	1	0509-0602
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-730-0	06	1	0603-1205
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98281-497-0	06	1	1408-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-638-1	01	1	0509-0602
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-730-0	01	1	0603-1205
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-448-0	06	1	0509-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	0509-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0509-0907
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-041-1	06	1	0509-0602
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-020-3	06	1	0603-1205
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-048-0	06	1	1206-1407
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-019-3	06	1	1408-
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-041-1	01	1	0509-0602
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0603-1205
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-019-3	01	1	1408-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170	1-42370-024-0	02	1	0509-1003
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170	8-98167-052-0	02	1	1004-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	06	1	0509-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0509-
32	CAP; VALVE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	06	1	0603-
32	CAP; VALVE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	0603-

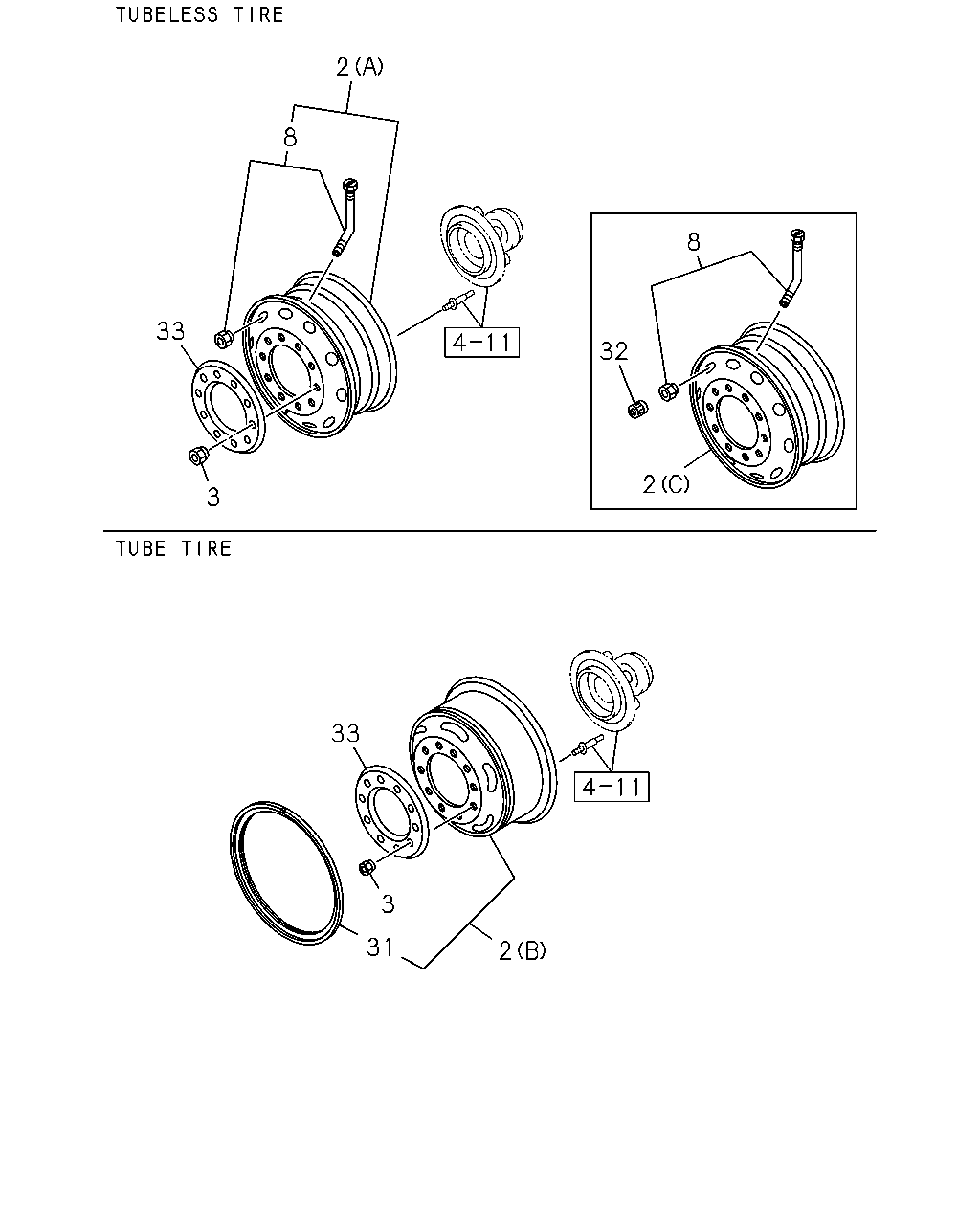

2 8 8 33 32 2 3 33 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42350-638-1	06	1	0509-0602
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-730-0	06	1	0603-1205
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98281-497-0	06	1	1408-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-638-1	01	1	0509-0602
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-730-0	01	1	0603-1205
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-448-0	06	1	0509-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	0509-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0509-0907
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-041-1	06	1	0509-0602
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-020-3	06	1	0603-1205
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-048-0	06	1	1206-1407
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR	1-42370-019-3	06	1	1408-
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-041-1	01	1	0509-0602
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0603-1205
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-019-3	01	1	1408-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	06	1	0509-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0509-
32	CAP; VALVE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	06	1	0603-
32	CAP; VALVE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	0603-
33	COVER; WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> RUSSIA COUNTRY(CZ3)	1-43139-065-0	02	1	0810-0901
33	COVER; WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> RUSSIA COUNTRY(CZ3) EXC. CHINA EQUIPMENT(YT2)	1-43139-065-1	02	1	0902-
33	COVER; WHEEL CHINA EQUIPMENT(YT2)	1-43139-065-1	02	1	0902-
