Isuzu WW
▶
TRUCKS
▶
EXR
▶
10950 - EXR LHD WEDGE BRAKE
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

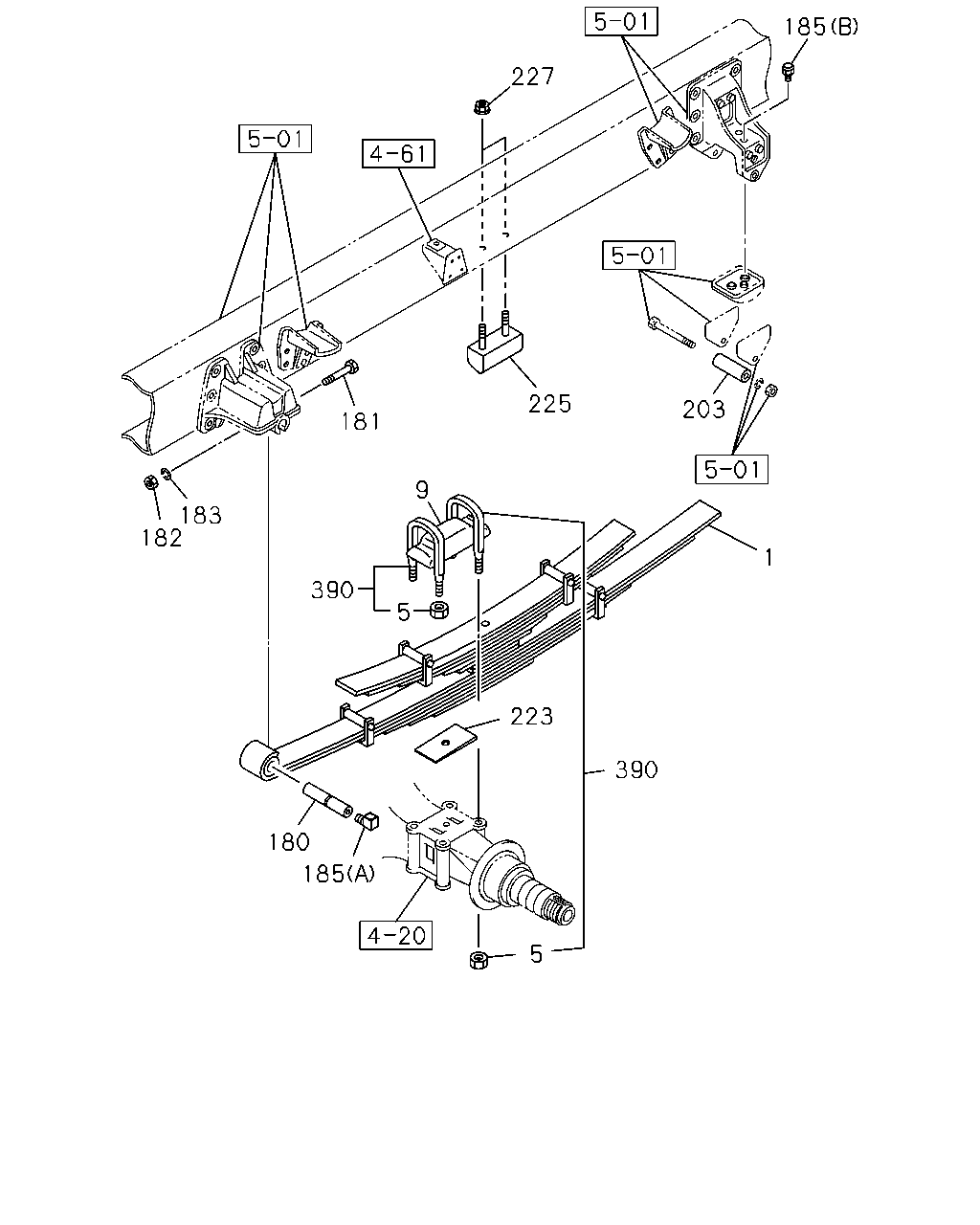

4-60 — REAR SUSPENSION
(#29943) — 27 parça
185
227
225
203
181
9
183
182
1
390
5
223
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. RUSSIA COUNTRY(CZ3)
1-51300-643-0
02
1
0810-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF
1-51300-645-0
02
1
0509-0809
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. RUSSIA COUNTRY(CZ3) 10-LEAF
1-51300-645-0
02
1
0810-
5
NUT; U-BOLT,RR SPR
M24
9-99112-824-0
08
1
0509-0512
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
0601-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
0509-
180
PIN; RR SPR
1-51361-020-0
02
1
0509-
181
BOLT; SPR & SHACKLE
M14X80
0-10806-480-0
02
1
0509-0512
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
0601-
182
NUT; PIN,RR SPR
M14
9-99110-414-0
02
1
0509-0512
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
0601-
183
WASHER; LK,PIN,RR SPR
ID=14.2
9-09150-514-0
02
1
0509-0603
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
0604-
185
NIPPLE; GREASE,PIN,RR SPR
(B) PT1/8 STRAIGHT
9-09031-010-0
02
1
0509-0512
185
NIPPLE; GREASE,PIN,RR SPR
(B) PT1/8 STRAIGHT
0-90301-410-0
02
1
0601-
185
NIPPLE; GREASE,PIN,RR SPR
(A) PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
02
1
0509-0512
185
NIPPLE; GREASE,PIN,RR SPR
(A) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
0601-
203
COLLAR; LEAF SPR STOPPER
1-53359-004-0
02
1
0509-
223
SPACER; U BOLT,RR SPR
1-51377-368-1
02
1
0509-1212
225
RUBBER; CUSHION,RR SPR
RUSSIA COUNTRY(CZ3)
1-53366-184-0
02
1
0810-
225
RUBBER; CUSHION,RR SPR
1-53366-067-4
02
1
0509-0809
225
RUBBER; CUSHION,RR SPR
EXC. RUSSIA COUNTRY(CZ3)
1-53366-067-4
02
1
0810-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91150-212-0
04
1
0509-0602
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
0603-
390
U-BOLT SET; RR SPRING
RUSSIA COUNTRY(CZ3) L=410
1-87870-011-4
04
1
0810-
390
U-BOLT SET; RR SPRING
L=470
1-87870-017-4
04
1
0509-0809
390
U-BOLT SET; RR SPRING
EXC. RUSSIA COUNTRY(CZ3) L=470
1-87870-017-4
04
1
0810-
