4-55 — FRONT LEAF SPRING (#29942) — 103 parça

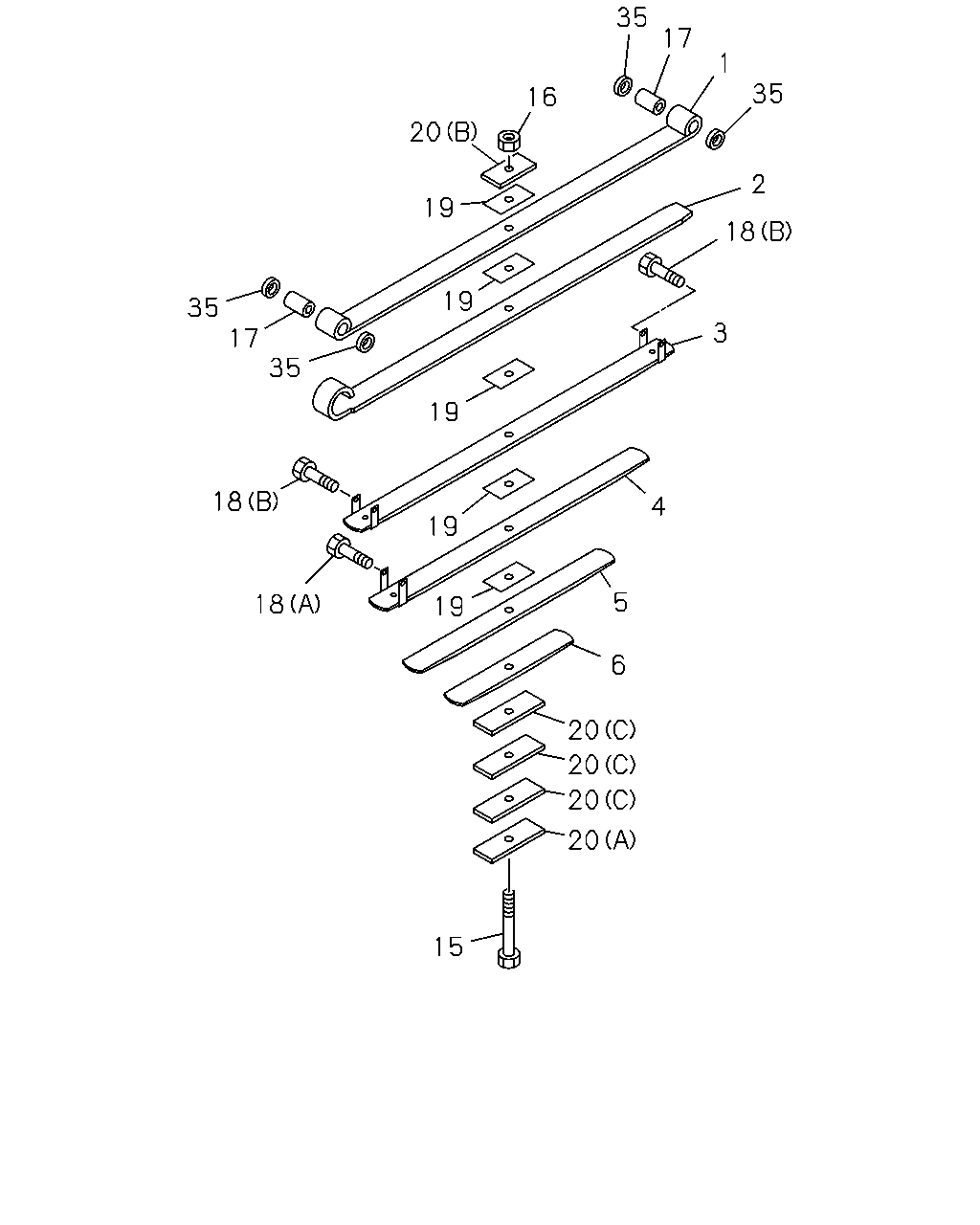

35 17 1 35 16 20 2 19 18 19 35 3 17 35 19 18 4 19 5 18 19 6 20 20 15 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97617-986-0	1-51131-917-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-935-0	1-51131-935-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-963-0	1-51131-963-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-97614-074-0	8-97615-382-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97617-986-0	1-51132-917-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-935-0	1-51132-935-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-963-0	1-51132-963-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-97614-074-0	8-97615-383-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97617-986-0	1-51133-917-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-935-0	1-51133-935-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-963-0	1-51133-963-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-97614-074-0	8-97615-384-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-97617-986-0	1-51134-917-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-935-0	1-51134-935-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-963-0	1-51134-963-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-97614-074-0	8-97615-385-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51130-963-0	1-51135-963-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-97614-074-0	8-97615-386-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-963-0	1-51136-963-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-97614-074-0	8-97615-387-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=120 ASM PART: D = 8-97617-986-0	1-51156-299-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=180 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0	1-51156-392-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 1-51130-963-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, D = 8-97617-986-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: C = 8-97614-074-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: C = 8-97614-074-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-071-0	05	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-935-0, D = 8-97617-986-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=12 ASM PART: A = 1-51130-935-0	1-51177-069-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=10 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=9 ASM PART: A = 1-51130-935-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: A = 1-51130-935-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-346-0	03	1	-
35	SEAL; DUST ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51177-321-0	04	1	-

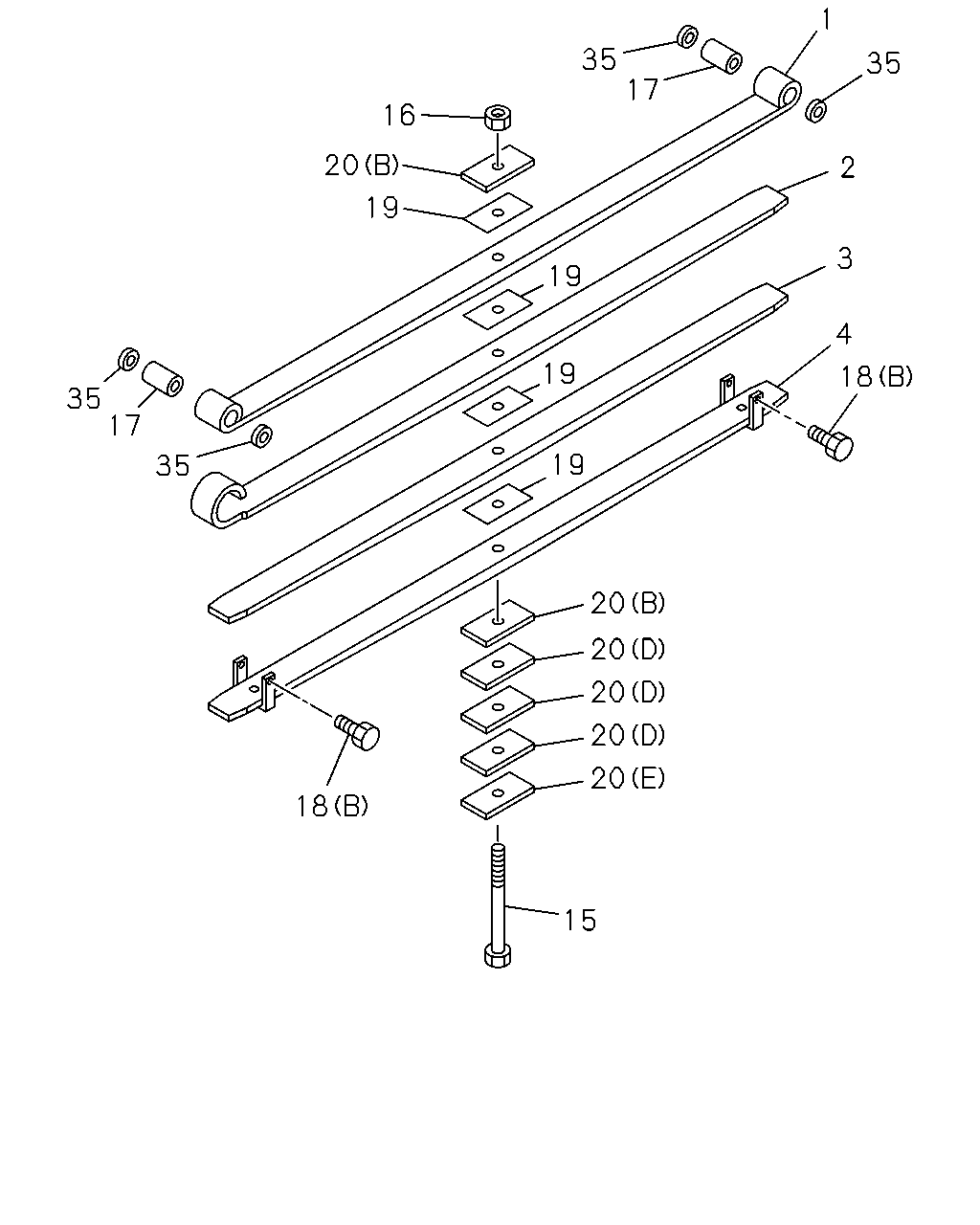

1 35 17 35 16 20 2 19 3 19 4 19 18 35 17 19 35 20 20 20 20 20 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97617-986-0	1-51131-917-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-935-0	1-51131-935-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-963-0	1-51131-963-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-97614-074-0	8-97615-382-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97617-986-0	1-51132-917-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-935-0	1-51132-935-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-963-0	1-51132-963-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-97614-074-0	8-97615-383-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97617-986-0	1-51133-917-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-935-0	1-51133-935-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-963-0	1-51133-963-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-97614-074-0	8-97615-384-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-97617-986-0	1-51134-917-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-935-0	1-51134-935-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-963-0	1-51134-963-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-97614-074-0	8-97615-385-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=120 ASM PART: D = 8-97617-986-0	1-51156-299-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=180 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0	1-51156-392-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 1-51130-963-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, D = 8-97617-986-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: C = 8-97614-074-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: C = 8-97614-074-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-071-0	05	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-935-0, D = 8-97617-986-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=12 ASM PART: A = 1-51130-935-0	1-51177-069-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=10 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=9 ASM PART: A = 1-51130-935-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: A = 1-51130-935-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-346-0	03	1	-
35	SEAL; DUST ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51177-321-0	04	1	-

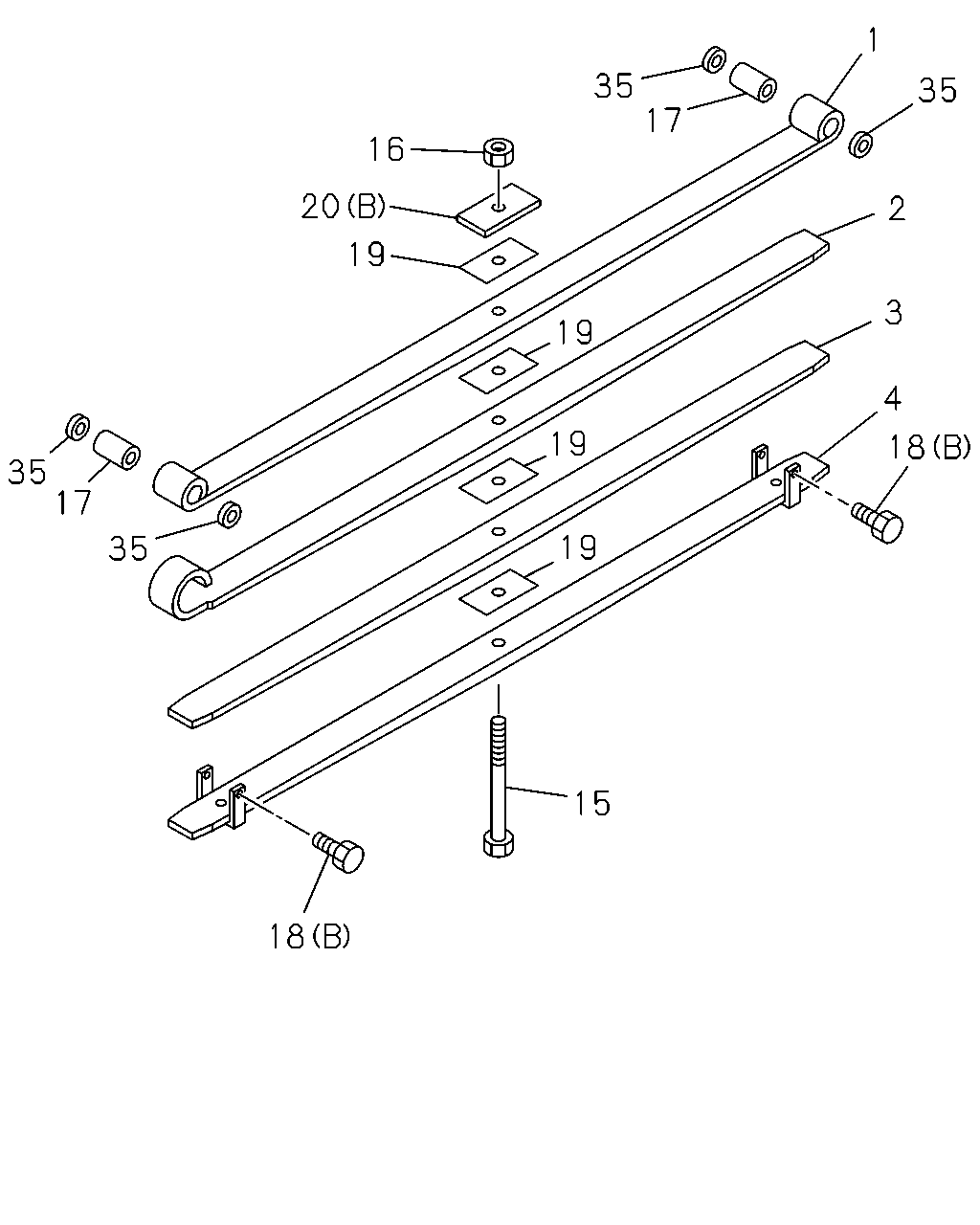

1 35 17 35 16 20 2 19 3 19 4 19 18 35 17 19 35 15 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97617-986-0	1-51131-917-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-935-0	1-51131-935-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-963-0	1-51131-963-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-97614-074-0	8-97615-382-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97617-986-0	1-51132-917-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-935-0	1-51132-935-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-963-0	1-51132-963-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-97614-074-0	8-97615-383-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97617-986-0	1-51133-917-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-935-0	1-51133-935-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-963-0	1-51133-963-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-97614-074-0	8-97615-384-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-97617-986-0	1-51134-917-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-935-0	1-51134-935-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-963-0	1-51134-963-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-97614-074-0	8-97615-385-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=120 ASM PART: D = 8-97617-986-0	1-51156-299-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=180 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0	1-51156-392-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 1-51130-963-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, D = 8-97617-986-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: C = 8-97614-074-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: C = 8-97614-074-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-071-0	05	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-935-0, D = 8-97617-986-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=12 ASM PART: A = 1-51130-935-0	1-51177-069-0	03	1	-
20	SEAT; LEAF SPR,FRT (A), T=10 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=9 ASM PART: A = 1-51130-935-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: A = 1-51130-935-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=14 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: B = 1-51130-963-0, C = 8-97614-074-0	1-51177-346-0	03	1	-
35	SEAL; DUST ASM PART: A = 1-51130-935-0, B = 1-51130-963-0, C = 8-97614-074-0, D = 8-97617-986-0	1-51177-321-0	04	1	-
