4-50 — FRONT SUSPENSION (#29941) — 57 parça

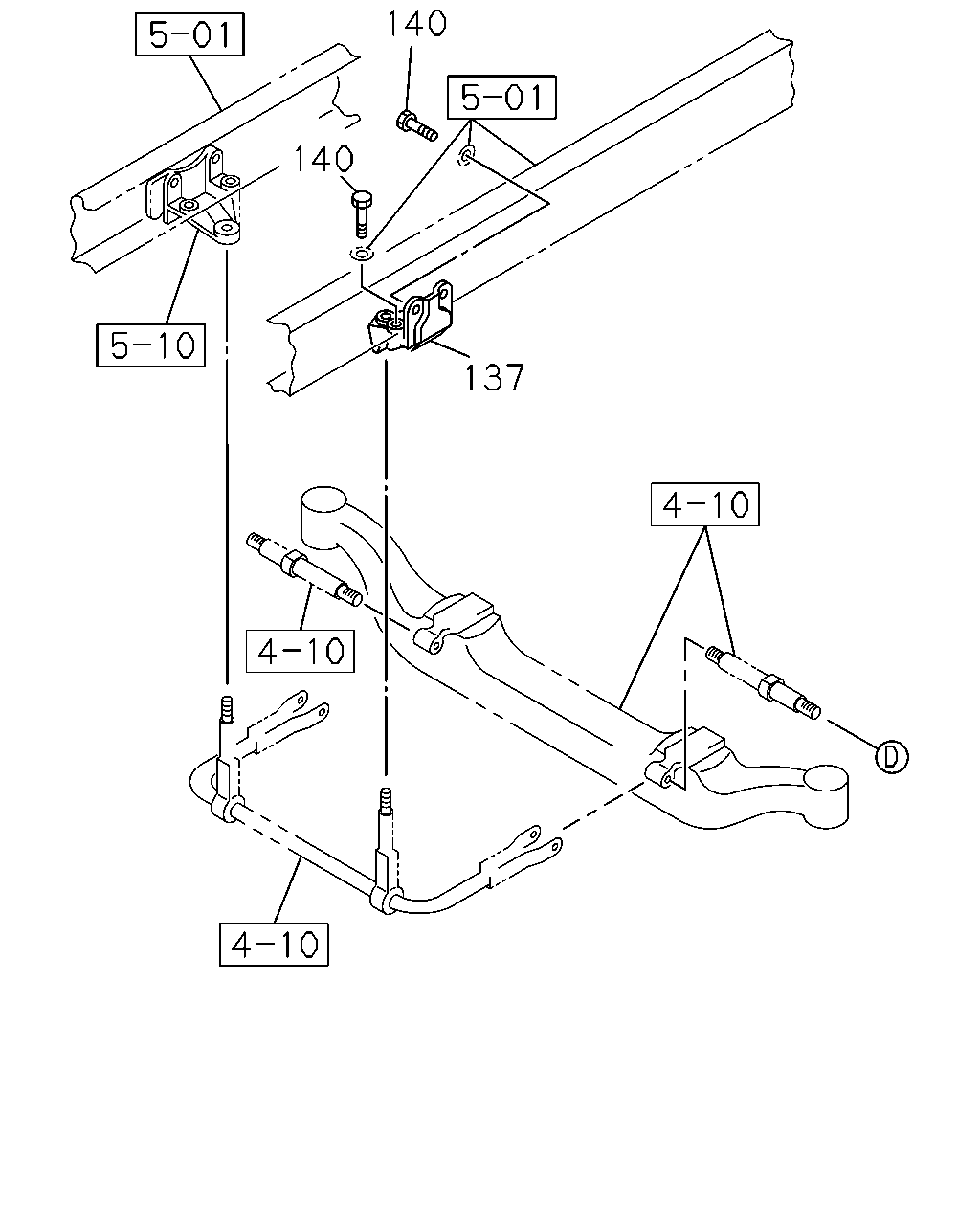

çizim 103860
140 140 137
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME 1-51781-112-0 01 1 0509-
140 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0509-0512
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601-

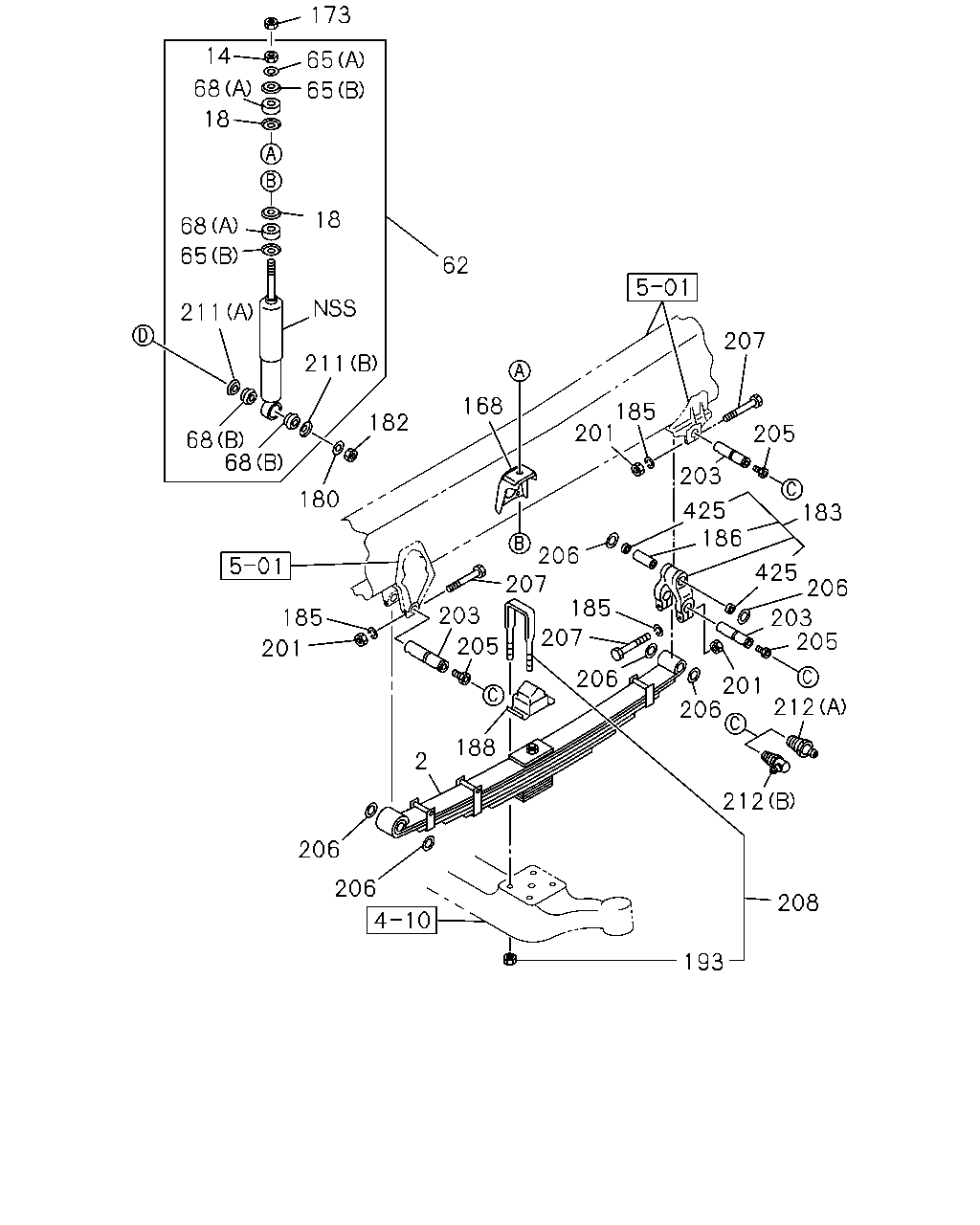

çizim 103862
173 14 65 68 65 18 18 68 65 62 211 207 211 168 185 201 182 205 68 68 203 183 180 425 186 206 207 425 206 185 203 185 203 205 207 205 201 206 201 206 212 188 2 212 206 206 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. RUSSIA COUNTRY(CZ3) FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-97617-986-0 02 1 0810-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		1-51130-935-0 02 1 0603-0809
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. RUSSIA COUNTRY(CZ3) 4-LEAF 		1-51130-935-0 02 1 0810-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51130-963-0 02 1 0509-0602
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF 		1-51130-963-0 02 1 0603-0603
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF 		8-97614-074-0 02 1 0604-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0509-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0509-
62 ABSORBER ASM; SHOCK,FRT
RUSSIA COUNTRY(CZ3) FRT TAPER LEAF SUSPENSION<SAR> 		8-97617-352-0 02 1 0810-
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-836-0 02 1 0603-0809
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. RUSSIA COUNTRY(CZ3) 		1-51630-836-0 02 1 0810-
62 ABSORBER ASM; SHOCK,FRT 1-51630-512-0 02 1 0509-0602
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-512-0 02 1 0603-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0509-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0509-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0509-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0509-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0509-
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0509-0512
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601-
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 0509-0605
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606-
182 NUT; S/ABS LWR
M20 		9-99110-520-0 02 1 0509-0512
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 0601-
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0509-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0509-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0509-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
RUSSIA COUNTRY(CZ3) 		1-51172-097-1 02 1 0810-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0509-0809
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. RUSSIA COUNTRY(CZ3) 		1-51172-088-1 02 1 0810-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0509-0512
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0509-0512
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0509-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0509-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0509-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0509-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601-
208 U-BOLT SET; FRT SPRING
RUSSIA COUNTRY(CZ3) L=210 		1-87870-380-1 04 1 0810-1206
208 U-BOLT SET; FRT SPRING
RUSSIA COUNTRY(CZ3) L=210 		1-87870-498-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
L=270 		1-87870-327-2 04 1 0509-0809
208 U-BOLT SET; FRT SPRING
EXC. RUSSIA COUNTRY(CZ3) L=270 		1-87870-327-2 04 1 0810-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0509-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0509-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0509-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 04 1 0509-0512
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 0601-
425 SEAL; DUST 1-51177-321-0 04 1 0509-1005
