Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#2994) — 466 parça

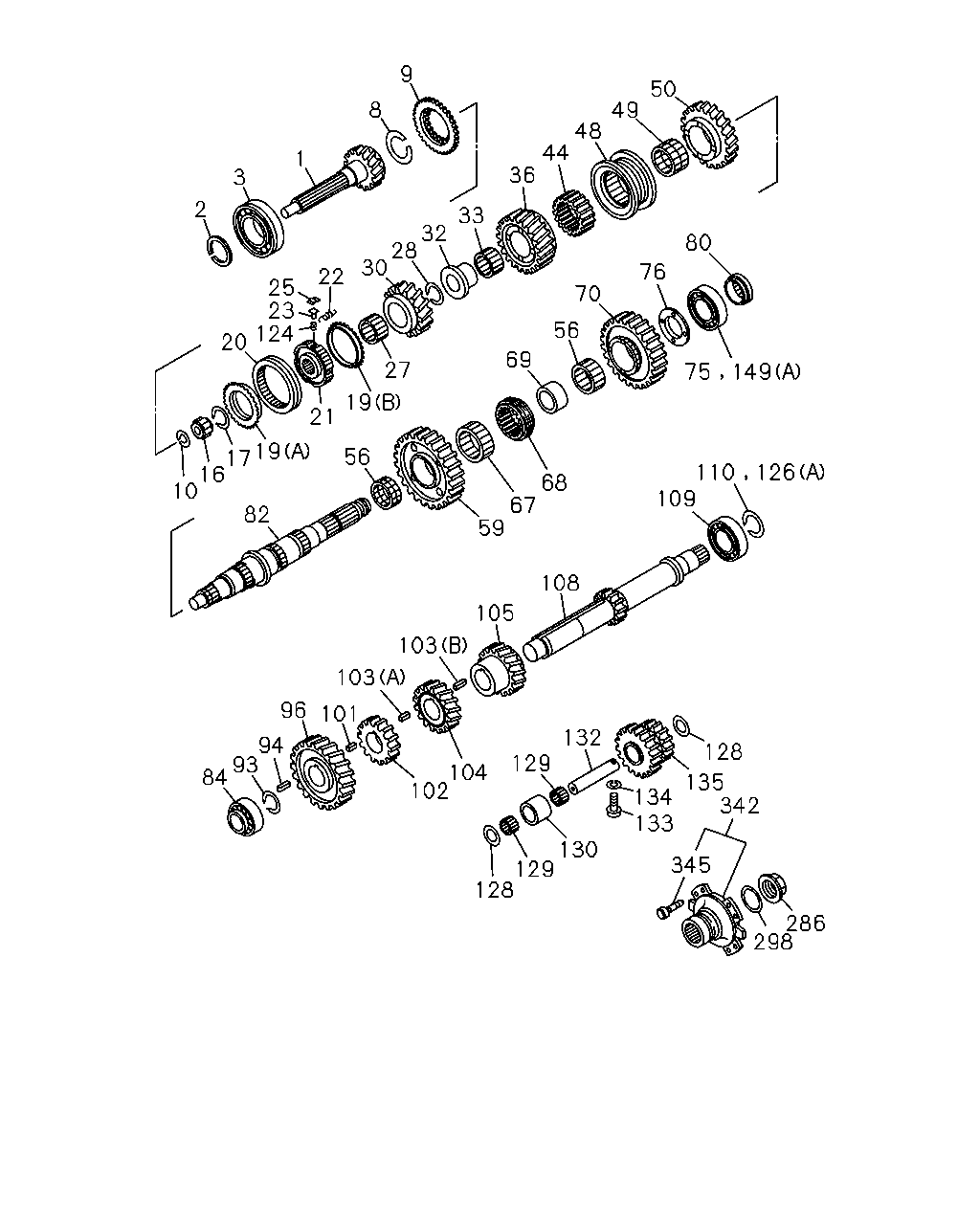

286 298 345 342 133 134 135 128 132 129 130 129 128 104 102 84 93 94 96 101 103 103 105 108 109 110 126 68 67 59 82 56 10 16 17 19 21 19 27 20 124 23 25 22 30 28 32 33 36 44 48 49 50 9 8 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-9306	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-9306		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-			●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9002-			●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-9306	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-			●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-			●	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	9002-9306	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-			●	●	●
19	RING; BLOCK,4TH & 5TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406			●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-			●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-			●	●	●
20	SLEEVE	1-33262-097-1	01	1	9002-			●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204			●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-			●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-	●	●	●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	01	1	9206-9306	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	01	1	9206-9306	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-			●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-			●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-9306	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-			●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203			●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-			●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-9306	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-			●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-			●	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-1	01	1	9002-9306	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-			●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-			●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-			●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9002-			●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9002-			●	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-9306	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-			●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	01	1	9206-9306	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-0	01	1	9206-9306	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-			●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-			●	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-9306	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-			●	●	●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-			●	●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-			●	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-210-3	01	1	9002-9306	●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-209-3	01	1	9002-9306		●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-141-8	01	1	9002-				●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-140-8	01	1	9002-			●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=79.5	1-09588-149-0	01	1	9002-9306	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9002-			●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-9306	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-030-0	01	1	9002-			●	●	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-9306	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-9306		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-			●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-					●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-9306	●	●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-			●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-9306	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-			●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9306	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-9306	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-			●	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-			●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-9306	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-			●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-9306	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-			●	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-9306	●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110		●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-9306		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9002-9201				●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-				●
108	SHAFT; COUNTER Z=22-15-13	1-33311-213-0	01	1	9002-9201			●		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-250-0	01	1	9202-			●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-9306	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-9306	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-049-1	01	1	9002-9306			●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-162-0	01	1	9002-9306			●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-9306	●	●
110	RING; SNAP,COUNTER BRG	1-09588-160-1	01	1	9307-			●	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9002-	●	●	●	●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306		●		●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-			●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-9306	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-			●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-9306	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-			●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-			●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-			●	●	●
132	SHAFT; REV	1-33351-016-0	01	1	9002-9306	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-			●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203			●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-			●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-			●	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-9306	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201			●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-			●	●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-9306	●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-			●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-9306	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-			●	●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-9306	●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-061-2	01	1	9002-			●	●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9412	●	●	●	●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-			●	●	●

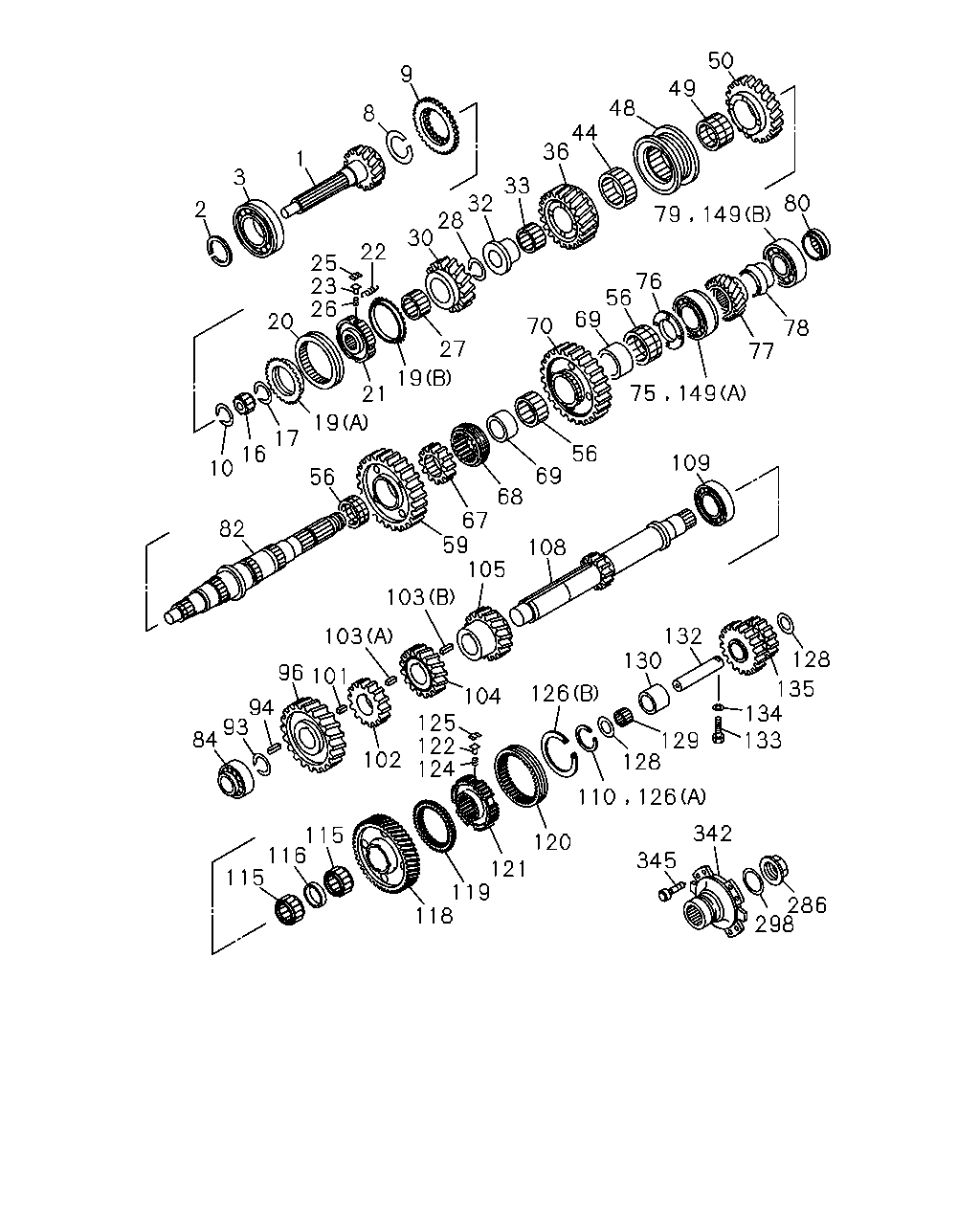

298 286 342 345 118 119 121 120 110 126 128 129 133 134 135 128 132 130 126 104 125 122 124 102 115 116 115 84 93 94 96 101 103 103 105 108 109 56 69 68 67 59 75 149 77 78 80 149 79 76 56 69 70 27 19 21 19 56 17 16 10 82 20 26 23 25 22 30 28 32 33 36 44 48 49 50 9 8 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-9306	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-9306		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-			●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9002-			●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-9306	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-			●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-			●	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	9002-9306	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-			●	●	●
19	RING; BLOCK,4TH & 5TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406			●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-			●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-			●	●	●
20	SLEEVE	1-33262-097-1	01	1	9002-			●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204			●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-			●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-	●	●	●	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9002-		●	●		●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	01	1	9206-9306	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	01	1	9206-9306	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-			●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-			●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-9306	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-			●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203			●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-			●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-9306	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-			●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-			●	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-1	01	1	9002-9306	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-			●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-			●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-			●	●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9002-			●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9002-			●	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-9306	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-			●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	01	1	9206-9306	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-0	01	1	9206-9306	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-			●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-			●	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-9306	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-			●	●	●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-			●	●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-			●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-9306	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302			●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-			●	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	9002-9306	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-			●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9002-9306	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9002-9306	●	●	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-			●	●	●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-352-0	01	1	9002-			●		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-9306	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-9306		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9002-			●		●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●		●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●		●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●		●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●		●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> Z=5	1-33371-028-0	01	1	9002-9306	●
80	GEAR; SPD DRIVE FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E) Z=7	1-33371-021-3	01	1	9002-9306	●	●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X> Z=7	1-33371-021-3	01	1	9002-9306	●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> Z=5	1-33371-031-1	01	1	9002-				●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) Z=5	1-33371-031-1	01	1	9002-			●		●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X> Z=7	1-33371-032-1	01	1	9002-				●	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) Z=7	1-33371-032-1	01	1	9002-				●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-210-3	01	1	9002-9306	●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-209-3	01	1	9002-9306		●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-141-8	01	1	9002-				●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-140-8	01	1	9002-			●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=79.5	1-09588-149-0	01	1	9002-9306	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9002-			●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-9306	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-030-0	01	1	9002-			●	●	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-9306	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-9306		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-			●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-					●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-9306	●	●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-			●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-9306	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-			●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9306	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-9306	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-			●	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-			●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-9306	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-			●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-9306	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-			●	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-9306	●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110		●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-9306		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9002-9201				●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-				●
108	SHAFT; COUNTER Z=22-15-13	1-33311-213-0	01	1	9002-9201			●		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-250-0	01	1	9202-			●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-9306	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-9306	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-049-1	01	1	9002-9306			●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-162-0	01	1	9002-9306			●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-9306	●	●
110	RING; SNAP,COUNTER BRG	1-09588-160-1	01	1	9307-			●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	9-00096-135-0	02	1	9002-			●		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	9-00096-136-0	02	1	9002-			●		●
116	COLLAR; DIST,COUNTER SHAFT	1-33315-001-0	01	1	9002-			●		●
118	GEAR; 6TH,COUNTER Z=45	1-33338-202-2	01	1	9002-			●		●
119	RING; BLOCK,6TH SYN	1-33265-213-1	01	1	9002-9203			●		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9204-			●		●
120	SLEEVE	1-33262-098-2	01	1	9002-			●		●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-9306	●	●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9002-9204			●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-			●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9002-	●	●	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9002-			●		●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306		●		●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-			●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-9306	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-			●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-9306	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-			●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-			●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-			●	●	●
132	SHAFT; REV	1-33351-016-0	01	1	9002-9306	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-			●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203			●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-			●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-			●	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-9306	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201			●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9307-			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9307-			●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-			●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-			●		●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-9306	●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-			●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-9306	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-			●	●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-9306	●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-061-2	01	1	9002-			●	●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9412	●	●	●	●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-			●	●	●

140 139 135 128 129 138 129 128 132 126 126 113 114 112 111 110 109 108 94 101 237 103 103 117 124 122 238 342 345 298 286 105 104 97 102 96 93 84 82 37 50 39 38 69 56 58 57 56 70 60 59 74 75 81 78 79 80 31 42 43 31 30 27 17 11 121 12 11 18 16 26 23 25 22 27 13 15 218 46 216 45 33 36 9 8 1 3 2

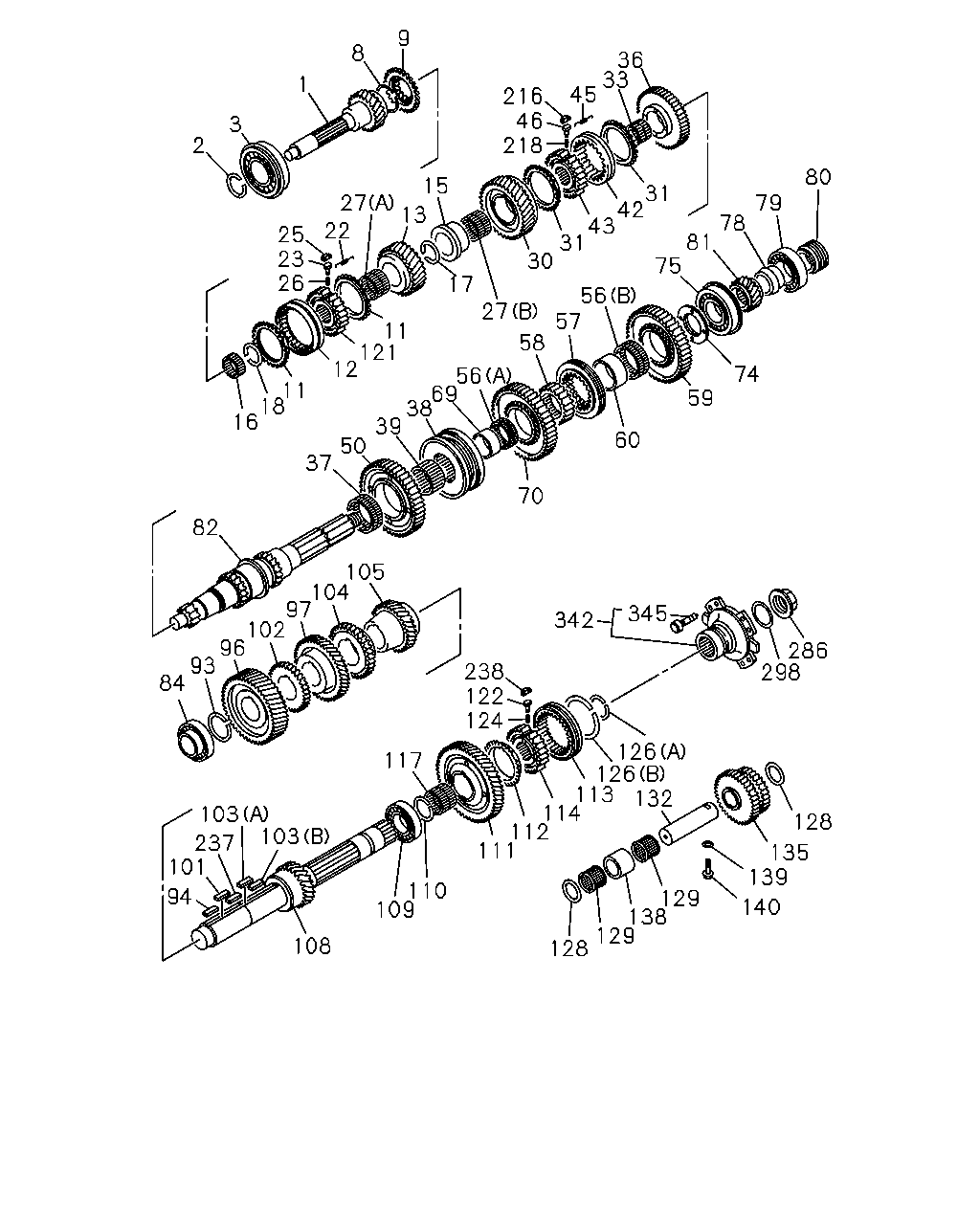

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-9306	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-9306		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-			●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9002-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9002-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=54	1-33265-290-2	02	1	9002-9306	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9002-9306	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9002-9306	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9002-9306		●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9002-9306	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-9306	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-			●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-			●	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	9002-9306	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-			●	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-	●	●	●	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9002-		●	●		●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-353-0	01	1	9206-9306	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-360-0	01	1	9206-9306	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-			●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-			●	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-9306	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-			●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-333-0	02	1	9002-9111	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-376-1	02	1	9112-9306	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-9306	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-			●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-			●	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-1	01	1	9002-9306	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-			●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-0	01	1	9206-9306	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-0	01	1	9002-9306	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9002-9306	●	●
42	SLEEVE	1-33262-133-0	01	1	9002-9306	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-154-4	01	1	9002-9204	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9205-9306	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9002-9306	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-9306	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-9306	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-			●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	01	1	9206-9306	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-0	01	1	9206-9306	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-			●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-			●	●	●
57	SLEEVE; REV	1-33262-112-0	01	1	9002-9306	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9002-9306	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-9306	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-			●	●	●
60	COLLAR; REV MAIN	1-33234-062-0	01	1	9002-9302	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9303-9306	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-9306	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302			●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-			●	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-1	01	1	9002-9306	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-			●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9002-9306	●	●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9002-9306	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9002-9306	●	●	●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-9306	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-9306		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9002-			●		●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●		●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●		●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●		●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●		●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> Z=5	1-33371-028-0	01	1	9002-9306	●
80	GEAR; SPD DRIVE FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E) Z=7	1-33371-021-3	01	1	9002-9306	●	●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X> Z=7	1-33371-021-3	01	1	9002-9306	●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> Z=5	1-33371-031-1	01	1	9002-				●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) Z=5	1-33371-031-1	01	1	9002-			●		●
80	GEAR; SPD DRIVE FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X> Z=7	1-33371-032-1	01	1	9002-				●	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) Z=7	1-33371-032-1	01	1	9002-				●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9002-9306		●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-210-3	01	1	9002-9306	●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-209-3	01	1	9002-9306		●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-141-8	01	1	9002-				●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-140-8	01	1	9002-			●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=79.5	1-09588-149-0	01	1	9002-9306	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9002-			●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-9306	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-030-0	01	1	9002-			●	●	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-9306	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-9306		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-			●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-					●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9002-9306	●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9002-9306		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-9306	●	●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-			●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-9306	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-			●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9306	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-9306	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-			●	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-			●	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-9306	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-			●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-9306	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-			●	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-9306	●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110		●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-9306		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9002-9201				●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-				●
108	SHAFT; COUNTER Z=22-15-13	1-33311-213-0	01	1	9002-9201			●		●
108	SHAFT; COUNTER Z=22-15-13	1-33311-250-0	01	1	9202-			●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-9306	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-9306	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-049-1	01	1	9002-9306			●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-162-0	01	1	9002-9306			●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-9306	●	●
110	RING; SNAP,COUNTER BRG	1-09588-160-1	01	1	9307-			●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9002-9306		●
112	RING; BLOCK,7TH SYN	1-33265-213-1	01	1	9002-9203		●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9204-9306		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-1	01	1	9002-9306		●
114	HUB; CLU,7TH	1-33261-152-1	01	1	9002-9204		●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9205-9306		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-248-0	01	1	9002-9205		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9206-9306		●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-9306	●	●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9002-9204			●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-			●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9002-	●	●	●	●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306		●		●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-			●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-9306	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-			●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-9306	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-			●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-			●	●	●
132	SHAFT; REV	1-33351-016-0	01	1	9002-9306	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-			●	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-9306	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201			●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-			●	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9002-9306	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9002-9205	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9002-9205	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-9306	●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9002-9306	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	9002-9306	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9002-9306	●	●
238	INSERT	1-33263-025-2	03	1	9002-9306		●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M46	1-09449-062-0	01	1	9002-9306	●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-			●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09623-305-0	01	1	9002-9306	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-			●	●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-171-4	01	1	9002-9306	●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-061-2	01	1	9002-			●	●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9412	●	●	●	●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-086-0	04	1	9501-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
