4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#29937) — 138 parça

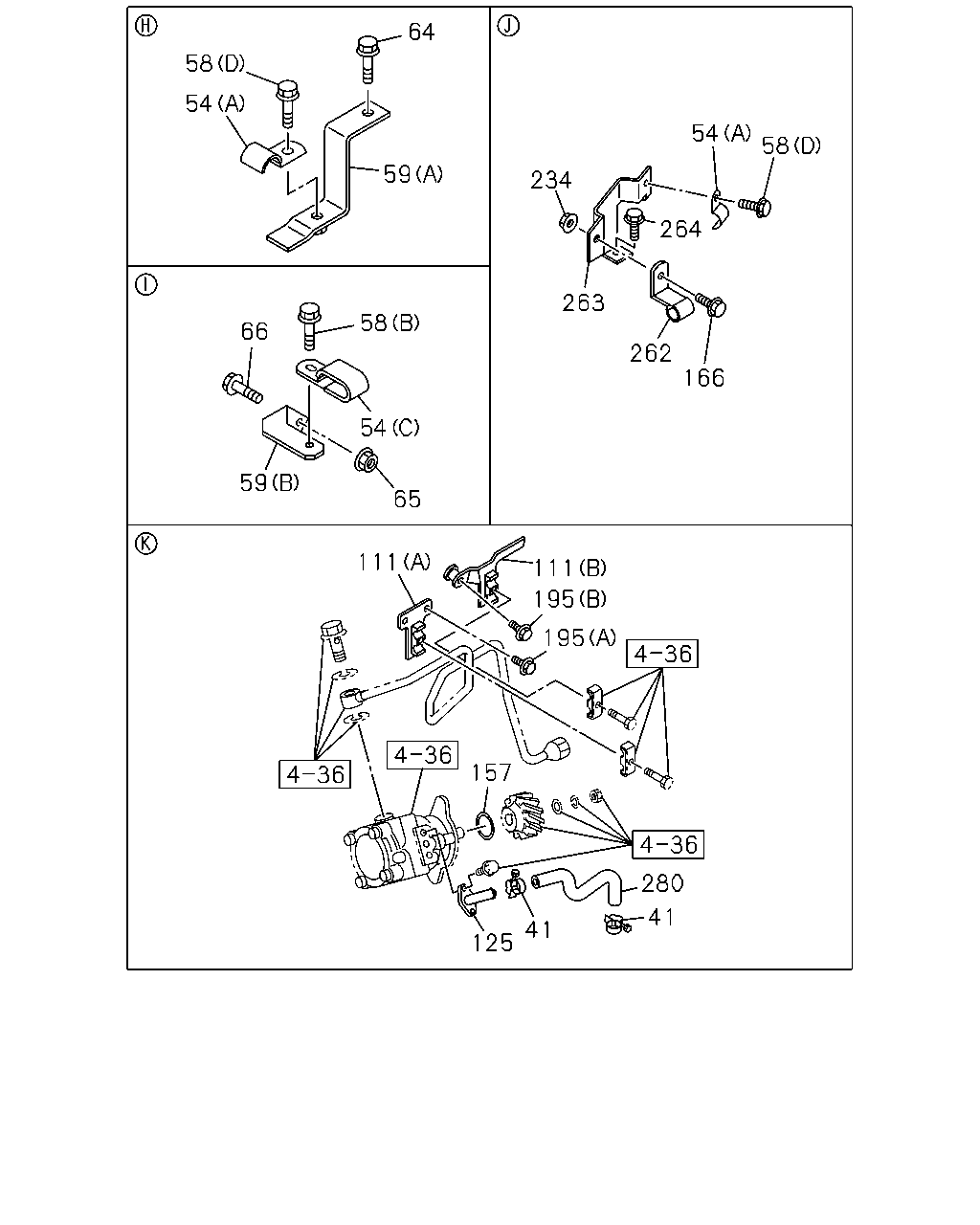

64 58 54 54 58 59 234 264 263 58 66 262 166 54 59 65 111 111 195 195 157 280 41 41 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0509-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0509-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0509-0606
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-0810
54	CLIP; OIL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0509-0606
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0607-0907
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	0908-
58	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	01	1	0810-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0509-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-
58	BOLT; CLIP (C) M8X30 FLANGE	0-28680-830-0	01	1	0509-0512
58	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-0810
58	BOLT; CLIP (D) M10X25 FLANGE	0-28681-025-0	02	1	0509-0512
58	BOLT; CLIP (D) M10X25 FLANGE	0-28651-025-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (B)	1-53441-537-0	01	1	0509-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0509-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28080-830-0	01	1	0509-0512
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0509-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0509-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0509-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0509-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0509-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0509-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0509-0512
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0810
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0509-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0509-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0509-0512
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0509-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0603-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0509-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0509-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0509-0512
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0509-

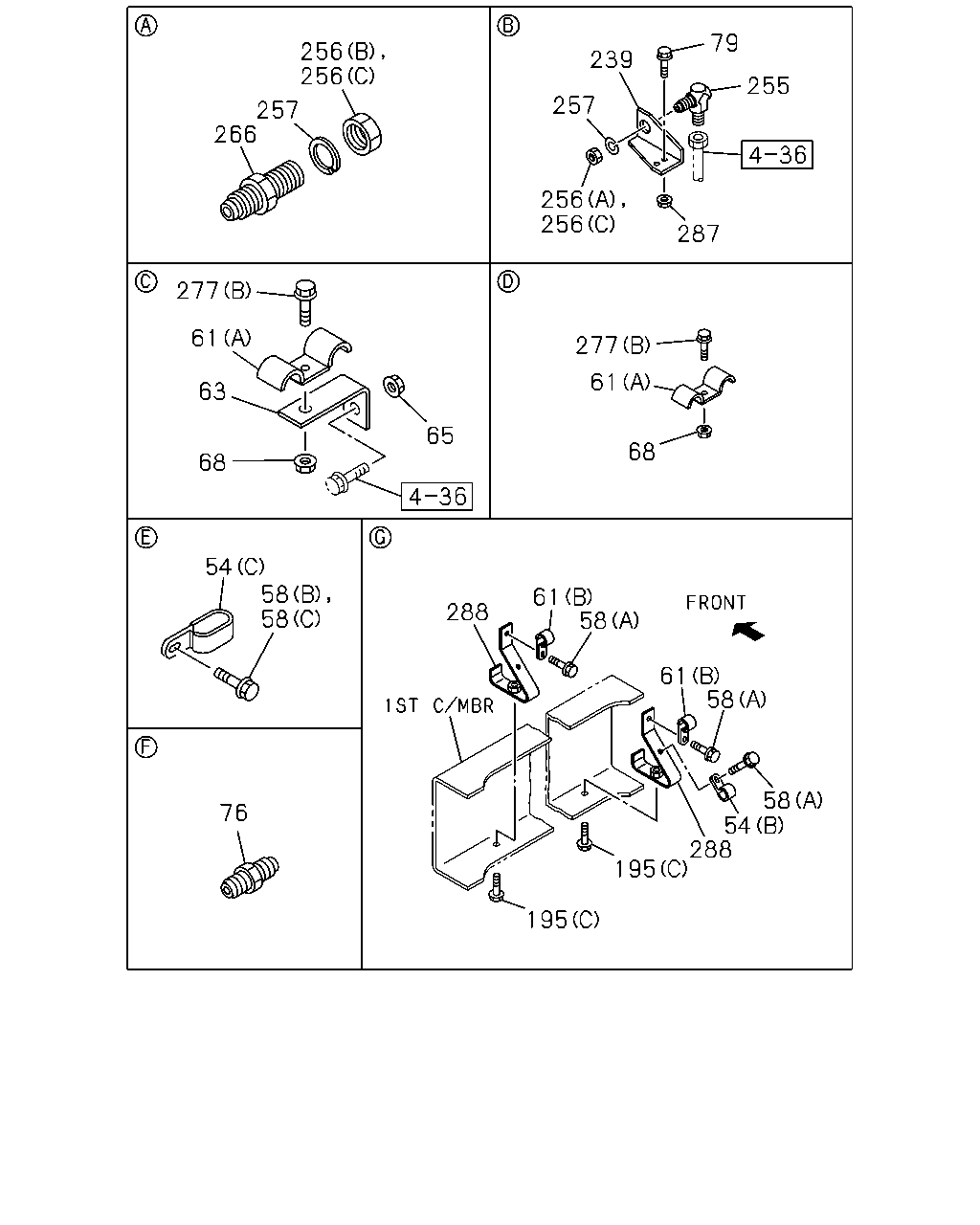

79 256 256 239 255 257 257 266 256 256 287 277 61 277 61 63 65 68 68 54 58 58 61 58 288 61 58 58 54 288 195 76 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0509-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0509-0606
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-0810
54	CLIP; OIL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0509-0606
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0607-0907
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	0908-
58	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	01	1	0810-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0509-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-
58	BOLT; CLIP (C) M8X30 FLANGE	0-28680-830-0	01	1	0509-0512
58	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-0810
58	BOLT; CLIP (D) M10X25 FLANGE	0-28681-025-0	02	1	0509-0512
58	BOLT; CLIP (D) M10X25 FLANGE	0-28651-025-0	02	1	0601-
61	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 L=20	0-95235-535-0	01	1	0810-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0509-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0509-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0509-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0509-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0509-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0509-0607
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0608-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0509-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0509-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0509-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0509-0512
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
239	BRACKET; FLEX HOSE	1-47479-664-0	01	1	0509-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0509-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0509-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0509-0512
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0509-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0509-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0509-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	0509-0512
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0509-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	0509-

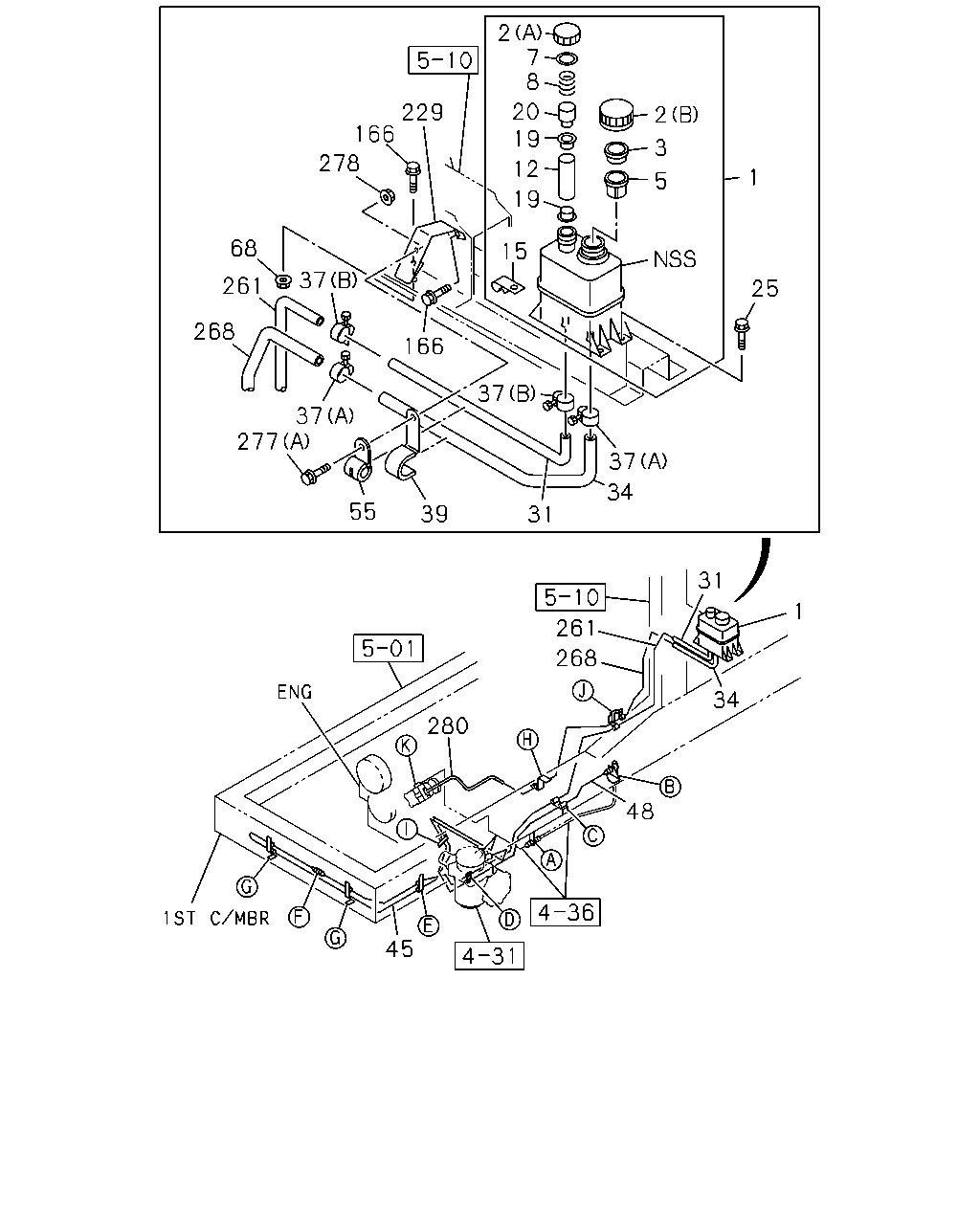

2 7 8 20 19 229 166 2 3 278 12 1 5 19 68 15 37 261 25 268 166 37 37 277 37 34 55 39 31 31 1 261 268 34 280 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0509-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0509-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0509-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0509-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0509-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0509-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0509-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0509-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0509-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0509-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0509-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0509-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0509-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0509-
45	PIPE; OIL,P/S UNIT TO UNION L=2443	1-21117-828-0	01	1	0509-0601
45	PIPE; OIL,P/S UNIT TO UNION L=2443	1-21117-889-0	01	1	0602-0609
45	PIPE; OIL,P/S UNIT TO UNION L=2443	8-98054-782-0	01	1	0610-0709
45	PIPE; OIL,P/S UNIT TO UNION L=2443	1-21117-931-0	01	1	0710-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1974	1-21117-827-0	01	1	0509-0609
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1974	8-98054-781-0	01	1	0610-0709
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1983	1-21117-930-0	01	1	0710-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0509-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0509-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0509-0512
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0810
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0509-
261	PIPE; OIL,UNION TO HOSE L=2989	1-21117-861-0	01	1	0509-0709
261	PIPE; OIL,UNION TO HOSE L=2999	1-21117-932-0	01	1	0710-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	0509-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	0509-0512
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0509-0602
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0603-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0509-
