◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#29933) — 587 parça

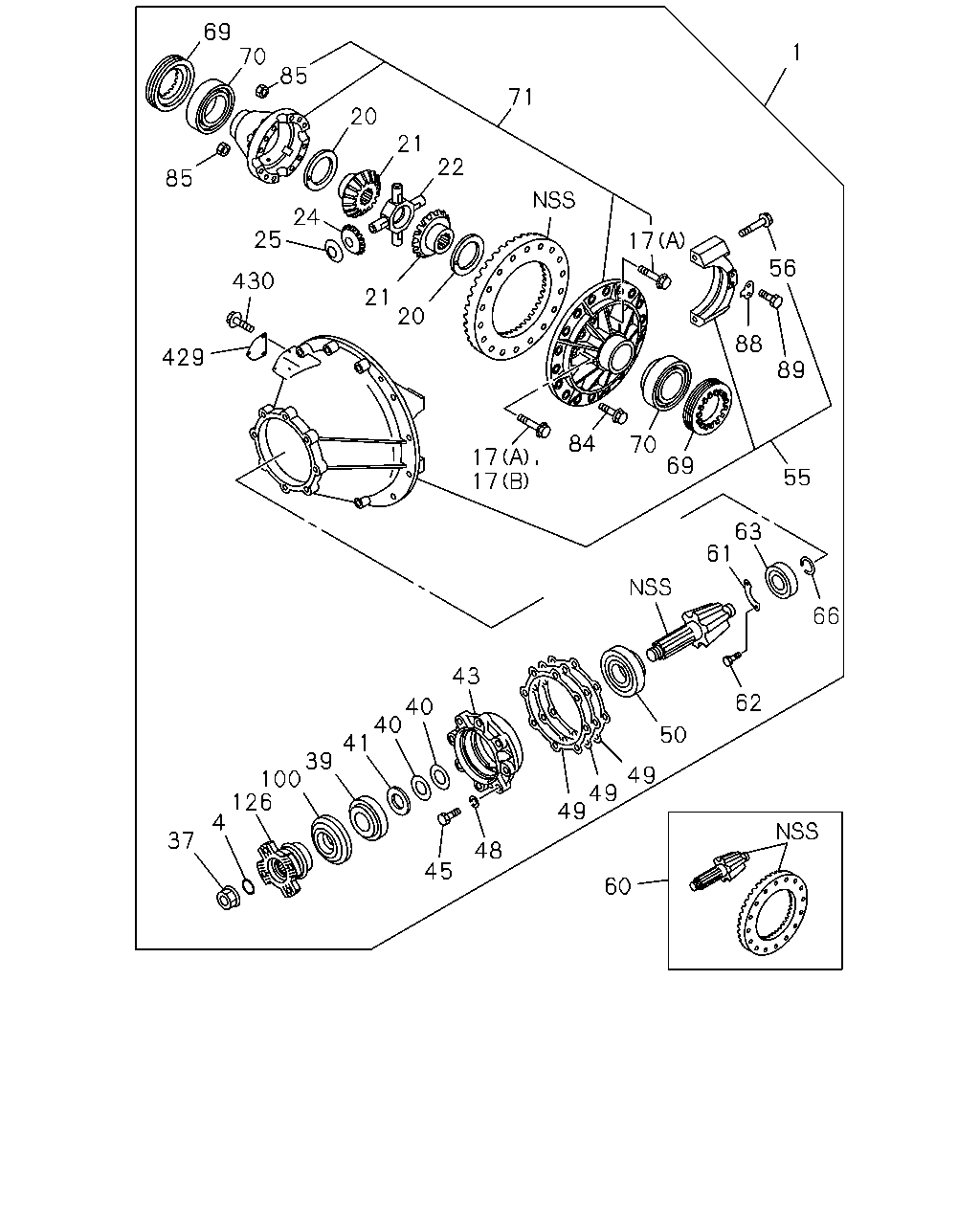

çizim 103857
69 70 1 85 71 20 21 22 85 24 25 17 56 430 21 20 88 429 89 84 70 17 17 69 55 63 61 66 43 62 40 40 41 50 39 100 126 4 49 49 49 37 48 45 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-929-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-927-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-930-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
DIFF LOCK<C3N> 39/9 		1-41002-406-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
EXC. DIFF LOCK<C3N> 39/9 		1-41002-397-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
DIFF LOCK<C3N> 41/8 		1-41002-403-0 01 1 0510- ●
1 DRIVE ASM; FINAL,RR
EXC. DIFF LOCK<C3N> 41/8 		1-41002-394-0 01 1 0509- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0509-0809 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0810- ● ●
17 BOLT; DIFF CAGE SETTING
(C) 		1-41519-095-0 12 1 0902- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X141 FLANGE 		1-09070-013-0 08 1 0509-0809 ●
17 BOLT; DIFF CAGE SETTING
(A) M16X141 FLANGE 		1-09070-013-0 08 1 0810- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X105 FLANGE 		1-09070-014-0 04 1 0509-0809 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X105 FLANGE 		1-09070-014-0 04 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 0902- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 0810- ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 0902- ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-142-0 02 1 0509-0809 ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-142-0 02 1 0810-0911 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-167-0 02 1 0912- ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0902- ● ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 0509-0809 ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 0810- ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0902- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-045-0 04 1 0509-0809 ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-045-0 04 1 0810-0911 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-054-0 04 1 0912- ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0902- ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 0509-0809 ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 0810- ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0902-0902 ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0902- ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 0509-0809 ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 0810- ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 0509-0809 ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 0810- ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 0509-0809 ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-372-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-373-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-374-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-375-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-376-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-377-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-378-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-379-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-380-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-381-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0810- ● ●
43 CAGE; FINAL PINION 1-41151-103-0 01 1 0902- ● ● ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 0509-0809 ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 0810- ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 0902-0902 ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 0902- ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 0509-0809 ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 0810- ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 0509-0603 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0604-0809 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-115-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-116-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-117-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 0810- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 0509-0809 ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 0810- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-1 01 1 0509-0809 ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-3 01 1 0810- ● ●
55 CARRIER; DIFF 1-41110-127-0 01 1 0902- ● ● ●
55 CARRIER; DIFF 1-41110-117-0 01 1 0509-0809 ●
55 CARRIER; DIFF 1-41110-117-1 01 1 0810- ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0902- ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0509-0809 ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0810- ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-685-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-684-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-687-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-620-0 01 1 0810- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-617-0 01 1 0509- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-008-0 01 1 0509-0809 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-008-0 01 1 0810- ● ●
62 BOLT; RET
M8X16 		0-20850-816-0 02 1 0509-0809 ●
62 BOLT; RET
M8X16 		0-20850-816-0 02 1 0810- ● ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 0902- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 0509-0809 ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 0810- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 0509-0809 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 0810- ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 0902- ● ● ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 0509-0809 ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 0810- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 0902- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 0902- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0509-0809 ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0810- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0509-0809 ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0810- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 0509-0809 ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 0810- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-313-0 01 1 0902- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-312-0 01 1 0902- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 0509-0809 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 0810- ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 0902- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 0509-0809 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 0810- ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 16 1 0902- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 0509-0809 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 0810- ● ●
88 PLATE; LK,ADJ NUT
T=3.2 		1-41124-026-0 02 1 0509-0809 ●
88 PLATE; LK,ADJ NUT
T=3.2 		1-41124-026-0 02 1 0810- ● ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 0509-0809 ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 0810- ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0902-0902 ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0902- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0509-0809 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0810- ● ●
126 COUPLING; DRIVING PINION 1-37245-373-0 01 1 0902- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 0509-0809 ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 0810- ● ●
429 PLATE; DUMMY
EXC. DIFF LOCK<C3N> 		1-41279-014-0 01 1 0509-0809 ●
429 PLATE; DUMMY
EXC. DIFF LOCK<C3N> 		1-41279-014-0 01 1 0810- ● ●
430 BOLT; PLATE,DUMMY
EXC. DIFF LOCK<C3N> M8X20 FLANGE 		0-28680-820-0 03 1 0509-0512 ●
430 BOLT; PLATE,DUMMY
EXC. DIFF LOCK<C3N> M8X20 FLANGE 		0-28650-820-0 03 1 0601-0809 ●
430 BOLT; PLATE,DUMMY
EXC. DIFF LOCK<C3N> M8X20 FLANGE 		0-28650-820-0 03 1 0810- ● ●
453 COVER; CYLINDER
DIFF LOCK<C3N> 		1-48269-212-0 01 1 0902- ● ● ●

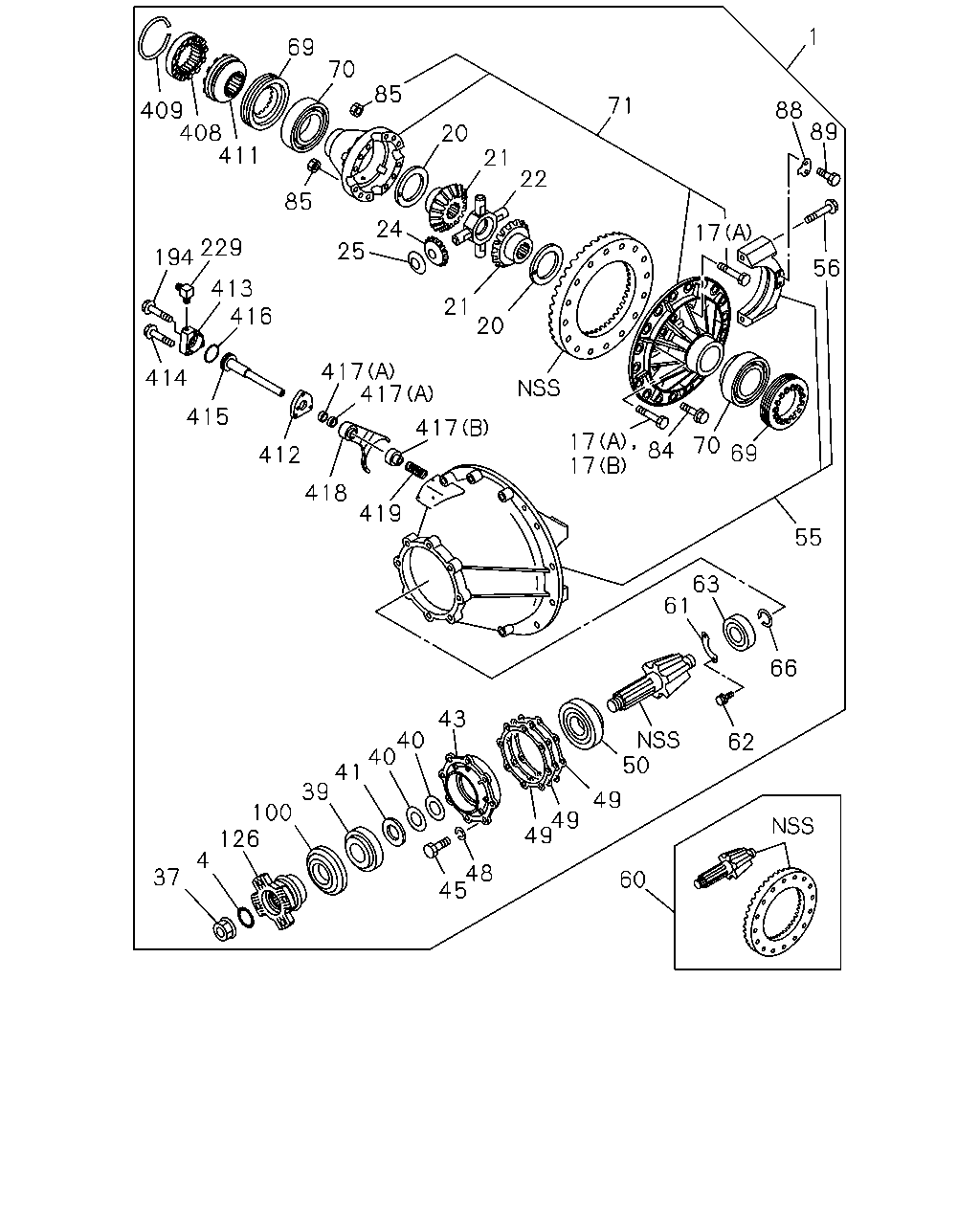

çizim 104550
1 69 70 85 71 88 89 409 408 411 20 21 22 85 24 17 229 194 25 56 413 416 21 20 417 417 414 415 417 17 17 70 84 69 412 418 419 55 63 61 66 43 50 40 40 41 39 100 126 62 49 49 49 4 48 45 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-929-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-927-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-930-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
DIFF LOCK<C3N> 39/9 		1-41002-406-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
EXC. DIFF LOCK<C3N> 39/9 		1-41002-397-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
DIFF LOCK<C3N> 41/8 		1-41002-403-0 01 1 0510- ●
1 DRIVE ASM; FINAL,RR
EXC. DIFF LOCK<C3N> 41/8 		1-41002-394-0 01 1 0509- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0509-0809 ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 0810- ● ●
17 BOLT; DIFF CAGE SETTING
(C) 		1-41519-095-0 12 1 0902- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X141 FLANGE 		1-09070-013-0 08 1 0509-0809 ●
17 BOLT; DIFF CAGE SETTING
(A) M16X141 FLANGE 		1-09070-013-0 08 1 0810- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X105 FLANGE 		1-09070-014-0 04 1 0509-0809 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X105 FLANGE 		1-09070-014-0 04 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 0902- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 0810- ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 0902- ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-142-0 02 1 0509-0809 ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-142-0 02 1 0810-0911 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-167-0 02 1 0912- ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0902- ● ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 0509-0809 ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 0810- ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0902- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-045-0 04 1 0509-0809 ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-045-0 04 1 0810-0911 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-054-0 04 1 0912- ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0902- ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 0509-0809 ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 0810- ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0902-0902 ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0902- ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 0509-0809 ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 0810- ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 0509-0809 ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 0810- ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 0509-0809 ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 0810- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0509-0809 ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-372-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-373-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-374-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-375-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-376-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-377-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-378-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-379-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-380-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-381-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0810- ● ●
43 CAGE; FINAL PINION 1-41151-103-0 01 1 0902- ● ● ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 0509-0809 ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 0810- ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 0902-0902 ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 0902- ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 0509-0809 ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 0810- ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 0509-0603 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0604-0809 ●
48 WASHER; LK,FINAL PINION
ID=16.2 		0-91510-516-0 08 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-115-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-116-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-117-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 0810- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 0509-0809 ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 0810- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-1 01 1 0509-0809 ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-3 01 1 0810- ● ●
55 CARRIER; DIFF 1-41110-127-0 01 1 0902- ● ● ●
55 CARRIER; DIFF 1-41110-117-0 01 1 0509-0809 ●
55 CARRIER; DIFF 1-41110-117-1 01 1 0810- ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0902- ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0509-0809 ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0810- ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-685-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-684-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-687-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-620-0 01 1 0810- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-617-0 01 1 0509- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-008-0 01 1 0509-0809 ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-008-0 01 1 0810- ● ●
62 BOLT; RET
M8X16 		0-20850-816-0 02 1 0509-0809 ●
62 BOLT; RET
M8X16 		0-20850-816-0 02 1 0810- ● ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 0902- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 0509-0809 ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 0810- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 0509-0809 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 0810- ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 0902- ● ● ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 0509-0809 ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 0810- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 0902- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 0902- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0509-0809 ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0810- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0509-0809 ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0810- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 0509-0809 ●
70 BEARING; DIFF CAGE
JTEKT ID=110 OD=170 T=38 		1-09812-226-0 02 1 0810- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-313-0 01 1 0902- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-312-0 01 1 0902- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 0509-0809 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 0810- ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 0902- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 0509-0809 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 0810- ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 16 1 0902- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 0509-0809 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 0810- ● ●
88 PLATE; LK,ADJ NUT
T=3.2 		1-41124-026-0 02 1 0509-0809 ●
88 PLATE; LK,ADJ NUT
T=3.2 		1-41124-026-0 02 1 0810- ● ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 0509-0809 ●
89 BOLT; LK PLATE
M10X20 FLANGE 		0-28751-020-0 04 1 0810- ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0902-0902 ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0902- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0509-0809 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0810- ● ●
126 COUPLING; DRIVING PINION 1-37245-373-0 01 1 0902- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 0509-0809 ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 0810- ● ●
194 PLUG 1-41119-072-0 01 1 0902- ● ● ●
194 PLUG
DIFF LOCK<C3N> M8X10 FLANGE 		0-28080-810-0 01 1 0510-0512 ●
194 PLUG
DIFF LOCK<C3N> M8X10 FLANGE 		0-28050-810-0 01 1 0601-0809 ●
194 PLUG
DIFF LOCK<C3N> M8X10 FLANGE 		0-28050-810-0 01 1 0810- ● ●
229 CONNECTOR
DIFF LOCK<C3N> M12 & PT1/8 		9-09224-306-2 01 1 0510-0607 ●
229 CONNECTOR
DIFF LOCK<C3N> M12 & PT1/8 		0-92124-306-0 01 1 0608-0809 ●
229 CONNECTOR
DIFF LOCK<C3N> M12 & PT1/8 		0-92124-306-0 01 1 0810- ● ●
408 CLAW; CLU,DIFF LK
DIFF LOCK<C3N> 		1-41266-020-1 01 1 0510-0809 ●
408 CLAW; CLU,DIFF LK
DIFF LOCK<C3N> 		1-41266-020-1 01 1 0810- ● ●
409 CIRCUIT
DIFF LOCK<C3N> 		1-33219-024-0 01 1 0510-0809 ●
409 CIRCUIT
DIFF LOCK<C3N> 		1-33219-024-0 01 1 0810- ● ●
411 SLEEVE; CLU
DIFF LOCK<C3N> 		1-41266-021-1 01 1 0510-0809 ●
411 SLEEVE; CLU
DIFF LOCK<C3N> 		1-41266-021-2 01 1 0810- ● ●
412 STOPPER; STROKE,SHIFT
DIFF LOCK<C3N> 		1-41279-017-1 01 1 0510-0809 ●
412 STOPPER; STROKE,SHIFT
DIFF LOCK<C3N> 		1-41279-017-1 01 1 0810- ● ●
413 CYLINDER; DIFF LK
DIFF LOCK<C3N> 		1-41279-018-0 01 1 0510-0809 ●
413 CYLINDER; DIFF LK
DIFF LOCK<C3N> 		1-41279-018-0 01 1 0810-1404 ● ●
413 CYLINDER; DIFF LK
DIFF LOCK<C3N> 		1-41279-023-0 01 1 1405- ● ●
414 BOLT; CYL
DIFF LOCK<C3N> M8X45 FLANGE 		0-28080-845-0 03 1 0510-0512 ●
414 BOLT; CYL
DIFF LOCK<C3N> M8X45 FLANGE 		0-28050-845-0 03 1 0601-0809 ●
414 BOLT; CYL
DIFF LOCK<C3N> M8X45 FLANGE 		0-28050-845-0 03 1 0810-1404 ● ●
414 BOLT; CYL
DIFF LOCK<C3N> M8X50 FLANGE 		0-28050-850-0 03 1 1405- ● ●
415 ROD; PISTON,DIFF LK
DIFF LOCK<C3N> 		1-41279-016-0 01 1 0510-0809 ●
415 ROD; PISTON,DIFF LK
DIFF LOCK<C3N> 		1-41279-016-0 01 1 0810- ● ●
416 GASKET
DIFF LOCK<C3N> ID=43.7 		9-09561-344-0 01 1 0510-0809 ●
416 GASKET
DIFF LOCK<C3N> ID=43.7 		9-09561-344-0 01 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (B) T=10.0 		1-41229-338-0 01 1 0810- ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=4.0 		1-41229-274-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=4.0 		1-41229-274-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=4.5 		1-41229-275-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=4.5 		1-41229-275-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=5.0 		1-41229-276-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=5.0 		1-41229-276-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=5.5 		1-41229-277-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=5.5 		1-41229-277-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=6.0 		1-41229-278-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=6.0 		1-41229-278-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=6.5 		1-41229-279-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=6.5 		1-41229-279-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=7.0 		1-41229-280-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=7.0 		1-41229-280-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=7.5 		1-41229-281-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=7.5 		1-41229-281-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=8.0 		1-41229-282-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=8.0 		1-41229-282-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=10.0 		1-41229-297-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=10.0 		1-41229-297-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=15.0 		1-41229-298-0 AR 1 0510-0809 ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (A) T=15.0 		1-41229-298-0 AR 1 0810- ● ●
417 SHIM; DIFF LK
DIFF LOCK<C3N> (B) T=15.0 		1-41229-339-0 01 1 0510- ●
418 SHIFT FORK; DIFF LK
DIFF LOCK<C3N> 		1-41271-012-0 01 1 0510-0809 ●
418 SHIFT FORK; DIFF LK
DIFF LOCK<C3N> 		1-41271-012-0 01 1 0810- ● ●
419 SPRING; DIFF LK
DIFF LOCK<C3N> 		1-09580-507-0 01 1 0510-0809 ●
419 SPRING; DIFF LK
DIFF LOCK<C3N> 		1-09580-507-0 01 1 0810- ● ●
453 COVER; CYLINDER
DIFF LOCK<C3N> 		1-48269-212-0 01 1 0902- ● ● ●

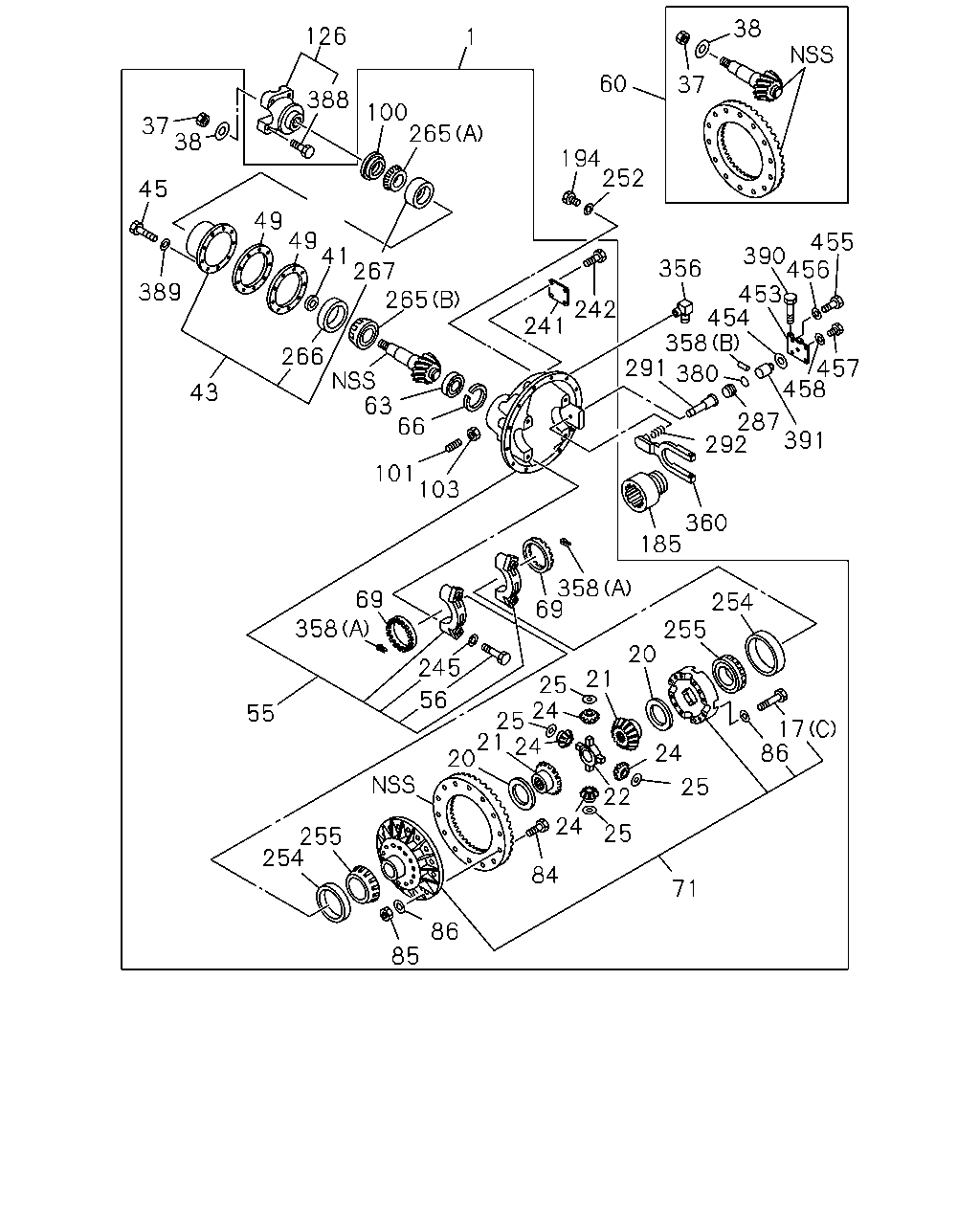

çizim 104781
85 71 84 86 25 24 22 25 86 17 24 254 255 20 21 25 24 25 24 21 20 255 254 56 55 358 245 69 69 358 185 360 103 101 66 63 266 43 389 265 267 41 49 49 45 37 38 388 126 100 1 265 241 242 194 60 252 37 38 455 390 356 456 353 454 380 292 287 458 391 457 358 291
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-929-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-927-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-930-0 01 1 0902- ●
1 DRIVE ASM; FINAL,RR
DIFF LOCK<C3N> 39/9 		1-41002-406-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
EXC. DIFF LOCK<C3N> 39/9 		1-41002-397-0 01 1 0810- ●
1 DRIVE ASM; FINAL,RR
DIFF LOCK<C3N> 41/8 		1-41002-403-0 01 1 0510- ●
1 DRIVE ASM; FINAL,RR
EXC. DIFF LOCK<C3N> 41/8 		1-41002-394-0 01 1 0509- ●
17 BOLT; DIFF CAGE SETTING
(C) 		1-41519-095-0 12 1 0902- ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X141 FLANGE 		1-09070-013-0 08 1 0509-0809 ●
17 BOLT; DIFF CAGE SETTING
(A) M16X141 FLANGE 		1-09070-013-0 08 1 0810- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X105 FLANGE 		1-09070-014-0 04 1 0509-0809 ●
17 BOLT; DIFF CAGE SETTING
(B) M16X105 FLANGE 		1-09070-014-0 04 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 0902- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-270-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-271-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-272-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-273-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-274-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-275-1 AR 1 0810- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 0509-0809 ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-276-1 AR 1 0810- ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 0902- ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-142-0 02 1 0509-0809 ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-142-0 02 1 0810-0911 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-167-0 02 1 0912- ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0902- ● ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 0509-0809 ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 0810- ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0902- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-045-0 04 1 0509-0809 ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-045-0 04 1 0810-0911 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-054-0 04 1 0912- ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0902- ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 0509-0809 ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 0810- ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0902-0902 ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0902- ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 0509-0809 ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 0810- ● ●
38 WASHER; PL,DRIVING PINION 1-41210-689-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-372-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-373-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-374-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-375-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-376-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-377-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-378-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-379-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-380-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-381-0 01 1 0902- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 0810- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0509-0809 ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 0810- ● ●
43 CAGE; FINAL PINION 1-41151-103-0 01 1 0902- ● ● ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 0509-0809 ●
43 CAGE; FINAL PINION
T=82 		1-41151-057-0 01 1 0810- ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 0902-0902 ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 0902- ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 0509-0809 ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-115-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-116-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-117-0 AR 1 0902- ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 0810- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 0509-0809 ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 0810- ● ●
55 CARRIER; DIFF 1-41110-127-0 01 1 0902- ● ● ●
55 CARRIER; DIFF 1-41110-117-0 01 1 0509-0809 ●
55 CARRIER; DIFF 1-41110-117-1 01 1 0810- ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0902- ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0509-0809 ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 0810- ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-685-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-684-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-687-0 01 1 0902- ●
60 GEAR SET; FINAL DRIVE,RR
39/9 		1-41210-620-0 01 1 0810- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-617-0 01 1 0509- ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 0902- ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 0509-0809 ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 0810- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 0509-0809 ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-153-0 01 1 0810- ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 0902- ● ● ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 0509-0809 ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 0810- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 0902- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 0902- ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0509-0809 ●
69 NUT; ADJ,DIFF CAGE 1-41121-050-0 01 1 0810- ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0509-0809 ●
69 NUT; ADJ,DIFF CAGE 1-41121-051-0 01 1 0810- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-313-0 01 1 0902- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-312-0 01 1 0902- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 0509-0809 ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-253-0 01 1 0810- ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 0902- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 0509-0809 ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 0810- ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 16 1 0902- ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 0509-0809 ●
85 NUT; DIFF CAGE SETTING
M16 		0-91110-516-0 12 1 0810- ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 28 1 0902- ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0902-0902 ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0902- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0509-0809 ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 0810- ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 0902- ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 0902- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-373-0 01 1 0902- ● ● ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 0509-0809 ●
126 COUPLING; DRIVING PINION 1-37245-343-0 01 1 0810- ● ●
185 COLLAR; SHIFT FORK
DIFF LOCK<C3N> 		1-48269-210-0 01 1 0902- ● ● ●
194 PLUG 1-41119-072-0 01 1 0902- ● ● ●
194 PLUG
DIFF LOCK<C3N> M8X10 FLANGE 		0-28080-810-0 01 1 0510-0512 ●
194 PLUG
DIFF LOCK<C3N> M8X10 FLANGE 		0-28050-810-0 01 1 0601-0809 ●
194 PLUG
DIFF LOCK<C3N> M8X10 FLANGE 		0-28050-810-0 01 1 0810- ● ●
241 COVER; SHIFT HSG 1-48269-220-0 01 1 0902- ● ● ●
242 BOLT; COVER 1-48269-260-0 04 1 0902-0902 ● ●
242 BOLT; COVER 1-48269-260-0 04 1 0902- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 0902- ● ● ●
252 GASKET; CARRIER
DIFF LOCK<C3N> 		1-48269-219-0 02 1 0902-0902 ● ●
252 GASKET; CARRIER
DIFF LOCK<C3N> 		1-48269-219-0 02 1 0902- ● ● ●
252 GASKET; CARRIER
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DIFF LOCK<C3N> 		1-48269-219-0 01 1 0902- ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 0902- ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 0902- ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 0902- ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 0902- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 0902- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-135-0 01 1 0902- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-137-0 01 1 0902- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-136-0 01 1 0902- ● ● ●
287 PISTON; SHIFT UNIT
DIFF LOCK<C3N> 		1-48262-029-0 01 1 0902- ● ● ●
291 ROD; PUSH
DIFF LOCK<C3N> 		1-48269-211-0 01 1 0902- ● ● ●
292 SPRING; PISTON
DIFF LOCK<C3N> 		1-48265-012-0 01 1 0902- ● ● ●
356 NIPPLE; SHIFT UNIT
DIFF LOCK<C3N> 		1-09650-490-0 01 1 0902- ● ● ●
358 PIN; SPR
(A) 		1-41129-020-0 02 1 0902- ● ● ●
358 PIN; SPR
DIFF LOCK<C3N> (B) 		1-48269-218-0 01 1 0902- ● ● ●
360 FORK; SHIFT
DIFF LOCK<C3N> 		1-48269-207-0 01 1 0902- ● ● ●
380 GASKET; PISTON
DIFF LOCK<C3N> 		1-48269-215-0 01 1 0902- ● ● ●
388 BOLT; COUPLING
M14X48.5 		1-09046-013-0 04 1 0902- ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 0902-0902 ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 0902- ● ● ●
390 BOLT; CAGING
DIFF LOCK<C3N> 		1-48269-213-0 01 1 0902- ● ● ●
391 CYLINDER; SHIFT
DIFF LOCK<C3N> 		1-48269-206-0 01 1 0902- ● ● ●
453 COVER; CYLINDER
DIFF LOCK<C3N> 		1-48269-212-0 01 1 0902- ● ● ●
454 GASKET; CYLINDER
DIFF LOCK<C3N> 		1-48269-208-0 01 1 0902- ● ● ●
455 BOLT; CYLINDER COVER
DIFF LOCK<C3N> 		1-48269-216-0 04 1 0902- ● ● ●
456 WASHER; CYLINDER COVER
DIFF LOCK<C3N> 		1-48269-217-0 04 1 0902- ● ● ●
457 CAP; SCREW,DIFF LOCK
DIFF LOCK<C3N> 		1-48269-214-0 01 1 0902- ● ● ●
458 GASKET; CYLINDER CAP
DIFF LOCK<C3N> 		1-48269-209-0 01 1 0902- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
