◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#29929) — 59 parça
çizim 86380
1 56 95 9 8 17 9 17 8 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
MJT7S M/T(Y3E) FINAL GEAR 19.5"<BDC> (A) L=995 		8-98020-692-0 01 1 0902-
1 SHAFT; PROP
MJX16P M/T(Y3Z) (B) L=1280 		1-37124-507-1 01 1 0810-
1 SHAFT; PROP
(A) L=1040 		1-37124-711-1 01 1 0509-0809
1 SHAFT; PROP
MJT7S M/T(Y3E) (A) L=1040 		1-37124-711-1 01 1 0810-0901
1 SHAFT; PROP
MJT7S M/T(Y3E) FINAL GEAR 18.5"<C1C> (A) L=1040 		1-37124-711-1 01 1 0902-
8 YOKE; FLANGE,PROP SHAFT
MJT7S M/T(Y3E) FINAL GEAR 19.5"<BDC> (A) 		1-37211-084-0 02 1 0902-
8 YOKE; FLANGE,PROP SHAFT
MJX16P M/T(Y3Z) (B) 		1-37211-083-0 02 1 0810-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-077-1 02 1 0509-0809
8 YOKE; FLANGE,PROP SHAFT
MJT7S M/T(Y3E) (A) 		1-37211-077-1 02 1 0810-0901
8 YOKE; FLANGE,PROP SHAFT
MJT7S M/T(Y3E) FINAL GEAR 18.5"<C1C> (A) 		1-37211-077-1 02 1 0902-
9 JOURNAL ASM; PROP SHAFT
MJX16P M/T(Y3Z) (B) 		1-37300-118-0 02 1 0810-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0509-0809
9 JOURNAL ASM; PROP SHAFT
MJT7S M/T(Y3E) (A) 		1-37300-112-0 02 1 0810-
17 NIPPLE; GREASE,PROP SHAFT
MJX16P M/T(Y3Z) (B) 		1-37319-013-0 02 1 0810-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0509-0512
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-0809
17 NIPPLE; GREASE,PROP SHAFT
MJT7S M/T(Y3E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0810-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0509-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0509-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0509-

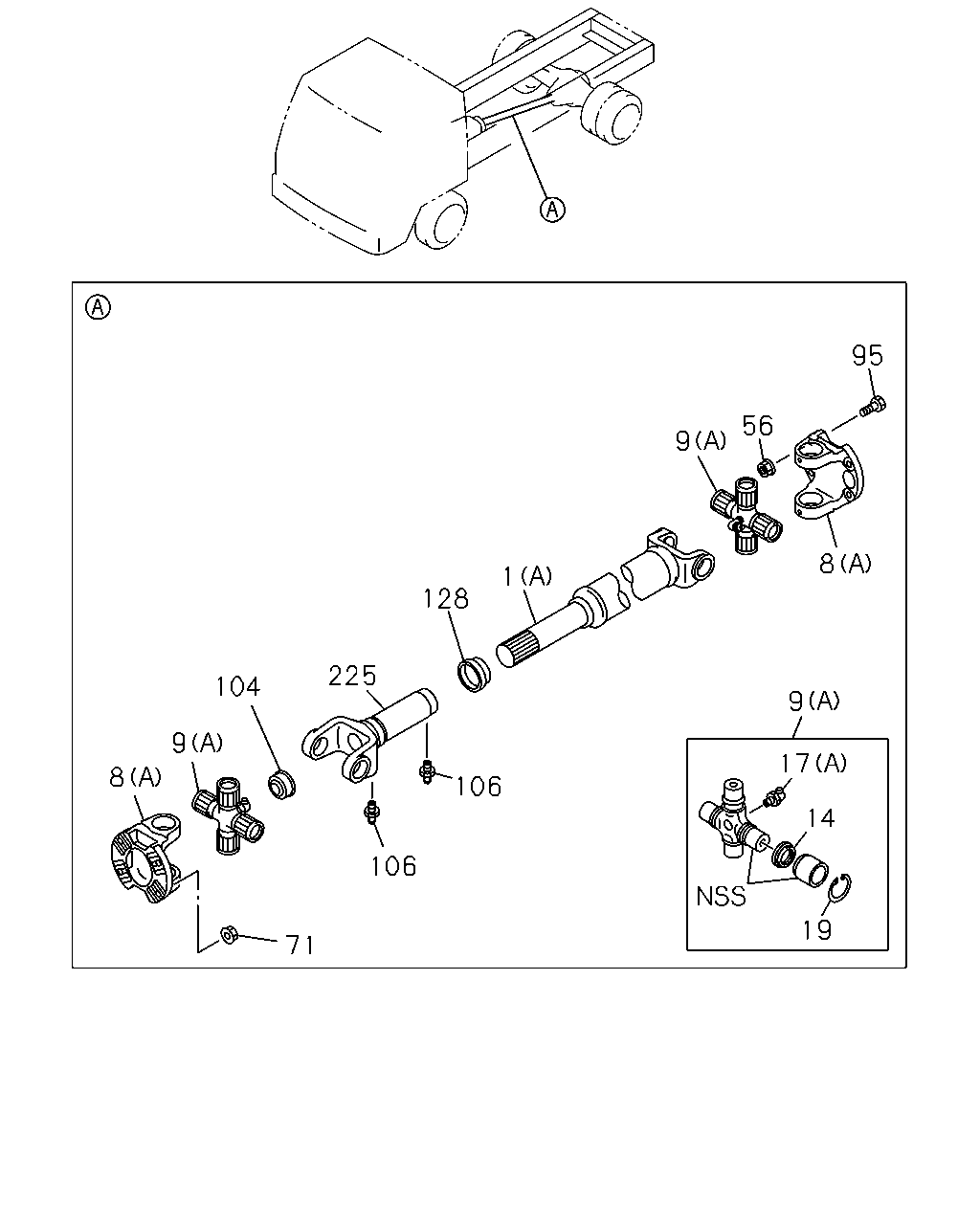

çizim 86975
95 56 9 8 1 128 225 104 9 9 17 8 106 14 106 19 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
MJT7S M/T(Y3E) FINAL GEAR 19.5"<BDC> (A) L=995 		8-98020-692-0 01 1 0902-
1 SHAFT; PROP
MJX16P M/T(Y3Z) (B) L=1280 		1-37124-507-1 01 1 0810-
1 SHAFT; PROP
(A) L=1040 		1-37124-711-1 01 1 0509-0809
1 SHAFT; PROP
MJT7S M/T(Y3E) (A) L=1040 		1-37124-711-1 01 1 0810-0901
1 SHAFT; PROP
MJT7S M/T(Y3E) FINAL GEAR 18.5"<C1C> (A) L=1040 		1-37124-711-1 01 1 0902-
8 YOKE; FLANGE,PROP SHAFT
MJT7S M/T(Y3E) FINAL GEAR 19.5"<BDC> (A) 		1-37211-084-0 02 1 0902-
8 YOKE; FLANGE,PROP SHAFT
MJX16P M/T(Y3Z) (B) 		1-37211-083-0 02 1 0810-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-077-1 02 1 0509-0809
8 YOKE; FLANGE,PROP SHAFT
MJT7S M/T(Y3E) (A) 		1-37211-077-1 02 1 0810-0901
8 YOKE; FLANGE,PROP SHAFT
MJT7S M/T(Y3E) FINAL GEAR 18.5"<C1C> (A) 		1-37211-077-1 02 1 0902-
9 JOURNAL ASM; PROP SHAFT
MJX16P M/T(Y3Z) (B) 		1-37300-118-0 02 1 0810-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0509-0809
9 JOURNAL ASM; PROP SHAFT
MJT7S M/T(Y3E) (A) 		1-37300-112-0 02 1 0810-
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 0509-0809
14 COVER; DUST,SPIDER
MJT7S M/T(Y3E) 		1-37249-133-0 08 1 0810-
17 NIPPLE; GREASE,PROP SHAFT
MJX16P M/T(Y3Z) (B) 		1-37319-013-0 02 1 0810-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0509-0512
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-0809
17 NIPPLE; GREASE,PROP SHAFT
MJT7S M/T(Y3E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0810-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0509-0809
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MJT7S M/T(Y3E) T=2.2 		1-09587-103-1 08 1 0810-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0509-0809
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MJT7S M/T(Y3E) T=2.17 		1-09587-107-0 08 1 0810-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0509-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0509-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0509-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0509-0809
104 PLUG; SLEEVE YOKE
MJT7S M/T(Y3E) 		1-09600-049-0 01 1 0810-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0509-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-0809
106 NIPPLE; GREASE,YOKE,PROP SHAFT
MJT7S M/T(Y3E) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0810-
128 SEAL; SLEEVE 1-37247-020-0 01 1 0509-0809
128 SEAL; SLEEVE
MJT7S M/T(Y3E) 		1-37247-020-0 01 1 0810-
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0509-0809
225 YOKE; SLEEVE,PROP SHAFT
MJT7S M/T(Y3E) L=339 		1-37241-140-0 01 1 0810-
