3-80 — BRAKE PIPING; TRAILER
(#29927) — 34 parça
◀

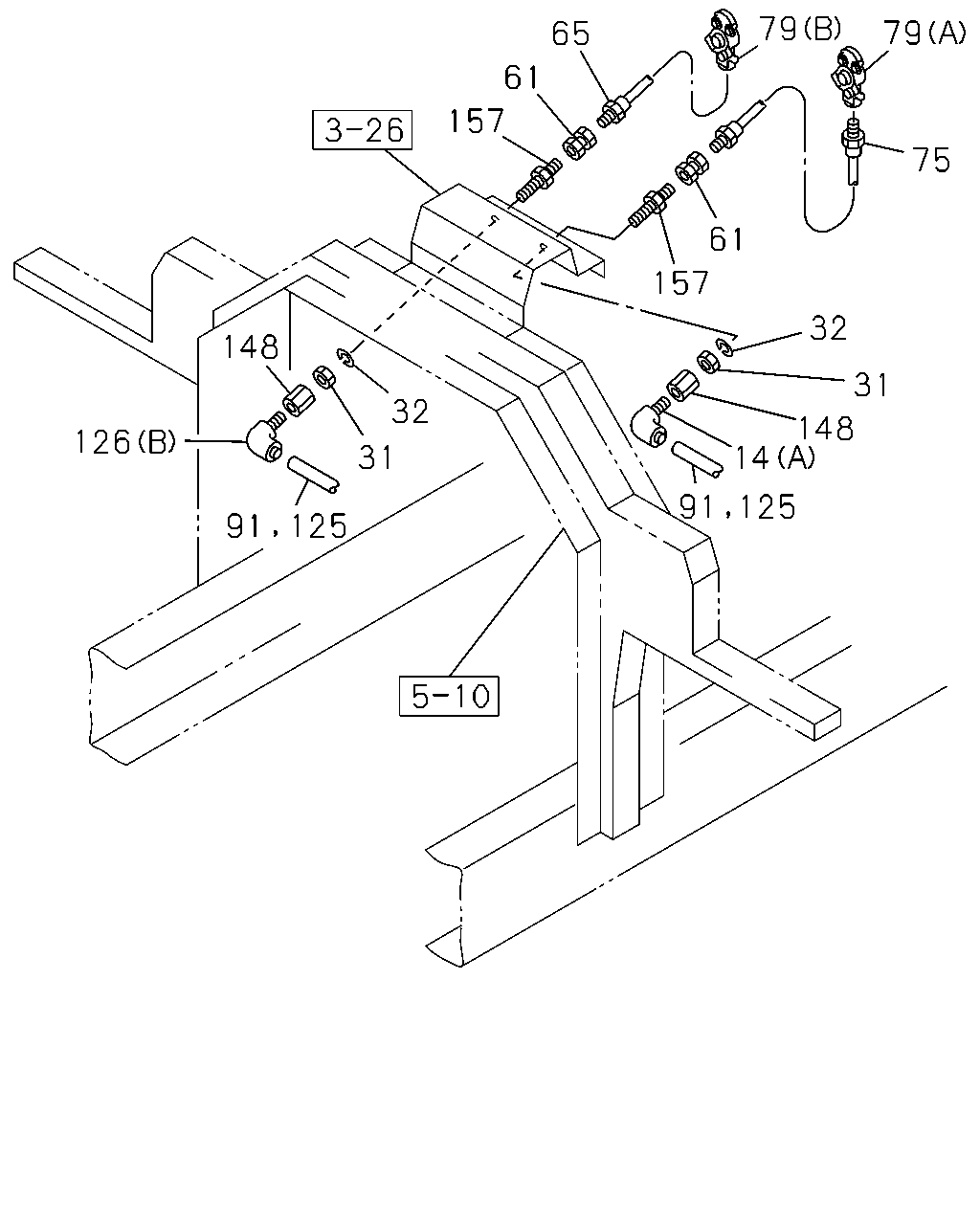

[380A] CAB REAR MEMBER SIDE (25 parça)

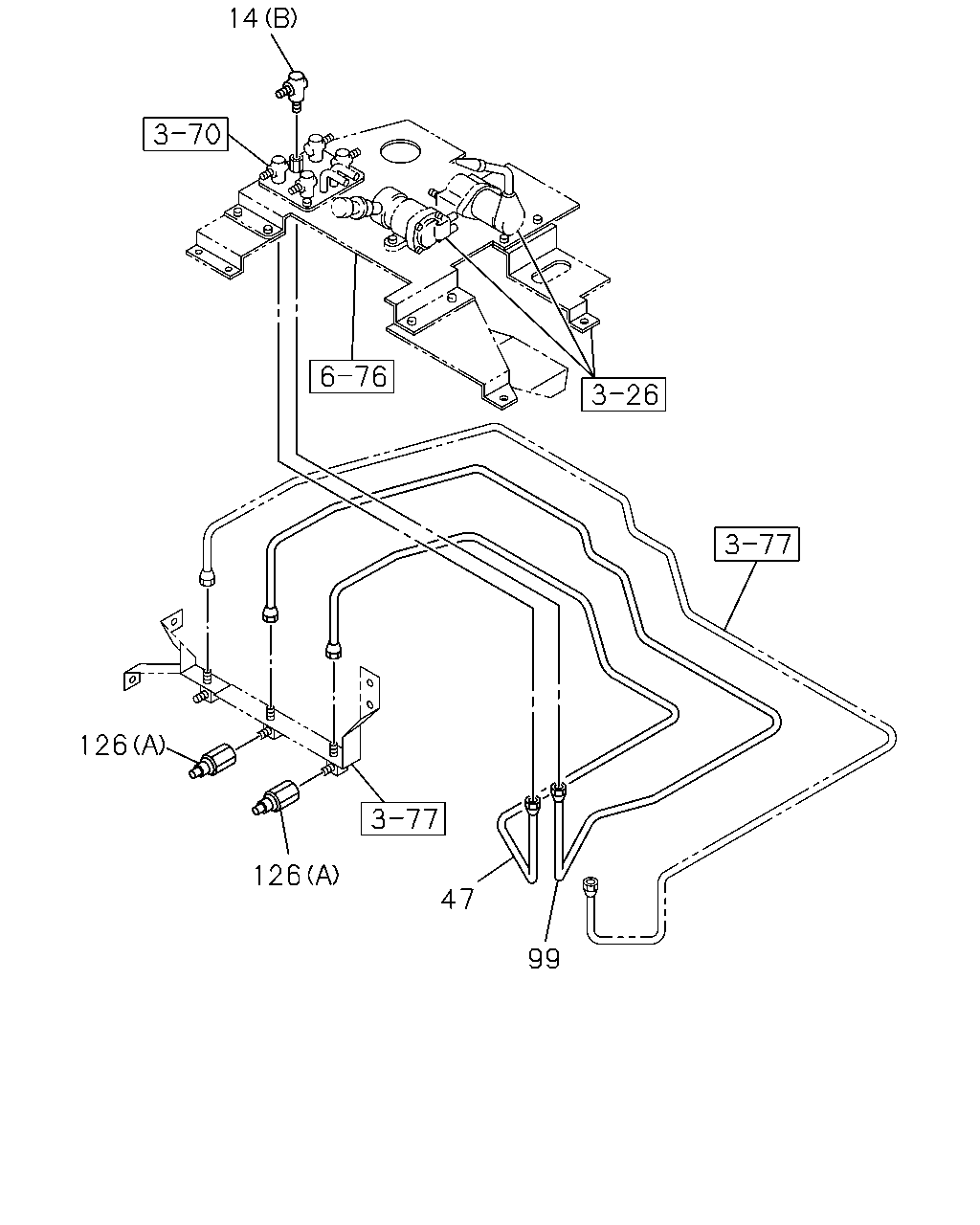

[380A] CAB SIDE (9 parça)
▶
79
79
65
61
157
75
61
157
32
148
31
32
148
14
126
31
91
125
91
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
CONNECTOR; AIR PIPE
(B)
1-09650-325-1
01
1
0509-0602
14
CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B)
1-09650-325-1
01
1
0603-
14
CONNECTOR; AIR PIPE
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0509-
31
NUT; UNION
M16
9-99111-416-0
02
1
0509-0512
31
NUT; UNION
M16
0-91111-516-0
02
1
0601-
32
WASHER; LK,UNION
ID=16.2
9-09150-516-0
02
1
0509-0603
32
WASHER; LK,UNION
ID=16.2
0-91510-516-0
02
1
0604-
61
UNION; NYLON TUBE
M16 & PT1/2 STRAIGHT
1-09650-222-1
02
1
0509-
65
HOSE; AIR
1-49212-518-0
01
1
0509-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49212-518-0
01
1
0509-
79
COUPLING; AIR,TRAILER
(A)
1-47478-210-0
01
1
0509-
79
COUPLING; AIR,TRAILER
(B)
1-47478-211-0
01
1
0509-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0509-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0509-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0509-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0509-
91
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0509-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0509-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
0509-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0509-
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0509-
126
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0509-
126
CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0509-
148
ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT
1-09660-882-0
02
1
0509-
157
ADAPTER
M16 & PT1/2 STRAIGHT
1-09660-078-0
02
1
0509-
14
126
126
47
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
CONNECTOR; AIR PIPE
(B)
1-09650-325-1
01
1
0509-0602
14
CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B)
1-09650-325-1
01
1
0603-
14
CONNECTOR; AIR PIPE
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0509-
47
PIPE; AIR,UNION TO UNION
L=1901 SERVICED BY L=1950
1-47426-393-0
01
1
0509-
99
PIPE; AIR,JOINT TO JOINT
1-49116-183-1
01
1
0509-0602
99
PIPE; AIR,JOINT TO JOINT
PARKING BRAKE VALVE LEVER TYPE<W48>
1-49116-183-1
01
1
0603-
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0509-
126
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0509-
126
CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0509-
