Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#29926) — 249 parça

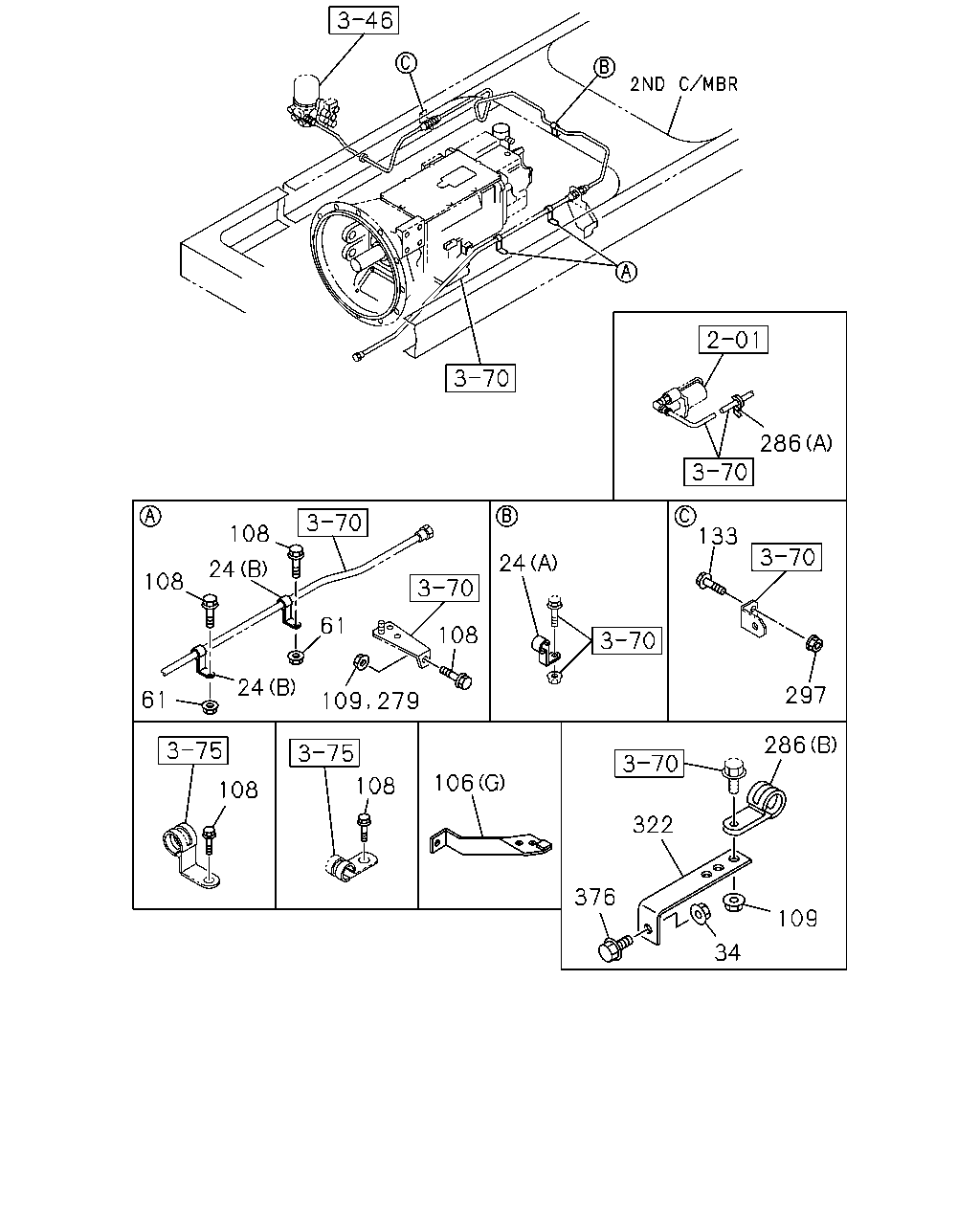

286 133 108 24 24 108 61 108 24 297 61 286 106 108 108 322 376 109 34 109 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0509-
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0509-
34	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	0810-
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0509-0602
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-
106	BRACKET; TUBE CLIP (J)	1-47471-450-0	01	1	0602-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0509-0601
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	0602-0810
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0811-
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	0509-
106	BRACKET; TUBE CLIP (D)	1-47471-144-0	01	1	0509-0812
106	BRACKET; TUBE CLIP (K)	8-98122-297-0	01	1	0901-
106	BRACKET; TUBE CLIP (I) W/STUD M8X20	1-47471-209-0	02	1	0509-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0509-
106	BRACKET; TUBE CLIP (G)	1-47477-746-0	01	1	0509-
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	02	1	0509-
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0509-
106	BRACKET; TUBE CLIP (H)	1-47479-870-0	01	1	0509-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	06	1	0509-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	06	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	08	1	0509-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	08	1	0601-
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	0810-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0509-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-0810
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0811-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	08	1	0509-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0601-0810
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0811-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0509-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	11	1	0509-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	0601-0601
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0602-0812
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	0901-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	16	1	0509-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	16	1	0603-0810
279	NUT; BRKT M8 FLANGE	0-91180-108-0	18	1	0811-
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=18 L=28	1-09701-067-0	01	1	0810-
286	CLIP; NYLON TUBE (A) ID=15 & 7	1-09709-311-0	01	1	0509-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0509-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
322	BRACKET; CLIP MJX16P M/T(Y3Z) L=120 H=35	1-82699-970-0	01	1	0810-0905
322	BRACKET; CLIP MJX16P M/T(Y3Z)	1-82698-358-0	01	1	0906-
376	BOLT; BRKT MJX16P M/T(Y3Z) M8X25 FLANGE	0-28650-825-0	01	1	0810-
376	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0509-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0509-0904
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-

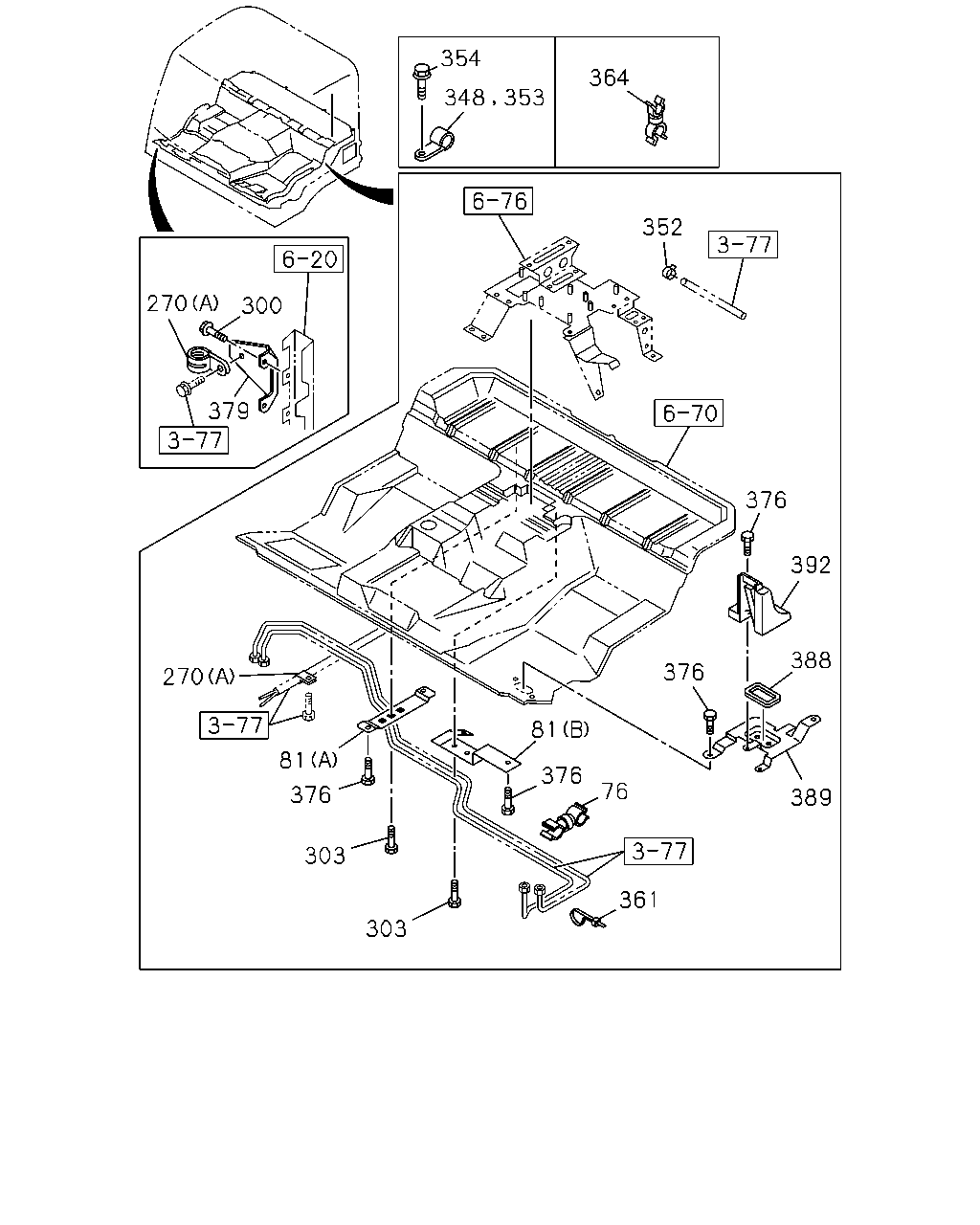

354 364 352 270 300 379 376 392 388 376 270 81 81 376 76 376 389 303 361 303 348 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	01	1	0509-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	04	1	0509-
81	BRACKET; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-47476-200-0	02	1	0509-
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0509-
81	BRACKET; CLIP (G) L=150	1-47471-217-0	02	1	0509-
81	BRACKET; CLIP (C)	1-47479-381-2	02	1	0509-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0509-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0509-
81	BRACKET; CLIP EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-47476-200-0	01	1	0509-
81	BRACKET; CLIP EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G)	1-47478-113-0	01	1	0509-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0509-0602
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0603-
270	CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	0509-0602
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	02	1	0603-0706
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	03	1	0707-
270	CLIP; NYLON TUBE (A) ID=26 L=26	1-09701-236-0	01	1	0509-0602
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=26 L=26	1-09701-236-0	01	1	0603-0706
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0509-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0509-
348	CLIP; AIR PIPE ID=13 L=28	9-09525-252-0	03	1	0509-0602
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> ID=13 L=28	9-09525-252-0	03	1	0603-0606
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> ID=11 L=28	0-95235-252-0	03	1	0607-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0509-0602
352	CLIP; EXH HOSE PARKING BRAKE VALVE LEVER TYPE<W48> ID=14	8-94238-572-0	02	1	0603-
353	CLIP; AIR PIPE ID=9 L=16	9-09524-822-0	01	1	0509-0602
353	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	9-09524-822-0	01	1	0603-0606
353	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	0-95234-822-0	01	1	0607-
354	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0509-0602
354	BOLT; PIPE CLIP PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0603-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0509-
364	CLIP; AIR PIPE ID=8.3 & 10	8-94176-792-0	01	1	0509-0602
364	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.3 & 10	8-94176-792-0	01	1	0603-
376	BOLT; BRKT MJX16P M/T(Y3Z) M8X25 FLANGE	0-28650-825-0	01	1	0810-
376	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0509-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0509-0904
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0509-
388	SEAL L=215	1-79738-794-1	01	1	0509-
389	BRACKET; UNION	1-79738-790-1	01	1	0509-
392	COVER; BRKT	1-73996-264-1	01	1	0509-

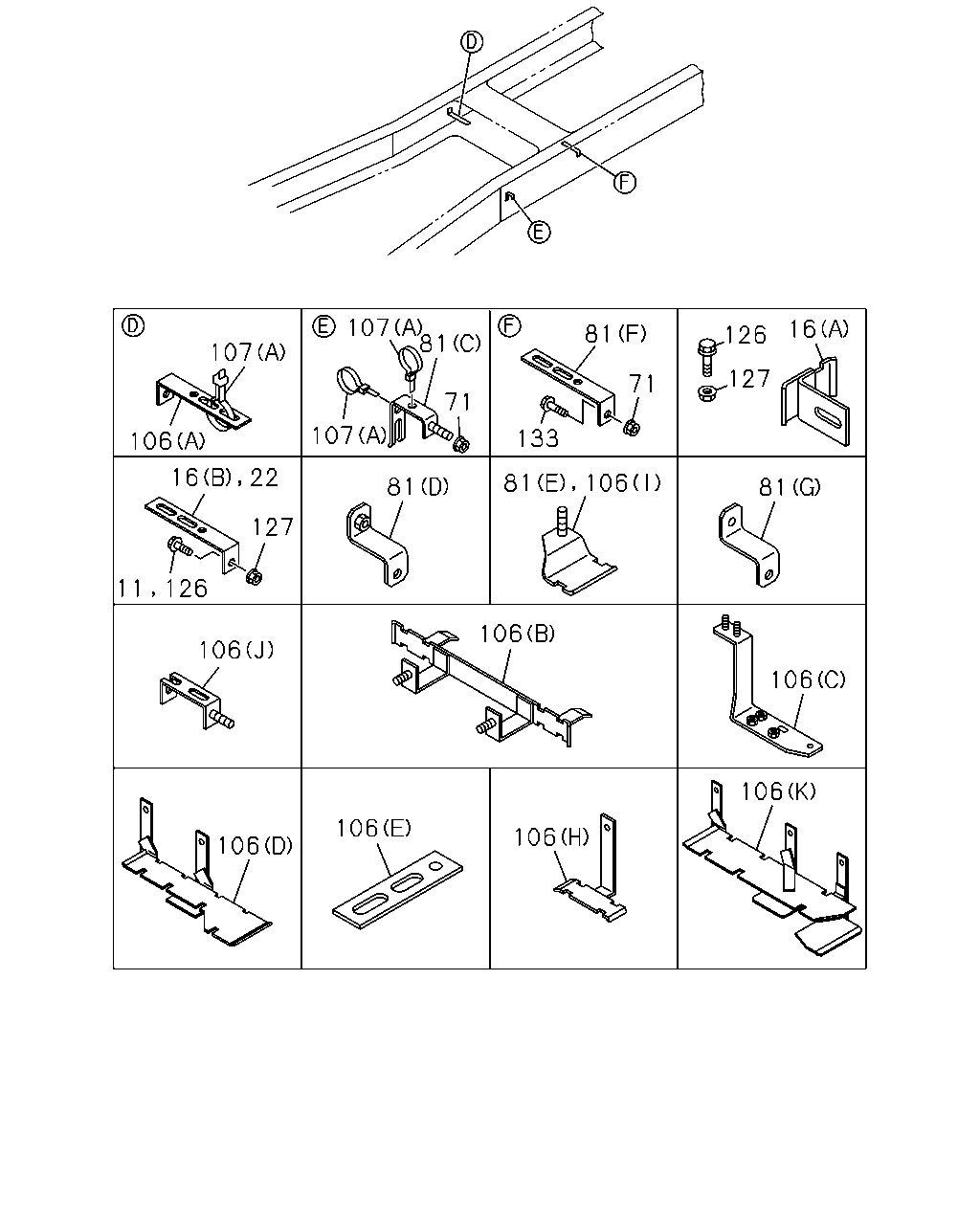

107 81 16 81 126 107 127 71 71 107 133 106 106 81 81 81 127 126 11 106 106 106 106 106 106 106 22 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0509-0512
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
16	BRACKET; PIPE CLIP TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=100 H=30	1-47477-645-2	01	1	0810-
16	BRACKET; PIPE CLIP (A)	1-47479-693-0	02	1	0509-
22	BRACKET; CLIP L=150 H=30	1-47477-629-2	01	1	0509-
22	BRACKET; CLIP L=100 H=30	1-47477-645-2	01	1	0509-
71	NUT; BRKT M8 FLANGE	0-91150-108-0	11	1	0509-0602
71	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0603-0810
71	NUT; BRKT M8 FLANGE	0-91180-108-0	13	1	0811-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	04	1	0509-
81	BRACKET; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-47476-200-0	02	1	0509-
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0509-
81	BRACKET; CLIP (G) L=150	1-47471-217-0	02	1	0509-
81	BRACKET; CLIP (C)	1-47479-381-2	02	1	0509-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0509-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0509-
81	BRACKET; CLIP EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-47476-200-0	01	1	0509-
81	BRACKET; CLIP EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G)	1-47478-113-0	01	1	0509-
106	BRACKET; TUBE CLIP (J)	1-47471-450-0	01	1	0602-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0509-0601
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	0602-0810
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0811-
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	0509-
106	BRACKET; TUBE CLIP (D)	1-47471-144-0	01	1	0509-0812
106	BRACKET; TUBE CLIP (K)	8-98122-297-0	01	1	0901-
106	BRACKET; TUBE CLIP (I) W/STUD M8X20	1-47471-209-0	02	1	0509-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0509-
106	BRACKET; TUBE CLIP (G)	1-47477-746-0	01	1	0509-
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	02	1	0509-
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0509-
106	BRACKET; TUBE CLIP (H)	1-47479-870-0	01	1	0509-
107	CLIP; NYLON TUBE (A) L=600	1-09707-107-1	02	1	1203-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0509-
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	0509-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0509-1202
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	12	1	1203-
107	CLIP; NYLON TUBE (B) ID=19 L=60	9-09525-896-0	01	1	0509-0606
107	CLIP; NYLON TUBE (B) ID=19 L=60	0-95235-896-0	01	1	0607-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0509-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	0509-
126	BOLT; CLIP BRKT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28650-825-0	01	1	0810-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0509-0512
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
127	NUT; CLIP BRKT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	01	1	0810-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0509-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	08	1	0509-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0601-0810
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0811-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0509-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	11	1	0509-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	0601-0601
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0602-0812
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	0901-

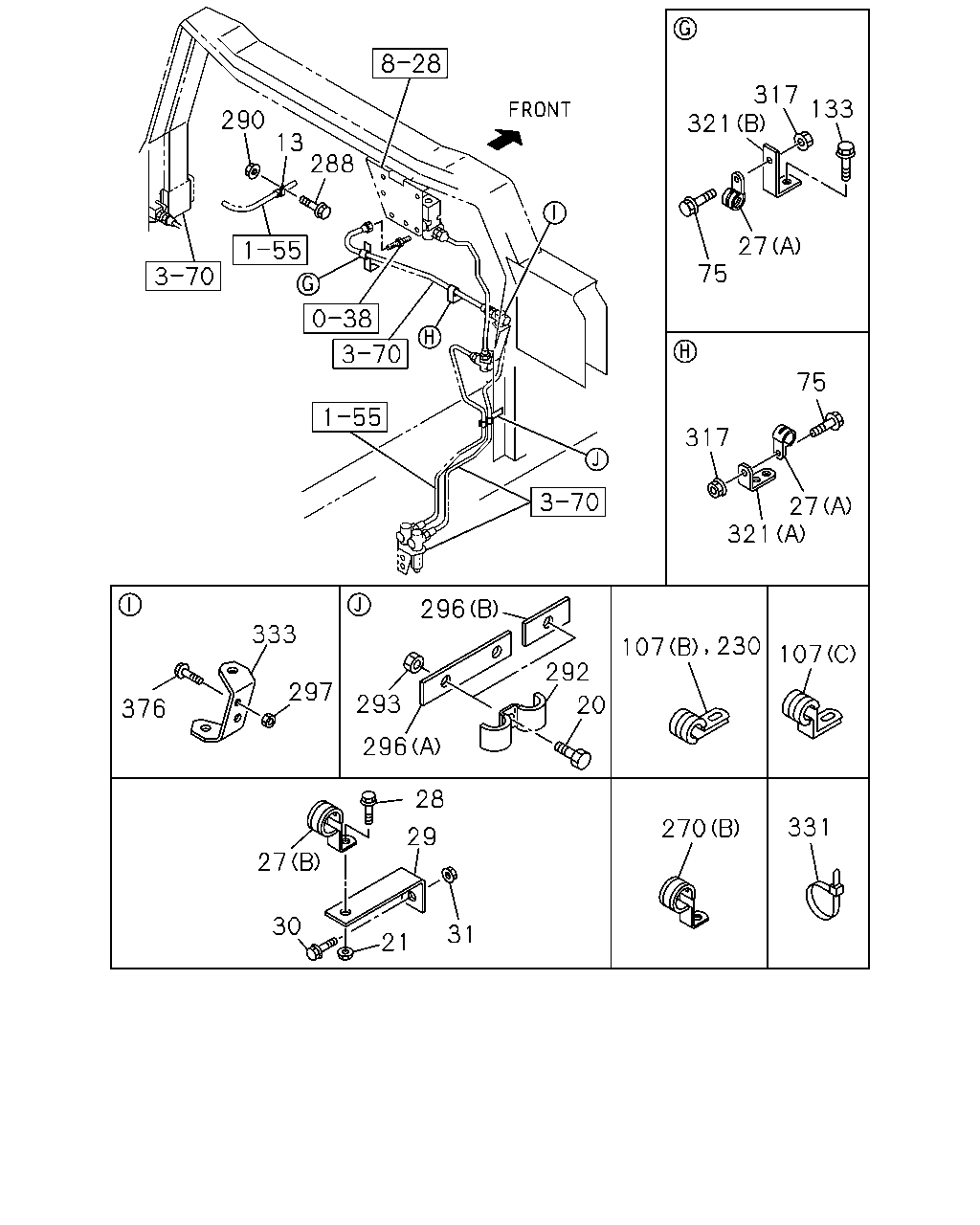

317 321 290 133 13 288 27 75 75 317 27 321 296 333 107 292 297 293 20 376 296 28 331 270 29 27 30 31 21 107 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0509-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0509-0512
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0509-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-0810
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0509-
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0509-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BRACKET; CLIP,AIR PIPE L=60	1-47476-217-0	01	1	0509-
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0509-0512
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0509-0602
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
107	CLIP; NYLON TUBE (A) L=600	1-09707-107-1	02	1	1203-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0509-
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	0509-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0509-1202
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	12	1	1203-
107	CLIP; NYLON TUBE (B) ID=19 L=60	9-09525-896-0	01	1	0509-0606
107	CLIP; NYLON TUBE (B) ID=19 L=60	0-95235-896-0	01	1	0607-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0509-
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=31 H=30 L=35	1-09700-994-0	01	1	0509-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	08	1	0509-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	0601-0810
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0811-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0509-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	11	1	0509-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	0601-0601
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0602-0812
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	11	1	0901-
230	CLIP; PIPE,AIR ID=9 L=16	9-09524-822-0	03	1	0509-0602
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	9-09524-822-0	03	1	0603-0606
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	0-95234-822-0	03	1	0607-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0509-0602
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0603-
270	CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	0509-0602
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	02	1	0603-0706
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	03	1	0707-
270	CLIP; NYLON TUBE (A) ID=26 L=26	1-09701-236-0	01	1	0509-0602
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=26 L=26	1-09701-236-0	01	1	0603-0706
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0509-0512
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-208-0	01	1	0509-0602
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-208-0	01	1	0603-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0509-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0509-0602
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
296	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0509-
296	BRACKET; CLIP (B)	1-47475-648-0	01	1	0509-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0509-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
317	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0509-0602
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0509-
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0509-
331	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	0509-
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	0509-
376	BOLT; BRKT MJX16P M/T(Y3Z) M8X25 FLANGE	0-28650-825-0	01	1	0810-
376	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0509-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0509-0904
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-

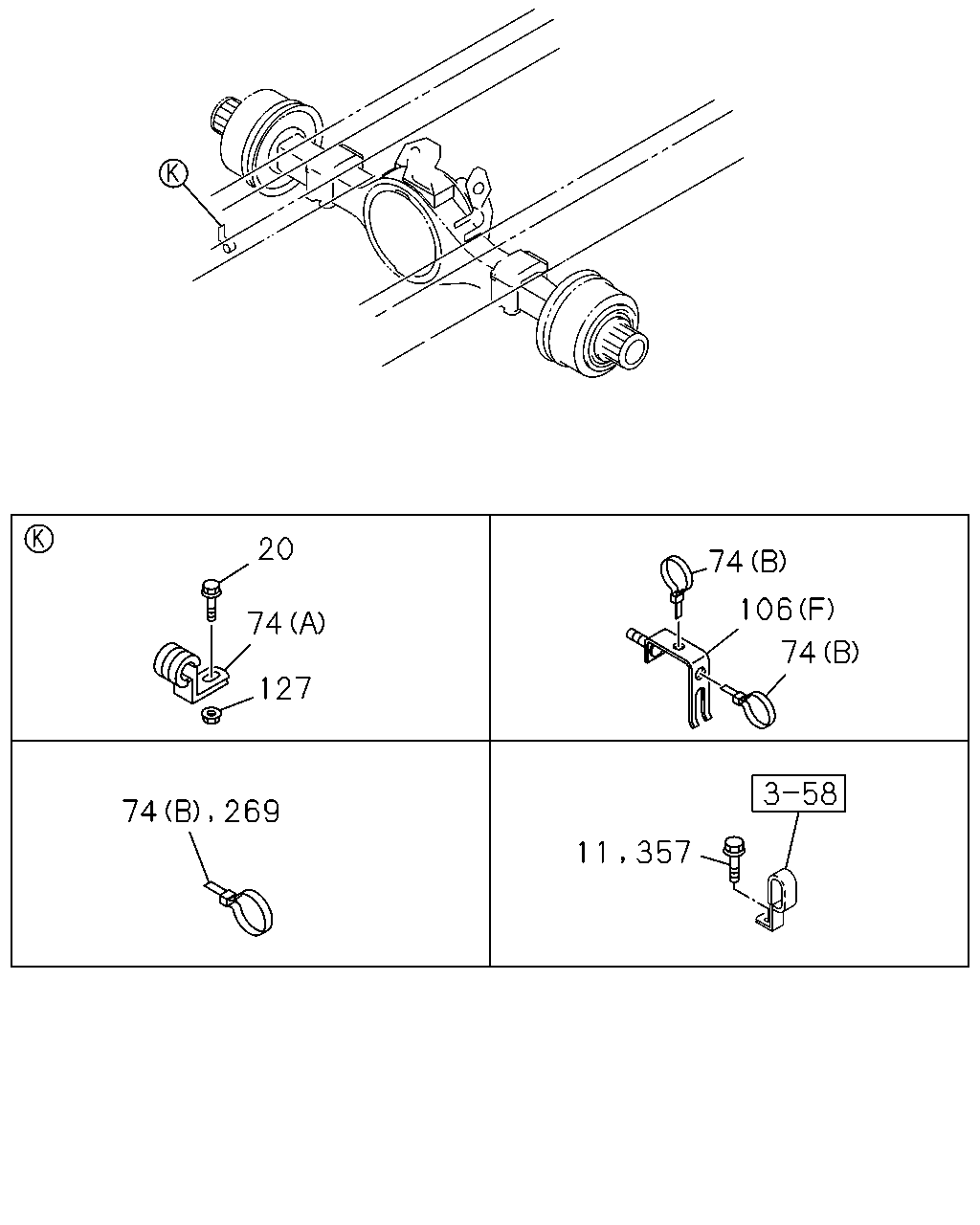

20 74 106 74 74 127 357 11 74 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0509-0512
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0509-0512
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-
74	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	12	1	0509-
74	CLIP; NYLON TUBE (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0509-
74	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0509-
106	BRACKET; TUBE CLIP (J)	1-47471-450-0	01	1	0602-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0509-0601
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	0602-0810
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	0811-
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	0509-
106	BRACKET; TUBE CLIP (D)	1-47471-144-0	01	1	0509-0812
106	BRACKET; TUBE CLIP (K)	8-98122-297-0	01	1	0901-
106	BRACKET; TUBE CLIP (I) W/STUD M8X20	1-47471-209-0	02	1	0509-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0509-
106	BRACKET; TUBE CLIP (G)	1-47477-746-0	01	1	0509-
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	02	1	0509-
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0509-
106	BRACKET; TUBE CLIP (H)	1-47479-870-0	01	1	0509-
127	NUT; CLIP BRKT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	01	1	0810-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0509-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
269	CLIP; BAND,NYLON TUBE DIFF LOCK<C3N> L=350	1-09707-183-0	01	1	0609-0809
269	CLIP; BAND,NYLON TUBE DIFF LOCK<C3N> L=350	1-09707-183-0	01	1	0810-
269	CLIP; BAND,NYLON TUBE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=350	1-09707-183-0	01	1	0810-
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	03	1	0509-0606
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	04	1	0607-0608
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	05	1	0609-
357	BOLT; CLIP FIX M8X10 FLANGE	0-28080-810-0	01	1	0509-0512
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
