3-77 — BRAKE PIPING; AIR,REAR (#29925) — 178 parça

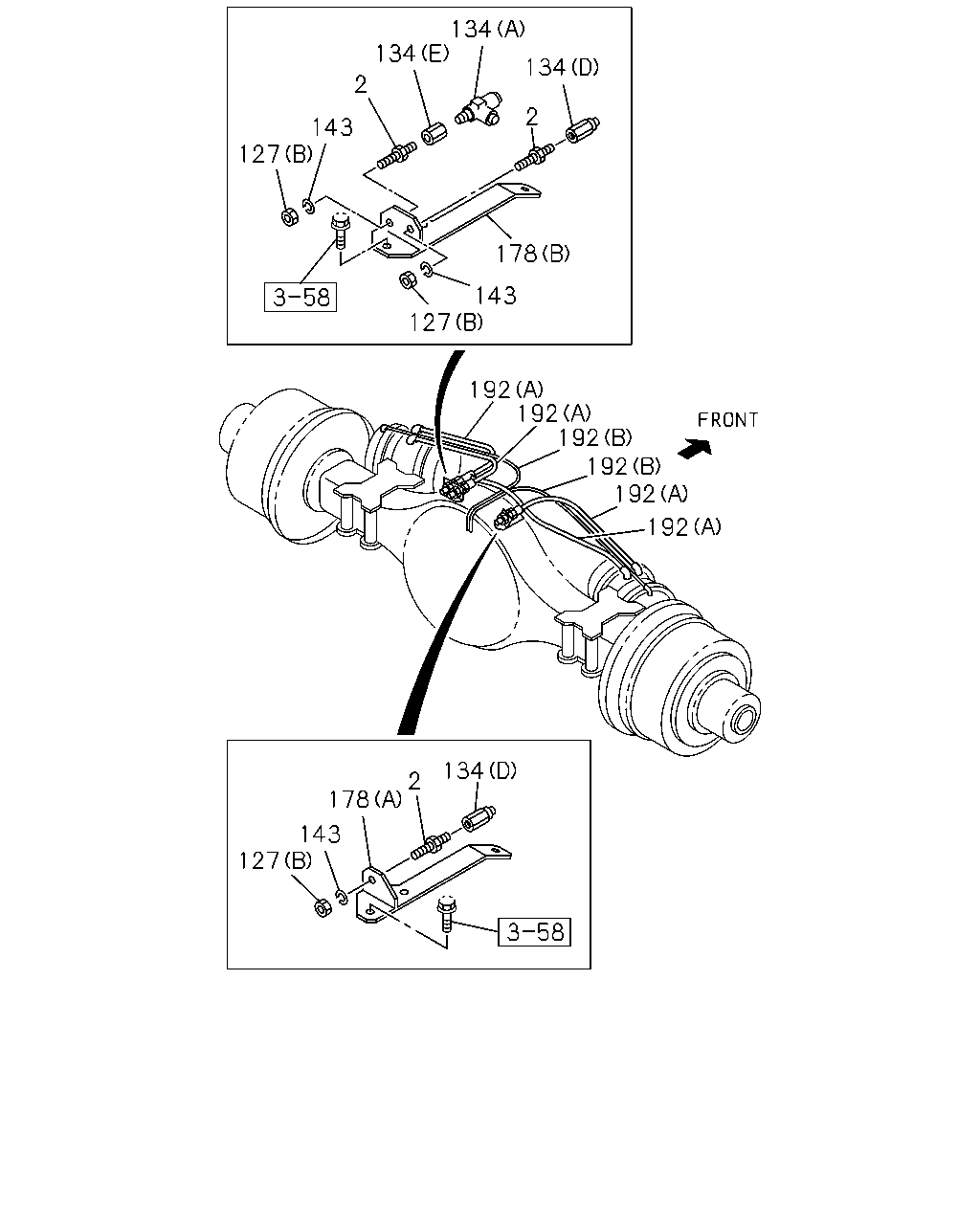

çizim 86078
134 134 134 2 2 143 127 178 143 127 192 192 192 192 192 192 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
M20 STRAIGHT 		1-09654-240-1 03 1 0509-
127 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 03 1 0509-0602
127 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
127 NUT; UNION
(B) M20 		9-99111-420-0 03 1 0509-0512
127 NUT; UNION
(B) M20 		0-91111-520-0 03 1 0601-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0509-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0509-
134 CONNECTOR
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0509-
134 CONNECTOR
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0509-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0509-
143 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 03 1 0509-0603
143 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 03 1 0604-1008
143 WASHER; LK,UNION
ID=20.2 		0-91510-620-0 03 1 1009-
178 BRACKET; UNION
(A) 		1-42119-186-0 01 1 0509-
178 BRACKET; UNION
(B) 		1-42119-187-0 01 1 0509-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0509-

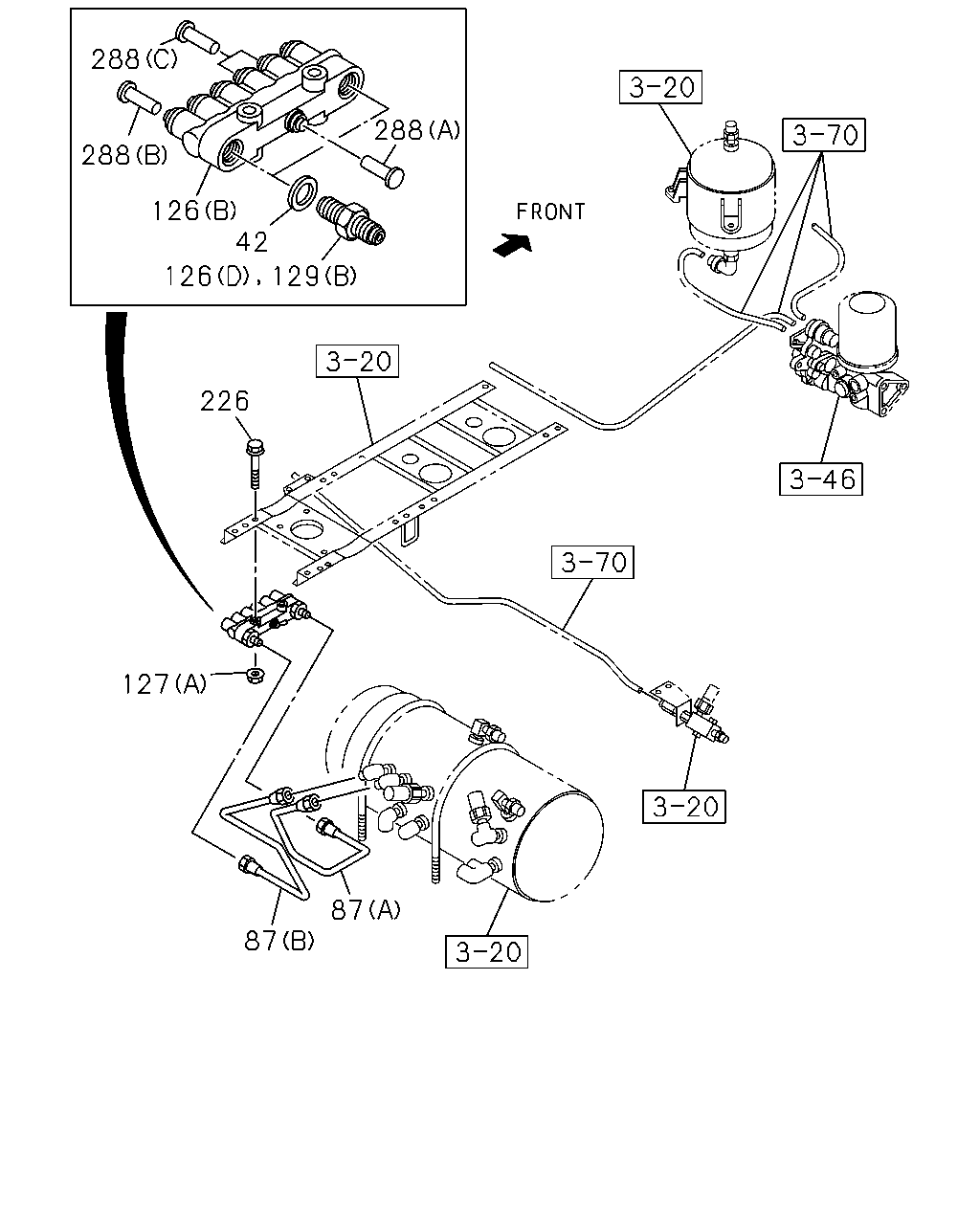

çizim 86477
288 288 288 126 42 126 129 226 127 87 87
BalonParca AdiParca NoAdetTipApplied Date
42 GASKET; CONNECTOR 9-09572-022-0 02 1 0509-0803
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 0509-
87 PIPE; AIR,AIR TANK TO UNION
(A) L=541 		1-49124-671-0 01 1 0509-
126 UNION; NYLON TUBE
(D) M22X2 STRAIGHT 		8-98107-103-0 02 1 0804-
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		9-09225-206-1 01 1 0510-0607
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		0-92125-206-0 01 1 0608-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0509-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0509-
127 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 03 1 0509-0602
127 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
127 NUT; UNION
(B) M20 		9-99111-420-0 03 1 0509-0512
127 NUT; UNION
(B) M20 		0-91111-520-0 03 1 0601-
129 CONNECTOR; NYLON TUBE
(B) M22 & M22 		1-09654-416-1 02 1 0509-0610
129 CONNECTOR; NYLON TUBE
(B) 		8-97618-539-0 02 1 0611-0803
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0509-0602
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0509-0602
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0603-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0603-
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0509-0512
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 02 1 0509-0512
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 0601-
226 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0509-0602
226 BOLT; UNION
PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0603-0904
226 BOLT; UNION
PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0509-
288 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0509-
288 PLUG
(C) OD=12 		1-09661-617-0 02 1 0509-

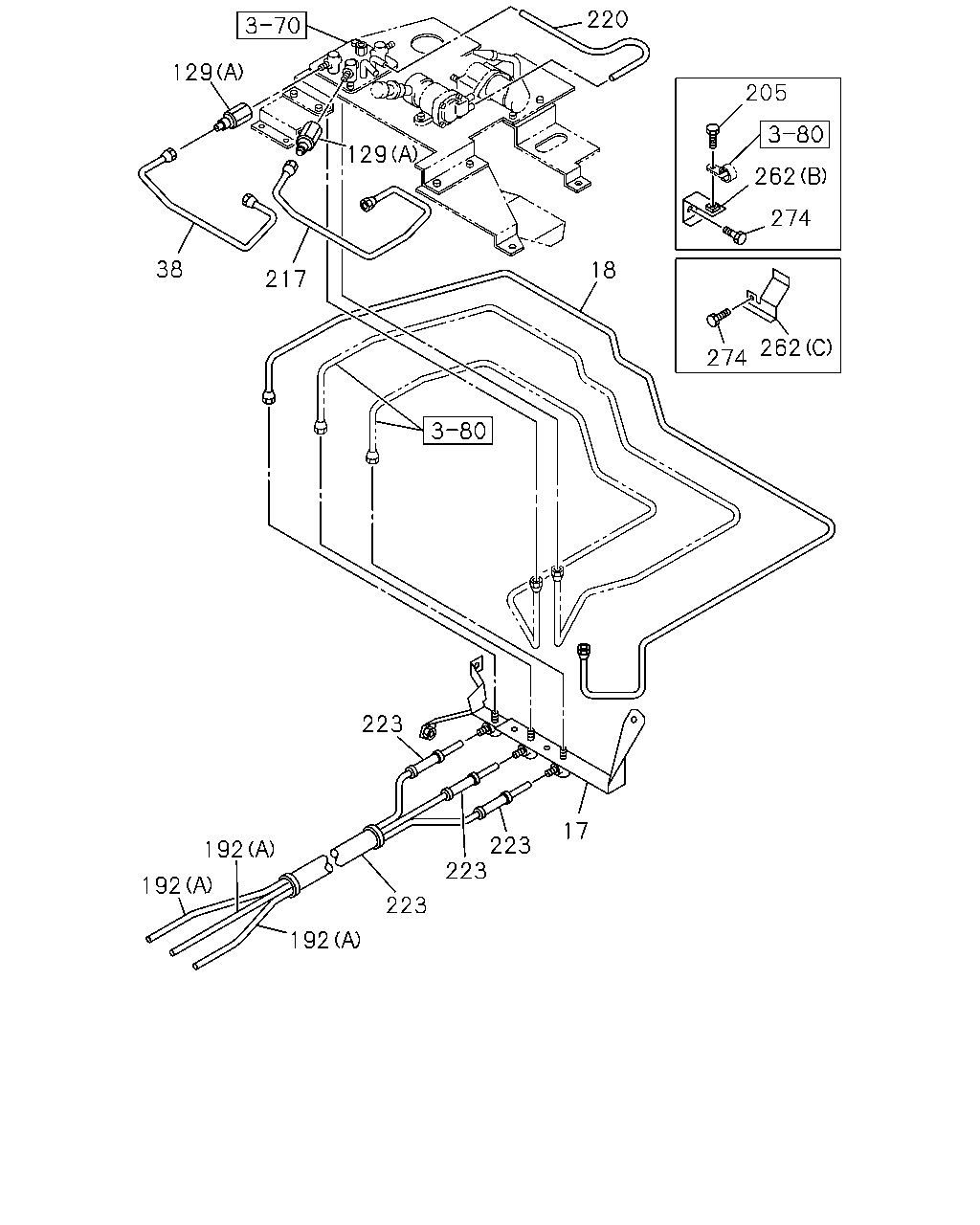

çizim 86489
220 129 205 129 262 274 38 18 217 262 274 223 17 223 223 192 192 223 192
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE 1-47470-558-0 01 1 0509-0602
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47470-558-0 01 1 0603-
18 PIPE; AIR,UNION TO UNION
L=2332 SERVICED BY L=2400 		1-47426-395-0 01 1 0509-0602
18 PIPE; AIR,UNION TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> L=2332 SERVICED BY L=2400 		1-47426-395-0 01 1 0603-
38 PIPE; AIR,UNION TO MAG VLV 1-49123-433-0 01 1 0509-0602
38 PIPE; AIR,UNION TO MAG VLV
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49123-433-0 01 1 0603-
129 CONNECTOR; NYLON TUBE
(B) M22 & M22 		1-09654-416-1 02 1 0509-0610
129 CONNECTOR; NYLON TUBE
(B) 		8-97618-539-0 02 1 0611-0803
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0509-0602
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0509-0602
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0603-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0603-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0509-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0509-0512
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
205 BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0509-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 0509-0602
217 PIPE; AIR,PARKING BRK VLV TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49123-172-0 01 1 0603-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0509-0602
220 HOSE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0603-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87410-097-0 AR 1 0509-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0509-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0509-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0601-
262 BRACKET
DIFF LOCK<C3N> (D) 		1-47471-386-0 01 1 0510-
262 BRACKET
(A) 		1-47471-015-0 01 1 0509-
262 BRACKET
(B) 		1-79996-143-0 01 1 0509-
262 BRACKET
(C) 		1-79996-258-1 01 1 0509-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0509-0512
274 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0509-
çizim 103852
192 192 72 262 105 100 280 126 76 192
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0509-0509
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0510-0602
72 NUT; BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91150-108-0 02 1 0510-0602
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
72 NUT; BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 0603-
76 ADAPTER; NYLON TUBE
DIFF LOCK<C3N> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0510-
100 NUT; UNION
DIFF LOCK<C3N> M12 		9-09840-280-0 01 1 0510-
100 NUT; UNION
M14 FLANGE 		0-91150-114-0 01 1 0509-
105 HOSE; FLEX
FINAL GEAR 19.5"<BDC> DIFF LOCK<C3N> L=390 		1-09363-616-0 01 1 0902-
105 HOSE; FLEX
DIFF LOCK<C3N> L=320 		1-09363-625-0 01 1 0510-0901
105 HOSE; FLEX
FINAL GEAR 18.5"<C1C> DIFF LOCK<C3N> L=320 		1-09363-625-0 01 1 0902-
126 UNION; NYLON TUBE
(D) M22X2 STRAIGHT 		8-98107-103-0 02 1 0804-
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		9-09225-206-1 01 1 0510-0607
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		0-92125-206-0 01 1 0608-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0509-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0509-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0509-
262 BRACKET
DIFF LOCK<C3N> (D) 		1-47471-386-0 01 1 0510-
262 BRACKET
(A) 		1-47471-015-0 01 1 0509-
262 BRACKET
(B) 		1-79996-143-0 01 1 0509-
262 BRACKET
(C) 		1-79996-258-1 01 1 0509-
280 WASHER; LK
DIFF LOCK<C3N> ID=12.2 		9-09150-512-0 01 1 0510-0603
280 WASHER; LK
DIFF LOCK<C3N> ID=12.2 		0-91510-512-0 01 1 0604-

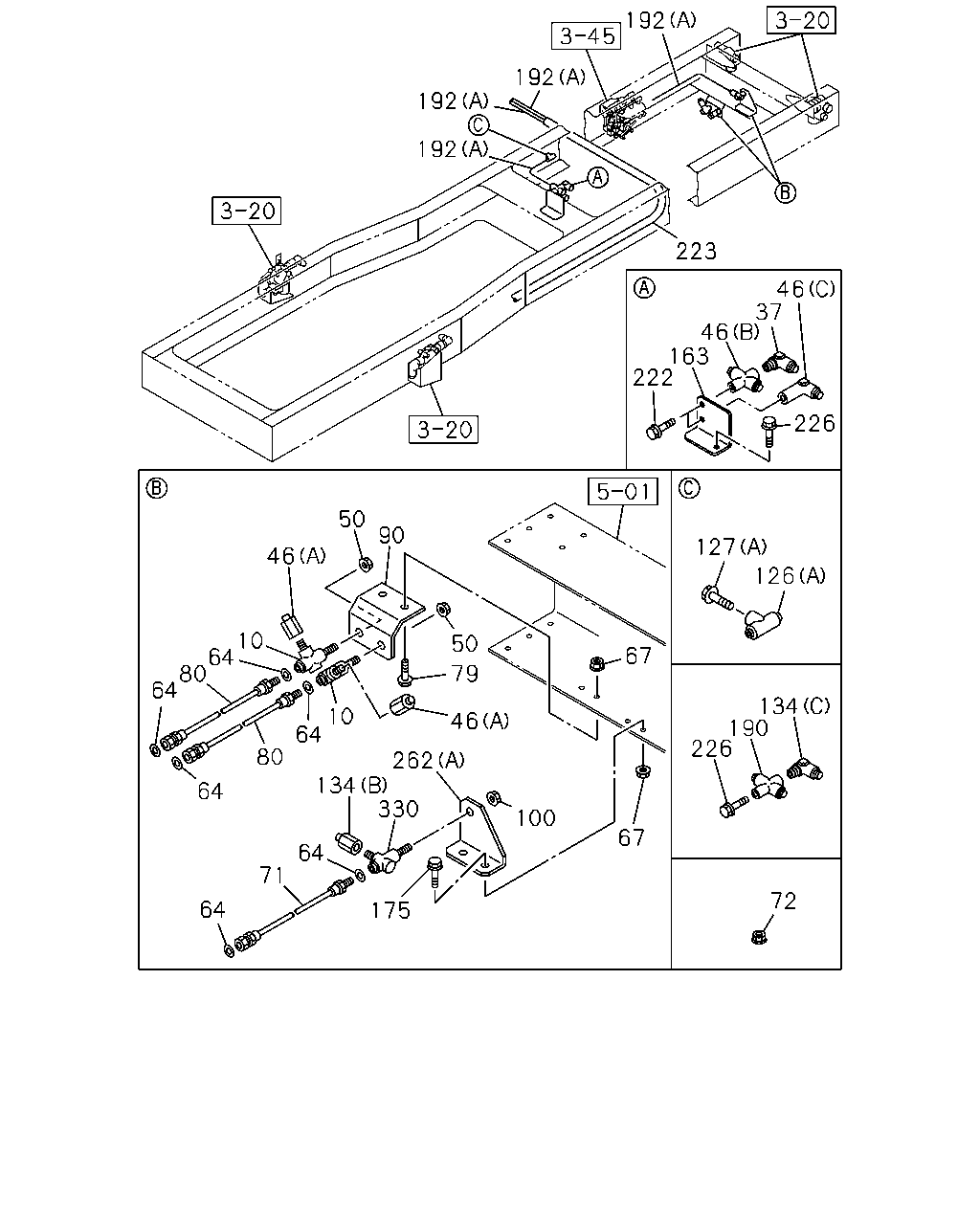

çizim 103853
192 192 192 192 223 46 37 46 163 222 226 50 90 127 46 126 10 64 80 64 50 67 79 134 190 226 10 64 46 80 262 134 330 64 100 67 64 71 72 64 175
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE 1-09650-360-1 02 1 0509-
37 UNION; AIR PIPE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0509-
46 NIPPLE; AIR PIPE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0509-
46 NIPPLE; AIR PIPE
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0509-
46 NIPPLE; AIR PIPE
(C) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0509-
50 NUT; UNION BRKT
M14 FLANGE 		0-91150-114-0 02 1 0509-
64 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 06 1 0509-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 04 1 0509-0602
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
71 HOSE; FLEX,RWD RR
L=630 		0-07846-630-1 01 1 0509-0708
71 HOSE; FLEX,RWD RR
L=630 		0-57846-630-1 01 1 0709-
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0509-0509
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0510-0602
72 NUT; BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91150-108-0 02 1 0510-0602
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
72 NUT; BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 0603-
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-07846-630-1 02 1 0509-0708
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-57846-630-1 02 1 0709-
90 BRACKET; PIPE UNION 1-47471-007-0 01 1 0509-
100 NUT; UNION
DIFF LOCK<C3N> M12 		9-09840-280-0 01 1 0510-
100 NUT; UNION
M14 FLANGE 		0-91150-114-0 01 1 0509-
126 UNION; NYLON TUBE
(D) M22X2 STRAIGHT 		8-98107-103-0 02 1 0804-
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		9-09225-206-1 01 1 0510-0607
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		0-92125-206-0 01 1 0608-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0509-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0509-
127 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 03 1 0509-0602
127 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
127 NUT; UNION
(B) M20 		9-99111-420-0 03 1 0509-0512
127 NUT; UNION
(B) M20 		0-91111-520-0 03 1 0601-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0509-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0509-
134 CONNECTOR
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0509-
134 CONNECTOR
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0509-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0509-
163 BRACKET; FLEX HOSE 1-47471-145-0 01 1 0509-
175 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512
175 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0509-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0509-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0509-
222 BOLT; CONNECTOR
M8X10 FLANGE 		0-28080-810-0 02 1 0509-0512
222 BOLT; CONNECTOR
M8X10 FLANGE 		0-28050-810-0 02 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87410-097-0 AR 1 0509-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0509-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0509-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0601-
226 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 01 1 0509-0512
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
226 BOLT; UNION
M8X45 FLANGE 		0-28080-845-0 02 1 0509-0512
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 0601-
226 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0509-0602
226 BOLT; UNION
PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0603-0904
226 BOLT; UNION
PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
262 BRACKET
DIFF LOCK<C3N> (D) 		1-47471-386-0 01 1 0510-
262 BRACKET
(A) 		1-47471-015-0 01 1 0509-
262 BRACKET
(B) 		1-79996-143-0 01 1 0509-
262 BRACKET
(C) 		1-79996-258-1 01 1 0509-
330 UNION; FLEX HOSE 1-09650-360-1 01 1 0509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
