3-75 — BRAKE PIPING; AIR,FRONT (#29924) — 72 parça

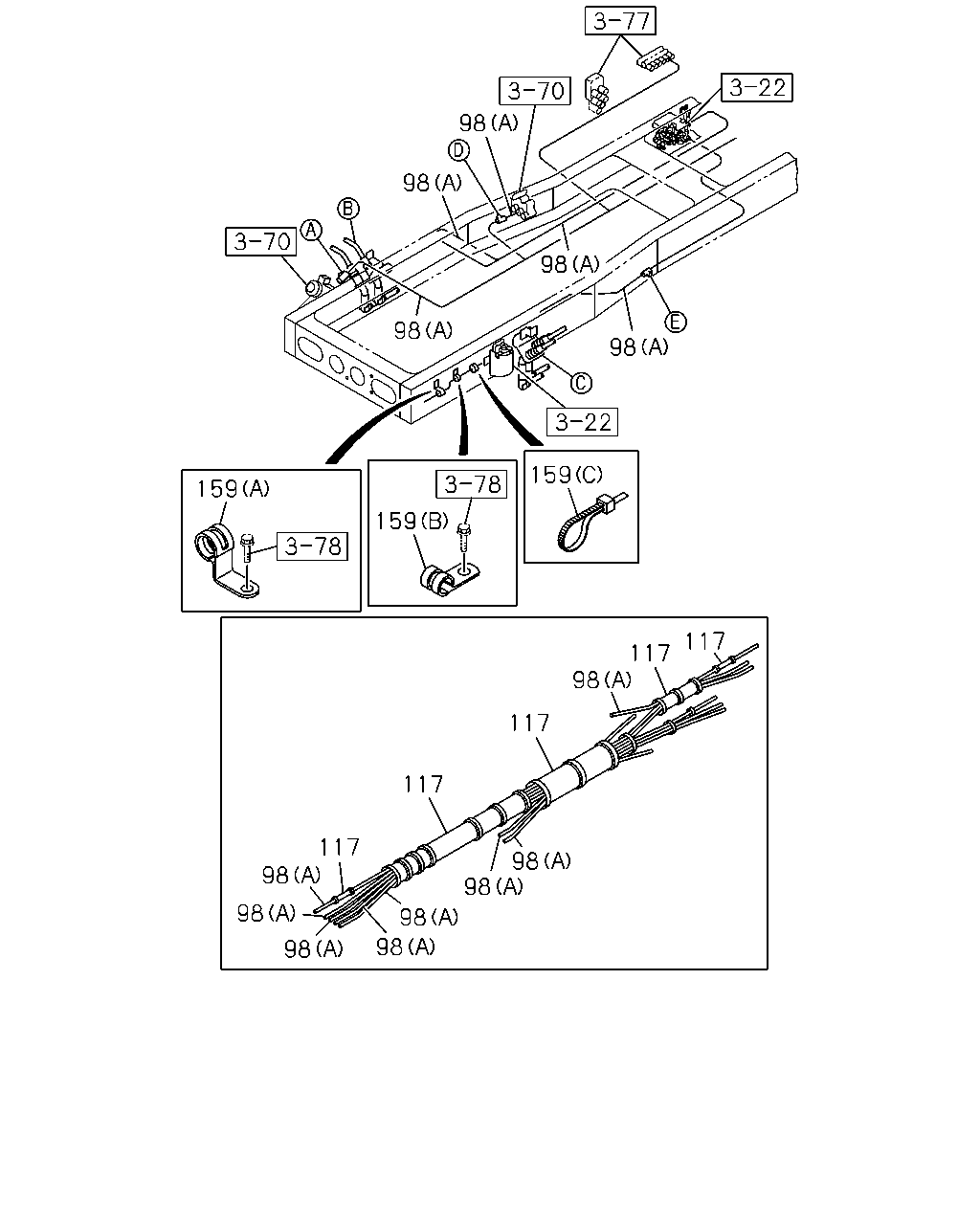

çizim 86488
98 98 98 98 98 159 159 159 117 117 98 117 117 117 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date
98 TUBE; NYLON
(B) L=200 OD=12 		1-49222-062-0 02 1 0509-0602
98 TUBE; NYLON
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) L=200 OD=12 		1-49222-062-0 02 1 0603-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0509-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0509-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0509-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0901-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0509-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0509-
159 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 0509-
159 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 01 1 0509-
159 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09700-947-0 02 1 0509-
159 CLIP; NYLON TUBE
(A) ID=19 L=39 H=21 		1-09700-972-1 02 1 0509-
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 0509-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 17 1 0509-0606
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 18 1 0607-0812
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 17 1 0901-
159 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 02 1 0509-0606
159 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 02 1 0607-

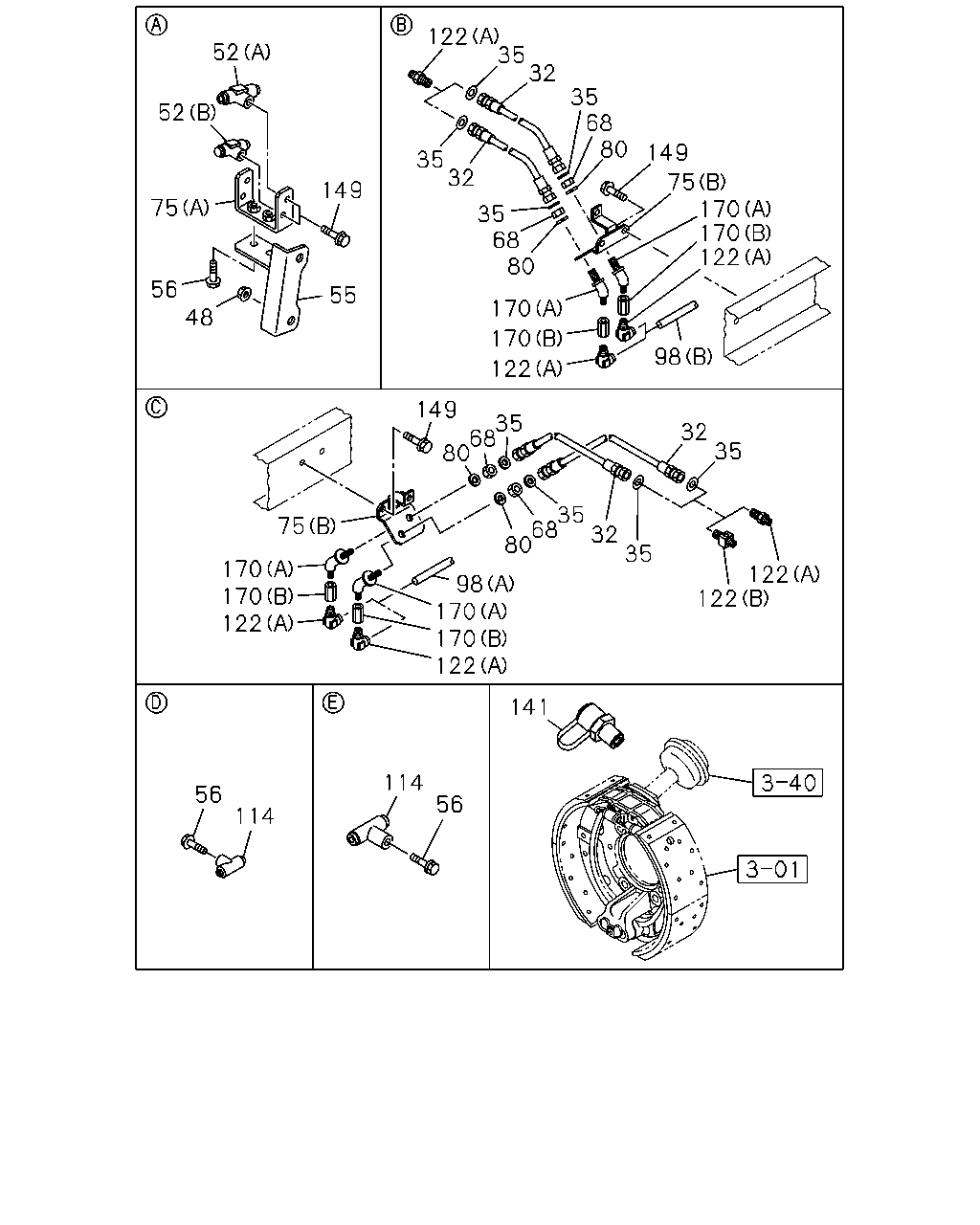

çizim 103745
122 35 32 52 35 68 80 52 149 35 32 75 170 170 122 149 75 35 68 80 56 48 55 170 170 98 122 149 35 68 80 32 35 35 68 32 80 35 75 170 170 122 122 122 98 170 170 122 141 114 56 56 114
BalonParca AdiParca NoAdetTipApplied Date
32 HOSE; FLEX,FRT
L=470 		0-07847-470-1 04 1 0509-0602
32 HOSE; FLEX,FRT
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> L=470 		0-07847-470-1 04 1 0603-0605
32 HOSE; FLEX,FRT
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> L=470 		0-57847-470-1 04 1 0606-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 08 1 0509-0602
35 GASKET; FLEX HOSE
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> ID=11 OD=18 		9-09572-510-0 08 1 0603-
48 NUT; UNION BRKT
M12 FLANGE 		0-91150-212-0 02 1 0509-0602
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 0603-
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0509-
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0509-
55 BRACKET; TUBE UNION 1-47479-993-1 01 1 0509-
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0509-0512
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0601-1001
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1002-
68 NUT; UNION
M20 		9-99111-420-0 04 1 0509-0512
68 NUT; UNION
M20 		0-91111-520-0 04 1 0601-0602
68 NUT; UNION
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M20 		0-91111-520-0 04 1 0603-
75 BRACKET; UNION
(B) 		1-47471-367-0 01 1 0509-0602
75 BRACKET; UNION
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) 		1-47471-367-0 01 1 0603-
75 BRACKET; UNION
(B) 		1-47471-368-0 01 1 0509-0602
75 BRACKET; UNION
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) 		1-47471-368-0 01 1 0603-
75 BRACKET; UNION
(A) 		1-47471-023-0 01 1 0509-
80 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 04 1 0509-0602
80 WASHER; LK,UNION
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> ID=20.2 		9-09150-520-0 04 1 0603-0603
80 WASHER; LK,UNION
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> ID=20.2 		0-91510-520-0 04 1 0604-
98 TUBE; NYLON
(B) L=200 OD=12 		1-49222-062-0 02 1 0509-0602
98 TUBE; NYLON
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) L=200 OD=12 		1-49222-062-0 02 1 0603-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0509-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0509-
114 UNION; NYLON TUBE
DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 0509-0806
122 CONNECTOR; FLEX HOSE
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 0509-0602
122 CONNECTOR; FLEX HOSE
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0603-
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 		1-09660-731-1 03 1 0509-
122 CONNECTOR; FLEX HOSE
(B) R3/8 & RC1/4 & M20 3WAY 		1-09661-607-0 01 1 0509-
122 CONNECTOR; FLEX HOSE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0509-0602
122 CONNECTOR; FLEX HOSE
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0603-
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0509-
149 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 03 1 0509-0512
149 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
149 BOLT; UNION
M8X30 FLANGE 		0-28680-830-0 04 1 0509-0512
149 BOLT; UNION
M8X30 FLANGE 		0-28650-830-0 04 1 0601-0602
149 BOLT; UNION
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M8X30 FLANGE 		0-28650-830-0 04 1 0603-
170 UNION; FLARE
(A) M20 		1-09654-199-2 04 1 0509-0602
170 UNION; FLARE
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (A) M20 		1-09654-199-2 04 1 0603-
170 UNION; FLARE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 04 1 0509-0602
170 UNION; FLARE
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 04 1 0603-
