Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#29923) — 260 parça

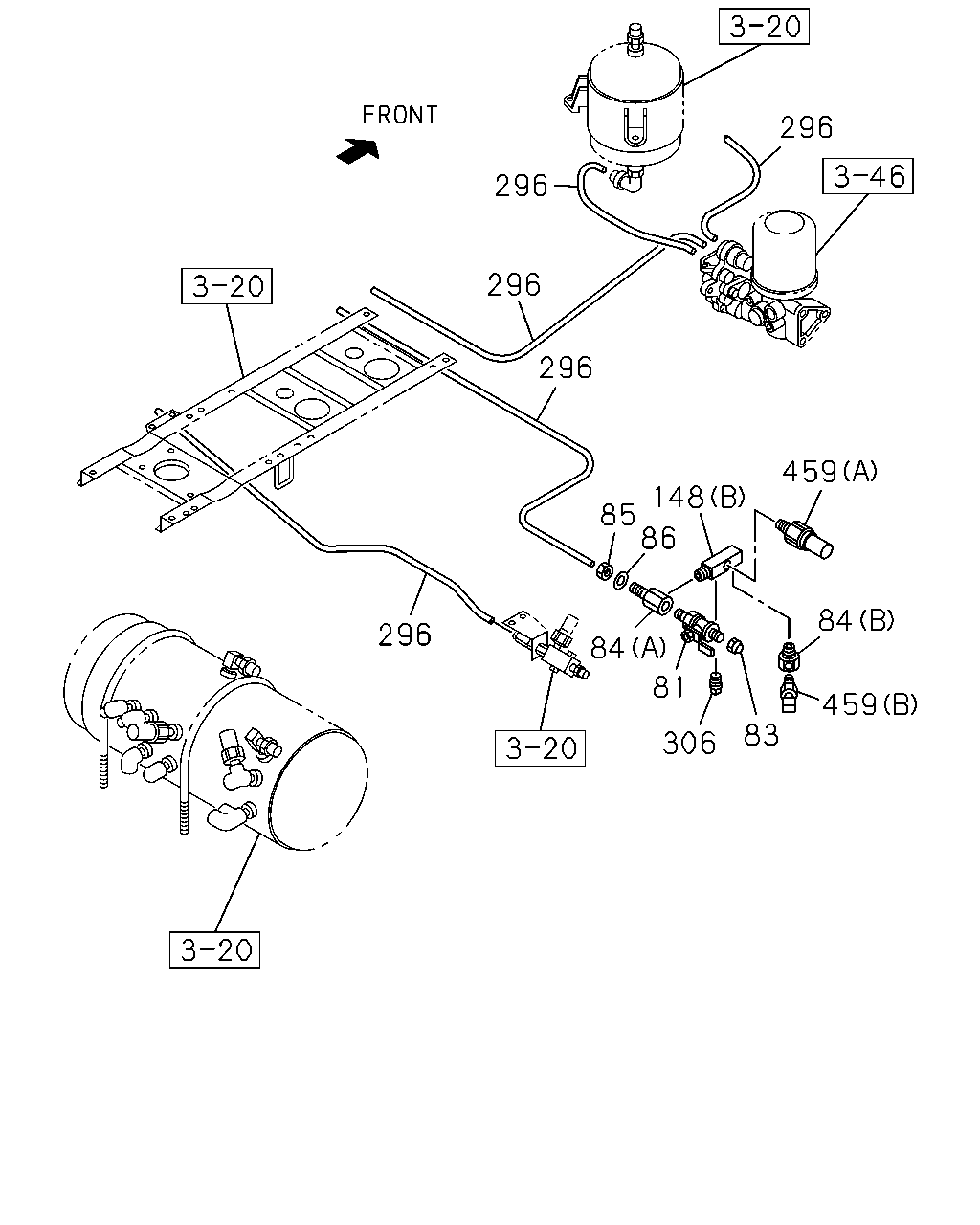

296 296 296 296 459 148 85 86 84 84 296 81 459 83 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	COCK; AIR	1-09680-099-0	01	1	0509-0805
81	COCK; AIR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0806-
83	CAP; AIR COCK	9-48319-102-0	01	1	0607-0805
83	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0806-
84	UNION; NYLON TUBE (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0509-0804
84	UNION; NYLON TUBE (A)	1-09661-092-0	01	1	0509-
85	NUT; UNION M18	9-99110-518-0	01	1	0509-0512
85	NUT; UNION M18	0-91110-518-0	01	1	0601-
86	WASHER; LK,TUBE UNION ID=18.2	9-09150-518-0	01	1	0509-0603
86	WASHER; LK,TUBE UNION ID=18.2	0-91510-518-0	01	1	0604-
148	CONNECTOR; UNION MJX16P M/T(Y3Z) (C)	8-94338-417-0	01	1	0810-
148	CONNECTOR; UNION (B) PT1/4 4WAY	1-09660-358-0	01	1	0509-
148	CONNECTOR; UNION (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0509-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0509-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0509-
306	PLUG; NYLON TUBE EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	02	1	0806-
306	PLUG; NYLON TUBE PT1/4	9-99204-513-0	01	1	0509-0805
306	PLUG; NYLON TUBE TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	01	1	0806-
459	SWITCH; PRESS (A)	1-48340-058-2	01	1	0509-
459	SWITCH; PRESS (B) THREAD R1/4	1-80220-023-1	01	1	0509-

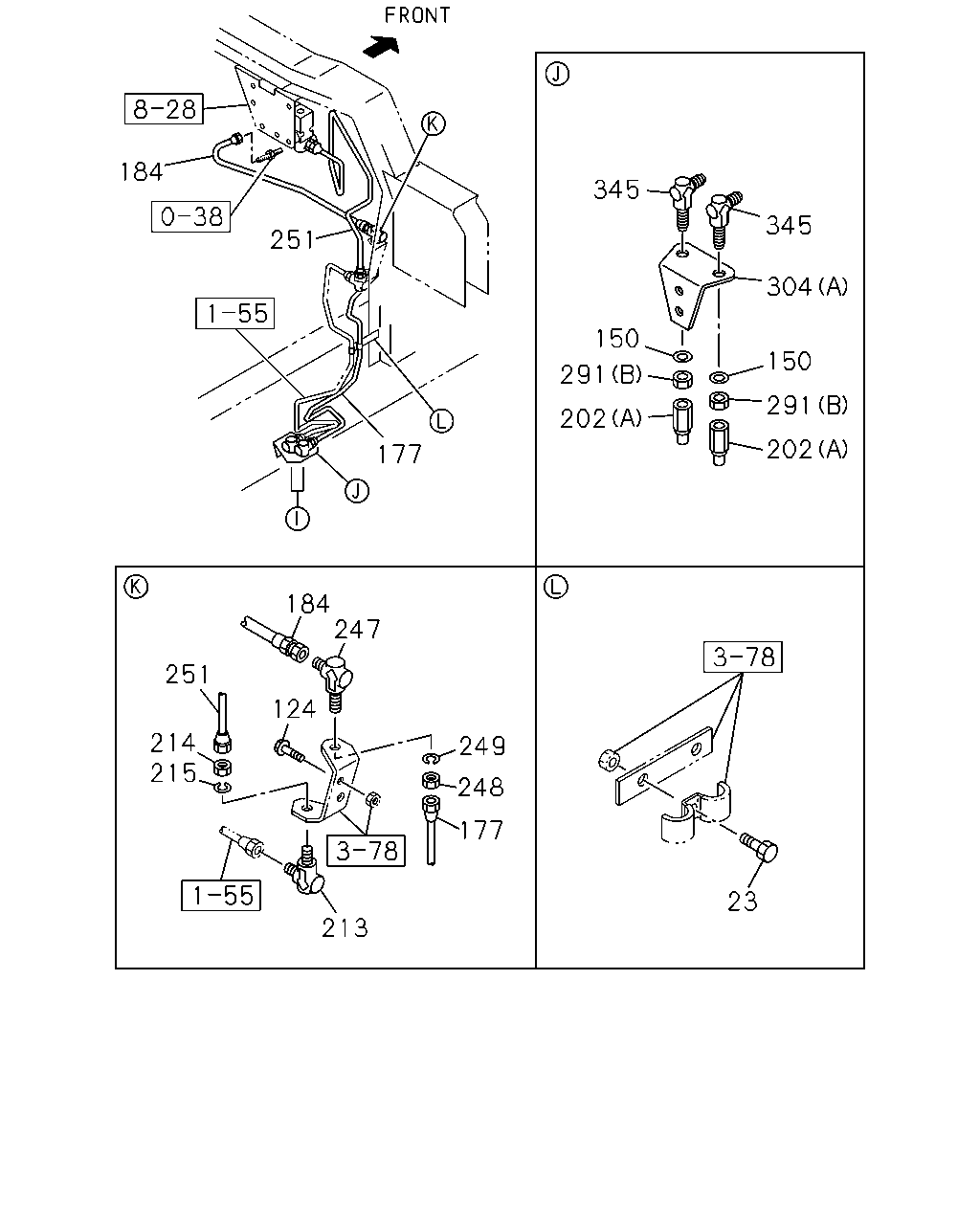

184 345 345 251 304 150 150 291 291 202 202 177 184 247 251 124 214 215 249 248 177 23 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0509-0512
23	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-
124	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0509-0512
124	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0509-0603
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0604-
177	PIPE; AIR,UNION TO UNION L=807 SERVICED BY L=900	1-47428-813-0	01	1	0509-
184	HOSE; FLEX,AIR GOV L=780	1-09363-620-0	01	1	0509-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0509-
202	ADAPTER (A) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0509-
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0509-0607
213	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0509-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0509-0603
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	01	1	0604-
247	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0509-0607
247	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0509-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0509-0603
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0604-
251	PIPE; AIR,UNION TO MAG VLV	1-49121-779-0	01	1	0509-
291	NUT; UNION (A) M8 FLANGE	0-91150-108-0	02	1	0509-0602
291	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	0603-
291	NUT; UNION (B) M12	9-09840-280-0	02	1	0509-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0509-0809
304	BRACKET; UNION MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0810-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0810-
304	BRACKET; UNION (C)	1-47471-262-0	01	1	0509-
304	BRACKET; UNION (A)	1-47478-359-0	01	1	0509-
345	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	02	1	0509-0607
345	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	02	1	0608-

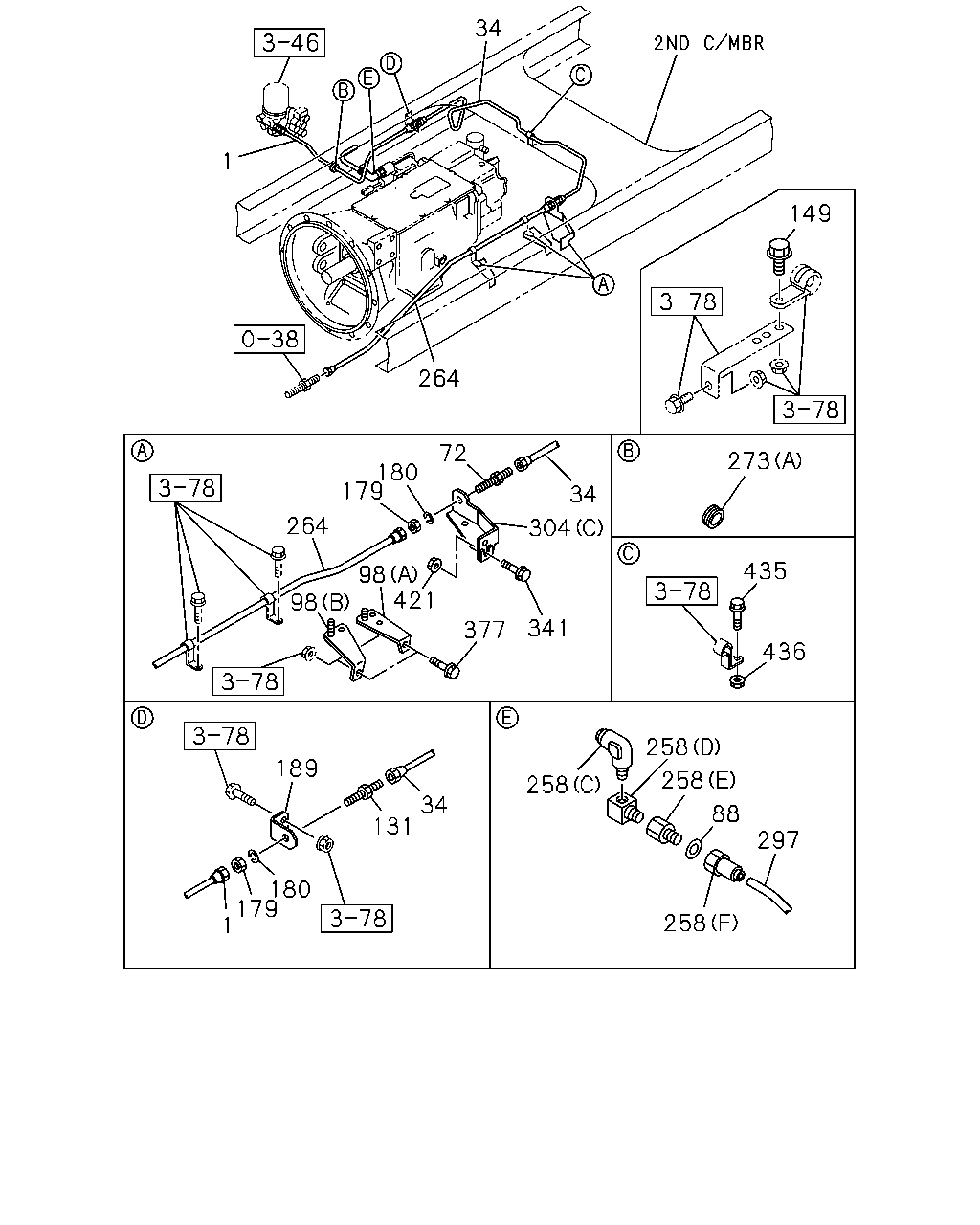

34 1 149 264 72 273 180 179 34 264 304 435 98 98 421 341 377 436 258 189 258 258 34 88 131 297 180 179 1 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=1350	1-09363-925-0	01	1	0509-
34	PIPE; AIR L=1114	1-49124-668-0	01	1	0509-
72	UNION; AIR PIPE M22	9-09233-315-1	01	1	0509-0607
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	0608-
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	0509-0809
88	GASKET; NYLON TUBE MJT7 M/T<Y9E> ID=14.2 OD=23.0	9-09572-014-0	01	1	0810-1311
98	BRACKET; AIR PIPE (B)	1-47479-639-0	01	1	0509-
98	BRACKET; AIR PIPE (A)	1-47479-723-0	01	1	0509-
131	UNION; AIR PIPE M22	9-09233-315-1	01	1	0509-0607
131	UNION; AIR PIPE M22	0-92123-315-0	01	1	0608-
149	BOLT; TUBE CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	0810-
179	NUT; UNION M22	9-09111-422-0	02	1	0509-0512
179	NUT; UNION M22	0-91111-522-0	02	1	0601-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0509-0603
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-
189	BRACKET; FLEX HOSE	1-47479-473-0	01	1	0509-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0810-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (A) PT3/8 4WAY	1-09661-489-0	01	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0509-0809
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0509-
258	CONNECTOR; NYLON TUBE (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (A) PT3/8 3WAY	1-09661-300-0	01	1	0509-0809
258	CONNECTOR; NYLON TUBE MJT7 M/T<Y9E> (A) PT3/8 3WAY	1-09661-300-0	01	1	0810-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (E)	1-48319-059-0	01	1	0509-0809
258	CONNECTOR; NYLON TUBE MJT7 M/T<Y9E> (E)	1-48319-059-0	01	1	0810-1311
264	HOSE; FLEX L=1000	1-09363-794-0	01	1	0509-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09332-102-0	01	1	0509-0809
273	GROMMET MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09332-102-0	01	1	0810-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09332-102-0	01	1	0810-
273	GROMMET (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0509-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0509-
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0509-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0509-0809
304	BRACKET; UNION MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0810-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0810-
304	BRACKET; UNION (C)	1-47471-262-0	01	1	0509-
304	BRACKET; UNION (A)	1-47478-359-0	01	1	0509-
341	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0509-0512
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
377	BOLT; BRKT FIX M8X30 FLANGE	0-28680-830-0	02	1	0509-0512
377	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-
421	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0509-0602
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
435	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0509-0512
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0509-0602
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-

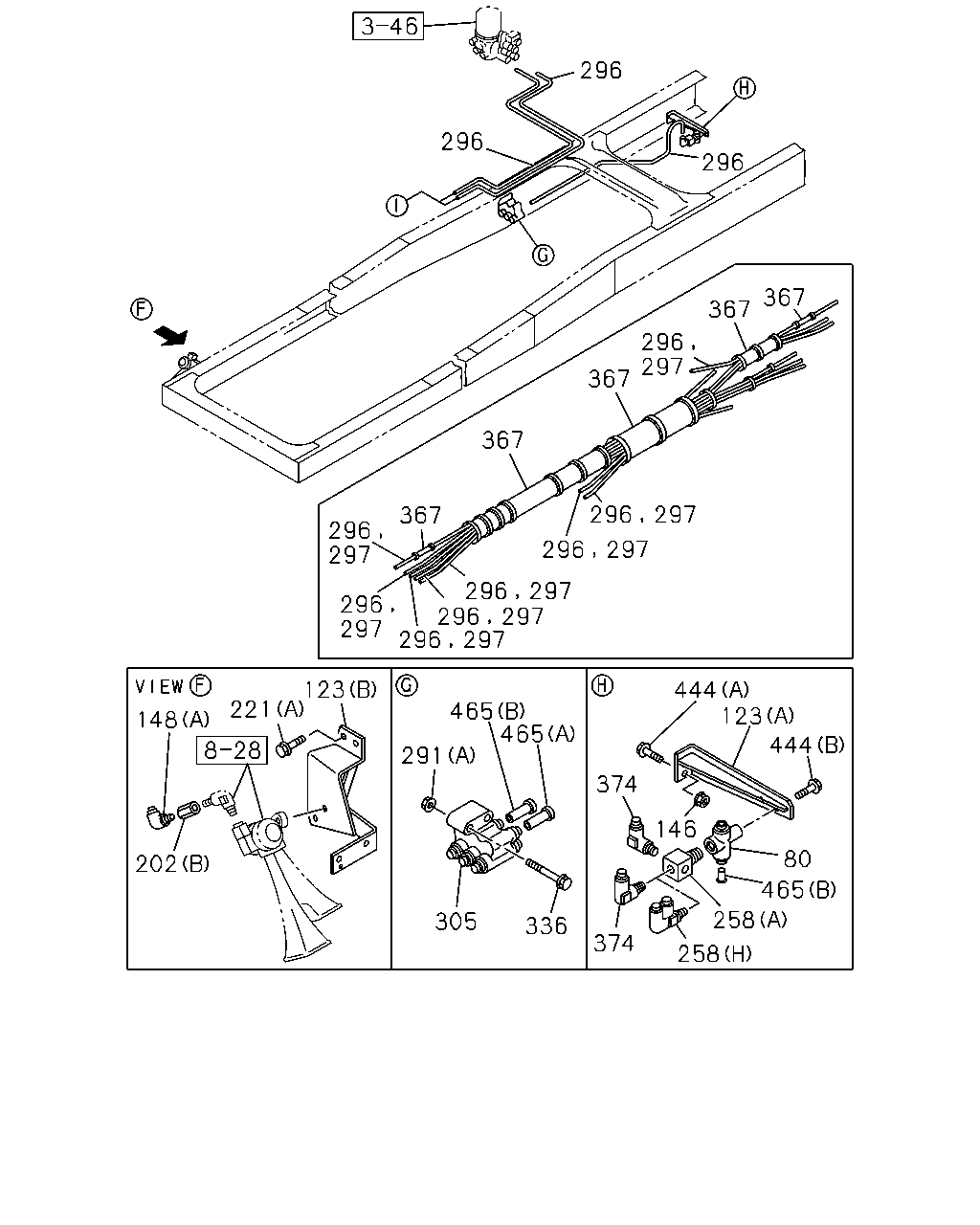

296 296 296 367 367 296 297 367 367 367 296 297 296 297 123 444 123 221 465 465 148 444 291 374 146 80 202 465 258 305 336 374 258 297 296 296 297 297 297 297 296 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0509-
123	BRACKET; UNION (A)	1-47479-401-0	01	1	0509-
123	BRACKET; UNION (B)	1-53457-161-0	01	1	0509-
146	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	0509-0602
146	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0603-
148	CONNECTOR; UNION MJX16P M/T(Y3Z) (C)	8-94338-417-0	01	1	0810-
148	CONNECTOR; UNION (B) PT1/4 4WAY	1-09660-358-0	01	1	0509-
148	CONNECTOR; UNION (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0509-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0509-
202	ADAPTER (A) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0509-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0509-0809
221	BOLT; BRKT MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0810-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0810-
221	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	0509-0512
221	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0601-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0810-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (A) PT3/8 4WAY	1-09661-489-0	01	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0509-0809
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0509-
258	CONNECTOR; NYLON TUBE (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (A) PT3/8 3WAY	1-09661-300-0	01	1	0509-0809
258	CONNECTOR; NYLON TUBE MJT7 M/T<Y9E> (A) PT3/8 3WAY	1-09661-300-0	01	1	0810-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (E)	1-48319-059-0	01	1	0509-0809
258	CONNECTOR; NYLON TUBE MJT7 M/T<Y9E> (E)	1-48319-059-0	01	1	0810-1311
291	NUT; UNION (A) M8 FLANGE	0-91150-108-0	02	1	0509-0602
291	NUT; UNION (A) M8 FLANGE	0-91180-108-0	02	1	0603-
291	NUT; UNION (B) M12	9-09840-280-0	02	1	0509-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0509-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0509-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0509-
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0509-
305	UNION ASM; NYLON TUBE	1-09661-613-1	01	1	0509-
336	BOLT; PIPE UNION M8X70 FLANGE	0-28080-870-0	02	1	0509-0512
336	BOLT; PIPE UNION M8X70 FLANGE	0-28050-870-0	02	1	0601-0906
336	BOLT; PIPE UNION M8X60 FLANGE	0-28050-860-0	02	1	0907-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0509-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0509-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0509-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0604-
374	CONNECTOR DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0509-
444	BOLT; UNION (B) M8X16 FLANGE	0-28080-816-0	01	1	0509-0512
444	BOLT; UNION (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-
444	BOLT; UNION (A) M8X30 FLANGE	0-28680-830-0	02	1	0509-0512
444	BOLT; UNION (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
465	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	0509-0509
465	PLUG (B) OD=8 PLASTIC	1-09661-616-0	01	1	0510-0611
465	PLUG DIFF LOCK<C3N> (B) OD=8 PLASTIC	1-09661-616-0	01	1	0510-0611
465	PLUG DIFF LOCK<C3N> (B) OD=8 PLASTIC	1-09661-616-0	01	1	0612-
465	PLUG (B) OD=8 PLASTIC	1-09661-616-0	02	1	0509-0509
465	PLUG EXC. DIFF LOCK<C3N> (B) OD=8 PLASTIC	1-09661-616-0	02	1	0510-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0509-0611
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0509-0611
465	PLUG EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27	1-09661-615-0	01	1	0509-0611
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0612-0809
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0612-0809
465	PLUG MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27	1-09661-615-0	01	1	0612-0809
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0810-
465	PLUG EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27	1-09661-615-0	01	1	0810-
465	PLUG MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27	1-09661-615-0	01	1	0810-

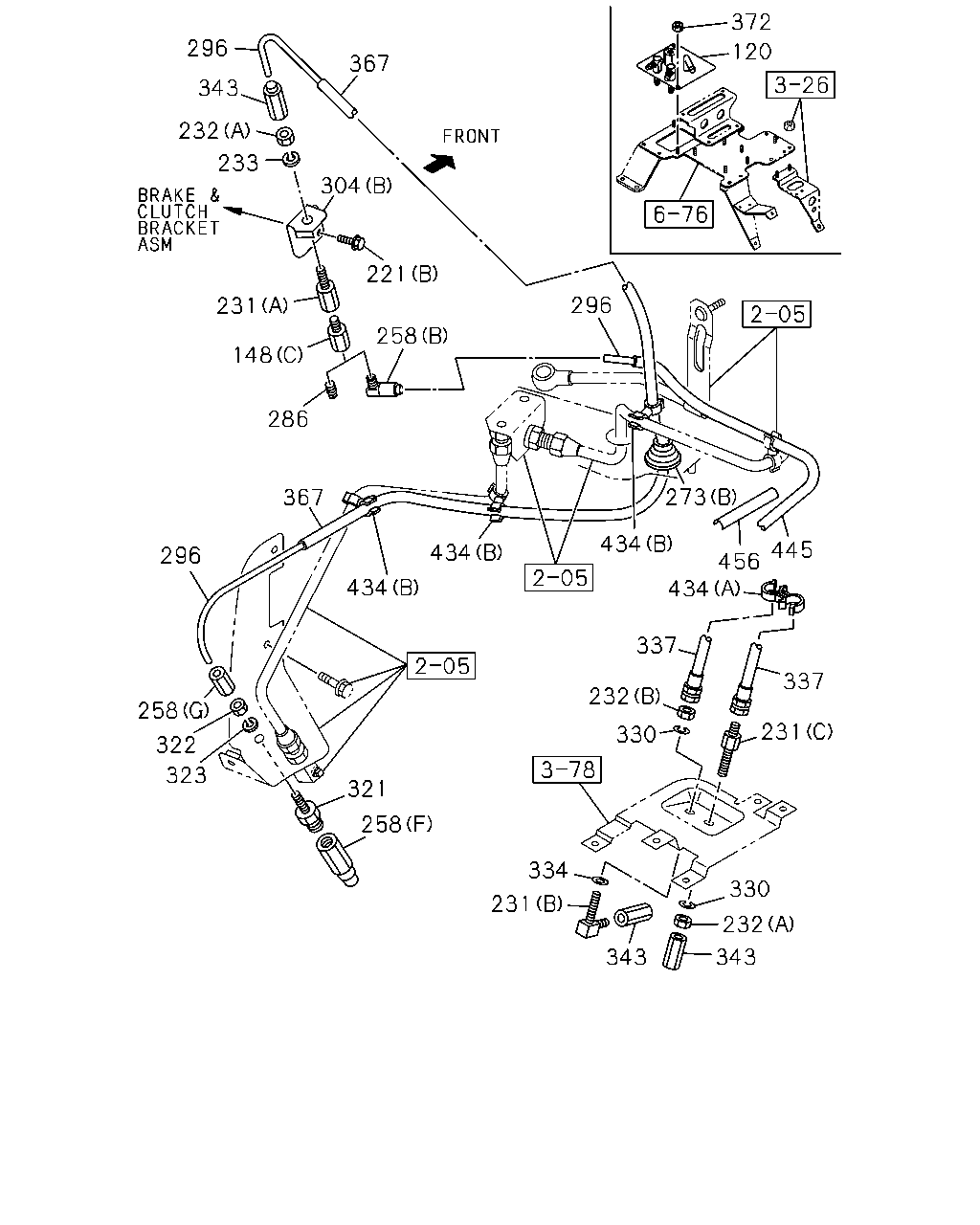

372 296 120 367 343 232 233 304 221 296 231 258 148 286 273 367 434 445 434 296 456 434 434 337 337 232 258 231 330 322 323 321 258 334 330 231 232 343 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE	1-47470-557-0	01	1	0509-0602
120	CONNECTOR; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-557-0	01	1	0603-
148	CONNECTOR; UNION MJX16P M/T(Y3Z) (C)	8-94338-417-0	01	1	0810-
148	CONNECTOR; UNION (B) PT1/4 4WAY	1-09660-358-0	01	1	0509-
148	CONNECTOR; UNION (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0509-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0509-0809
221	BOLT; BRKT MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0810-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0810-
221	BOLT; BRKT (A) M10X35 FLANGE	0-28681-035-0	02	1	0509-0512
221	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0601-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) PT1/8 & M10 STRAIGHT	1-09656-713-2	01	1	0509-0809
231	UNION; AIR PIPE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) PT1/8 & M10 STRAIGHT	1-09656-713-2	01	1	0810-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) PT1/8 & M10 STRAIGHT	1-09656-713-2	01	1	0810-
231	UNION; AIR PIPE (B) M10 ELBOW	1-09654-186-2	01	1	0509-
231	UNION; AIR PIPE (C) M10 STRAIGHT	1-09654-361-0	01	1	0509-
232	NUT; UNION,AIR PIPE (A) M10 H=8	1-09400-029-0	01	1	0509-0809
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8	1-09400-029-0	01	1	0509-0809
232	NUT; UNION,AIR PIPE (A) M10 H=8	1-09400-029-0	01	1	0810-
232	NUT; UNION,AIR PIPE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8	1-09400-029-0	01	1	0810-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8	1-09400-029-0	01	1	0810-
232	NUT; UNION,AIR PIPE (B) M10	9-09110-410-0	01	1	0509-0512
232	NUT; UNION,AIR PIPE (B) M10	0-91110-510-0	01	1	0601-
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0509-0603
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0604-0809
233	WASHER; LK,UNION,AIR PIPE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0810-
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0810-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0810-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (A) PT3/8 4WAY	1-09661-489-0	01	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0509-0809
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0810-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) TRI LC6X4-R1/8	1-09660-760-1	01	1	0509-
258	CONNECTOR; NYLON TUBE (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (A) PT3/8 3WAY	1-09661-300-0	01	1	0509-0809
258	CONNECTOR; NYLON TUBE MJT7 M/T<Y9E> (A) PT3/8 3WAY	1-09661-300-0	01	1	0810-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	0509-
258	CONNECTOR; NYLON TUBE (E)	1-48319-059-0	01	1	0509-0809
258	CONNECTOR; NYLON TUBE MJT7 M/T<Y9E> (E)	1-48319-059-0	01	1	0810-1311
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09332-102-0	01	1	0509-0809
273	GROMMET MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09332-102-0	01	1	0810-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09332-102-0	01	1	0810-
273	GROMMET (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0509-
286	PLUG; AIR PIPE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0509-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0509-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0509-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0509-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0509-0809
304	BRACKET; UNION MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0810-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-71117-210-0	01	1	0810-
304	BRACKET; UNION (C)	1-47471-262-0	01	1	0509-
304	BRACKET; UNION (A)	1-47478-359-0	01	1	0509-
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	9-09223-306-1	01	1	0509-0607
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	0-92113-306-0	01	1	0608-0809
321	JOINT; FLEX HOSE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	0-92113-306-0	01	1	0810-
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	0-92113-306-0	01	1	0810-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0509-0809
322	NUT; JOINT,FLEX HOSE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0810-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0810-
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	9-09150-512-0	01	1	0509-0603
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	0-91510-512-0	01	1	0604-0809
323	WASHER; LK,JOINT MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	0-91510-512-0	01	1	0810-
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	0-91510-512-0	01	1	0810-
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	0509-0603
330	WASHER; LK,UNION,AIR PIPE ID=10.2	0-91510-510-0	02	1	0604-
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0509-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	0509-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-57210-720-0	02	1	0609-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0509-0809
343	UNION; NYLON TUBE MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0810-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0810-
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0509-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0509-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0509-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0509-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0604-
372	NUT M8 FLANGE	0-91150-108-0	02	1	0509-0602
372	NUT PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91180-108-0	02	1	0603-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.3 & 8.3	8-94426-175-0	03	1	0509-0809
434	CLIP MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.3 & 8.3	8-94426-175-0	03	1	0810-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.3 & 8.3	8-94426-175-0	03	1	0810-
434	CLIP (A) ID=10 & 10	1-09709-221-0	01	1	0509-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4	1-83129-031-1	01	1	0509-
456	SEAL; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-1	01	1	0509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
