3-22 — AIR CONTROL PARTS
(#29914) — 55 parça
◀

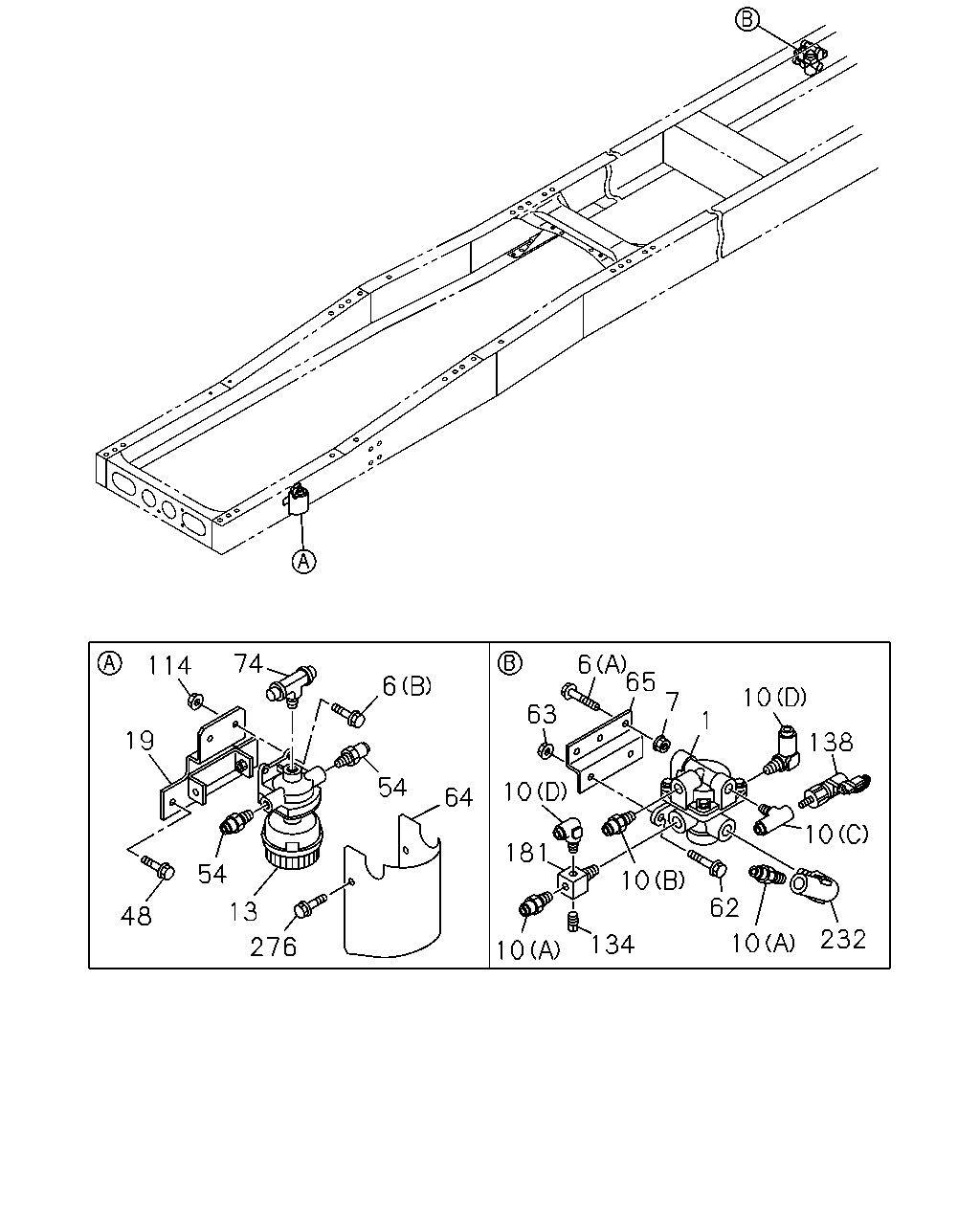

[322A] FIXING (35 parça)

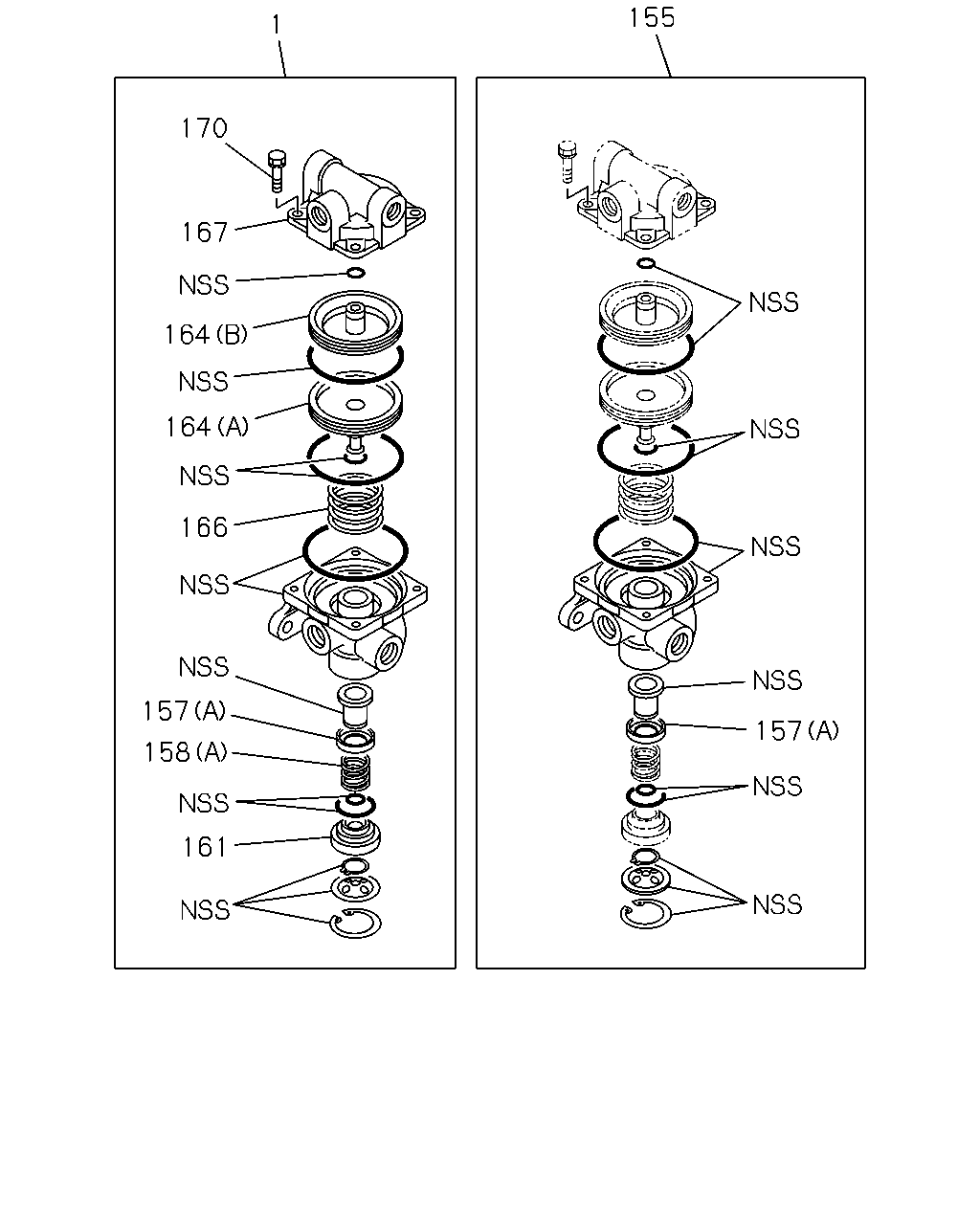

[322A] COMPONENT;RELAY VALVE (12 parça)
[322A] COMPONENT;QUICK RELEASE VALVE (8 parça)
▶
74
6
65
7
114
6
10
63
1
19
138
54
10
64
10
181
54
10
62
13
48
232
10
134
276
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48240-041-1
01
1
0509-
6
BOLT; VLV
(B) M8X25 FLANGE
0-28680-825-0
02
1
0509-0512
6
BOLT; VLV
(B) M8X25 FLANGE
0-28650-825-0
02
1
0601-
6
BOLT; VLV
(A) M8X30 FLANGE
0-28680-830-0
02
1
0509-0512
6
BOLT; VLV
(A) M8X30 FLANGE
0-28650-830-0
02
1
0601-
7
NUT; RELAY VLV
M8 FLANGE
0-91150-108-0
02
1
0509-0602
7
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
02
1
0603-
10
CONNECTOR
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0509-
10
CONNECTOR
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0509-
10
CONNECTOR
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
0509-
10
CONNECTOR
(C)
1-09661-537-0
01
1
0509-0704
10
CONNECTOR
(C) DIN8 & R3/8 & RC1/4 3WAY
8-97620-116-0
01
1
0705-
13
VALVE ASM; QUICK RELEASE
1-48410-726-1
01
1
0509-
19
BRACKET; QUICK RELEASE VLV
1-47471-014-0
01
1
0509-
48
BOLT; QUICK RELEASE VLV
M8X25 FLANGE
0-28680-825-0
02
1
0509-0512
48
BOLT; QUICK RELEASE VLV
M8X25 FLANGE
0-28650-825-0
02
1
0601-
54
CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
0509-
62
BOLT; BRKT FIX
M10X30 FLANGE
0-28681-030-0
02
1
0509-0512
62
BOLT; BRKT FIX
M10X30 FLANGE
0-28651-030-0
02
1
0601-0711
62
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
02
1
0712-
63
NUT; BRKT FIX
M10 FLANGE
0-91150-210-0
02
1
0509-0602
63
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
02
1
0603-
64
PROTECTOR; QUICK RELEASE VALVE
1-47471-259-0
01
1
0509-0706
64
PROTECTOR; QUICK RELEASE VALVE
8-98043-421-0
01
1
0707-
65
BRACKET; RELAY VLV RR
1-47479-328-0
01
1
0509-
74
CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY
1-09660-821-0
01
1
0509-
114
NUT; VLV
M8 FLANGE
0-91150-108-0
02
1
0509-0601
114
NUT; VLV
M8 FLANGE
0-91180-108-0
02
1
0602-
134
PLUG; RELAY VALVE
PT3/8
9-09204-517-0
01
1
0509-0711
138
SWITCH; RELAY VALVE
1-48340-067-0
01
1
0509-
181
ADAPTER; PRESSURE SW
PT3/8 4WAY
1-09661-489-0
01
1
0509-0711
181
ADAPTER; PRESSURE SW
PT3/8 3WAY
1-09661-300-0
01
1
0712-
232
VALVE; CHECK
1-48320-031-1
01
1
0509-
276
BOLT; PROTECTOR
M8X20 FLANGE
0-28680-820-0
02
1
0509-0512
276
BOLT; PROTECTOR
M8X20 FLANGE
0-28650-820-0
02
1
0601-
155
1
170
167
164
164
166
157
157
158
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48240-041-1
01
1
0509-
155
REPAIR KIT; RELAY VALVE
1-85576-035-0
01
1
0509-
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
0509-
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
0509-
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
0509-
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
0509-
161
GUIDE; VALVE
1-48129-014-0
01
1
0509-
164
PISTON; RELAY VALVE
(A)
1-48219-032-0
01
1
0509-
164
PISTON; RELAY VALVE
(B)
1-48219-047-0
01
1
0509-
166
SPRING; PISTON
1-48219-048-0
01
1
0509-
167
COVER; VALVE
1-48219-050-1
01
1
0509-
170
SCREW; COVER TO BODY
1-48219-041-0
04
1
0509-
13
157
216
158
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
1-48410-726-1
01
1
0509-
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
0509-
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
0509-
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
0509-
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
0509-
216
REPAIR KIT; QUICK RELEASE VLV
1-85576-235-0
01
1
0509-1109
216
REPAIR KIT; QUICK RELEASE VLV
1-85576-484-0
01
1
1110-
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
0509-
