◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#29913) — 173 parça

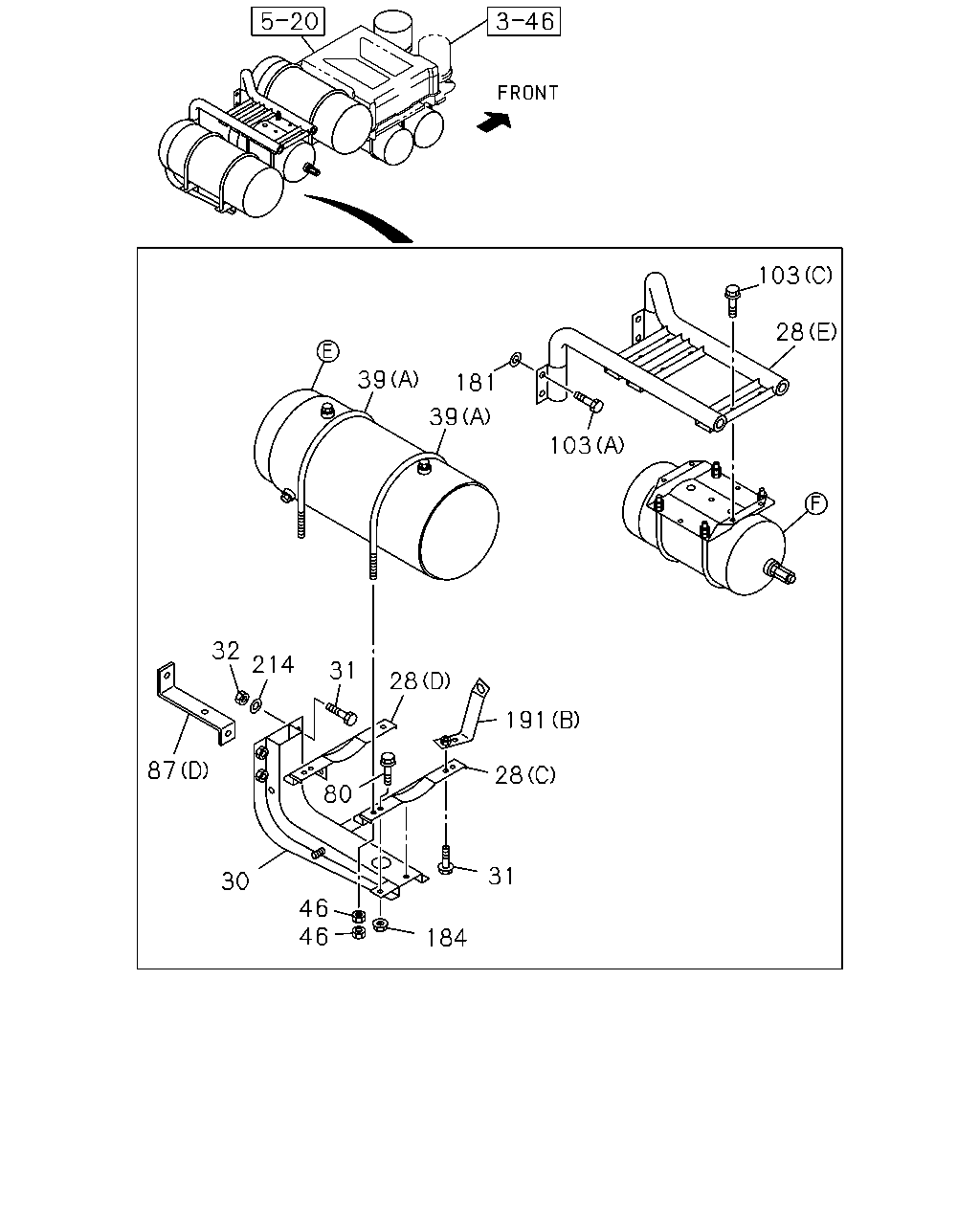

çizim 86205
103 28 39 181 39 103 32 214 31 28 191 87 28 80 31 30 46 46 184
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 0509-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 0509-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0509-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 0509-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 0509-
30 BRACKET; AIR TANK,SUB 1-48316-024-3 01 1 0509-
31 BOLT; BRKT TO FRAME
M14X40 		0-20801-440-0 04 1 0509-0512
31 BOLT; BRKT TO FRAME
M14X40 		0-20851-440-0 04 1 0601-
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0509-0512
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 0601-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0509-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 0509-
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0509-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601-
80 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0509-0512
80 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
80 BOLT; BRKT
M12X25 FLANGE 		0-28681-225-0 04 1 0509-0512
80 BOLT; BRKT
M12X25 FLANGE 		0-28651-225-0 04 1 0601-
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-537-0 01 1 0509-0809
87 BRACKET; AIR PIPE JOINT
(F) 		8-98060-053-0 01 1 0810-
87 BRACKET; AIR PIPE JOINT
(D) 		1-33659-243-0 01 1 0509-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 0509-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47471-223-0 02 1 0509-0703
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 0509-
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-242-0 01 1 0509-0809
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 0810-
103 BOLT; BRKT
(A) M14X35 		0-28081-435-0 04 1 0509-0810
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 0811-
103 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
103 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
103 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 04 1 0509-0512
103 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
181 WASHER; LK,AIR TANK
ID=14.2 		9-09150-514-0 04 1 0509-0603
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 0604-
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0509-0602
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
184 NUT; BRKT
M12 FLANGE 		0-91150-212-0 01 1 0509-0602
184 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0603-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 0509-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 0509-
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0509-0603
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-514-0 04 1 0604-

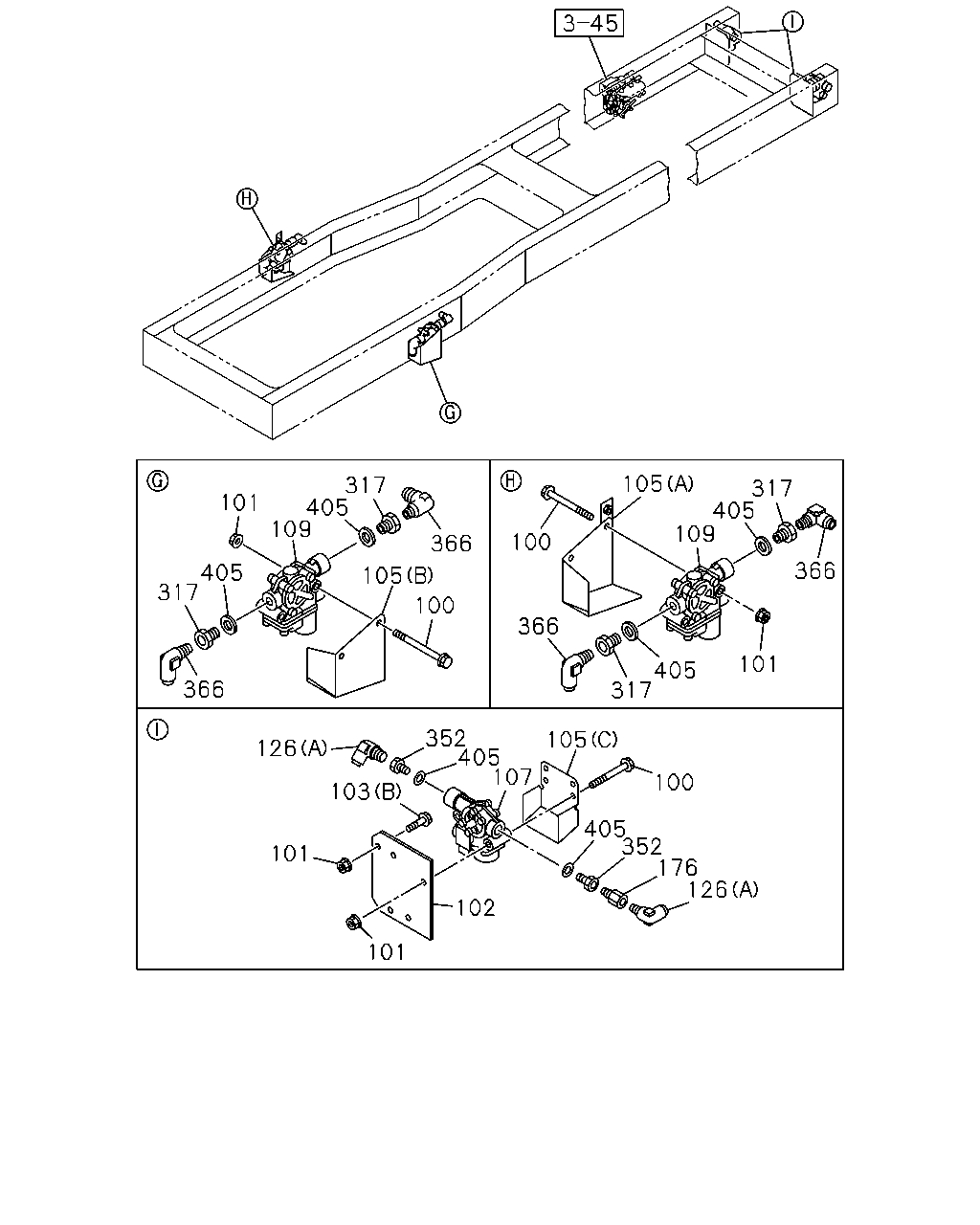

çizim 103628
105 317 405 109 317 405 109 101 100 366 366 405 317 105 100 366 101 405 317 366 352 405 107 105 126 100 103 405 352 176 126 101 102 101
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28080-880-0 04 1 0509-0512
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28080-880-0 04 1 0509-0512
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28050-880-0 04 1 0601-0602
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28050-880-0 04 1 0601-0602
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28050-880-0 04 1 0603-
100 BOLT; MODULATOR
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M8X80 FLANGE 		0-28050-880-0 04 1 0603-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 04 1 0509-0602
101 NUT; MODULATOR
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> M8 FLANGE 		0-91180-108-0 04 1 0603-0810
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 08 1 0509-0602
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 0603-
102 BRACKET; MODULATOR 1-47471-369-0 02 1 0509-
103 BOLT; BRKT
(A) M14X35 		0-28081-435-0 04 1 0509-0810
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 0811-
103 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
103 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
103 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 04 1 0509-0512
103 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
105 COVER; MODULATOR
(C) 		1-47471-354-0 02 1 0509-
105 COVER; MODULATOR
(A) 		1-47471-306-0 01 1 0509-0604
105 COVER; MODULATOR
(A) 		8-98049-454-0 01 1 0605-
105 COVER; MODULATOR
(B) 		1-47471-307-0 01 1 0509-0602
105 COVER; MODULATOR
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) 		1-47471-307-0 01 1 0603-0810
105 COVER; MODULATOR
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> (B) 		8-98061-814-0 01 1 0811-
107 MODULATOR; RR 1-48240-115-0 02 1 0509-
109 MODULATOR; FRT 1-48240-115-0 02 1 0509-0602
109 MODULATOR; FRT
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> 		1-48240-115-0 02 1 0603-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0509-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0509-
176 ADAPTER
PT3/8 		1-09664-210-0 02 1 0509-
317 CONNECTOR; MODULATOR
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0509-0602
317 CONNECTOR; MODULATOR
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0603-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0509-
366 CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0509-0602
366 CONNECTOR; NYLON TUBE
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0603-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0509-0602
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0509-0602
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0603-
405 GASKET
POWER CHMBR BRK FRT WEDGE MAXI,RR WEDGE MAXI<BHE> ID=22.5 		9-09571-422-0 04 1 0603-

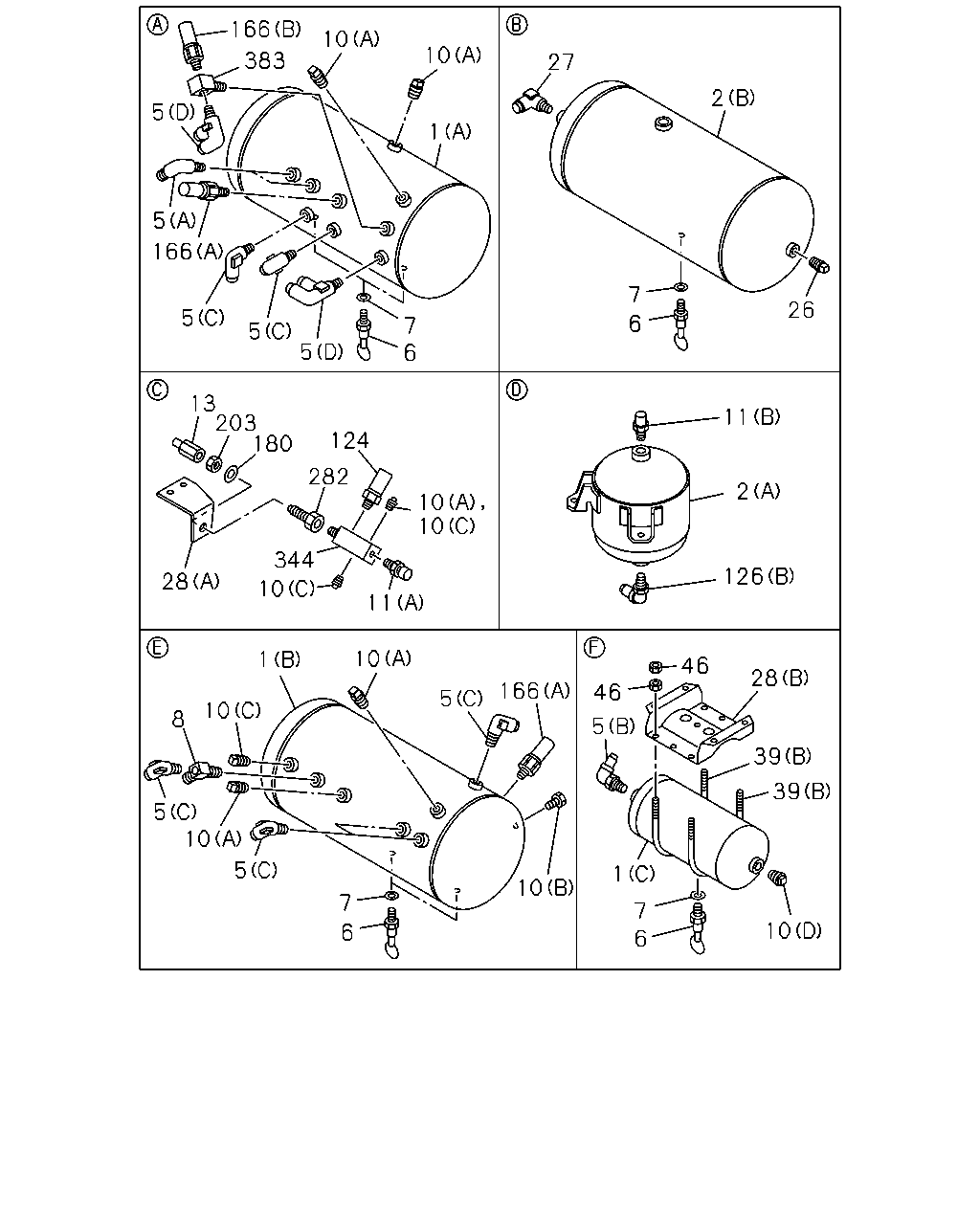

çizim 103629
166 10 10 383 27 2 5 1 5 166 7 26 5 6 7 6 5 5 13 203 180 11 124 282 2 10 10 344 126 28 10 11 10 1 46 28 166 46 5 10 8 5 39 39 5 10 5 1 10 7 7 6 10 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 0509-
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 0509-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 0509-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 0509-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 0509-
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 0509-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0509-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0509-
5 UNION; AIR TANK
(A) M22 & M22 ELBOW 		1-09661-550-0 02 1 0509-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 07 1 0509-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 07 1 0509-
8 CONNECTOR; AIR TANK
DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 0509-
10 PLUG; AIR TANK
(B) M22 		1-09661-502-0 01 1 0509-
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 03 1 0509-0608
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 02 1 0609-
10 PLUG; AIR TANK
(D) PT3/4 		9-09204-526-0 01 1 0509-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 04 1 0509-0608
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0609-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0509-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0509-
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0509-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 0509-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0509-
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 0509-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 0509-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0509-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 0509-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 0509-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0509-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 0509-
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0509-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601-
124 SWITCH; AIR PRESSURE 1-48340-065-0 01 1 0509-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0509-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0509-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) 		1-48340-058-2 02 1 0509-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 		1-48340-065-0 01 1 0509-
180 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0509-0603
180 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0604-
203 NUT
M16 		9-99110-516-0 01 1 0509-0512
203 NUT
M16 		0-91110-516-0 01 1 0601-
282 UNION; 2 WAY
M16 & PT1/2 STRAIGHT 		1-09650-222-1 01 1 0509-
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0509-
383 UNION; 3 WAY
PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 0509-

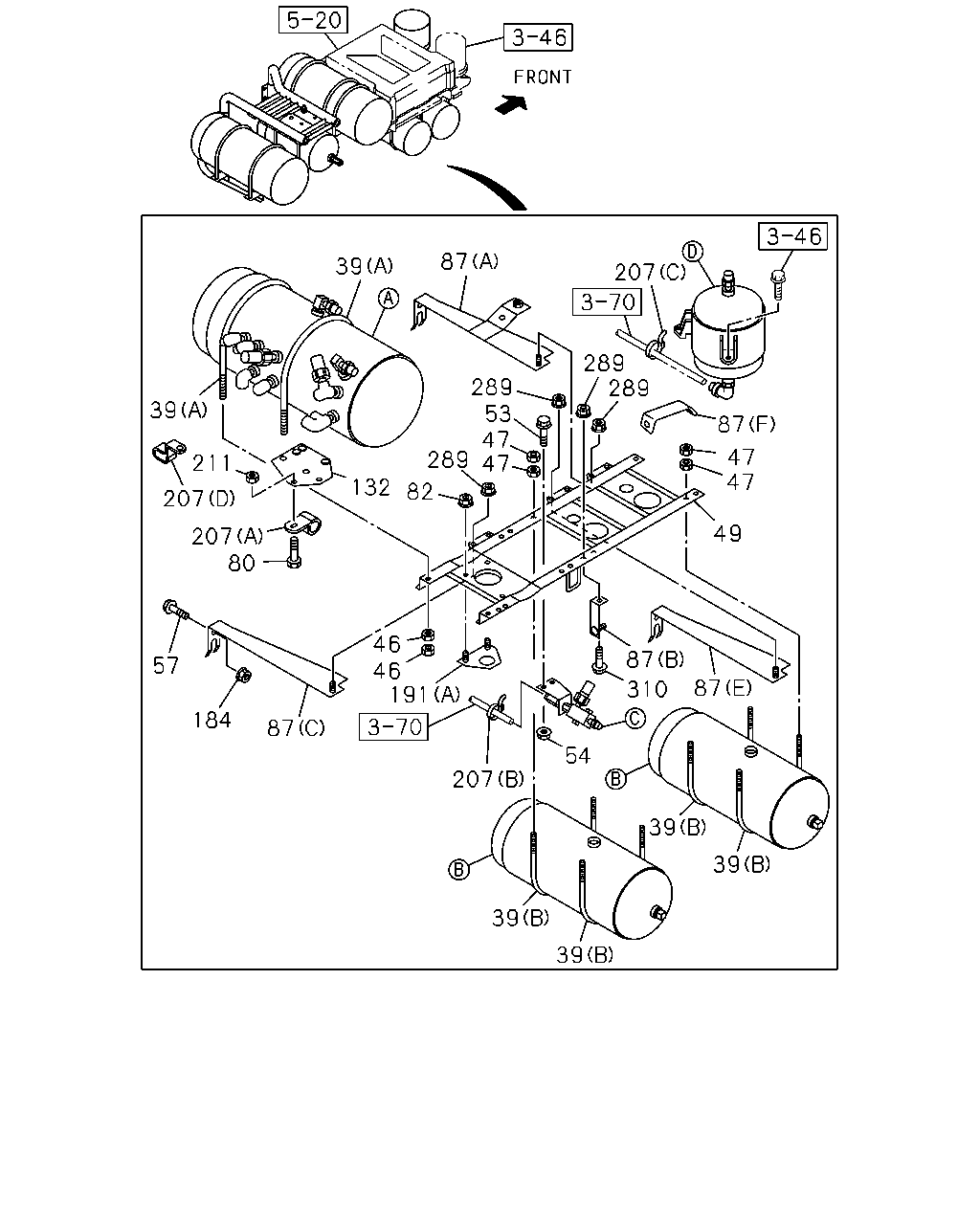

çizim 103631
207 87 39 289 289 289 53 47 47 39 87 211 47 47 289 132 82 207 49 207 80 46 46 191 87 57 87 310 184 87 54 207 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0509-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 0509-
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0509-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601-
47 NUT; LK,U BOLT,AIR TANK
M8 		9-09110-408-0 16 1 0509-0512
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 0601-
49 BRACKET; AIR TANK 1-48316-065-1 01 1 0509-
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
54 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0603-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0509-0512
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
80 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0509-0512
80 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
80 BOLT; BRKT
M12X25 FLANGE 		0-28681-225-0 04 1 0509-0512
80 BOLT; BRKT
M12X25 FLANGE 		0-28651-225-0 04 1 0601-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-537-0 01 1 0509-0809
87 BRACKET; AIR PIPE JOINT
(F) 		8-98060-053-0 01 1 0810-
87 BRACKET; AIR PIPE JOINT
(D) 		1-33659-243-0 01 1 0509-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 0509-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47471-223-0 02 1 0509-0703
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 0509-
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-242-0 01 1 0509-0809
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 0810-
132 BRACKET; STRING GUIDE 1-47471-204-0 01 1 0509-
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0509-0602
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
184 NUT; BRKT
M12 FLANGE 		0-91150-212-0 01 1 0509-0602
184 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0603-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 0509-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 0509-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 0509-
207 CLIP; AIR PIPE
(D) ID=31 H=30 L=35 		1-09700-994-0 01 1 0509-
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 12 1 0509-
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 0509-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0509-0602
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 0603-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 05 1 0509-0602
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 05 1 0603-0809
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 06 1 0810-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 07 1 0509-0512
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 07 1 0601-0809
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 0810-
çizim 103743
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0509-0512
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0601-0602
241 BOLT; SET,CONT VLV
PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
