Isuzu WW
▶
TRUCKS
▶
CVR
▶
10661 - CVR
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20B - MANUAL TRANSMISSION ASM AND CASE
▶

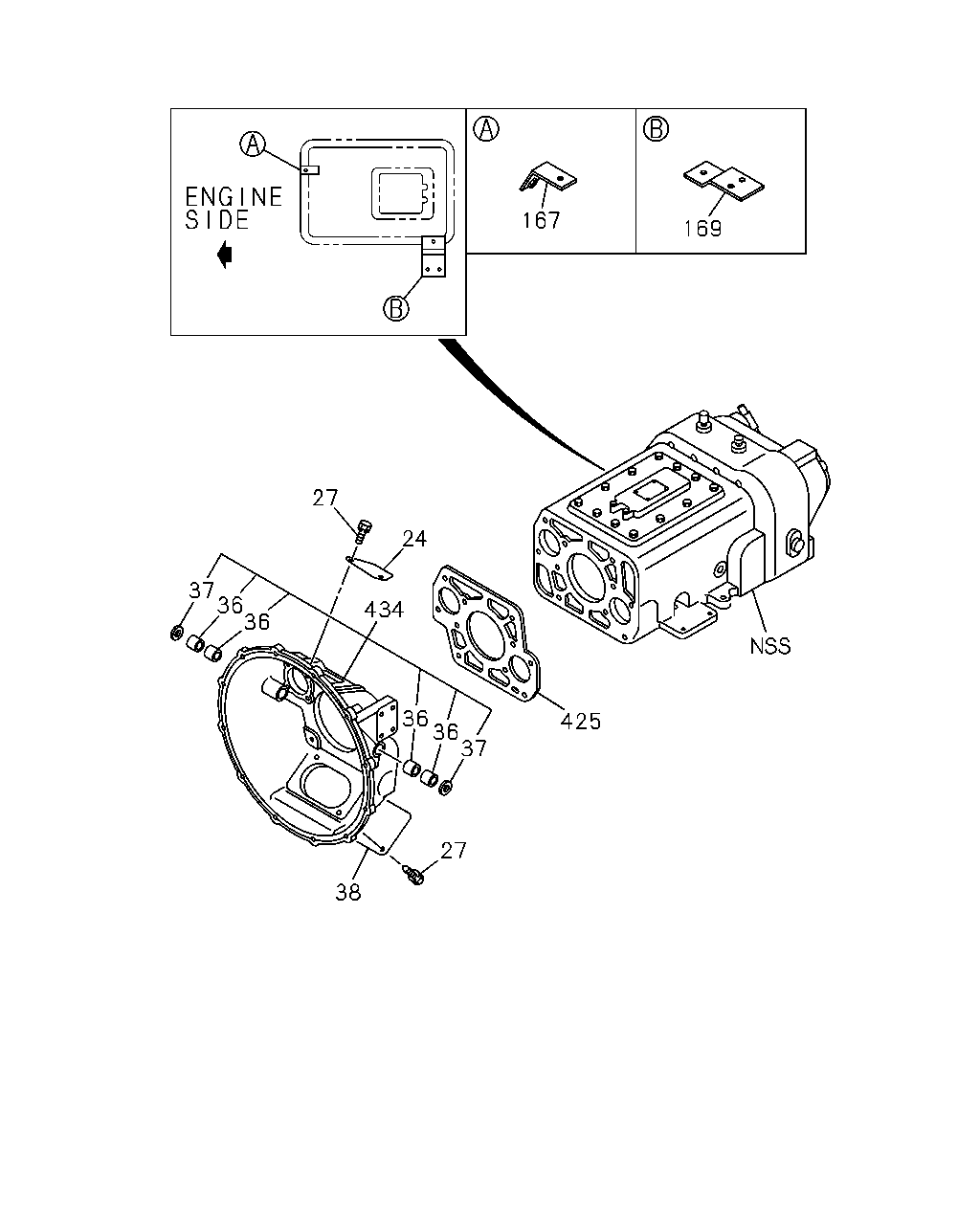

2-20B — MANUAL TRANSMISSION ASM AND CASE
(#2991) — 23 parça
◀
[220B] NO.2 (12 parça)
[220B] NO.1 (11 parça)
▶
188
189
193
192
193
190
164
165
436
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
CONNECTOR; ELBOW
1-33619-290-0
02
1
9002-9306
165
ADAPTER; STRAIGHT
1-33619-291-0
02
1
9002-9306
188
CLIP; PIPE,BRKT
ID=10.5 & 14.5 L=20
1-09701-085-0
01
1
9002-9306
189
BOLT; PIPE CLIP
M8X16 W/LK WASHER
9-01900-816-0
01
1
9002-9204
189
BOLT; PIPE CLIP
M8X16 W/LK WASHER
0-50040-816-0
01
1
9205-9302
189
BOLT; PIPE CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9303-9306
190
CLIP; BAND,CONT TUBE
L=250
5-09707-030-0
01
1
9002-9306
190
CLIP; BAND,CONT TUBE
L=140
5-09707-031-0
01
1
9002-9007
190
CLIP; BAND,CONT TUBE
L=140
5-09707-031-0
02
1
9008-9306
192
HOSE; FLEX,TRANS
L=480
0-07150-480-0
01
1
9002-9306
193
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
9002-9306
436
CONNECTOR; AIR HOSE,SUPPLY
L=35
1-09660-039-0
01
1
9002-9306
425
27
38
37
36
36
434
36
36
37
27
24
167
169
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
COVER; CHECK HOLE,DUST
1-31131-003-0
01
1
9002-9306
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
9-01900-816-0
04
1
9002-9204
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
0-50040-816-0
04
1
9205-9205
27
BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER
0-50040-816-0
04
1
9206-9306
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-181-0
04
1
9002-9306
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-215-0
02
1
9002-9306
38
COVER; CHECK HOLE,LWR
1-31131-014-0
01
1
9002-9306
167
BRACKET; CLIP,AIR TUBE
1-47465-769-0
01
1
9002-9306
169
BRACKET; CLIP,PIPE HOSE
1-47475-633-0
01
1
9002-9306
425
GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-31121-004-0
01
1
9002-9306
434
HOUSING; CLU
STEEL
1-31110-103-0
01
1
9002-9306
