◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#29906) — 407 parça

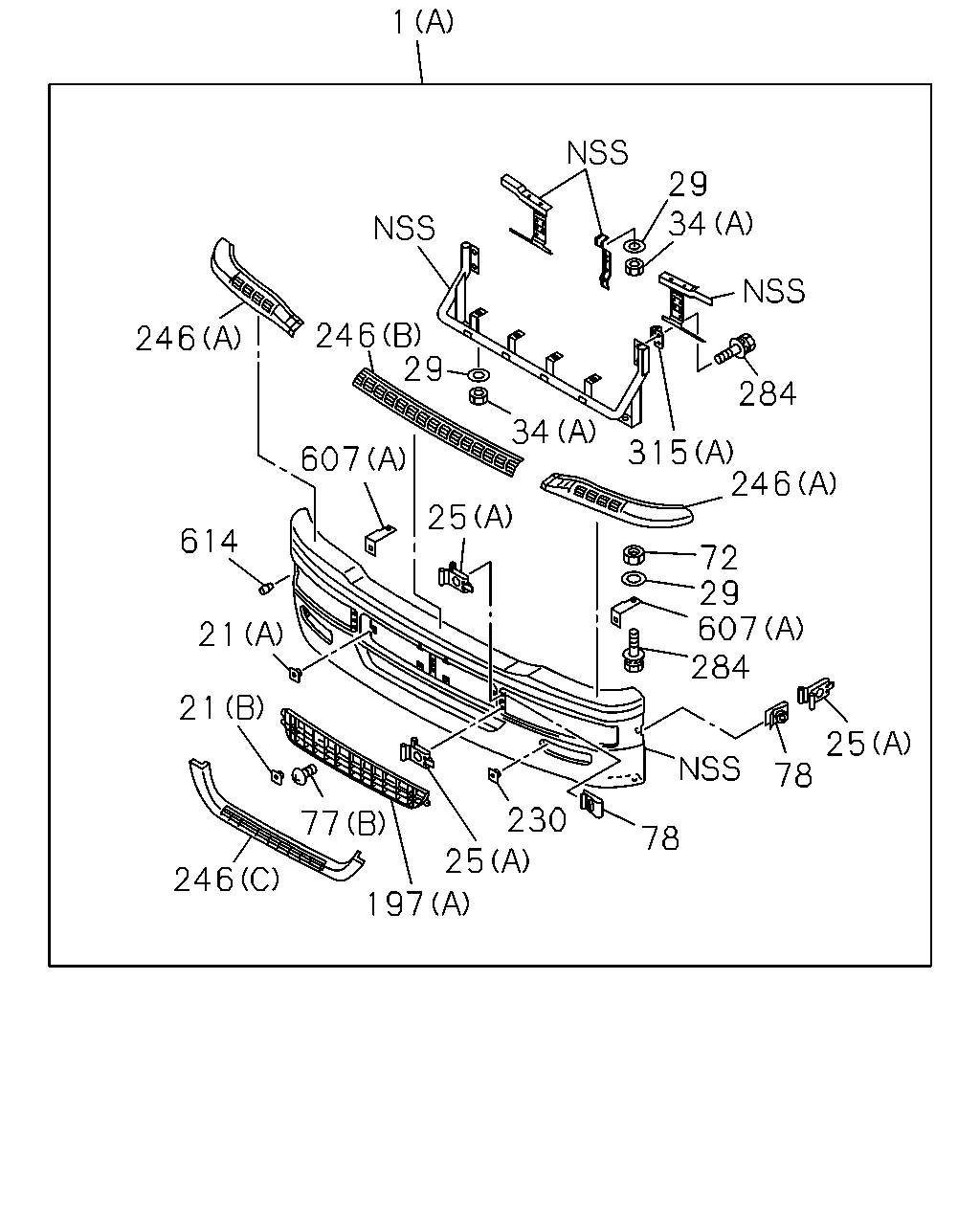

çizim 87060
1 29 34 246 29 34 246 284 315 246 607 25 614 72 29 607 284 21 21 25 78 230 25 77 78 246 197
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-427-2 01 1 0512- ●
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-746-5 01 1 0407-0511 ●
1 BUMPER ASM; FRT
(C) WHITE 		1-71211-419-2 01 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 22 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 14 1 0407-0511 ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 10 1 0407-0511 ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0512- ● ●
25 SPACER; PLATFORM
(A) 		1-71260-162-0 06 1 0407-0511 ●
25 SPACER; PLATFORM
(B) 		1-71230-640-0 01 1 0512- ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0512-0605 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0606- ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 19 1 0407-0511 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 13 1 0512-0605 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0606- ●
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0512- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0603- ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
72 NUT; BRKT
M8 		9-09110-508-0 02 1 0407-0511 ●
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0512- ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 22 1 0512-0603 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 22 1 0604- ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 14 1 0407-0511 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 08 1 0512-0603 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0604- ●
78 NUT; SPIRE 1-71260-174-0 06 1 0407-0511 ●
78 NUT; SPIRE 1-71260-174-0 06 1 0512-0610 ● ●
78 NUT; SPIRE 1-71260-174-0 06 1 0611- ●
197 GRILLE; BUMPER
(D) 		1-71260-210-1 01 1 0512-0610 ●
197 GRILLE; BUMPER
(D) 		8-97617-998-0 01 1 0611- ●
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 0407-0511 ●
197 GRILLE; BUMPER
(C) 		1-71260-115-1 01 1 0512- ● ●
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0407-0511 ●
197 GRILLE; BUMPER
(C) 		1-71260-116-1 01 1 0512- ● ●
230 NUT; BRK,HD LAMP,LWR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0407-0511 ●
246 PROTECTOR; BUMPER
(D) 		1-71260-162-0 06 1 0512- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-094-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(A) 		1-71260-094-2 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-095-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(A) 		1-71260-095-2 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-155-0 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(B) 		1-71260-155-1 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0512- ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0407-0511 ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 0512-0512 ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0601- ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0407-0511 ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0512-0512 ● ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0512- ●
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0512- ●
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 02 1 0407-0511 ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-549-0 02 1 0407-0511 ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0512- ●
607 BRACKET
6WF1 TC-C(1B8) (B) 		8-97609-952-3 01 1 0512- ●
607 BRACKET
6WG1 TC-C(72L) (B) 		8-97610-034-2 01 1 0512- ●
607 BRACKET
6WG1 TC-C(72L) (B) 		8-97610-035-2 01 1 0512- ●
607 BRACKET
(A) 		1-71230-454-0 02 1 0407-0511 ●
607 BRACKET
6WF1 TC-C(1B8) (B) 		8-97608-470-3 01 1 0512- ●
614 STOPPER; LID 1-71260-163-0 12 1 0407-0511 ●
614 STOPPER; LID 1-71260-163-0 12 1 0512- ● ●

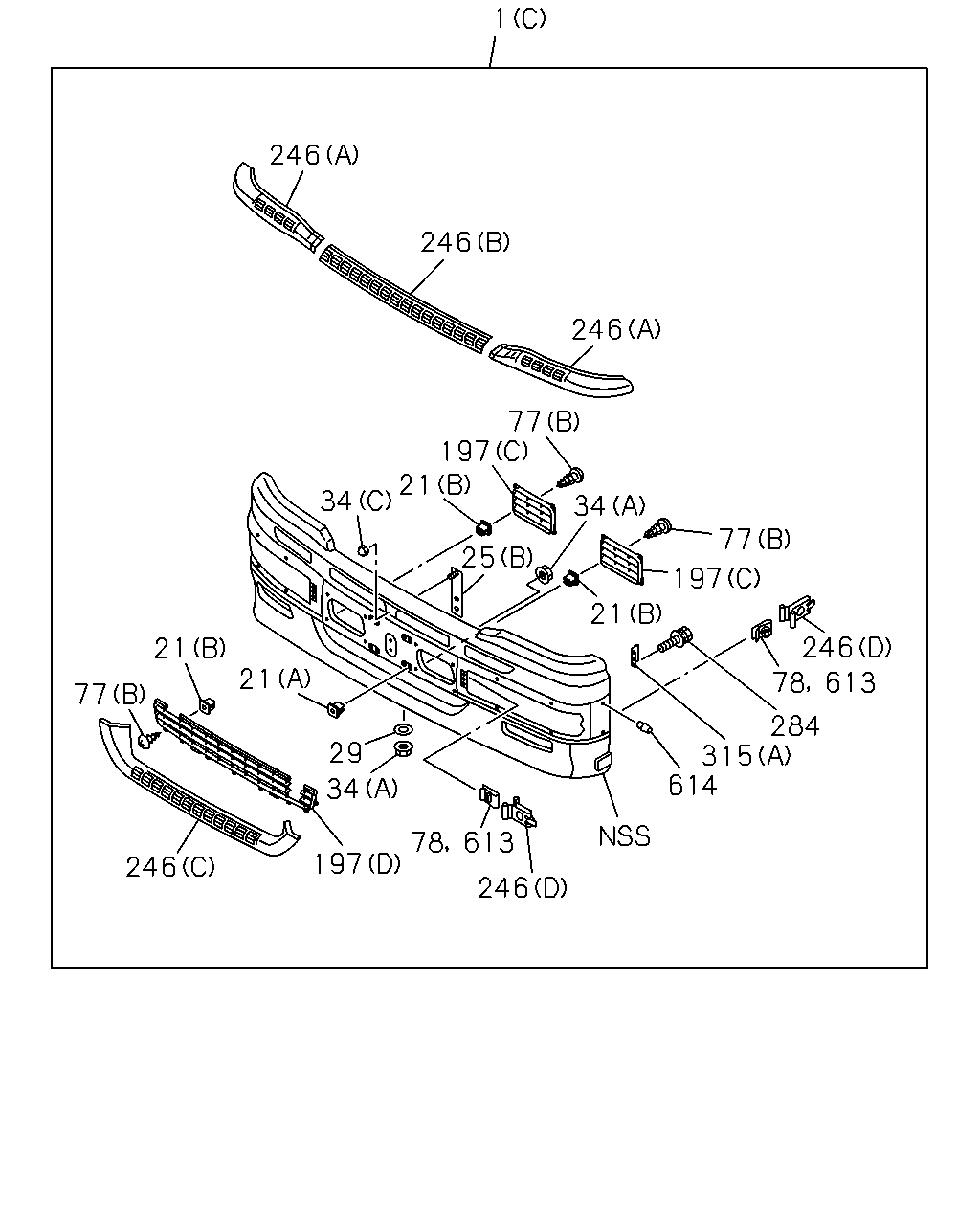

çizim 87230
1 246 246 246 77 197 21 34 34 77 25 197 21 246 21 21 77 284 315 614 29 34 613 78 197 246 246 78 613
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-427-2 01 1 0512- ●
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-746-5 01 1 0407-0511 ●
1 BUMPER ASM; FRT
(C) WHITE 		1-71211-419-2 01 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 22 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 14 1 0407-0511 ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 10 1 0407-0511 ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0512- ● ●
25 SPACER; PLATFORM
(A) 		1-71260-162-0 06 1 0407-0511 ●
25 SPACER; PLATFORM
(B) 		1-71230-640-0 01 1 0512- ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0512-0605 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0606- ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 19 1 0407-0511 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 13 1 0512-0605 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0606- ●
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0512- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0603- ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0512- ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 22 1 0512-0603 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 22 1 0604- ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 14 1 0407-0511 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 08 1 0512-0603 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0604- ●
78 NUT; SPIRE 1-71260-174-0 06 1 0407-0511 ●
78 NUT; SPIRE 1-71260-174-0 06 1 0512-0610 ● ●
78 NUT; SPIRE 1-71260-174-0 06 1 0611- ●
197 GRILLE; BUMPER
(D) 		1-71260-210-1 01 1 0512-0610 ●
197 GRILLE; BUMPER
(D) 		8-97617-998-0 01 1 0611- ●
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 0407-0511 ●
197 GRILLE; BUMPER
(C) 		1-71260-115-1 01 1 0512- ● ●
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0407-0511 ●
197 GRILLE; BUMPER
(C) 		1-71260-116-1 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(D) 		1-71260-162-0 06 1 0512- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-094-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(A) 		1-71260-094-2 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-095-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(A) 		1-71260-095-2 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-155-0 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(B) 		1-71260-155-1 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0512- ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0407-0511 ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 0512-0512 ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0601- ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0407-0511 ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0512-0512 ● ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0512- ●
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0512- ●
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 02 1 0407-0511 ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-549-0 02 1 0407-0511 ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0512- ●
613 CLIP 1-71260-174-0 06 1 0611- ●
614 STOPPER; LID 1-71260-163-0 12 1 0407-0511 ●
614 STOPPER; LID 1-71260-163-0 12 1 0512- ● ●

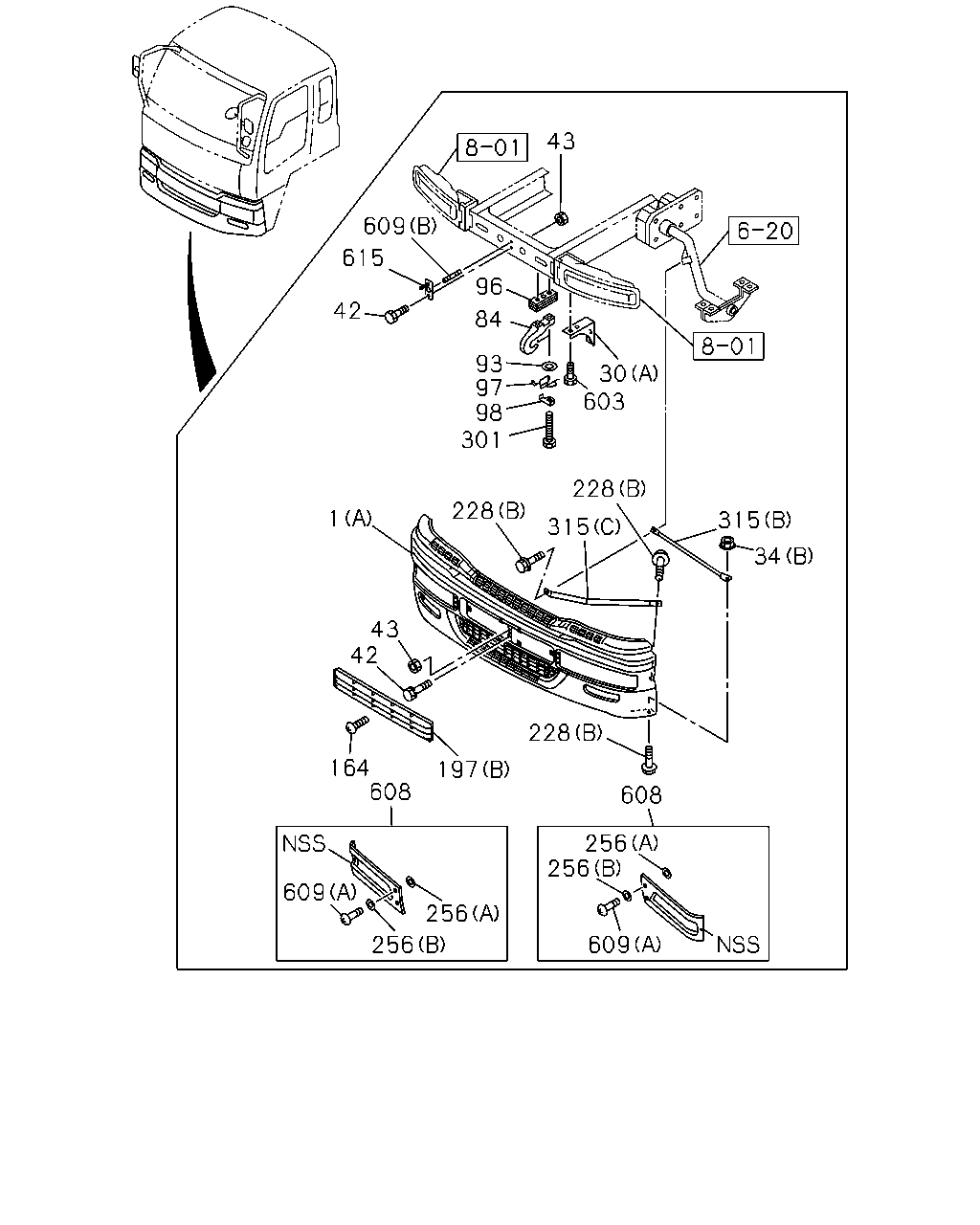

çizim 88542
43 609 615 96 42 84 93 97 98 301 30 603 228 228 1 315 315 34 43 42 228 164 608 197 608 256 256 609 256 256 609
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-427-2 01 1 0512- ●
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-746-5 01 1 0407-0511 ●
1 BUMPER ASM; FRT
(C) WHITE 		1-71211-419-2 01 1 0512- ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-638-0 01 1 0512- ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-639-0 01 1 0512- ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-430-0 01 1 0407-0511 ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-428-0 01 1 0512- ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-431-0 01 1 0407-0511 ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-429-0 01 1 0512- ●
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0512- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0603- ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
42 BOLT; BUMPER
M10X25 FLANGE 		0-28681-025-0 07 1 0407-0511 ●
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0512- ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 01 1 0407-0511 ●
43 NUT; BRKT TO BUMPER
CAB UP +110MM<TGG> M10 FLANGE 		0-91150-210-0 01 1 0407-0511 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 03 1 0512-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0603- ●
84 HOOK 1-57181-027-1 01 1 0407-0511 ●
84 HOOK 1-57181-027-1 01 1 0512- ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0407-0511 ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0512-0603 ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0512- ●
96 PLATE; DIST,HOOK
CAB UP +110MM<TGG> 		1-53497-560-0 01 1 0407-0511 ●
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 0512- ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0407-0511 ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0512- ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0407-0511 ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0512- ● ●
164 SCREW; AIR INT GRILLE
M6X20 		1-71260-141-0 06 1 0407-0511 ●
197 GRILLE; BUMPER
(D) 		1-71260-210-1 01 1 0512-0610 ●
197 GRILLE; BUMPER
(D) 		8-97617-998-0 01 1 0611- ●
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 0407-0511 ●
197 GRILLE; BUMPER
(C) 		1-71260-115-1 01 1 0512- ● ●
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0407-0511 ●
197 GRILLE; BUMPER
(C) 		1-71260-116-1 01 1 0512- ● ●
228 BOLT; BRKT
(A) M16X40 		9-92061-640-0 06 1 0512-0512 ●
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 0601- ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0407-0511 ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0512-0512 ● ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ●
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0407-0511 ●
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0512- ● ●
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0407-0511 ●
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0512- ● ●
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X70 		0-10811-670-0 01 1 0407-0511 ●
301 BOLT; HOOK TO FRAME
M16X90 		0-10811-690-0 01 1 0512-0512 ● ●
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0601- ● ●
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X80 		0-10811-680-0 01 1 0407-0511 ●
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0512- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0512- ●
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0512- ●
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 02 1 0407-0511 ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-549-0 02 1 0407-0511 ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0512- ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ● ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
608 LID; BUMPER 1-71211-284-2 01 1 0512- ●
608 LID; BUMPER 1-71211-285-2 01 1 0512- ●
608 LID; BUMPER 1-71210-752-4 01 1 0407-0511 ●
608 LID; BUMPER 1-71210-752-6 01 1 0512- ●
608 LID; BUMPER 1-71210-753-4 01 1 0407-0511 ●
608 LID; BUMPER 1-71210-753-6 01 1 0512- ●
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0407-0511 ●
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0512- ● ●
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0407-0511 ●
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0512- ● ●
615 BRACKET; BUMPER CENTER
CAB UP +110MM<TGG> 		1-71230-407-0 01 1 0407-0511 ●

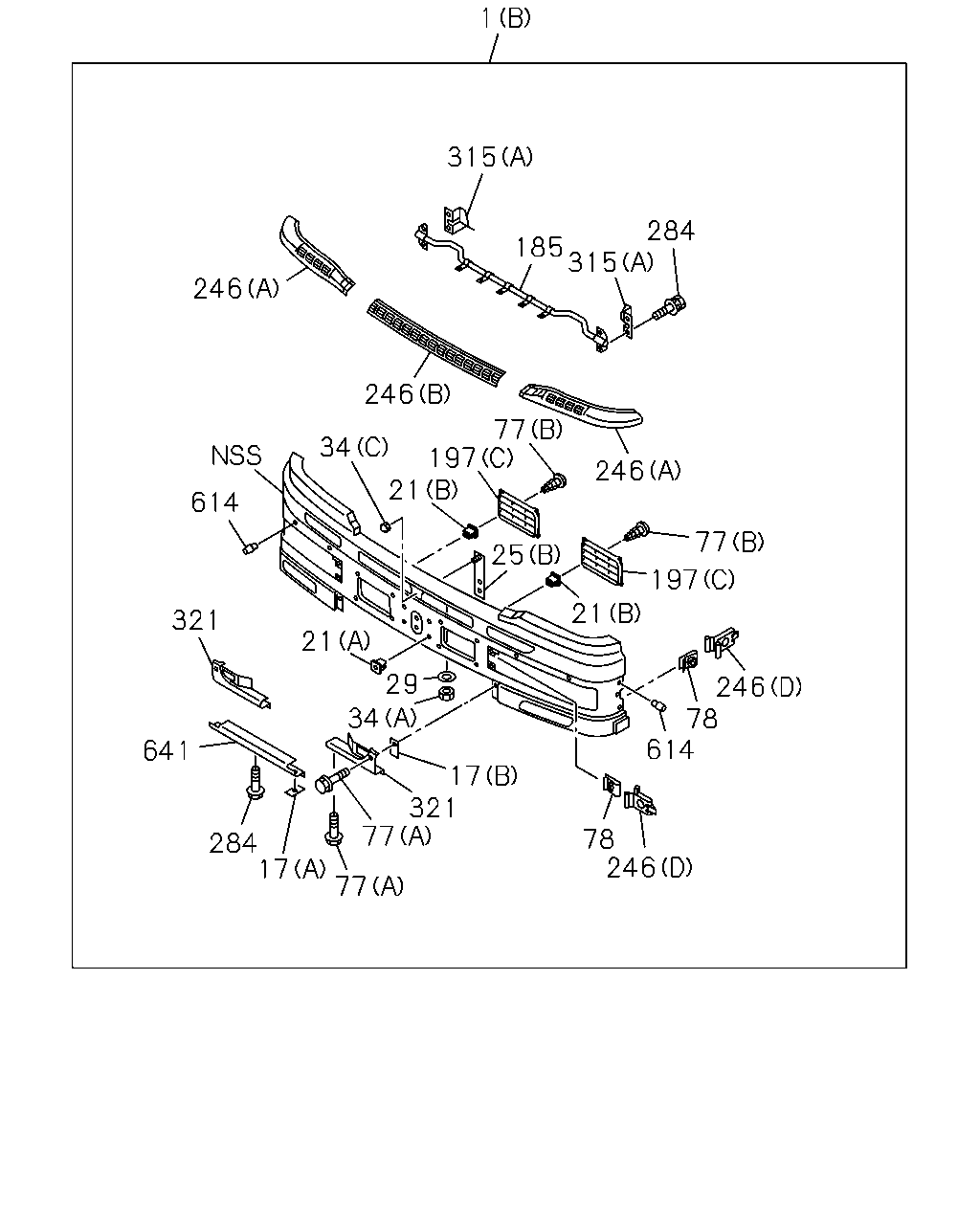

çizim 89071
1 315 284 185 315 246 246 77 197 21 34 246 614 77 25 197 21 321 21 29 246 78 614 34 641 17 321 77 78 246 284 17 77
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-427-2 01 1 0512- ●
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-746-5 01 1 0407-0511 ●
1 BUMPER ASM; FRT
(C) WHITE 		1-71211-419-2 01 1 0512- ●
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 0512- ●
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 22 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 14 1 0407-0511 ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0512- ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 10 1 0407-0511 ●
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0512- ● ●
25 SPACER; PLATFORM
(A) 		1-71260-162-0 06 1 0407-0511 ●
25 SPACER; PLATFORM
(B) 		1-71230-640-0 01 1 0512- ● ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0512-0605 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0606- ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 19 1 0407-0511 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 13 1 0512-0605 ●
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0606- ●
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0512- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0603- ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0512- ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 22 1 0512-0603 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 22 1 0604- ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 14 1 0407-0511 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 08 1 0512-0603 ●
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0604- ●
78 NUT; SPIRE 1-71260-174-0 06 1 0407-0511 ●
78 NUT; SPIRE 1-71260-174-0 06 1 0512-0610 ● ●
78 NUT; SPIRE 1-71260-174-0 06 1 0611- ●
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 0512- ●
197 GRILLE; BUMPER
(D) 		1-71260-210-1 01 1 0512-0610 ●
197 GRILLE; BUMPER
(D) 		8-97617-998-0 01 1 0611- ●
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 0407-0511 ●
197 GRILLE; BUMPER
(C) 		1-71260-115-1 01 1 0512- ● ●
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0407-0511 ●
197 GRILLE; BUMPER
(C) 		1-71260-116-1 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(D) 		1-71260-162-0 06 1 0512- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-094-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(A) 		1-71260-094-2 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(A) 		1-71260-095-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(A) 		1-71260-095-2 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(B) 		1-71260-155-0 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(B) 		1-71260-155-1 01 1 0512- ● ●
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0407-0511 ●
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0512- ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0407-0511 ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 0512-0512 ●
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0601- ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0407-0511 ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0512-0512 ● ●
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0512- ●
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0512- ●
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 02 1 0407-0511 ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-549-0 02 1 0407-0511 ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0512- ●
321 COVER; BUMPER FRT SIDE 1-71260-263-1 01 1 0512- ●
321 COVER; BUMPER FRT SIDE 1-71260-264-1 01 1 0512- ●
614 STOPPER; LID 1-71260-163-0 12 1 0407-0511 ●
614 STOPPER; LID 1-71260-163-0 12 1 0512- ● ●
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 0512- ●

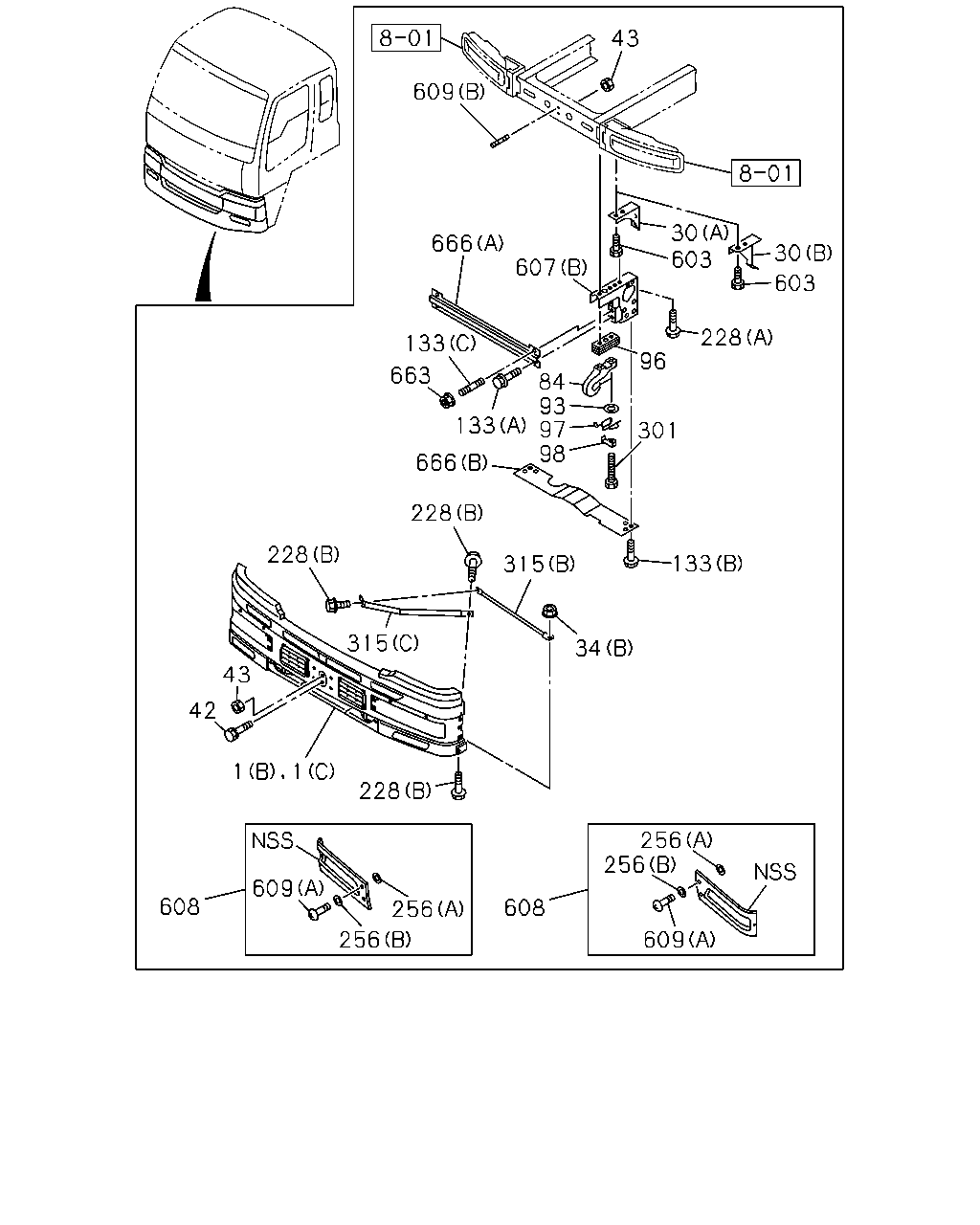

çizim 104576
43 609 30 603 666 30 607 603 228 133 96 84 93 97 98 663 133 301 666 228 228 133 315 315 34 43 42 1 1 228 256 256 609 608 608 256 256 609
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-427-2 01 1 0512- ●
1 BUMPER ASM; FRT
(A) WHITE 		1-71210-746-5 01 1 0407-0511 ●
1 BUMPER ASM; FRT
(C) WHITE 		1-71211-419-2 01 1 0512- ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-638-0 01 1 0512- ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-639-0 01 1 0512- ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-430-0 01 1 0407-0511 ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-428-0 01 1 0512- ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-431-0 01 1 0407-0511 ●
30 BRACKET; FRT BUMPER
(A) 		1-71230-429-0 01 1 0512- ●
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0512- ● ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0603- ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 17 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0512-0602 ●
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603- ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
42 BOLT; BUMPER
M10X25 FLANGE 		0-28681-025-0 07 1 0407-0511 ●
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0512- ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 01 1 0407-0511 ●
43 NUT; BRKT TO BUMPER
CAB UP +110MM<TGG> M10 FLANGE 		0-91150-210-0 01 1 0407-0511 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 03 1 0512-0602 ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0603- ●
84 HOOK 1-57181-027-1 01 1 0407-0511 ●
84 HOOK 1-57181-027-1 01 1 0512- ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0407-0511 ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0512-0603 ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0512- ●
96 PLATE; DIST,HOOK
CAB UP +110MM<TGG> 		1-53497-560-0 01 1 0407-0511 ●
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 0512- ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0407-0511 ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0512- ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0407-0511 ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0512- ● ●
133 BOLT; PROTECTOR FIX
6WF1 TC-C(1B8) (C) M12X40 L=56 		1-09300-123-0 02 1 0710-0808 ●
133 BOLT; PROTECTOR FIX
6WG1 TC-C(72L) (C) 		8-97617-397-0 02 1 0710-0808 ●
133 BOLT; PROTECTOR FIX
6WF1 TC-C(1B8) (A) M12X40 FLANGE 		0-28681-240-0 04 1 0512-0512 ●
133 BOLT; PROTECTOR FIX
6WF1 TC-C(1B8) (A) M12X40 FLANGE 		0-28651-240-0 04 1 0601-0709 ●
133 BOLT; PROTECTOR FIX
6WF1 TC-C(1B8) (A) M12X40 FLANGE 		0-28651-240-0 02 1 0710-0808 ●
133 BOLT; PROTECTOR FIX
6WF1 TC-C(1B8) (A) M12X40 FLANGE 		0-28651-240-0 04 1 0809- ●
133 BOLT; PROTECTOR FIX
6WG1 TC-C(72L) (A) M12X60 FLANGE 		0-28081-260-0 04 1 0512-0512 ●
133 BOLT; PROTECTOR FIX
6WG1 TC-C(72L) (A) M12X60 FLANGE 		0-28051-260-0 04 1 0601-0709 ●
133 BOLT; PROTECTOR FIX
6WG1 TC-C(72L) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0710-0808 ●
133 BOLT; PROTECTOR FIX
6WG1 TC-C(72L) (A) M12X60 FLANGE 		0-28051-260-0 04 1 0809- ●
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28691-225-0 06 1 0512-0512 ●
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 0601-1207 ●
133 BOLT; PROTECTOR FIX
(B) M12X30 FLANGE 		0-28661-230-0 06 1 1208- ●
228 BOLT; BRKT
(A) M16X40 		9-92061-640-0 06 1 0512-0512 ●
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 0601- ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0407-0511 ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0512-0512 ● ●
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ●
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0407-0511 ●
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0512- ● ●
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0407-0511 ●
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0512- ● ●
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X70 		0-10811-670-0 01 1 0407-0511 ●
301 BOLT; HOOK TO FRAME
M16X90 		0-10811-690-0 01 1 0512-0512 ● ●
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0601- ● ●
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X80 		0-10811-680-0 01 1 0407-0511 ●
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0512- ● ●
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0512- ●
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0512- ●
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 02 1 0407-0511 ●
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0512- ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0407-0511 ●
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0512- ●
315 STAY; BUMPER
(C) 		1-71230-549-0 02 1 0407-0511 ●
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0512- ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ● ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
607 BRACKET
6WF1 TC-C(1B8) (B) 		8-97609-952-3 01 1 0512- ●
607 BRACKET
6WG1 TC-C(72L) (B) 		8-97610-034-2 01 1 0512- ●
607 BRACKET
6WG1 TC-C(72L) (B) 		8-97610-035-2 01 1 0512- ●
607 BRACKET
(A) 		1-71230-454-0 02 1 0407-0511 ●
607 BRACKET
6WF1 TC-C(1B8) (B) 		8-97608-470-3 01 1 0512- ●
608 LID; BUMPER 1-71211-284-2 01 1 0512- ●
608 LID; BUMPER 1-71211-285-2 01 1 0512- ●
608 LID; BUMPER 1-71210-752-4 01 1 0407-0511 ●
608 LID; BUMPER 1-71210-752-6 01 1 0512- ●
608 LID; BUMPER 1-71210-753-4 01 1 0407-0511 ●
608 LID; BUMPER 1-71210-753-6 01 1 0512- ●
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0407-0511 ●
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0512- ● ●
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0407-0511 ●
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0512- ● ●
663 NUT
M12 FLANGE 		0-91180-212-0 02 1 0710-0808 ●
666 PROTECTOR; UNDER
6WF1 TC-C(1B8) (A) 		8-97608-471-0 01 1 0512- ●
666 PROTECTOR; UNDER
6WG1 TC-C(72L) (A) 		8-97610-033-0 01 1 0512- ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
