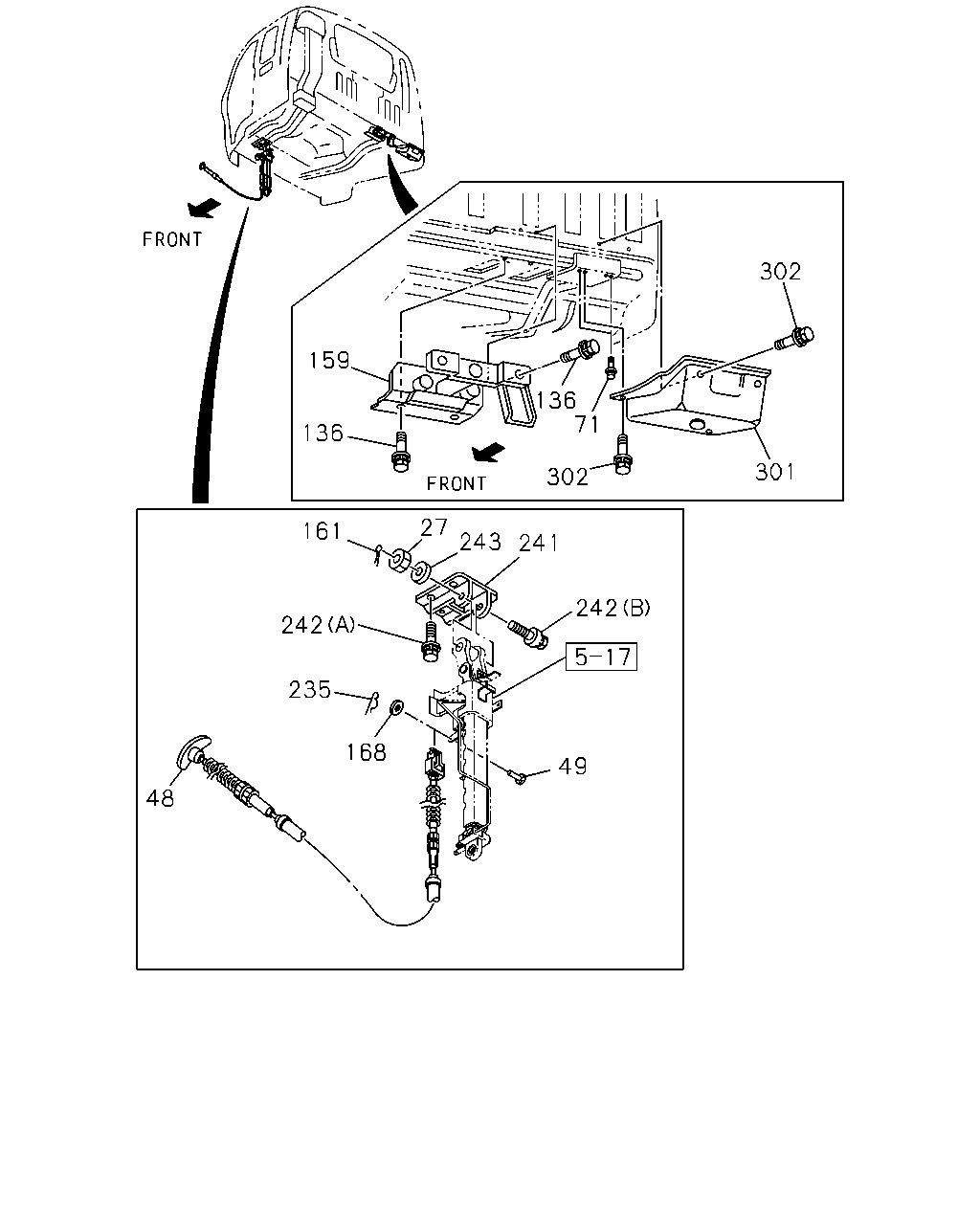

5-15 — CAB MOUNTING; CAB SIDE (#29902) — 136 parça

302 159 136 71 136 301 302 27 161 243 241 242 242 235 168 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	NUT; OIL CYL M14	9-99116-414-0	01	1	0407-0511	●
27	NUT; OIL CYL M14	9-99116-414-0	01	1	0512-0604		●	●
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	0605-		●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0407-0511	●
48	CABLE ASM; CONT 6WF1 TC-C(1B8) L=2457	1-62500-730-0	01	1	0512-		●
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	0407-0511	●
49	PIN; JAW FIX 6WF1 TC-C(1B8) OD=6 L=17	9-08223-617-0	01	1	0512-0606		●
49	PIN; JAW FIX 6WF1 TC-C(1B8) OD=6 L=17	0-82253-617-0	01	1	0607-		●
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0407-0511	●
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0512-		●	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0407-0511	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0512-		●	●
159	PIN	1-79717-627-1	01	1	0407-0511	●
159	PIN	1-79717-627-1	01	1	0512-		●	●
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	0407-0511	●
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	0512-0606		●	●
161	PIN; SPLIT OD=2.8 L=25	0-81123-025-0	01	1	0607-		●	●
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	0407-0511	●
168	WASHER; PL 6WF1 TC-C(1B8) ID=6.4	9-09160-506-0	01	1	0512-		●
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	0407-0511	●
235	PIN; SNAP 6WF1 TC-C(1B8) L=21.2	8-94157-840-0	01	1	0512-		●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-1	01	1	0407-0511	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-1	01	1	0512-		●	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30 W/SP WASHER	1-09980-546-0	05	1	0407-0511	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30 W/SP WASHER	1-09980-546-0	05	1	0512-		●	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0407-0511	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0512-		●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	0407-0511	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	0512-0603		●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-514-0	01	1	0604-0805		●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-814-0	01	1	0806-		●	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0407-0511	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0512-		●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	0407-0511	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	0512-		●	●

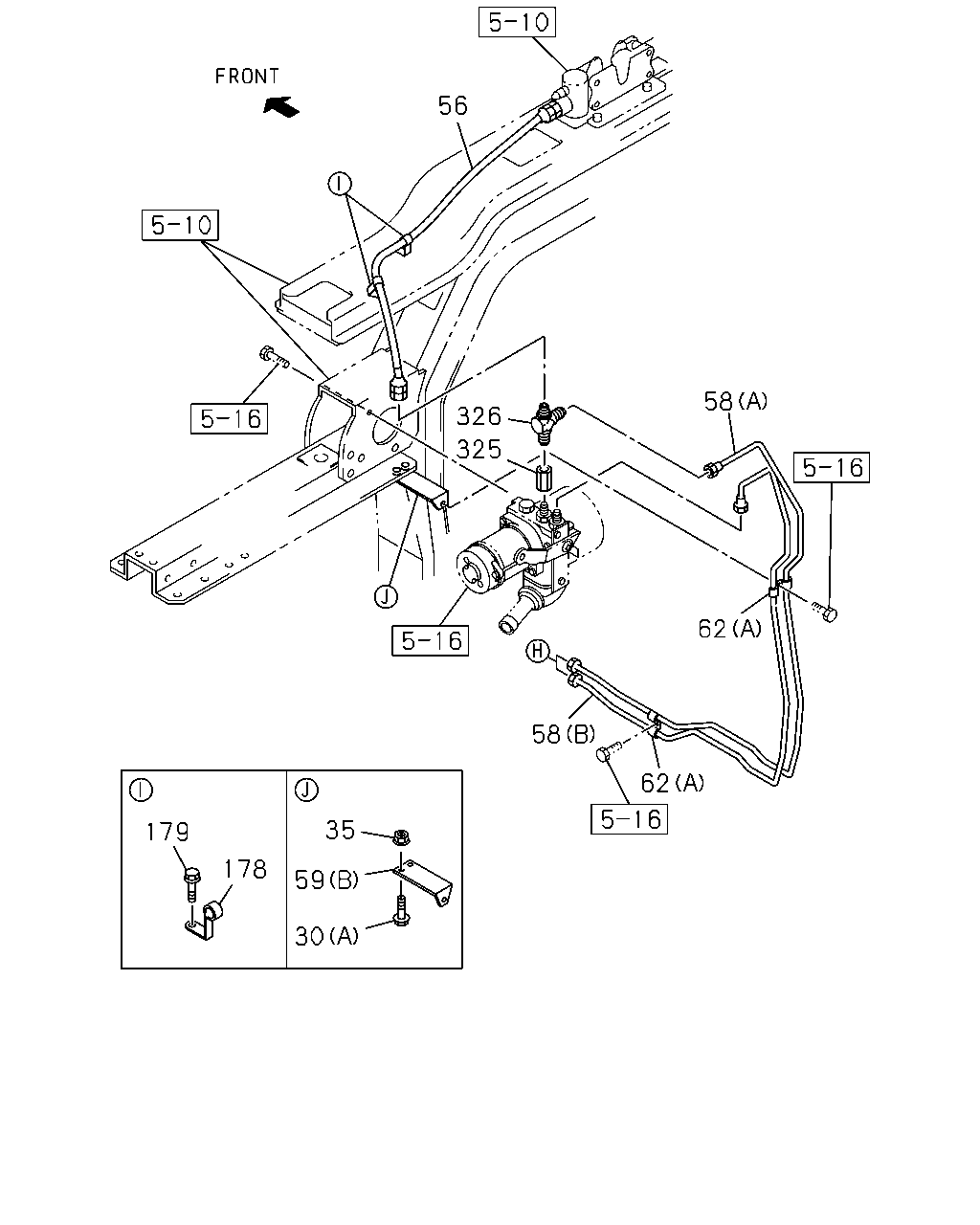

56 58 326 325 62 58 62 35 179 178 59 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=750	1-09365-058-0	01	1	0407-0511	●
56	HOSE; FLEX,OIL PIPE L=750	1-09365-058-0	01	1	0512-		●	●
58	PIPE; OIL,POWER UNIT (A) L=1007 SERVICED BY L=1100	1-47428-731-0	01	1	0407-0511	●
58	PIPE; OIL,POWER UNIT (A) L=1007 SERVICED BY L=1100	1-47428-731-0	01	1	0512-		●	●
58	PIPE; OIL,POWER UNIT (B) L=1067 SERVICED BY L=1100	1-47428-731-0	01	1	0407-0511	●
58	PIPE; OIL,POWER UNIT (B) L=1067 SERVICED BY L=1100	1-47428-731-0	01	1	0512-		●	●
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0407-0511	●
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0512-		●	●
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	0407-0511	●
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	0512-		●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0407-0511	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0512-		●	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0407-0511	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0512-		●	●
62	CLIP; OIL PIPE (C) L=140	5-09707-031-1	02	1	0407-0511	●
62	CLIP; OIL PIPE (C) L=140	5-09707-031-1	02	1	0512-		●	●
62	CLIP; OIL PIPE (D) ID=9X2 L=16	9-09534-825-0	01	1	0407-0511	●
62	CLIP; OIL PIPE (D) ID=9X2 L=16	9-09534-825-0	01	1	0512-0606		●	●
62	CLIP; OIL PIPE (D) ID=9X2 L=16	0-95324-825-0	01	1	0607-		●	●
178	CLIP; FLEX HOSE ID=8 H=20 L=20	1-09700-604-0	02	1	0407-0511	●
178	CLIP; FLEX HOSE ID=8 H=20 L=20	1-09700-604-0	02	1	0512-		●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0407-0511	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0512-		●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0407-0511	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0512-		●	●

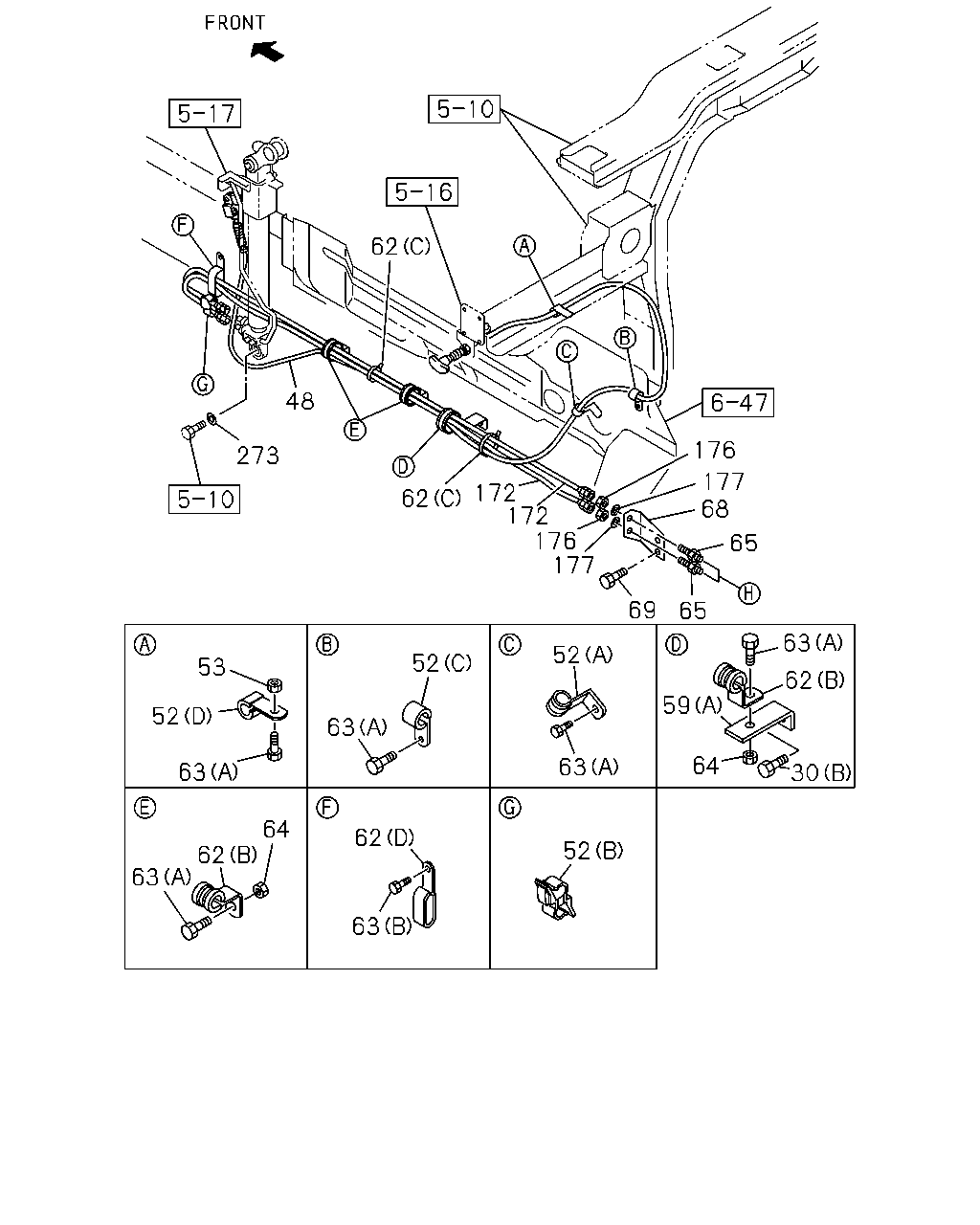

62 48 176 273 177 68 172 172 176 177 62 65 69 65 63 52 52 53 62 59 52 63 64 63 63 30 64 62 62 52 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●	●
30	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0407-0511	●
48	CABLE ASM; CONT 6WF1 TC-C(1B8) L=2457	1-62500-730-0	01	1	0512-		●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0407-0511	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0512-		●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0407-0511	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0512-		●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	0407-0511	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (C) ID=7 L=20	9-09524-635-0	01	1	0512-0606		●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (C) ID=7 L=20	0-95234-635-0	01	1	0607-		●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	0407-0511	●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (D) ID=7 L=50	9-09524-685-0	01	1	0512-0606		●
52	CLIP; CONT CABLE 6WF1 TC-C(1B8) (D) ID=7 L=50	0-95234-685-0	01	1	0607-		●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
53	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
53	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0603-		●
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0407-0511	●
59	BRACKET; CLIP (A) L=115 B=25	1-47476-758-0	01	1	0512-		●	●
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	0407-0511	●
59	BRACKET; CLIP (B)	1-47477-317-0	01	1	0512-		●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0407-0511	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0512-		●	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0407-0511	●
62	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	03	1	0512-		●	●
62	CLIP; OIL PIPE (C) L=140	5-09707-031-1	02	1	0407-0511	●
62	CLIP; OIL PIPE (C) L=140	5-09707-031-1	02	1	0512-		●	●
62	CLIP; OIL PIPE (D) ID=9X2 L=16	9-09534-825-0	01	1	0407-0511	●
62	CLIP; OIL PIPE (D) ID=9X2 L=16	9-09534-825-0	01	1	0512-0606		●	●
62	CLIP; OIL PIPE (D) ID=9X2 L=16	0-95324-825-0	01	1	0607-		●	●
63	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
63	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●	●
63	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●	●
63	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0407-0511	●
63	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0407-0511	●
63	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512		●	●
63	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512		●
63	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-		●	●
63	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	0407-0511	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	0512-0607		●	●
65	UNION; OIL PIPE M12 L=66.5	0-92113-306-0	02	1	0608-		●	●
68	BRACKET; UNION	1-47479-724-0	01	1	0407-0511	●
68	BRACKET; UNION	1-47479-724-0	01	1	0512-		●	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●	●
69	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-		●	●
172	HOSE; FLEX,OIL TILT L=1570	1-09365-304-0	02	1	0407-0511	●
172	HOSE; FLEX,OIL TILT L=1570	1-09365-304-0	02	1	0512-		●	●
176	NUT; UNION M12	9-09840-280-0	02	1	0407-0511	●
176	NUT; UNION M12	9-09840-280-0	02	1	0512-		●	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0407-0511	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0512-0603		●	●
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0604-		●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0407-0511	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0512-0605		●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●	●
