5-10 — CAB MOUNTING; FRAME SIDE (#29901) — 702 parça
çizim 87074
202 294 202 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C
173 MEMBER; CAB MTG RR
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53450-674-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION-FULL FLOATING(SMK) 		8-98166-346-0 01 1 1004- ●
173 MEMBER; CAB MTG RR
CAB UP +110MM<TGG> 		1-53450-670-1 01 1 0407-0511 ●
173 MEMBER; CAB MTG RR
FULL FLOATING CAB(W16) 		1-53450-670-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR 1-53450-670-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR
FULL FLOATING CAB(W16) 		8-98166-139-0 01 1 1004- ●
173 MEMBER; CAB MTG RR 8-98166-139-0 01 1 1004- ●
174 OUTRIGGER
6WG1 TC-C(72L) 		1-53456-418-3 01 1 0512- ● ●
174 OUTRIGGER 1-53456-277-3 01 1 0407-0511 ●
174 OUTRIGGER
6WF1 TC-C(1B8) 		1-53456-277-3 01 1 0512-1003 ●
174 OUTRIGGER
6WF1 TC-C(1B8) 		8-98158-645-0 01 1 1004- ●
174 OUTRIGGER 1-53456-278-3 01 1 0407-0511 ●
174 OUTRIGGER 1-53456-278-3 01 1 0512-1003 ● ●
174 OUTRIGGER 8-98158-646-0 01 1 1004- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-0 02 1 0407-0511 ●
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 0512- ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0407-0511 ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0512-1007 ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0407-0511 ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0512- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0407-0511 ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0512- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0407-0511 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0512- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0407-0511 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0512- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0407-0511 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0512- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0407-0511 ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0512- ● ●
294 MEMBER; FLOATING
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53454-950-3 01 1 0512- ●
294 MEMBER; FLOATING 1-53454-949-1 01 1 0407-0511 ●
294 MEMBER; FLOATING
FULL FLOATING CAB(W16) 		1-53454-949-2 01 1 0512- ●
294 MEMBER; FLOATING 1-53454-949-2 01 1 0512- ●

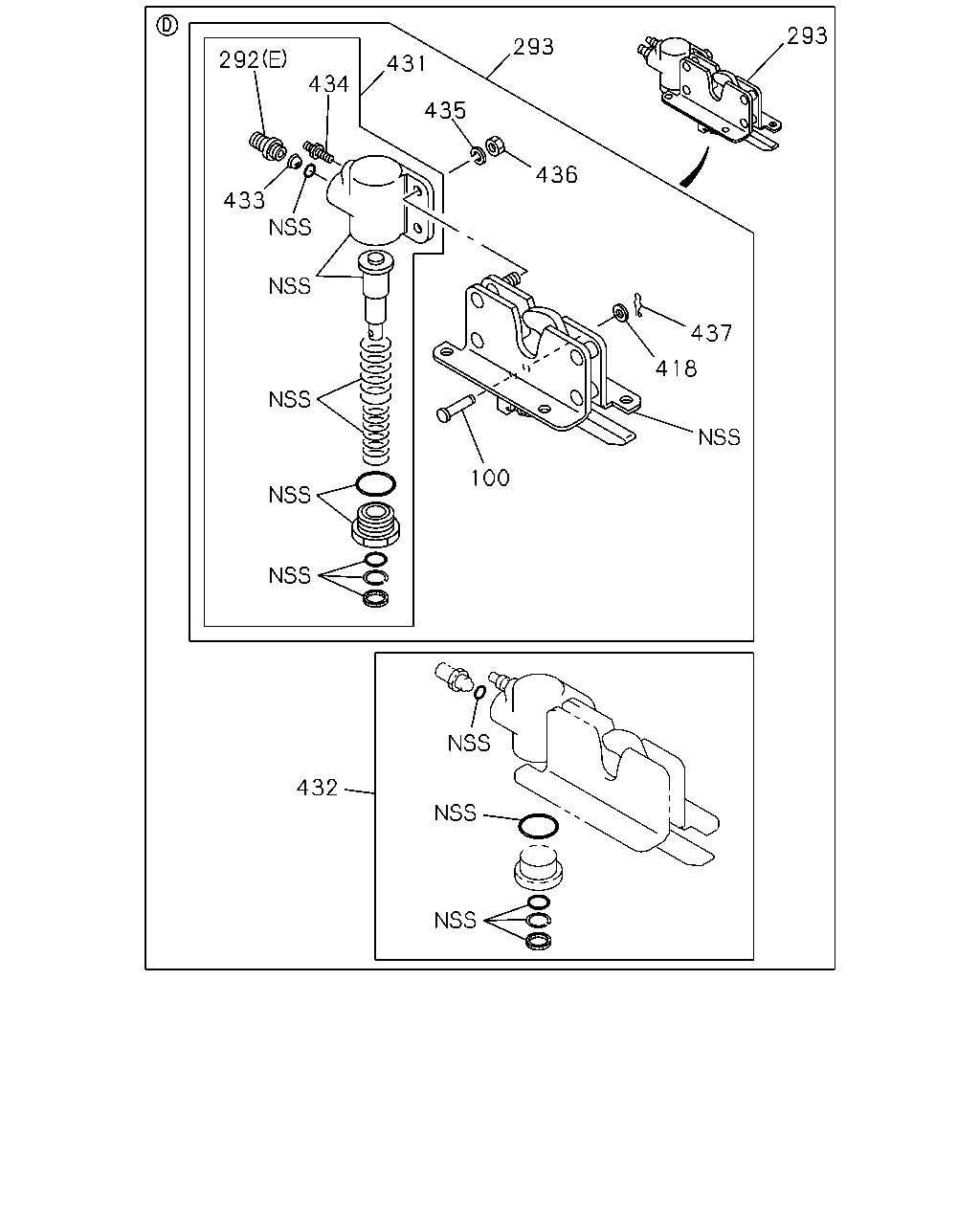

çizim 87075
293 293 292 431 434 435 436 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date A B C
100 PIN; JOINT 1-53458-831-0 01 1 0407-0511 ●
100 PIN; JOINT 1-53458-831-0 01 1 0512- ● ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (D) 		1-09661-577-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0512- ● ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (F) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0407-0511 ●
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0512- ● ●
418 WASHER; PL,PIN 1-53458-059-0 01 1 0407-0511 ●
418 WASHER; PL,PIN 1-53458-059-0 01 1 0512- ● ●
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0407-0511 ●
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0512- ● ●
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0407-0511 ●
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0512- ● ●
433 FILTER; AIR CYL 1-53458-048-0 01 1 0407-0511 ●
433 FILTER; AIR CYL 1-53458-048-0 01 1 0512- ● ●
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0407-0511 ●
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0512- ● ●
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0407-0511 ●
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0512- ● ●
436 NUT; AIR CYL 1-53458-528-0 02 1 0407-0511 ●
436 NUT; AIR CYL 1-53458-528-0 02 1 0512- ● ●
437 PIN; SNAP 1-53458-526-0 01 1 0407-0511 ●
437 PIN; SNAP 1-53458-526-0 01 1 0512- ● ●

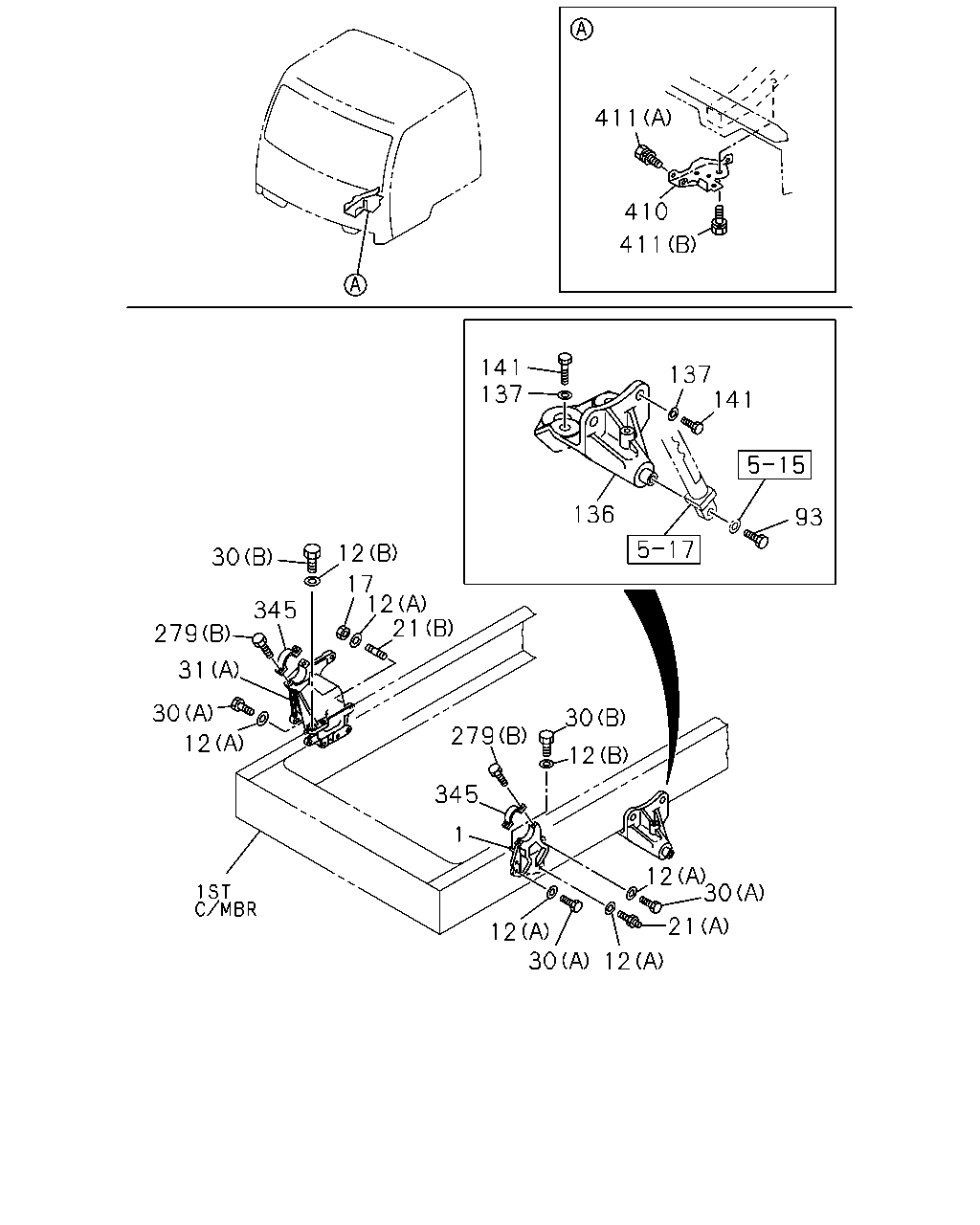

çizim 87359
411 410 411 141 137 137 141 136 93 12 30 17 12 21 345 279 31 30 30 279 12 12 345 1 12 30 21 12 30 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
CAB UP +110MM<TGG> 		1-53453-312-0 01 1 0407-0511 ●
1 BRACKET; CAB MTG 1-53453-312-0 01 1 0512-0802 ● ●
1 BRACKET; CAB MTG 8-98094-536-0 01 1 0803- ● ●
12 WASHER; LK,BRKT
CAB UP +110MM<TGG> (A) ID=16.2 		1-09503-223-0 11 1 0407-0511 ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-223-0 11 1 0512- ● ●
12 WASHER; LK,BRKT
CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 04 1 0407-0511 ●
12 WASHER; LK,BRKT
(B) ID=15 		9-09651-069-0 04 1 0512-1201 ● ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1202- ● ●
17 NUT; BRKT,CAB TILT
CAB UP +110MM<TGG> M16 		9-99110-516-0 01 1 0407-0511 ●
17 NUT; BRKT,CAB TILT
M16 		9-99110-516-0 01 1 0512-0512 ● ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 0601- ● ●
21 STUD; BRKT,CAB TILT
CAB UP +110MM<TGG> (A) M12X20,M16X45 L=76 		1-09029-090-0 02 1 0407-0511 ●
21 STUD; BRKT,CAB TILT
(A) M12X20,M16X45 L=76 		1-09029-090-0 02 1 0512- ● ●
21 STUD; BRKT,CAB TILT
CAB UP +110MM<TGG> (B) M16X50 L=74 		1-09300-117-0 01 1 0407-0511 ●
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 0512- ● ●
30 BOLT; CAB FRT FOOT
CAB UP +110MM<TGG> (B) M14X45 		9-92061-445-0 02 1 0407-0511 ●
30 BOLT; CAB FRT FOOT
(B) M14X45 		9-92061-445-0 02 1 0512- ● ●
30 BOLT; CAB FRT FOOT
CAB UP +110MM<TGG> (A) M16X45 		9-92061-645-0 08 1 0407-0511 ●
30 BOLT; CAB FRT FOOT
(A) M16X45 		9-92061-645-0 08 1 0512- ● ●
30 BOLT; CAB FRT FOOT
(A) M14X60 		9-92061-460-0 02 1 0407-0511 ●
30 BOLT; CAB FRT FOOT
(A) M14X60 		9-92061-460-0 02 1 0512-0512 ● ●
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 0601- ● ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (D) 		1-53453-274-1 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (E) 		8-97606-793-0 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (E) 		8-97606-793-0 01 1 0512- ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0512- ● ●
31 BRACKET; CAB
CAB UP +110MM<TGG> (A) 		1-44226-159-0 01 1 0407-0511 ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (D) 		1-53453-273-2 01 1 0512- ●
31 BRACKET; CAB
(D) 		1-53453-224-4 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (D) 		1-53453-224-5 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (D) 		1-53453-224-5 01 1 0512- ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (D) 		1-53453-225-3 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (D) 		1-53453-225-3 01 1 0512- ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (B) 		1-53458-374-1 01 1 0512- ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0512- ●
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0407-0511 ●
31 BRACKET; CAB
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C) 		1-81549-016-0 01 1 0512- ●
93 BOLT; PIN
CAB UP +110MM<TGG> M10X30 		1-09000-283-0 01 1 0407-0511 ●
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 0512- ● ●
136 BRACKET; OIL CYL 1-53458-829-0 01 1 0407-0511 ●
136 BRACKET; OIL CYL 1-53458-829-0 01 1 0512- ● ●
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0407-0511 ●
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0512-1201 ● ●
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1202- ● ●
141 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0407-0511 ●
141 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0512-0512 ● ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601- ● ●
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (C) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (C) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (E) M8X60 FLANGE 		0-28080-860-0 02 1 0512-0512 ●
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (E) M8X60 FLANGE 		0-28050-860-0 02 1 0601- ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0601- ●
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0407-0511 ●
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0512-0512 ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0601- ● ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (D) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0512- ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0512- ●
345 CAP; CAB 1-53458-336-3 02 1 0407-0511 ●
345 CAP; CAB 1-53458-336-3 02 1 0512- ● ●
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0407-0511 ●
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0512- ● ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-0511 ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0512-0904 ● ●
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0407-0511 ●
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0512- ● ●
çizim 104356
202 202 203 69 72 204 205 65 204 203 70
BalonParca AdiParca NoAdetTipApplied Date A B C
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-0 02 1 0407-0511 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 0512- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0407-0511 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0512- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0407-0511 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0512- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0407-0511 ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0512- ● ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0407-0511 ●
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0512- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0407-0511 ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0512- ● ●
72 WASHER; PL,BRKT TO FRAME
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0407-0511 ●
72 WASHER; PL,BRKT TO FRAME
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0512- ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0512- ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0407-0511 ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0512-1007 ● ●
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0407-0511 ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0512- ● ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0407-0511 ●
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0512- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0407-0511 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0512- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0407-0511 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0512- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0407-0511 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0512- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0407-0511 ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0512- ● ●

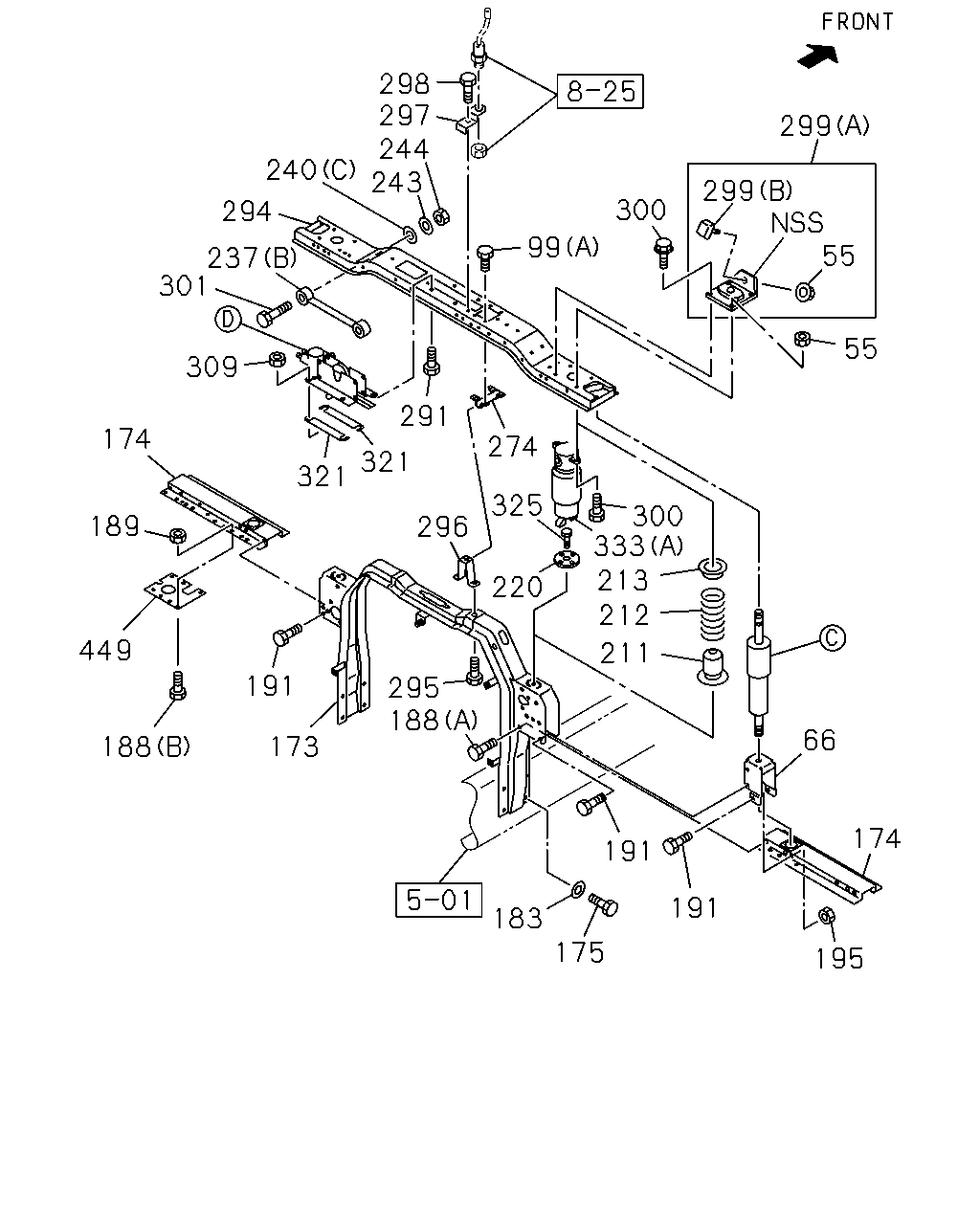

çizim 104362
298 297 244 243 299 240 299 55 300 294 99 237 301 55 309 291 174 274 321 321 325 300 333 213 212 189 296 220 449 211 191 295 188 66 173 188 174 191 191 183 175 195
BalonParca AdiParca NoAdetTipApplied Date A B C
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ● ●
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 06 1 0407-0511 ●
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
66 BRACKET; S/ABS
CAB UP +110MM<TGG> 		1-53458-755-1 01 1 0407-0511 ●
66 BRACKET; S/ABS 1-53458-755-1 01 1 0512-1204 ● ●
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205- ● ●
66 BRACKET; S/ABS
CAB UP +110MM<TGG> 		1-53458-786-0 01 1 0407-0511 ●
66 BRACKET; S/ABS 1-53458-786-0 01 1 0512- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
99 BOLT; BRKT
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0407-0511 ●
99 BOLT; BRKT
FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0512- ●
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0512- ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53450-674-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION-FULL FLOATING(SMK) 		8-98166-346-0 01 1 1004- ●
173 MEMBER; CAB MTG RR
CAB UP +110MM<TGG> 		1-53450-670-1 01 1 0407-0511 ●
173 MEMBER; CAB MTG RR
FULL FLOATING CAB(W16) 		1-53450-670-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR 1-53450-670-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR
FULL FLOATING CAB(W16) 		8-98166-139-0 01 1 1004- ●
173 MEMBER; CAB MTG RR 8-98166-139-0 01 1 1004- ●
174 OUTRIGGER
6WG1 TC-C(72L) 		1-53456-418-3 01 1 0512- ● ●
174 OUTRIGGER 1-53456-277-3 01 1 0407-0511 ●
174 OUTRIGGER
6WF1 TC-C(1B8) 		1-53456-277-3 01 1 0512-1003 ●
174 OUTRIGGER
6WF1 TC-C(1B8) 		8-98158-645-0 01 1 1004- ●
174 OUTRIGGER 1-53456-278-3 01 1 0407-0511 ●
174 OUTRIGGER 1-53456-278-3 01 1 0512-1003 ● ●
174 OUTRIGGER 8-98158-646-0 01 1 1004- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		9-92061-440-0 08 1 0407-0511 ●
175 BOLT; MEMBER TO FRAME
M14X40 		9-92061-440-0 08 1 0512-0512 ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 0601- ● ●
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0407-0511 ●
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0512-1201 ● ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1202- ● ●
188 BOLT; OUTRIGGER
CAB UP +110MM<TGG> (B) M10X20 FLANGE 		0-28681-020-0 04 1 0407-0511 ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28681-020-0 04 1 0512-0512 ● ●
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 0601- ● ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0407-0511 ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0512-0512 ● ●
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0601- ● ●
189 NUT; OUTRIGGER
CAB UP +110MM<TGG> M10 FLANGE 		0-91150-210-0 04 1 0407-0511 ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ● ●
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28681-025-0 07 1 0407-0511 ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28681-025-0 07 1 0512-0512 ● ●
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 0601- ● ●
195 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 04 1 0407-0511 ●
195 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ● ●
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
211 RUBBER; CUSHION,S/ABS
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53366-128-0 02 1 0512- ●
212 SPRING; COIL
CAB SUSPENSION-FULL FLOATING(SMK) 		1-09580-515-0 02 1 0512- ●
213 SEAT; SPR,S/ABS
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53366-132-1 02 1 0512- ●
220 GUIDE; SPR 1-53458-648-1 02 1 0407-0511 ●
220 GUIDE; SPR
FULL FLOATING CAB(W16) 		1-53458-648-1 02 1 0512- ●
220 GUIDE; SPR 1-53458-648-1 02 1 0512- ●
237 ROD ASM; LATERAL
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (C) 		1-33671-987-0 01 1 0512- ●
237 ROD ASM; LATERAL
6WG1 TC-C(72L) (C) 		1-33671-987-0 01 1 0512- ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
FULL FLOATING CAB(W16) (A) 		1-33670-407-0 01 1 0512- ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0512- ●
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C) 		1-33670-773-0 01 1 0512- ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0512- ● ●
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0407-0511 ●
240 WASHER; PL,BRKT
FULL FLOATING CAB(W16) (A) ID=10.5 OD=18 		1-09985-173-0 01 1 0512- ●
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0512- ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0407-0511 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0512- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0407-0511 ●
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0512-0605 ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		9-09150-512-0 02 1 0407-0511 ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		9-09150-512-0 02 1 0512-0603 ● ●
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
244 NUT; LATERAL ROD
M12 		9-99110-512-0 02 1 0407-0511 ●
244 NUT; LATERAL ROD
M12 		9-99110-512-0 02 1 0512-0512 ● ●
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 0601- ● ●
274 PIN 1-53458-996-0 01 1 0407-0511 ●
274 PIN 1-53458-996-0 01 1 0512- ● ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28681-025-0 04 1 0407-0511 ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28681-025-0 04 1 0512-0512 ● ●
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
294 MEMBER; FLOATING
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53454-950-3 01 1 0512- ●
294 MEMBER; FLOATING 1-53454-949-1 01 1 0407-0511 ●
294 MEMBER; FLOATING
FULL FLOATING CAB(W16) 		1-53454-949-2 01 1 0512- ●
294 MEMBER; FLOATING 1-53454-949-2 01 1 0512- ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28681-020-0 02 1 0407-0511 ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28681-020-0 02 1 0512-0512 ● ●
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ●
296 STOPPER; UPR 1-53458-973-0 01 1 0407-0511 ●
296 STOPPER; UPR 1-53458-973-1 01 1 0512- ● ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0407-0511 ●
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0512- ● ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
299 RUBBER; MTG
6WG1 TC-C(72L) (A) 		1-53366-194-0 02 1 0512-0812 ● ●
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 0901- ● ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0407-0511 ●
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0512- ● ●
299 RUBBER; MTG
(A) 		1-53366-156-0 02 1 0407-0511 ●
299 RUBBER; MTG
6WF1 TC-C(1B8) (A) 		1-53366-156-0 02 1 0512-0812 ●
300 BOLT; MTG RUBBER
FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0512- ●
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0512- ●
300 BOLT; MTG RUBBER
M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
300 BOLT; MTG RUBBER
FULL FLOATING CAB(W16) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
300 BOLT; MTG RUBBER
M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
300 BOLT; MTG RUBBER
FULL FLOATING CAB(W16) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
300 BOLT; MTG RUBBER
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0407-0511 ●
300 BOLT; MTG RUBBER
CAB SUSPENSION-FULL FLOATING(SMK) M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 0512- ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0407-0511 ●
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0512- ● ●
309 NUT
M10 FLANGE 		0-91150-210-0 04 1 0407-0511 ●
309 NUT
M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ● ●
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0407-0511 ●
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0512- ● ●
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
325 BOLT; GUIDE NUT
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
325 BOLT; GUIDE NUT
FULL FLOATING CAB(W16) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
333 SPRING
(B) 		1-52110-142-1 02 1 0407-0511 ●
333 SPRING
FULL FLOATING CAB(W16) (B) 		1-52110-142-4 02 1 0512- ●
333 SPRING
(B) 		1-52110-142-4 02 1 0512- ●
333 SPRING
(A) 		1-52110-143-1 02 1 0407-0511 ●
333 SPRING
FULL FLOATING CAB(W16) (A) 		1-52110-143-4 02 1 0512- ●
333 SPRING
(A) 		1-52110-143-4 02 1 0512- ●
449 BRACKET; OUTRIGGER
CAB UP +110MM<TGG> 		1-53456-279-0 01 1 0407-0511 ●
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 0512- ● ●

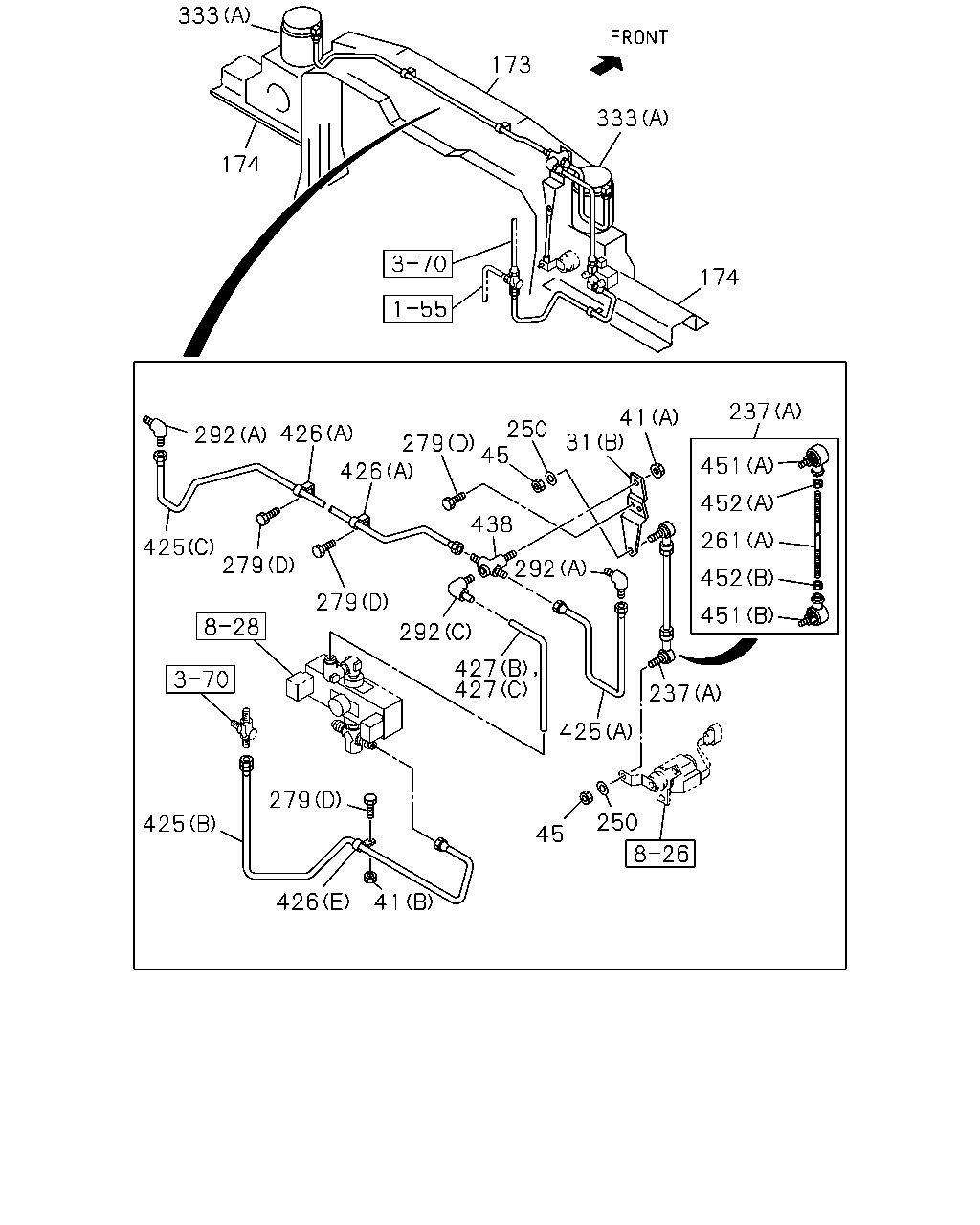

çizim 104363
333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 452 279 451 292 427 427 237 425 279 250 425 45 426 41
BalonParca AdiParca NoAdetTipApplied Date A B C
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (D) 		1-53453-274-1 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (E) 		8-97606-793-0 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (E) 		8-97606-793-0 01 1 0512- ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0512- ● ●

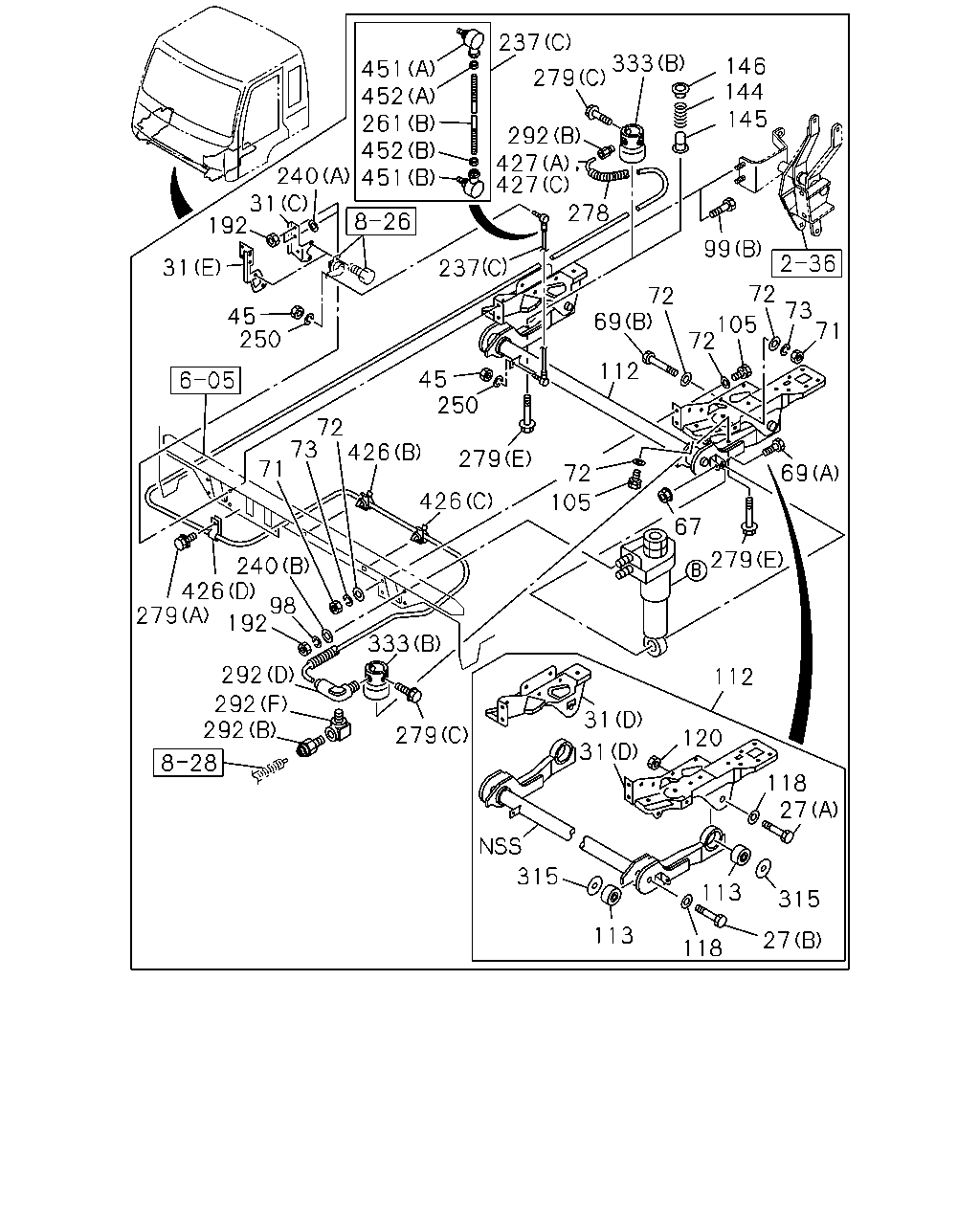

31 BRACKET; CAB
CAB UP +110MM<TGG> (A) 		1-44226-159-0 01 1 0407-0511 ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (D) 		1-53453-273-2 01 1 0512- ●
31 BRACKET; CAB
(D) 		1-53453-224-4 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (D) 		1-53453-224-5 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (D) 		1-53453-224-5 01 1 0512- ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (D) 		1-53453-225-3 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (D) 		1-53453-225-3 01 1 0512- ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (B) 		1-53458-374-1 01 1 0512- ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0512- ●
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0407-0511 ●
31 BRACKET; CAB
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C) 		1-81549-016-0 01 1 0512- ●
41 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
41 NUT
FULL FLOATING CAB(W16) (B) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
41 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
41 NUT
FULL FLOATING CAB(W16) (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
41 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
41 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0407-0511 ●
41 NUT
FULL FLOATING CAB(W16) (A) M12 FLANGE 		0-91150-212-0 01 1 0512-0602 ●
41 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0512-0602 ●
41 NUT
FULL FLOATING CAB(W16) (A) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
41 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
45 NUT
M5 		9-99110-405-0 04 1 0407-0511 ●
45 NUT
FULL FLOATING CAB(W16) M5 		9-99110-405-0 04 1 0512-0512 ●
45 NUT
M5 		9-99110-405-0 04 1 0512-0512 ●
45 NUT
FULL FLOATING CAB(W16) M5 		0-91110-505-0 04 1 0601- ●
45 NUT
M5 		0-91110-505-0 04 1 0601- ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53450-674-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR
CAB SUSPENSION-FULL FLOATING(SMK) 		8-98166-346-0 01 1 1004- ●
173 MEMBER; CAB MTG RR
CAB UP +110MM<TGG> 		1-53450-670-1 01 1 0407-0511 ●
173 MEMBER; CAB MTG RR
FULL FLOATING CAB(W16) 		1-53450-670-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR 1-53450-670-1 01 1 0512-1003 ●
173 MEMBER; CAB MTG RR
FULL FLOATING CAB(W16) 		8-98166-139-0 01 1 1004- ●
173 MEMBER; CAB MTG RR 8-98166-139-0 01 1 1004- ●
174 OUTRIGGER
6WG1 TC-C(72L) 		1-53456-418-3 01 1 0512- ● ●
174 OUTRIGGER 1-53456-277-3 01 1 0407-0511 ●
174 OUTRIGGER
6WF1 TC-C(1B8) 		1-53456-277-3 01 1 0512-1003 ●
174 OUTRIGGER
6WF1 TC-C(1B8) 		8-98158-645-0 01 1 1004- ●
174 OUTRIGGER 1-53456-278-3 01 1 0407-0511 ●
174 OUTRIGGER 1-53456-278-3 01 1 0512-1003 ● ●
174 OUTRIGGER 8-98158-646-0 01 1 1004- ● ●
237 ROD ASM; LATERAL
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (C) 		1-33671-987-0 01 1 0512- ●
237 ROD ASM; LATERAL
6WG1 TC-C(72L) (C) 		1-33671-987-0 01 1 0512- ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
FULL FLOATING CAB(W16) (A) 		1-33670-407-0 01 1 0512- ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0512- ●
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C) 		1-33670-773-0 01 1 0512- ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0512- ● ●
250 WASHER; LK
ID=5.1 		9-09150-505-0 04 1 0407-0511 ●
250 WASHER; LK
FULL FLOATING CAB(W16) ID=5.1 		9-09150-505-0 04 1 0512-0603 ●
250 WASHER; LK
ID=5.1 		9-09150-505-0 04 1 0512-0603 ●
250 WASHER; LK
FULL FLOATING CAB(W16) ID=5.1 		0-91510-505-0 04 1 0604- ●
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 0604- ●
261 ROD; LINK
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) 		9-08410-506-0 01 1 0512-0606 ●
261 ROD; LINK
6WG1 TC-C(72L) (B) 		9-08410-506-0 01 1 0512-0606 ●
261 ROD; LINK
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) 		0-84100-506-0 01 1 0607- ●
261 ROD; LINK
6WG1 TC-C(72L) (B) 		0-84100-506-0 01 1 0607- ●
261 ROD; LINK
(B) 		9-08410-507-0 01 1 0407-0511 ●
261 ROD; LINK
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B) 		9-08410-507-0 01 1 0512- ●
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0407-0511 ●
261 ROD; LINK
FULL FLOATING CAB(W16) (A) 		9-08410-514-0 01 1 0512- ●
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0512- ●
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (C) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (C) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (E) M8X60 FLANGE 		0-28080-860-0 02 1 0512-0512 ●
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (E) M8X60 FLANGE 		0-28050-860-0 02 1 0601- ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0601- ●
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0407-0511 ●
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0512-0512 ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0601- ● ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (D) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0512- ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (D) 		1-09661-577-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0512- ● ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (F) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
333 SPRING
(B) 		1-52110-142-1 02 1 0407-0511 ●
333 SPRING
FULL FLOATING CAB(W16) (B) 		1-52110-142-4 02 1 0512- ●
333 SPRING
(B) 		1-52110-142-4 02 1 0512- ●
333 SPRING
(A) 		1-52110-143-1 02 1 0407-0511 ●
333 SPRING
FULL FLOATING CAB(W16) (A) 		1-52110-143-4 02 1 0512- ●
333 SPRING
(A) 		1-52110-143-4 02 1 0512- ●
425 PIPE ASM; AIR
CAB UP +110MM<TGG> (B) 		1-49122-659-0 01 1 0407-0511 ●
425 PIPE ASM; AIR
FULL FLOATING CAB(W16) (B) 		1-49122-659-0 01 1 0512- ●
425 PIPE ASM; AIR
(B) 		1-49122-659-0 01 1 0512- ●
425 PIPE ASM; AIR
(A) L=298 		1-47494-961-1 01 1 0407-0511 ●
425 PIPE ASM; AIR
FULL FLOATING CAB(W16) (A) L=298 		1-47494-961-1 01 1 0512- ●
425 PIPE ASM; AIR
(A) L=298 		1-47494-961-1 01 1 0512- ●
425 PIPE ASM; AIR
(C) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 0407-0511 ●
425 PIPE ASM; AIR
FULL FLOATING CAB(W16) (C) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 0512- ●
425 PIPE ASM; AIR
(C) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 0512- ●
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0512- ●
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0512- ●
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (B) ID=9.5 		5-09709-020-0 01 1 0512- ●
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0512- ●
426 CLIP
(C) ID=5.8 L=8 		8-94155-681-0 02 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (C) ID=5.8 L=8 		8-94155-681-0 02 1 0512- ●
426 CLIP
(C) ID=5.8 L=8 		8-94155-681-0 02 1 0512- ●
426 CLIP
(E) ID=7 L=32 		9-09524-665-0 01 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (E) ID=7 L=32 		9-09524-665-0 01 1 0512-0606 ●
426 CLIP
(E) ID=7 L=32 		9-09524-665-0 01 1 0512-0606 ●
426 CLIP
FULL FLOATING CAB(W16) (E) ID=7 L=32 		0-95234-665-0 01 1 0607- ●
426 CLIP
(E) ID=7 L=32 		0-95234-665-0 01 1 0607- ●
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (D) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
426 CLIP
FULL FLOATING CAB(W16) (D) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
426 CLIP
(D) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
427 TUBE
FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701 ●
427 TUBE
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701 ●
427 TUBE
FULL FLOATING CAB(W16) (C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702- ●
427 TUBE
FULL FLOATING CAB(W16) (C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702- ●
427 TUBE
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702- ●
427 TUBE
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702- ●
427 TUBE
CAB UP +110MM<TGG>,CAB UP +50MM<W60> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0407-0511 ●
427 TUBE
(A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0407-0511 ●
427 TUBE
FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701 ●
427 TUBE
(A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701 ●
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0407-0511 ●
438 UNION
FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0512- ●
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0512- ●
451 JOINT; BALL
(B) 		1-09760-103-1 02 1 0407-0511 ●
451 JOINT; BALL
FULL FLOATING CAB(W16) (B) 		1-09760-103-2 01 1 0512- ●
451 JOINT; BALL
FULL FLOATING CAB(W16) (B) 		1-09760-103-2 01 1 0512- ●
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0512- ●
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0512- ●
451 JOINT; BALL
(A) 		1-09760-104-1 02 1 0407-0511 ●
451 JOINT; BALL
FULL FLOATING CAB(W16) (A) 		1-09760-104-2 01 1 0512- ●
451 JOINT; BALL
FULL FLOATING CAB(W16) (A) 		1-09760-104-2 01 1 0512- ●
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0512- ●
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0512- ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 0407-0511 ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 02 1 0407-0511 ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (A) M5 		9-99110-405-0 01 1 0512-0512 ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (A) M5 		9-99110-405-0 01 1 0512-0512 ●
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0512-0512 ●
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0512-0512 ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (A) M5 		0-91110-505-0 01 1 0601- ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (A) M5 		0-91110-505-0 01 1 0601- ●
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0601- ●
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0601- ●
çizim 104464
237 333 279 146 144 145 451 452 261 452 451 292 427 427 240 31 192 278 99 31 237 72 73 71 72 69 45 250 105 72 112 45 250 72 73 426 71 279 72 69 426 105 67 279 240 426 279 98 192 333 292 112 292 292 31 279 120 31 118 27 315 113 315 113 27 118
BalonParca AdiParca NoAdetTipApplied Date A B C
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0407-0511 ●
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0512- ● ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0407-0511 ●
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0512- ● ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (D) 		1-53453-274-1 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (E) 		8-97606-793-0 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (E) 		8-97606-793-0 01 1 0512- ●
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0512- ● ●
31 BRACKET; CAB
CAB UP +110MM<TGG> (A) 		1-44226-159-0 01 1 0407-0511 ●
31 BRACKET; CAB
CAB SUSPENSION-FULL FLOATING(SMK) (D) 		1-53453-273-2 01 1 0512- ●
31 BRACKET; CAB
(D) 		1-53453-224-4 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (D) 		1-53453-224-5 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (D) 		1-53453-224-5 01 1 0512- ●
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (D) 		1-53453-225-3 01 1 0512- ●
31 BRACKET; CAB
6WG1 TC-C(72L) (D) 		1-53453-225-3 01 1 0512- ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0407-0511 ●
31 BRACKET; CAB
FULL FLOATING CAB(W16) (B) 		1-53458-374-1 01 1 0512- ●
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0512- ●
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0407-0511 ●
31 BRACKET; CAB
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C) 		1-81549-016-0 01 1 0512- ●
45 NUT
M5 		9-99110-405-0 04 1 0407-0511 ●
45 NUT
FULL FLOATING CAB(W16) M5 		9-99110-405-0 04 1 0512-0512 ●
45 NUT
M5 		9-99110-405-0 04 1 0512-0512 ●
45 NUT
FULL FLOATING CAB(W16) M5 		0-91110-505-0 04 1 0601- ●
45 NUT
M5 		0-91110-505-0 04 1 0601- ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91150-212-0 02 1 0407-0511 ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91150-212-0 02 1 0512-0602 ● ●
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0407-0511 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0512- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0407-0511 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0512- ● ●
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0407-0511 ●
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0512- ● ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0407-0511 ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0512- ● ●
72 WASHER; PL,BRKT TO FRAME
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0407-0511 ●
72 WASHER; PL,BRKT TO FRAME
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0512- ●
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0512- ●
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0407-0511 ●
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0512- ● ●
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0407-0511 ●
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0512- ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ● ●
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
99 BOLT; BRKT
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0407-0511 ●
99 BOLT; BRKT
FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0512- ●
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0512- ●
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 08 1 0407-0511 ●
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 08 1 0512- ● ●
112 ARM ASM; LINK,CAB FRT SUSP
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53450-653-1 01 1 0512- ●
112 ARM ASM; LINK,CAB FRT SUSP
6WG1 TC-C(72L) FULL FLOATING CAB(W16) 		1-53450-684-1 01 1 0512- ●
112 ARM ASM; LINK,CAB FRT SUSP
6WG1 TC-C(72L) 		1-53450-684-1 01 1 0512- ●
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-647-2 01 1 0407-0511 ●
112 ARM ASM; LINK,CAB FRT SUSP
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) 		1-53450-647-3 01 1 0512- ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 0407-0511 ●
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 0512- ● ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0407-0511 ●
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0512- ● ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		9-99110-518-0 02 1 0407-0511 ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		9-99110-518-0 02 1 0512-0512 ● ●
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 0601- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION
CAB SUSPENSION-FULL FLOATING(SMK) 		1-09580-537-0 02 1 0512- ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53366-139-0 02 1 0512- ●
146 SEAT; SPRING,CAB FRT SUSPENSION
CAB SUSPENSION-FULL FLOATING(SMK) 		1-53366-138-0 02 1 0512- ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 0512- ● ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 06 1 0407-0511 ●
192 NUT; BRKT FIX
FULL FLOATING CAB(W16) M10 		1-09984-142-0 02 1 0512- ●
192 NUT; BRKT FIX
M10 		1-09984-142-0 02 1 0512- ●
237 ROD ASM; LATERAL
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (C) 		1-33671-987-0 01 1 0512- ●
237 ROD ASM; LATERAL
6WG1 TC-C(72L) (C) 		1-33671-987-0 01 1 0512- ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
FULL FLOATING CAB(W16) (A) 		1-33670-407-0 01 1 0512- ●
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0512- ●
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C) 		1-33670-773-0 01 1 0512- ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0407-0511 ●
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0512- ● ●
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0407-0511 ●
240 WASHER; PL,BRKT
FULL FLOATING CAB(W16) (A) ID=10.5 OD=18 		1-09985-173-0 01 1 0512- ●
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0512- ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0407-0511 ●
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0512- ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0407-0511 ●
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0512-0605 ● ●
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ●
250 WASHER; LK
ID=5.1 		9-09150-505-0 04 1 0407-0511 ●
250 WASHER; LK
FULL FLOATING CAB(W16) ID=5.1 		9-09150-505-0 04 1 0512-0603 ●
250 WASHER; LK
ID=5.1 		9-09150-505-0 04 1 0512-0603 ●
250 WASHER; LK
FULL FLOATING CAB(W16) ID=5.1 		0-91510-505-0 04 1 0604- ●
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 0604- ●
261 ROD; LINK
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) 		9-08410-506-0 01 1 0512-0606 ●
261 ROD; LINK
6WG1 TC-C(72L) (B) 		9-08410-506-0 01 1 0512-0606 ●
261 ROD; LINK
6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) 		0-84100-506-0 01 1 0607- ●
261 ROD; LINK
6WG1 TC-C(72L) (B) 		0-84100-506-0 01 1 0607- ●
261 ROD; LINK
(B) 		9-08410-507-0 01 1 0407-0511 ●
261 ROD; LINK
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B) 		9-08410-507-0 01 1 0512- ●
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0407-0511 ●
261 ROD; LINK
FULL FLOATING CAB(W16) (A) 		9-08410-514-0 01 1 0512- ●
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0512- ●
278 COVER
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0407-0511 ●
278 COVER
FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0512-1105 ●
278 COVER
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0512-1105 ●
278 COVER
FULL FLOATING CAB(W16) L=750 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1106- ●
278 COVER
L=750 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1106- ●
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (C) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (C) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (E) M8X60 FLANGE 		0-28080-860-0 02 1 0512-0512 ●
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (E) M8X60 FLANGE 		0-28050-860-0 02 1 0601- ●
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0601- ●
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0407-0511 ●
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0512-0512 ● ●
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0601- ● ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ●
279 BOLT
FULL FLOATING CAB(W16) (D) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0407-0511 ●
279 BOLT
FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0512- ●
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (D) 		1-09661-577-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0512- ● ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
292 CONNECTOR; CAB SUSPENSION
FULL FLOATING CAB(W16) (F) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0407-0511 ●
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0512- ● ●
333 SPRING
(B) 		1-52110-142-1 02 1 0407-0511 ●
333 SPRING
FULL FLOATING CAB(W16) (B) 		1-52110-142-4 02 1 0512- ●
333 SPRING
(B) 		1-52110-142-4 02 1 0512- ●
333 SPRING
(A) 		1-52110-143-1 02 1 0407-0511 ●
333 SPRING
FULL FLOATING CAB(W16) (A) 		1-52110-143-4 02 1 0512- ●
333 SPRING
(A) 		1-52110-143-4 02 1 0512- ●
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0512- ●
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0512- ●
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (B) ID=9.5 		5-09709-020-0 01 1 0512- ●
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0512- ●
426 CLIP
(C) ID=5.8 L=8 		8-94155-681-0 02 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (C) ID=5.8 L=8 		8-94155-681-0 02 1 0512- ●
426 CLIP
(C) ID=5.8 L=8 		8-94155-681-0 02 1 0512- ●
426 CLIP
(E) ID=7 L=32 		9-09524-665-0 01 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (E) ID=7 L=32 		9-09524-665-0 01 1 0512-0606 ●
426 CLIP
(E) ID=7 L=32 		9-09524-665-0 01 1 0512-0606 ●
426 CLIP
FULL FLOATING CAB(W16) (E) ID=7 L=32 		0-95234-665-0 01 1 0607- ●
426 CLIP
(E) ID=7 L=32 		0-95234-665-0 01 1 0607- ●
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 0407-0511 ●
426 CLIP
FULL FLOATING CAB(W16) (D) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 0512-0606 ●
426 CLIP
FULL FLOATING CAB(W16) (D) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
426 CLIP
(D) ID=11 L=16 		0-95235-025-0 01 1 0607- ●
427 TUBE
FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701 ●
427 TUBE
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701 ●
427 TUBE
FULL FLOATING CAB(W16) (C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702- ●
427 TUBE
FULL FLOATING CAB(W16) (C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702- ●
427 TUBE
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702- ●
427 TUBE
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702- ●
427 TUBE
CAB UP +110MM<TGG>,CAB UP +50MM<W60> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0407-0511 ●
427 TUBE
(A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0407-0511 ●
427 TUBE
FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701 ●
427 TUBE
(A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701 ●
451 JOINT; BALL
(B) 		1-09760-103-1 02 1 0407-0511 ●
451 JOINT; BALL
FULL FLOATING CAB(W16) (B) 		1-09760-103-2 01 1 0512- ●
451 JOINT; BALL
FULL FLOATING CAB(W16) (B) 		1-09760-103-2 01 1 0512- ●
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0512- ●
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0512- ●
451 JOINT; BALL
(A) 		1-09760-104-1 02 1 0407-0511 ●
451 JOINT; BALL
FULL FLOATING CAB(W16) (A) 		1-09760-104-2 01 1 0512- ●
451 JOINT; BALL
FULL FLOATING CAB(W16) (A) 		1-09760-104-2 01 1 0512- ●
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0512- ●
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0512- ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 0407-0511 ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0512- ●
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 02 1 0407-0511 ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (A) M5 		9-99110-405-0 01 1 0512-0512 ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (A) M5 		9-99110-405-0 01 1 0512-0512 ●
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0512-0512 ●
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0512-0512 ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (A) M5 		0-91110-505-0 01 1 0601- ●
452 NUT; BALL JOINT
FULL FLOATING CAB(W16) (A) M5 		0-91110-505-0 01 1 0601- ●
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0601- ●
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
