5-01 — FRAME AND OTHER PARTS (#29900) — 133 parça

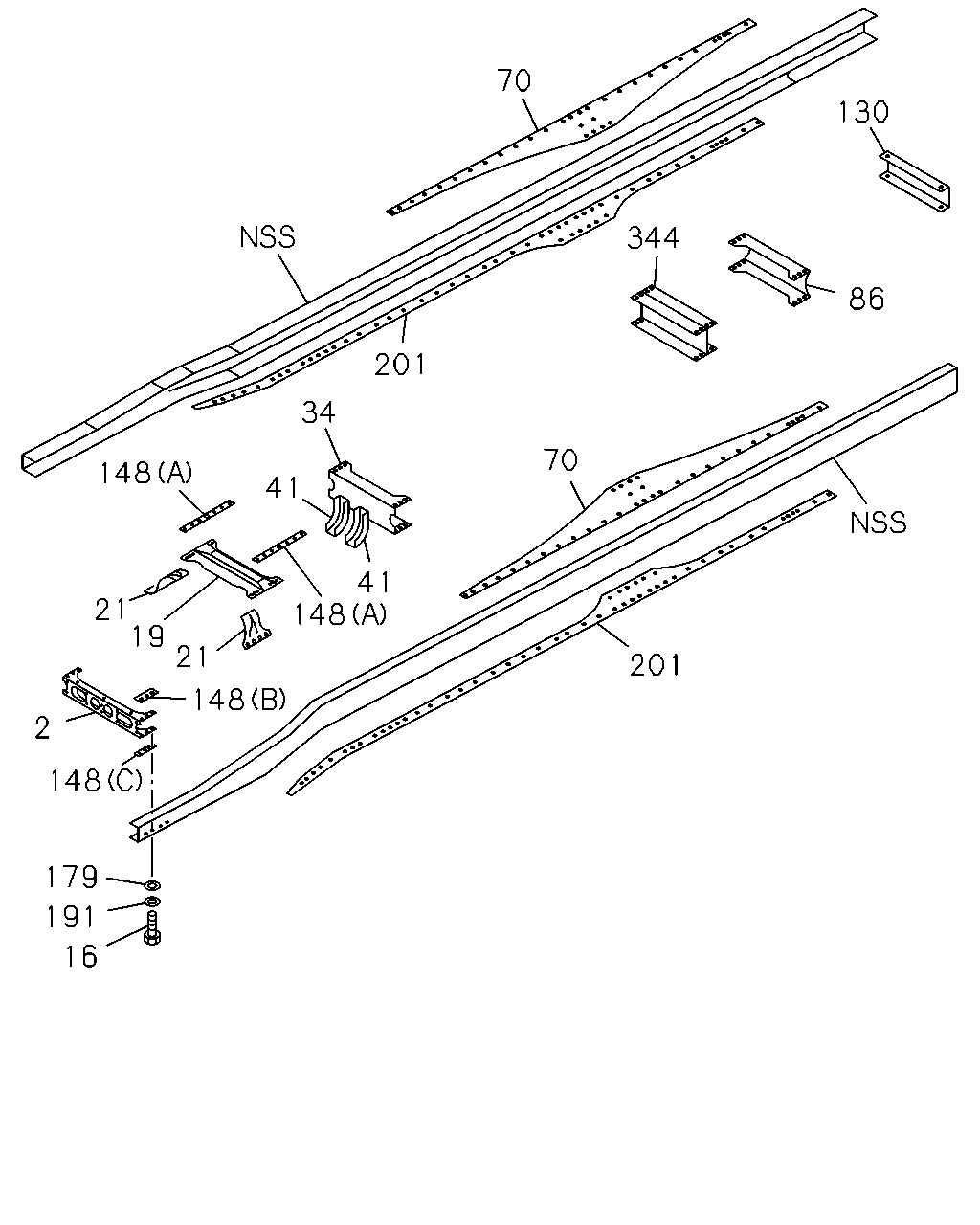

çizim 87076
70 130 344 86 201 34 70 148 41 41 148 21 19 21 201 148 148 2 179 191 16
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-975-4 01 1 0407-0511 ●
2 MEMBER; CROSS,1ST 8-97604-959-3 01 1 0512- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20951-640-0 02 1 0802- ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		9-92061-640-0 02 1 0407-0511 ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0407-0511 ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0512- ● ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 0407-0511 ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 0512- ● ●
34 MEMBER; CROSS,3RD 1-53181-639-3 01 1 0407- ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=310 		1-53271-383-0 02 1 0407-0511 ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=315 		1-53271-377-0 02 1 0512- ●
70 GUSSET; TRUNNION,UPR 1-53161-792-1 02 1 0512-0601 ●
70 GUSSET; TRUNNION,UPR 1-53161-936-0 02 1 0602- ●
70 GUSSET; TRUNNION,UPR 1-53161-478-0 02 1 0407- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-757-3 01 1 0407-0511 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-757-3 01 1 0512- ● ●
130 MEMBER; CROSS,END 1-53181-450-2 01 1 0407- ●
148 SPACER; C/MBR
(A) 		1-53168-443-0 02 1 0512- ●
148 SPACER; C/MBR
(B) 		1-53168-400-1 02 1 0407-0511 ●
148 SPACER; C/MBR
(B) 		1-53168-400-1 02 1 0512- ● ●
148 SPACER; C/MBR
(C) 		1-53168-403-1 02 1 0407-0511 ●
148 SPACER; C/MBR
(C) 		1-53168-403-1 02 1 0512- ● ●
148 SPACER; C/MBR
(A) 		1-53168-443-0 02 1 0407-0511 ●
148 SPACER; C/MBR
(A) 		1-53168-443-0 04 1 0512- ●
179 WASHER; LK
ID=15 		9-09651-069-0 02 1 0407-1201 ●
179 WASHER; LK
ID=15 		8-98010-627-1 02 1 1202- ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-223-0 02 1 0802- ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-223-0 02 1 0407-0511 ●
201 GUSSET; C/MBR 1-53161-927-0 02 1 0512- ●
201 GUSSET; C/MBR 1-53161-738-0 02 1 0407- ●
344 MEMBER; CROSS,4TH 1-53182-075-0 01 1 0407- ●

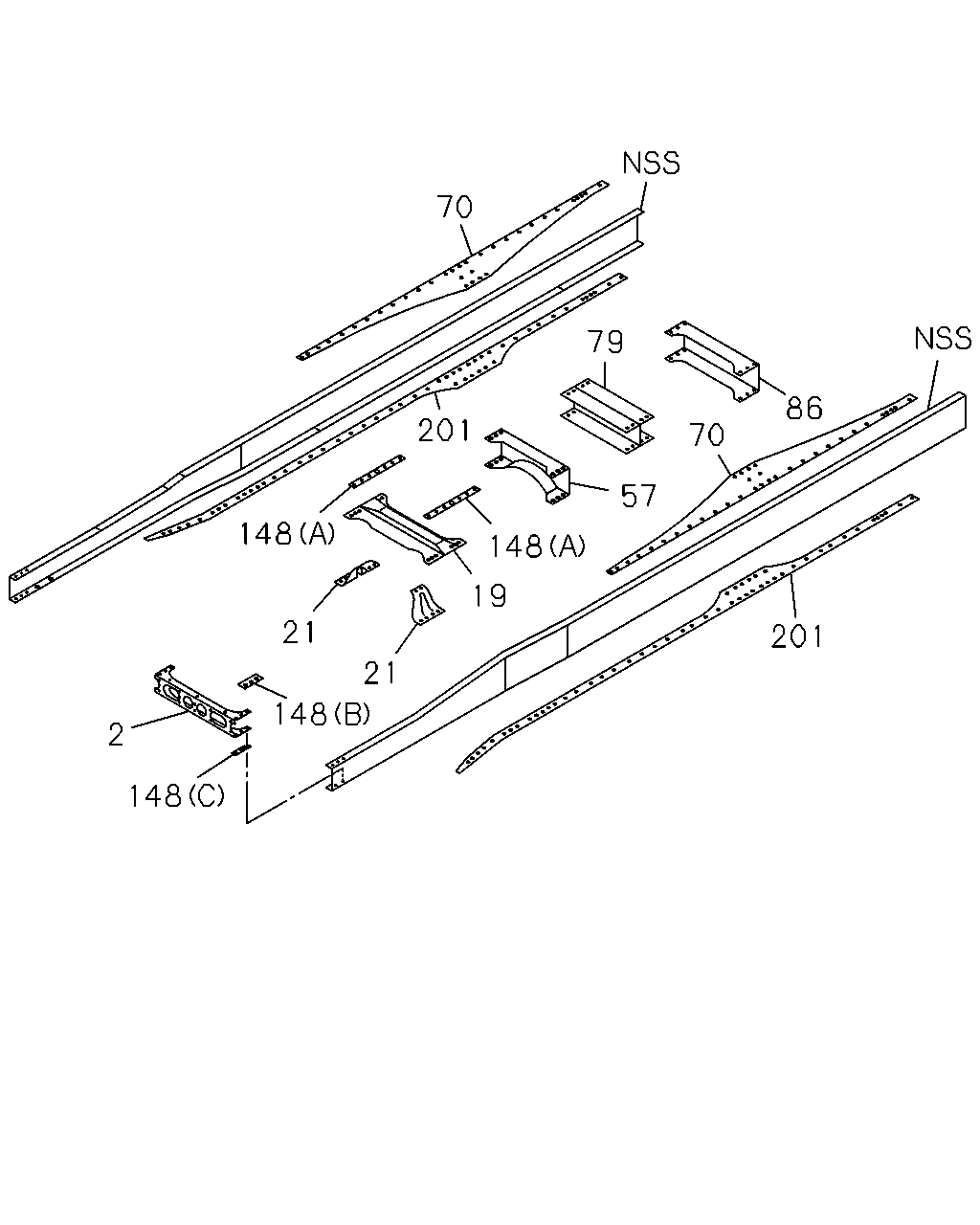

çizim 87087
70 201 148 79 86 70 57 148 19 21 201 21 148 2 148
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-975-4 01 1 0407-0511 ●
2 MEMBER; CROSS,1ST 8-97604-959-3 01 1 0512- ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0407-0511 ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0512- ● ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 0407-0511 ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 0512- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-3 01 1 0512- ●
70 GUSSET; TRUNNION,UPR 1-53161-792-1 02 1 0512-0601 ●
70 GUSSET; TRUNNION,UPR 1-53161-936-0 02 1 0602- ●
70 GUSSET; TRUNNION,UPR 1-53161-478-0 02 1 0407- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53182-075-0 01 1 0512- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-757-3 01 1 0407-0511 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-757-3 01 1 0512- ● ●
148 SPACER; C/MBR
(A) 		1-53168-443-0 02 1 0512- ●
148 SPACER; C/MBR
(B) 		1-53168-400-1 02 1 0407-0511 ●
148 SPACER; C/MBR
(B) 		1-53168-400-1 02 1 0512- ● ●
148 SPACER; C/MBR
(C) 		1-53168-403-1 02 1 0407-0511 ●
148 SPACER; C/MBR
(C) 		1-53168-403-1 02 1 0512- ● ●
148 SPACER; C/MBR
(A) 		1-53168-443-0 02 1 0407-0511 ●
148 SPACER; C/MBR
(A) 		1-53168-443-0 04 1 0512- ●
201 GUSSET; C/MBR 1-53161-927-0 02 1 0512- ●
201 GUSSET; C/MBR 1-53161-738-0 02 1 0407- ●

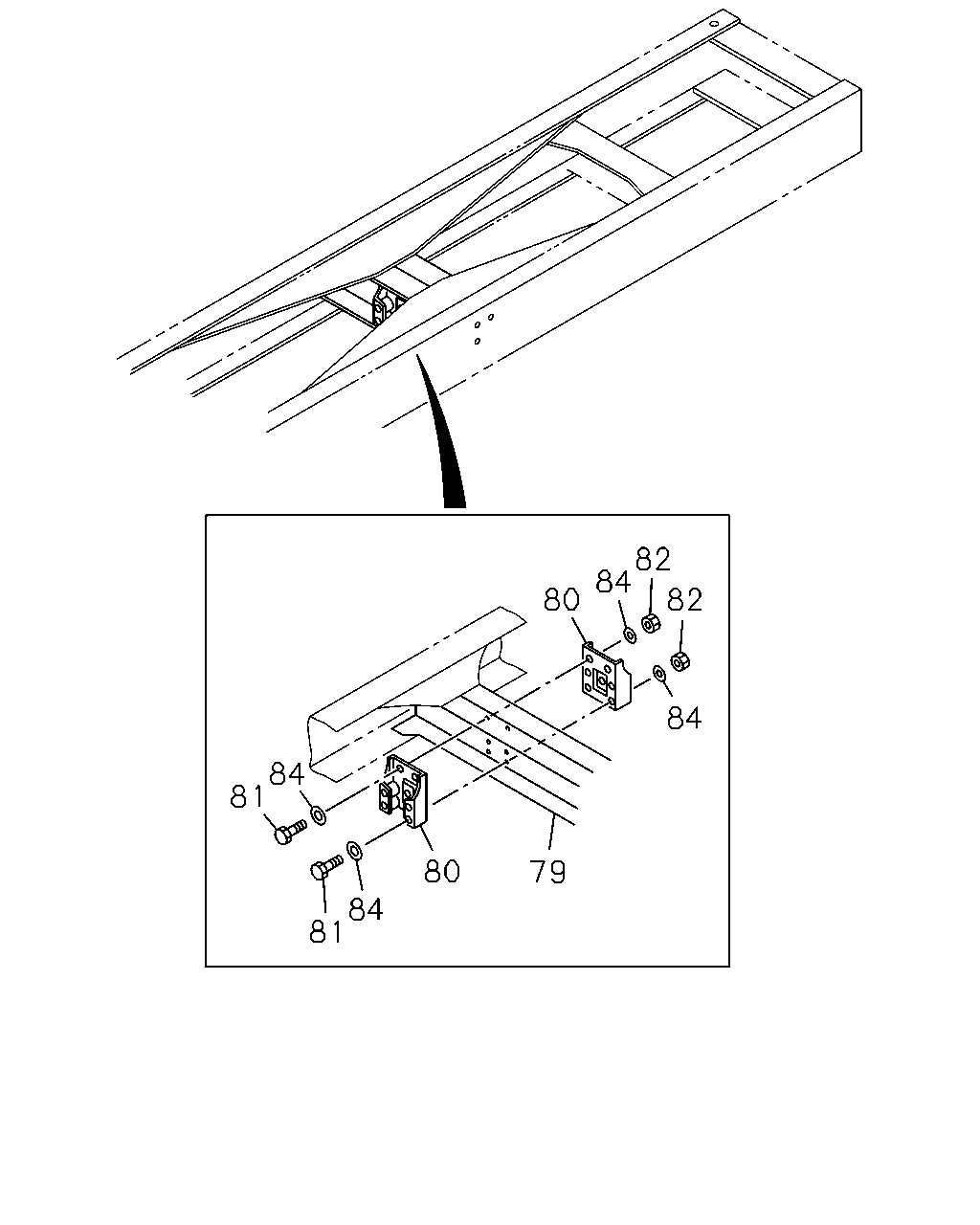

çizim 87113
82 84 80 82 84 84 81 80 79 84 81
BalonParca AdiParca NoAdetTipApplied Date A B
79 MEMBER; CROSS,TRUNNION ASM 1-53182-075-0 01 1 0512- ●
80 BRACKET; C/MBR 1-53363-031-2 02 1 0407-0511 ●
80 BRACKET; C/MBR 1-53363-031-2 02 1 0512- ● ●
81 BOLT; BRKT
M14X205 		1-09000-147-0 02 1 0407-0511 ●
81 BOLT; BRKT
M14X205 		1-09000-147-0 02 1 0512- ● ●
81 BOLT; BRKT
M14X50 		9-92061-450-0 02 1 0407-0511 ●
81 BOLT; BRKT
M14X50 		9-92061-450-0 02 1 0512-0512 ● ●
81 BOLT; BRKT
M14X50 		0-20951-450-0 02 1 0601- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 04 1 0407-0511 ●
82 NUT; BRKT
M14 		9-99110-514-0 04 1 0512-0512 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 04 1 0601- ● ●
84 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 0407-0511 ●
84 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 0512-1201 ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1202- ● ●

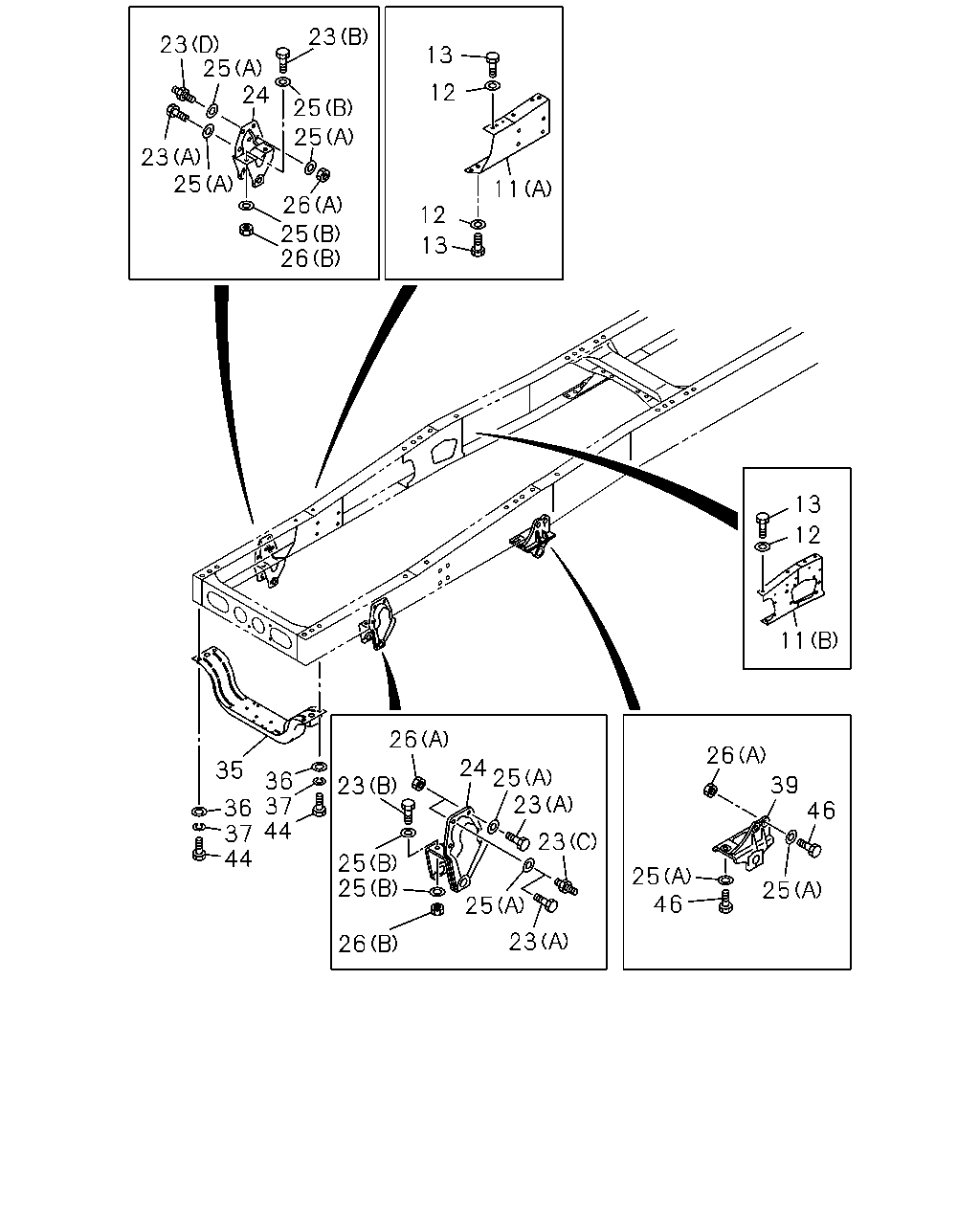

çizim 105034
23 23 25 24 13 12 25 25 23 25 11 26 25 26 12 13 13 12 11 26 26 24 25 23 35 36 37 44 39 46 23 36 37 44 23 25 25 25 46 25 25 23 26
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 0407-0511 ●
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 0512- ● ●
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 0407-0511 ●
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 0512- ● ●
11 BRACKET; ENG MTG
(B) 		1-53221-226-4 01 1 0407-0511 ●
11 BRACKET; ENG MTG
(B) 		1-53221-226-4 01 1 0512- ● ●
11 BRACKET; ENG MTG
(B) 		1-53221-227-4 01 1 0407-0511 ●
11 BRACKET; ENG MTG
(B) 		1-53221-227-4 01 1 0512- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 02 1 0512-1201 ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 02 1 1202- ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 02 1 0407-0511 ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 06 1 0512-1201 ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 06 1 1202- ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 04 1 0512-0512 ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 04 1 0601- ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 04 1 0407-0511 ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 06 1 0512-0512 ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 06 1 0601- ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 05 1 0512-0512 ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 0601- ●
23 BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100 		1-09029-075-0 01 1 0407-0511 ●
23 BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100 		1-09029-075-0 01 1 0512- ● ●
23 BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81 		1-09029-103-0 02 1 0407- ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 05 1 0407-0511 ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 07 1 0512-0512 ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 07 1 0601- ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0407-0511 ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0512-0512 ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0407-0511 ●
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0512- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0407-0511 ●
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0512- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0407-0511 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0512- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 16 1 0407-0511 ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 16 1 0512-1201 ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 16 1 1202- ● ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) (B) M16 		0-91110-516-0 04 1 0512-0512 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 12 1 0407-0511 ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 12 1 0512-0512 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 12 1 0601- ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0407-0511 ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0512-0512 ●
26 NUT; BRKT,SPR
6WF1 TC-C(1B8) (B) M16 		9-99110-516-0 04 1 0512-0512 ●
35 MEMBER; UNDER 1-53174-263-2 01 1 0407-0511 ●
35 MEMBER; UNDER 1-53174-263-2 01 1 0512- ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0407-0511 ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0512- ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 0407-0511 ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 0512-0603 ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 0604- ● ●
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 0407-0511 ●
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 0512- ● ●
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 0407-0511 ●
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 0512- ● ●
44 BOLT; UNDER MBR
M16X60 		9-92061-660-0 04 1 0407-0511 ●
44 BOLT; UNDER MBR
M16X60 		9-92061-660-0 04 1 0512-0512 ● ●
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 0601- ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 04 1 0407-0511 ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 04 1 0512-0512 ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 04 1 0601- ● ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 04 1 0407-0511 ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 04 1 0512-0512 ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 04 1 0601- ● ●
