2-20A — MANUAL TRANSMISSION ASM AND CASE (#2990) — 120 parça

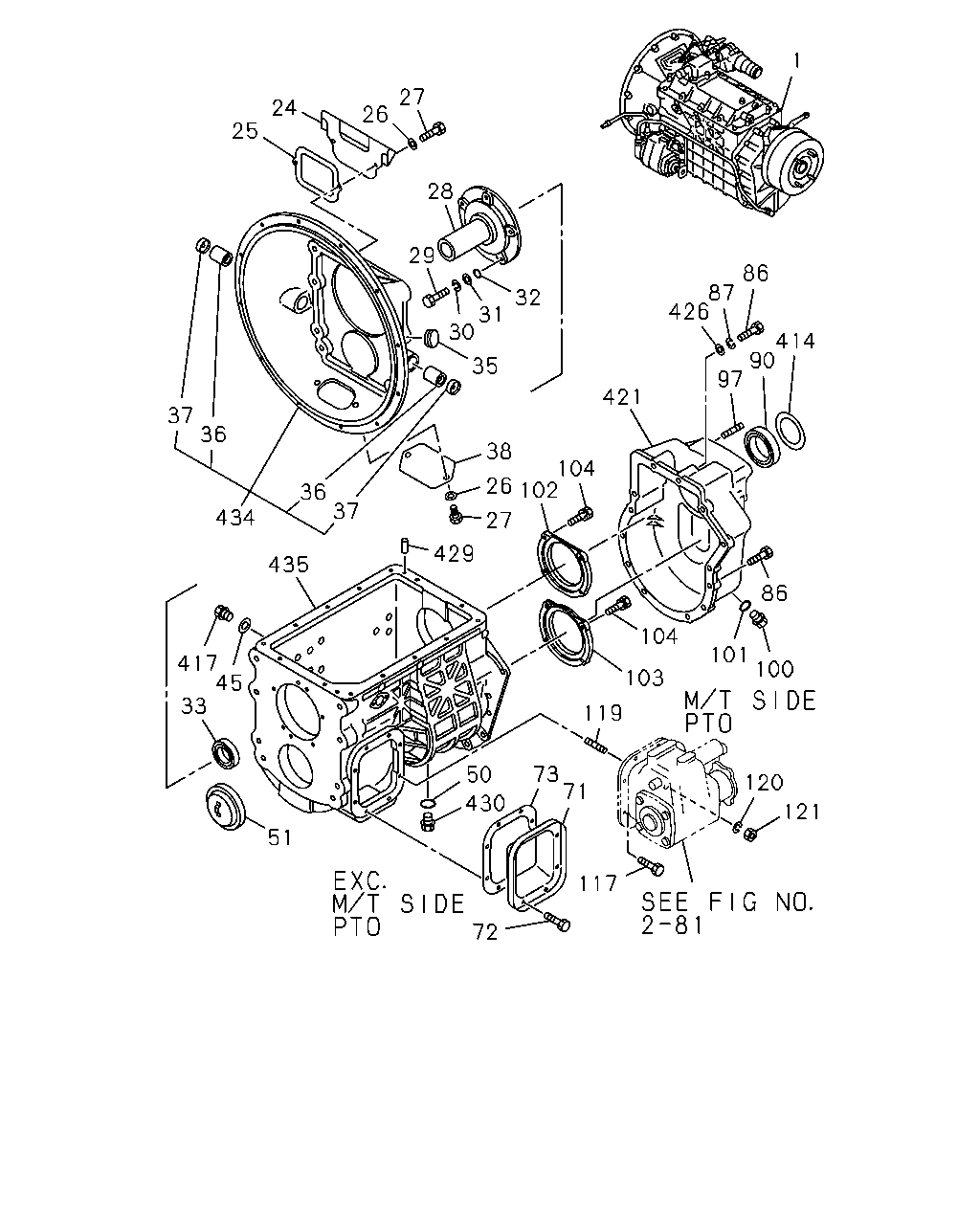

çizim 2964
72 51 430 50 73 71 117 121 120 119 103 104 101 100 86 97 90 414 86 87 426 1 421 104 102 38 26 27 429 435 37 36 434 417 45 33 36 37 35 30 31 32 29 28 27 26 24 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> 		1-33026-921-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E) 		1-33026-912-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X> 		1-33026-912-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL 1-33026-990-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> 		1-33026-895-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 38/7 18.5"(W3E) 		1-33026-886-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X> 		1-33026-886-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33026-808-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33037-780-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33026-860-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33037-776-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 37/6 18.5"(W3F) RR TIRE 10.00R20<87X> 		1-33026-765-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 38/7 18.5"(W3E) 		1-33026-756-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 37/6 18.5"(W3F) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>,RR TIRE 11.00-20<97X> 		1-33026-756-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33026-687-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33026-713-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 43/7 17.5"(W3Y) PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33026-678-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 43/7 16.5"(W3L),FINAL GEAR 43/7 17.5"(W3Y) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33026-704-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33037-792-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) 		1-33037-784-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL 1-33026-791-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL 1-33037-801-0 01 1 9307- ●
24 COVER; CHECK HOLE,DUST 1-31131-030-0 01 1 9002- ● ● ● ● ●
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 9002- ● ● ● ● ●
26 WASHER; PL,COVER
ID=8.4 OD=22 		9-09160-708-0 02 1 9002-9205 ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		9-01900-816-0 04 1 9002-9204 ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9205-9205 ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28080-812-0 04 1 9206- ● ● ● ● ●
28 COVER; FRT,TRANS CASE 1-33121-063-1 01 1 9002- ● ● ● ● ●
29 BOLT; FRT COVER
M10X32 		1-09020-120-1 05 1 9002-9205 ● ● ● ● ●
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		1-09040-089-0 05 1 9206- ● ● ● ● ●
30 WASHER; LK,FRT COVER
ID=10.2 		9-09150-510-0 05 1 9002-9205 ● ● ● ● ●
31 WASHER; PL,FRT COVER BOLT
ID=10.5 		9-09164-510-0 05 1 9002-9205 ● ● ● ● ●
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). M16X45 L=69 		1-09623-369-0 05 1 9002- ● ● ● ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-496-0 01 1 9002- ● ● ● ● ●
35 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 9002- ● ● ● ● ●
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 9002- ● ● ● ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 9002- ● ● ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 9002- ● ● ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5 		9-09920-392-0 01 1 9002-9405 ● ● ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9406- ● ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9002- ● ● ● ● ●
51 COVER; SEAL,COUNTER,FRT 1-33319-055-1 01 1 9002- ● ● ● ● ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33141-030-1 01 1 9002- ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		9-01921-020-0 08 1 9002-9204 ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		0-50051-020-0 08 1 9205-9205 ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28181-016-0 08 1 9206- ● ● ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33142-037-0 01 1 9002-9411 ● ● ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33142-043-0 01 1 9412- ● ● ●
86 BOLT; RR COVER
M12X40 		9-01931-240-0 10 1 9002-9205 ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 10 1 9206-9306 ● ●
86 BOLT; RR COVER
M12X40 		9-01991-240-0 10 1 9002-9205 ●
86 BOLT; RR COVER
M10X16,M12X35 L=59 		1-09029-031-0 02 1 9002-9205 ● ● ● ●
86 BOLT; RR COVER
M12X30 & M10X16 		1-09049-018-0 02 1 9206-9512 ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X30 L=57.7 		1-09049-018-0 03 1 9601- ● ●
86 BOLT; RR COVER
M12X70 		9-01656-270-0 02 1 9002-9205 ● ● ●
86 BOLT; RR COVER
M12X65 		1-09044-077-0 02 1 9206- ● ● ●
86 BOLT; RR COVER
M10X22 		1-09033-005-0 01 1 9002-9205 ●
86 BOLT; RR COVER
M10X20 		1-09044-078-0 01 1 9206- ●
86 BOLT; RR COVER
M12X40 		9-01931-240-0 09 1 9002-9205 ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9206-9512 ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 08 1 9601- ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9601- ●
86 BOLT; RR COVER
M12X40 		9-01991-240-0 09 1 9002-9205 ● ●
87 WASHER; LK,RR COVER
ID=12.2 		9-09150-512-0 04 1 9002-9205 ● ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-472-0 01 1 9002-9306 ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-474-0 01 1 9002-9406 ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-579-1 01 1 9407- ● ● ●
97 STUD; PARKING BRK
M16X30 L=62 		1-09302-151-0 01 1 9002- ● ● ● ● ●
97 STUD; PARKING BRK
PARKING BRAKE TRANSMISSION REAR(PJ8) M16X33 L=72 		1-09302-002-0 03 1 9002- ●
100 PLUG; DRAIN RR COVER
M24X17 FLANGE 		1-09604-023-0 01 1 9002-9306 ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9002-9306 ●
102 RETAINER; BRG UPR,MAINSHAFT 1-33151-035-1 01 1 9002-9306 ●
102 RETAINER; BRG UPR,MAINSHAFT 9-33151-014-0 01 1 9002- ● ●
103 RETAINER; BRG 1-33151-035-1 01 1 9002-9306 ●
103 RETAINER; BRG 9-33151-015-0 01 1 9002- ● ●
104 BOLT; BRG RET
M10X30 W/LK WASHER 		0-50051-030-0 08 1 9002-9205 ● ● ●
104 BOLT; BRG RET
M10X25 		1-09049-006-1 08 1 9206- ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 03 1 9002-9205 ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 04 1 9206-9306 ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		0-50051-040-0 02 1 9002-9006 ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 		0-16806-050-0 02 1 9007-9205 ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE 		0-28181-050-0 02 1 9206-9306 ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 04 1 9002-9105 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 06 1 9106-9205 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 06 1 9206- ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		0-50051-040-0 01 1 9002-9105 ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 		9-04501-025-0 03 1 9106-9203 ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 03 1 9204-9205 ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 		9-04501-025-0 03 1 9002-9105 ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 		9-04501-025-0 02 1 9106-9203 ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 02 1 9204- ● ● ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 05 1 9002-9205 ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 03 1 9002-9105 ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 02 1 9106-9205 ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 03 1 9106-9205 ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 03 1 9002-9105 ● ● ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 02 1 9106-9205 ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91150-210-0 02 1 9206- ● ● ● ● ●
414 COVER; DUST,RR COVER 1-33139-011-1 01 1 9002-9306 ● ●
414 COVER; DUST,RR COVER 1-33139-004-0 01 1 9002- ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-021-0 01 1 9002-9405 ● ● ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 9406- ● ● ●
421 COVER; RR,TRANS 1-33131-109-1 01 1 9002-9306 ●
421 COVER; RR,TRANS 1-33131-122-2 01 1 9002-9011 ●
421 COVER; RR,TRANS 1-33131-138-0 01 1 9012-9306 ●
421 COVER; RR,TRANS 1-33131-108-1 01 1 9002- ●
421 COVER; RR,TRANS 1-33131-096-3 01 1 9002- ● ●
426 WASHER; PL,RR COVER
ID=12.5 		9-09160-512-0 04 1 9002-9205 ● ● ●
426 WASHER; PL,RR COVER
ID=12.5 		9-09160-512-0 02 1 9002-9205 ●
429 PIN; STRAIGHT
OD=10 L=18 		9-08151-018-0 02 1 9002-9306 ● ●
429 PIN; STRAIGHT
OD=8 L=16 		9-08150-816-0 02 1 9002- ● ● ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 9002- ● ● ● ● ●
434 HOUSING; CLU
STEEL 		1-31110-118-5 01 1 9002-9306 ● ●
434 HOUSING; CLU
STEEL 		1-31110-123-5 01 1 9002- ● ● ●
435 CASE; TRANS 1-33111-197-0 01 1 9002-9306 ●
435 CASE; TRANS 1-33111-195-0 01 1 9002-9306 ●
435 CASE; TRANS 1-33111-199-5 01 1 9002- ●
435 CASE; TRANS 1-33111-213-0 01 1 9002-9108 ● ●
435 CASE; TRANS 1-33111-227-0 01 1 9109- ● ●
